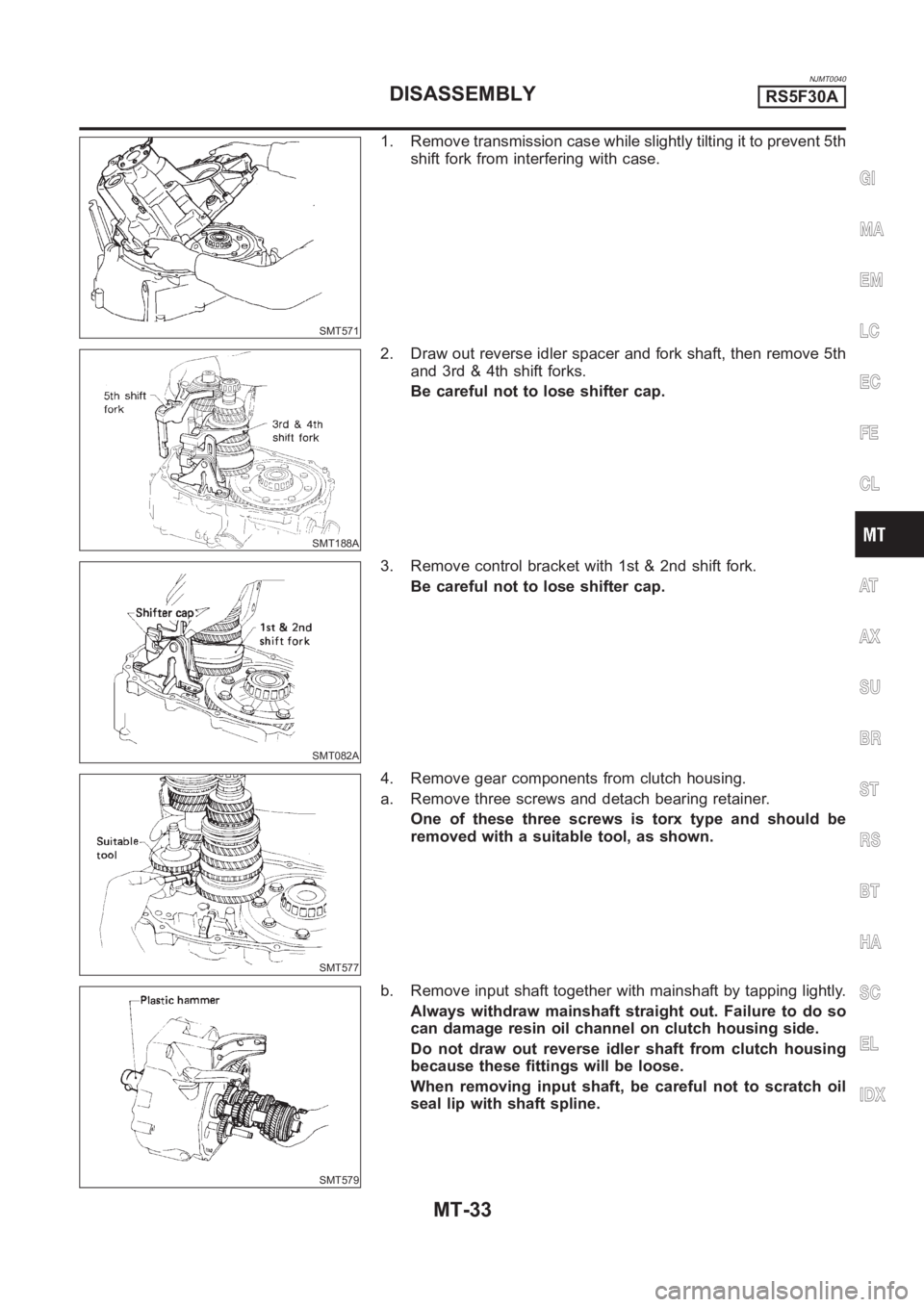

1. Remove transmission case while slightly tilting it to prevent 5th
shift fork from interfering with case.
SMT188A
2. Draw out reverse idler spacer and fork shaft, then remove 5th
and 3rd & 4th shift forks.
Be careful not to lose shifter cap.
SMT082A
3. Remove control bracket with 1st & 2nd shift fork.
Be careful not to lose shifter cap.
SMT577
4. Remove gear components from clutch housing.
a. Remove three screws and detach bearing retainer.
One of these three screws is torx type and should be
removed with a suitable tool, as shown.
SMT579
b. Remove input shaft together with mainshaft by tapping lightly.
Always withdraw mainshaft straight out. Failure to do so
can damage resin oil channel on clutch housing side.
Do not draw out reverse idler shaft from clutch housing
because these fittings will be loose.
When removing input shaft, be careful not to scratch oil
seal lip with shaft spline.
GI
MA
EM
LC
EC
FE
CL
AT
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
DISASSEMBLYRS5F30A
MT-33
Page 1354 of 3189
SMT580

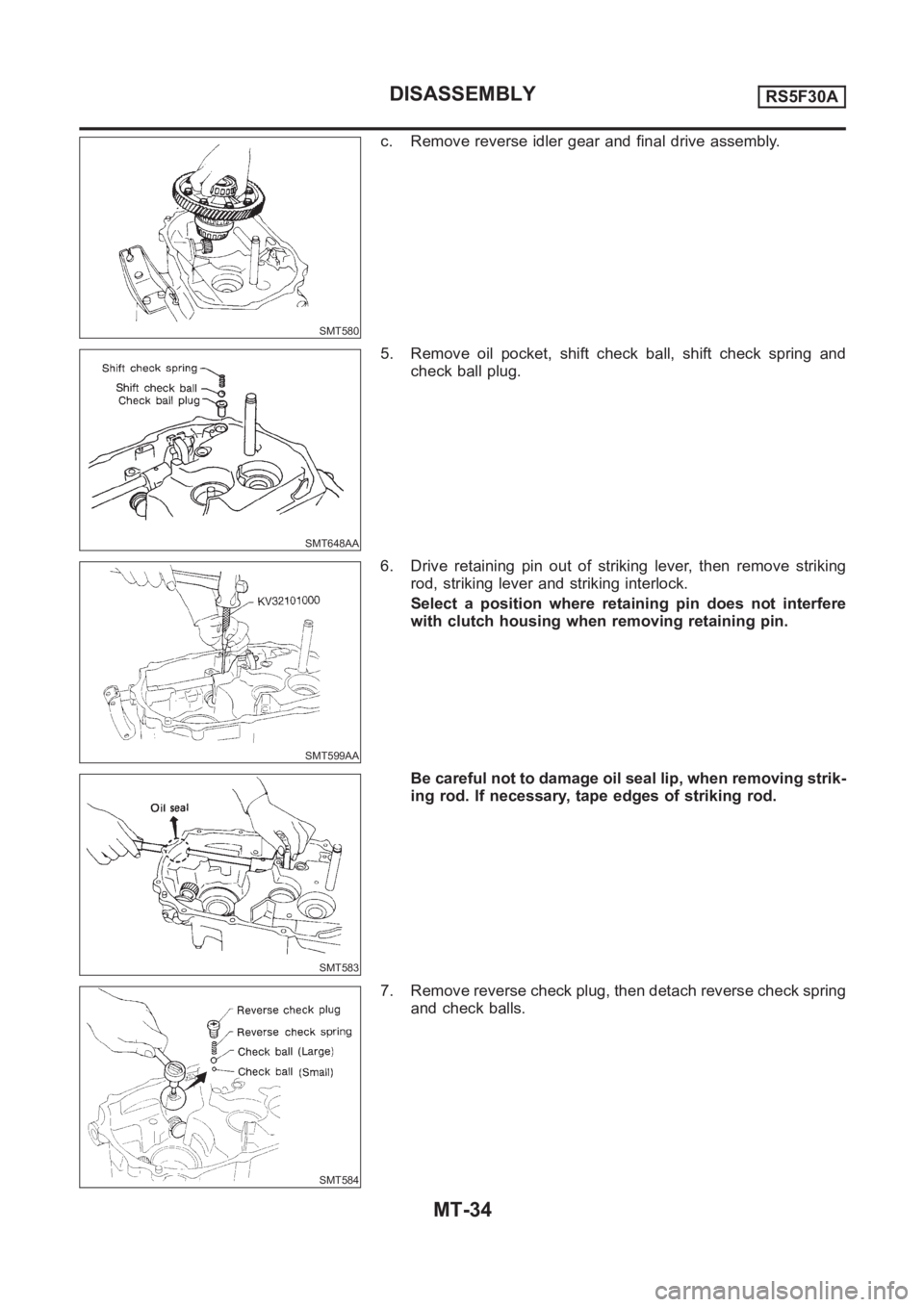

c. Remove reverse idler gear and final drive assembly.
SMT648AA
5. Remove oil pocket, shift check ball, shift check spring and
check ball plug.
SMT599AA
6. Drive retaining pin out of striking lever, then remove striking
rod, striking lever and striking interlock.
Select a position where retaining pin does not interfere
with clutch housing when removing retaining pin.
SMT583
Be careful not to damage oil seal lip, when removing strik-
ing rod. If necessary, tape edges of striking rod.
SMT584
7. Remove reverse check plug, then detach reverse check spring
and check balls.
DISASSEMBLYRS5F30A
MT-34
Page 1355 of 3189
SMT585

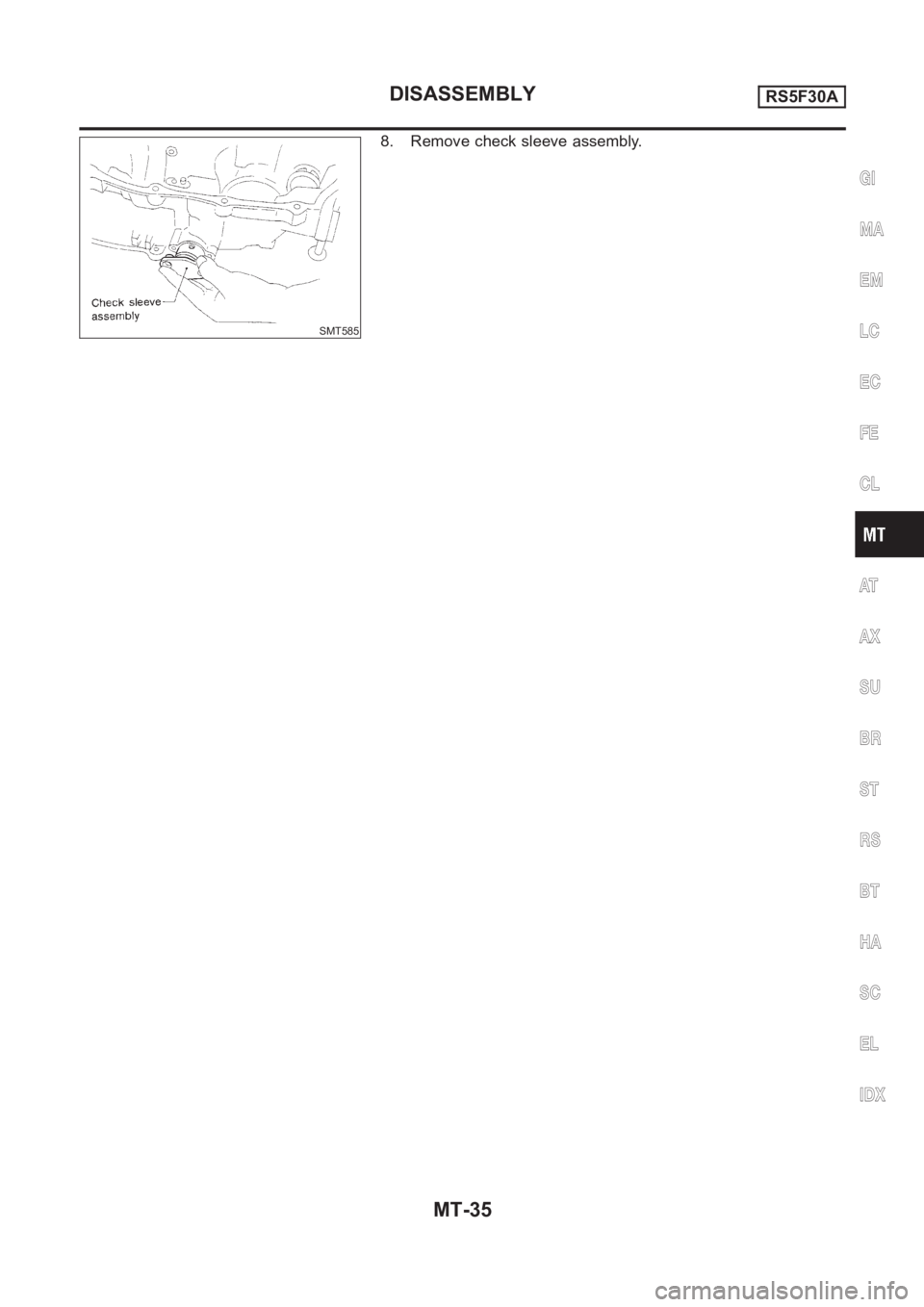

8. Remove check sleeve assembly.
