DTC P1706 PNP SWITCH
EC-359
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureEBS00KCK
1.CHECK PNP SWITCH GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Disconnect PNP switch harness connector.
3. Check harness continuity between PNP switch terminal 2 and
body ground.
Refer to Wiring Diagram.
4. Also check harness for short to power.
OK or NG
OK >> GO TO 2.
NG >> Repair open circuit or short to power in harness or con-
nectors.
2.CHECK PNP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 102 and PNP switch terminal 1.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
3.CHECK PNP SWITCH
Refer to AT- 111 , "
DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH" (A/T models) or MT-21 (M/T
models).
OK or NG
OK >> GO TO 4.
NG >> Replace PNP switch.
4.CHECK INTERMITTENT INCIDENT
Refer to EC-109, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
102P (A/T)
G/OR (M/T)PNP switch[Ignition switch “ON”]
●Shift lever position is “P” or “N” (A/T models).
●Shift lever position is ″Neutral″ (M/T models).Approximately 0V
[Ignition switch “ON”]
●Except the above gear positionA/T models
BATTERY VOLTAGE
(11 - 14V)
M/T models
Approximately 5V
Continuity should exist.
MBIB0253E
Continuity should exist.
Page 690 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual EC-360
[QG (WITH EURO-OBD)]
DTC P1805 BRAKE SWITCH
DTC P1805 BRAKE SWITCH
PFP:25320
DescriptionEBS00KCL
Brake switch signal is applied to the ECM through the stop lamp switch when the brake NISSAN ALMERA N16 2003 Electronic Repair Manual EC-360
[QG (WITH EURO-OBD)]
DTC P1805 BRAKE SWITCH
DTC P1805 BRAKE SWITCH
PFP:25320
DescriptionEBS00KCL
Brake switch signal is applied to the ECM through the stop lamp switch when the brake](/manual-img/5/57350/w960_57350-689.png)
EC-360
[QG (WITH EURO-OBD)]
DTC P1805 BRAKE SWITCH
DTC P1805 BRAKE SWITCH
PFP:25320
DescriptionEBS00KCL
Brake switch signal is applied to the ECM through the stop lamp switch when the brake pedal is depressed.
This signal is used mainly to decrease the engine speed when the vehicle is driving.
CONSULT-II Reference Value in Data Monitor ModeEBS00KCM
Specification data are reference values.
On Board Diagnosis LogicEBS00KCN
The MI will not light up for this self-diagnosis.
FALI-SAFE MODE
When the malfunction is detected, the ECM enters fail-safe mode and the MI lights up.
DTC Confirmation ProcedureEBS00KCO
WITH CONSULT-II
1. Turn ignition switch “ON”.
2. Fully depress the brake pedal for at least 5 seconds.
3. Erase the DTC with CONSULT-II.
4. Select “DATA MONITOR” mode with CONSULT-II.
5. If 1st trip DTC is detected, go to EC-362, "
Diagnostic Procedure"
.
WITH GST
Follow the procedure “WITH CONSULT-II” above.
MONITOR ITEM CONDITION SPECIFICATION
BRAKE SW
●Ignition switch: ONBrake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1805
1805Brake switchA brake switch signal is not sent to ECM for
an extremely long time while the vehicle is
driving.
●Harness or connectors
(Stop lamp switch circuit is open or shorted.)
●Stop lamp switch
Engine operating condition in fail-safe mode
ECM controls the electric throttle control actuator by regulating the throttle opening to a small range.
Therefore, acceleration will be poor.
Driving condition
When engine is idling Normal
When accelerating Poor acceleration
SEF058Y
Page 691 of 3189
DTC P1805 BRAKE SWITCH
EC-361
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Wiring DiagramEBS00KCP
YEC305A
Page 692 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual EC-362
[QG (WITH EURO-OBD)]
DTC P1805 BRAKE SWITCH
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring in NISSAN ALMERA N16 2003 Electronic Repair Manual EC-362
[QG (WITH EURO-OBD)]
DTC P1805 BRAKE SWITCH
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring in](/manual-img/5/57350/w960_57350-691.png)
EC-362
[QG (WITH EURO-OBD)]
DTC P1805 BRAKE SWITCH
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

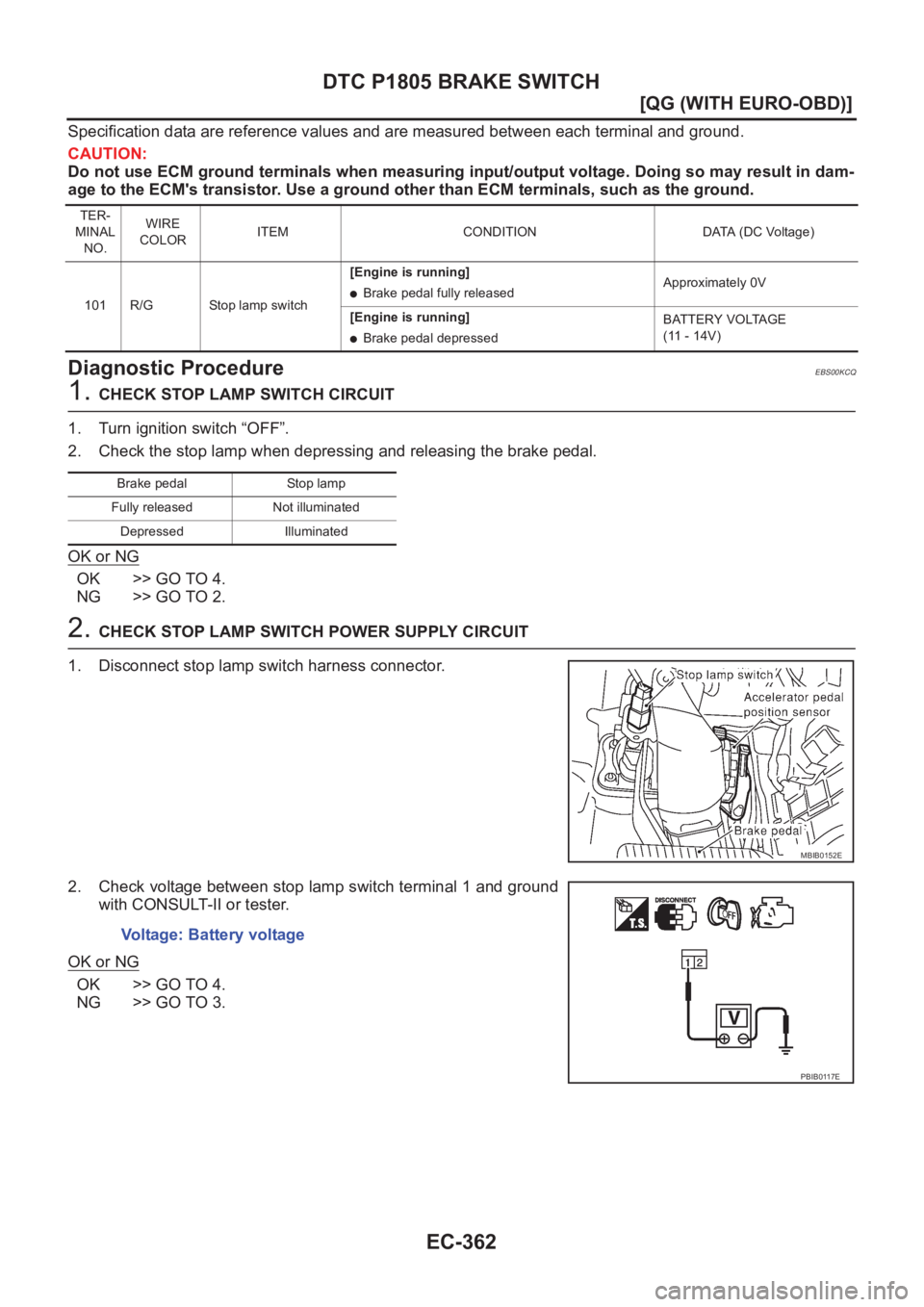

Diagnostic ProcedureEBS00KCQ
1. CHECK STOP LAMP SWITCH CIRCUIT
1. Turn ignition switch “OFF”.
2. Check the stop lamp when depressing and releasing the brake pedal.
OK or NG
OK >> GO TO 4.
NG >> GO TO 2.
2. CHECK STOP LAMP SWITCH POWER SUPPLY CIRCUIT
1. Disconnect stop lamp switch harness connector.
2. Check voltage between stop lamp switch terminal 1 and ground
with CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
101 R/G Stop lamp switch[Engine is running]
●Brake pedal fully releasedApproximately 0V
[Engine is running]
●Brake pedal depressedBATTERY VOLTAGE
(11 - 14V)
Brake pedal Stop lamp
Fully released Not illuminated
Depressed Illuminated
MBIB0152E
Voltage: Battery voltage
PBIB0117E
Page 693 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual DTC P1805 BRAKE SWITCH
EC-363
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
3.DETECT MALFUNCTIONING PART
Check the following.
●10A fuse
●Fuse block (J/B) connector M2
●Harness for open and shor NISSAN ALMERA N16 2003 Electronic Repair Manual DTC P1805 BRAKE SWITCH
EC-363
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
3.DETECT MALFUNCTIONING PART
Check the following.
●10A fuse
●Fuse block (J/B) connector M2
●Harness for open and shor](/manual-img/5/57350/w960_57350-692.png)
DTC P1805 BRAKE SWITCH
EC-363
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
3.DETECT MALFUNCTIONING PART
Check the following.
●10A fuse
●Fuse block (J/B) connector M2
●Harness for open and short between stop lamp switch and battery
>> Repair open circuit or short to ground or short to power in harness or connectors.
4.CHECK STOP LAMP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Disconnect ECM harness connector.
3. Disconnect stop lamp switch harness connector.
4. Check harness continuity between ECM terminal 101 and stop
lamp switch terminal 2.
Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5.DETECT MALFUNCTIONING PART
Check the following.
●Harness connectors M202, F115
●Harness for open or short between ECM and stop lamp switch
>> Repair open circuit or short to ground or short to power in harness or connectors.
6.CHECK STOP LAMP SWITCH
Refer to EC-364, "
Component Inspection" .
OK or NG
OK >> GO TO 7.
NG >> Replace stop lamp switch.
7.CHECK INTERMITTENT INCIDENT
Refer to EC-109, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END Continuity should exist.
MBIB0152E
Page 694 of 3189
EC-364
[QG (WITH EURO-OBD)]
DTC P1805 BRAKE SWITCH

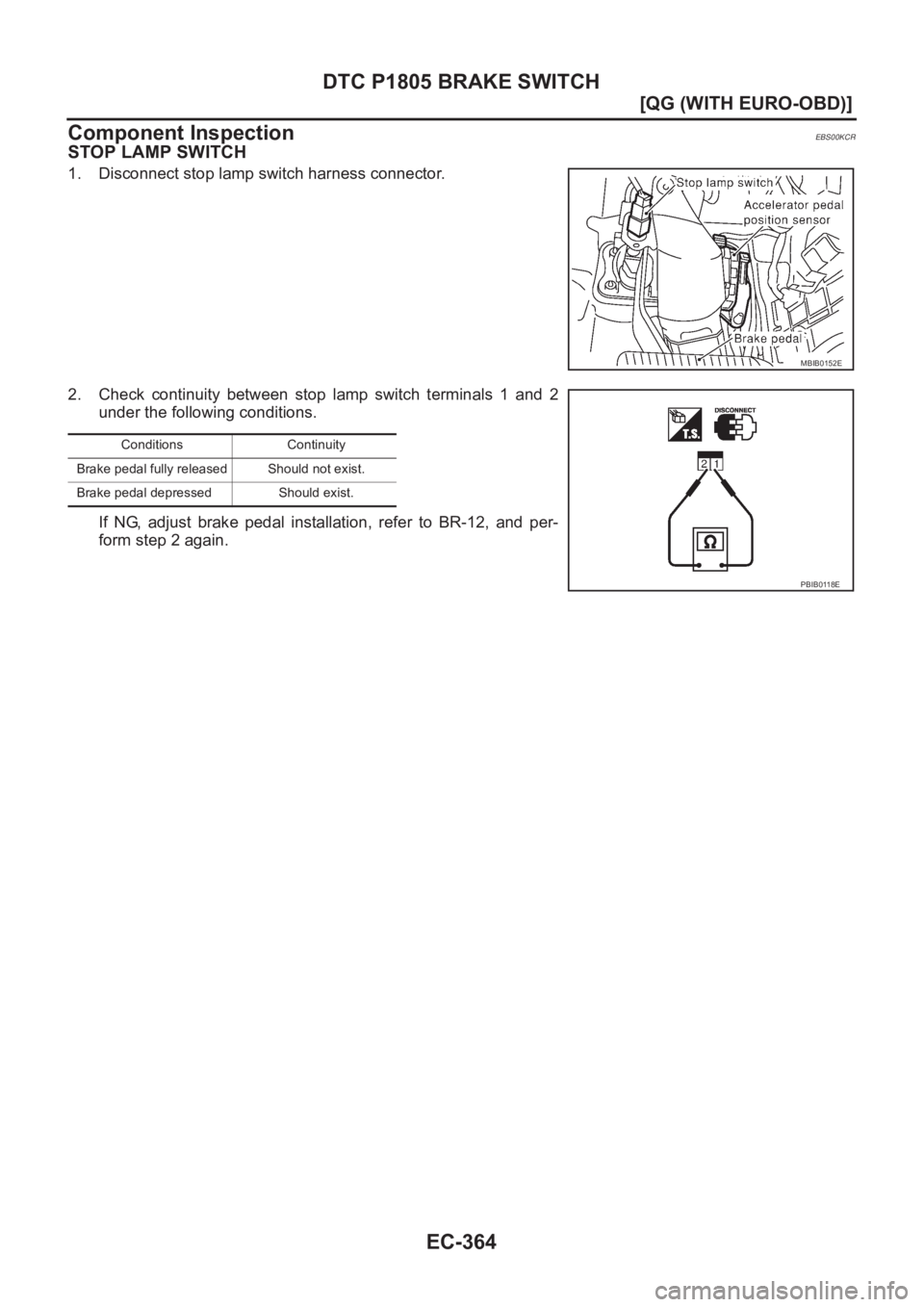

Component Inspection
EBS00KCR
STOP LAMP SWITCH
1. Disconnect stop lamp switch harness connector.
2. Check continuity between stop lamp switch terminals 1 and 2
under the following conditions.
If NG, adjust brake pedal installation, refer to BR-12, and per-
form step 2 again.
MBIB0152E
Conditions Continuity
Brake pedal fully released Should not exist.
Brake pedal depressed Should exist.
PBIB0118E
Page 695 of 3189
IGNITION SIGNAL
EC-365
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
IGNITION SIGNALPFP:22448

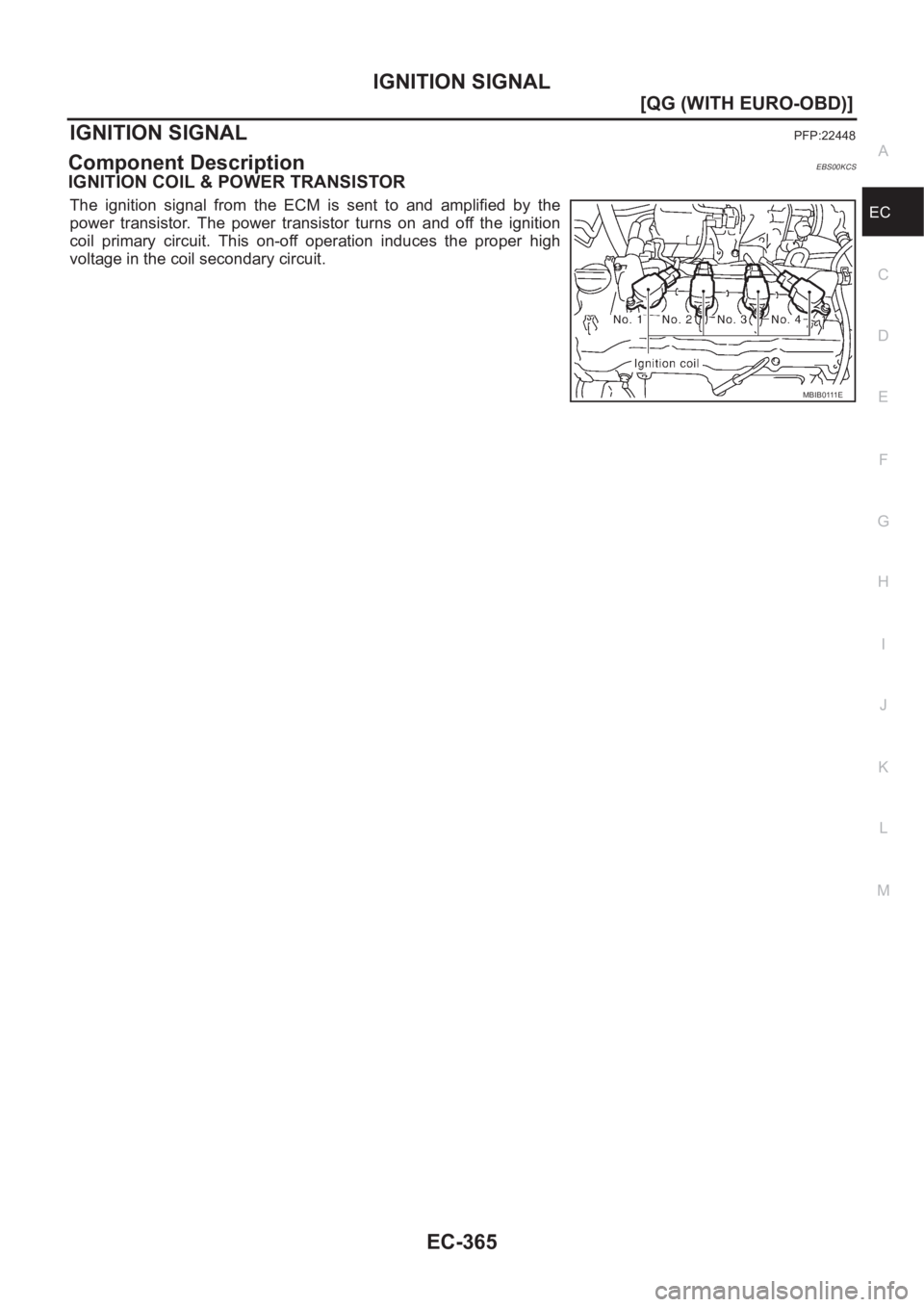

Component DescriptionEBS00KCS
IGNITION COIL & POWER TRANSISTOR
The ignition signal from the ECM is sent to and amplified by the
power transistor. The power transistor turns on and off the ignition
coil primary circuit. This on-off operation induces the proper high
voltage in the coil secondary circuit.
M B I B 0 111 E
Page 696 of 3189
EC-366
[QG (WITH EURO-OBD)]
IGNITION SIGNAL
Wiring Diagram
EBS00KCT
YEC306A
