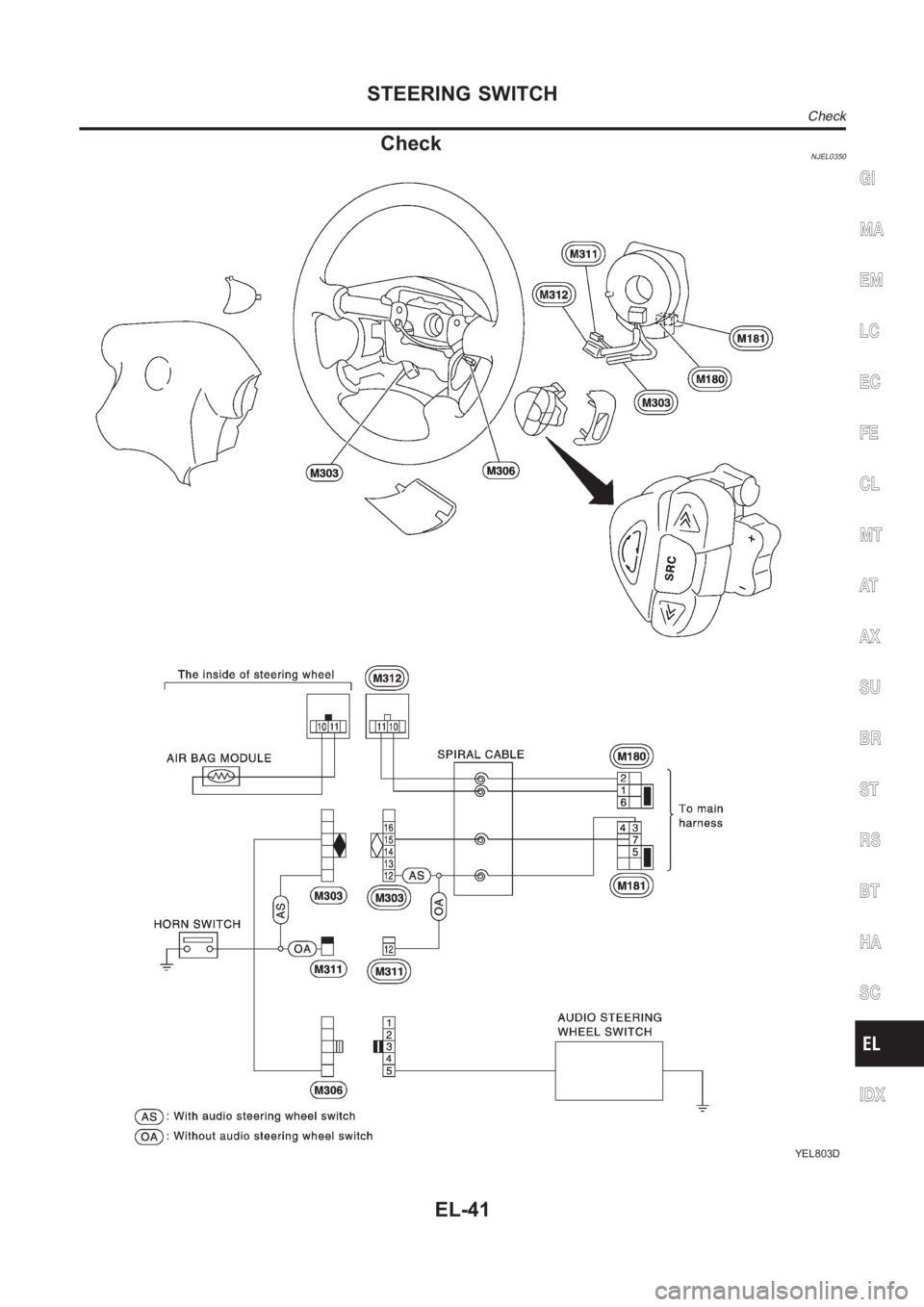

STEERING SWITCH
Check
EL-41

Page 2378 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual Wiring Diagram — H/LAMP —NJEL0420
YEL668D
HEADLAMP
Wiring Diagram — H/LAMP —
EL-42

Page 2379 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual Trouble DiagnosesNJEL0202
Symptom Possible cause Repair order
Neither headlamp operates. 1. Lighting switch 1. Check Lighting switch.
LH headlamp (low and high beam)
does not operate, but RH head-
lam

Trouble DiagnosesNJEL0202
Symptom Possible cause Repair order
Neither headlamp operates. 1. Lighting switch 1. Check Lighting switch.
LH headlamp (low and high beam)
does not operate, but RH head-
lamp (low and high beam) does
operate.1. 15A fuse
2. Headlamp LH ground circuit
3. Lighting switch1. Check 15A fuse (No. 35, located in fusible link and
fuse box). Verify battery positive voltage is present
at lighting switch terminal 8.
2. Check headlamp LH ground circuit.
3. Check lighting switch.
RH headlamp (low and high beam)
does not operate, but LH headlamp
(low and high beam) does operate.1. 15A fuse
2. Headlamp RH ground circuit
3. Lighting switch1. Check 15A fuse (No. 36, located in fusible link and
fuse box). Verify battery positive voltage is present
at lighting switch terminal 5.
2. Check headlamp RH ground circuit.
3. Check lighting switch.
LH high beam does not operate,
but LH low beam does operate.1. Bulb
2. Open in LH high beam circuit
3. Lighting switch1. Check bulb.
2. Check the harness between lighting switch and LH
high beam for an open circuit.
3. Check lighting switch.
LH low beam does not operate, but
LH high beam does operate.1. Bulb
2. Open in LH low beam circuit
3. Lighting switch1. Check bulb.
2. Check the harness between lighting switch and LH
low beam for an open circuit.
3. Check lighting switch.
RH high beam does not operate,
but RH low beam does operate.1. Bulb
2. Open in RH high beam circuit
3. Lighting switch1. Check bulb.
2. Check the harness between lighting switch and RH
high beam for an open circuit.
3. Check lighting switch.
RH low beam does not operate,
but RH high beam does operate.1. Bulb
2. Open in RH low beam circuit
3. Lighting switch1. Check bulb.
2. Check the harness between lighting switch and RH
low beam for an open circuit.
3. Check lighting switch.
High beam indicator does not work. 1. Bulb
2. Ground circuit
3. Open in high beam circuit1. Check bulb in combination meter.
2. Check harness between high beam indicator and
ground.
3. Check the harness between lighting switch and
combination meter for an open circuit.GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
HEADLAMP
Trouble Diagnoses
EL-43

Page 2380 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual YEL809D
Bulb ReplacementNJEL0015The headlamp is a semi-sealed beam type which uses a replace-
able halogen bulb. The bulb can be replaced from the engine com-
partment side without removing the headla

Page 2381 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual YEL810D
LOW BEAM=NJEL0016S021. Turn headlamp low beam on.
2. Use adjusting screws to perform aiming adjustment.
First tighten the adjusting screw all the way and then
make adjustment by loosening the

Page 2382 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual System DescriptionNJEL0351The headlamp system on vehicles for cold spec. option contains a daytime light unit. The unit activates the
following whenever the engine is running with the lighting switch

System DescriptionNJEL0351The headlamp system on vehicles for cold spec. option contains a daytime light unit. The unit activates the
following whenever the engine is running with the lighting switch in the OFF position:
Low beam headlamps
Parking, license, tail and illumination lamps
Power is supplied at all times
through 10A fuse (No. 38, located in the fusible link and fuse box)
to daytime light unit terminal 1 and
to lighting switch terminal 11.
Power is also supplied at all times
through 15A fuse (No. 36, located in the fusible link and fuse box)
to daytime light unit terminal 3 and
to lighting switch terminal 5.
Power is also supplied at all times
through 15A fuse (No. 35, located in the fusible link and fuse box)
to daytime light unit terminal 2 and
to lighting switch terminal 8.
With the ignition switch in the ON or START position, power is supplied
through 10A fuse [No. 20, located in the fuse block (J/B)]
to daytime light unit terminal 7.
With the ignition switch in the START position, power is supplied
through 10A fuse [No. 21, located in the fuse block (J/B)]
to daytime light unit terminal 6.
Ground is supplied to daytime light unit terminal 9 through body grounds E30 and E73.
HEADLAMP OPERATION (DAYTIME LIGHT CANCEL OPERATION)NJEL0351S01When the lighting switch is turned to the 1st or 2nd position, power is supplied
through lighting switch terminal 12,
to daytime light unit terminal 11.
Then daytime light will be canceled. And the lighting system operation will be the same as no daytime light
system.
DAYTIME LIGHT OPERATIONNJEL0351S02With the engine running and the lighting switch in the OFF position, power is supplied
from alternator terminal 3
to daytime light unit terminal 8,
through daytime light unit terminal 5
to terminal 4 of headlamp LH,
through daytime light unit terminal 4
to terminal 2 of headlamp RH and
through daytime light unit terminal 10
to tail lamp and illumination.
Ground is supplied to terminal 5 of headlamp LH and terminal 1 of headlamp RHthrough body grounds E30
and E73.
HEADLAMP — DAYTIME LIGHT SYSTEM —
System Description
EL-46
