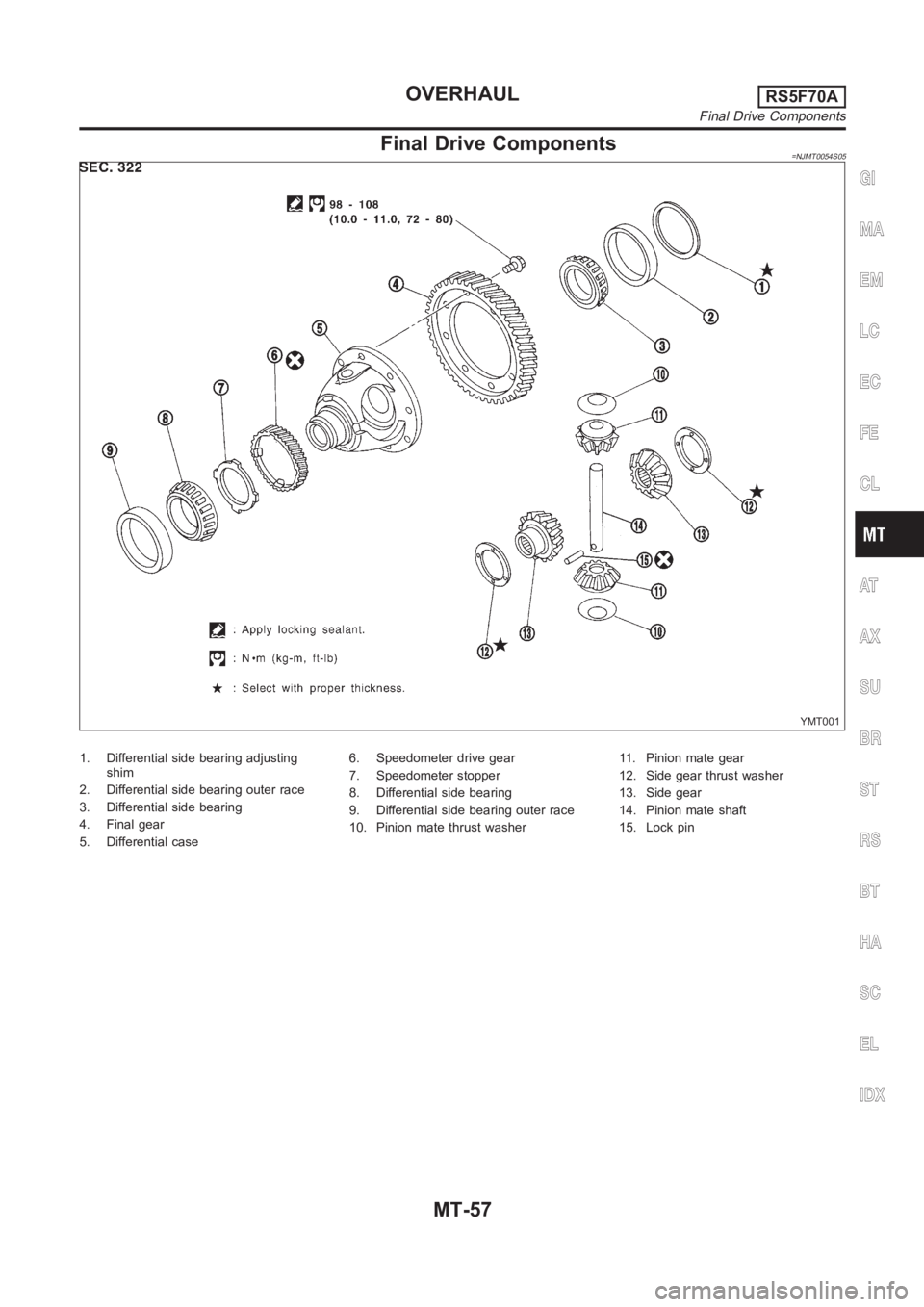

NISSAN ALMERA N16 2003 Electronic Repair Manual Final Drive Components=NJMT0054S05 YMT001 1. Differential side bearing adjusting shim 2. Differential side bearing outer race 3. Differential side bearing 4. Final gear 5. Differential case6. Speedome

Page 1378 of 3189

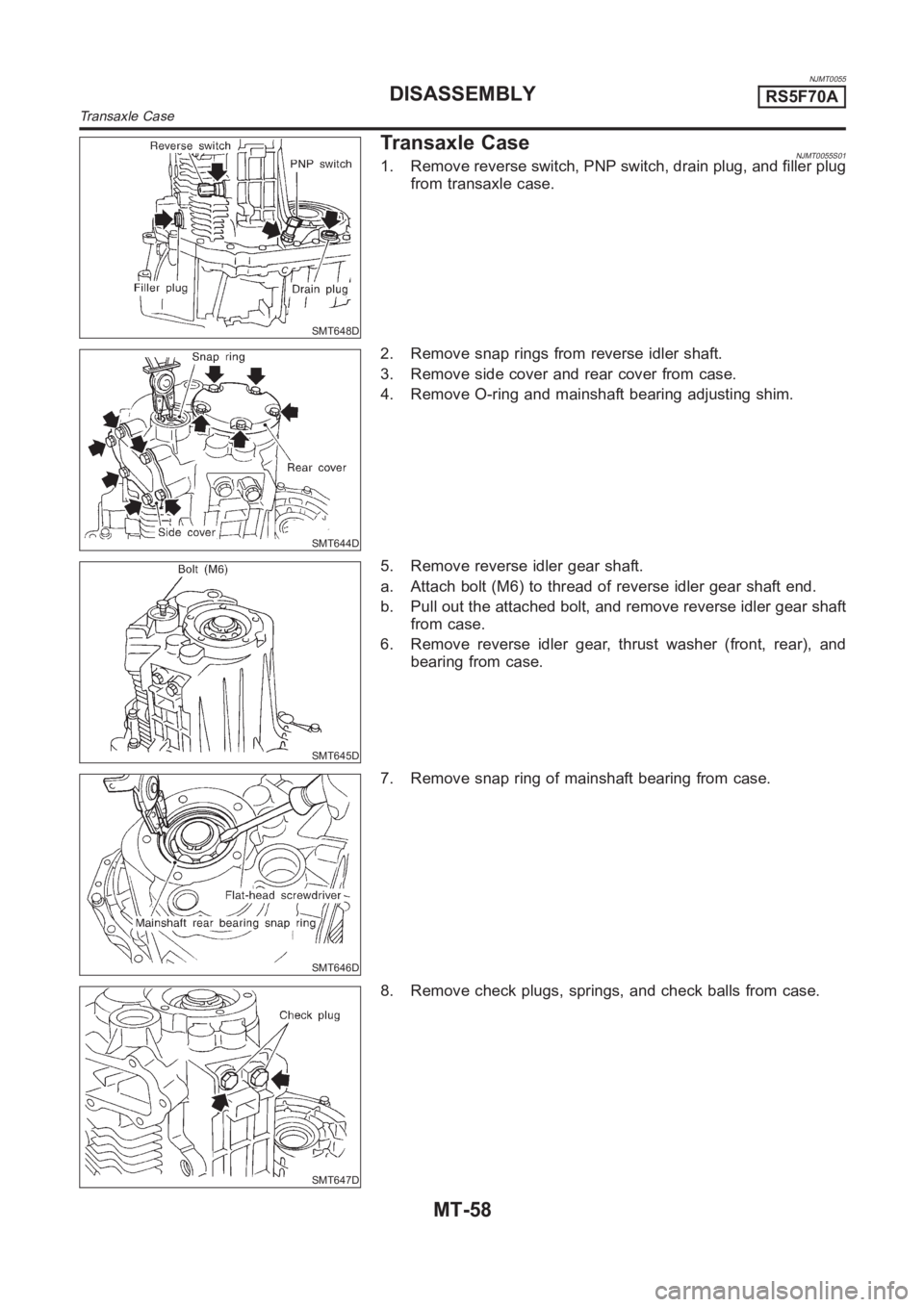

NISSAN ALMERA N16 2003 Electronic Repair Manual NJMT0055 SMT648D Transaxle CaseNJMT0055S011. Remove reverse switch, PNP switch, drain plug, and filler plug from transaxle case. SMT644D 2. Remove snap rings from reverse idler shaft. 3. Remove side c

Page 1379 of 3189

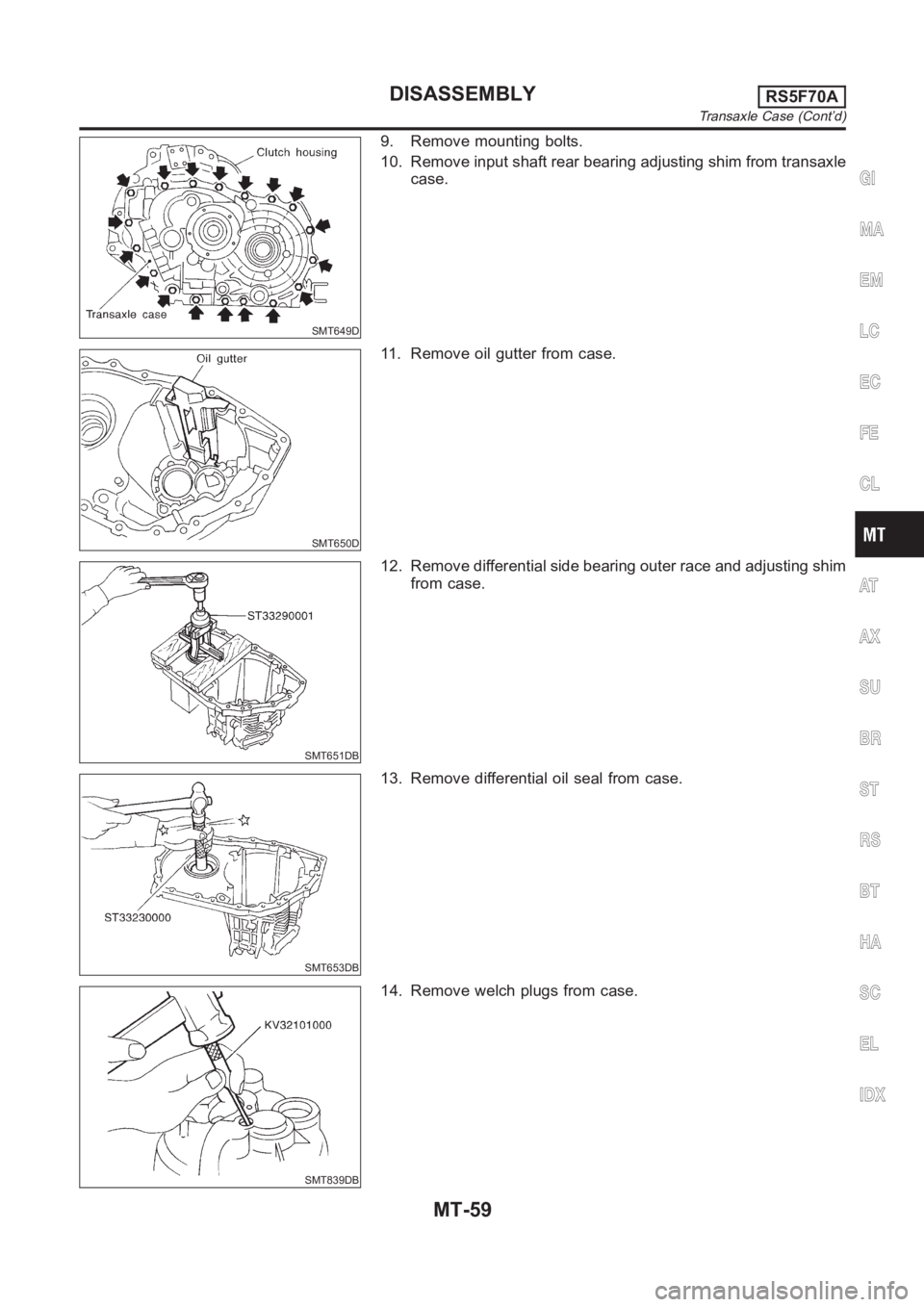

NISSAN ALMERA N16 2003 Electronic Repair Manual SMT649D 9. Remove mounting bolts. 10. Remove input shaft rear bearing adjusting shim from transaxle case. SMT650D 11. Remove oil gutter from case. SMT651DB 12. Remove differential side bearing outer r

Page 1380 of 3189

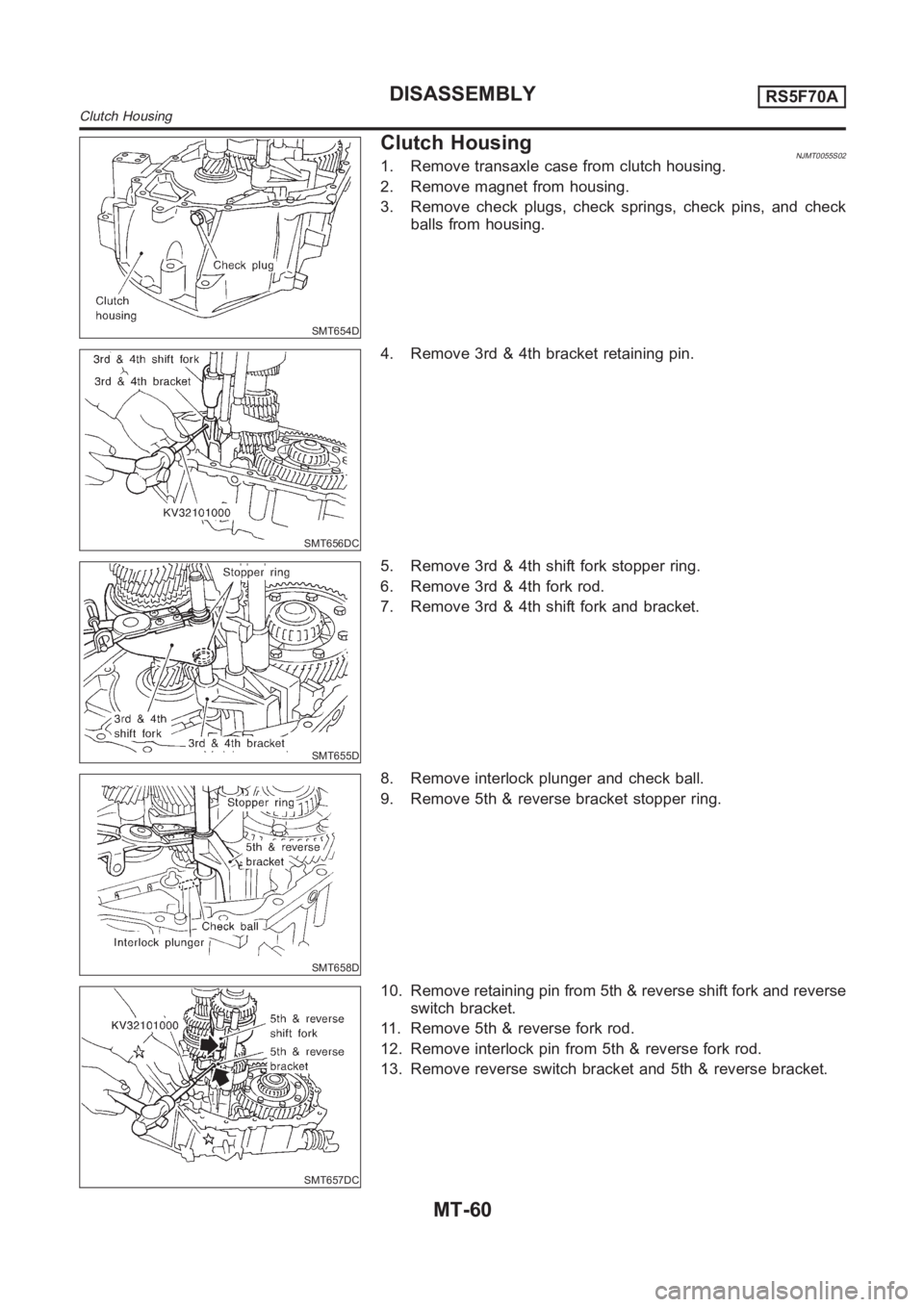

NISSAN ALMERA N16 2003 Electronic Repair Manual SMT654D Clutch HousingNJMT0055S021. Remove transaxle case from clutch housing. 2. Remove magnet from housing. 3. Remove check plugs, check springs, check pins, and check balls from housing. SMT656DC 4

Page 1381 of 3189

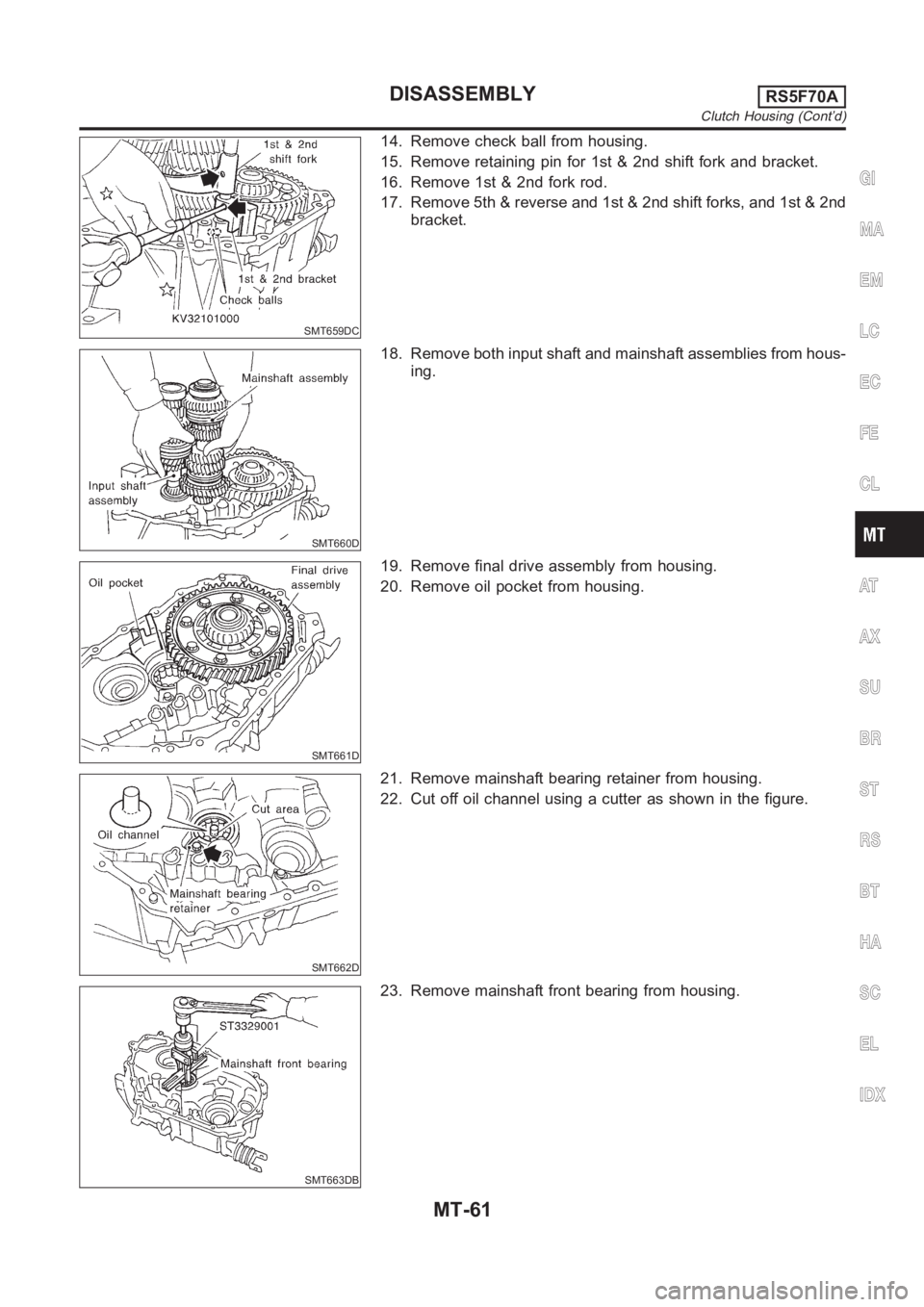

NISSAN ALMERA N16 2003 Electronic Repair Manual SMT659DC 14. Remove check ball from housing. 15. Remove retaining pin for 1st & 2nd shift fork and bracket. 16. Remove 1st & 2nd fork rod. 17. Remove 5th & reverse and 1st & 2nd shift forks, and 1st &

Page 1382 of 3189

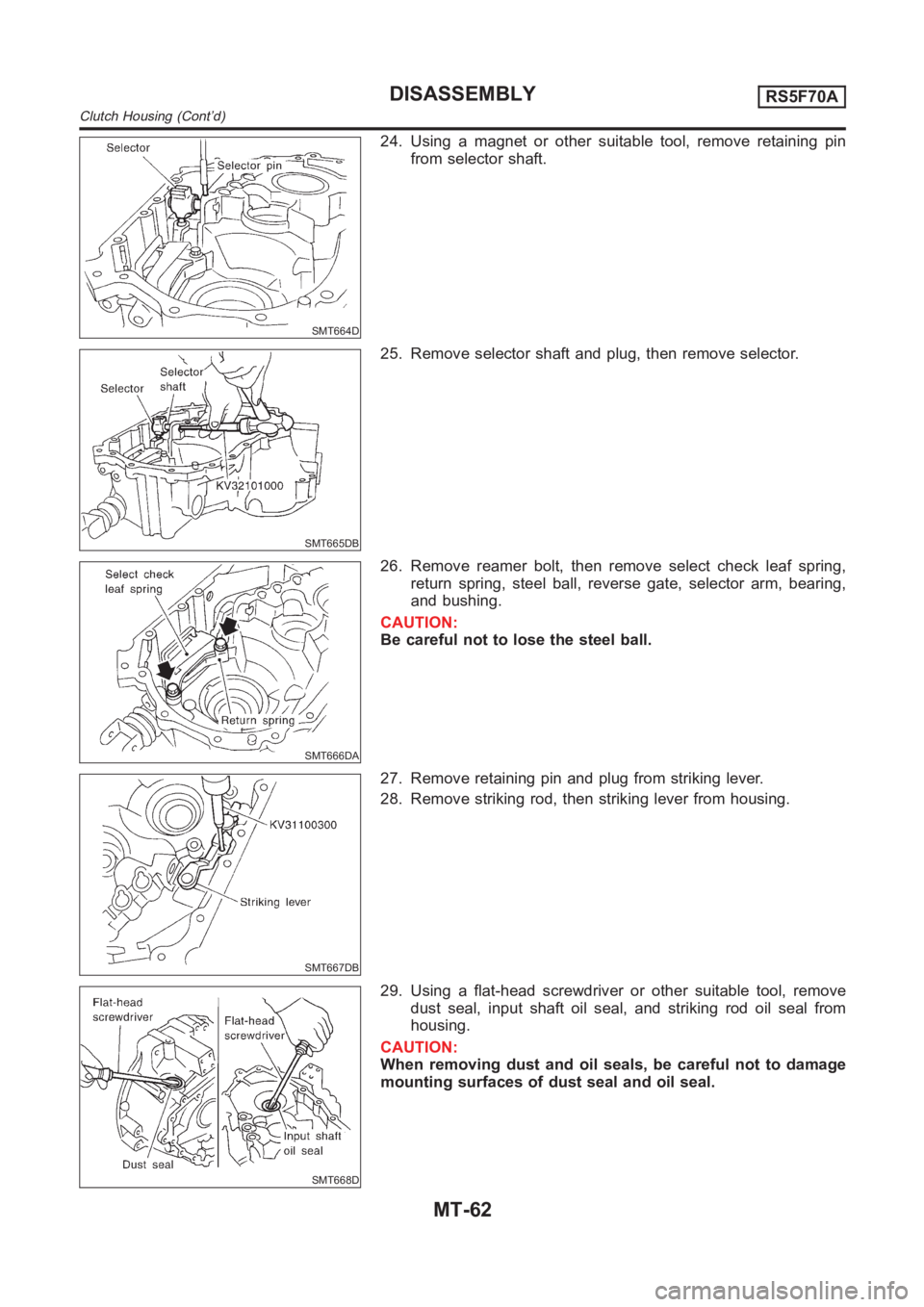

NISSAN ALMERA N16 2003 Electronic Repair Manual SMT664D 24. Using a magnet or other suitable tool, remove retaining pin from selector shaft. SMT665DB 25. Remove selector shaft and plug, then remove selector. SMT666DA 26. Remove reamer bolt, then re

Page 1383 of 3189

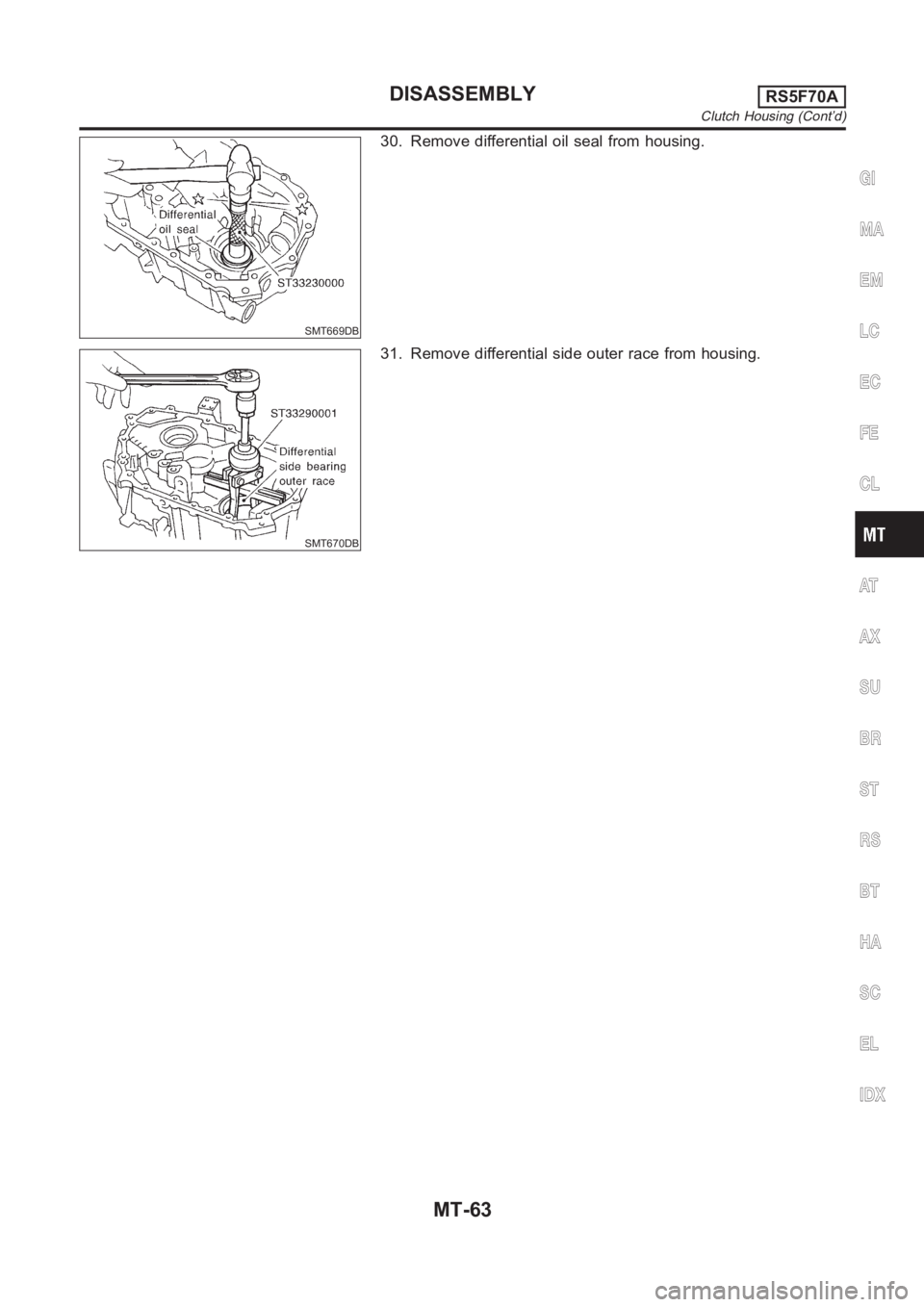

NISSAN ALMERA N16 2003 Electronic Repair Manual SMT669DB 30. Remove differential oil seal from housing. SMT670DB 31. Remove differential side outer race from housing. GI MA EM LC EC FE CL AT AX SU BR ST RS BT HA SC EL IDX DISASSEMBLYRS5F70A Clutch

Page 1384 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual SMT759D Input Shaft and Gears DISASSEMBLYNJMT00561. Before disassembly, measure the end plays of 3rd and 4th input gears. Gear end play: Refer to SDS, MT-124. If end play is not within specification,
