DESCRIPTION
Cross-sectional View — RS5F70A
MT-17
Page 1338 of 3189
Cross-sectional View — RS5F50ANJMT0034S04
SMT196DA
DESCRIPTION

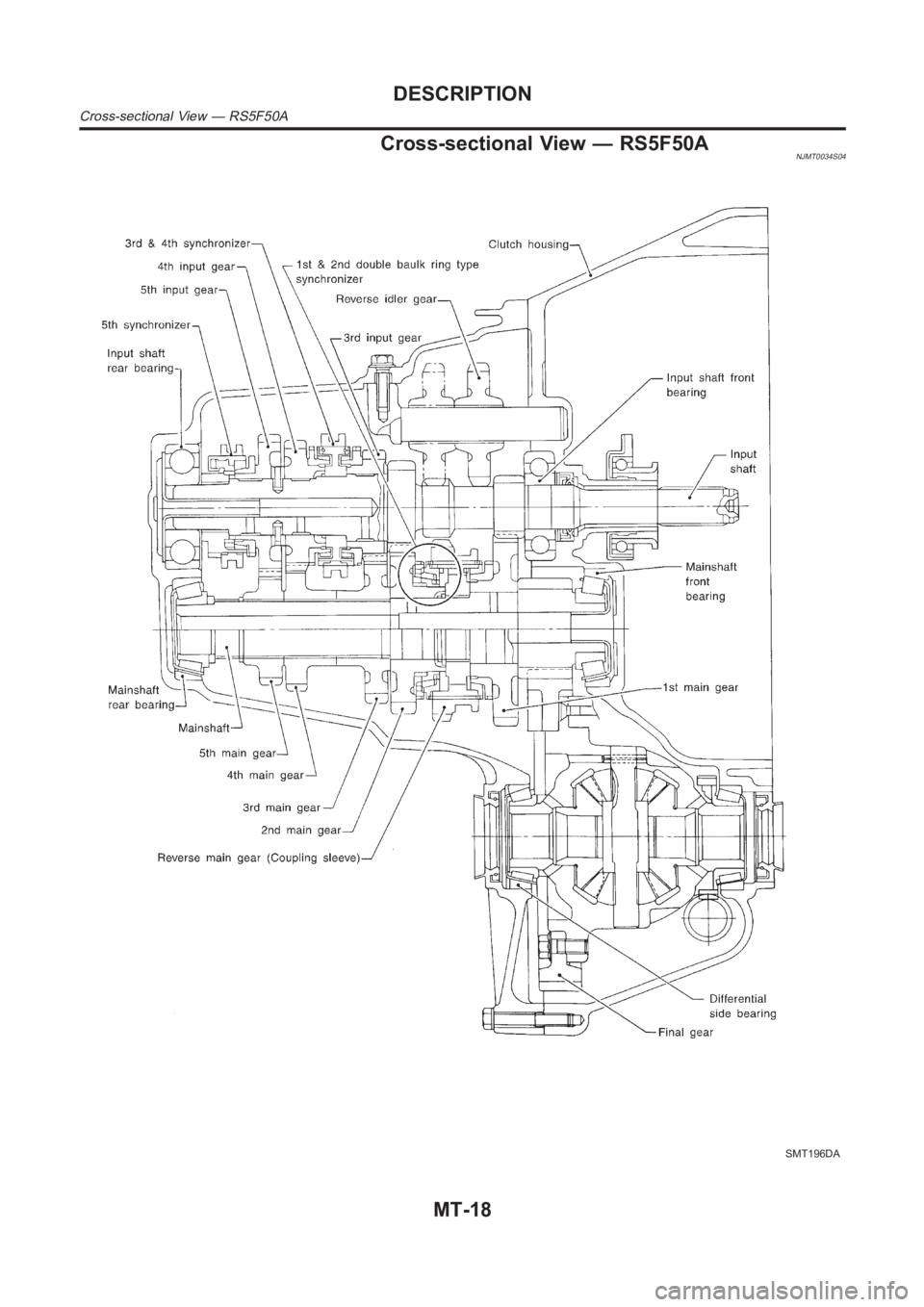

Cross-sectional View — RS5F50A
MT-18
Page 1339 of 3189
SMT837DA

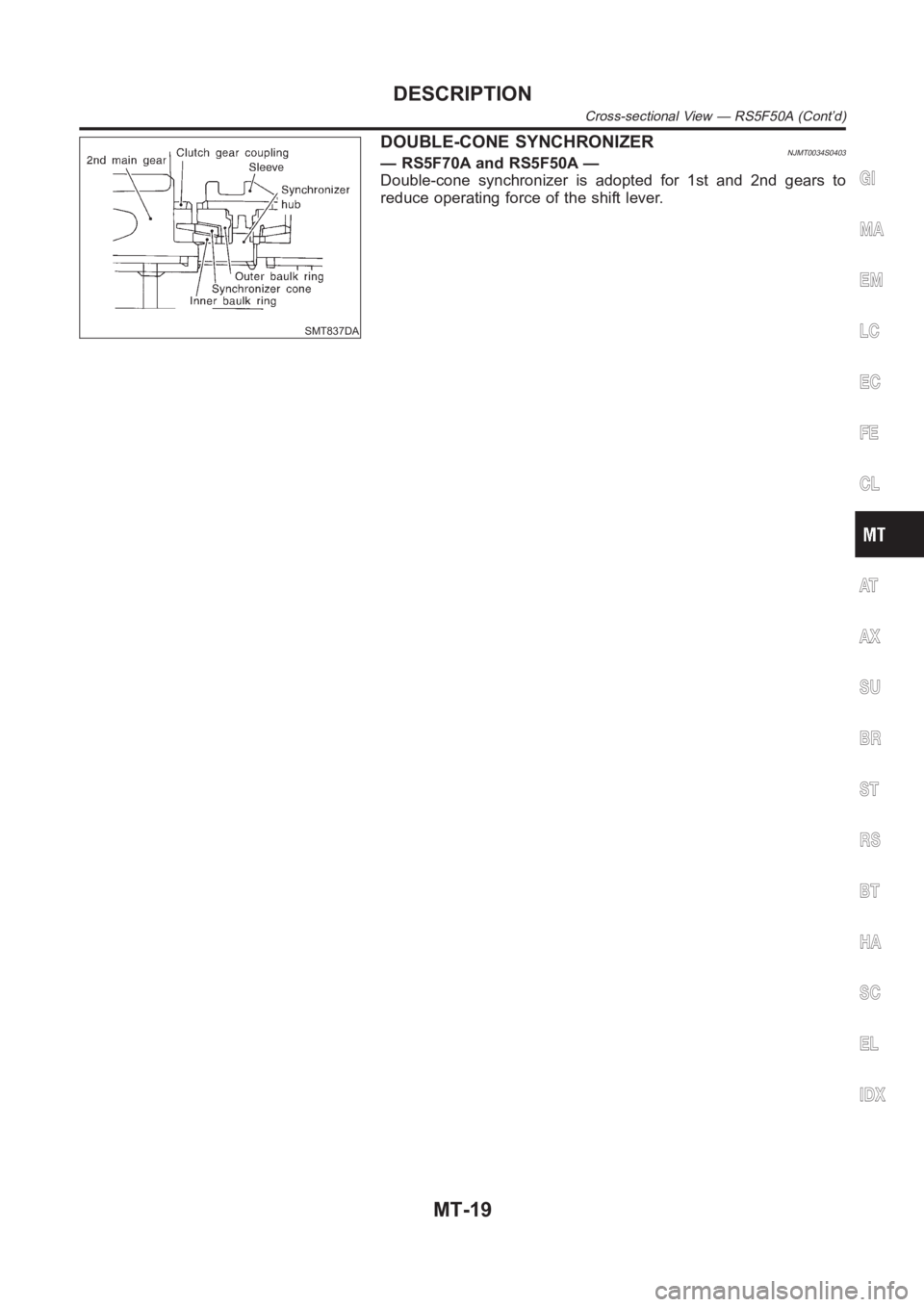

DOUBLE-CONE SYNCHRONIZERNJMT0034S0403— RS5F70A and RS5F50A —
Double-cone synchronizer is adopted for 1st and 2nd gears to
reduce operating force of the shift lever.
GI
MA
EM
LC
EC
FE
CL
AT
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
DESCRIPTION
Cross-sectional View — RS5F50A (Cont’d)
MT-19
Page 1340 of 3189
SMT563AA

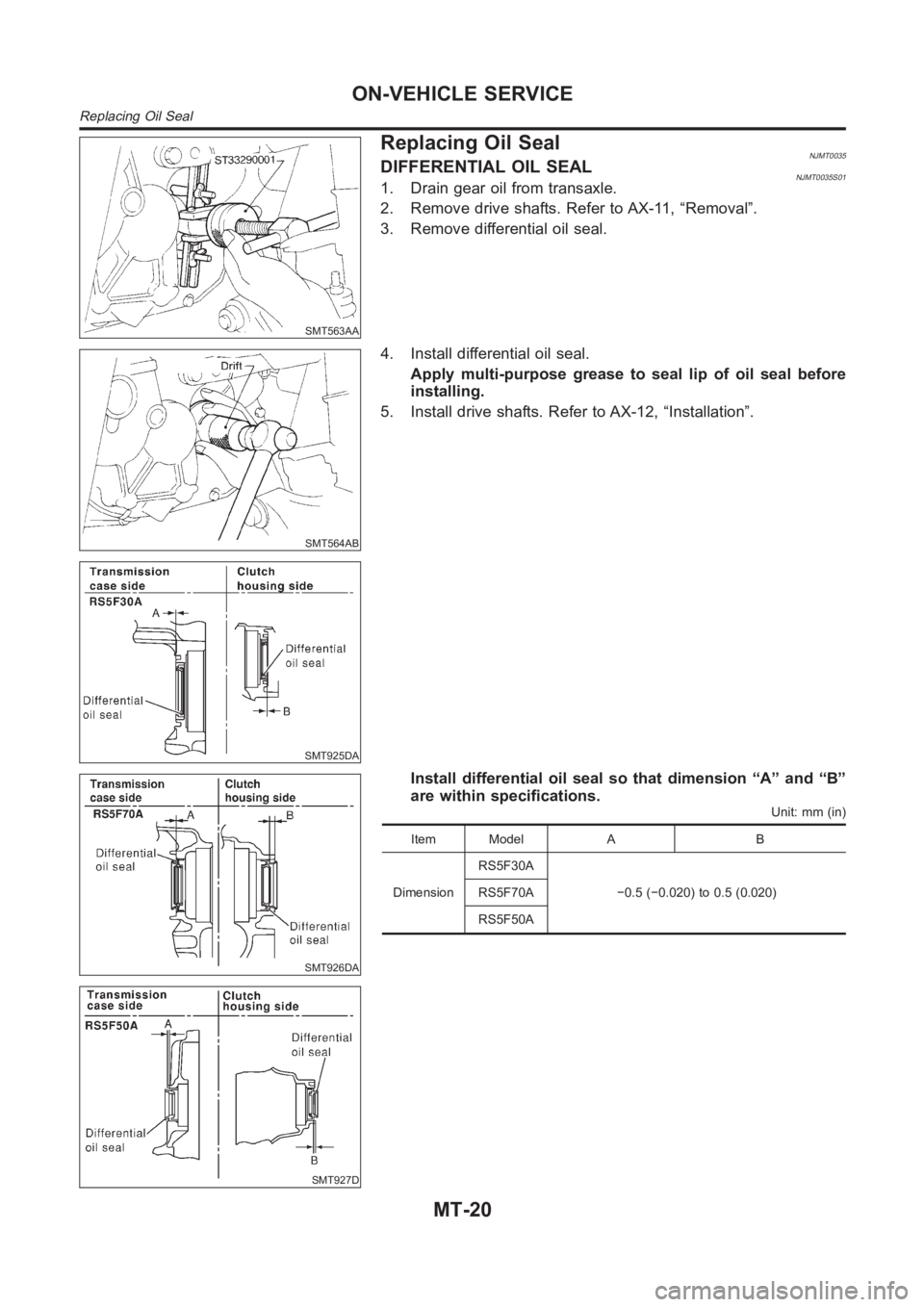

Replacing Oil SealNJMT0035DIFFERENTIAL OIL SEALNJMT0035S011. Drain gear oil from transaxle.
2. Remove drive shafts. Refer to AX-11, “Removal”.
3. Remove differential oil seal.
SMT564AB
SMT925DA
4. Install differential oil seal.
Apply multi-purpose grease to seal lip of oil seal before
installing.
5. Install drive shafts. Refer to AX-12, “Installation”.
SMT926DA
SMT927D
Install differential oil seal so that dimension “A” and “B”
are within specifications.
Unit: mm (in)
Item Model A B
DimensionRS5F30A
−0.5 (−0.020) to 0.5 (0.020) RS5F70A
RS5F50A
ON-VEHICLE SERVICE
Replacing Oil Seal
MT-20
Page 1341 of 3189
SMT143DC
STRIKING ROD OIL SEALNJMT0035S021. Remove transaxle control rod from yoke.
2. Remove retaining pin of yoke.
Be careful not to damage boot.
SMT566A
3. Remove striking rod oil seal.
SMT570A
4. Install striking rod oil seal.
Apply multi-purpose grease to seal lip of oil seal before
installing.
SMT876D
Drive it in as far as it will go.
SMT715BD
Position Switch CheckNJMT0036BACK-UP LAMP SWITCHNJMT0036S01— RS5F30A and RS5F70A —NJMT0036S0101Check continuity.
Gear position Continuity
Reverse Yes
Except reverse No
GI
MA
EM
LC
EC
FE
CL
AT
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
ON-VEHICLE SERVICE
Replacing Oil Seal (Cont’d)
MT-21
Page 1342 of 3189
PNP SWITCHNJMT0036S02— RS5F70A —NJMT0036S0201Check continuity.
Gear position Continuity
Neutral Yes
Except neutral No
SMT939D

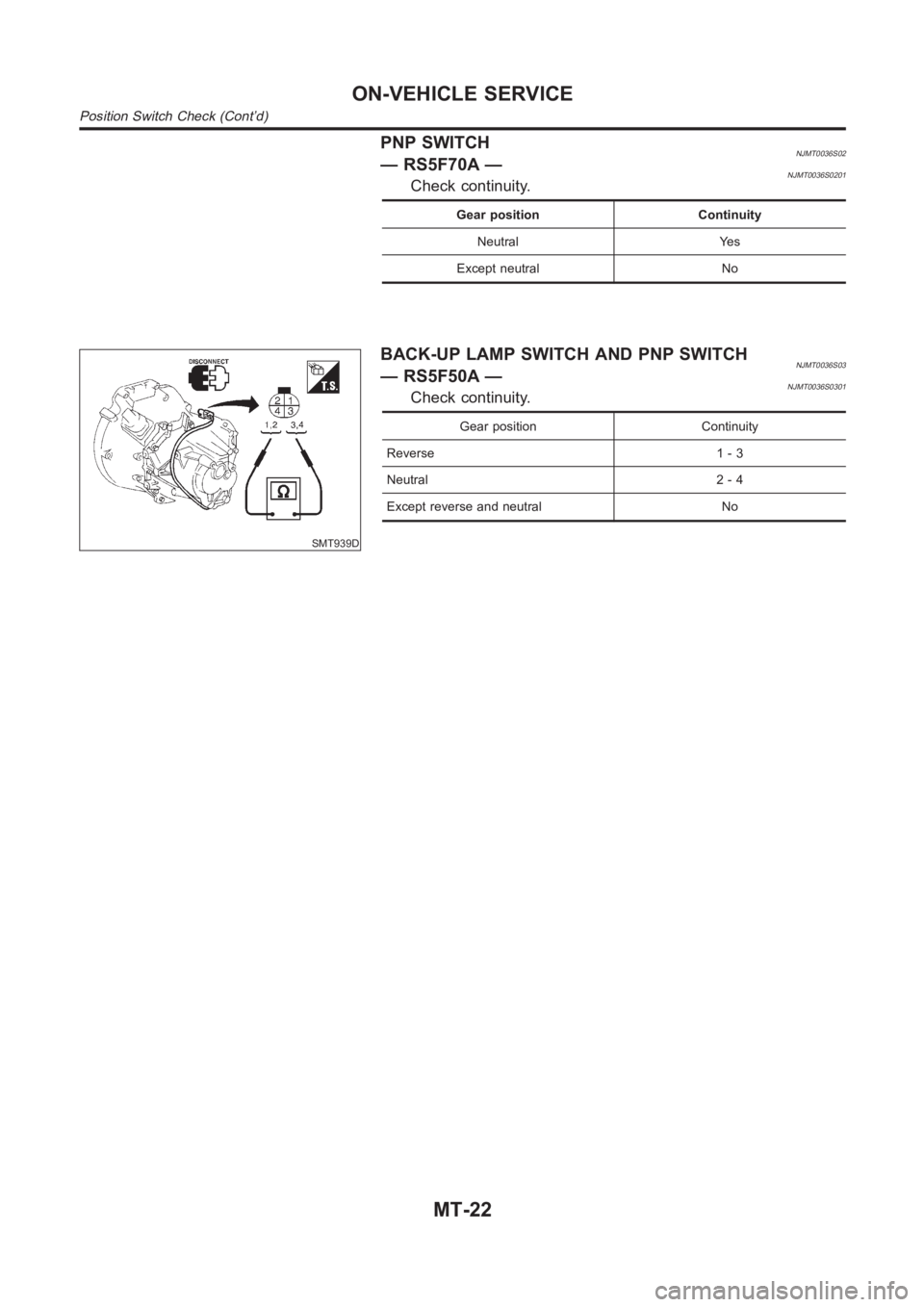

BACK-UP LAMP SWITCH AND PNP SWITCHNJMT0036S03— RS5F50A —NJMT0036S0301Check continuity.
Gear position Continuity
Reverse 1 - 3
Neutral 2 - 4
Except reverse and neutral No
ON-VEHICLE SERVICE
Position Switch Check (Cont’d)
MT-22
Page 1343 of 3189

NJMT0008
SMT928D
RemovalNJMT0008S01CAUTION:
Remove the crankshaft position sensor (POS) from transaxle
assembly before separating transaxle from engine.
Be careful not to damage sensor edge.
1. Remove battery and its bracket.
2. Remove air cleaner box with mass air flow sensor.
SMT130DB
3. Remove clutch operating cylinder from transaxle.
4. Remove clutch hose clamp.
5. Disconnect speedometer pinion, back-up lamp, PNP switch
(F70A) harness connectors and ground harness.
6. Remove starter motor from transaxle.
7. Remove crankshaft position sensor (POS) from transaxle front
side.
8. Remove shift control rod and support rod bracket from tran-
saxle.
9. Drain gear oil from transaxle.
10. Draw out drive shafts from transaxle. Refer to AX-11,
“Removal”.
11. Support engine of transaxle by placing a jack under oil pan.
CAUTION:
Do not place jack under oil pan drain plug.
12. Remove bolts securing center member.
SMT133D
13. Remove LH mount and rear side mounting bolts. Refer to
EM-67, “Removal and Installation”.
14. Remove bolts securing gusset and transaxle.
GI
MA
EM
LC
EC
FE
CL
AT
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
REMOVAL AND INSTALLATIONRS5F30A, RS5F70A
Removal
MT-23
Page 1344 of 3189
SMT652C

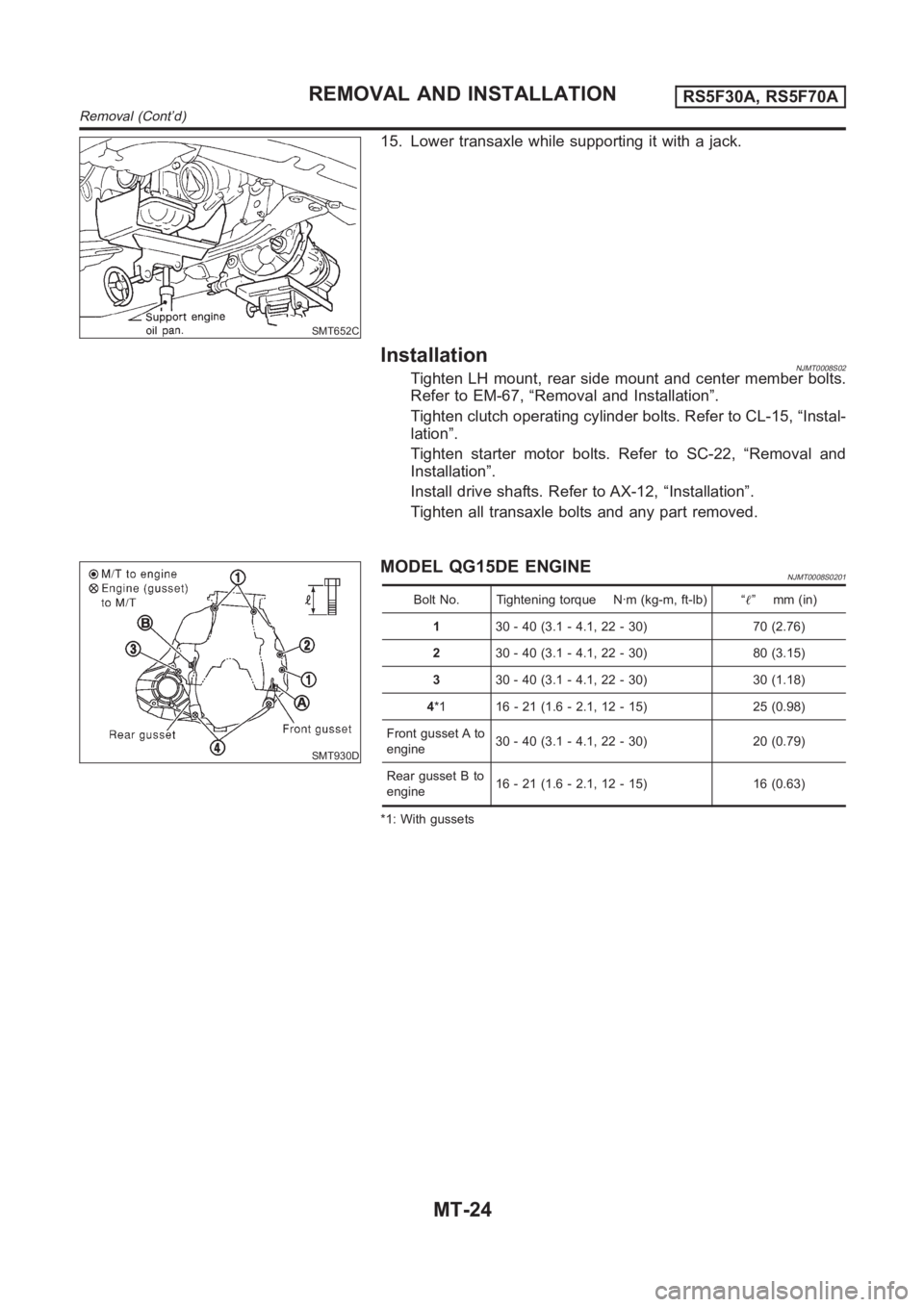

15. Lower transaxle while supporting it with a jack.
