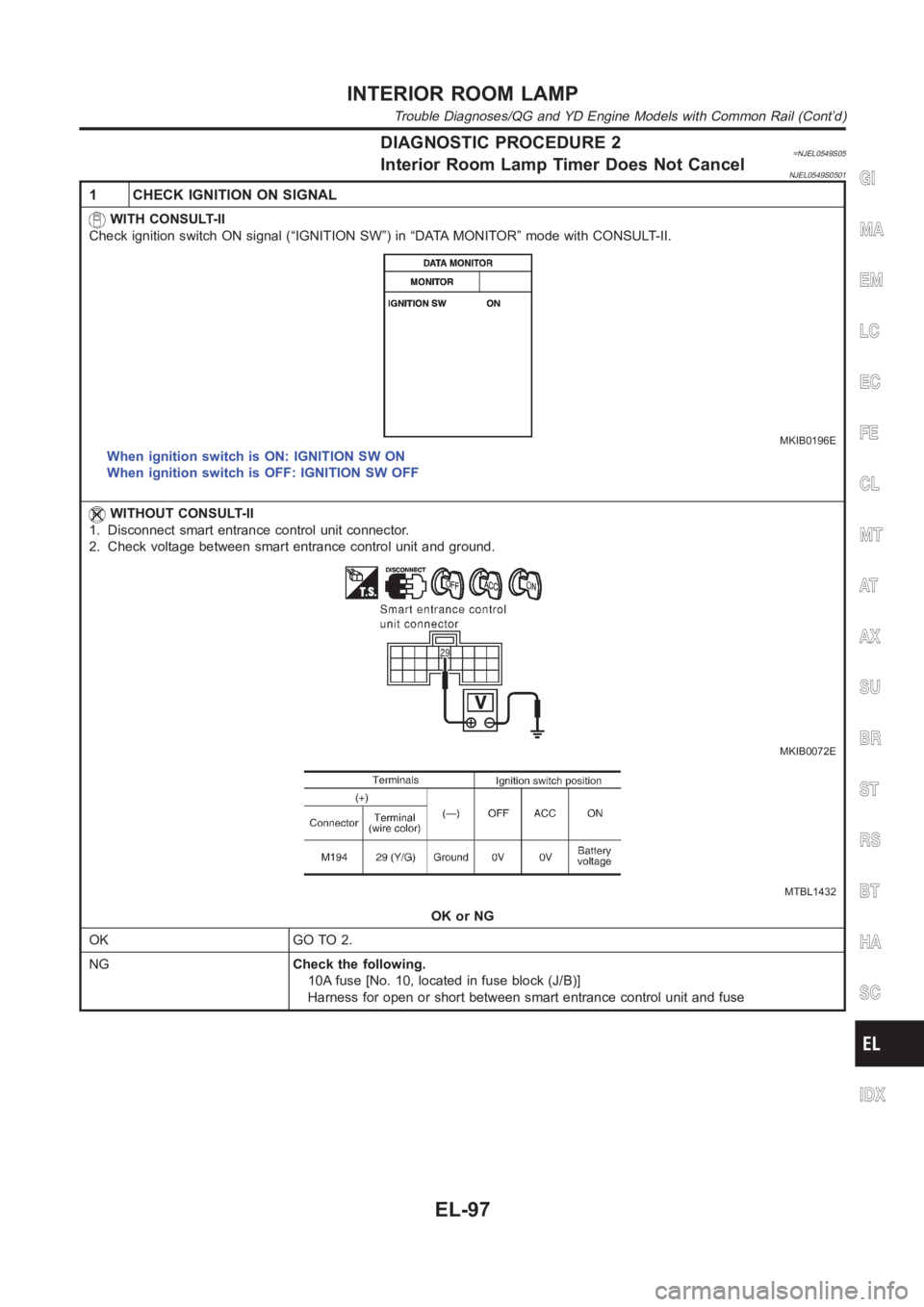

Page 2433 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual DIAGNOSTIC PROCEDURE 2=NJEL0549S05Interior Room Lamp Timer Does Not CancelNJEL0549S0501 1 CHECK IGNITION ON SIGNAL WITH CONSULT-II Check ignition switch ON signal (“IGNITION SW”) in “DATA MONITO

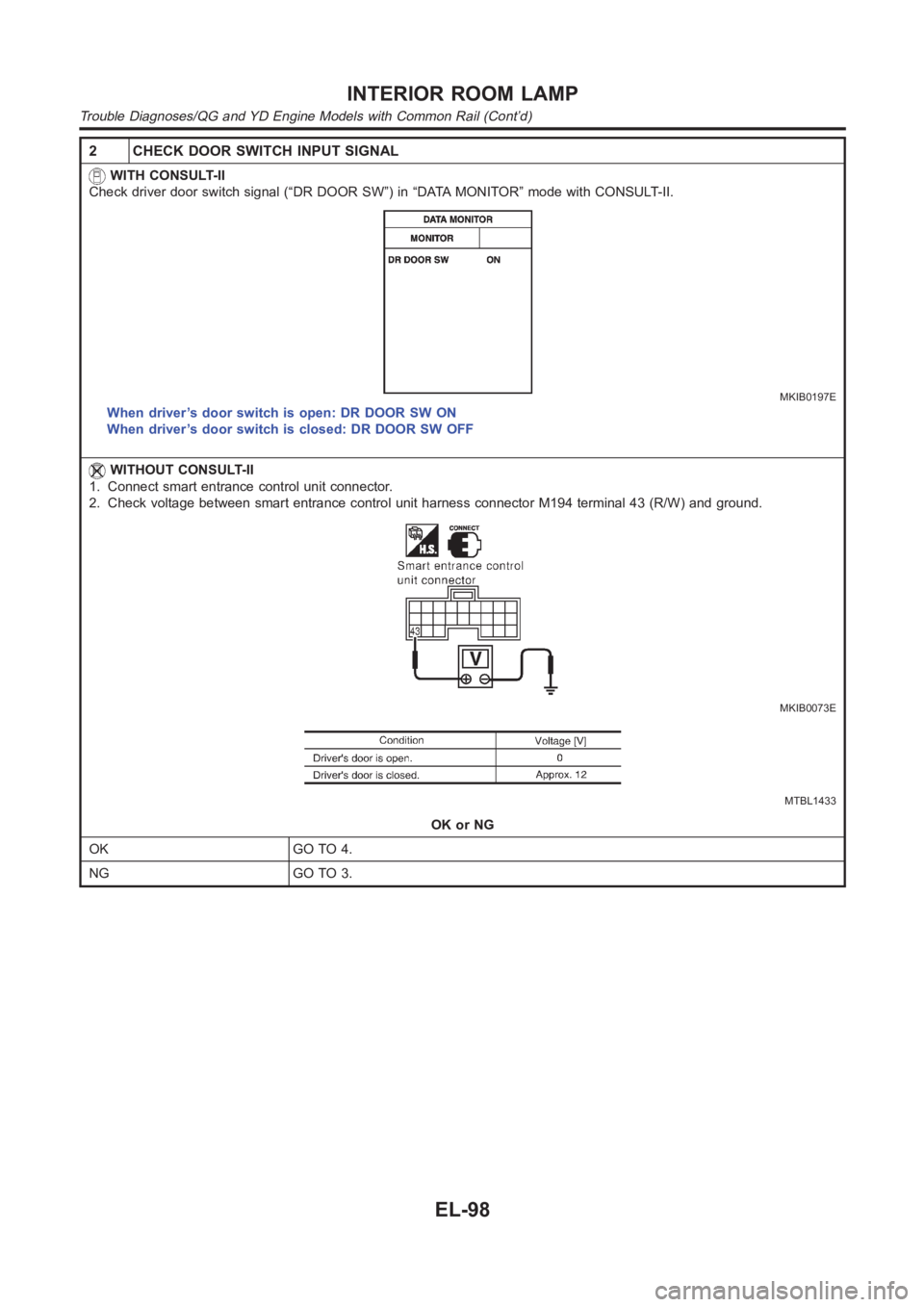

Page 2434 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual 2 CHECK DOOR SWITCH INPUT SIGNAL WITH CONSULT-II Check driver door switch signal (“DR DOOR SW”) in “DATA MONITOR” mode with CONSULT-II. MKIB0197E When driver’s door switch is open: DR DOOR S

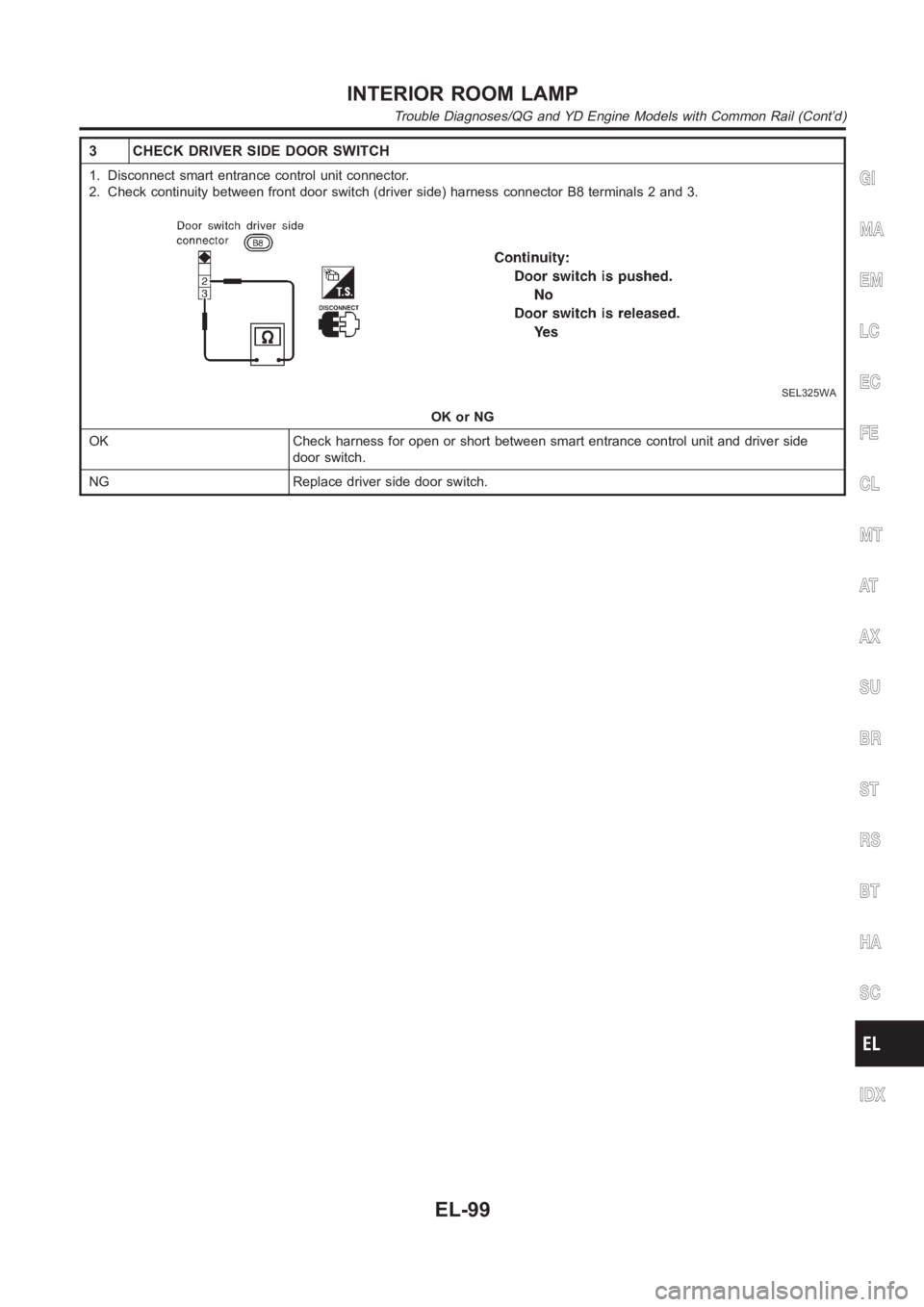

Page 2435 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual 3 CHECK DRIVER SIDE DOOR SWITCH 1. Disconnect smart entrance control unit connector. 2. Check continuity between front door switch (driver side) harness connector B8 terminals 2 and 3. SEL325WA OK or

Page 2436 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual 4 CHECK DOOR LOCK/UNLOCK SWITCH WITH CONSULT-II Check door lock/unlock switch signal (“CDL LOCK SW” or “CDL UNLOCK SW”) in “DATA MONITOR” mode with CON- SULT-II. MKIB0198E When door lock/u

Page 2437 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual 5 CHECK DOOR LOCK/UNLOCK SWITCH 1. Disconnect door lock/unlock switch harness connector. 2. Check continuity between door lock/unlock switch terminals. Power window main switch (door lock/unlock switc

Page 2438 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual Trouble Diagnoses/YD Engine Models without Common Rail and K9K Engine Models =NJEL0437DIAGNOSTIC PROCEDURE 1NJEL0437S01SYMPTOM: Interior room lamp timer does not operate. 1 CHECK IGNITION ON SIGNAL Ch

Page 2439 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual 3 CHECK DRIVER SIDE DOOR SWITCH Check continuity between door switch terminals 2 and 3. SEL325WA OK or NG OKCheck the following. Driver side door switch ground circuit and condition Harness for open o

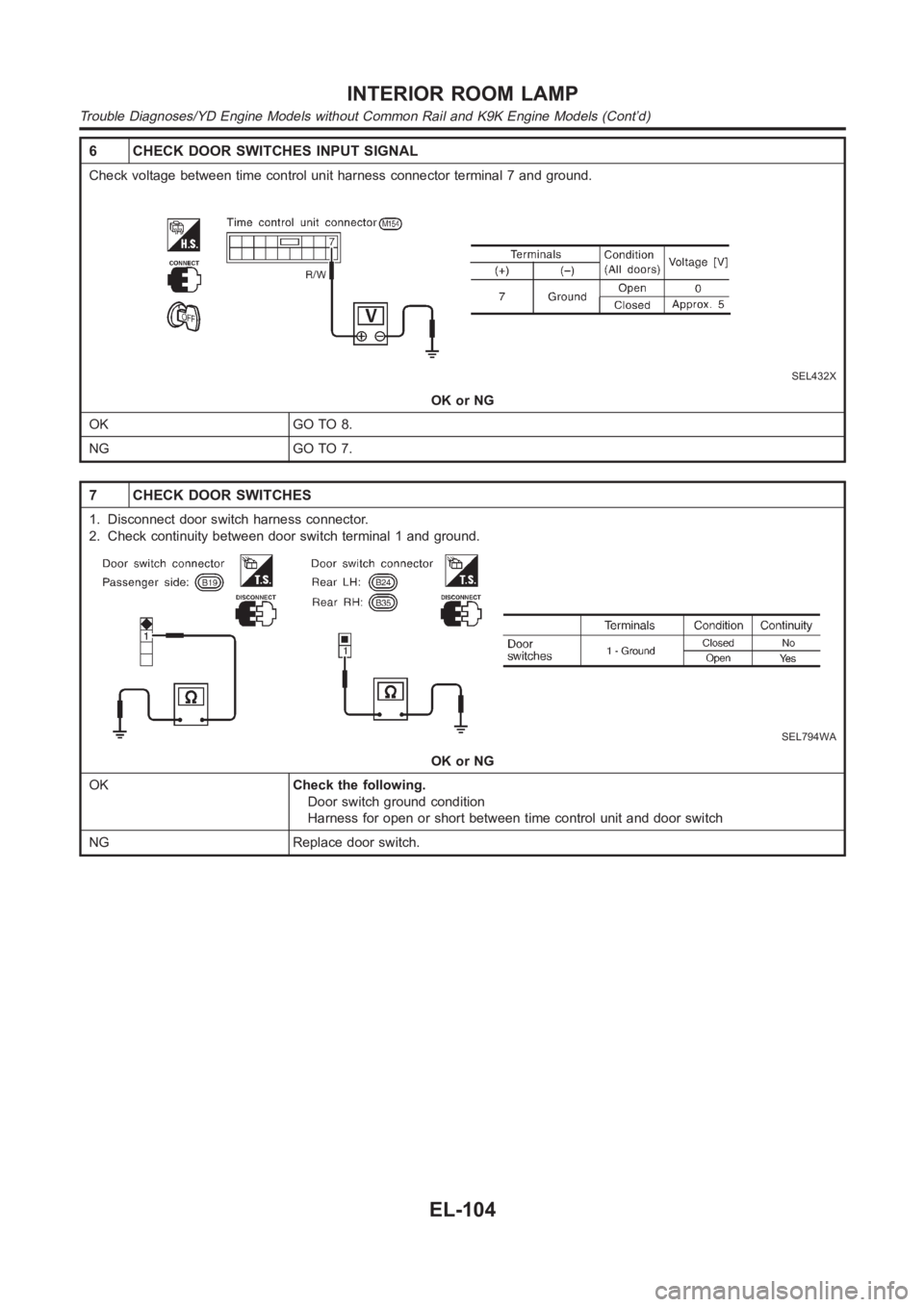

Page 2440 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual 6 CHECK DOOR SWITCHES INPUT SIGNAL Check voltage between time control unit harness connector terminal 7 and ground. SEL432X OK or NG OK GO TO 8. NG GO TO 7. 7 CHECK DOOR SWITCHES 1. Disconnect door sw
