Page 3113 of 3189

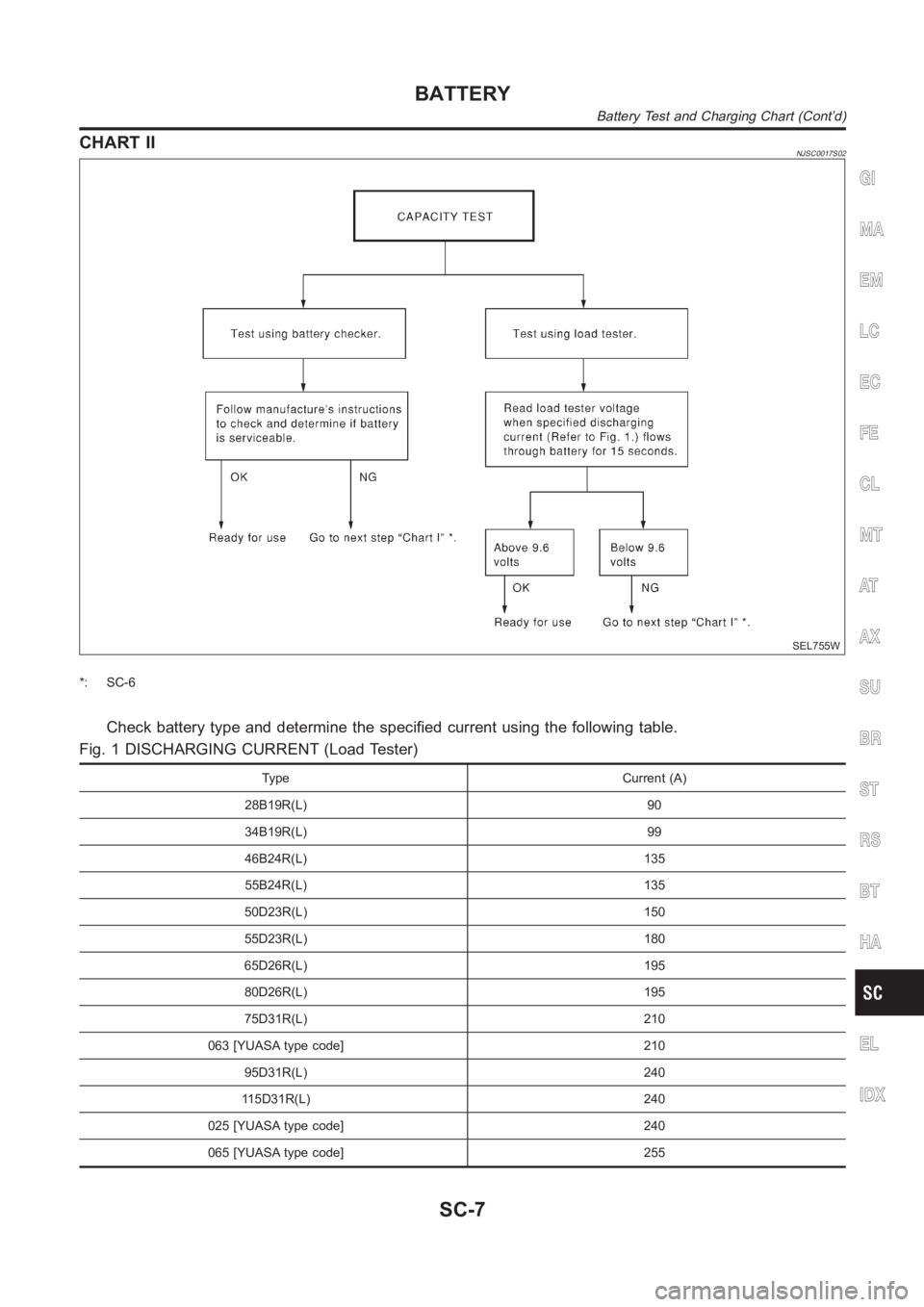

NISSAN ALMERA N16 2003 Electronic Repair Manual CHART IINJSC0017S02 SEL755W *: SC-6 Check battery type and determine the specified current using the following table. Fig. 1 DISCHARGING CURRENT (Load Tester) Type Current (A) 28B19R(L) 90 34B19R(L) 9

Page 3114 of 3189

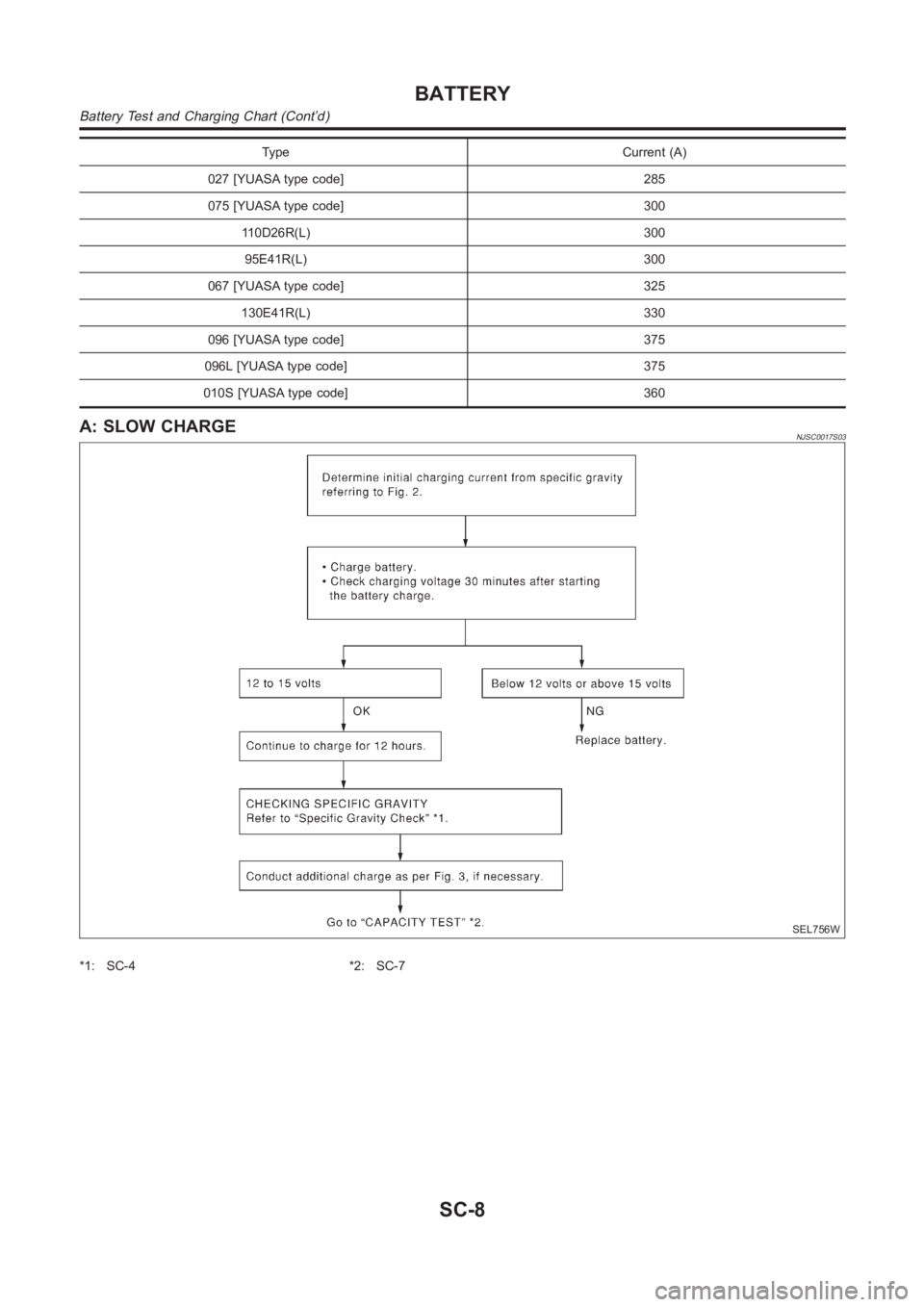

NISSAN ALMERA N16 2003 Electronic Repair Manual Type Current (A) 027 [YUASA type code] 285 075 [YUASA type code] 300 110D26R(L) 300 95E41R(L) 300 067 [YUASA type code] 325 130E41R(L) 330 096 [YUASA type code] 375 096L [YUASA type code] 375 010S [YU

Page 3115 of 3189

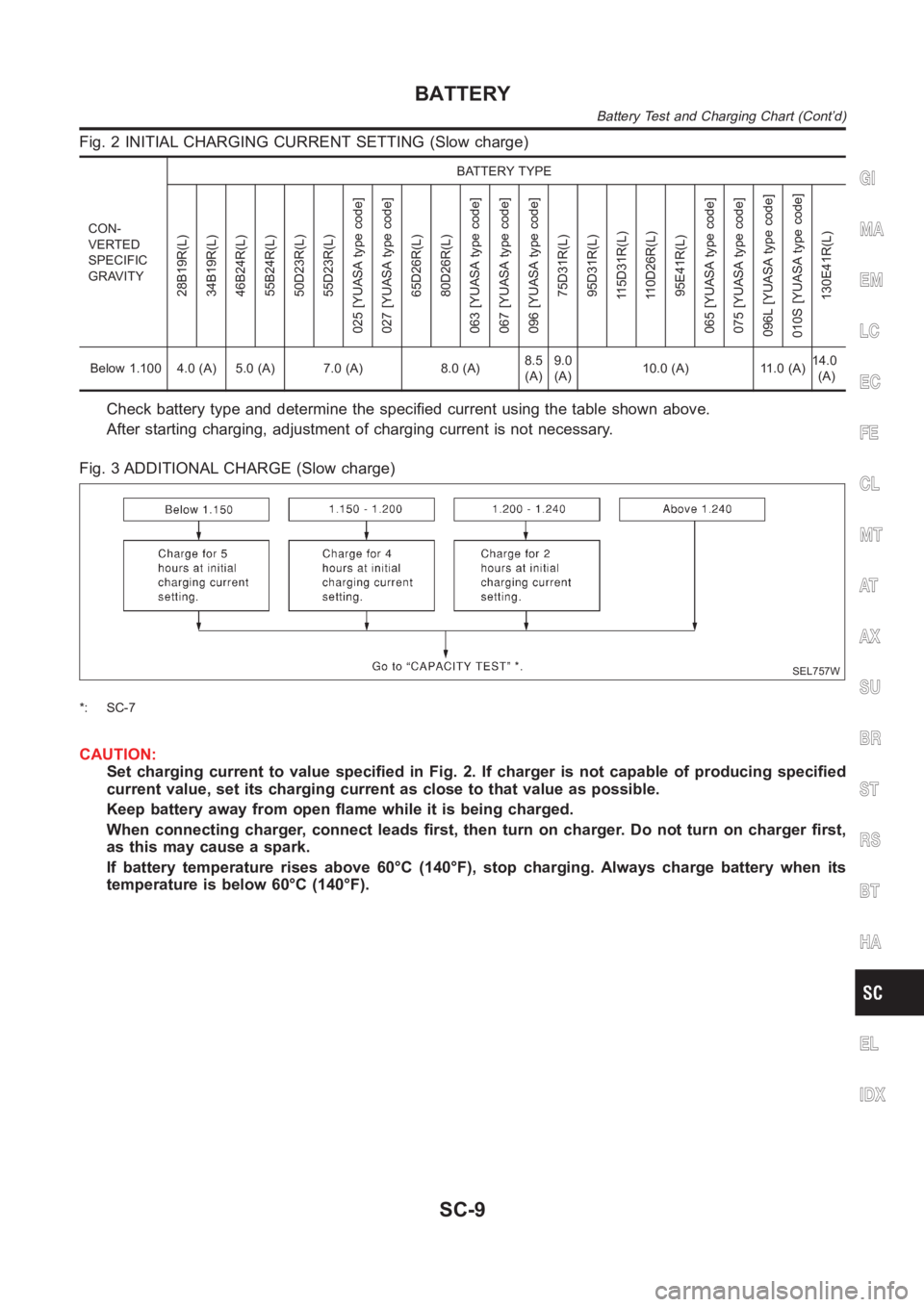

NISSAN ALMERA N16 2003 Electronic Repair Manual Fig. 2 INITIAL CHARGING CURRENT SETTING (Slow charge) CON- VERTED SPECIFIC GRAVITYBATTERY TYPE 28B19R(L) 34B19R(L) 46B24R(L) 55B24R(L) 50D23R(L) 55D23R(L) 025 [YUASA type code] 027 [YUASA type code] 6

Page 3116 of 3189

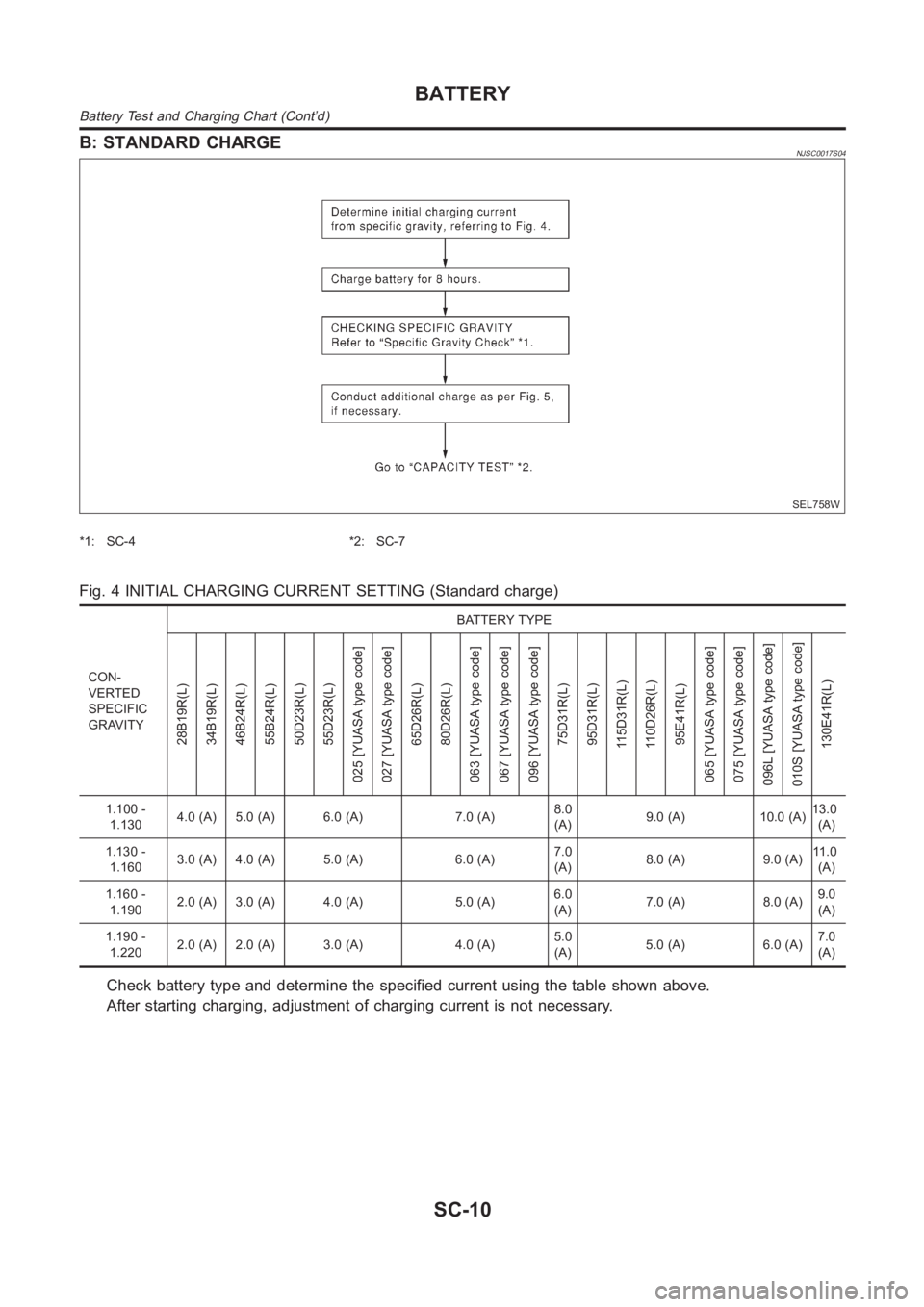

NISSAN ALMERA N16 2003 Electronic Repair Manual B: STANDARD CHARGENJSC0017S04 SEL758W *1: SC-4 *2: SC-7 Fig. 4 INITIAL CHARGING CURRENT SETTING (Standard charge) CON- VERTED SPECIFIC GRAVITYBATTERY TYPE 28B19R(L) 34B19R(L) 46B24R(L) 55B24R(L) 50D23

Page 3117 of 3189

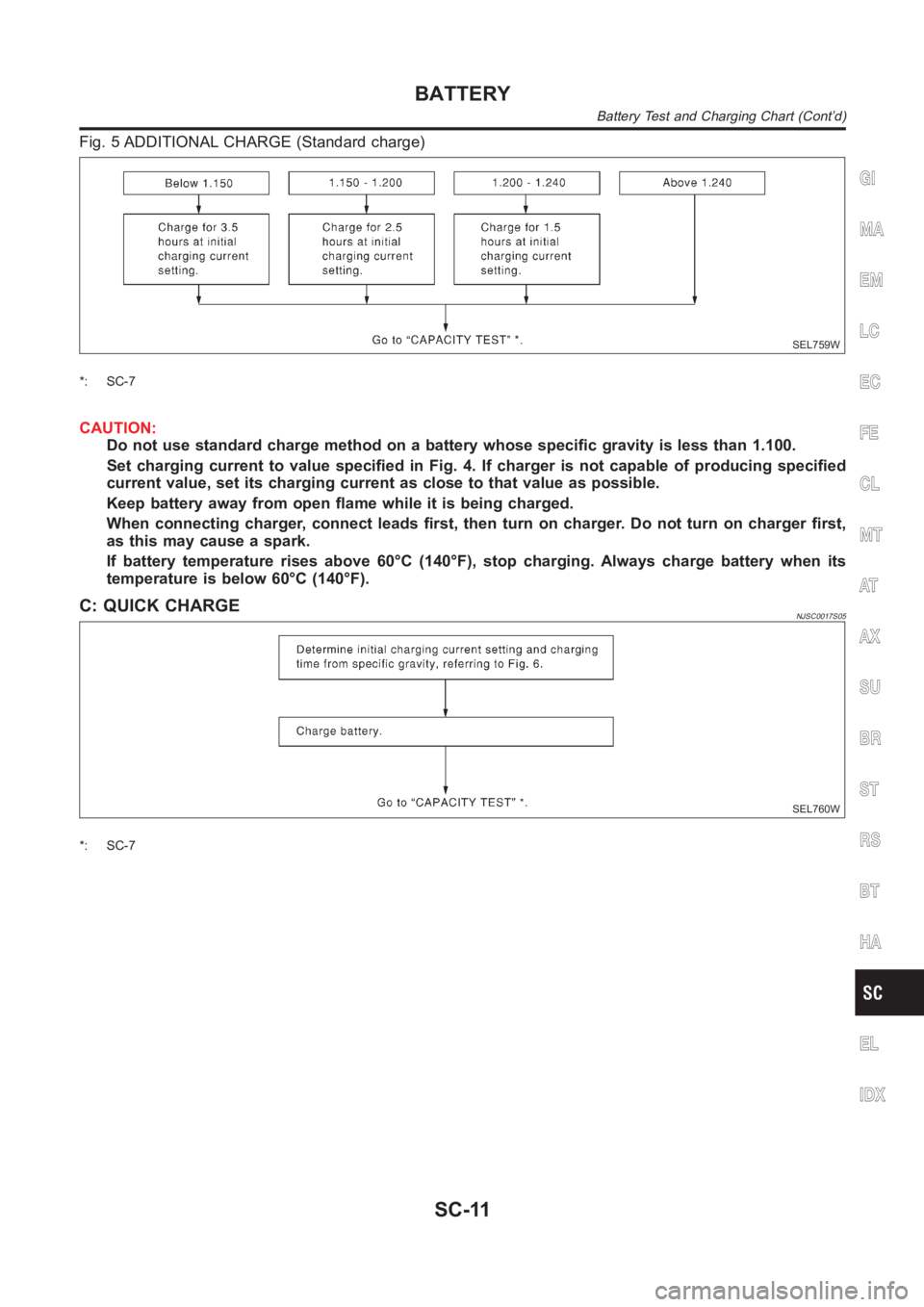

NISSAN ALMERA N16 2003 Electronic Repair Manual Fig. 5 ADDITIONAL CHARGE (Standard charge) SEL759W *: SC-7 CAUTION: Do not use standard charge method on a battery whose specific gravity is less than 1.100. Set charging current to value specified in

Page 3118 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual Fig. 6 INITIAL CHARGING CURRENT SETTING AND CHARGING TIME (Quick charge) BATTERY TYPE 28B19R(L) 34B19R(L) 46B24R(L) 55B24R(L) 50D23R(L) 55D23R(L) 65D26R(L) 80D26R(L) 025 [YUASA type code] 027 [YUASA t

Page 3119 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual System DescriptionNJSC0004M/T MODELSNJSC0004S01Power is supplied at all times through 40A fusible link (letterB, located in the fuse and fusible link box) to ignition switch terminal 1. With the ignit

Page 3120 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual Wiring Diagram — START —/M/T ModelsNJSC0030 YEL604D STARTING SYSTEM Wiring Diagram — START —/M/T Models SC-14
