Page 1369 of 3189

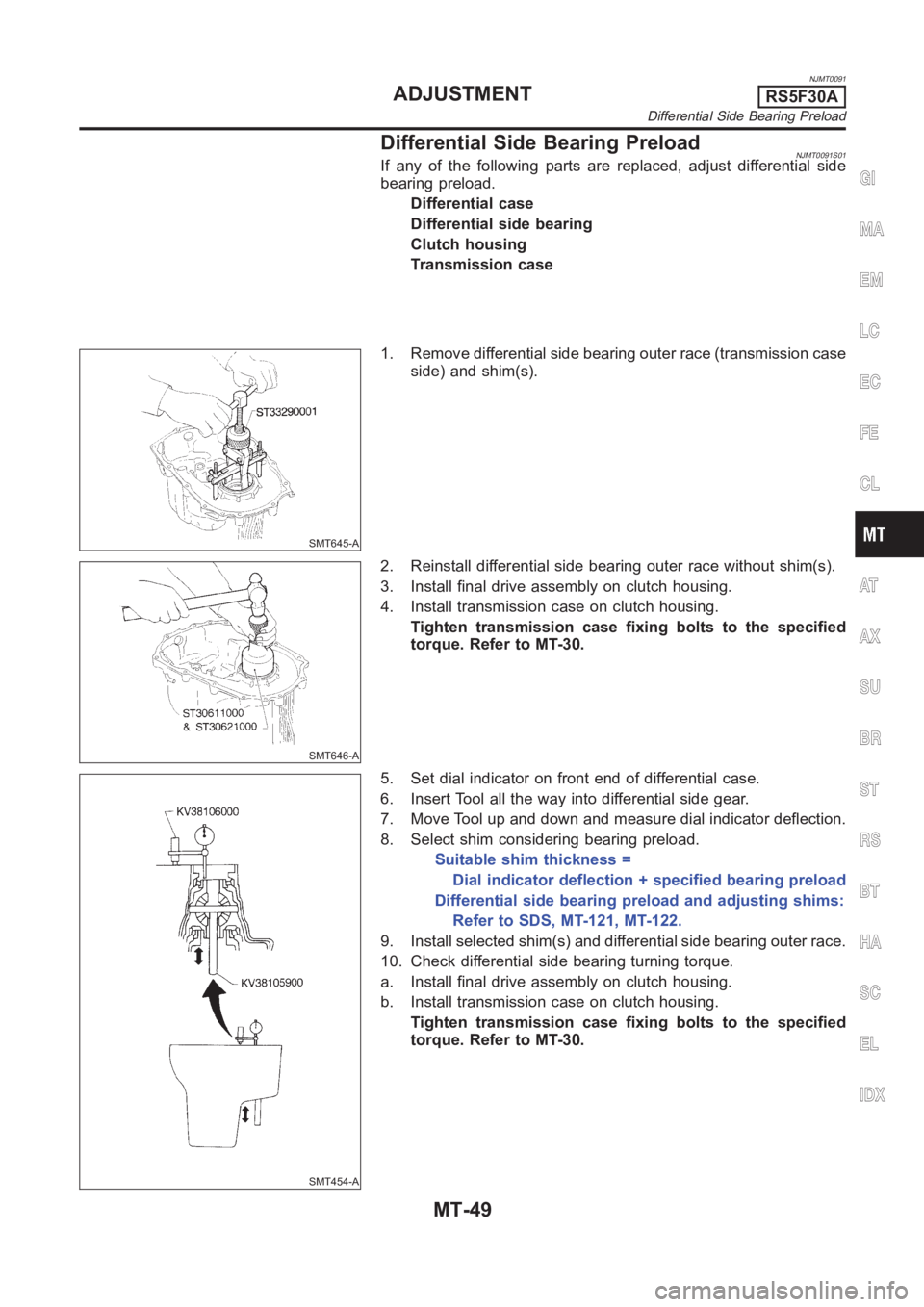

NISSAN ALMERA N16 2003 Electronic Repair Manual NJMT0091 Differential Side Bearing PreloadNJMT0091S01If any of the following parts are replaced, adjust differential side bearing preload. Differential case Differential side bearing Clutch housing Tr

Page 1370 of 3189

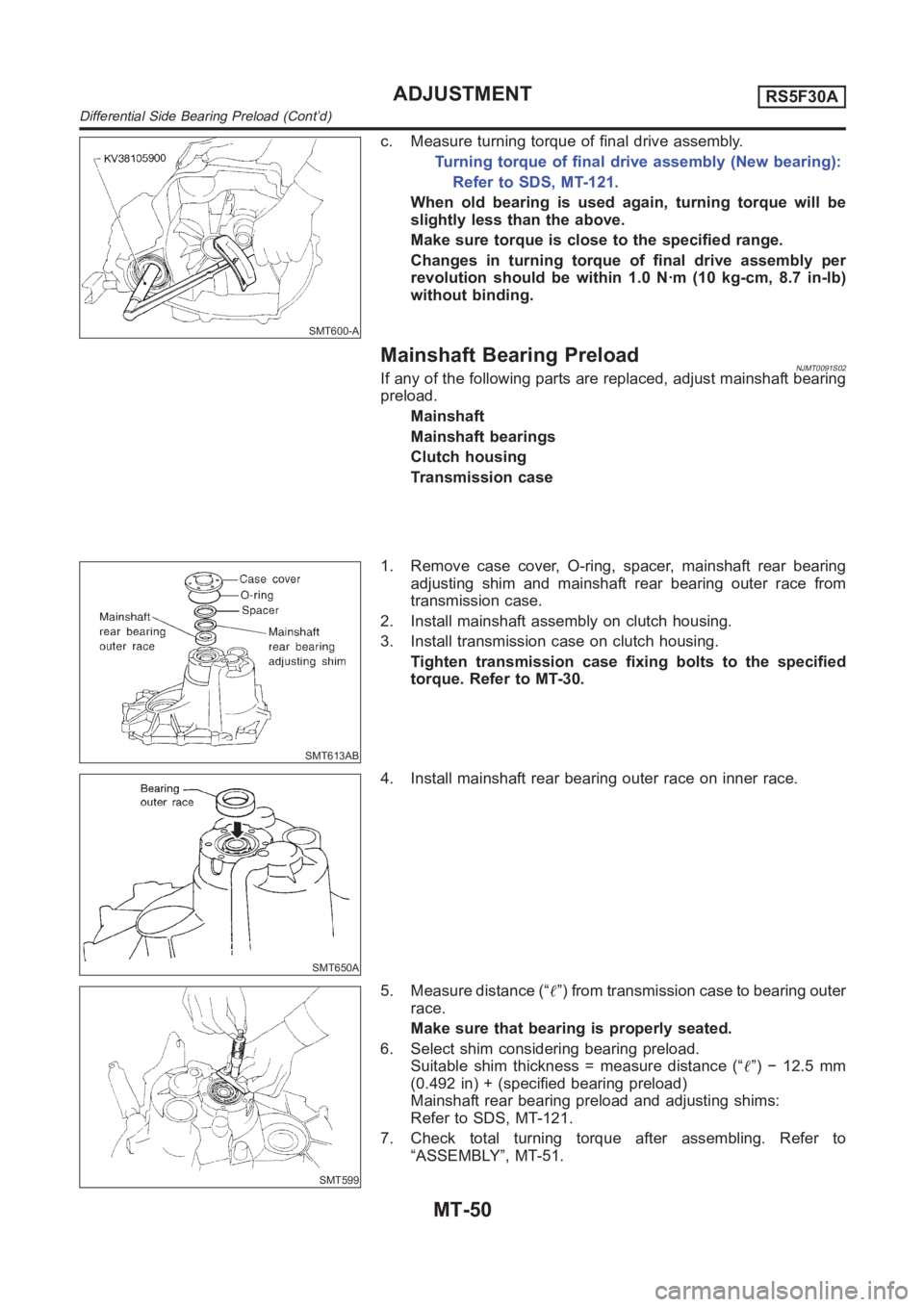

NISSAN ALMERA N16 2003 Electronic Repair Manual SMT600-A c. Measure turning torque of final drive assembly. Turning torque of final drive assembly (New bearing): Refer to SDS, MT-121. When old bearing is used again, turning torque will be slightly

Page 1371 of 3189

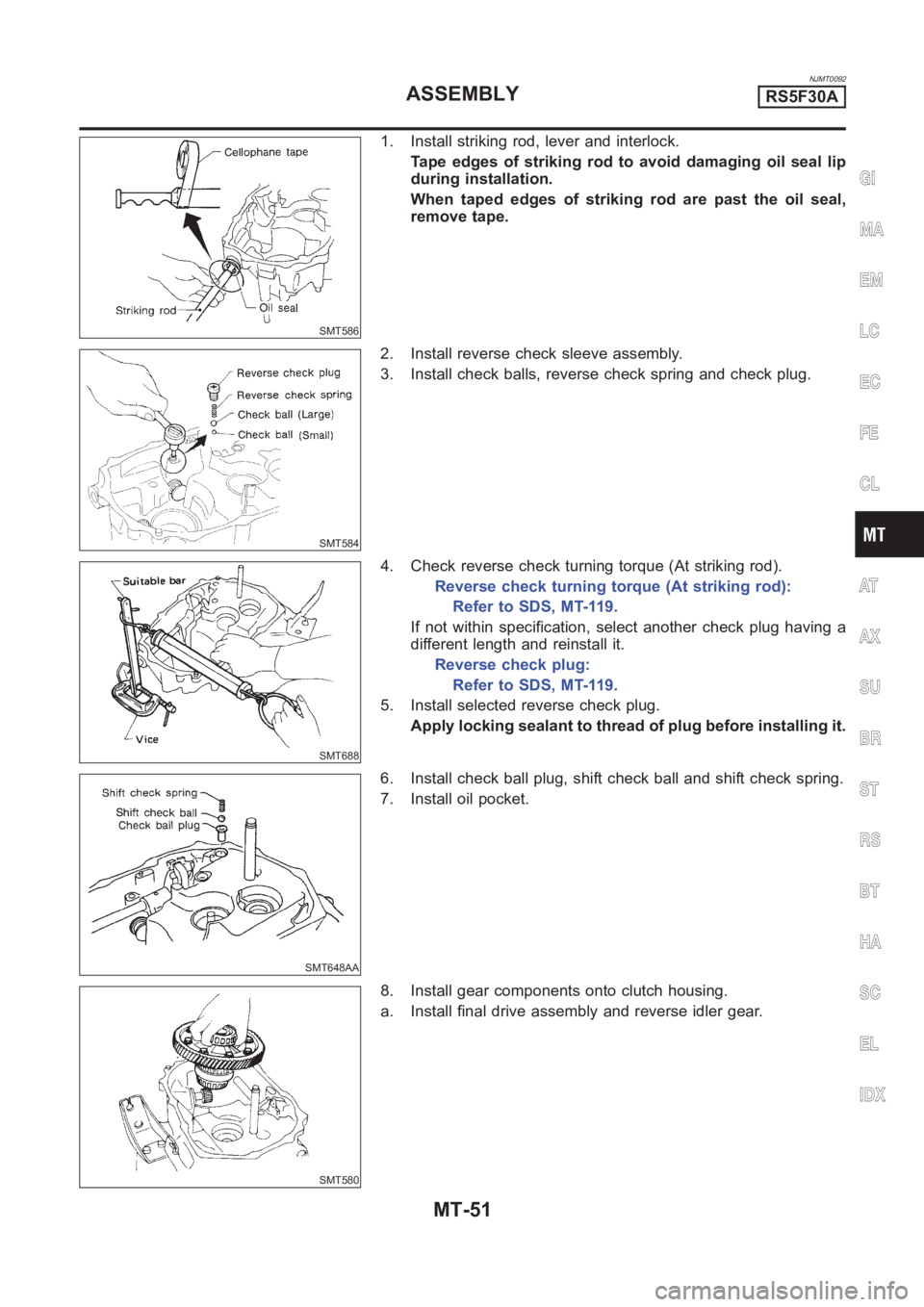

NISSAN ALMERA N16 2003 Electronic Repair Manual NJMT0092 SMT586 1. Install striking rod, lever and interlock. Tape edges of striking rod to avoid damaging oil seal lip during installation. When taped edges of striking rod are past the oil seal, rem

Page 1372 of 3189

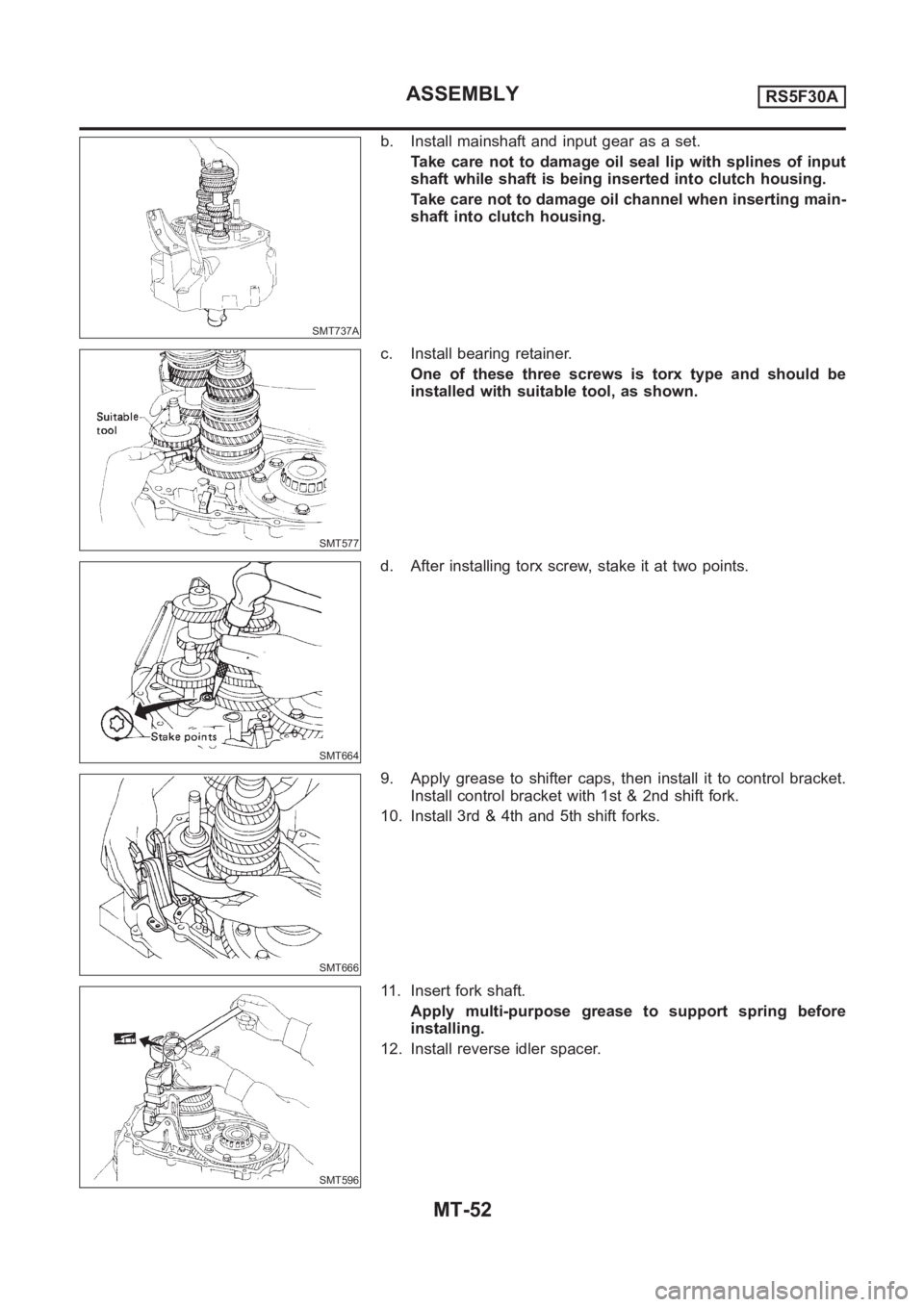

NISSAN ALMERA N16 2003 Electronic Repair Manual SMT737A b. Install mainshaft and input gear as a set. Take care not to damage oil seal lip with splines of input shaft while shaft is being inserted into clutch housing. Take care not to damage oil ch

Page 1373 of 3189

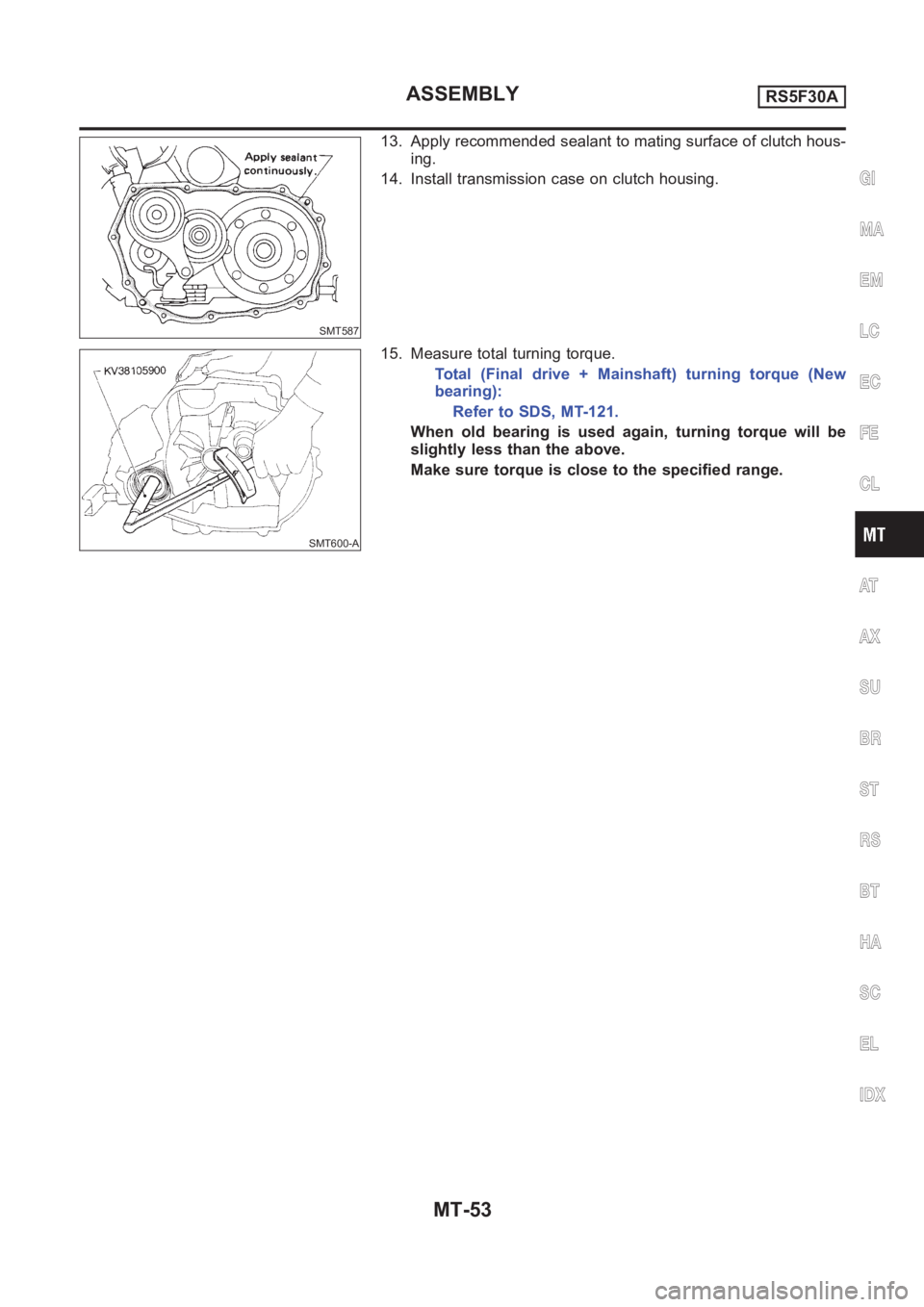

NISSAN ALMERA N16 2003 Electronic Repair Manual SMT587 13. Apply recommended sealant to mating surface of clutch hous- ing. 14. Install transmission case on clutch housing. SMT600-A 15. Measure total turning torque. Total (Final drive + Mainshaft)

Page 1374 of 3189

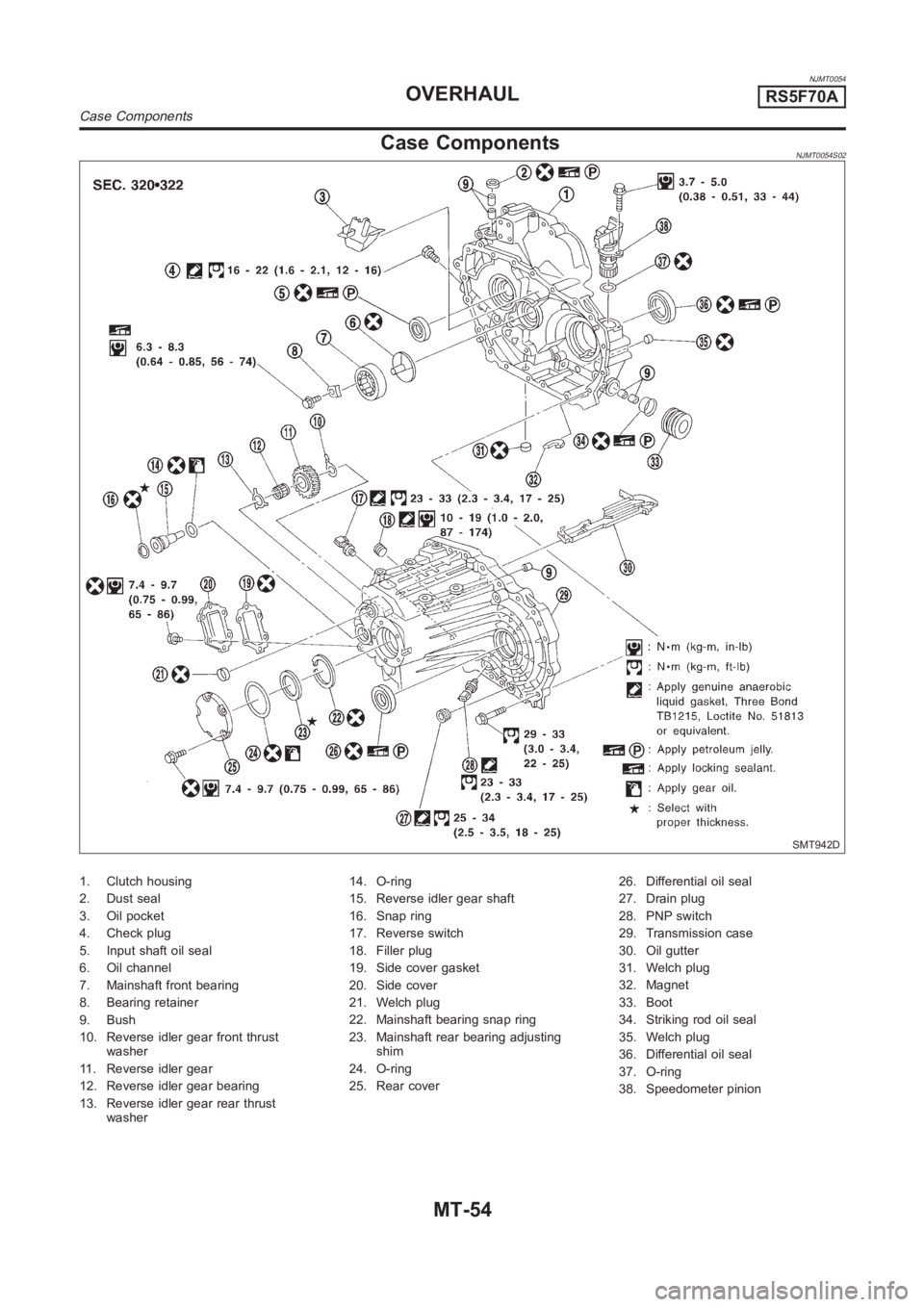

NISSAN ALMERA N16 2003 Electronic Repair Manual NJMT0054 Case ComponentsNJMT0054S02 SMT942D 1. Clutch housing 2. Dust seal 3. Oil pocket 4. Check plug 5. Input shaft oil seal 6. Oil channel 7. Mainshaft front bearing 8. Bearing retainer 9. Bush 10.

Page 1375 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual Gear Components=NJMT0054S03 SMT641DA 1. Reverse idler gear front thrust washer 2. Reverse idler gear 3. Reverse idler gear bearing 4. Reverse idle gear rear thrust washer 5. O-ring 6. Reverse idler ge

Page 1376 of 3189

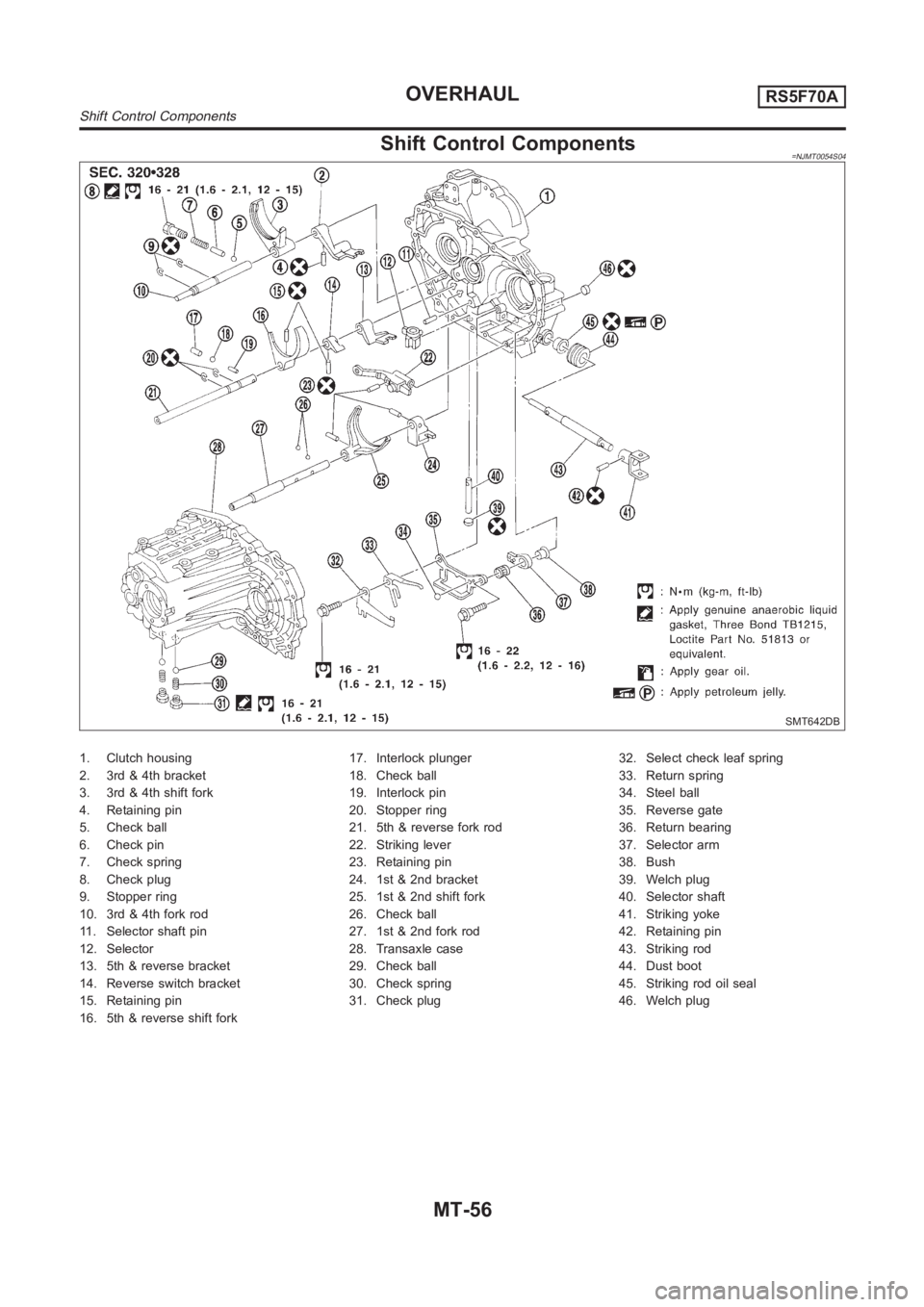

NISSAN ALMERA N16 2003 Electronic Repair Manual Shift Control Components=NJMT0054S04 SMT642DB 1. Clutch housing 2. 3rd & 4th bracket 3. 3rd & 4th shift fork 4. Retaining pin 5. Check ball 6. Check pin 7. Check spring 8. Check plug 9. Stopper ring 1
