Page 1817 of 3189

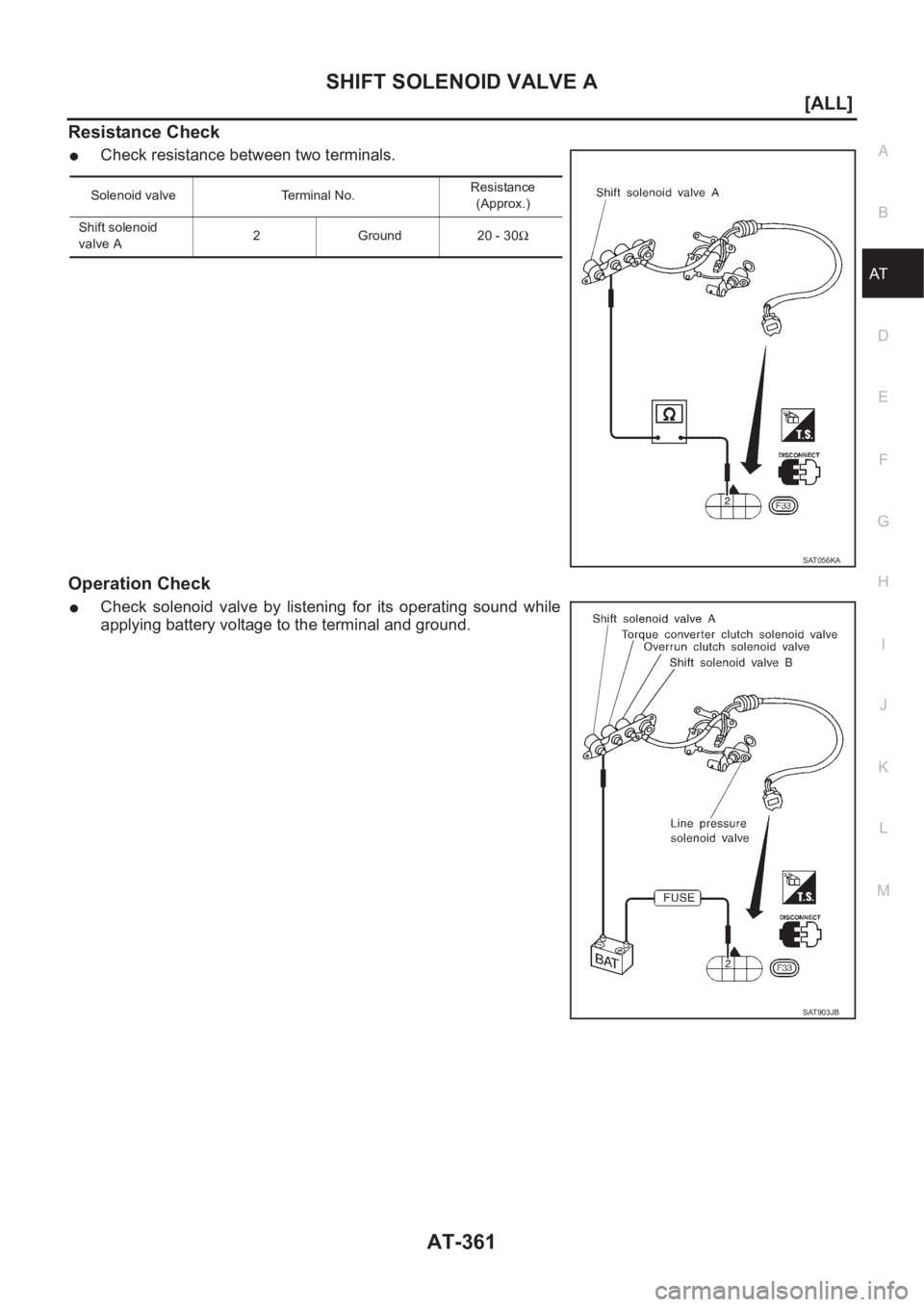

NISSAN ALMERA N16 2003 Electronic Repair Manual SHIFT SOLENOID VALVE A AT-361 [ALL] D E F G H I J K L MA B AT Resistance Check ●Check resistance between two terminals. Operation Check ●Check solenoid valve by listening for its operating

Page 1818 of 3189

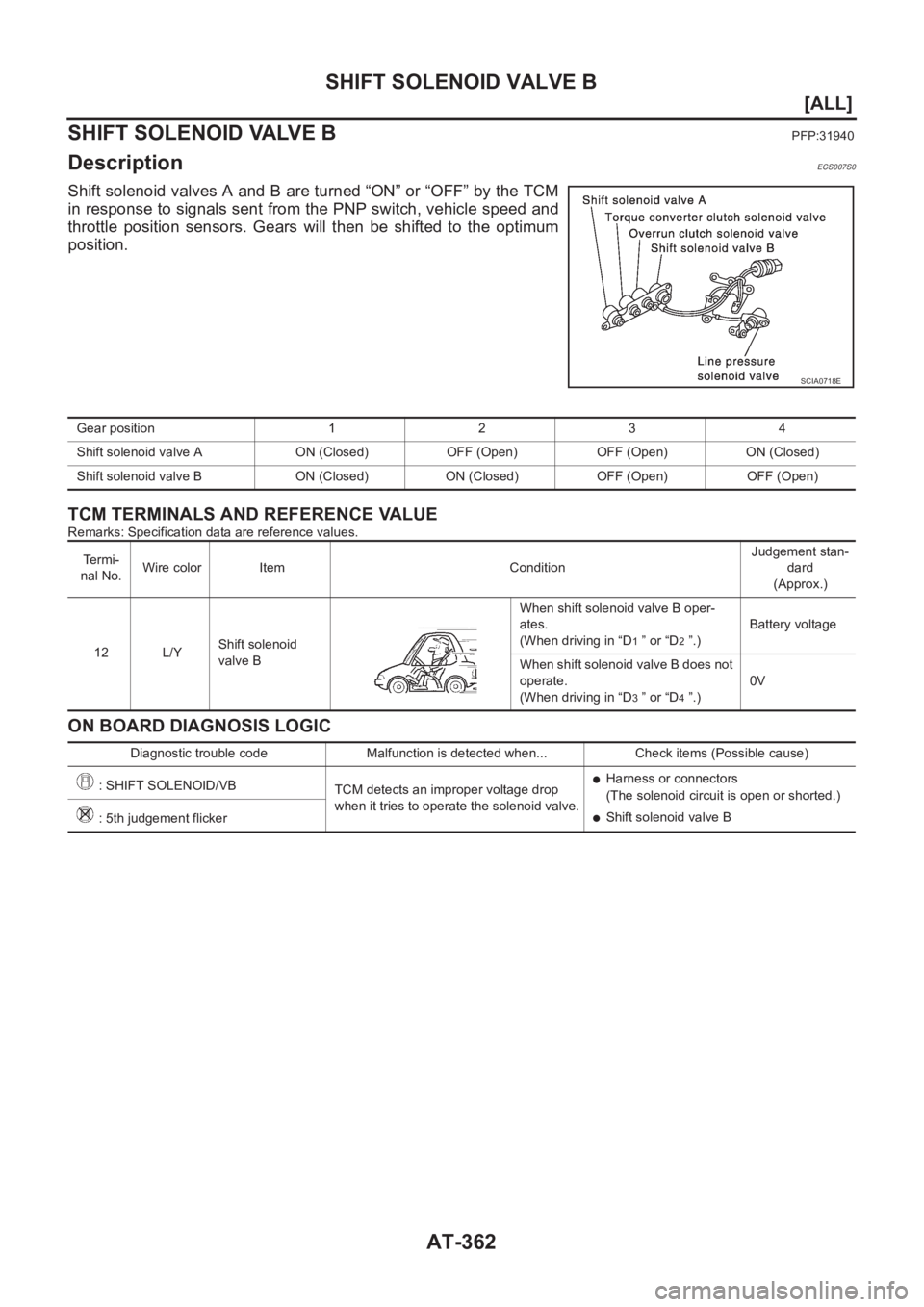

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-362 [ALL] SHIFT SOLENOID VALVE B SHIFT SOLENOID VALVE B PFP:31940 DescriptionECS007S0 Shift solenoid valves A and B are turned “ON” or “OFF” by the TCM in response to signals sent from the

Page 1819 of 3189

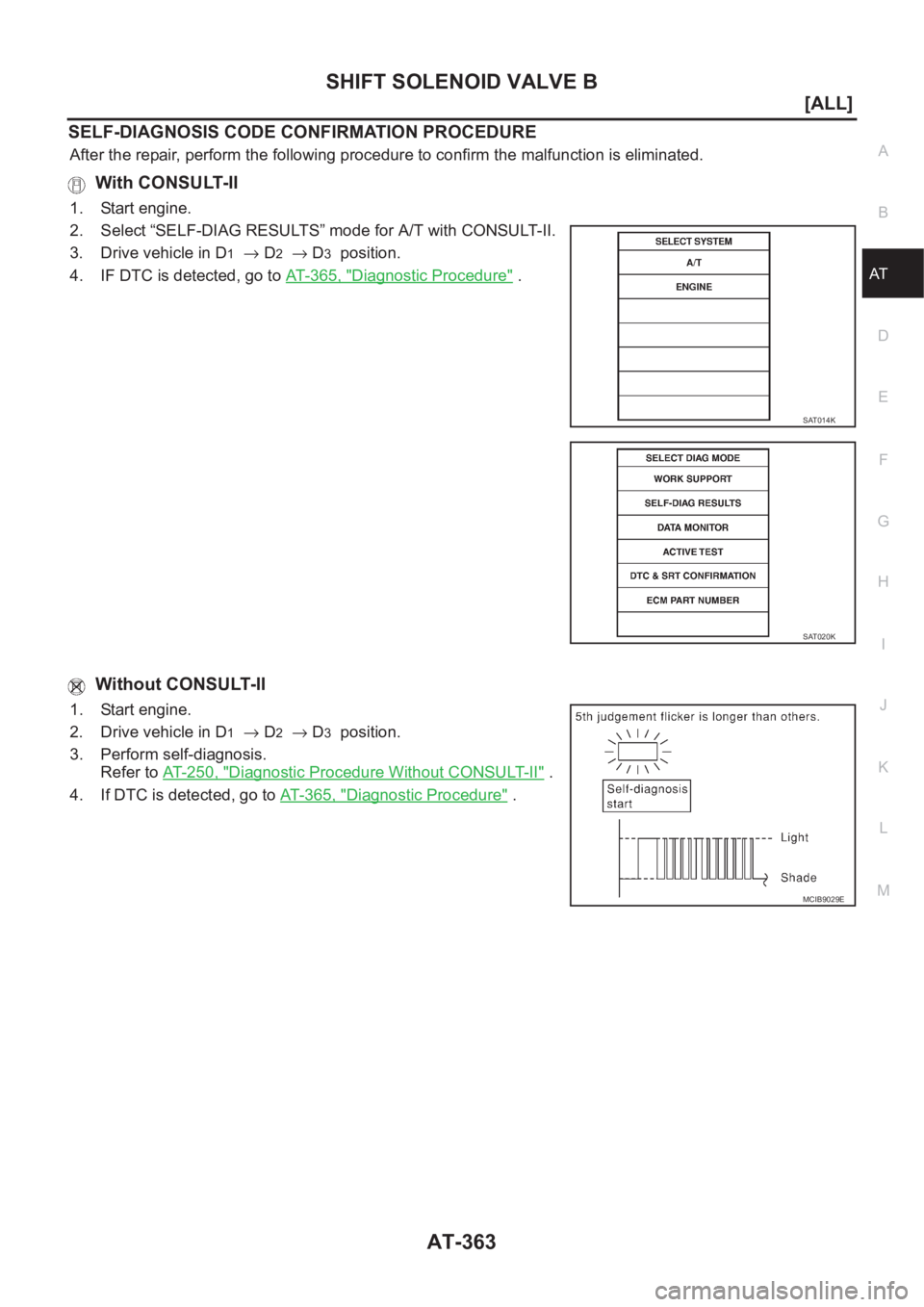

NISSAN ALMERA N16 2003 Electronic Repair Manual SHIFT SOLENOID VALVE B AT-363 [ALL] D E F G H I J K L MA B AT SELF-DIAGNOSIS CODE CONFIRMATION PROCEDURE After the repair, perform the following procedure to confirm the malfunction is eliminated. Wi

Page 1820 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-364 [ALL] SHIFT SOLENOID VALVE B Wiring Diagram — AT — SSV/B ECS007S1 YAT 2 4 2

Page 1821 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual SHIFT SOLENOID VALVE B AT-365 [ALL] D E F G H I J K L MA B AT Diagnostic ProcedureECS007S2 1.CHECK VALVE RESISTANCE 1. Turn ignition switch to “OFF” position. 2. Disconnect terminal cord assembly

Page 1822 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-366 [ALL] SHIFT SOLENOID VALVE B Resistance Check ●Check resistance between two terminals. Operation Check ●Check solenoid valve by listening for its operating sound while applying bat

Page 1823 of 3189

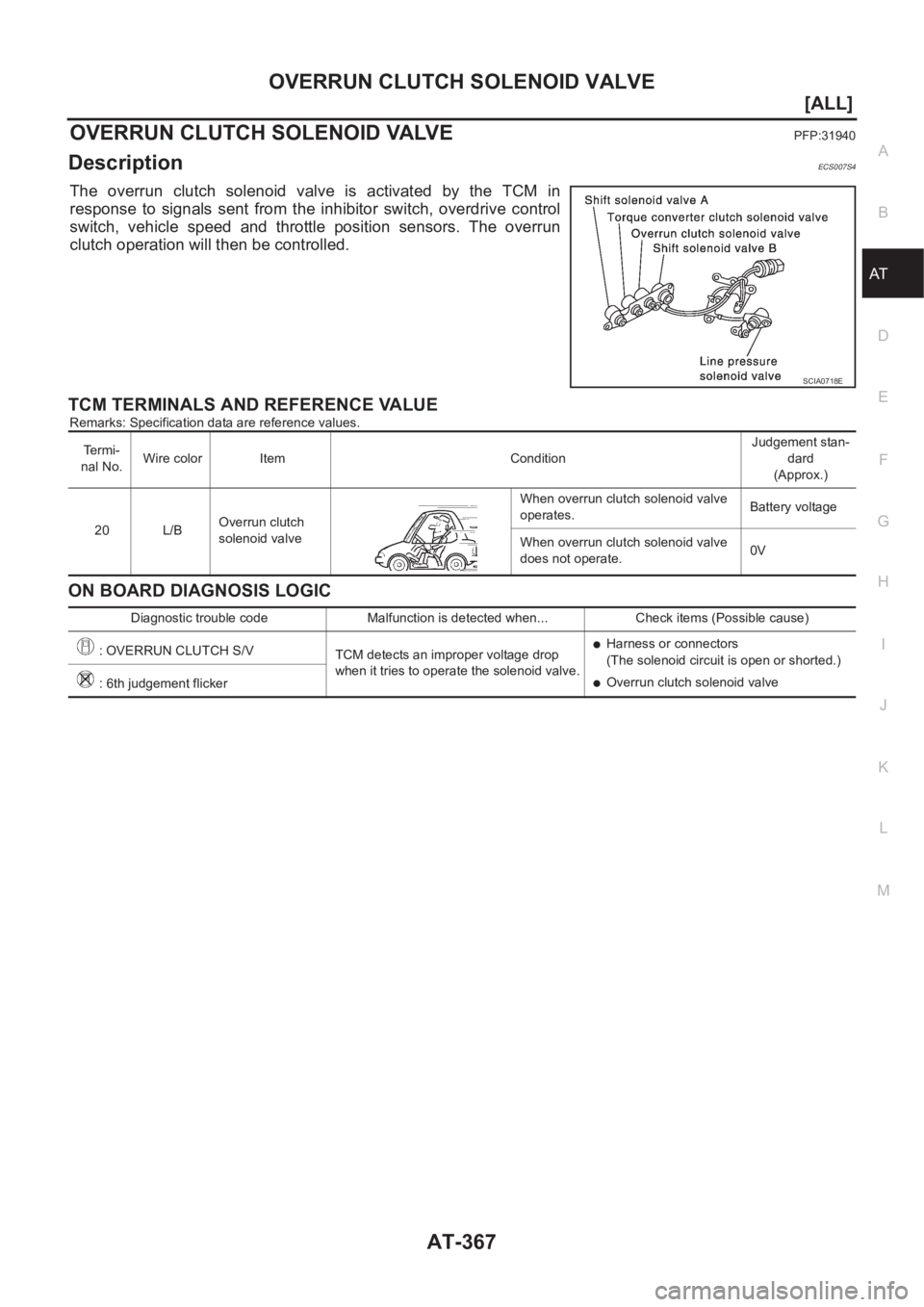

NISSAN ALMERA N16 2003 Electronic Repair Manual OVERRUN CLUTCH SOLENOID VALVE AT-367 [ALL] D E F G H I J K L MA B AT OVERRUN CLUTCH SOLENOID VALVEPFP:31940 DescriptionECS007S4 The overrun clutch solenoid valve is activated by the TCM in r

Page 1824 of 3189

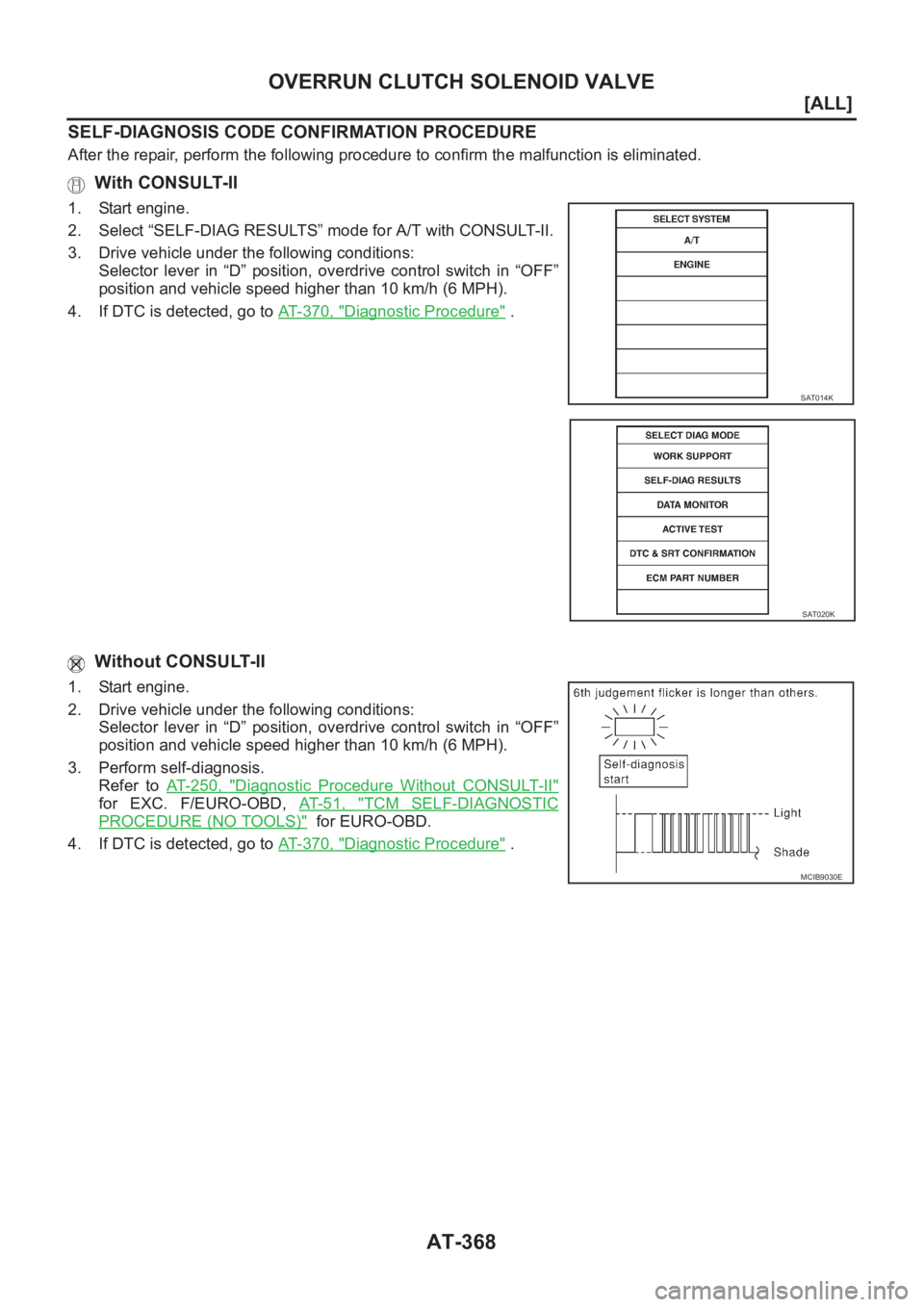

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-368 [ALL] OVERRUN CLUTCH SOLENOID VALVE SELF-DIAGNOSIS CODE CONFIRMATION PROCEDURE After the repair, perform the following procedure to confirm the malfunction is eliminated. With CONSULT-II 1. St
