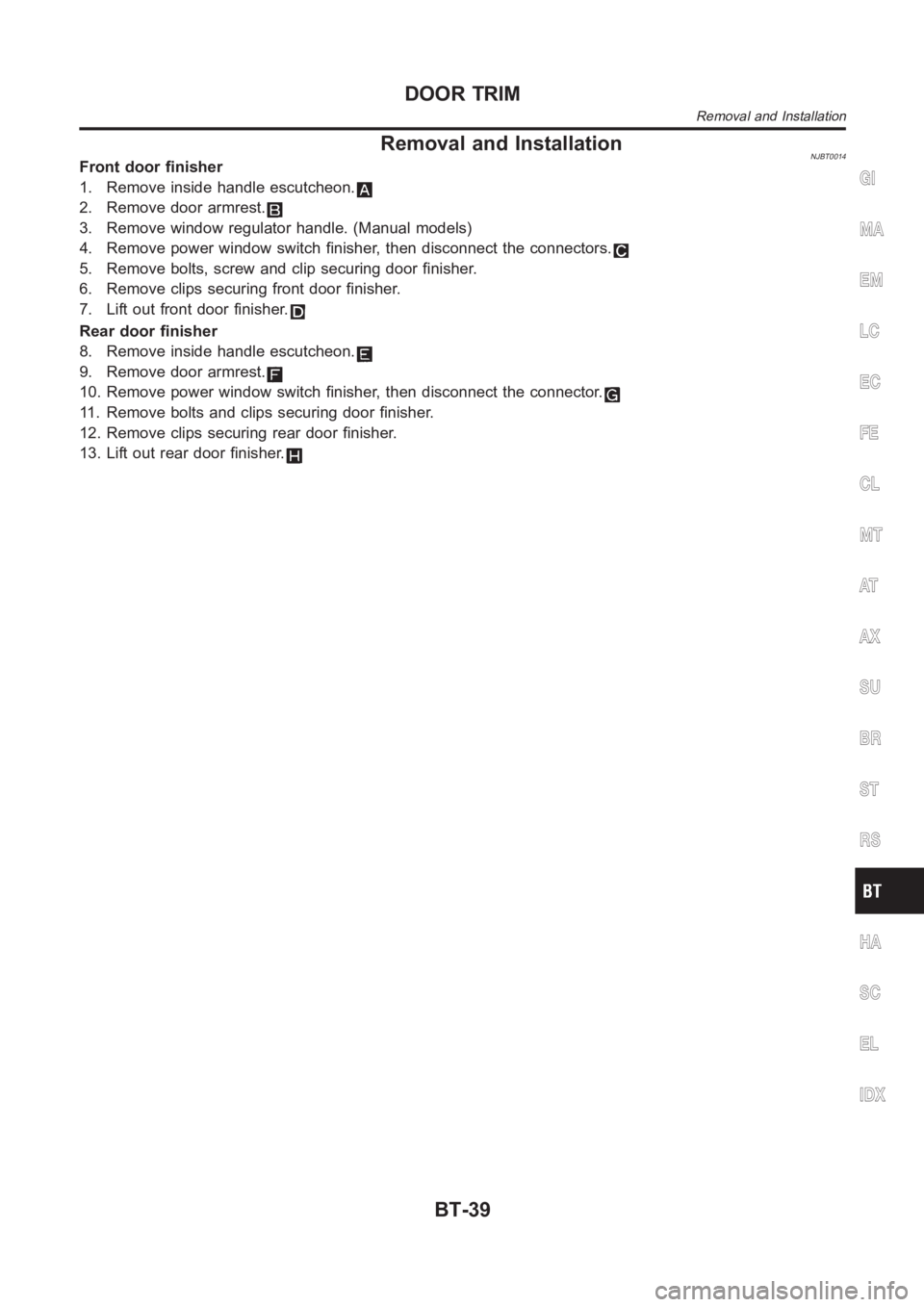

Page 2297 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual Removal and InstallationNJBT0014Front door finisher 1. Remove inside handle escutcheon. 2. Remove door armrest. 3. Remove window regulator handle. (Manual models) 4. Remove power window switch finishe

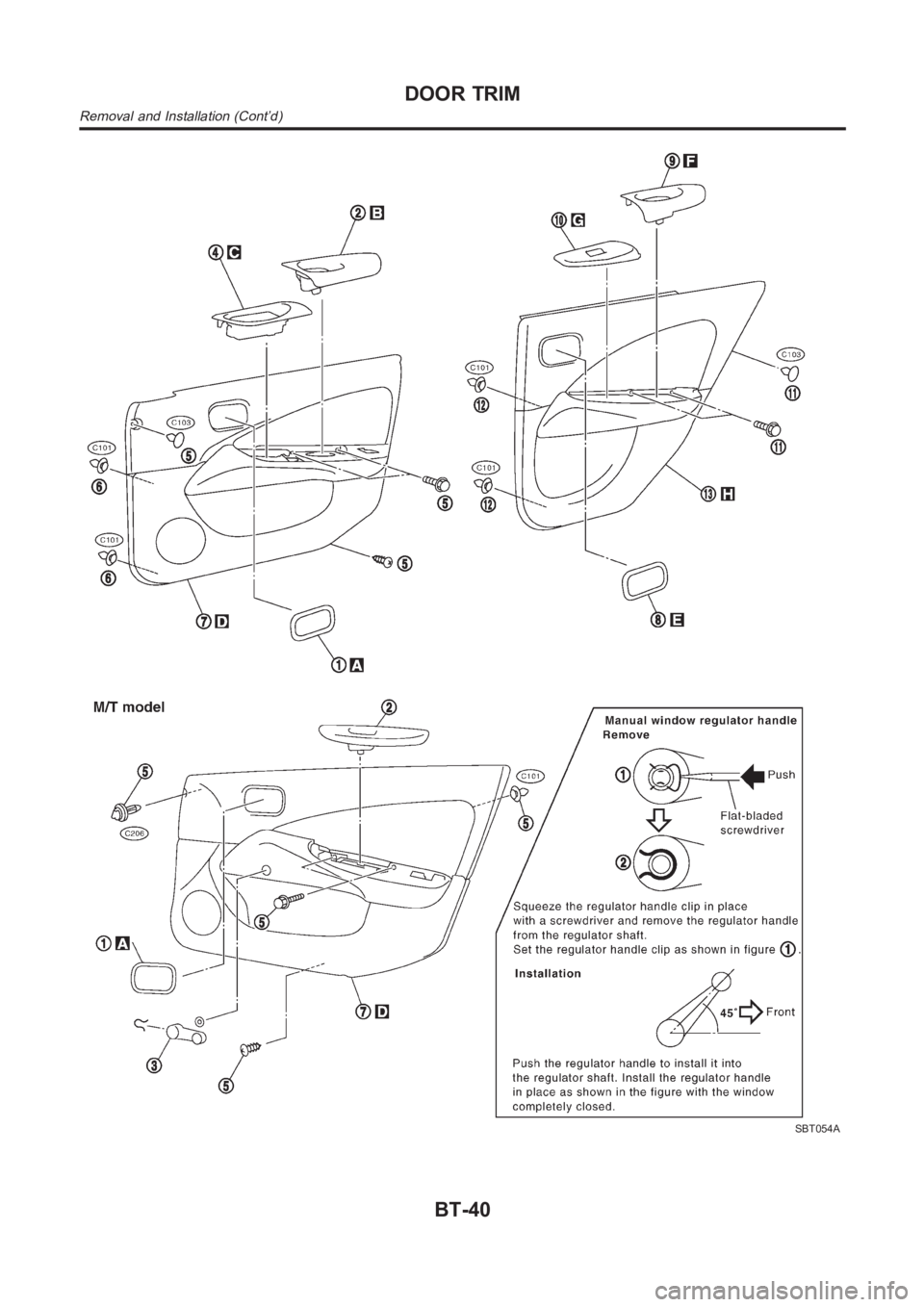

Page 2298 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual SBT054A DOOR TRIM Removal and Installation (Cont’d) BT-40

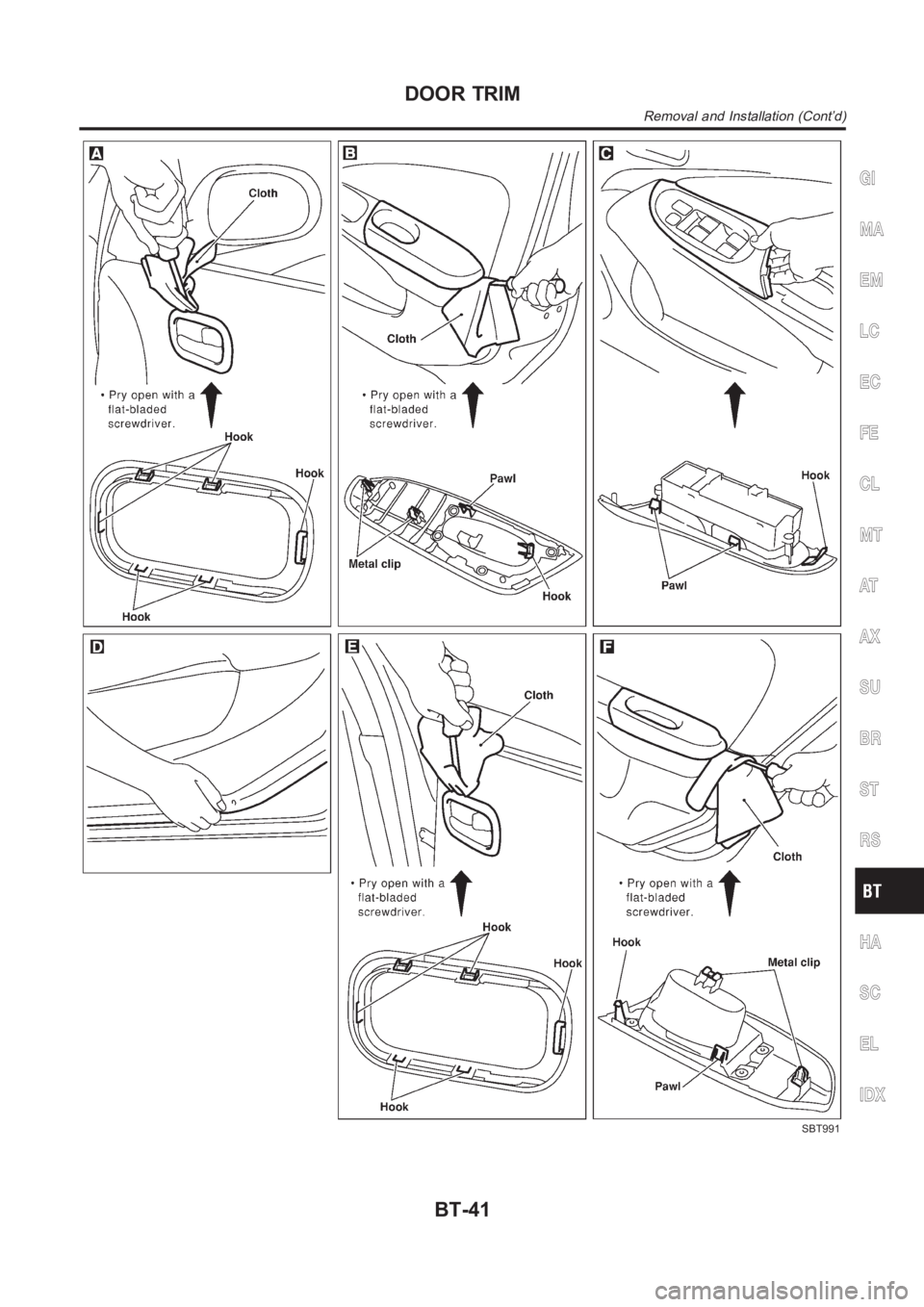

Page 2299 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual SBT991 GI MA EM LC EC FE CL MT AT AX SU BR ST RS HA SC EL IDX DOOR TRIM Removal and Installation (Cont’d) BT-41

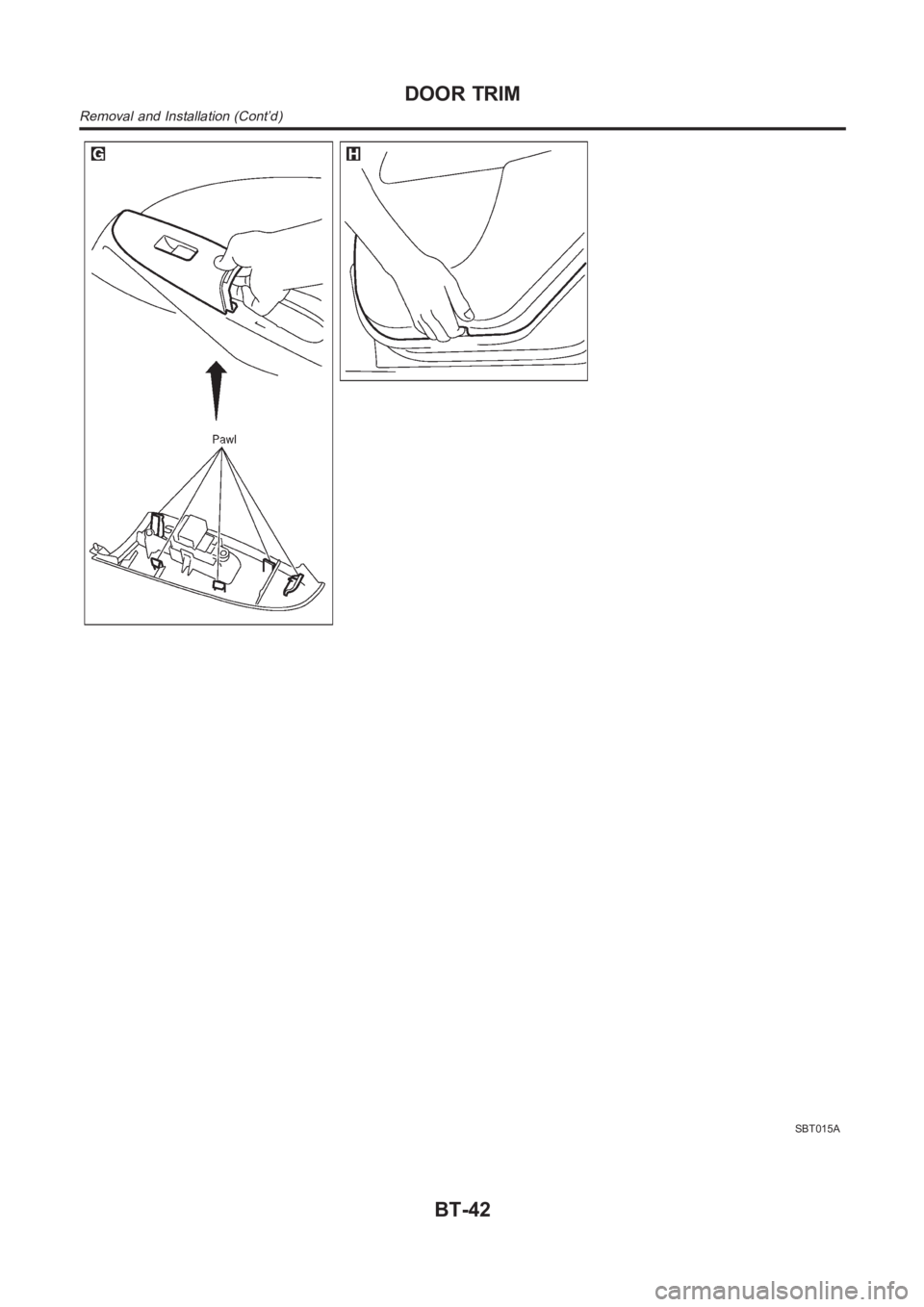

Page 2300 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual SBT015A DOOR TRIM Removal and Installation (Cont’d) BT-42

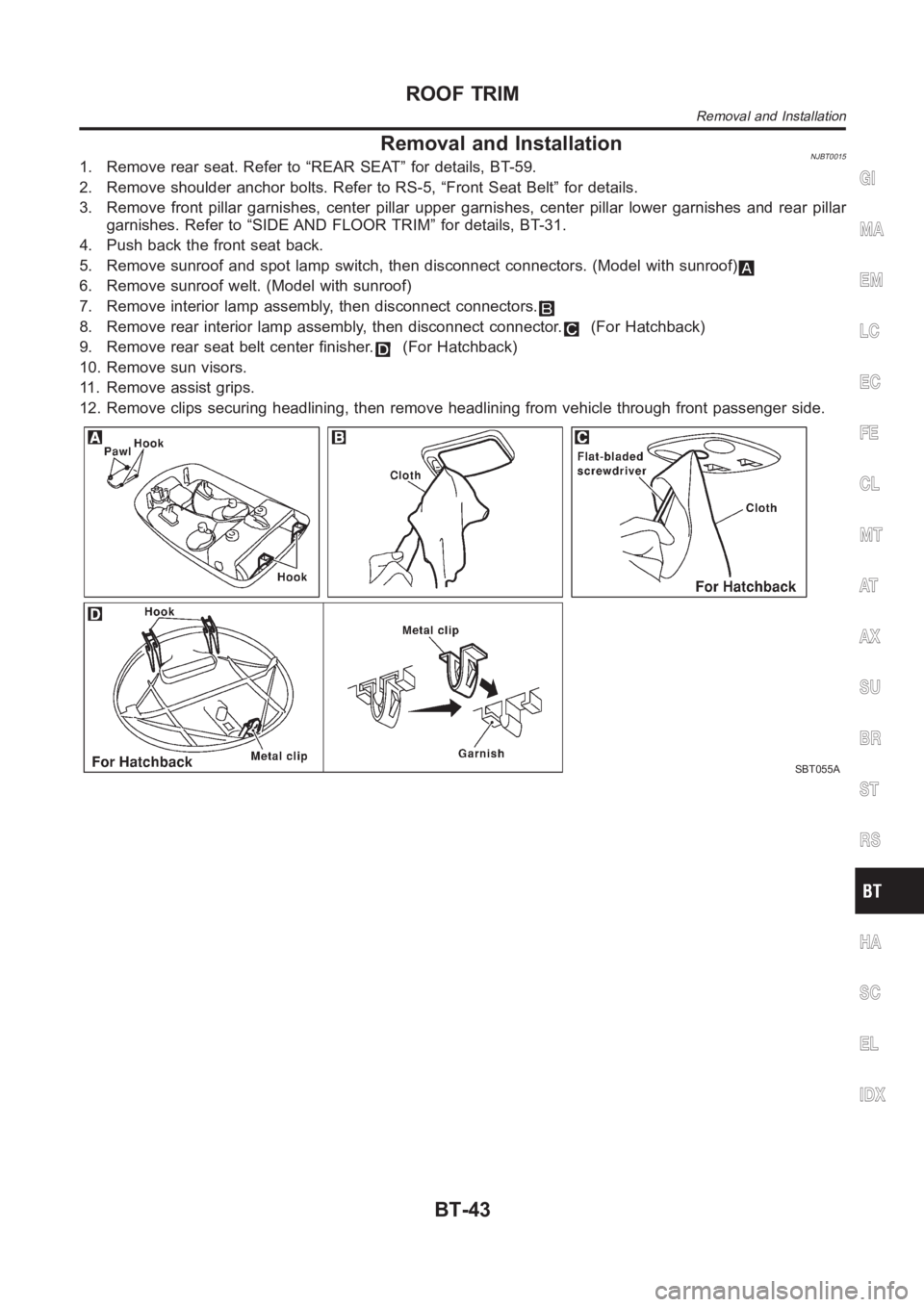

Page 2301 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual Removal and InstallationNJBT00151. Remove rear seat. Refer to “REAR SEAT” for details, BT-59. 2. Remove shoulder anchor bolts. Refer to RS-5, “Front Seat Belt” for details. 3. Remove front pil

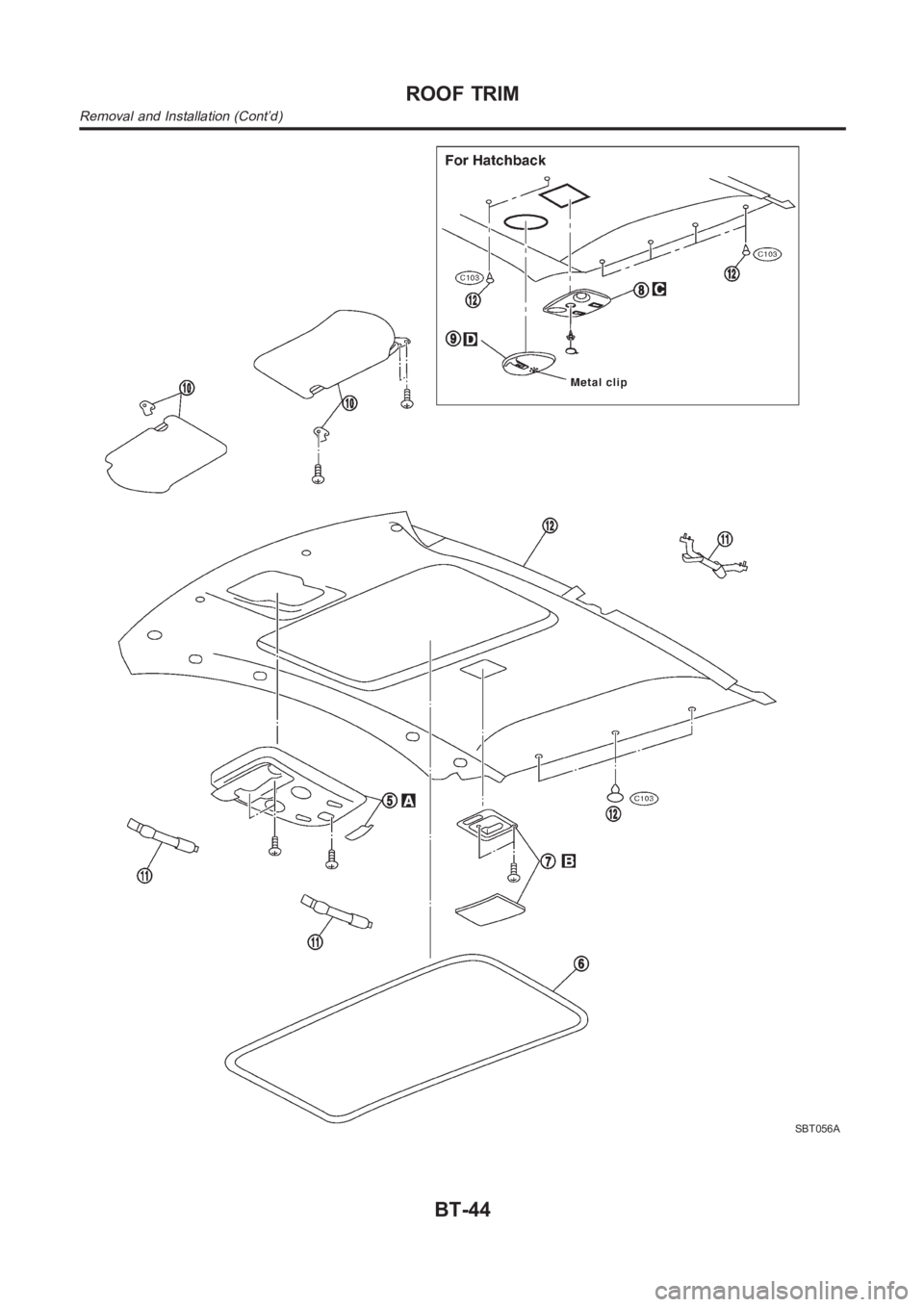

Page 2302 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual SBT056A ROOF TRIM Removal and Installation (Cont’d) BT-44

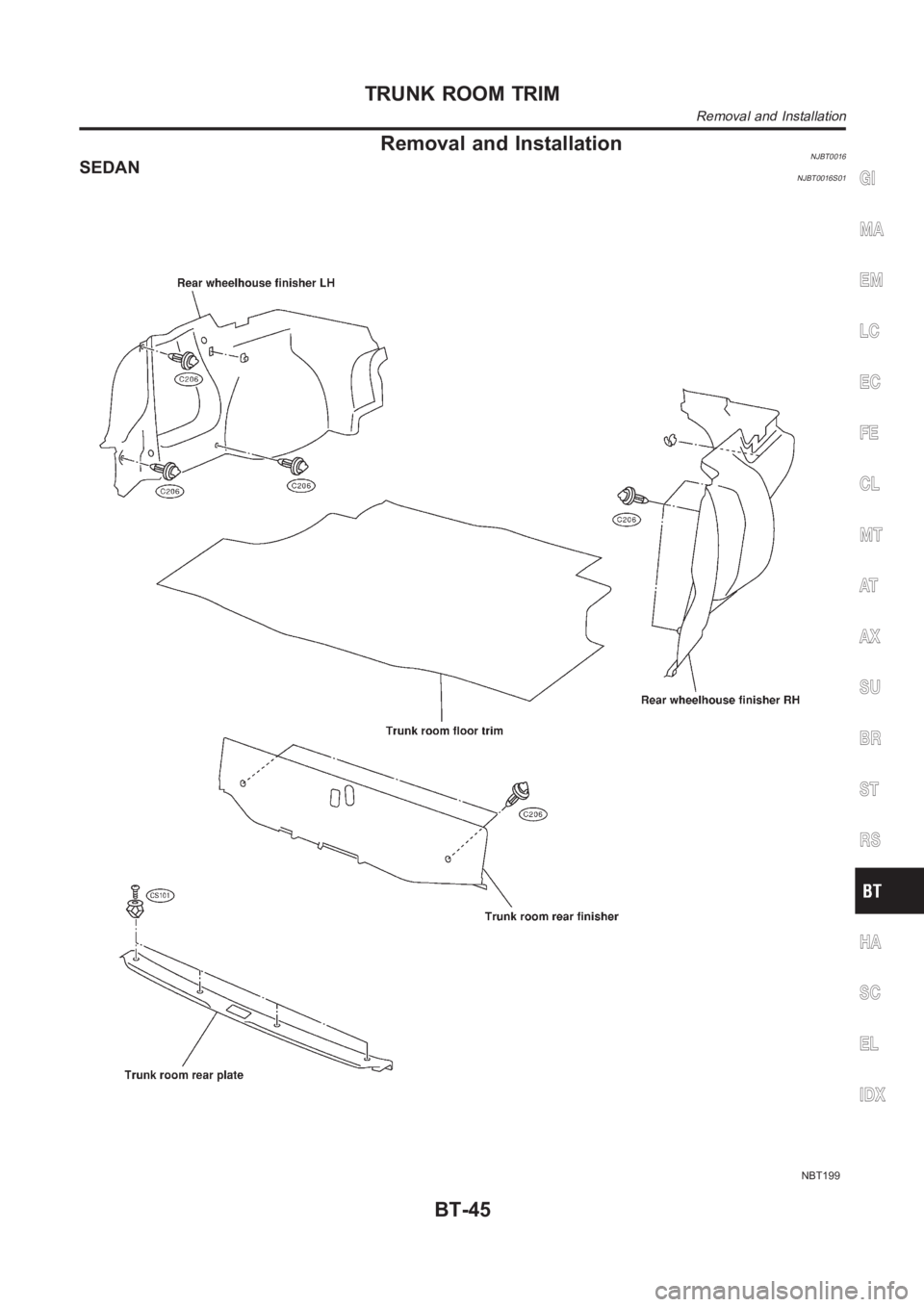

Page 2303 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual Removal and InstallationNJBT0016SEDANNJBT0016S01 NBT199 GI MA EM LC EC FE CL MT AT AX SU BR ST RS HA SC EL IDX TRUNK ROOM TRIM Removal and Installation BT-45

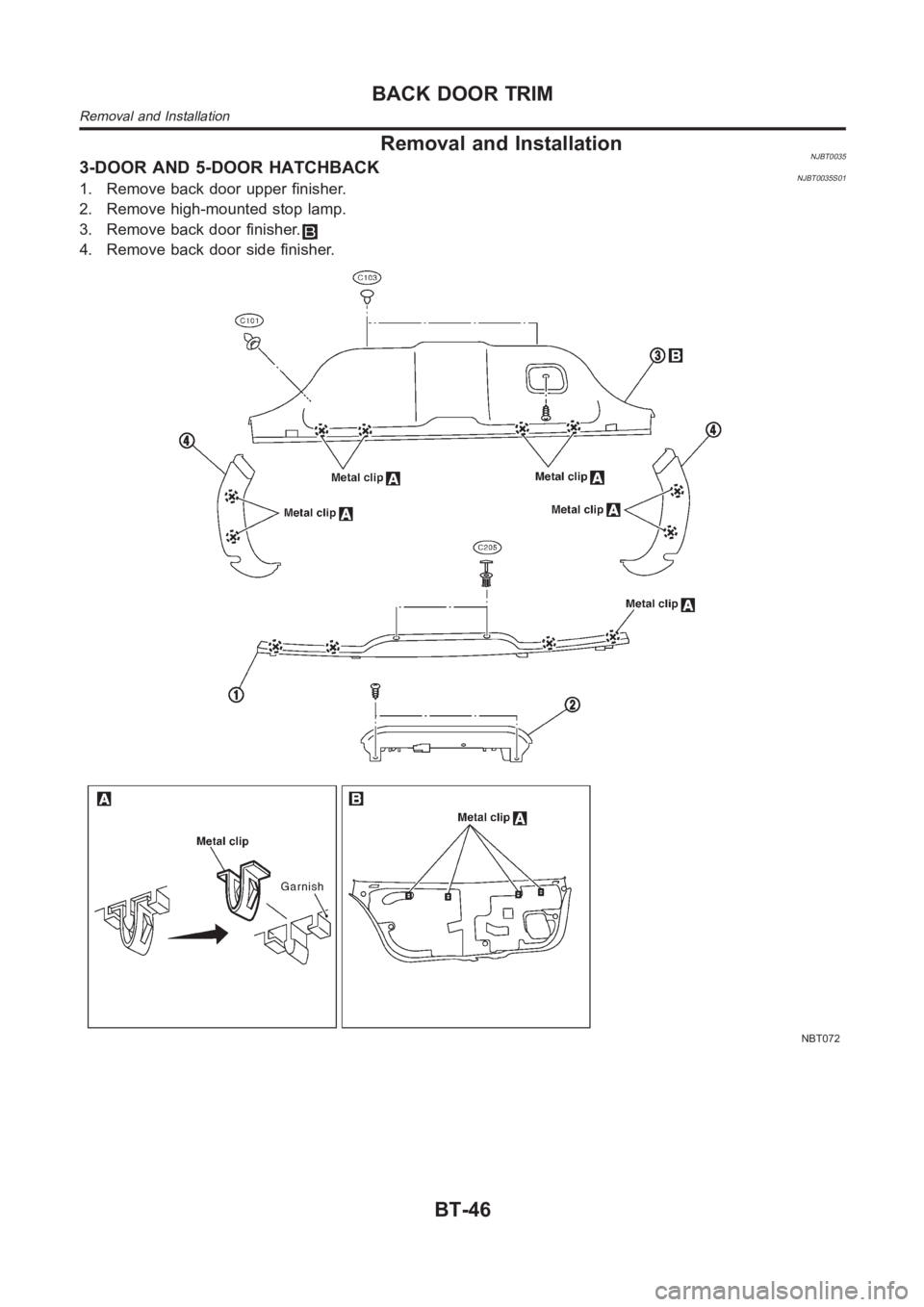

Page 2304 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual Removal and InstallationNJBT00353-DOOR AND 5-DOOR HATCHBACKNJBT0035S011. Remove back door upper finisher. 2. Remove high-mounted stop lamp. 3. Remove back door finisher. 4. Remove back door side finis
