Page 1521 of 3189

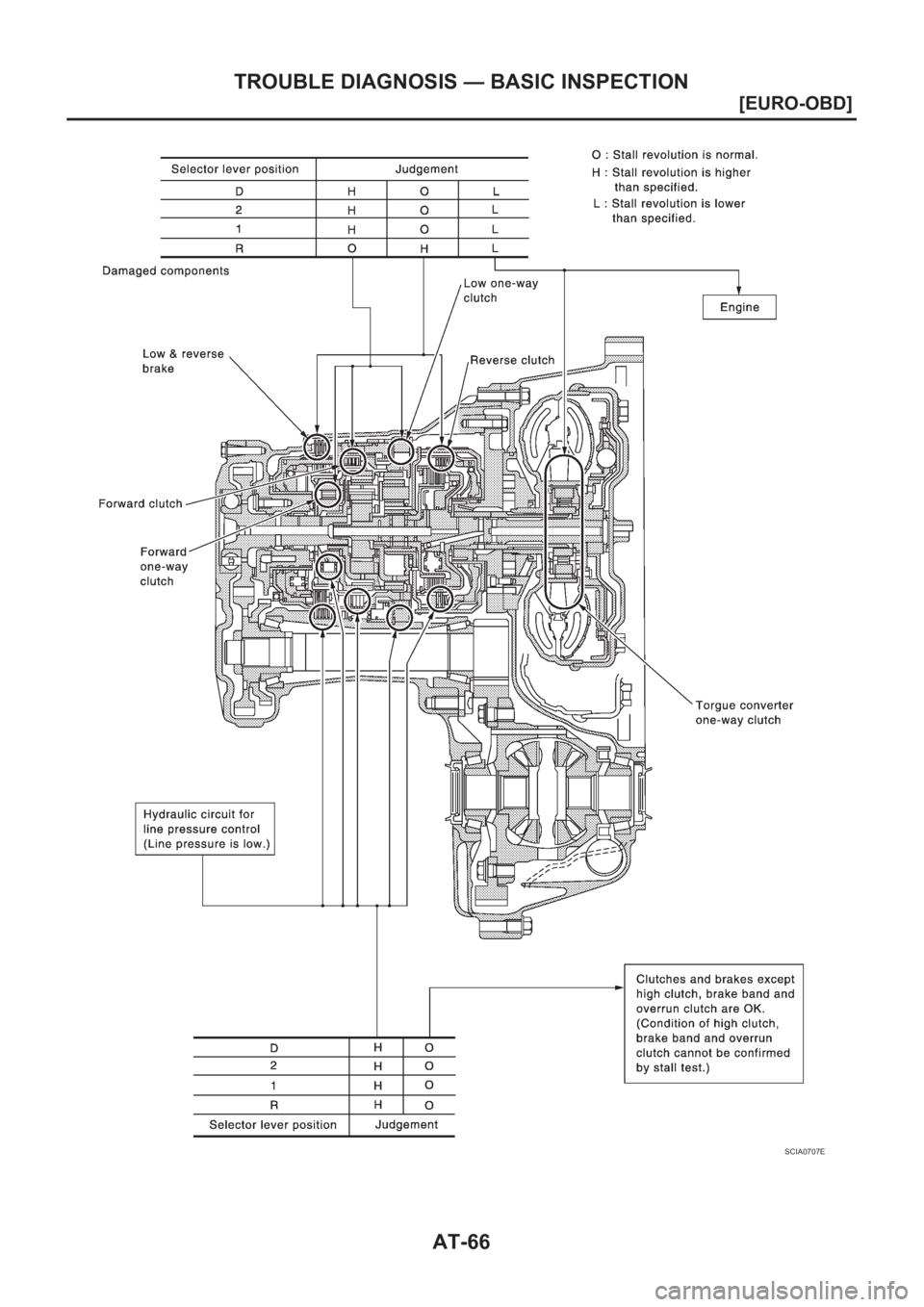

NISSAN ALMERA N16 2003 Electronic Repair Manual TROUBLE DIAGNOSIS — BASIC INSPECTION AT-65 [EURO-OBD] D E F G H I J K L MA B AT JUDGEMENT OF STALL TEST The test result and possible damaged components relating to each result are shown in the illus

Page 1522 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-66 [EURO-OBD] TROUBLE DIAGNOSIS — BASIC INSPECTION SCIA0707E

Page 1523 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual TROUBLE DIAGNOSIS — BASIC INSPECTION AT-67 [EURO-OBD] D E F G H I J K L MA B AT Line Pressure TestECS007NY LINE PRESSURE TEST PORTS Location of line pressure test ports are shown in the illustration

Page 1524 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-68 [EURO-OBD] TROUBLE DIAGNOSIS — BASIC INSPECTION JUDGEMENT OF LINE PRESSURE TEST Road TestECS007NZ DESCRIPTION ●The purpose of the test is to determine overall performance of A/ T and analyze

Page 1525 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual TROUBLE DIAGNOSIS — BASIC INSPECTION AT-69 [EURO-OBD] D E F G H I J K L MA B AT ON BOARD DIAGNOSTIC SYS- TEM DESCRIPTIONTROUBLE DIAGNOSES FOR SYMPTOMS EURO-OBDAT- 3 7 , " ON BOARD DIAGNOS- TI

Page 1526 of 3189

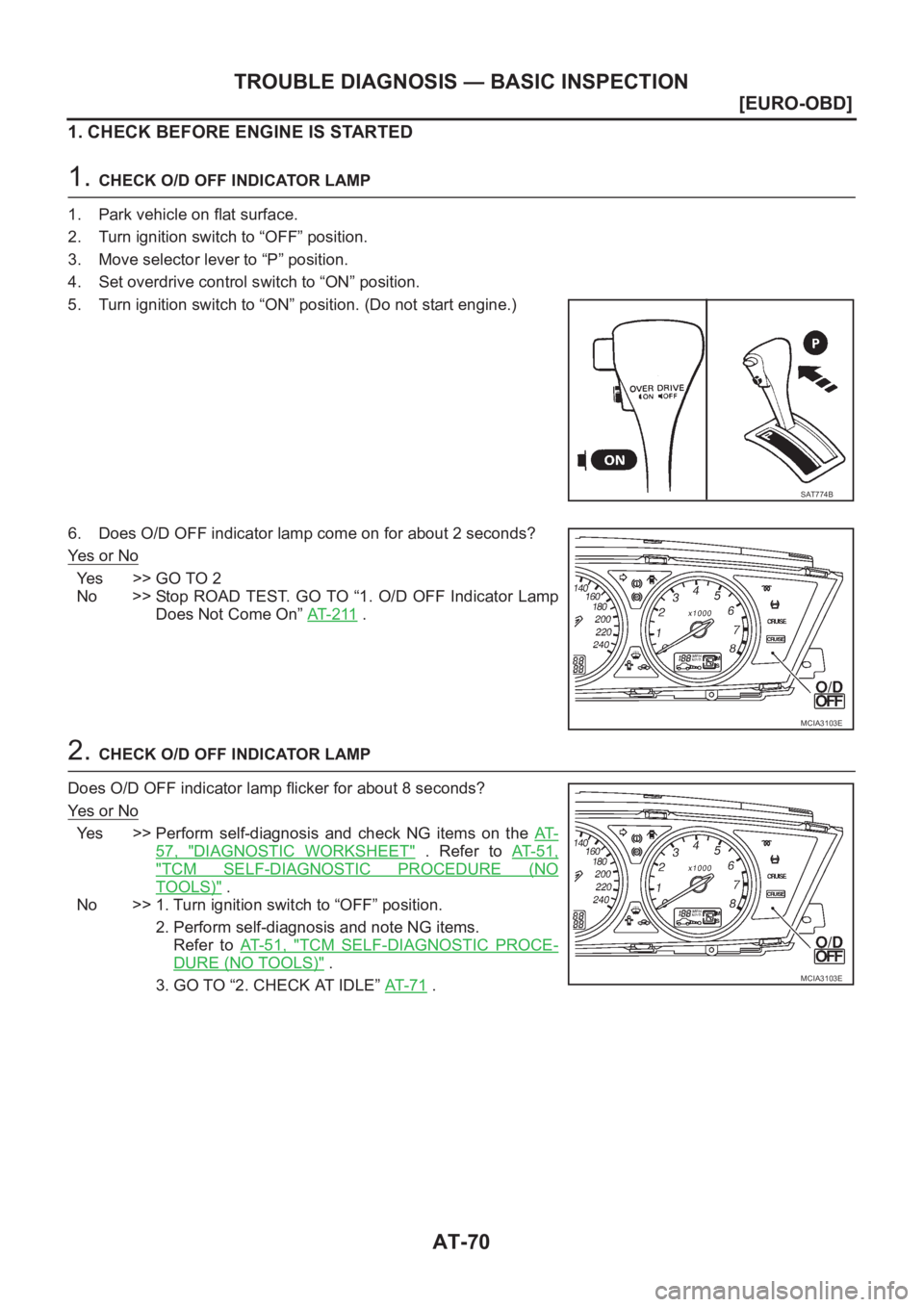

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-70 [EURO-OBD] TROUBLE DIAGNOSIS — BASIC INSPECTION 1. CHECK BEFORE ENGINE IS STARTED 1. CHECK O/D OFF INDICATOR LAMP 1. Park vehicle on flat surface. 2. Turn ignition switch to “OFF” position

Page 1527 of 3189

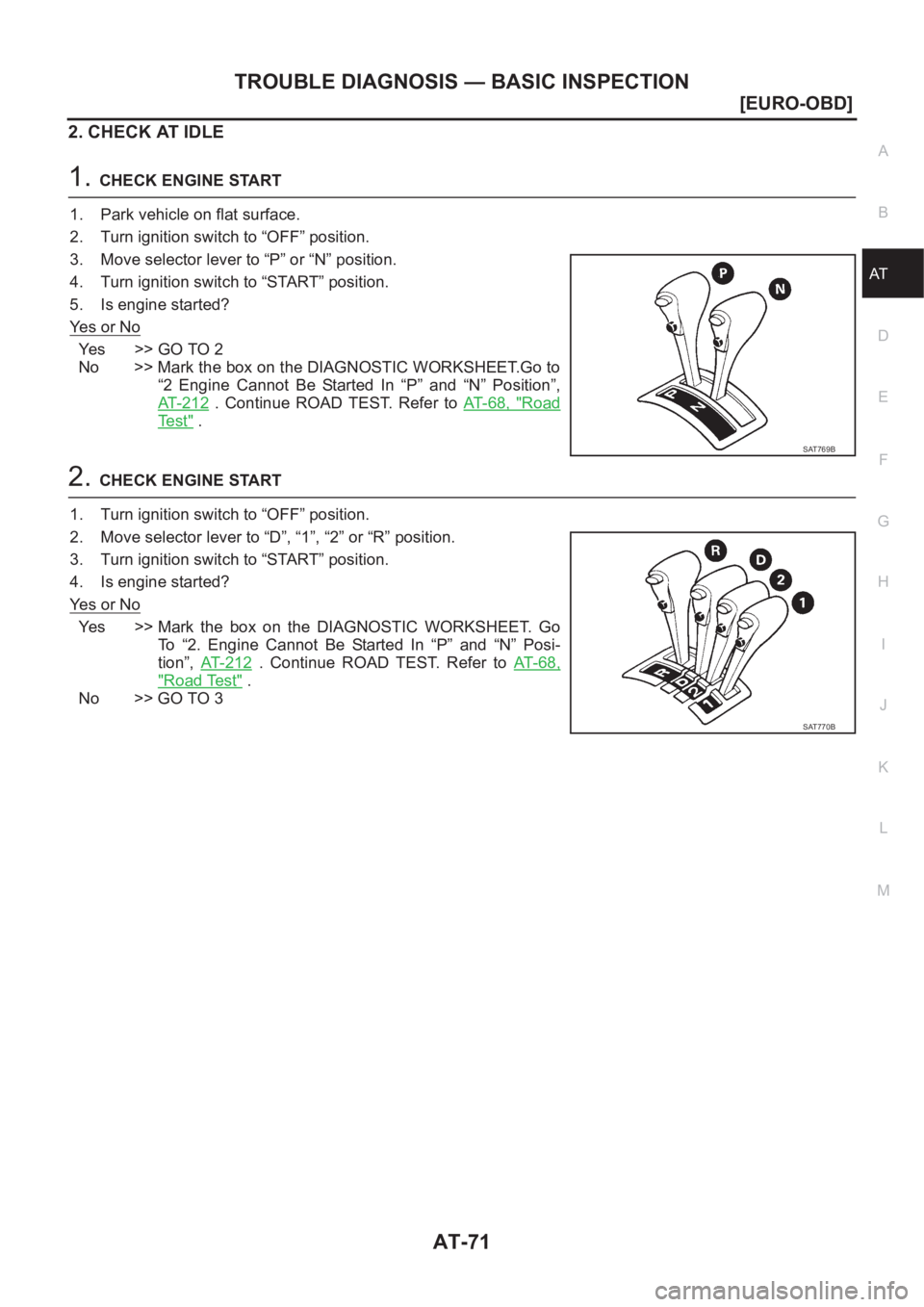

NISSAN ALMERA N16 2003 Electronic Repair Manual TROUBLE DIAGNOSIS — BASIC INSPECTION AT-71 [EURO-OBD] D E F G H I J K L MA B AT 2. CHECK AT IDLE 1.CHECK ENGINE START 1. Park vehicle on flat surface. 2. Turn ignition switch to “OFF” position.

Page 1528 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-72 [EURO-OBD] TROUBLE DIAGNOSIS — BASIC INSPECTION 3. CHECK VEHICLE MOVE 1. Turn ignition switch to “OFF” position. 2. Move selector lever to “P” position. 3. Release parking brake. 4. Pu
