Page 1033 of 3189

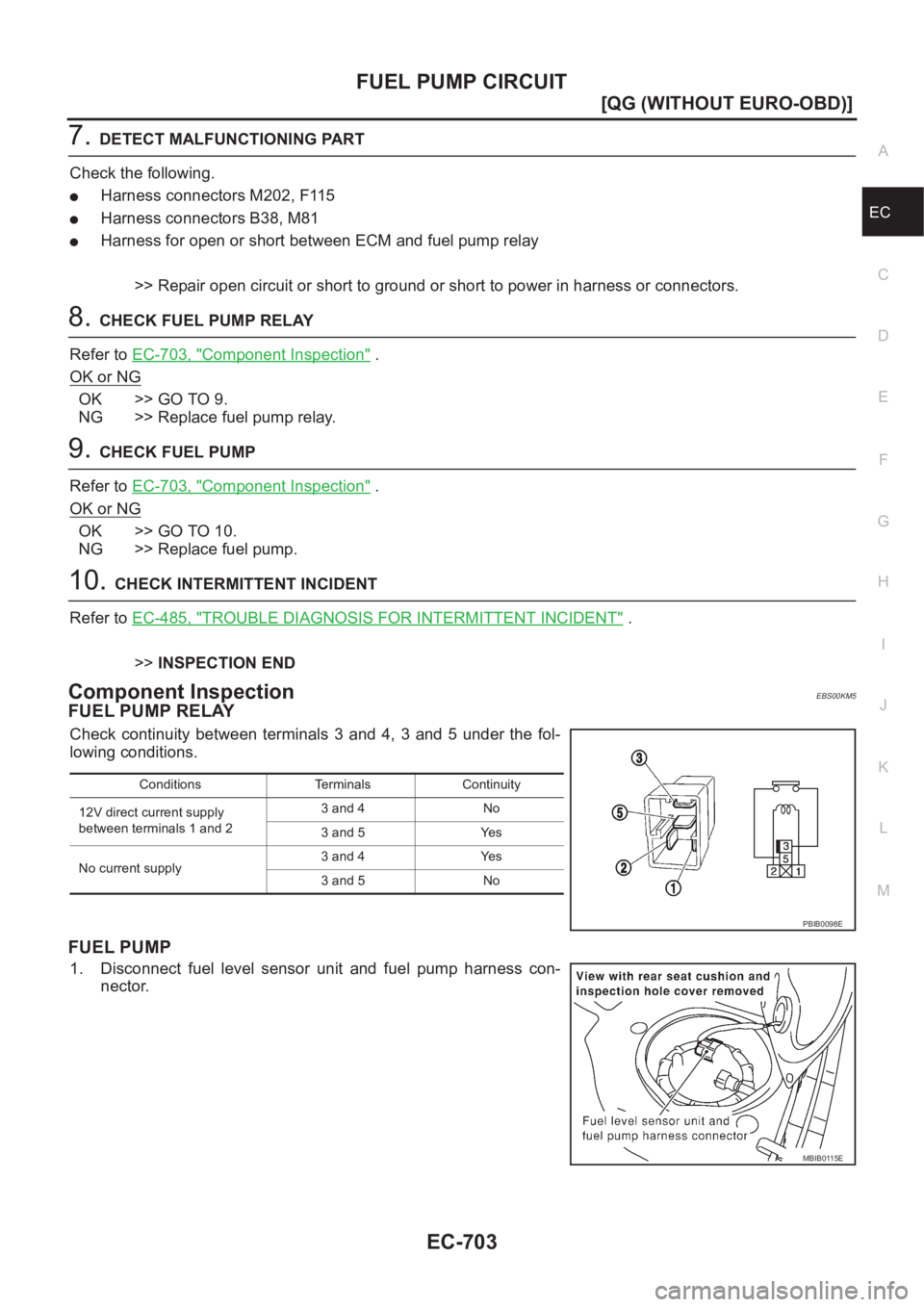

NISSAN ALMERA N16 2003 Electronic Repair Manual FUEL PUMP CIRCUIT EC-703 [QG (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC 7.DETECT MALFUNCTIONING PART Check the following. ●Harness connectors M202, F115 ●Harness connectors B38, M81 ●Harness

Page 1034 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual EC-704 [QG (WITHOUT EURO-OBD)] FUEL PUMP CIRCUIT 2. Check resistance between fuel level sensor unit and fuel pump terminals 3 and 5. Removal and InstallationEBS00KM6 FUEL PUMP Refer to FE-8.R

Page 1035 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual REFRIGERANT PRESSURE SENSOR EC-705 [QG (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC REFRIGERANT PRESSURE SENSORPFP:92136 Component DescriptionEBS00KM7 The refrigerant pressure sensor is installe

Page 1036 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual EC-706 [QG (WITHOUT EURO-OBD)] REFRIGERANT PRESSURE SENSOR Wiring Diagram EBS00KM8 YEC310A

Page 1037 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual REFRIGERANT PRESSURE SENSOR EC-707 [QG (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC Specification data are reference values and are measured between each terminal and ground. CAUTION: Do not use ECM

Page 1038 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual EC-708 [QG (WITHOUT EURO-OBD)] REFRIGERANT PRESSURE SENSOR 2. CHECK REFRIGERANT PRESSURE SENSOR POWER SUPPLY CIRCUIT 1. Turn A/C switch and blower switch “OFF”. 2. Stop engine. 3. Disconnect refri

Page 1039 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual REFRIGERANT PRESSURE SENSOR EC-709 [QG (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC 6.CHECK REFRIGERANT PRESSURE SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT 1. Check harness continuity between ECM

Page 1040 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual EC-710 [QG (WITHOUT EURO-OBD)] ELECTRICAL LOAD SIGNAL ELECTRICAL LOAD SIGNAL PFP:25350 DescriptionEBS00KMB The electrical load signals except headlamp switch signal are transferred through
