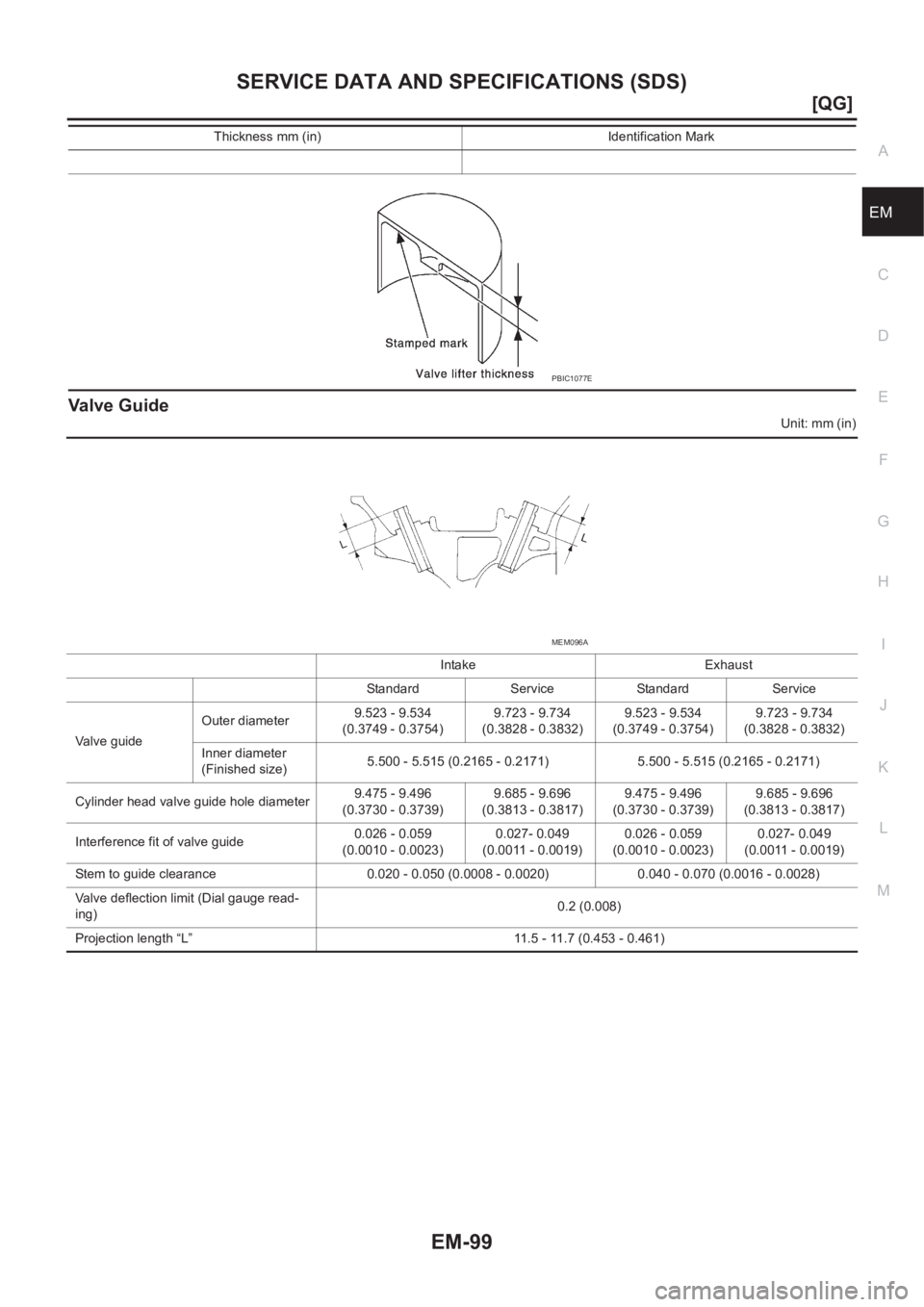

Page 177 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual SERVICE DATA AND SPECIFICATIONS (SDS) EM-99 [QG] C D E F G H I J K L MA EM Valve Guide Unit: mm (in) Thickness mm (in) Identification Mark PBIC1077E Intake Exhaust Standard Service Standard Service Va

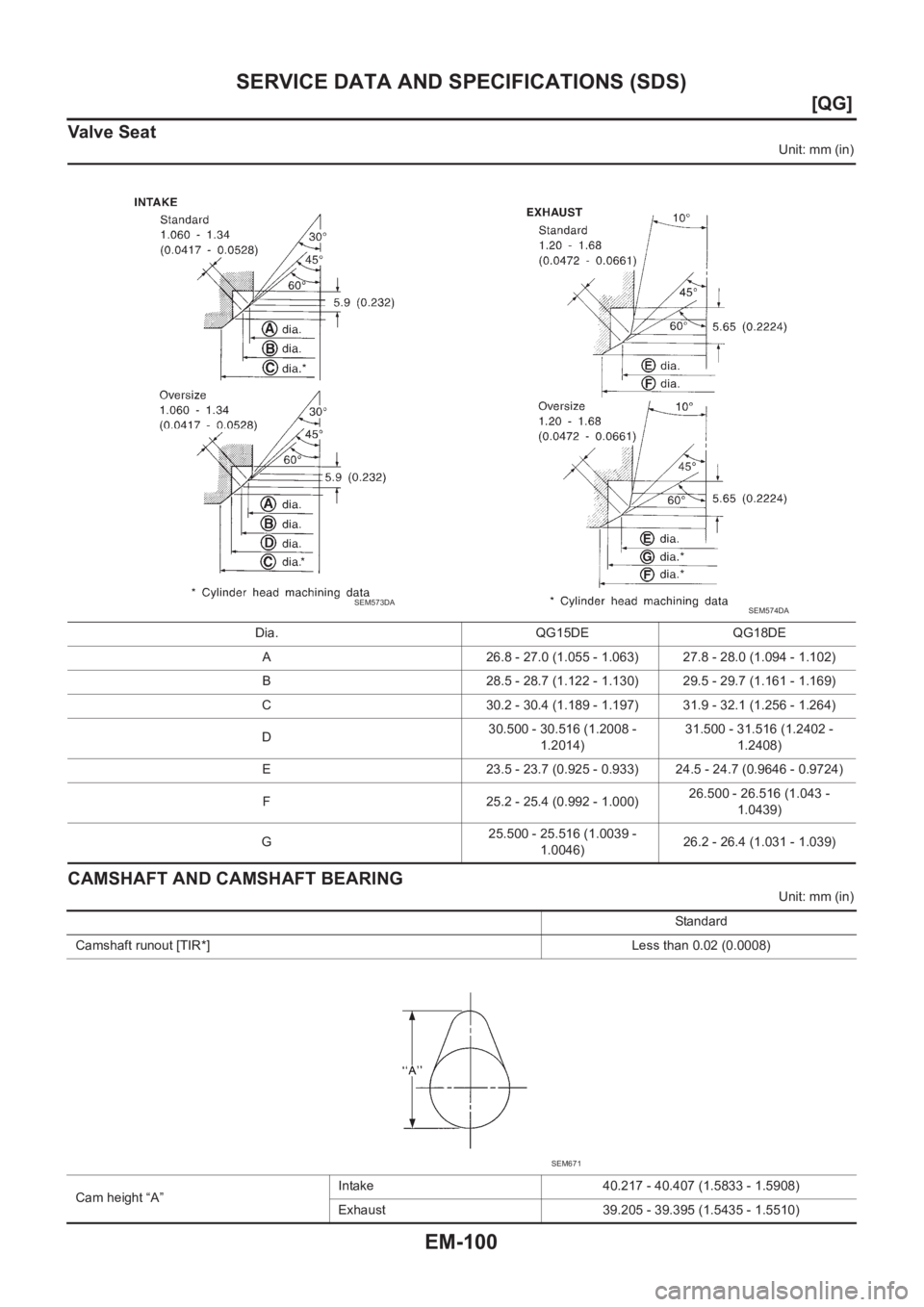

Page 178 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual EM-100 [QG] SERVICE DATA AND SPECIFICATIONS (SDS) Valve Seat Unit: mm (in) CAMSHAFT AND CAMSHAFT BEARING Unit: mm (in) Dia. QG15DE QG18DE A 26.8 - 27.0 (1.055 - 1.063) 27.8 - 28.0 (1.094 - 1.102) B 28

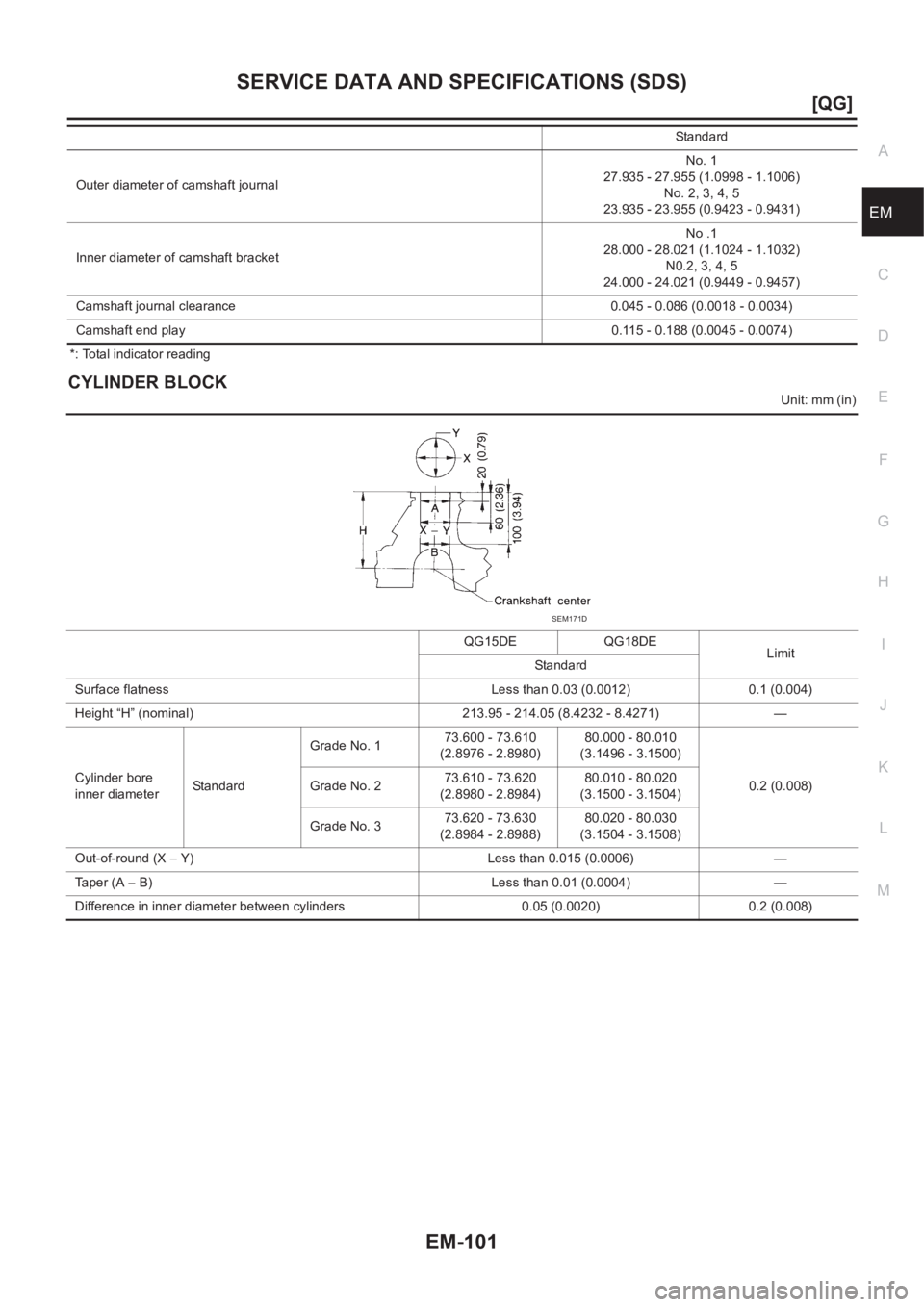

Page 179 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual SERVICE DATA AND SPECIFICATIONS (SDS) EM-101 [QG] C D E F G H I J K L MA EM *: Total indicator reading CYLINDER BLOCK Unit: mm (in) Outer diameter of camshaft journalNo. 1 27.935 - 27.955 (1.0998 - 1.

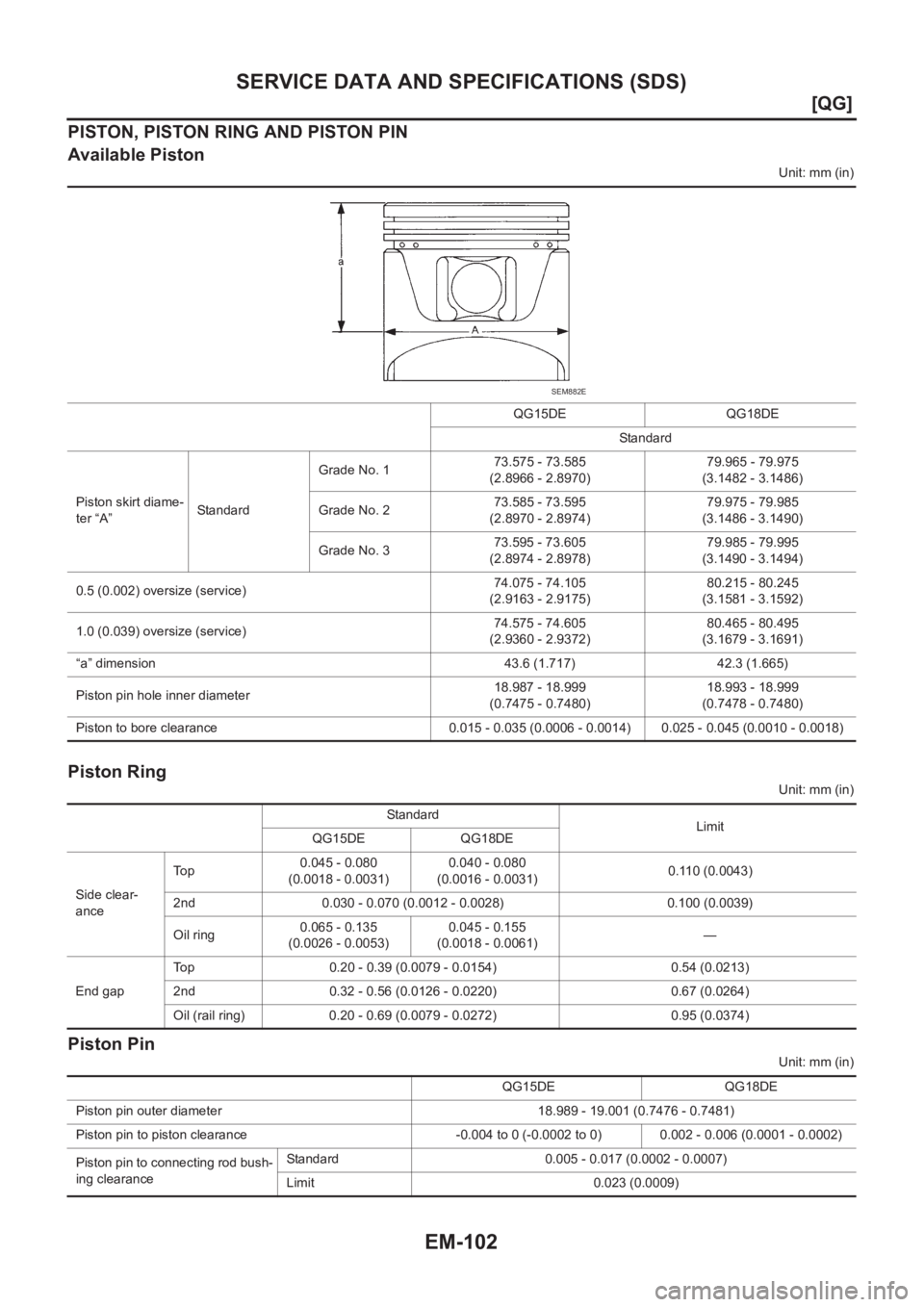

Page 180 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual EM-102 [QG] SERVICE DATA AND SPECIFICATIONS (SDS) PISTON, PISTON RING AND PISTON PIN Available Piston Unit: mm (in) Piston Ring Unit: mm (in) Piston Pin Unit: mm (in) QG15DE QG18DE Standard Piston ski

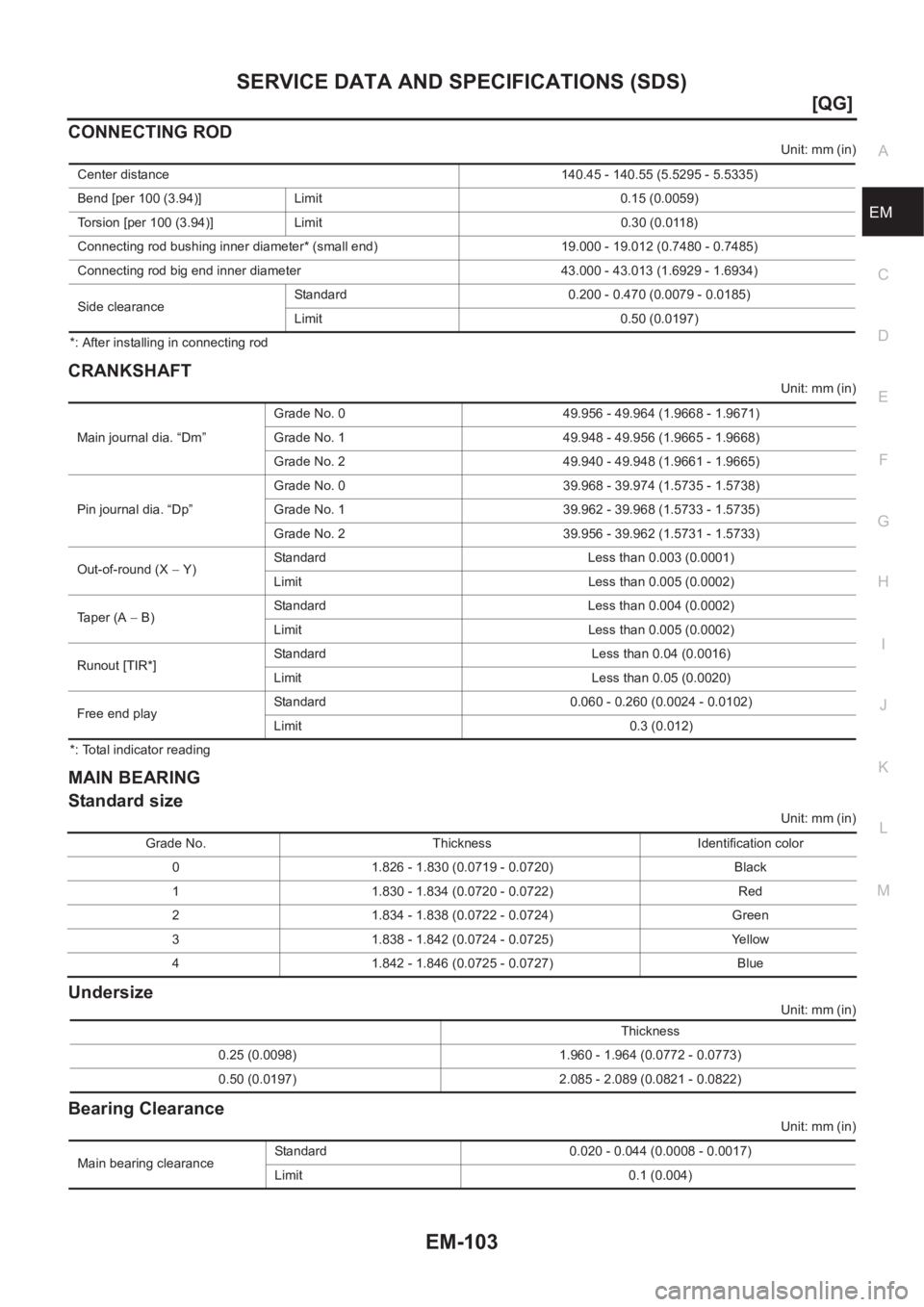

Page 181 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual SERVICE DATA AND SPECIFICATIONS (SDS) EM-103 [QG] C D E F G H I J K L MA EM CONNECTING ROD Unit: mm (in) *: After installing in connecting rod CRANKSHAFT Unit: mm (in) *: Total indicator reading MAIN

Page 182 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual EM-104 [QG] SERVICE DATA AND SPECIFICATIONS (SDS) CONNECTING ROD BEARING Standard Size Unit: mm (in) Undersize Unit: mm (in) Bearing Clearance Unit: mm (in) MISCELLANEOUS COMPONENTS Unit: mm (in) *: T

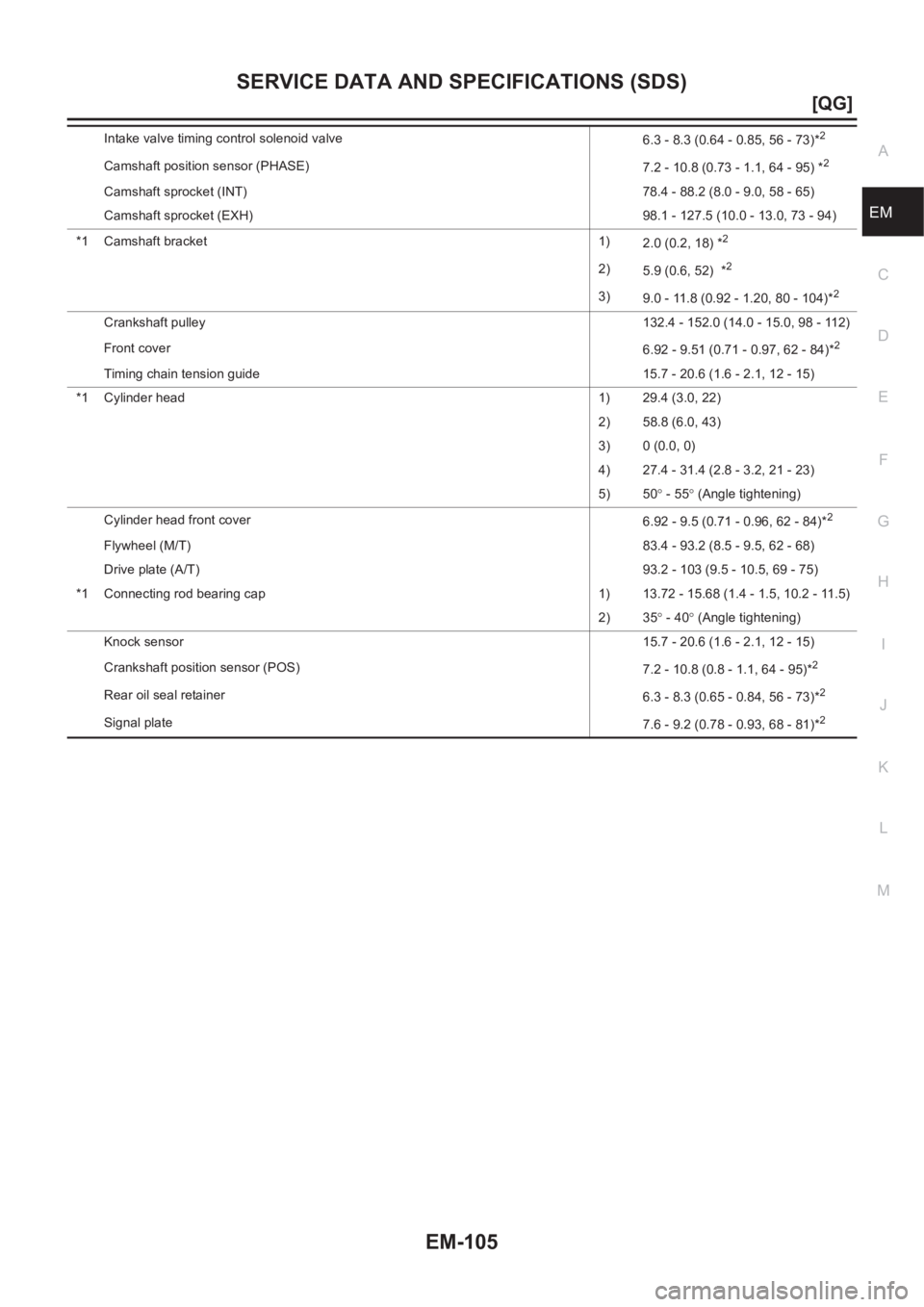

Page 183 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual SERVICE DATA AND SPECIFICATIONS (SDS) EM-105 [QG] C D E F G H I J K L MA EM Intake valve timing control solenoid valve 6.3 - 8.3 (0.64 - 0.85, 56 - 73)*2 Camshaft position sensor (PHASE) 7.2 - 10.8 (0

Page 184 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual EM-106 [QG] SERVICE DATA AND SPECIFICATIONS (SDS)
