Page 665 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual DTC P1223, P1224 TP SENSOR
EC-335
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P1223, P1224 TP SENSORPFP:16119
Component DescriptionEBS00KBK
Electric Throttle Control Actuator consists of NISSAN ALMERA N16 2003 Electronic Repair Manual DTC P1223, P1224 TP SENSOR
EC-335
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P1223, P1224 TP SENSORPFP:16119
Component DescriptionEBS00KBK
Electric Throttle Control Actuator consists of](/manual-img/5/57350/w960_57350-664.png)
DTC P1223, P1224 TP SENSOR
EC-335
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P1223, P1224 TP SENSORPFP:16119
Component DescriptionEBS00KBK
Electric Throttle Control Actuator consists of throttle control motor,
throttle position sensor, etc. The throttle position sensor responds to
the throttle valve movement.
The throttle position sensor has the two sensors. These sensors are
a kind of potentiometers which transform the throttle valve position
into output voltage, and emit the voltage signal to the ECM. In addi-
tion, these sensors detect the opening and closing speed of the
throttle valve and feed the voltage signals to the ECM. The ECM
judges the current opening angle of the throttle valve from these sig-
nals and the ECM controls the throttle control motor to make the
throttle valve opening angle properly in response to driving condi-
tion.
CONSULT-II Reference Value in Data Monitor ModeEBS00KBL
Specification data are reference values.
*: Throttle position sensor 2 signal is converted by ECM internally. Thus, it differs from ECM terminal voltage signal.
On Board Diagnosis LogicEBS00KBM
These self-diagnoses have the one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, the ECM enters fail-safe mode and the MI lights up.
DTC Confirmation ProcedureEBS00KBN
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.
PBIB0145E
MONITOR ITEM CONDITION SPECIFICATION
THRTL SEN1
THRTL SEN2*
●Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released More than 0.36V
●Shift lever:
D (A/T model)
1st (M/T model)Accelerator pedal: Fully depressed Less than 4.75V
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1223
1223Throttle position sensor 2
circuit low inputAn excessively low voltage from the TP sensor 2
is sent to ECM.
●Harness or connectors
(The TP sensor 2 circuit is open or
shorted.)
●Electric throttle control actuator
(TP sensor 2) P1224
1224Throttle position sensor 2
circuit high inputAn excessively high voltage from the TP sensor 2
is sent to ECM.
Engine operation condition in fail-safe mode
The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10
degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal condition.
So, the acceleration will be poor.
Page 666 of 3189
EC-336
[QG (WITH EURO-OBD)]
DTC P1223, P1224 TP SENSOR
WITH CONSULT-II
1. Turn ignition switch “ON”.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for 1 second.
4. If DTC is detected, go to EC-338, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
SEF058Y
Page 667 of 3189
DTC P1223, P1224 TP SENSOR
EC-337
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Wiring DiagramEBS00KBO
YEC301A
Page 668 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual EC-338
[QG (WITH EURO-OBD)]
DTC P1223, P1224 TP SENSOR
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measurin NISSAN ALMERA N16 2003 Electronic Repair Manual EC-338
[QG (WITH EURO-OBD)]
DTC P1223, P1224 TP SENSOR
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measurin](/manual-img/5/57350/w960_57350-667.png)
EC-338
[QG (WITH EURO-OBD)]
DTC P1223, P1224 TP SENSOR
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureEBS00KBP
1. RETIGHTEN GROUND SCREWS
1. Turn ignition switch “OFF”.
2. Loosen and retighten engine ground screws.
>> GO TO 2.
TERMI-
NAL NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
47 GSensor power supply
(Throttle position sensor) [Ignition switch “ON”]Approximately 5V
49 W Throttle position sensor 1[Ignition switch “ON”]
●Engine stopped.
●Shift lever position is “D” (A/T models).
●Shift lever position is “1st” (M/T models).
●Accelerator pedal fully released.More than 0.36V
[Ignition switch “ON”]
●Engine stopped.
●Shift lever position is “D” (A/T models).
●Shift lever position is “1st” (M/T models).
●Accelerator pedal fully depressed.Less than 4.75V
66 BSensor ground
(Throttle position sensor)[Engine is running]
●Warm-up condition
●Idle speedApproximately 0V
68 R Throttle position sensor 2[Ignition switch “ON”]
●Engine stopped.
●Shift lever position is “D” (A/T models).
●Shift lever position is “1st” (M/T models).
●Accelerator pedal fully released.Less than 4.75V
[Ignition switch “ON”]
●Engine stopped.
●Shift lever position is “D” (A/T models).
●Shift lever position is “1st” (M/T models).
●Accelerator pedal fully depressed.More than 0.36V
MBIB0095E
Page 669 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual DTC P1223, P1224 TP SENSOR
EC-339
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
2.CHECK THROTTLE POSITION SENSOR 2 POWER SUPPLY CIRCUIT
1. Disconnect electric throttle control actuator harness connec NISSAN ALMERA N16 2003 Electronic Repair Manual DTC P1223, P1224 TP SENSOR
EC-339
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
2.CHECK THROTTLE POSITION SENSOR 2 POWER SUPPLY CIRCUIT
1. Disconnect electric throttle control actuator harness connec](/manual-img/5/57350/w960_57350-668.png)
DTC P1223, P1224 TP SENSOR
EC-339
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
2.CHECK THROTTLE POSITION SENSOR 2 POWER SUPPLY CIRCUIT
1. Disconnect electric throttle control actuator harness connector.
2. Turn ignition switch “ON”.
3. Check voltage between electric throttle control actuator terminal
1 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
3.CHECK THROTTLE POSITION SENSOR 2 GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 66 and electric throttle control actuator terminal 5.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4.CHECK THROTTLE POSITION SENSOR 2 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 68 and electric throttle control actuator terminal 2.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5.CHECK THROTTLE POSITION SENSOR
Refer to EC-340, "
Component Inspection" .
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
MBIB0254E
Voltage: Approximately 5V
PBIB0082E
Continuity should exist.
Continuity should exist.
Page 670 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual EC-340
[QG (WITH EURO-OBD)]
DTC P1223, P1224 TP SENSOR
6. REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace the electric throttle control actuator.
2. Perform EC-31, "
Throttle Valve Closed Po NISSAN ALMERA N16 2003 Electronic Repair Manual EC-340
[QG (WITH EURO-OBD)]
DTC P1223, P1224 TP SENSOR
6. REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace the electric throttle control actuator.
2. Perform EC-31, "
Throttle Valve Closed Po](/manual-img/5/57350/w960_57350-669.png)

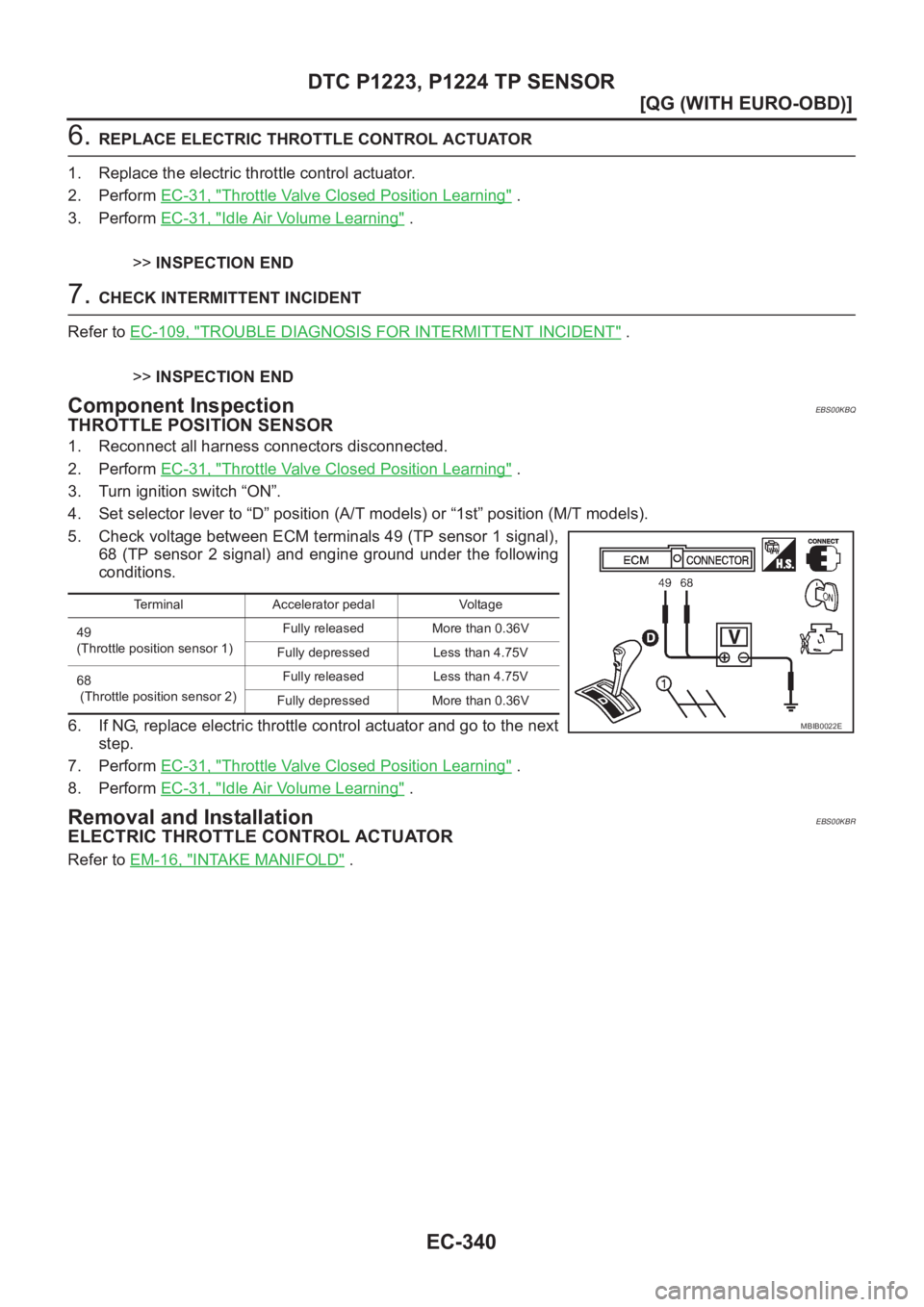

EC-340
[QG (WITH EURO-OBD)]
DTC P1223, P1224 TP SENSOR
6. REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace the electric throttle control actuator.
2. Perform EC-31, "
Throttle Valve Closed Position Learning" .
3. Perform EC-31, "
Idle Air Volume Learning" .
>>INSPECTION END
7. CHECK INTERMITTENT INCIDENT
Refer to EC-109, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionEBS00KBQ
THROTTLE POSITION SENSOR
1. Reconnect all harness connectors disconnected.
2. Perform EC-31, "
Throttle Valve Closed Position Learning" .
3. Turn ignition switch “ON”.
4. Set selector lever to “D” position (A/T models) or “1st” position (M/T models).
5. Check voltage between ECM terminals 49 (TP sensor 1 signal),
68 (TP sensor 2 signal) and engine ground under the following
conditions.
6. If NG, replace electric throttle control actuator and go to the next
step.
7. Perform EC-31, "
Throttle Valve Closed Position Learning" .
8. Perform EC-31, "
Idle Air Volume Learning" .
Removal and InstallationEBS00KBR
ELECTRIC THROTTLE CONTROL ACTUATOR
Refer to EM-16, "INTAKE MANIFOLD" .
Terminal Accelerator pedal Voltage
49
(Throttle position sensor 1)Fully released More than 0.36V
Fully depressed Less than 4.75V
68
(Throttle position sensor 2)Fully released Less than 4.75V
Fully depressed More than 0.36V
MBIB0022E
Page 671 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual DTC P1225 TP SENSOR
EC-341
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P1225 TP SENSORPFP:16119
Component DescriptionEBS00KBS
Electric Throttle Control Actuator consists of throttle cont NISSAN ALMERA N16 2003 Electronic Repair Manual DTC P1225 TP SENSOR
EC-341
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P1225 TP SENSORPFP:16119
Component DescriptionEBS00KBS
Electric Throttle Control Actuator consists of throttle cont](/manual-img/5/57350/w960_57350-670.png)

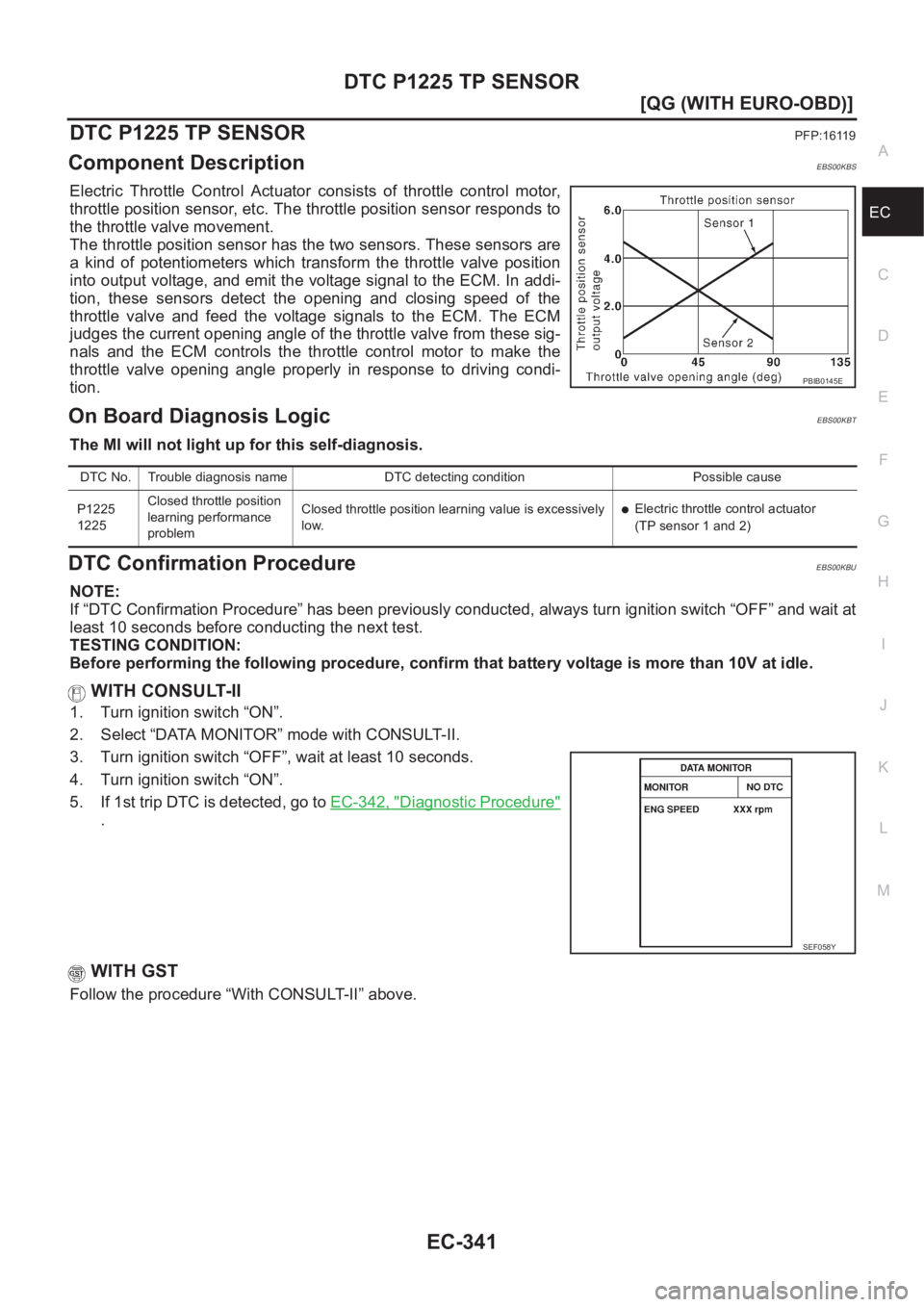

DTC P1225 TP SENSOR
EC-341
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P1225 TP SENSORPFP:16119
Component DescriptionEBS00KBS
Electric Throttle Control Actuator consists of throttle control motor,
throttle position sensor, etc. The throttle position sensor responds to
the throttle valve movement.
The throttle position sensor has the two sensors. These sensors are
a kind of potentiometers which transform the throttle valve position
into output voltage, and emit the voltage signal to the ECM. In addi-
tion, these sensors detect the opening and closing speed of the
throttle valve and feed the voltage signals to the ECM. The ECM
judges the current opening angle of the throttle valve from these sig-
nals and the ECM controls the throttle control motor to make the
throttle valve opening angle properly in response to driving condi-
tion.
On Board Diagnosis LogicEBS00KBT
The MI will not light up for this self-diagnosis.
DTC Confirmation ProcedureEBS00KBU
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.
WITH CONSULT-II
1. Turn ignition switch “ON”.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Turn ignition switch “OFF”, wait at least 10 seconds.
4. Turn ignition switch “ON”.
5. If 1st trip DTC is detected, go to EC-342, "
Diagnostic Procedure"
.
WITH GST
Follow the procedure “With CONSULT-II” above.
PBIB0145E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1225
1225Closed throttle position
learning performance
problemClosed throttle position learning value is excessively
low.
●Electric throttle control actuator
(TP sensor 1 and 2)
SEF058Y
Page 672 of 3189

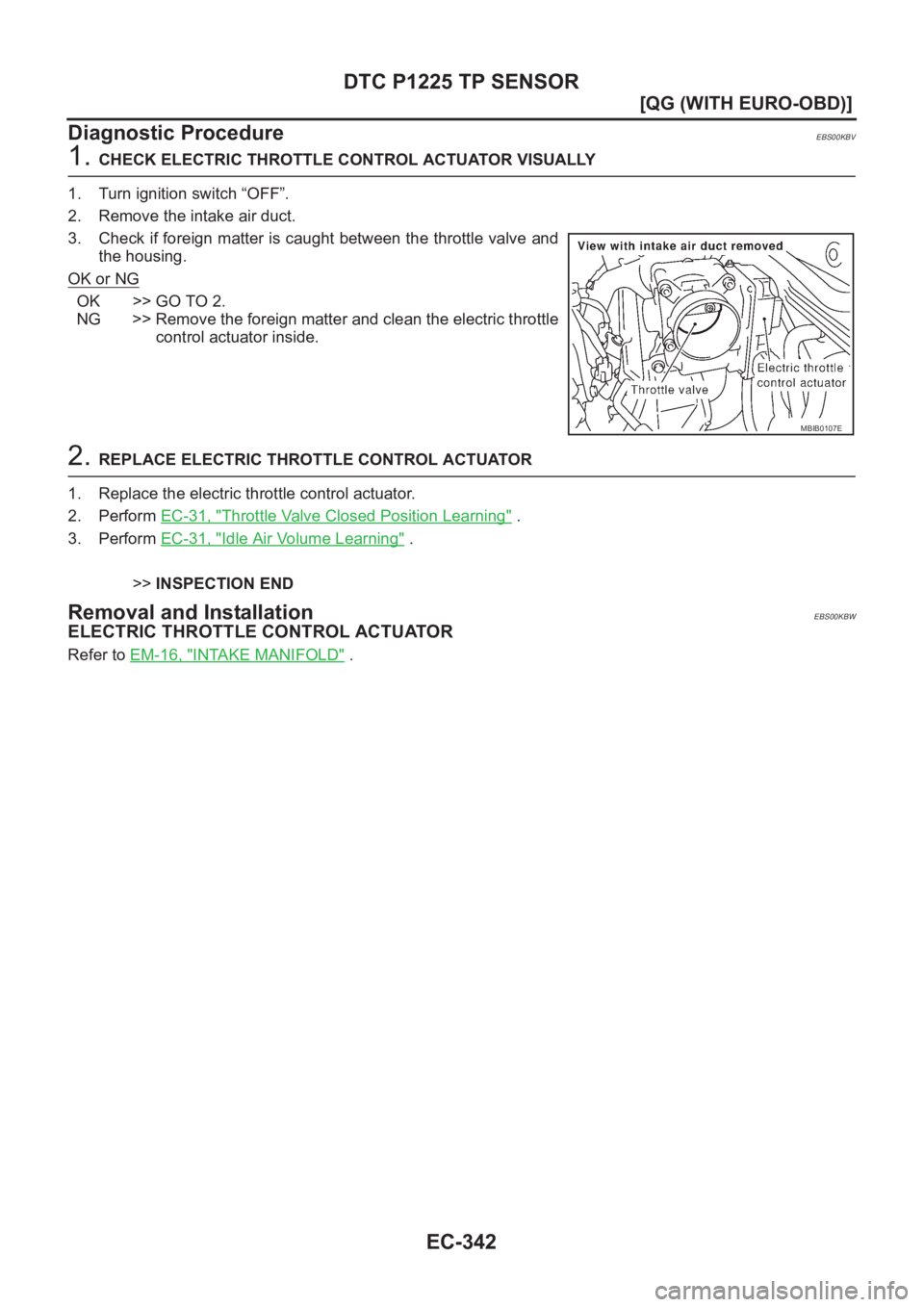

EC-342
[QG (WITH EURO-OBD)]
DTC P1225 TP SENSOR
Diagnostic Procedure
EBS00KBV
1. CHECK ELECTRIC THROTTLE CONTROL ACTUATOR VISUALLY
1. Turn ignition switch “OFF”.
2. Remove the intake air duct.
3. Check if foreign matter is caught between the throttle valve and
the housing.
OK or NG
OK >> GO TO 2.
NG >> Remove the foreign matter and clean the electric throttle
control actuator inside.
2. REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace the electric throttle control actuator.
2. Perform EC-31, "
Throttle Valve Closed Position Learning" .
3. Perform EC-31, "
Idle Air Volume Learning" .
>>INSPECTION END
Removal and InstallationEBS00KBW
ELECTRIC THROTTLE CONTROL ACTUATOR
Refer to EM-16, "INTAKE MANIFOLD" .
MBIB0107E
