Page 2033 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual TROUBLE DIAGNOSIS ATC-53 C D E F G H I K L MA B AT C CHECKING RECIRCULATION 1. Press recirculation (REC) switch one time. Recirculation indica- tor should illuminate. 2. Listen for intake door pos

Page 2034 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual ATC-54 TROUBLE DIAGNOSIS CHECKING AUTO MODE 1. Press temperature dial. 2. Display should indicate AUTO (not ECON). ●Confirm that the compressor clutch engages (audio or visual inspection). (

Page 2035 of 3189

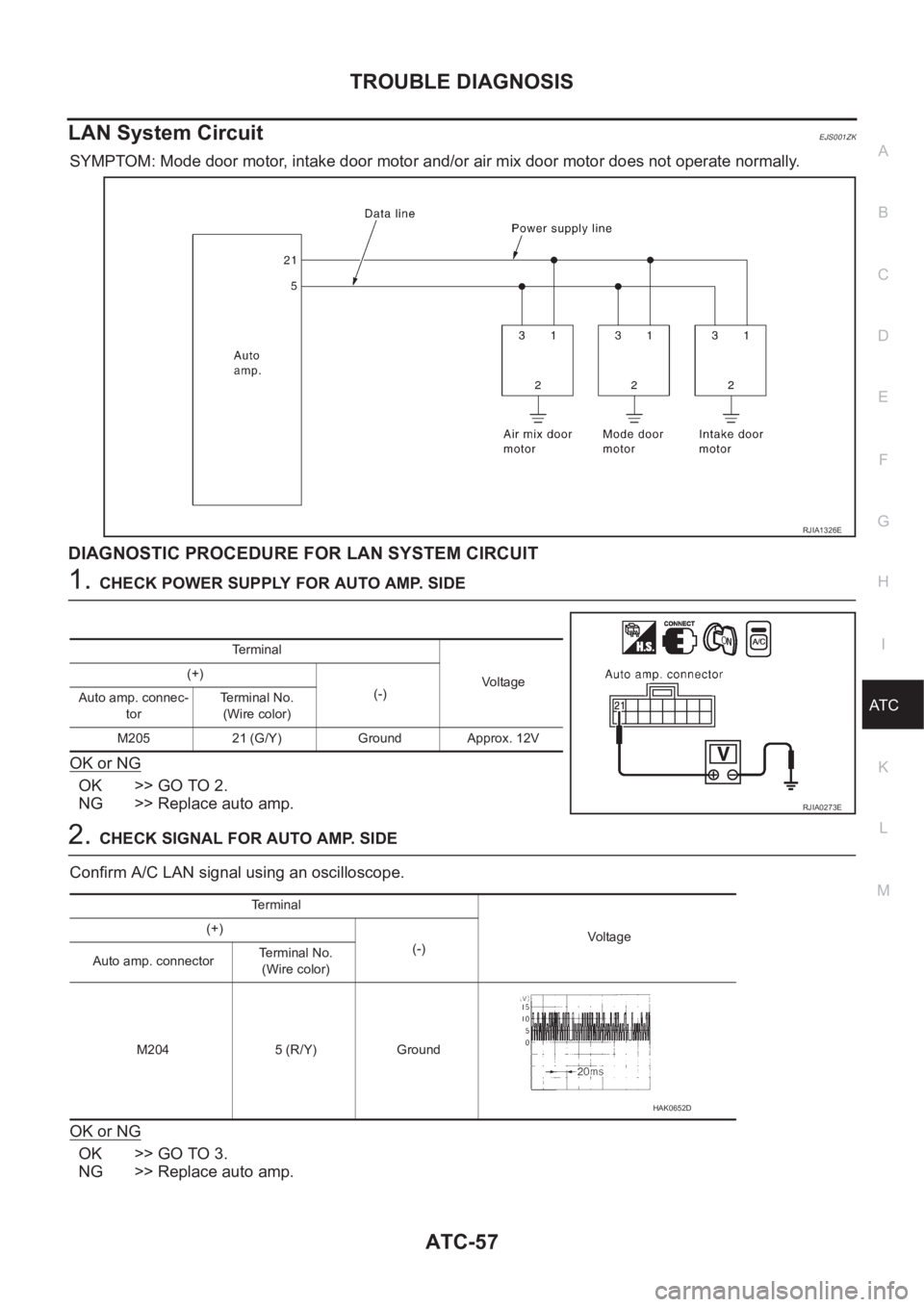

NISSAN ALMERA N16 2003 Electronic Repair Manual TROUBLE DIAGNOSIS ATC-55 C D E F G H I K L MA B AT C Power Supply and Ground Circuit for Auto Amp.EJS001ZJ SYMPTOM: A/C system does not come on. INSPECTION FLOW COMPONENT DESCRIPTION Automatic Amplifi

Page 2036 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual ATC-56 TROUBLE DIAGNOSIS DIAGNOSTIC PROCEDURE FOR A/C SYSTEM SYMPTOM: A/C system does not come on. 1. CHECK POWER SUPPLY CIRCUIT FOR AUTO AMP. OK or NG OK >> GO TO 2. NG >> Check 10A fuses (Nos. 10 an

Page 2037 of 3189

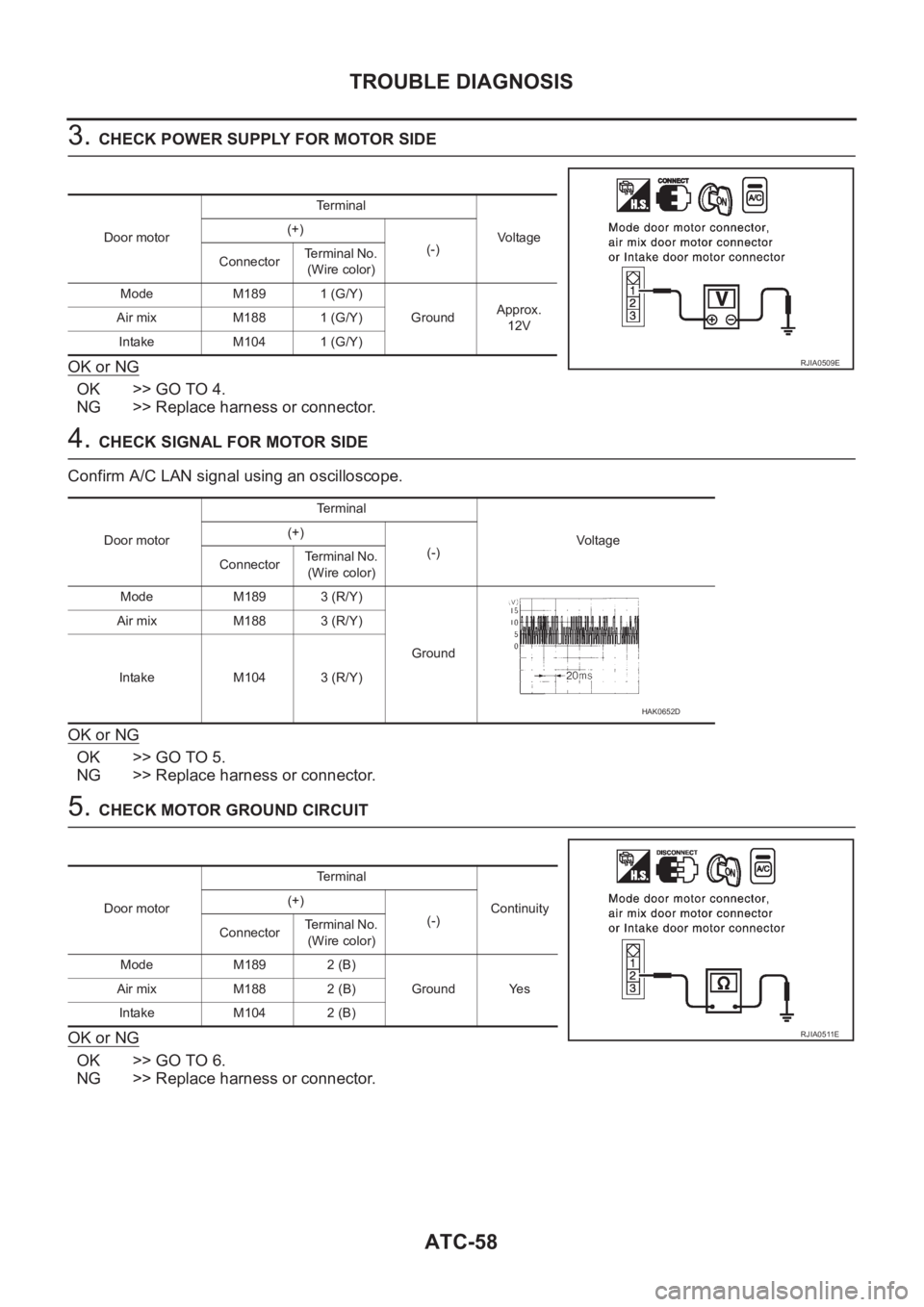

NISSAN ALMERA N16 2003 Electronic Repair Manual TROUBLE DIAGNOSIS ATC-57 C D E F G H I K L MA B AT C LAN System CircuitEJS001ZK SYMPTOM: Mode door motor, intake door motor and/or air mix door motor does not operate normally. DIAGNOSTIC PROCEDURE FO

Page 2038 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual ATC-58 TROUBLE DIAGNOSIS 3. CHECK POWER SUPPLY FOR MOTOR SIDE OK or NG OK >> GO TO 4. NG >> Replace harness or connector. 4. CHECK SIGNAL FOR MOTOR SIDE Confirm A/C LAN signal using an oscilloscope. O

Page 2039 of 3189

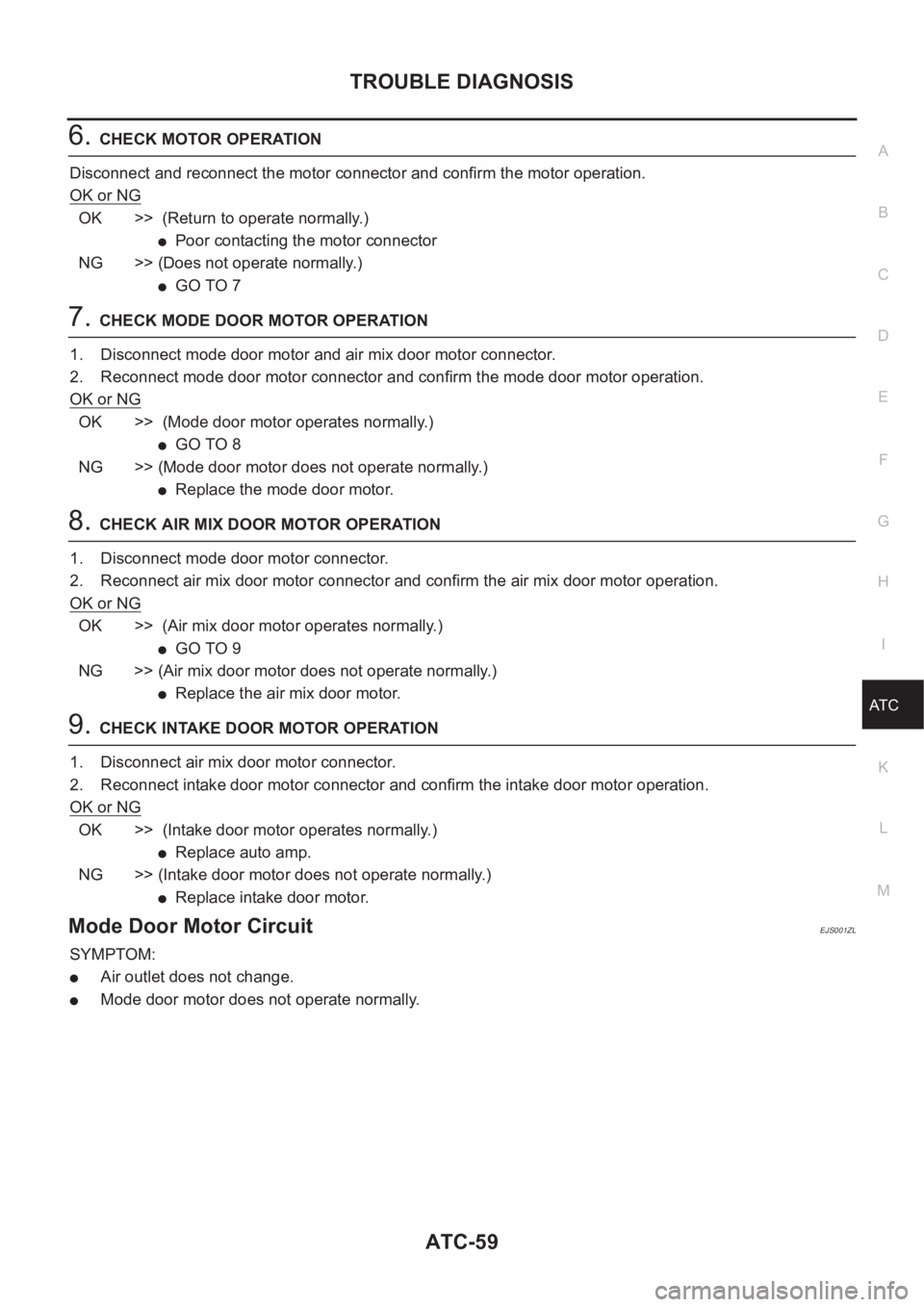

NISSAN ALMERA N16 2003 Electronic Repair Manual TROUBLE DIAGNOSIS ATC-59 C D E F G H I K L MA B AT C 6.CHECK MOTOR OPERATION Disconnect and reconnect the motor connector and confirm the motor operation. OK or NG OK >> (Return to operate normally.)

Page 2040 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual ATC-60 TROUBLE DIAGNOSIS INSPECTION FLOW *1AT C - 2 7 , "Discharge Air Flow"*2ATC-51, "Operational Check"*3AT C - 4 2 , "Self-diagnosis Function", see No.1 *4AT C - 4 2 ,
