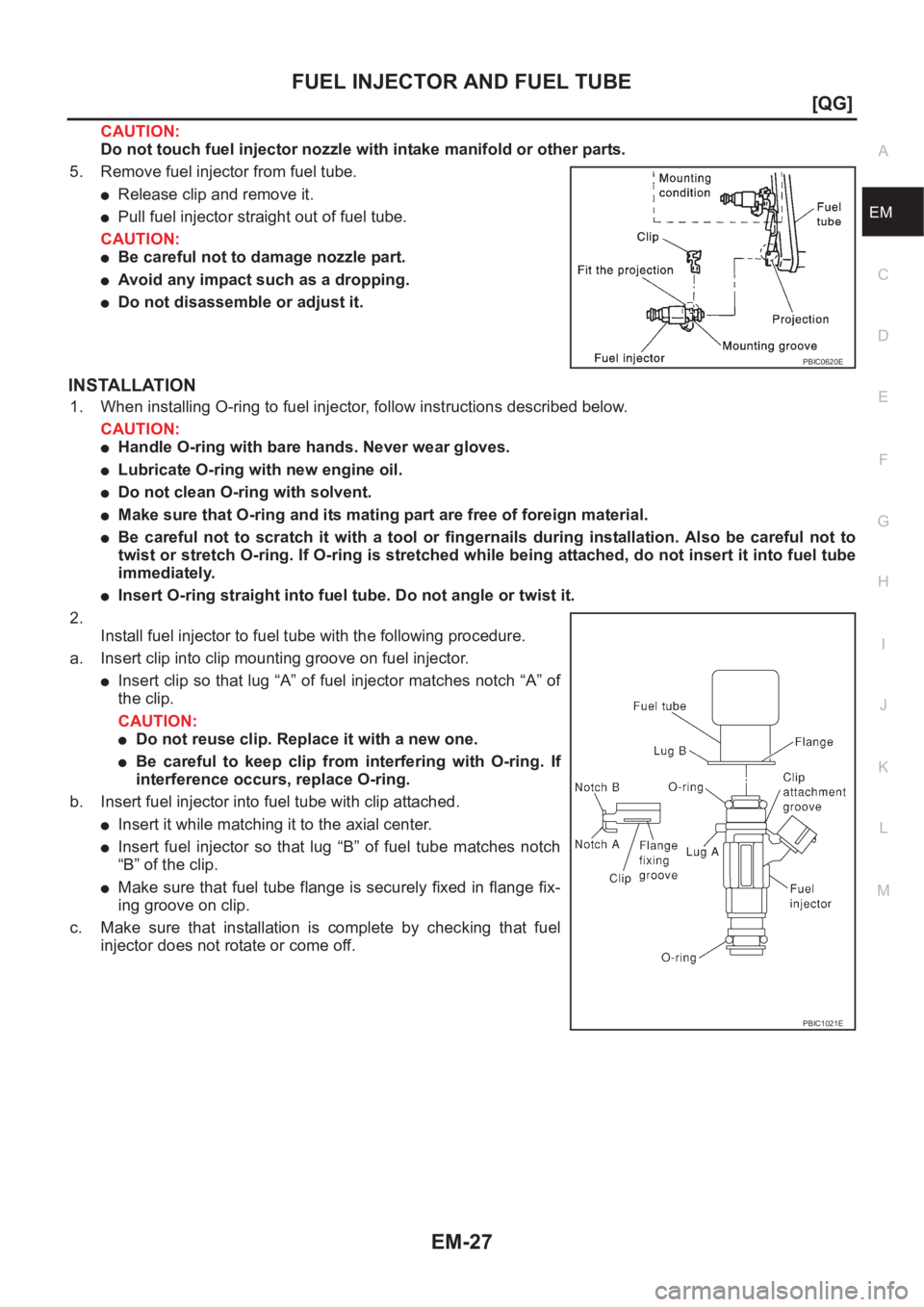

NISSAN ALMERA N16 2003 Electronic Repair Manual FUEL INJECTOR AND FUEL TUBE
EM-27
[QG]
C
D
E
F
G
H
I
J
K
L
MA
EM
CAUTION:
Do not touch fuel injector nozzle with intake manifold or other parts.
5. Remove fuel injector from fuel tube.
●Release clip

Page 106 of 3189

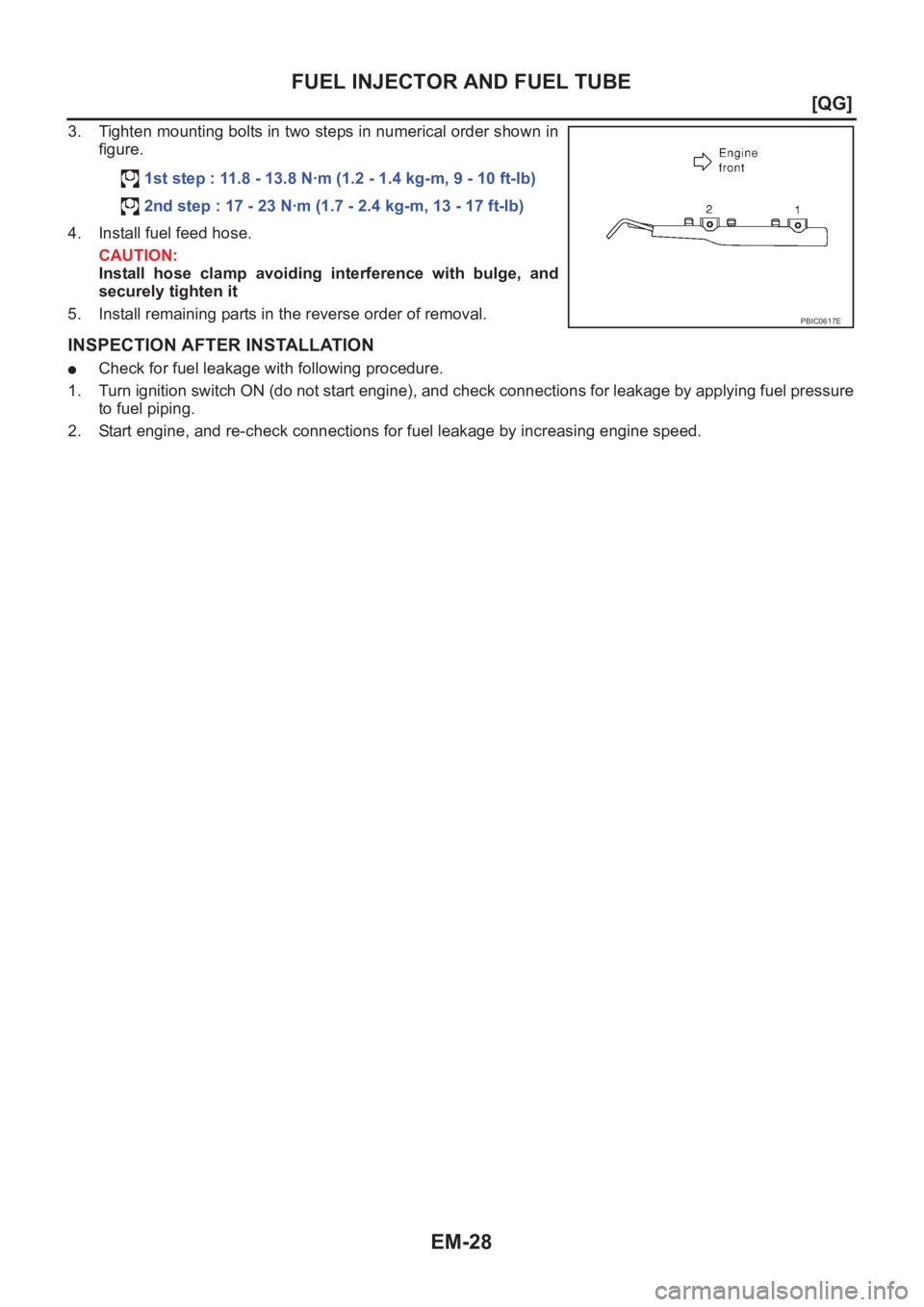

NISSAN ALMERA N16 2003 Electronic Repair Manual EM-28
[QG]
FUEL INJECTOR AND FUEL TUBE
3. Tighten mounting bolts in two steps in numerical order shown in
figure.
4. Install fuel feed hose.
CAUTION:
Install hose clamp avoiding interference with

Page 107 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual ROCKER COVER
EM-29
[QG]
C
D
E
F
G
H
I
J
K
L
MA
EM
ROCKER COVERPFP:13264
Removal and InstallationEBS00LQA
CAUTION:
Apply new engine oil when installing the parts that specified to do so in the figure.

Page 108 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual EM-30
[QG]
ROCKER COVER
6. Loosen bolts in reverse order shown in the figure.
7. If replacement is necessary, remove rocker cover oil seal using flat-head screwdriver.
CAUTION:
Be careful not to damag

Page 109 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual ROCKER COVER
EM-31
[QG]
C
D
E
F
G
H
I
J
K
L
MA
EM
d. Tighten mounting screws to specified torque in 2 or more steps
in numerical order shown in figure.
3. Install intake valve timing control

Page 110 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual EM-32
[QG]
CAMSHAFT
CAMSHAFT
PFP:13001
Removal and InstallationEBS00LQB
CAUTION:
Prior to installation, apply engine oil to the parts marked in the figure.
REMOVAL
1. Remove rocker cover. Refer to EM-

Page 111 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual CAMSHAFT
EM-33
[QG]
C
D
E
F
G
H
I
J
K
L
MA
EM
c. Confirm mating marks stamped on intake and exhaust sprockets
are located as shown.
●If not, rotate crankshaft pulley as shown and align them.
d. Refe

Page 112 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual EM-34
[QG]
CAMSHAFT
c. Slowly turn intake camshaft in direction A (counterclockwise:
intake manifold side).
●Perform while applying air pressure.
CAUTION:
Be careful not to dislocate camshaft retain

EM-34
[QG]
CAMSHAFT
c. Slowly turn intake camshaft in direction A (counterclockwise:
intake manifold side).
●Perform while applying air pressure.
CAUTION:
Be careful not to dislocate camshaft retaining spanner.
d. During above step, operating click (a sound indicating internal
lock pin is disengaged) is heard from inside of intake camshaft
sprocket. After hearing it, slowly turn intake camshaft in direction
B (clockwise: exhaust manifold side), and set to most advanced
position.
●Perform while applying air pressure.
●When vane rotates solely against sprocket, lock pin is disengaged even if operating click is not heard.
●If lock pin is not disengaged, apply vibration by jiggling the camshaft with a spanner.
●If lock pin is not disengaged with above step, hit intake camshaft in front by using plastic hammer.
e. The following status indicates that most advanced position is
achieved: vane starts rotating on its own, then sprocket also
starts rotating when camshaft is turned. When above status is
achieved, this step is complete.
●Most advanced position is confirmed when stopper pin groove
and lock pin breathing groove are aligned.
f. Stop air, insert stopper pin [approximately 3 mm (0.12 in) dia.,
length of inserted part is approximately 15 mm (0.59 in)] into
pinhole on camshaft sprocket to fix most advanced position.
NOTE:
In the figure, an Allen wrench [a/f 2.5 mm (0.091 in), short part:
approximately 20 mm (0.79 in), long part: approximately 50 mm
(1.97 in)] is used for stopper pin as an example.
CAUTION:
Load (spring reaction force) is not applied to stopper pin.
Pin is easily detached. Therefore, secure it with vinyl tape to
prevent detachment.
5. Remove chain tensioner.
●Remove in the following order.
a. Press plate down, and release stopper tab.
b. Insert plunger into tensioner body until it stops.
c. Secure plate by passing stopper pin (such as a hard wire)
through plate hole and body hole. (Plunger is also secured.)
d. Remove mounting bolts, and remove chain tensioner.
KBIA1414J
MBIB0198E
PBIC0966E
MBIB0201E
