Page 1297 of 3189

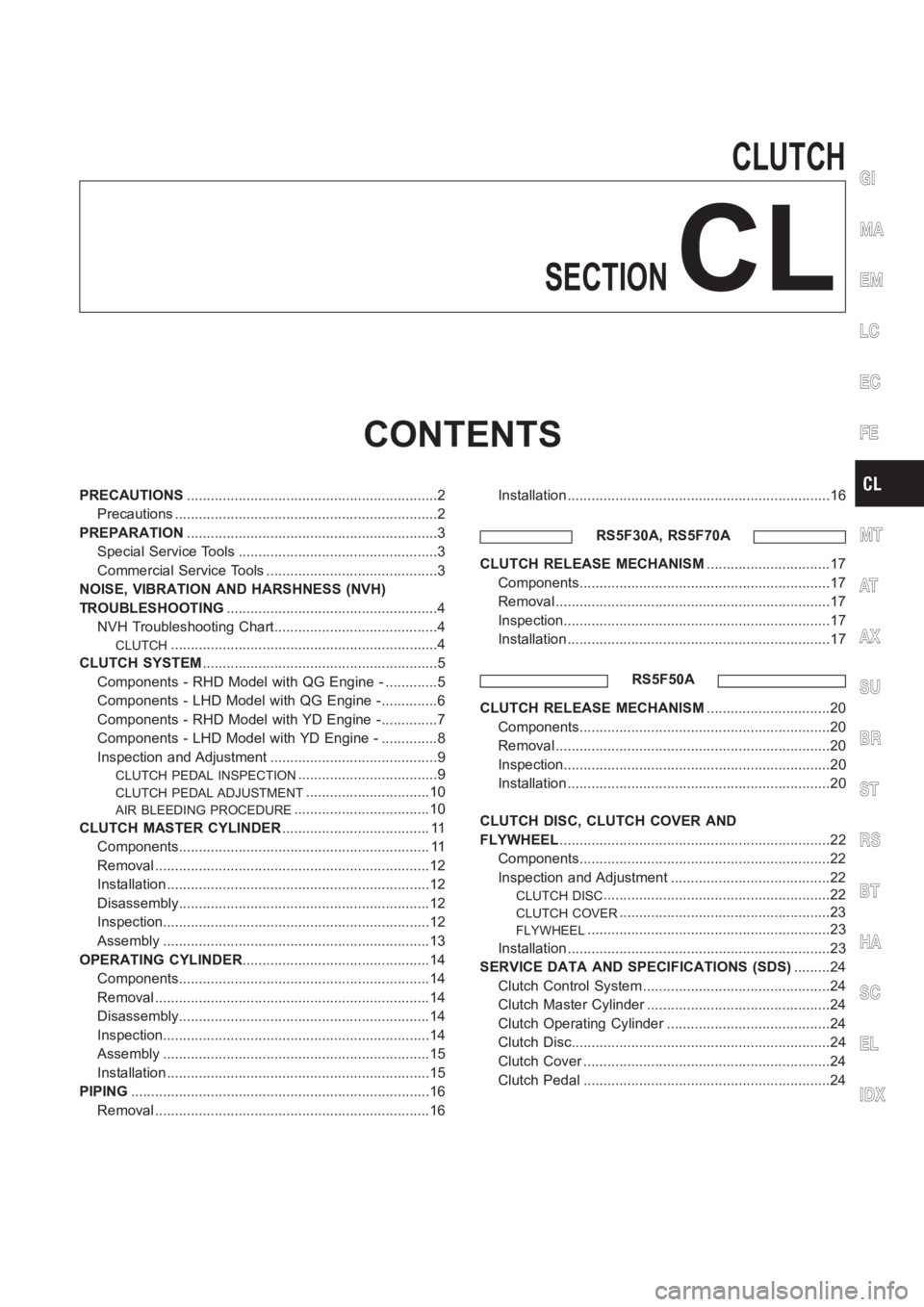

NISSAN ALMERA N16 2003 Electronic Repair Manual CLUTCH SECTION CL CONTENTS PRECAUTIONS<00110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110

Page 1298 of 3189

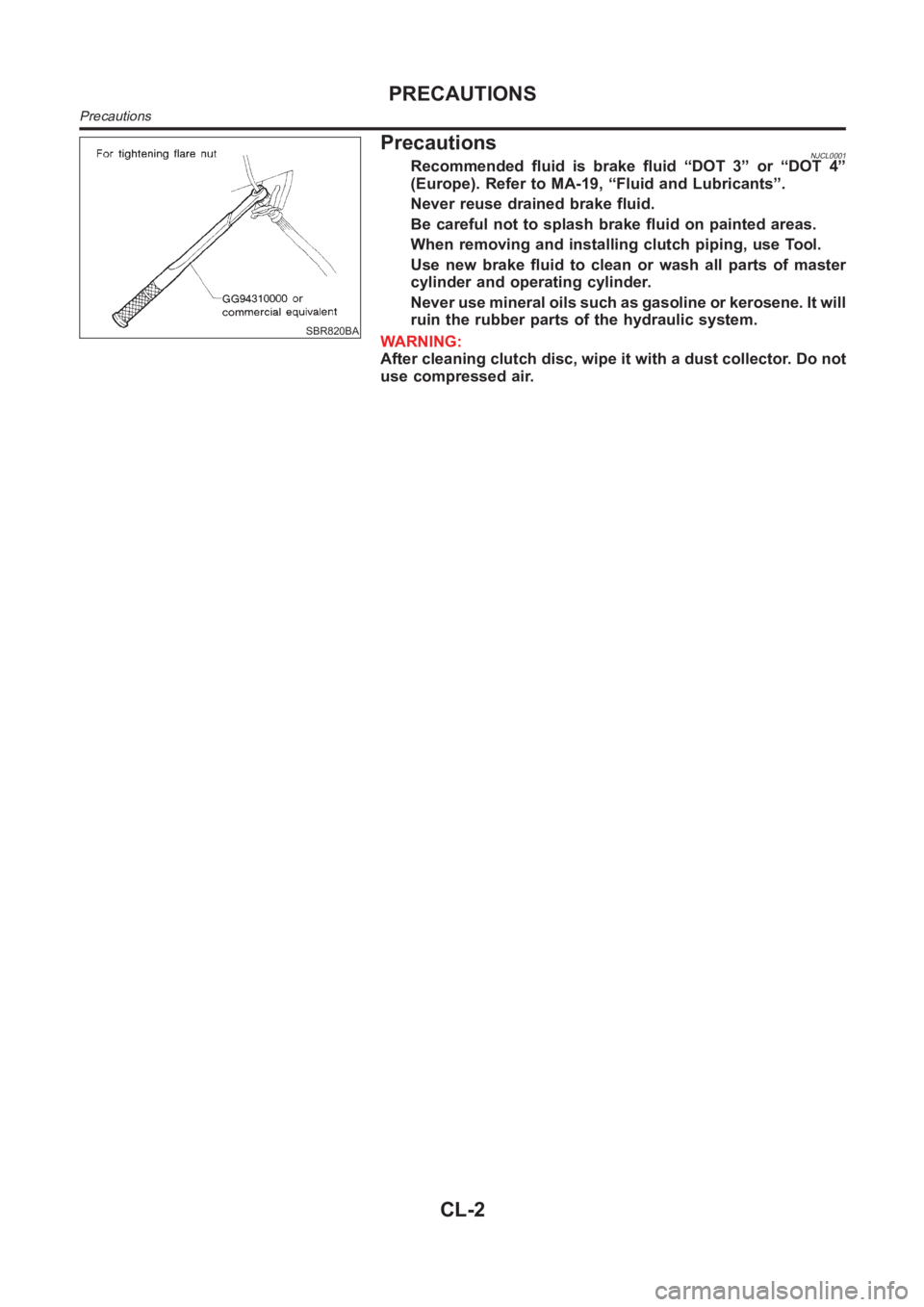

NISSAN ALMERA N16 2003 Electronic Repair Manual SBR820BA PrecautionsNJCL0001Recommended fluid is brake fluid “DOT 3” or “DOT 4” (Europe). Refer to MA-19, “Fluid and Lubricants”. Never reuse drained brake fluid. Be careful not to splash

Page 1299 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual Special Service ToolsNJCL0002 Tool number Tool nameDescription GG94310000 Flare nut torque wrench NT406 Removing and installing clutch piping a: 10 mm (0.39 in) KV30101600 (New) KV30101000 (Former) Cl

Page 1300 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual NJCL0004 NVH Troubleshooting Chart NJCL0004S01 Use the chart below to help you find the cause of the symptom. The numbers indicate the order of the inspec- tion. If necessary, repair or replace these

Page 1301 of 3189

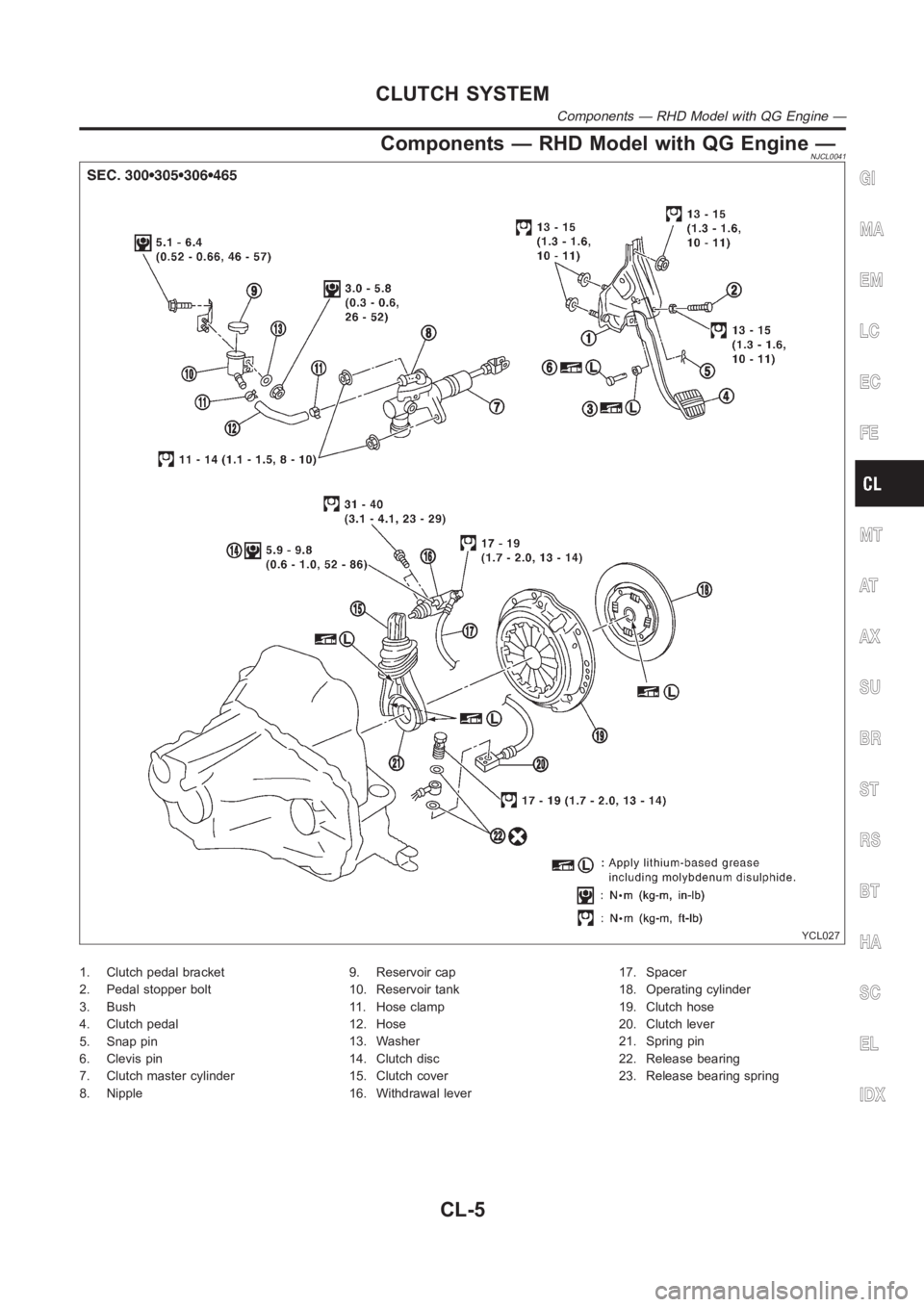

NISSAN ALMERA N16 2003 Electronic Repair Manual Components — RHD Model with QG Engine —NJCL0041 YCL027 1. Clutch pedal bracket 2. Pedal stopper bolt 3. Bush 4. Clutch pedal 5. Snap pin 6. Clevis pin 7. Clutch master cylinder 8. Nipple9. Reservo

Page 1302 of 3189

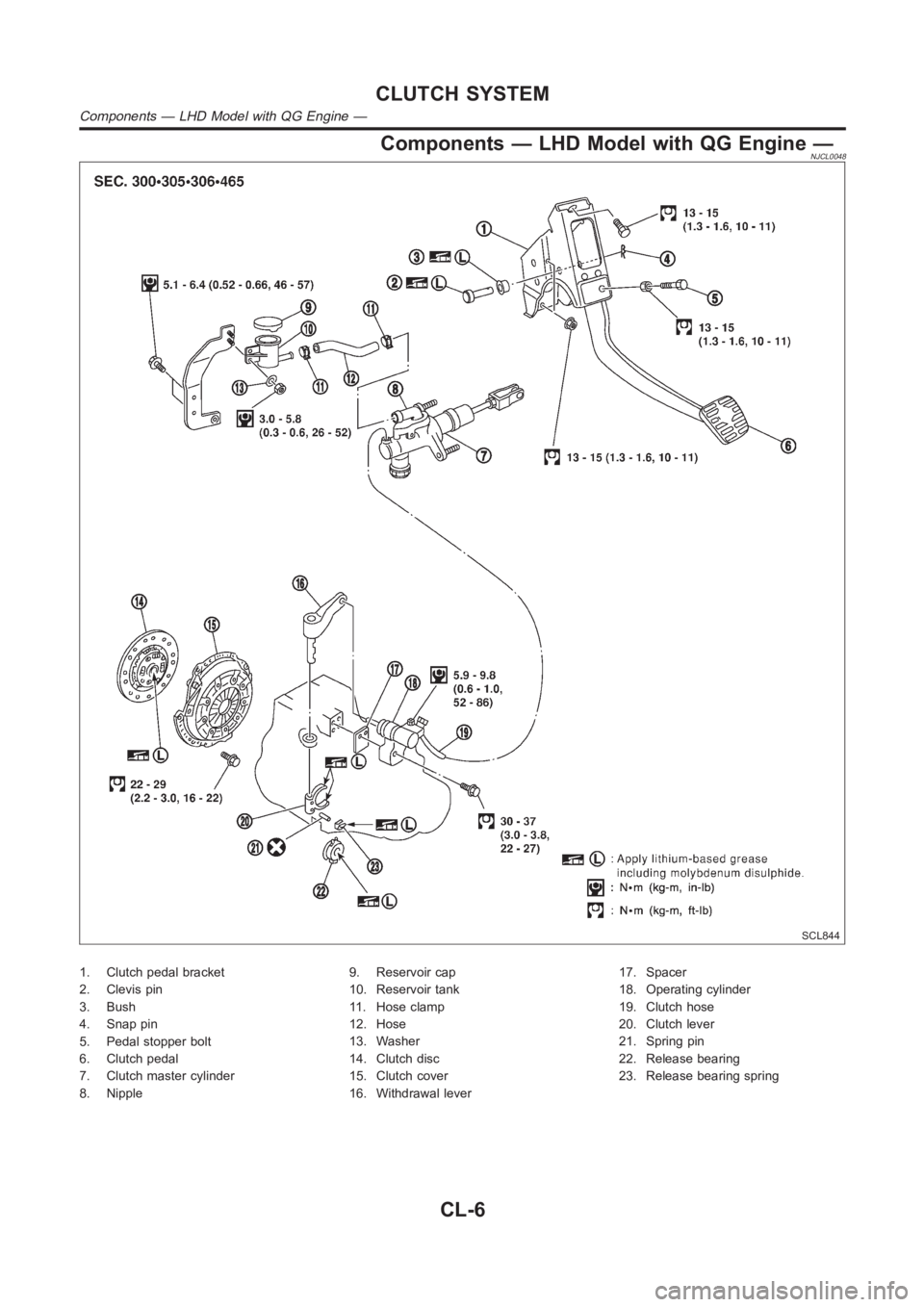

NISSAN ALMERA N16 2003 Electronic Repair Manual Components — LHD Model with QG Engine —NJCL0048 SCL844 1. Clutch pedal bracket 2. Clevis pin 3. Bush 4. Snap pin 5. Pedal stopper bolt 6. Clutch pedal 7. Clutch master cylinder 8. Nipple9. Reservo

Page 1303 of 3189

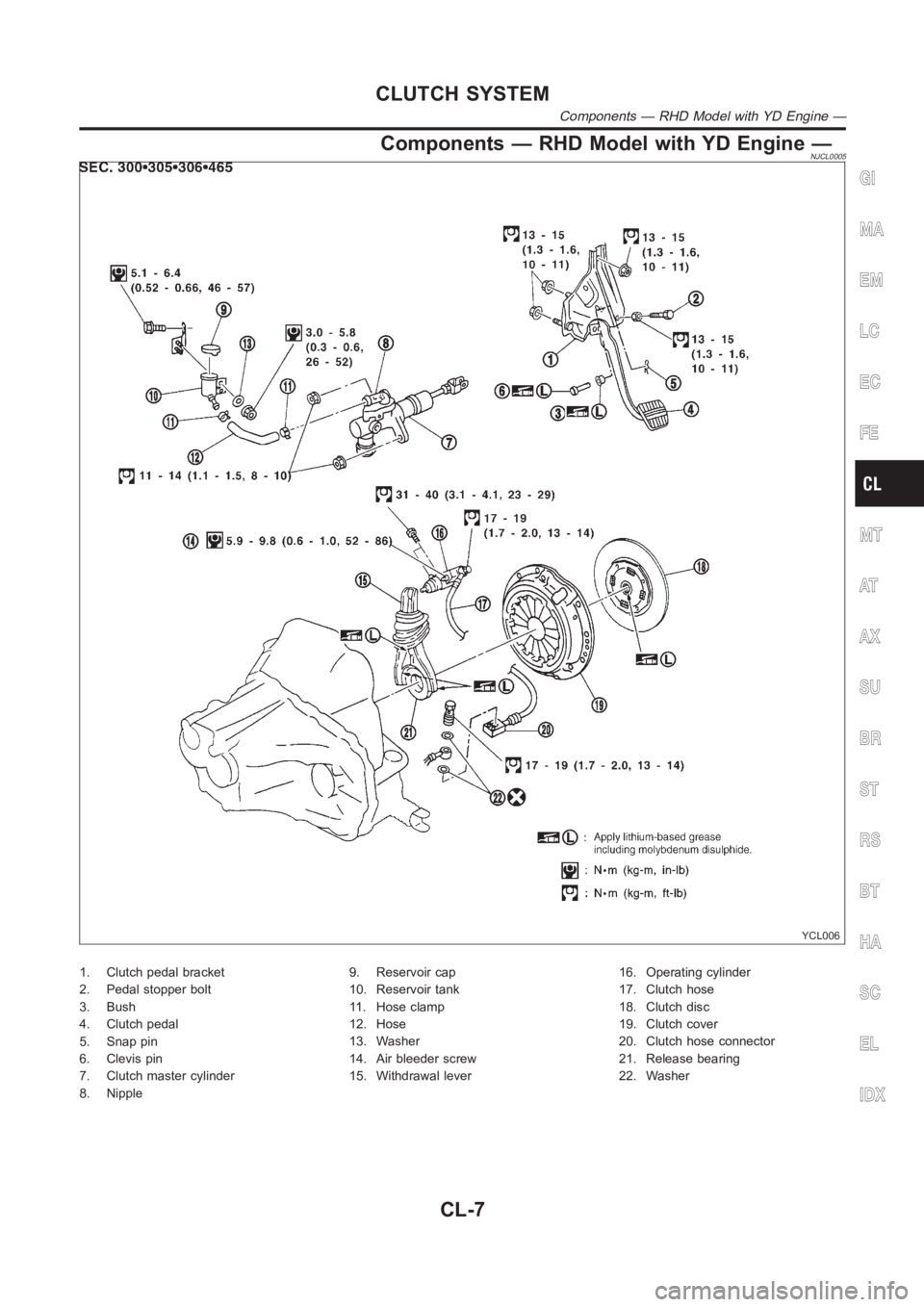

NISSAN ALMERA N16 2003 Electronic Repair Manual Components — RHD Model with YD Engine —NJCL0005 YCL006 1. Clutch pedal bracket 2. Pedal stopper bolt 3. Bush 4. Clutch pedal 5. Snap pin 6. Clevis pin 7. Clutch master cylinder 8. Nipple9. Reservo

Page 1304 of 3189

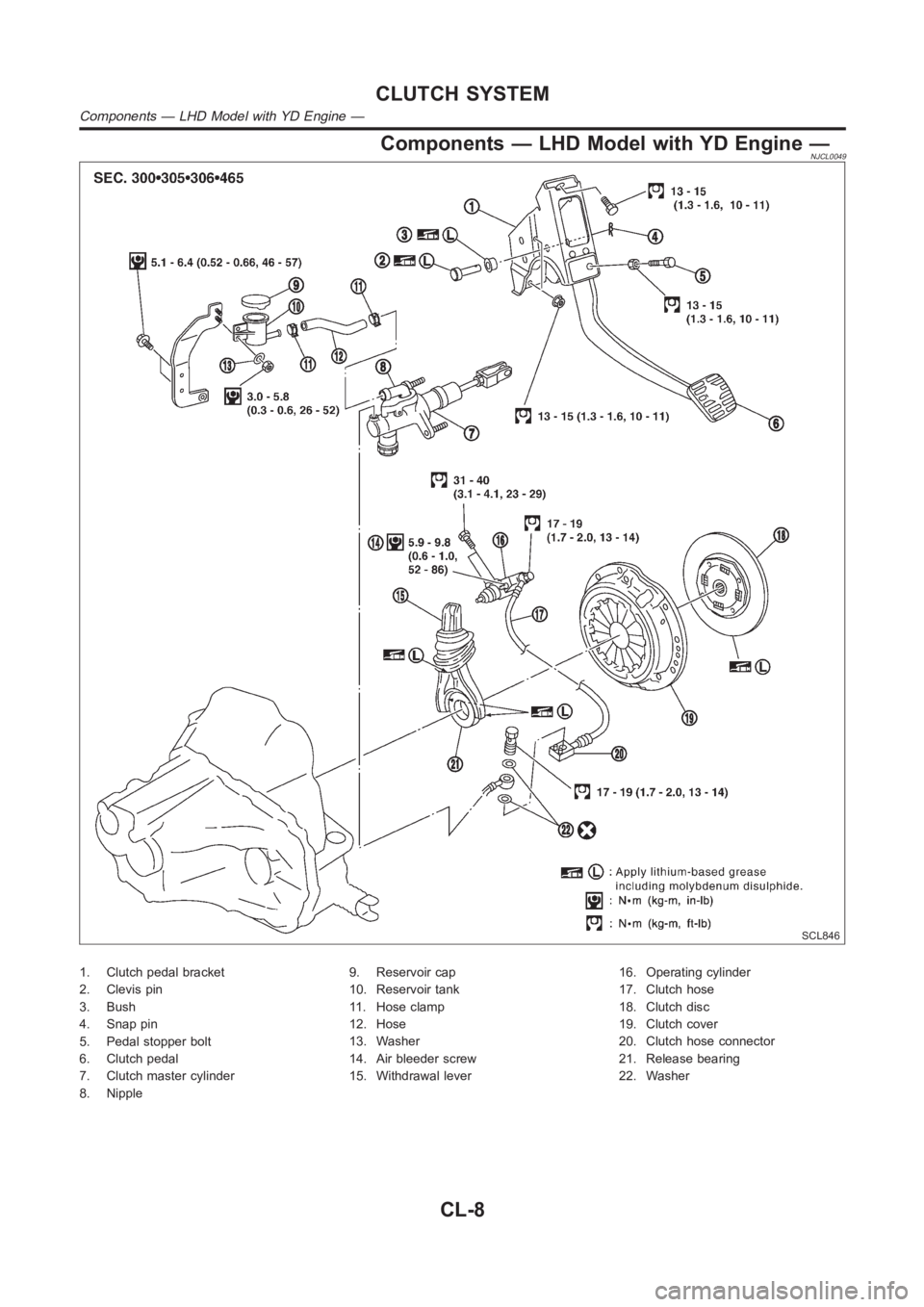

NISSAN ALMERA N16 2003 Electronic Repair Manual Components — LHD Model with YD Engine —NJCL0049 SCL846 1. Clutch pedal bracket 2. Clevis pin 3. Bush 4. Snap pin 5. Pedal stopper bolt 6. Clutch pedal 7. Clutch master cylinder 8. Nipple9. Reservo
