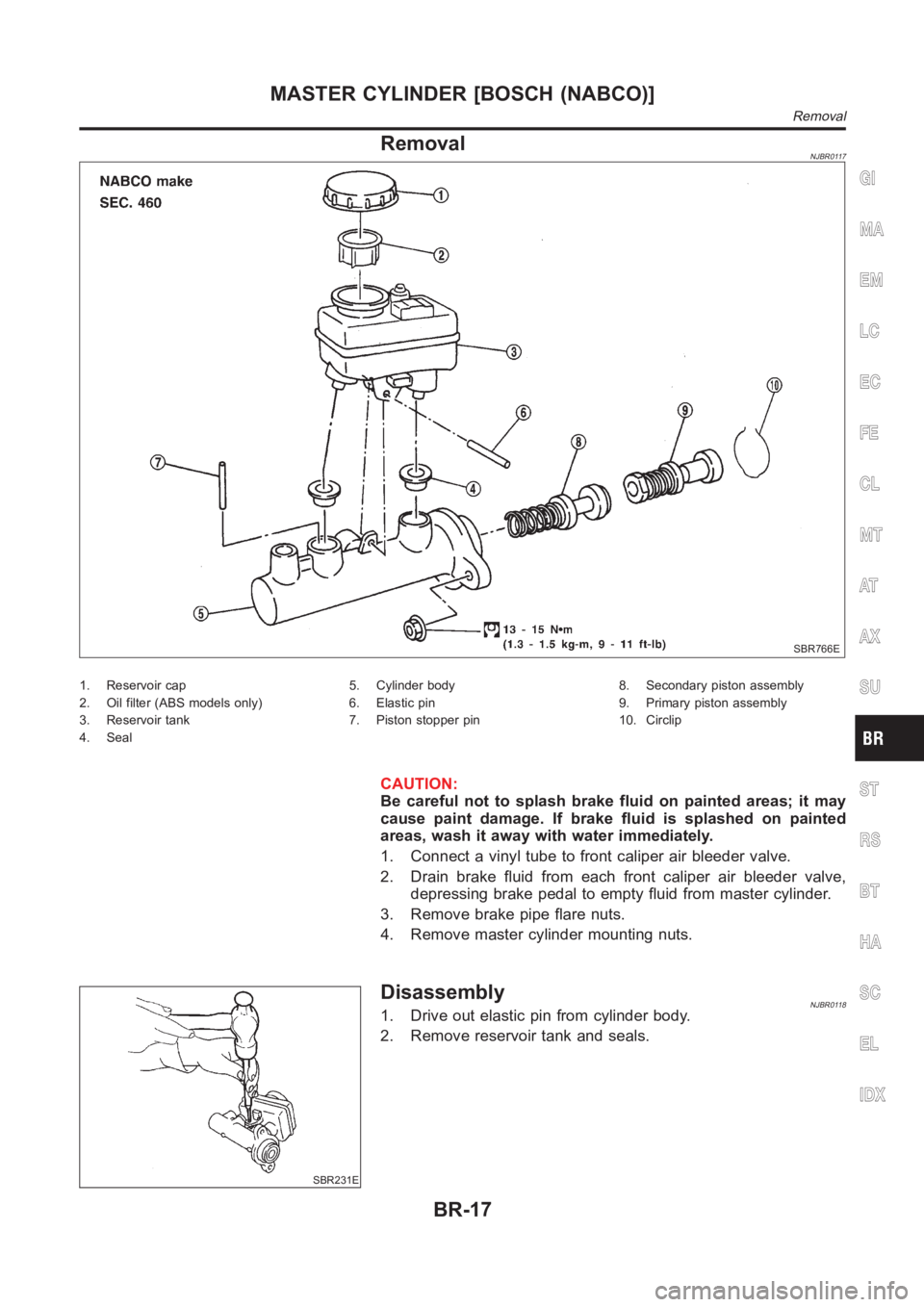

Page 2201 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual RemovalNJBR0117 SBR766E 1. Reservoir cap 2. Oil filter (ABS models only) 3. Reservoir tank 4. Seal5. Cylinder body 6. Elastic pin 7. Piston stopper pin8. Secondary piston assembly 9. Primary piston as

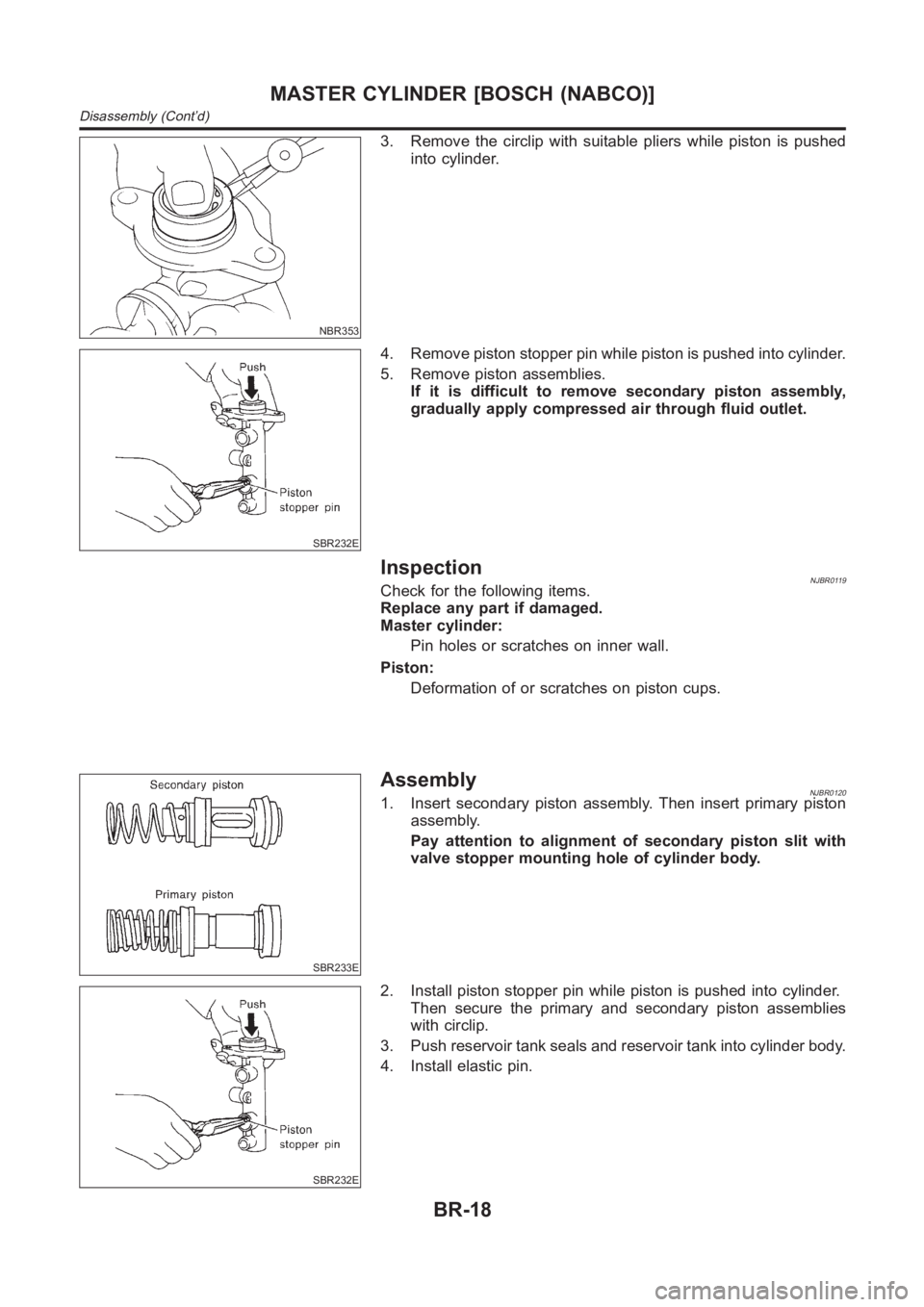

Page 2202 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual NBR353 3. Remove the circlip with suitable pliers while piston is pushed into cylinder. SBR232E 4. Remove piston stopper pin while piston is pushed into cylinder. 5. Remove piston assemblies. If it is

Page 2203 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual SBR236E InstallationNJBR0121CAUTION: Refill with new brake fluid “DOT 4”. Never reuse drained brake fluid. 1. Place master cylinder onto brake booster and secure mount- ing nuts lightly. 2. Torque

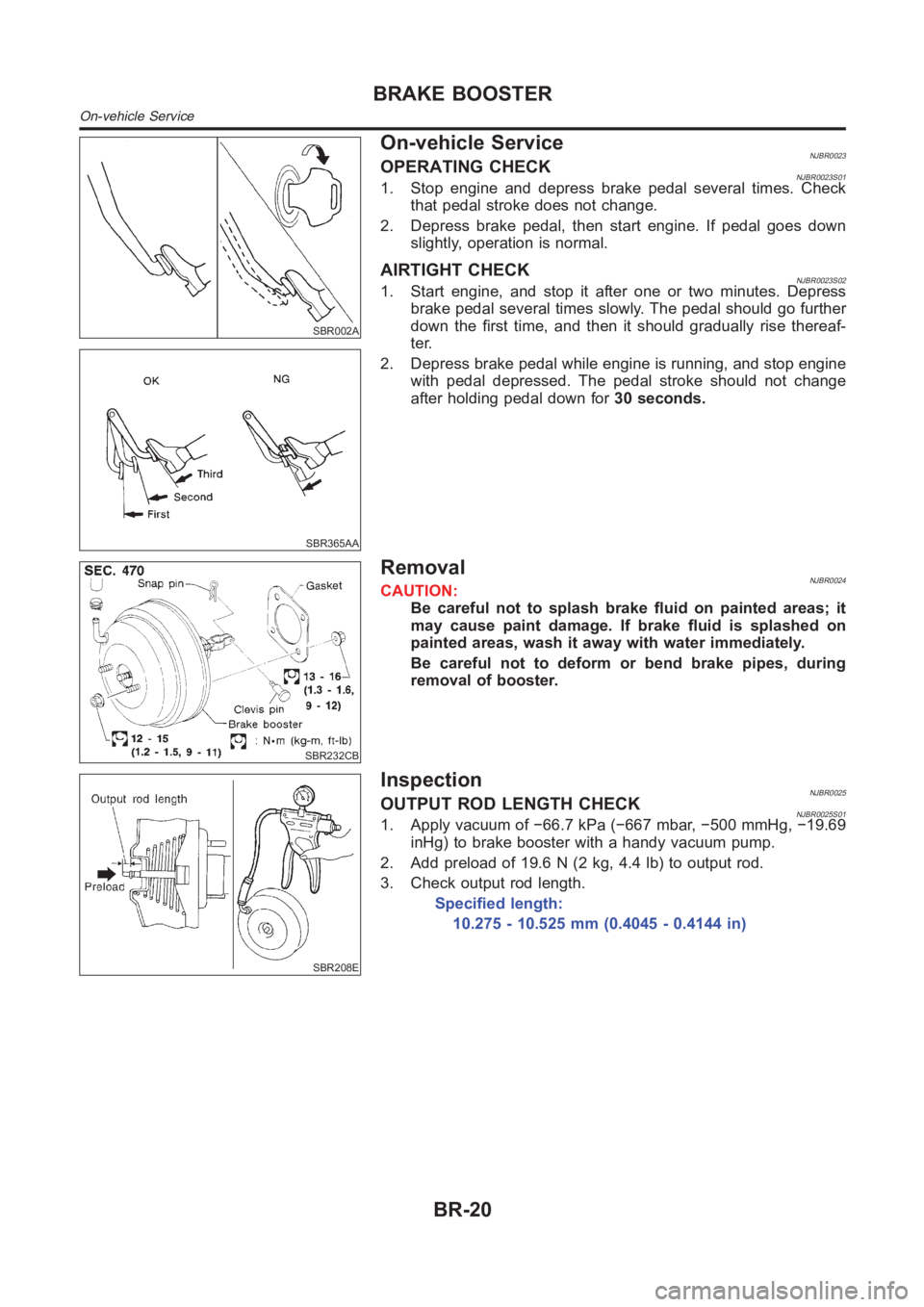

Page 2204 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual SBR002A SBR365AA On-vehicle ServiceNJBR0023OPERATING CHECKNJBR0023S011. Stop engine and depress brake pedal several times. Check that pedal stroke does not change. 2. Depress brake pedal, then start e

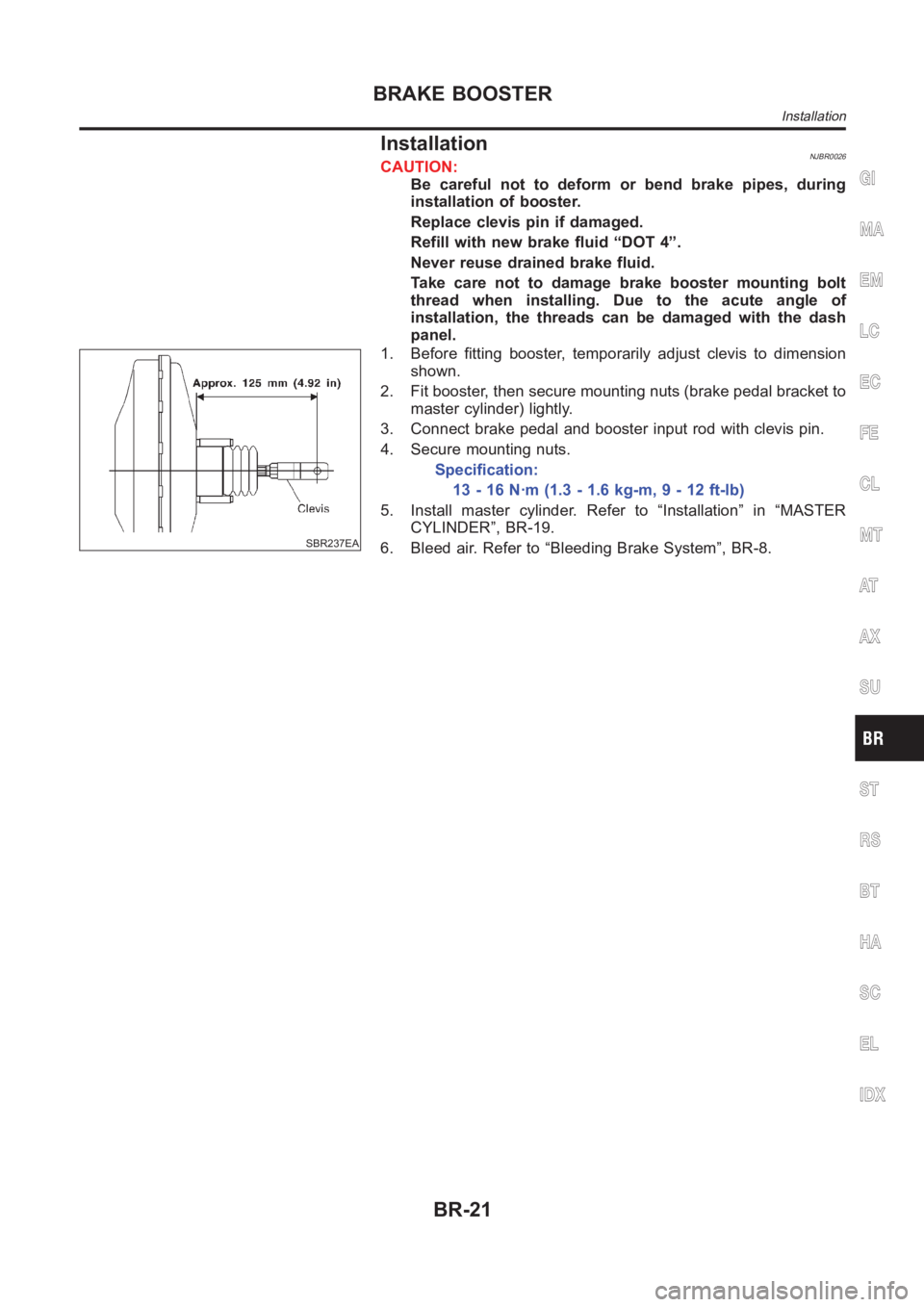

Page 2205 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual InstallationNJBR0026CAUTION: Be careful not to deform or bend brake pipes, during installation of booster. Replace clevis pin if damaged. Refill with new brake fluid “DOT 4”. Never reuse drained b

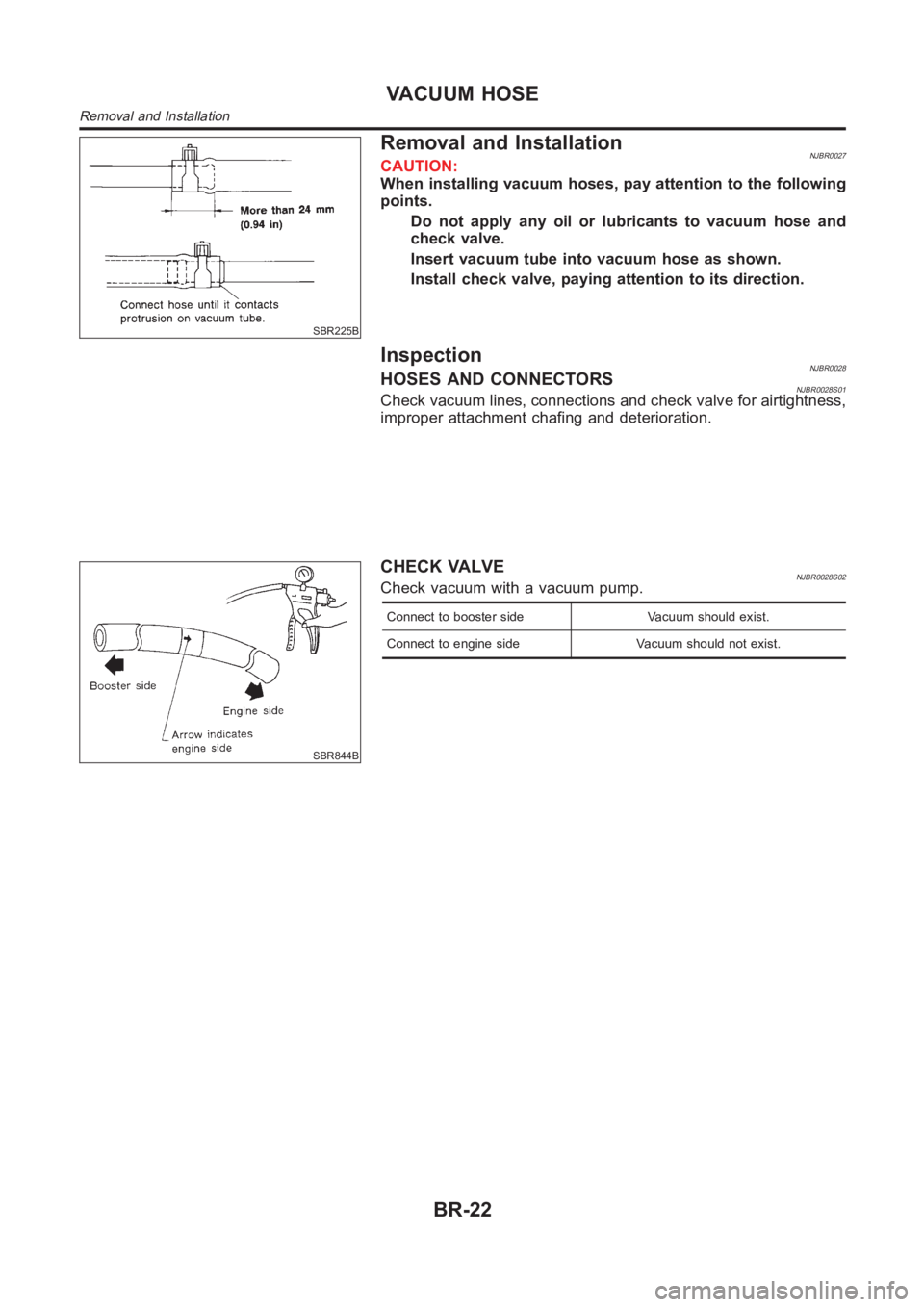

Page 2206 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual SBR225B Removal and InstallationNJBR0027CAUTION: When installing vacuum hoses, pay attention to the following points. Do not apply any oil or lubricants to vacuum hose and check valve. Insert vacuum t

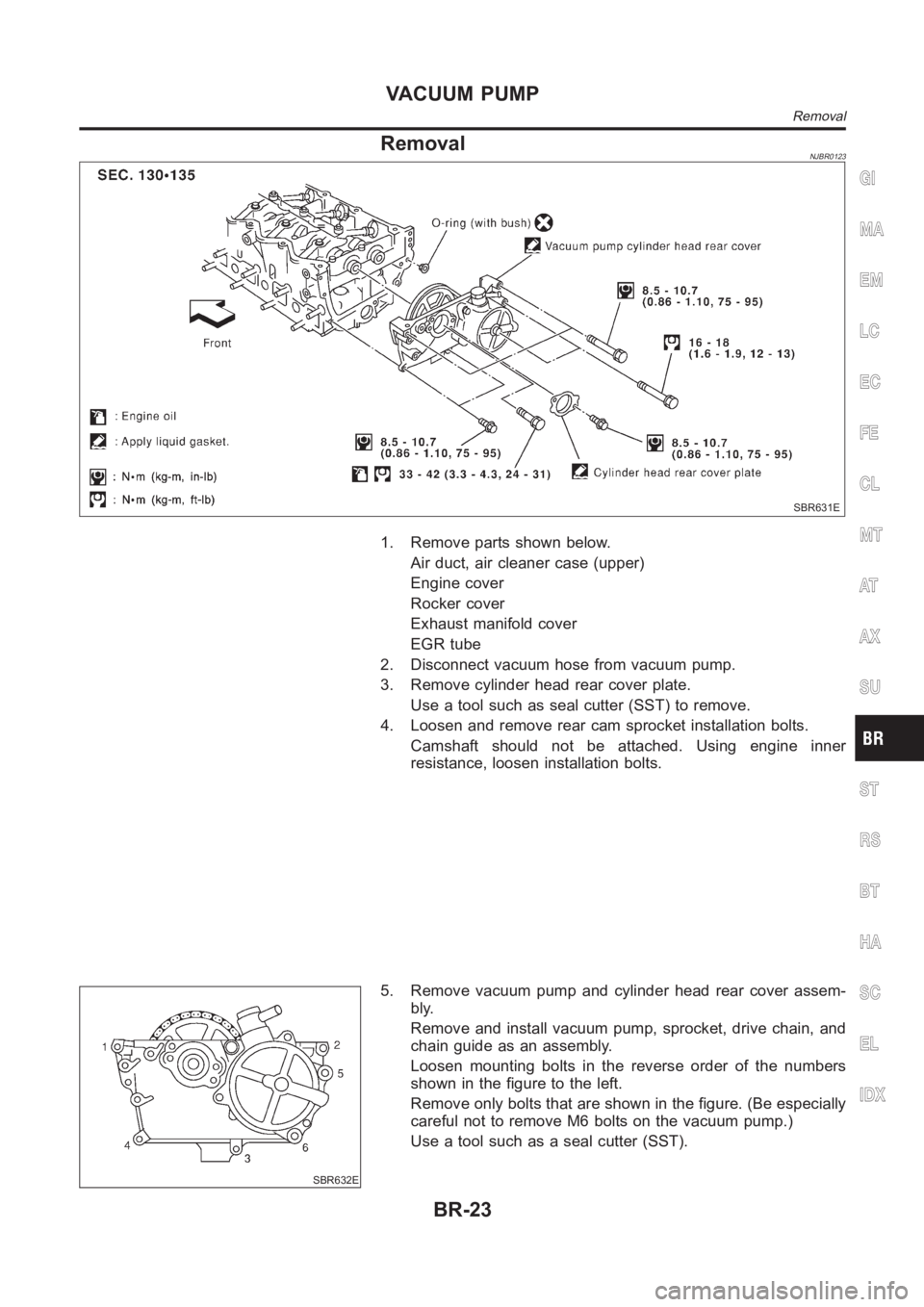

Page 2207 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual RemovalNJBR0123 SBR631E 1. Remove parts shown below. Air duct, air cleaner case (upper) Engine cover Rocker cover Exhaust manifold cover EGR tube 2. Disconnect vacuum hose from vacuum pump. 3. Remove

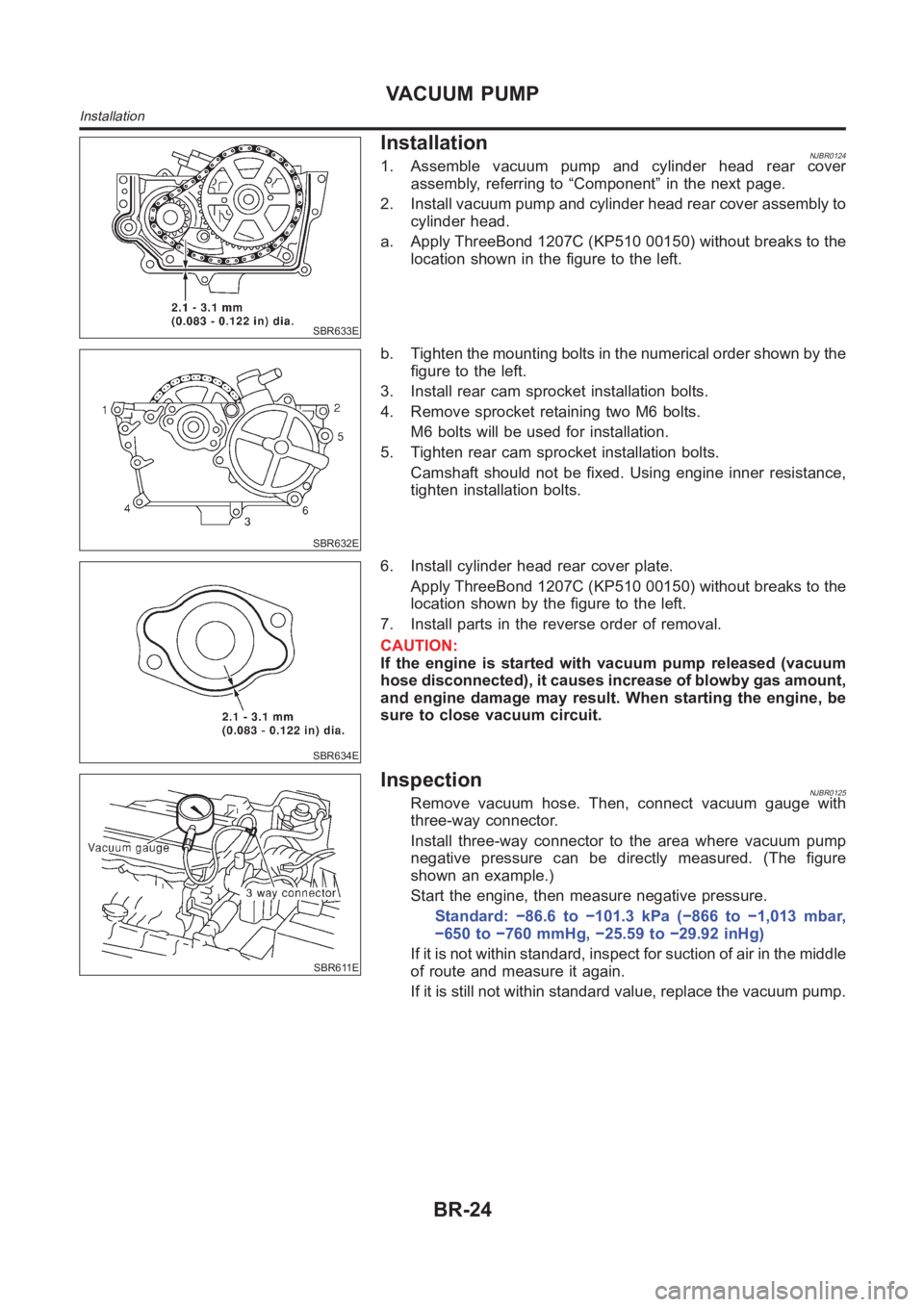

Page 2208 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual SBR633E InstallationNJBR01241. Assemble vacuum pump and cylinder head rear cover assembly, referring to “Component” in the next page. 2. Install vacuum pump and cylinder head rear cover assembly t
