Page 2985 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual 10 CHECK FAN SWITCH CIRCUIT 1. Reconnect blower motor connector. 2. Do approx. 12 volts exist between each fan switch harness terminal and body ground? NHA507 YesorNo Yes GO TO 13. No GO TO 11. 11 CHE

Page 2986 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual 12 CHECK CIRCUIT CONTINUITY BETWEEN HEATER CONTROL PANEL AND BLOWER MOTOR Check circuit continuity between heater control panel harness terminal No. 17 and blower motor harness terminal No. 2. NHA509

Page 2987 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual NHA386 ELECTRICAL COMPONENTS INSPECTION=NJHA0146Fan SwitchNJHA0146S01Check continuity between terminals at each switch position. KNOB POSITION Continuity between terminals OFF No continuity 113—14

Page 2988 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual Magnet Clutch TROUBLE DIAGNOSIS PROCEDURE FOR MAGNET CLUTCH=NJHA0155SYMPTOM: Magnet clutch does not operate when A/C switch and fan switch are ON. INSPECTION FLOW NHA387 *1: HA-92 *2: HA-53 (QG and YD

Page 2989 of 3189

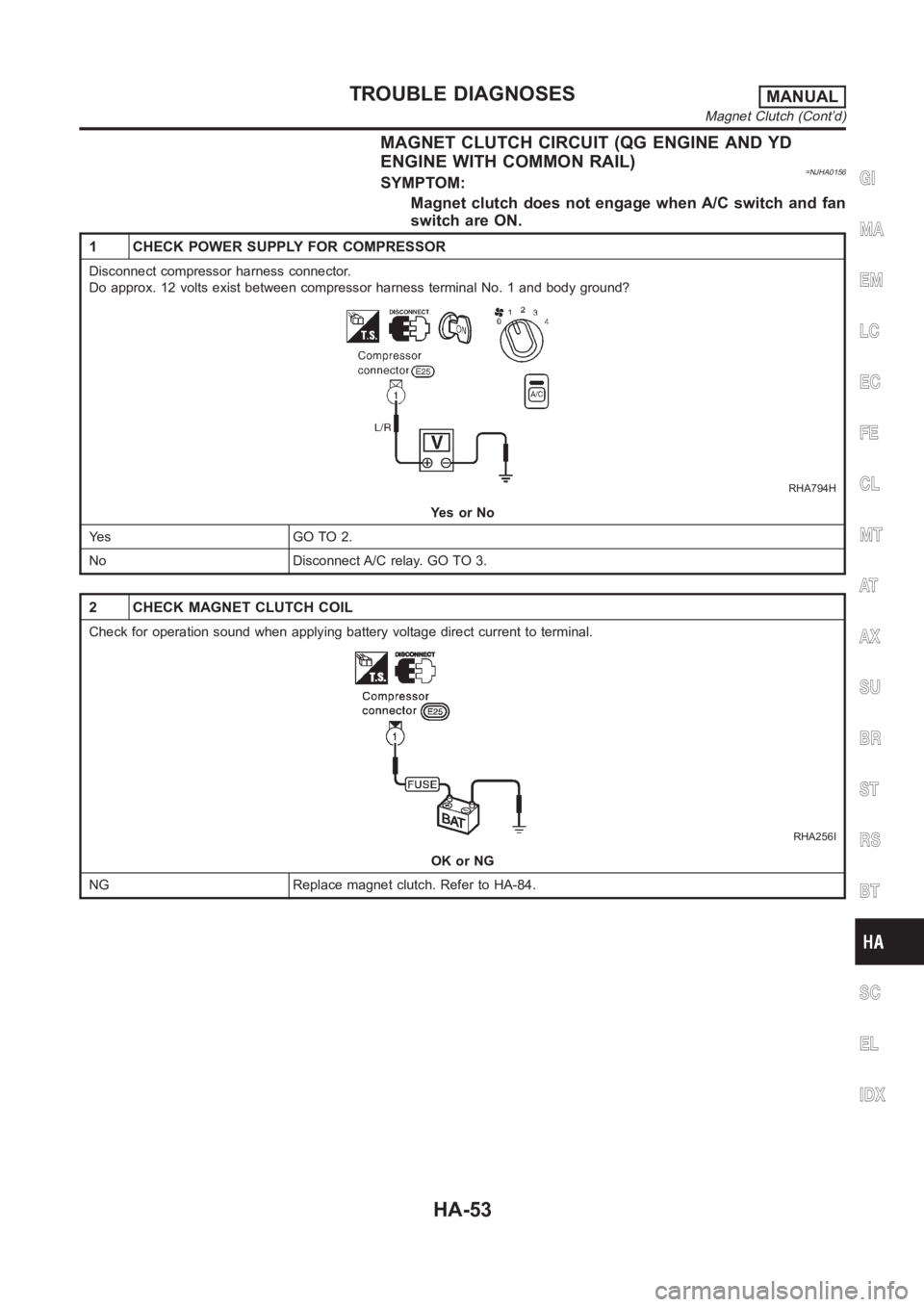

NISSAN ALMERA N16 2003 Electronic Repair Manual MAGNET CLUTCH CIRCUIT (QG ENGINE AND YD ENGINE WITH COMMON RAIL) =NJHA0156SYMPTOM: Magnet clutch does not engage when A/C switch and fan switch are ON. 1 CHECK POWER SUPPLY FOR COMPRESSOR Disconnect c

Page 2990 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual 3 CHECK CIRCUIT CONTINUITY BETWEEN A/C RELAY AND COMPRESSOR HARNESS Check circuit continuity between A/C relay harness terminal No. 3 and compressor harness terminal No. 1. RHA634H Continuity should e

Page 2991 of 3189

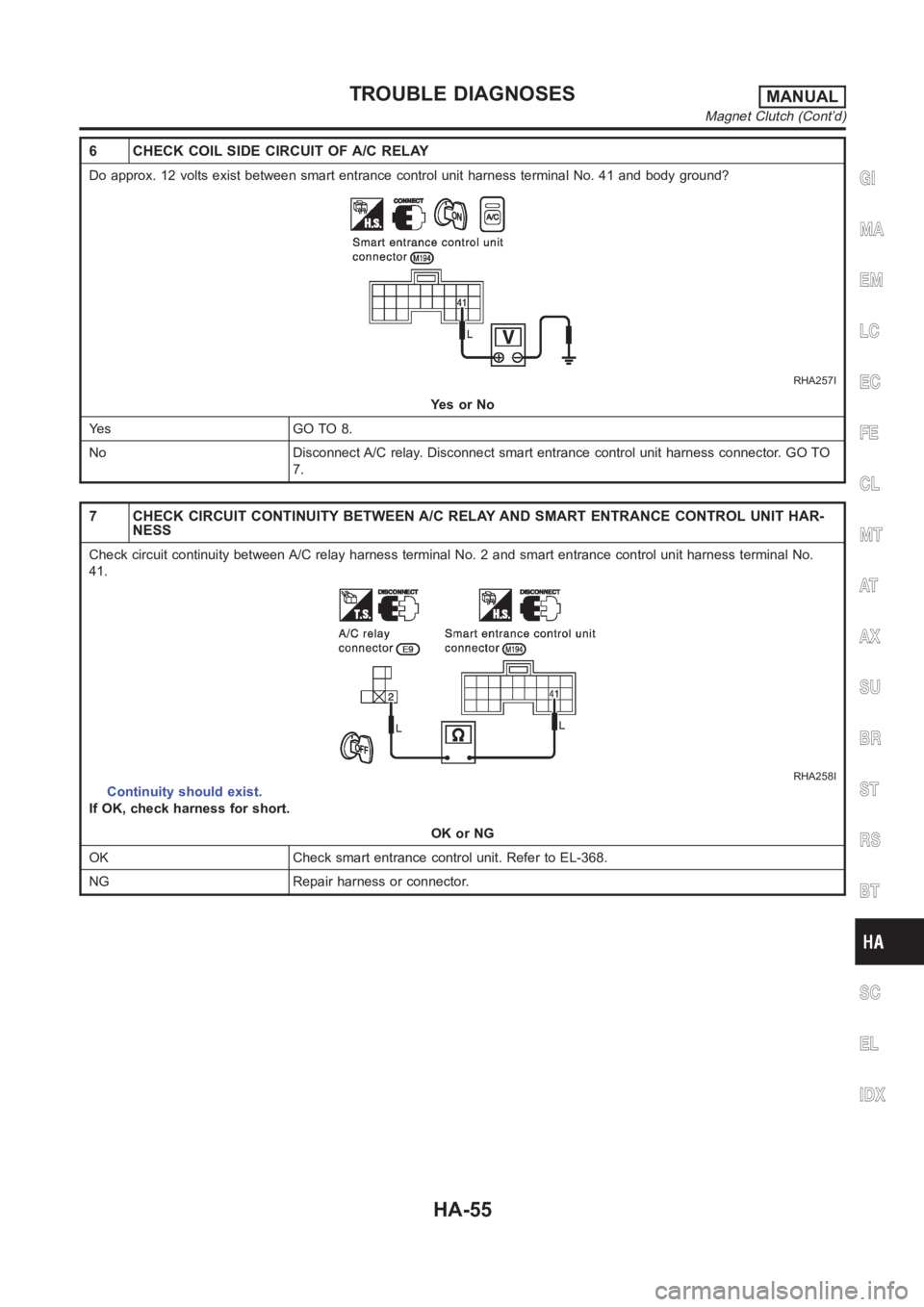

NISSAN ALMERA N16 2003 Electronic Repair Manual 6 CHECK COIL SIDE CIRCUIT OF A/C RELAY Do approx. 12 volts exist between smart entrance control unit harness terminal No. 41 and body ground? RHA257I YesorNo Ye s G O T O 8 . No Disconnect A/C relay.

Page 2992 of 3189

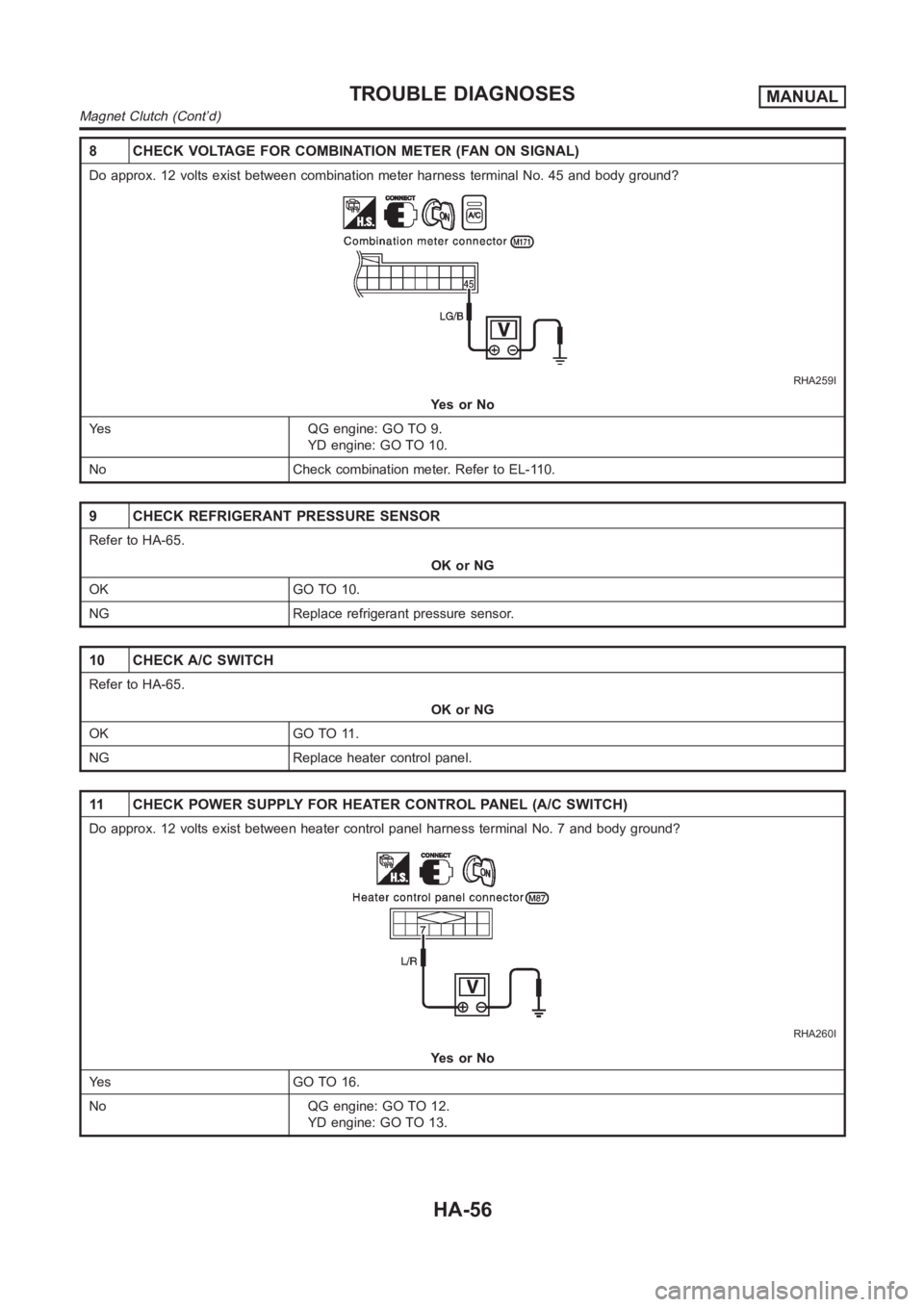

NISSAN ALMERA N16 2003 Electronic Repair Manual 8 CHECK VOLTAGE FOR COMBINATION METER (FAN ON SIGNAL) Do approx. 12 volts exist between combination meter harness terminal No. 45 and body ground? RHA259I YesorNo Yes QG engine: GO TO 9. YD engine: GO
