Page 1025 of 3189

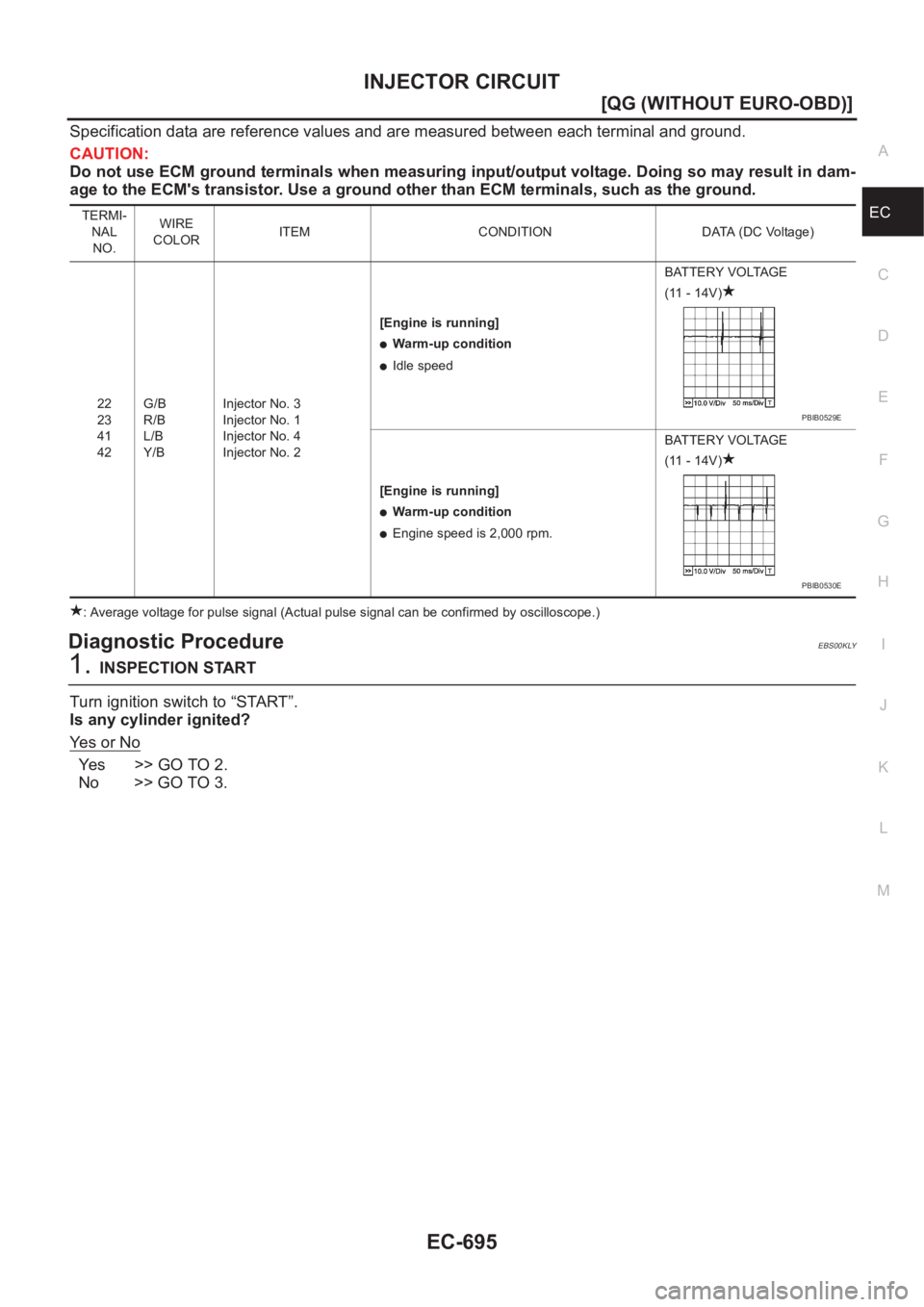

NISSAN ALMERA N16 2003 Electronic Repair Manual INJECTOR CIRCUIT EC-695 [QG (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC Specification data are reference values and are measured between each terminal and ground. CAUTION: Do not use ECM ground term

Page 1026 of 3189

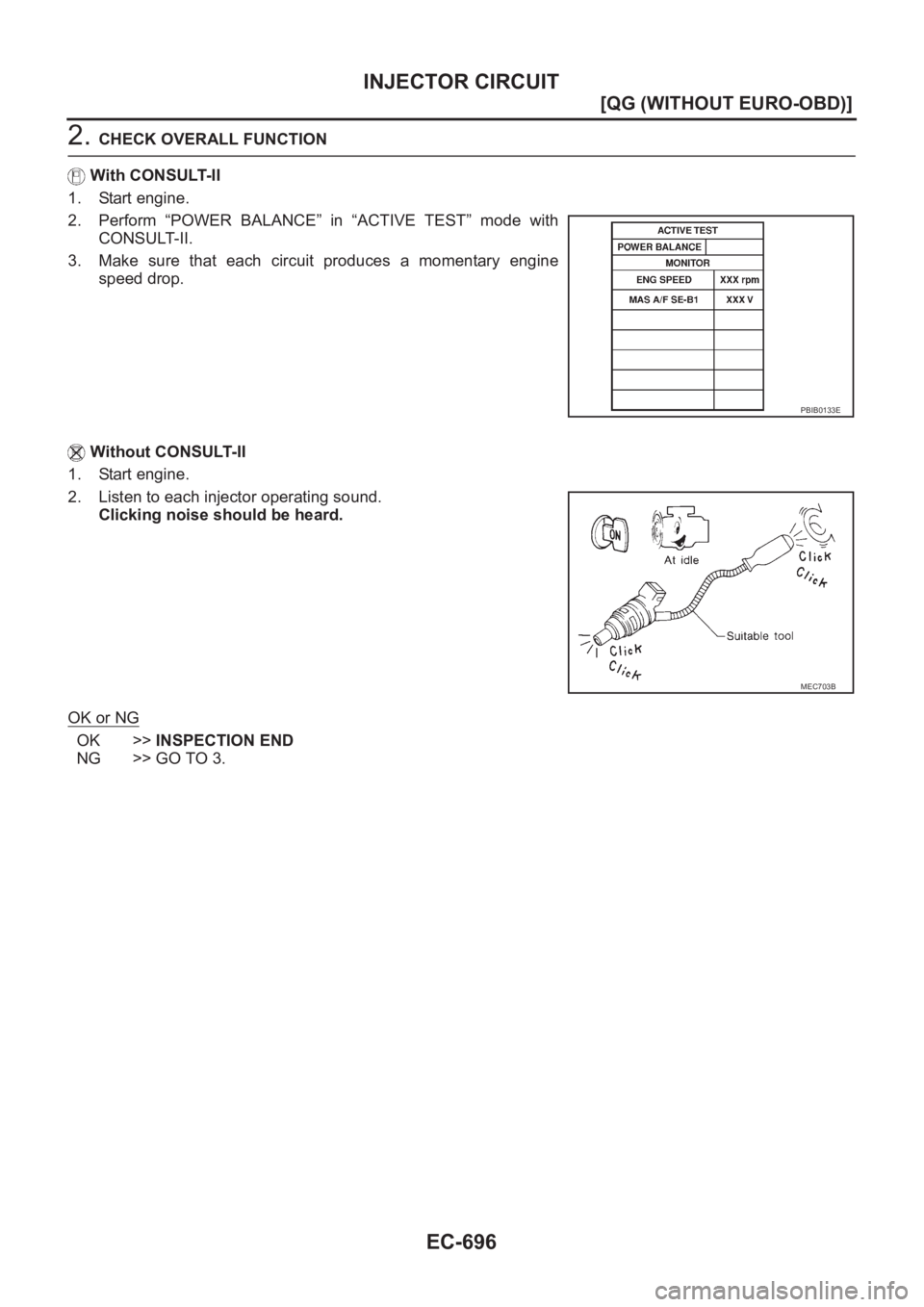

NISSAN ALMERA N16 2003 Electronic Repair Manual EC-696 [QG (WITHOUT EURO-OBD)] INJECTOR CIRCUIT 2. CHECK OVERALL FUNCTION With CONSULT-II 1. Start engine. 2. Perform “POWER BALANCE” in “ACTIVE TEST” mode with CONSULT-II. 3. Make sur

Page 1027 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual INJECTOR CIRCUIT EC-697 [QG (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC 3.CHECK INJECTOR POWER SUPPLY CIRCUIT 1. Turn ignition switch “OFF”. 2. Disconnect injector harness connector. 3. Turn ign

Page 1028 of 3189

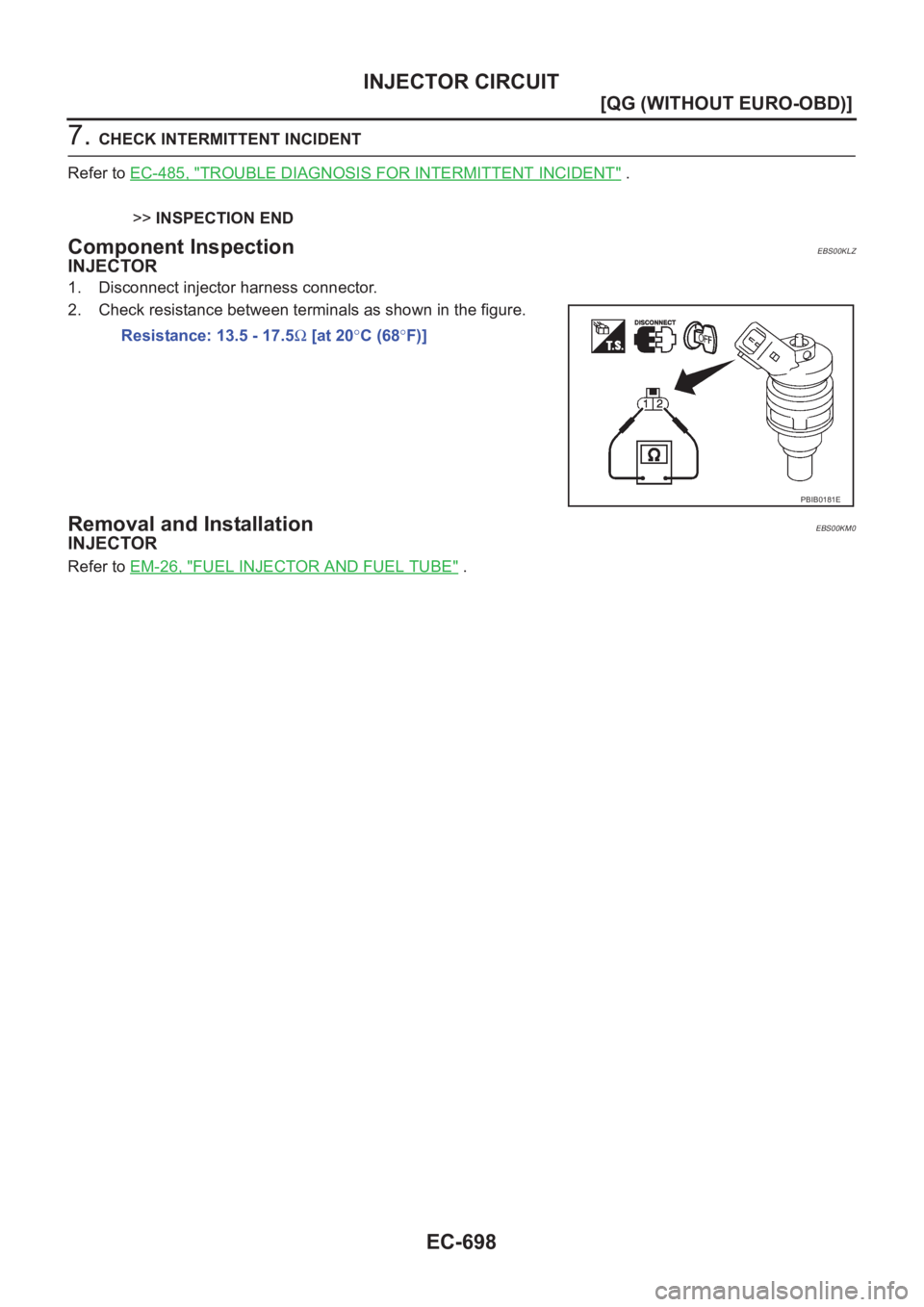

NISSAN ALMERA N16 2003 Electronic Repair Manual EC-698 [QG (WITHOUT EURO-OBD)] INJECTOR CIRCUIT 7. CHECK INTERMITTENT INCIDENT Refer to EC-485, " TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" . >>INSPECTION END Component InspectionEBS00KLZ I

Page 1029 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual FUEL PUMP CIRCUIT EC-699 [QG (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC FUEL PUMP CIRCUITPFP:17042 DescriptionEBS00KM1 SYSTEM DESCRIPTION *: The ECM determines the start signal status by the signal

Page 1030 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual EC-700 [QG (WITHOUT EURO-OBD)] FUEL PUMP CIRCUIT Wiring Diagram EBS00KM3 YEC309A

Page 1031 of 3189

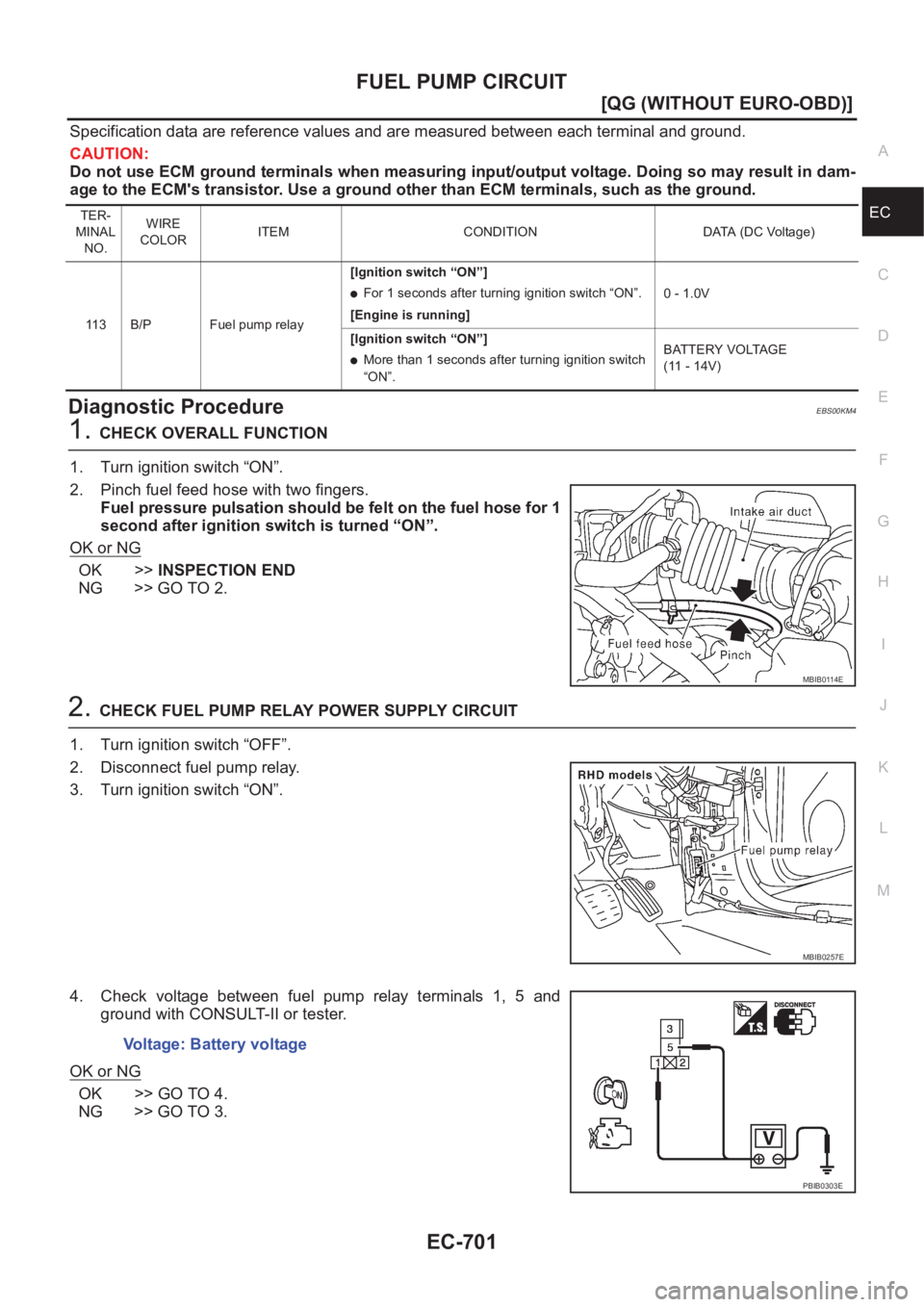

NISSAN ALMERA N16 2003 Electronic Repair Manual FUEL PUMP CIRCUIT EC-701 [QG (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC Specification data are reference values and are measured between each terminal and ground. CAUTION: Do not use ECM ground ter

Page 1032 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual EC-702 [QG (WITHOUT EURO-OBD)] FUEL PUMP CIRCUIT 3. DETECT MALFUNCTIONING PART Check the following. ●Fuse block (J/B) connector B4 ●10A fuse ●15A fuse ●Harness for open or short between fuel p
