ISO 15031-2 TERMINOLOGY LIST
ISO 15031-2
GI-51

PREPARATION
EM-7
[QG]
C
D
E
F
G
H
I
J
K
L
MA
EM

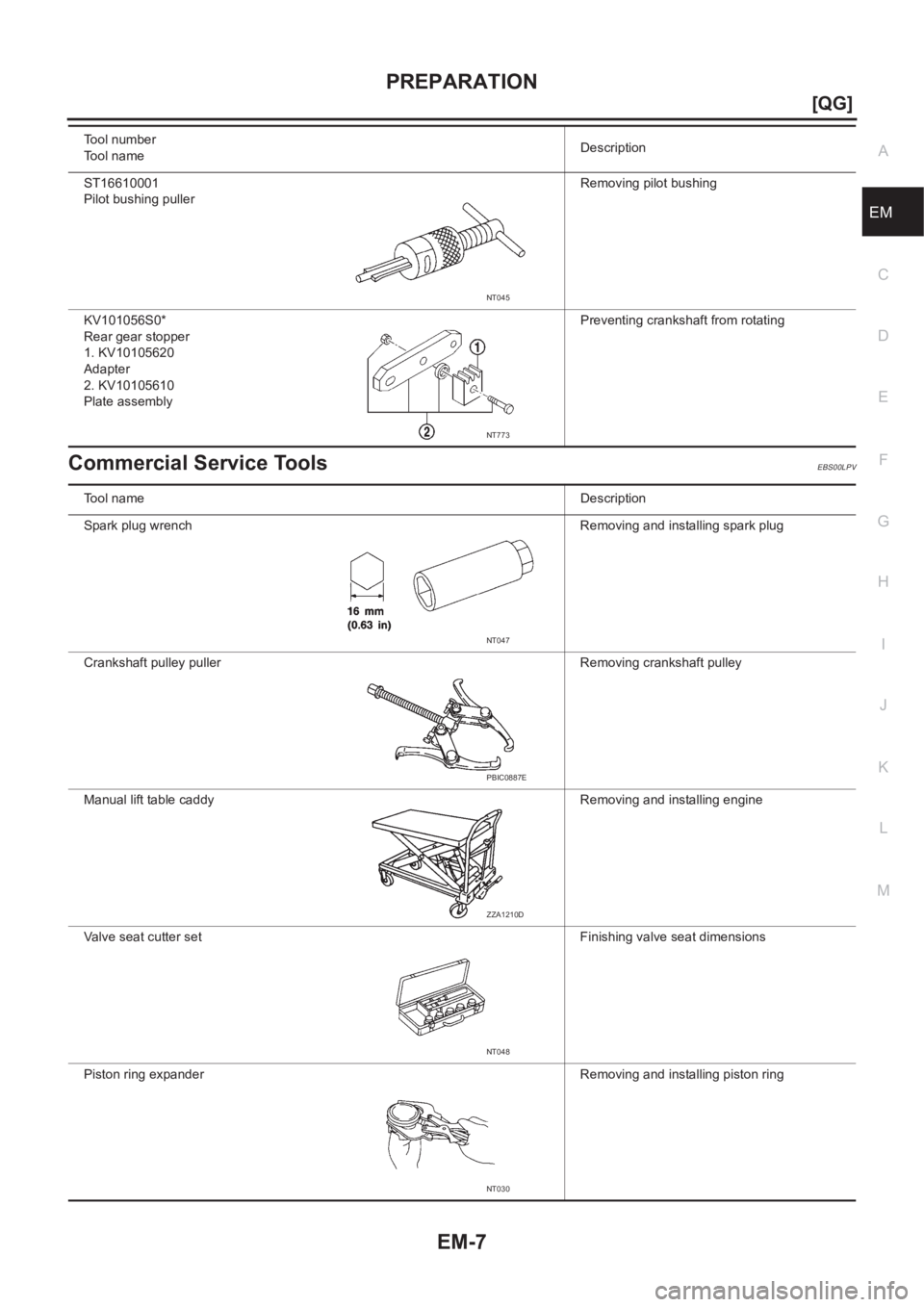

Commercial Service ToolsEBS00LPV
ST16610001
Pilot bushing pullerRemoving pilot bushing
KV101056S0*
Rear gear stopper
1. KV10105620
Adapter
2. KV10105610
Plate assemblyPreventing crankshaft from rotating Tool number
To o l n a m eDescription
NT045
NT773
To o l n a m eDescription
Spark plug wrench Removing and installing spark plug
Crankshaft pulley puller Removing crankshaft pulley
Manual lift table caddy Removing and installing engine
Valve seat cutter set Finishing valve seat dimensions
Piston ring expander Removing and installing piston ring
NT047
PBIC0887E
ZZA1210D
NT048
NT030

EM-10
[QG]

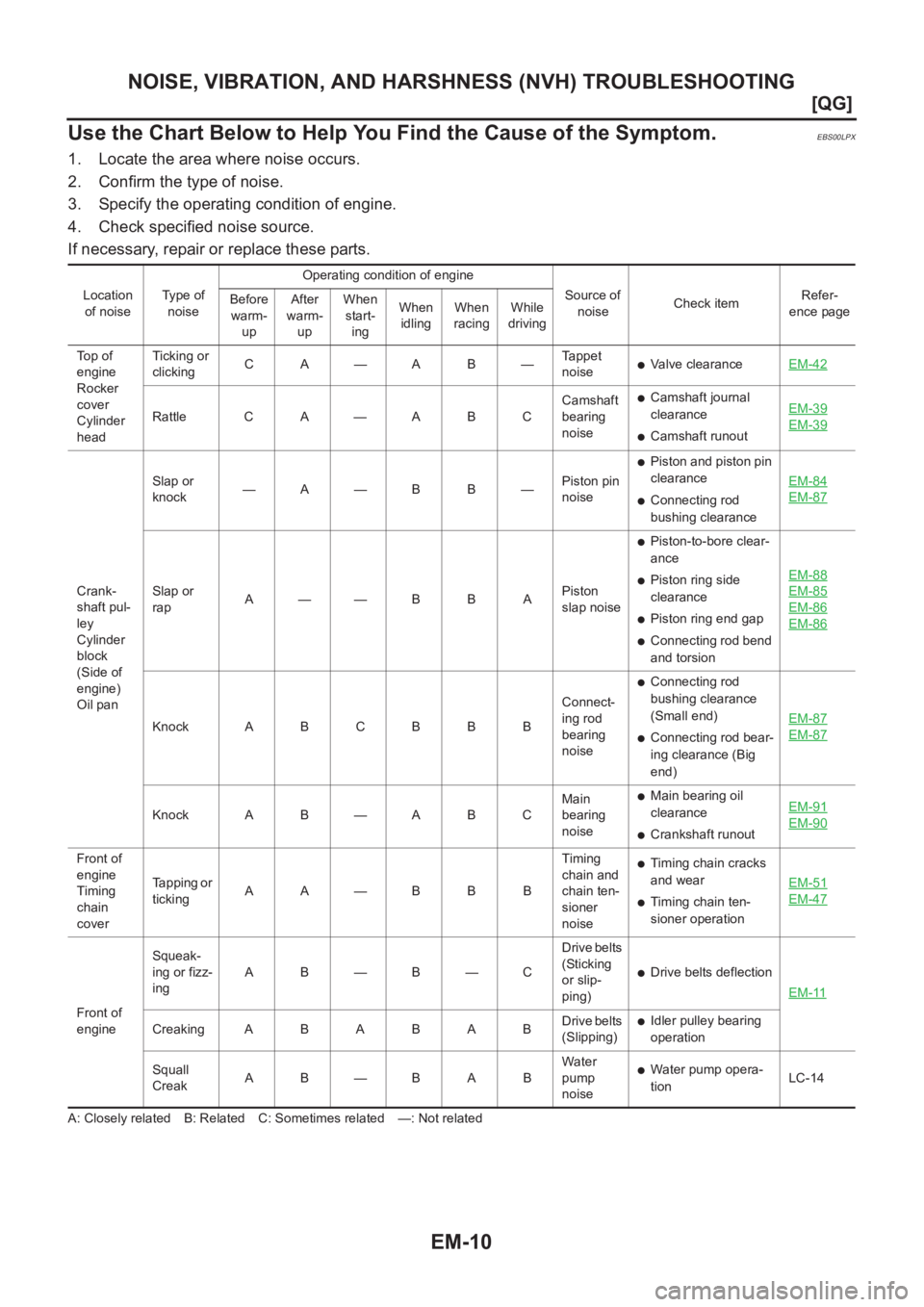

NOISE, VIBRATION, AND HARSHNESS (NVH) TROUBLESHOOTING
Use the Chart Below to Help You Find the Cause of the Symptom.
EBS00LPX
1. Locate the area where noise occurs.
2. Confirm the type of noise.
3. Specify the operating condition of engine.
4. Check specified noise source.
If necessary, repair or replace these parts.
A: Closely related B: Related C: Sometimes related —: Not relatedLocation
of noiseTy p e o f
noiseOperating condition of engine
Source of
noiseCheck itemRefer-
ence page Before
warm-
upAfter
warm-
upWhen
start-
ingWhen
idlingWhen
racingWhile
driving
Top of
engine
Rocker
cover
Cylinder
headTick in g o r
clickingCA—AB—Tappet
noise
●Valve clearanceEM-42
Rattle C A — A B CCamshaft
bearing
noise
●Camshaft journal
clearance
●Camshaft runoutEM-39EM-39
Crank-
shaft pul-
ley
Cylinder
block
(Side of
engine)
Oil panSlap or
knock—A—B B—Piston pin
noise
●Piston and piston pin
clearance
●Connecting rod
bushing clearanceEM-84EM-87
Slap or
rapA——B B APiston
slap noise
●Piston-to-bore clear-
ance
●Piston ring side
clearance
●Piston ring end gap
●Connecting rod bend
and torsionEM-88
EM-85
EM-86
EM-86
Knock A B C B B BConnect-
ing rod
bearing
noise
●Connecting rod
bushing clearance
(Small end)
●Connecting rod bear-
ing clearance (Big
end)EM-87EM-87
Knock A B — A B CMain
bearing
noise
●Main bearing oil
clearance
●Crankshaft runoutEM-91EM-90
Front of
engine
Timing
chain
coverTapping or
tickingAA—BBBTiming
chain and
chain ten-
sioner
noise●Timing chain cracks
and wear
●Timing chain ten-
sioner operationEM-51EM-47
Front of
engineSqueak-
ing or fizz-
ingAB—B—CDrive belts
(Sticking
or slip-
ping)
●Drive belts deflection
EM-11
CreakingABABABDrive belts
(Slipping)●Idler pulley bearing
operation
Squall
CreakAB—BABWater
pump
noise
●Water pump opera-
tionLC-14

DRIVE BELTS
EM-11
[QG]
C
D
E
F
G
H
I
J
K
L
MA
EM
DRIVE BELTSPFP:02117
Checking Drive BeltsEBS00LPY
●Before inspecting the engine, make sure the engine has cooled down; wait approximately 30 minutes
after the engine has been stopped.
●Visually inspect all belts for wear, damage, or cracks on contacting surfaces and edge areas.
●When measuring deflection, apply 98 N (10 kg, 22 lb) at the ▼ marked point.
CAUTION:
When measuring belt tension immediately after belt is installed, first set the tension to the standard.
Then, rotate crankshaft for more than two turns in order to eliminate variance in belt deflection
between the pulleys. Re-measure and adjust the tension to the standard.
PBIC0764E
Deflection adjustment Unit: mm (in)
Used belt
New belt
Limit After adjustment
AlternatorWithout air conditioner compressor 10.2 (0.402)6.5 - 7.0
(0.256 - 0.276)5.5 - 6.1
(0.217 - 0.240)
With air conditioner compressor 8.1 (0.319)5.3 - 5.7
(0.209 - 0.224)4.5 - 5.0
(0.177 - 0.197)
Power steering oil pump 7.1 (0.280)4.4 - 4.9
(0.173 - 0.193)3.9 - 4.4
(0.154 - 0.173)
Applied pushing force 98 N (10 kg, 22 lb)

DRIVE BELTS
EM-13
[QG]
C
D
E
F
G
H
I
J
K
L
MA
EM

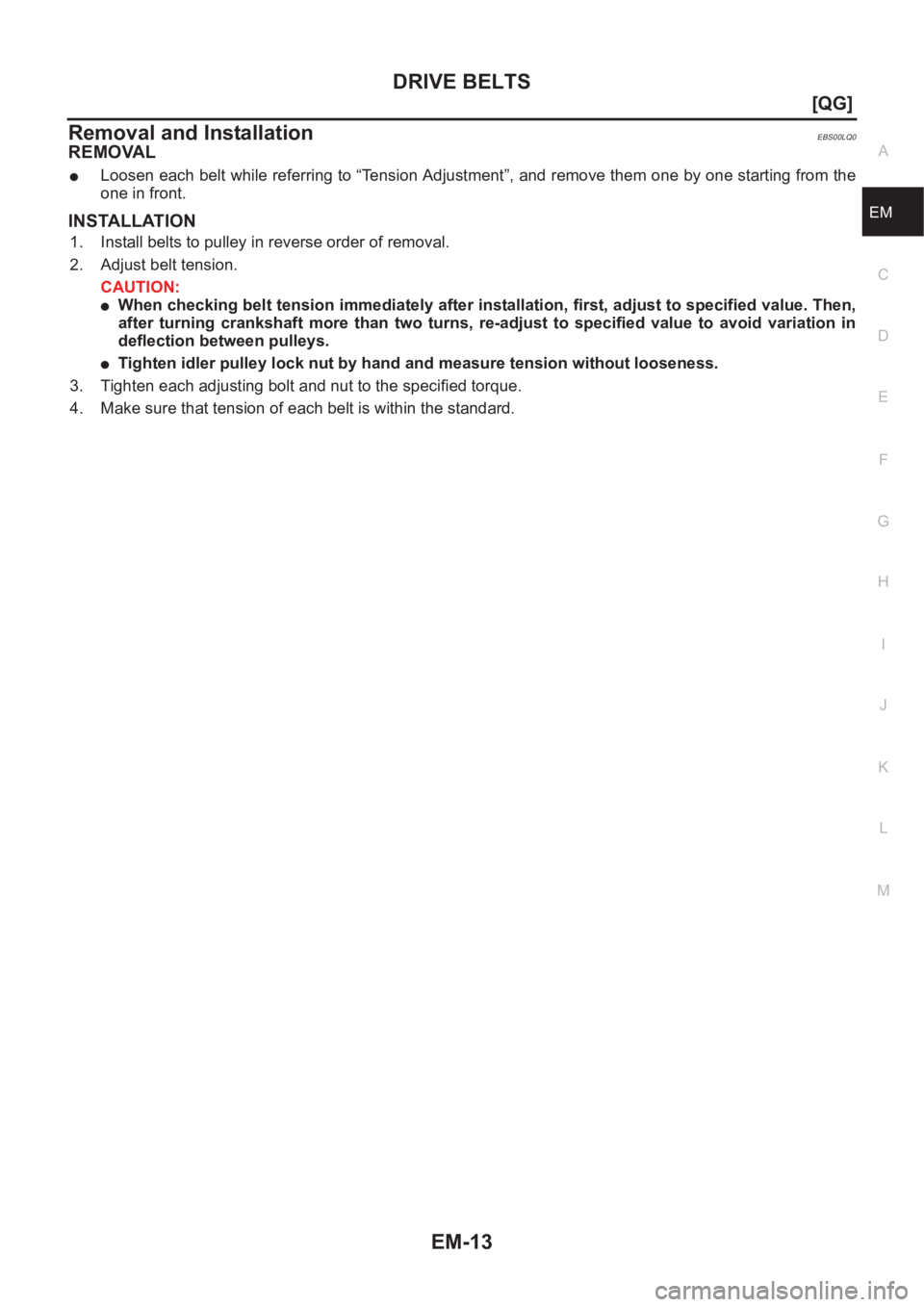

Removal and InstallationEBS00LQ0
REMOVAL
●Loosen each belt while referring to “Tension Adjustment”, and remove them one by one starting from the
one in front.
INSTALLATION
1. Install belts to pulley in reverse order of removal.
2. Adjust belt tension.
CAUTION:
●When checking belt tension immediately after installation, first, adjust to specified value. Then,
after turning crankshaft more than two turns, re-adjust to specified value to avoid variation in
deflection between pulleys.
●Tighten idler pulley lock nut by hand and measure tension without looseness.
3. Tighten each adjusting bolt and nut to the specified torque.
4. Make sure that tension of each belt is within the standard.

EM-32
[QG]

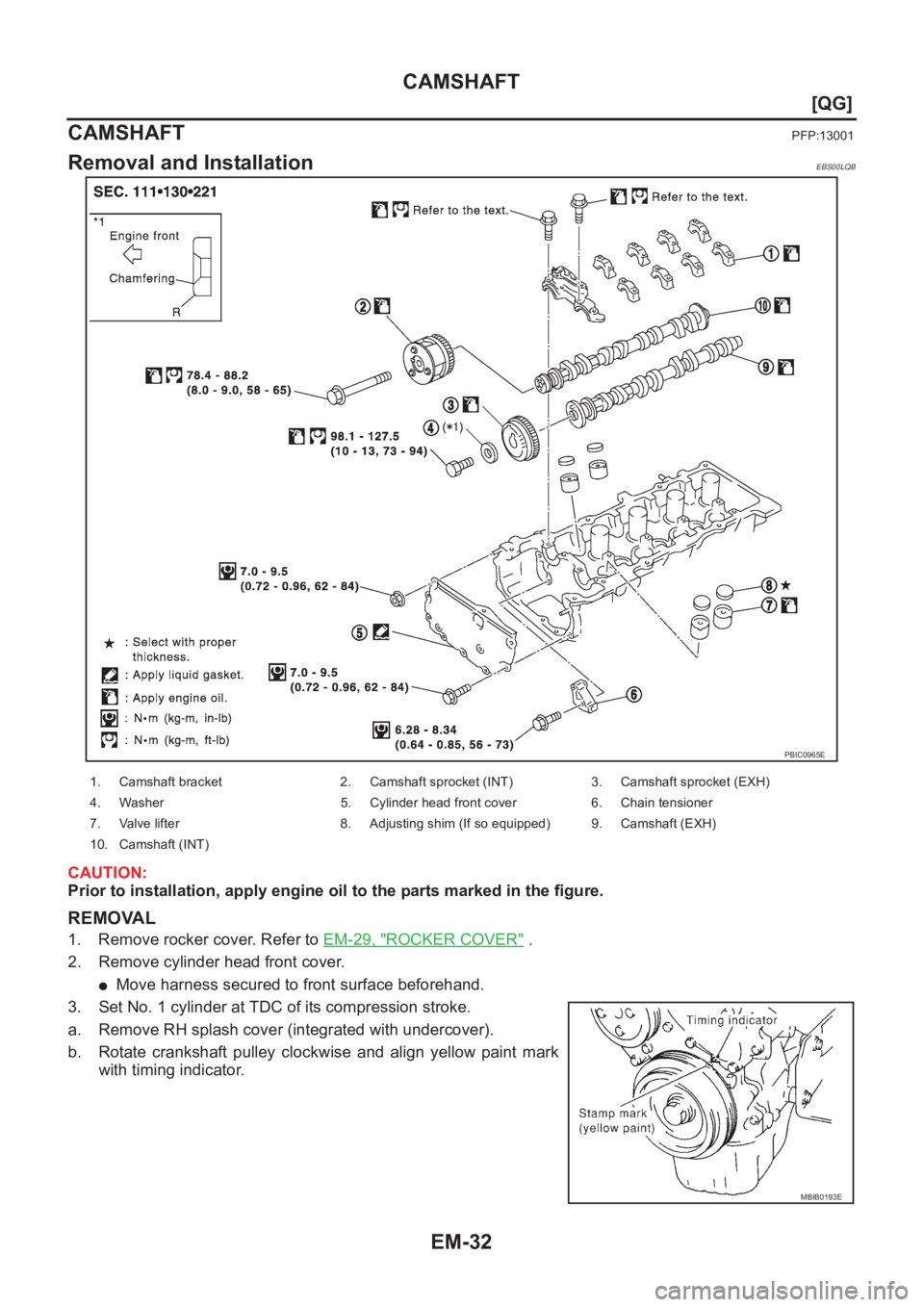

CAMSHAFT
CAMSHAFT
PFP:13001
Removal and InstallationEBS00LQB
CAUTION:
Prior to installation, apply engine oil to the parts marked in the figure.
REMOVAL
1. Remove rocker cover. Refer to EM-29, "ROCKER COVER" .
2. Remove cylinder head front cover.
●Move harness secured to front surface beforehand.
3. Set No. 1 cylinder at TDC of its compression stroke.
a. Remove RH splash cover (integrated with undercover).
b. Rotate crankshaft pulley clockwise and align yellow paint mark
with timing indicator.
PBIC0965E
1. Camshaft bracket 2. Camshaft sprocket (INT) 3. Camshaft sprocket (EXH)
4. Washer 5. Cylinder head front cover 6. Chain tensioner
7. Valve lifter 8. Adjusting shim (If so equipped) 9. Camshaft (EXH)
10. Camshaft (INT)
MBIB0193E

CAMSHAFT
EM-33
[QG]
C
D
E
F
G
H
I
J
K
L
MA
EM

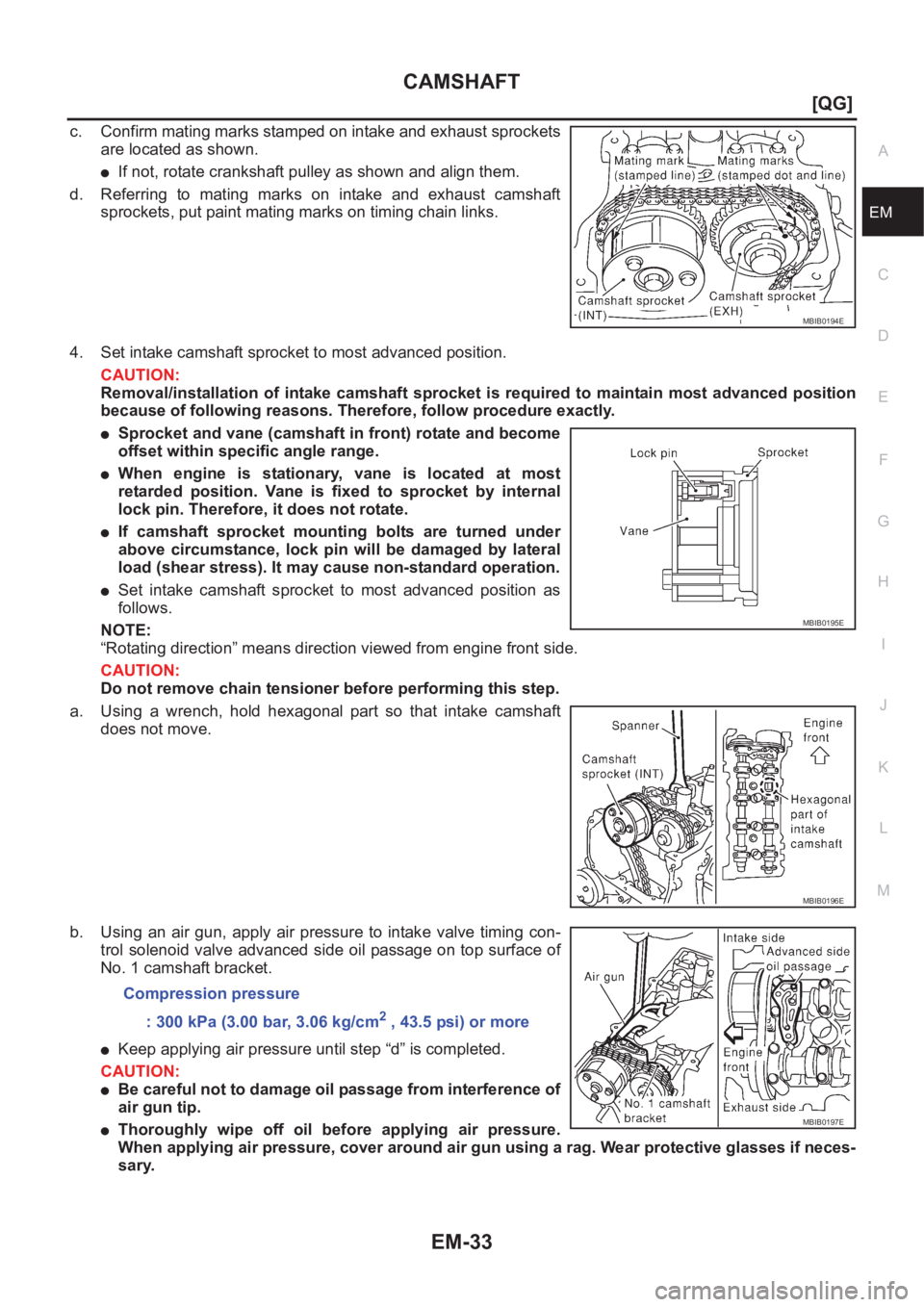

c. Confirm mating marks stamped on intake and exhaust sprockets
are located as shown.
●If not, rotate crankshaft pulley as shown and align them.
d. Referring to mating marks on intake and exhaust camshaft
sprockets, put paint mating marks on timing chain links.
4. Set intake camshaft sprocket to most advanced position.
CAUTION:
Removal/installation of intake camshaft sprocket is required to maintain most advanced position
because of following reasons. Therefore, follow procedure exactly.
●Sprocket and vane (camshaft in front) rotate and become
offset within specific angle range.
●When engine is stationary, vane is located at most
retarded position. Vane is fixed to sprocket by internal
lock pin. Therefore, it does not rotate.
●If camshaft sprocket mounting bolts are turned under
above circumstance, lock pin will be damaged by lateral
load (shear stress). It may cause non-standard operation.
●Set intake camshaft sprocket to most advanced position as
follows.
NOTE:
“Rotating direction” means direction viewed from engine front side.
CAUTION:
Do not remove chain tensioner before performing this step.
a. Using a wrench, hold hexagonal part so that intake camshaft
does not move.
b. Using an air gun, apply air pressure to intake valve timing con-
trol solenoid valve advanced side oil passage on top surface of
No. 1 camshaft bracket.
●Keep applying air pressure until step “d” is completed.
CAUTION:
●Be careful not to damage oil passage from interference of
air gun tip.
●Thoroughly wipe off oil before applying air pressure.
When applying air pressure, cover around air gun using a rag. Wear protective glasses if neces-
sary.
MBIB0194E
MBIB0195E
MBIB0196E
Compression pressure
: 300 kPa (3.00 bar, 3.06 kg/cm
2 , 43.5 psi) or more
MBIB0197E

CAMSHAFT
EM-35
[QG]
C
D
E
F
G
H
I
J
K
L
MA
EM

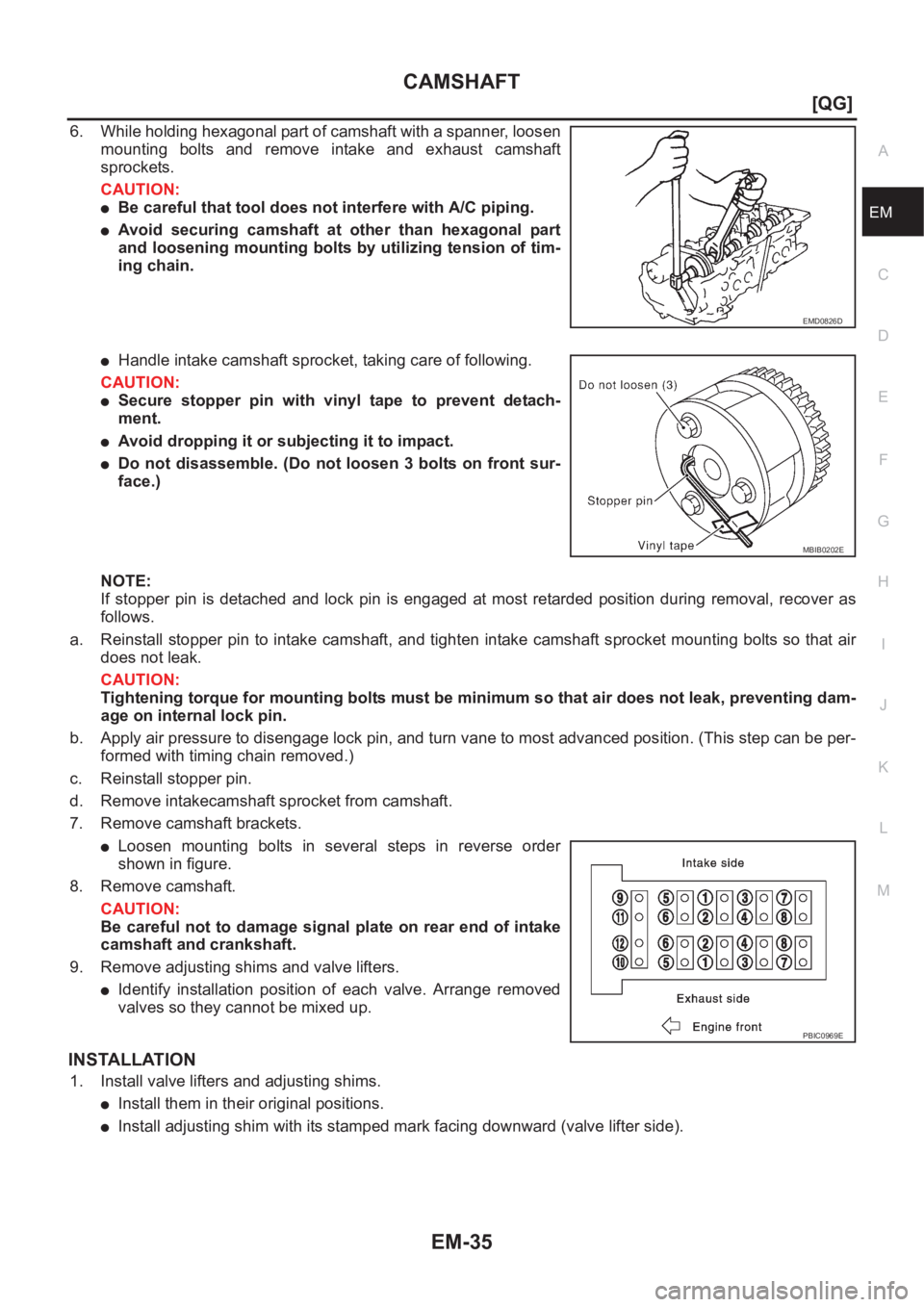

6. While holding hexagonal part of camshaft with a spanner, loosen
mounting bolts and remove intake and exhaust camshaft
sprockets.
CAUTION:
●Be careful that tool does not interfere with A/C piping.
●Avoid securing camshaft at other than hexagonal part
and loosening mounting bolts by utilizing tension of tim-
ing chain.
●Handle intake camshaft sprocket, taking care of following.
CAUTION:
●Secure stopper pin with vinyl tape to prevent detach-
ment.
●Avoid dropping it or subjecting it to impact.
●Do not disassemble. (Do not loosen 3 bolts on front sur-
face.)
NOTE:
If stopper pin is detached and lock pin is engaged at most retarded position during removal, recover as
follows.
a. Reinstall stopper pin to intake camshaft, and tighten intake camshaft sprocket mounting bolts so that air
does not leak.
CAUTION:
Tightening torque for mounting bolts must be minimum so that air does not leak, preventing dam-
age on internal lock pin.
b. Apply air pressure to disengage lock pin, and turn vane to most advanced position. (This step can be per-
formed with timing chain removed.)
c. Reinstall stopper pin.
d. Remove intakecamshaft sprocket from camshaft.
7. Remove camshaft brackets.
●Loosen mounting bolts in several steps in reverse order
shown in figure.
8. Remove camshaft.
CAUTION:
Be careful not to damage signal plate on rear end of intake
camshaft and crankshaft.
9. Remove adjusting shims and valve lifters.
●Identify installation position of each valve. Arrange removed
valves so they cannot be mixed up.
INSTALLATION
1. Install valve lifters and adjusting shims.
●Install them in their original positions.
●Install adjusting shim with its stamped mark facing downward (valve lifter side).
EMD0826D
MBIB0202E
PBIC0969E
