Page 2609 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual SYMPTOM CHART=NJEL0580S03First perform the “SELF-DIAG RESULTS” in “SMART ENTRANCE”
with CONSULT-II, when perform the each trouble diagnosis. Refer
to EL-271, “CONSULT-II INSPECTION PROCEDURE

Page 2610 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual POWER SUPPLY AND GROUND CIRCUIT CHECKNJEL0580S04
1 CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect smart entrance control unit connector.
3. Check voltage between smart entrance

Page 2611 of 3189

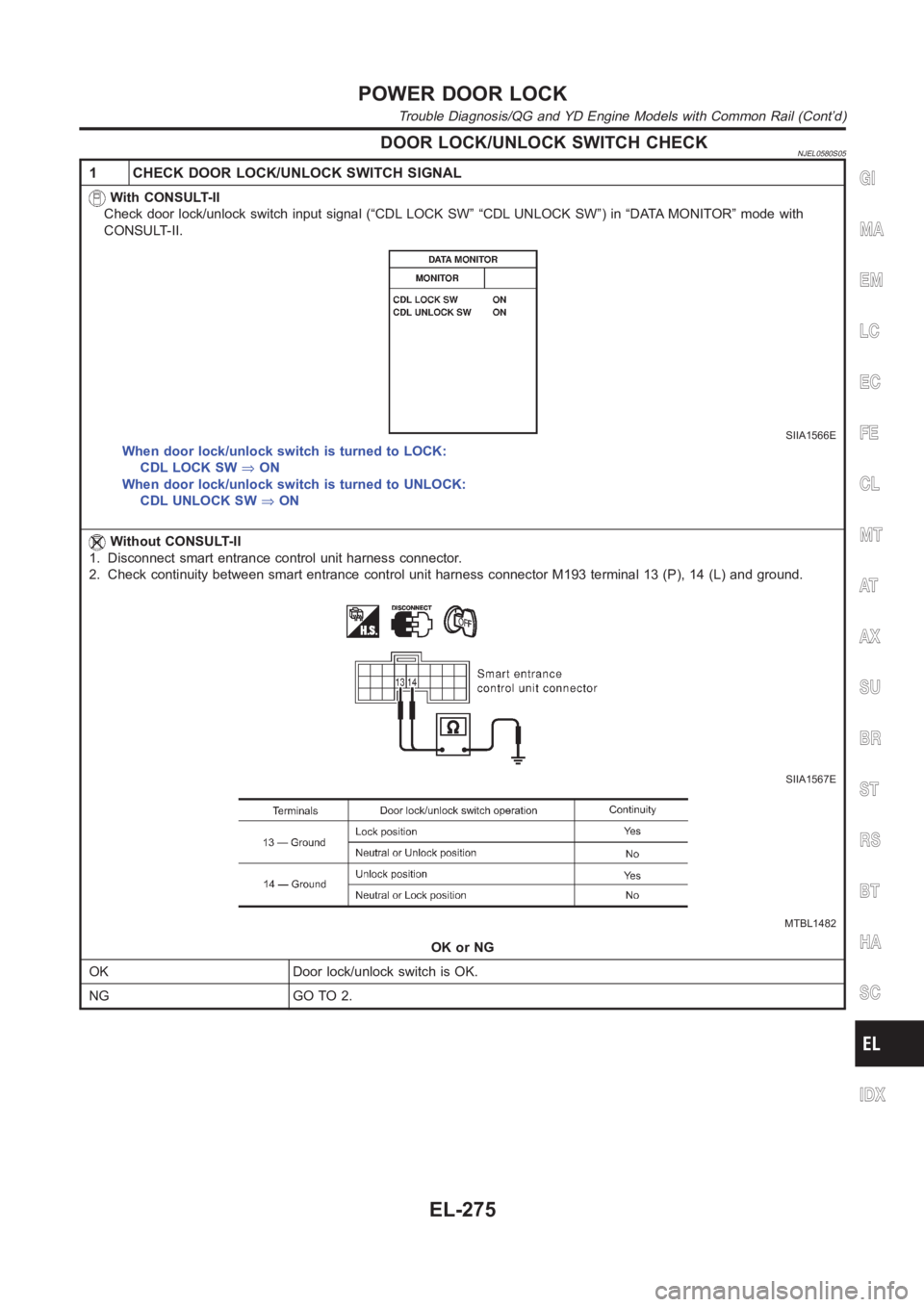

NISSAN ALMERA N16 2003 Electronic Repair Manual DOOR LOCK/UNLOCK SWITCH CHECKNJEL0580S05
1 CHECK DOOR LOCK/UNLOCK SWITCH SIGNAL
With CONSULT-II
Check door lock/unlock switch input signal (“CDL LOCK SW” “CDL UNLOCK SW”)in “DATA MONITOR”

Page 2612 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual 2 CHECK DOOR LOCK/UNLOCK SWITCH
1. Disconnect door lock/unlock switch harness connector.
2. Check continuity between each door lock/unlock switch terminals.
Power window main switch (Door lock/unlock

Page 2613 of 3189

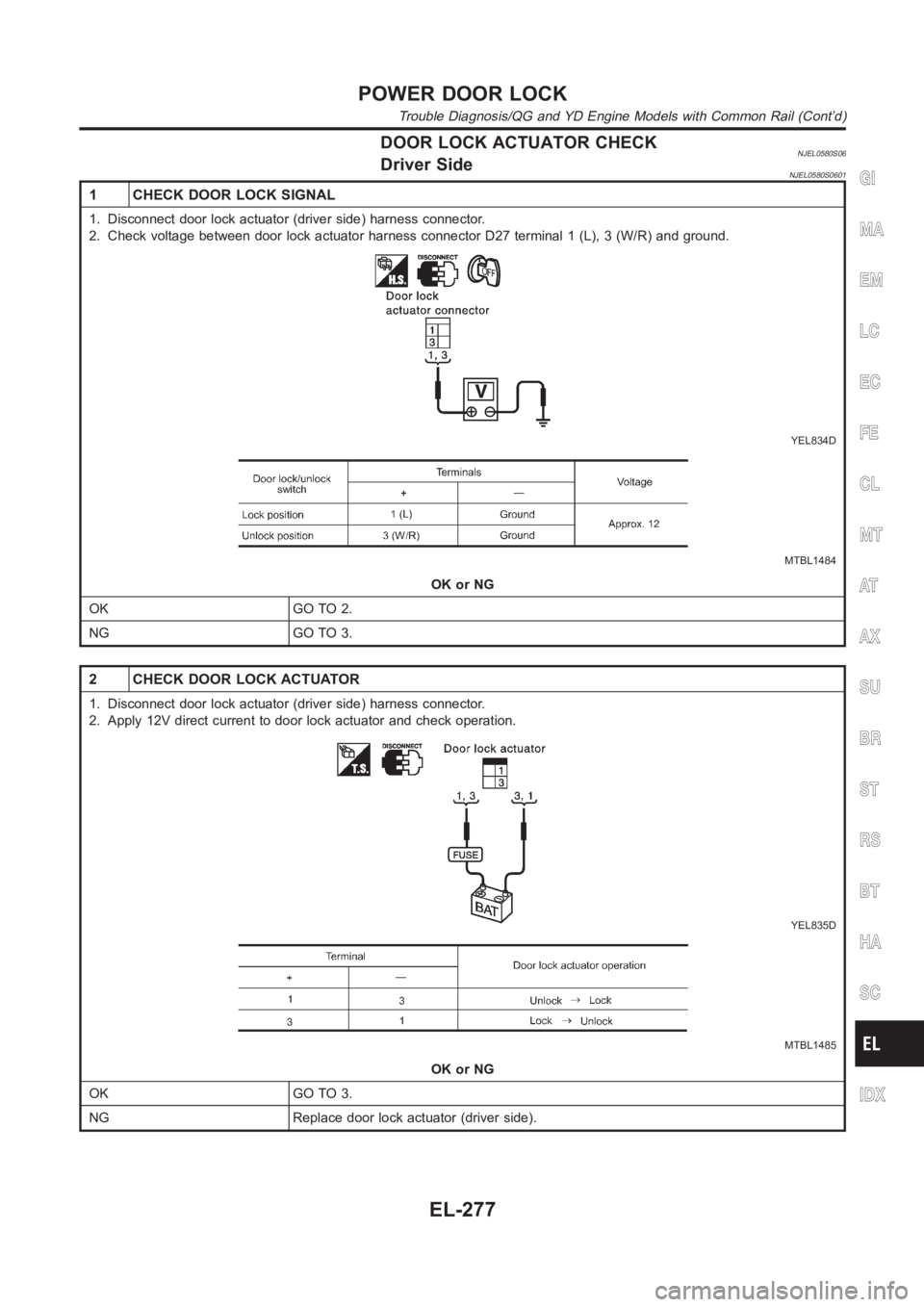

NISSAN ALMERA N16 2003 Electronic Repair Manual DOOR LOCK ACTUATOR CHECKNJEL0580S06Driver SideNJEL0580S0601
1 CHECK DOOR LOCK SIGNAL
1. Disconnect door lock actuator (driver side) harness connector.
2. Check voltage between door lock actuator harne

Page 2614 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual 3 CHECK DOOR LOCK ACTUATOR CIRCUIT
1. Disconnect smart entrance control unit harness connector.
2. Check continuity between door lock actuator (driver side) harness connector D27 terminal 1 (L), 3 (W/

Page 2615 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual 2 CHECK DOOR LOCK ACTUATOR
1. Disconnect door lock actuator (passenger side) harness connector.
2. Apply 12V direct current to door lock actuator and check operation.
YEL835D
MTBL1488
OK or NG
OK GO T

Page 2616 of 3189

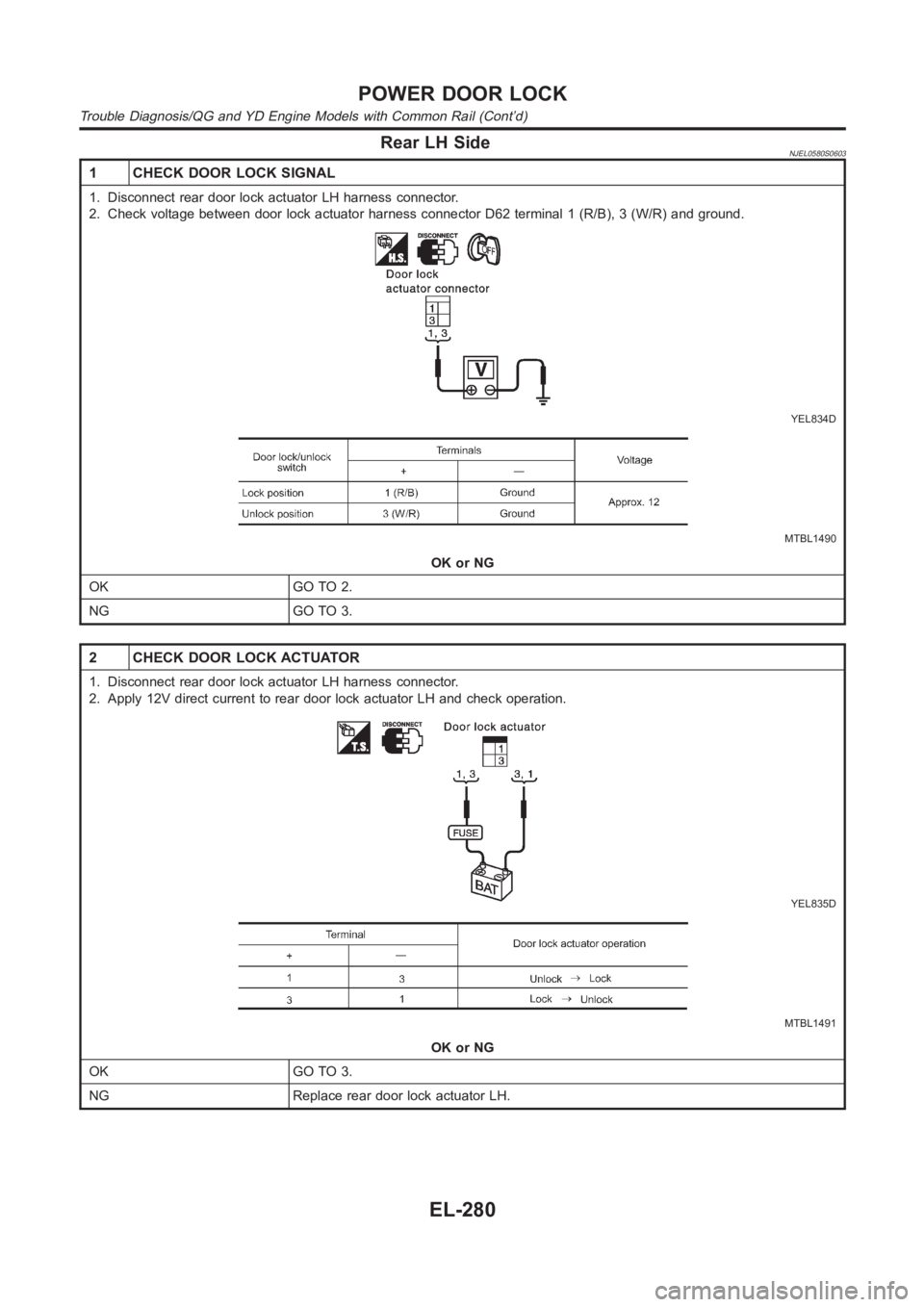

NISSAN ALMERA N16 2003 Electronic Repair Manual Rear LH SideNJEL0580S0603
1 CHECK DOOR LOCK SIGNAL
1. Disconnect rear door lock actuator LH harness connector.
2. Check voltage between door lock actuator harness connector D62 terminal 1 (R/B), 3 (W/
