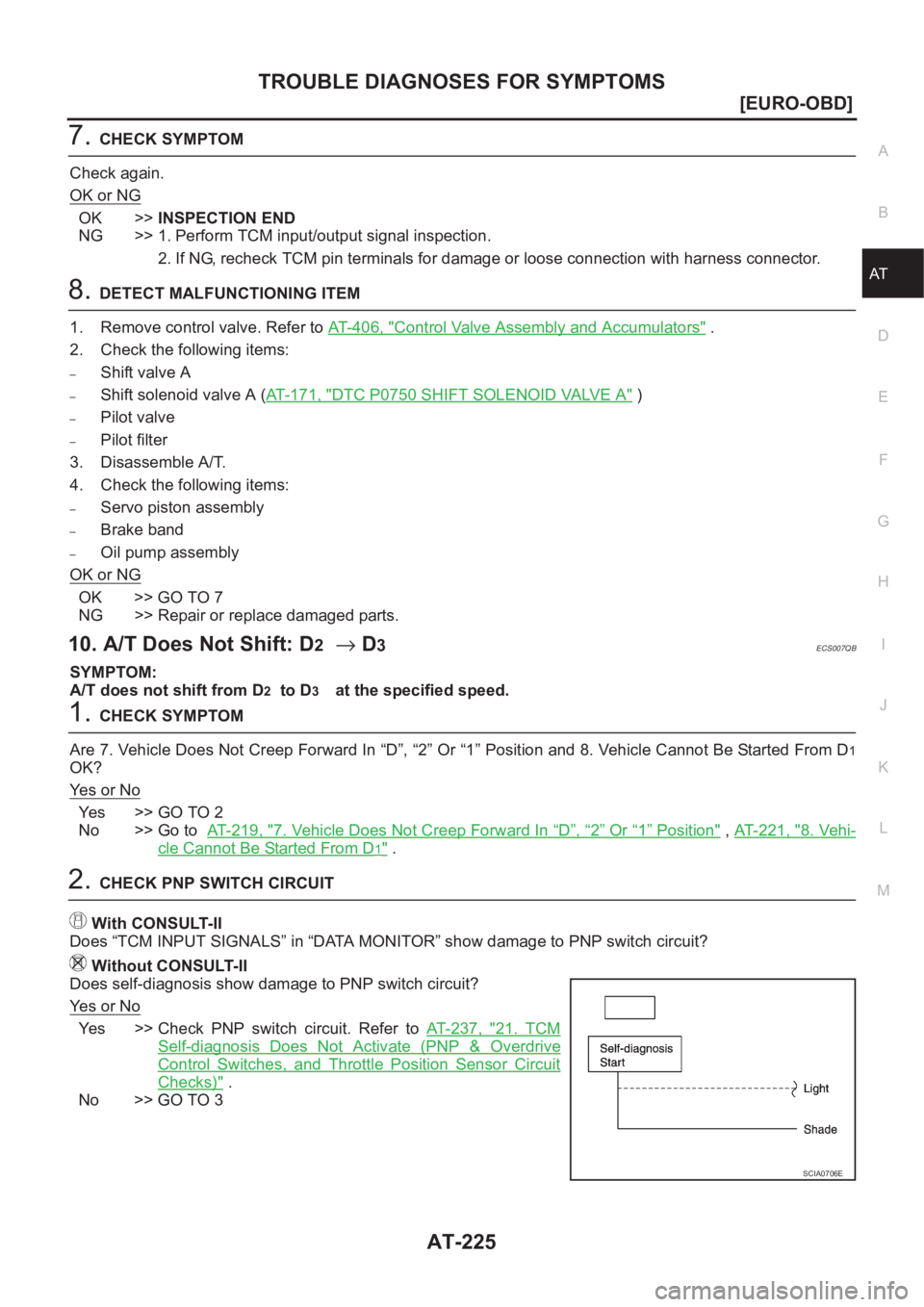

Page 1681 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual TROUBLE DIAGNOSES FOR SYMPTOMS AT-225 [EURO-OBD] D E F G H I J K L MA B AT 7.CHECK SYMPTOM Check again. OK or NG OK >>INSPECTION END NG >> 1. Perform TCM input/output signal inspection. 2. If NG, rech

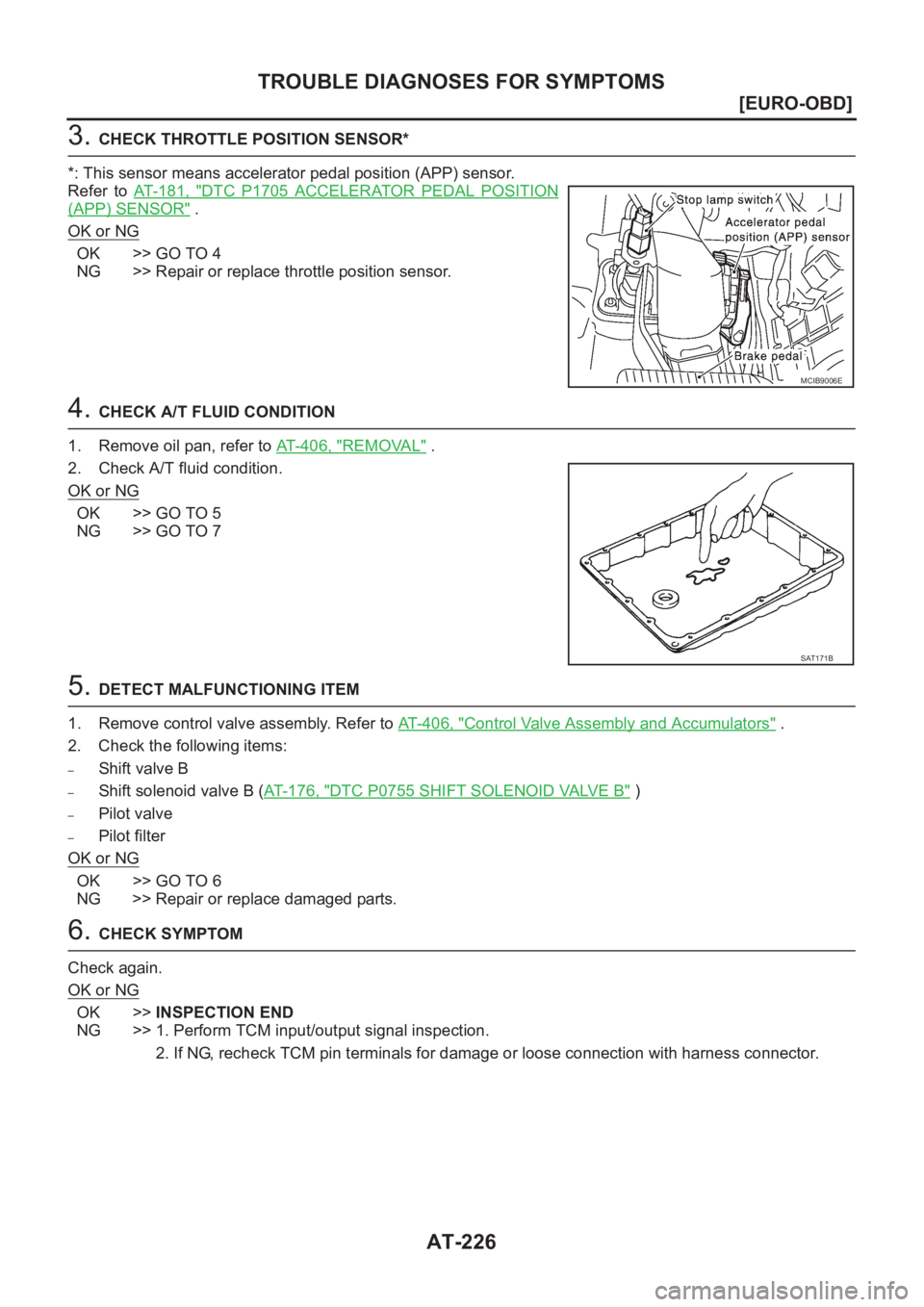

Page 1682 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-226 [EURO-OBD] TROUBLE DIAGNOSES FOR SYMPTOMS 3. CHECK THROTTLE POSITION SENSOR* *: This sensor means accelerator pedal position (APP) sensor. Refer to AT- 1 8 1 , " DTC P1705 ACCELERATOR

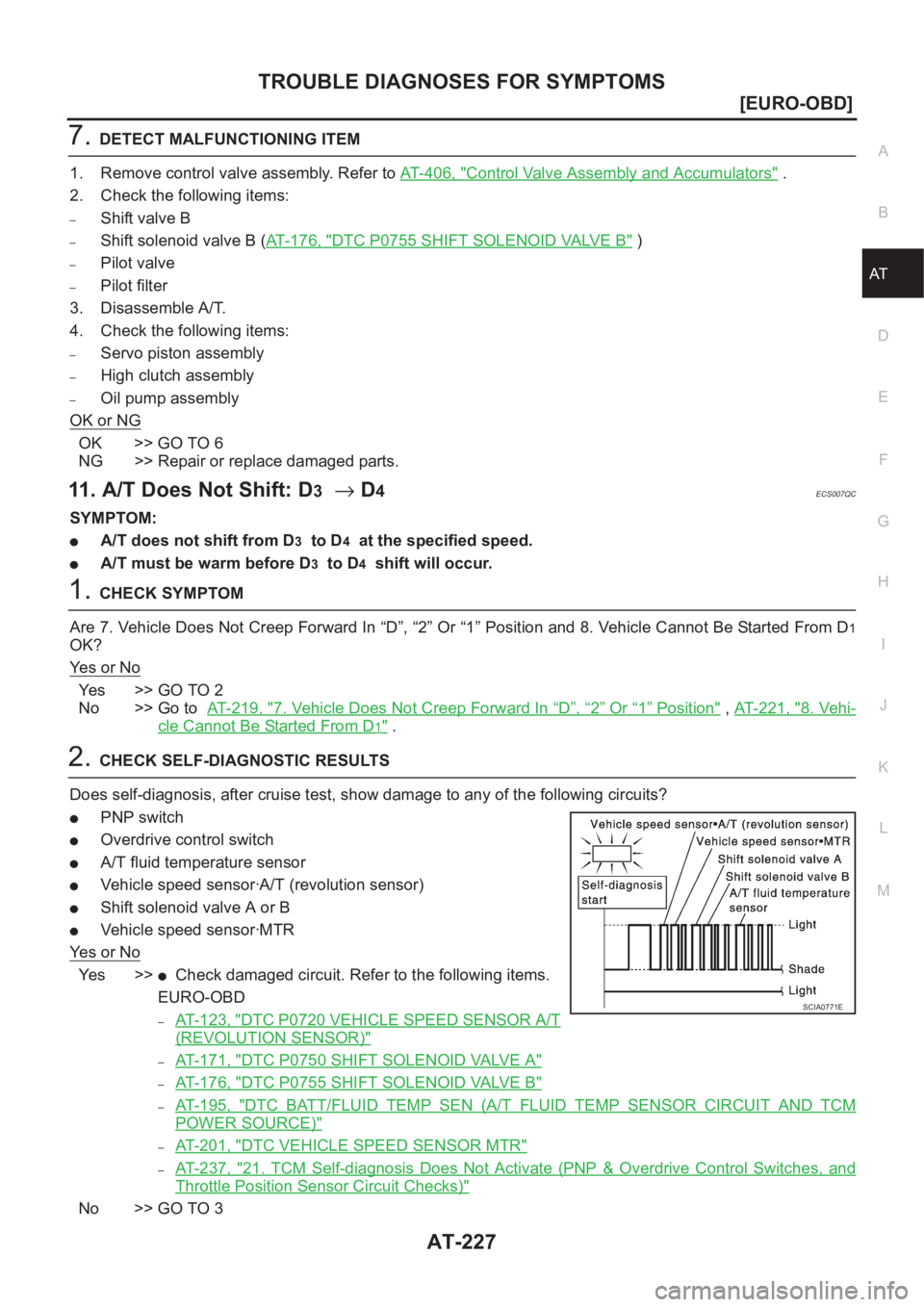

Page 1683 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual TROUBLE DIAGNOSES FOR SYMPTOMS AT-227 [EURO-OBD] D E F G H I J K L MA B AT 7.DETECT MALFUNCTIONING ITEM 1. Remove control valve assembly. Refer to AT- 4 0 6 , " Control Valve Assembly and Accumu

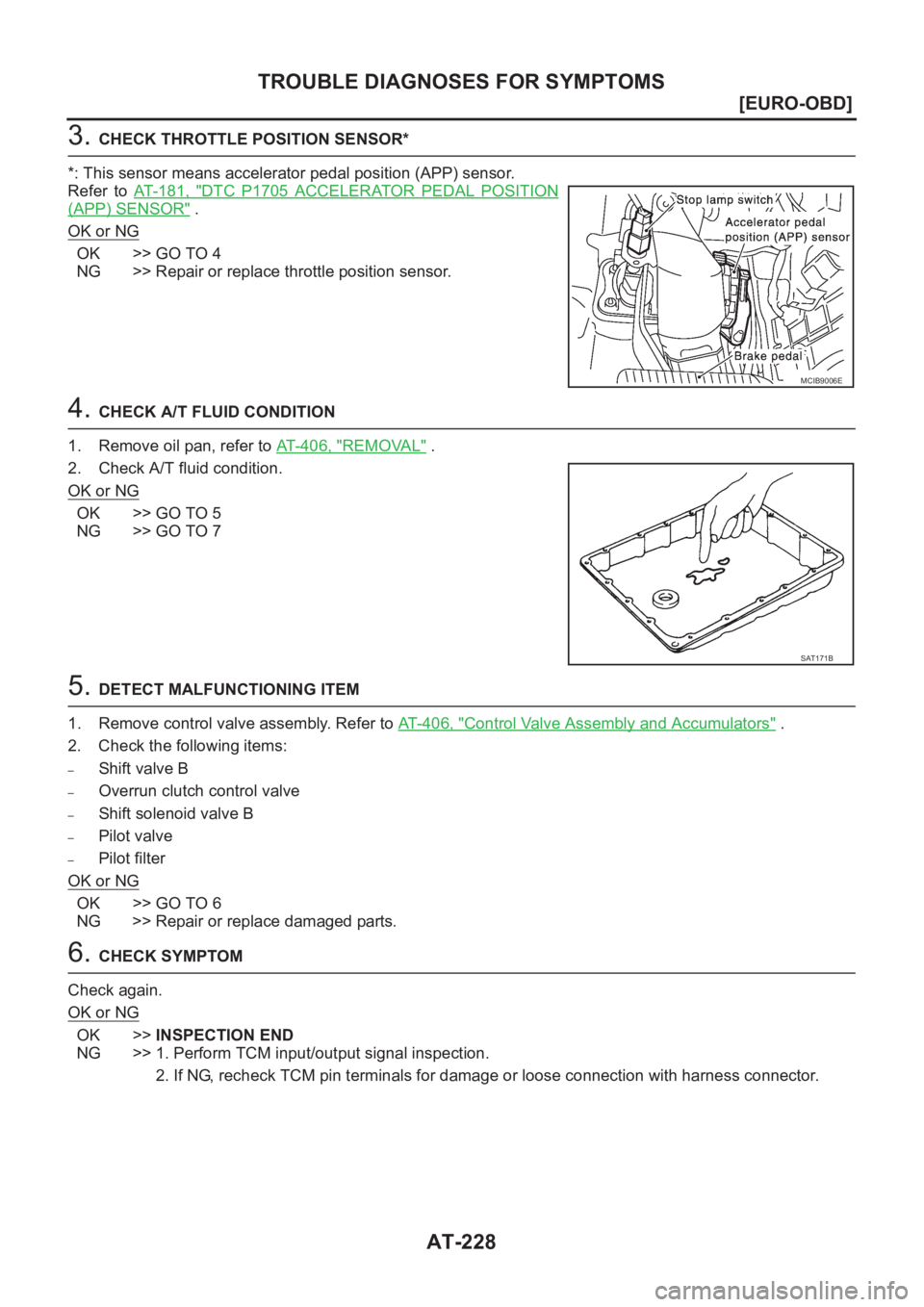

Page 1684 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-228 [EURO-OBD] TROUBLE DIAGNOSES FOR SYMPTOMS 3. CHECK THROTTLE POSITION SENSOR* *: This sensor means accelerator pedal position (APP) sensor. Refer to AT- 1 8 1 , " DTC P1705 ACCELERATOR

Page 1685 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual TROUBLE DIAGNOSES FOR SYMPTOMS AT-229 [EURO-OBD] D E F G H I J K L MA B AT 7.DETECT MALFUNCTIONING ITEM 1. Remove control valve assembly. Refer to AT- 4 0 6 , " Control Valve Assembly and Accumu

Page 1686 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-230 [EURO-OBD] TROUBLE DIAGNOSES FOR SYMPTOMS 12. A/T Does Not Perform Lock-up ECS007QD SYMPTOM: A/T does not perform lock-up at the specified speed. 1. CHECK SELF-DIAGNOSTIC RESULTS Does self-dia

Page 1687 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual TROUBLE DIAGNOSES FOR SYMPTOMS AT-231 [EURO-OBD] D E F G H I J K L MA B AT 13. A/T Does Not Hold Lock-up ConditionECS007QE SYMPTOM: A/T does not hold lock-up condition for more than 30 seconds. 1.CHEC

Page 1688 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual AT-232 [EURO-OBD] TROUBLE DIAGNOSES FOR SYMPTOMS 5. DETECT MALFUNCTIONING ITEM 1. Remove control valve assembly. Refer to AT- 4 0 6 , " Control Valve Assembly and Accumulators" . 2. Check th
