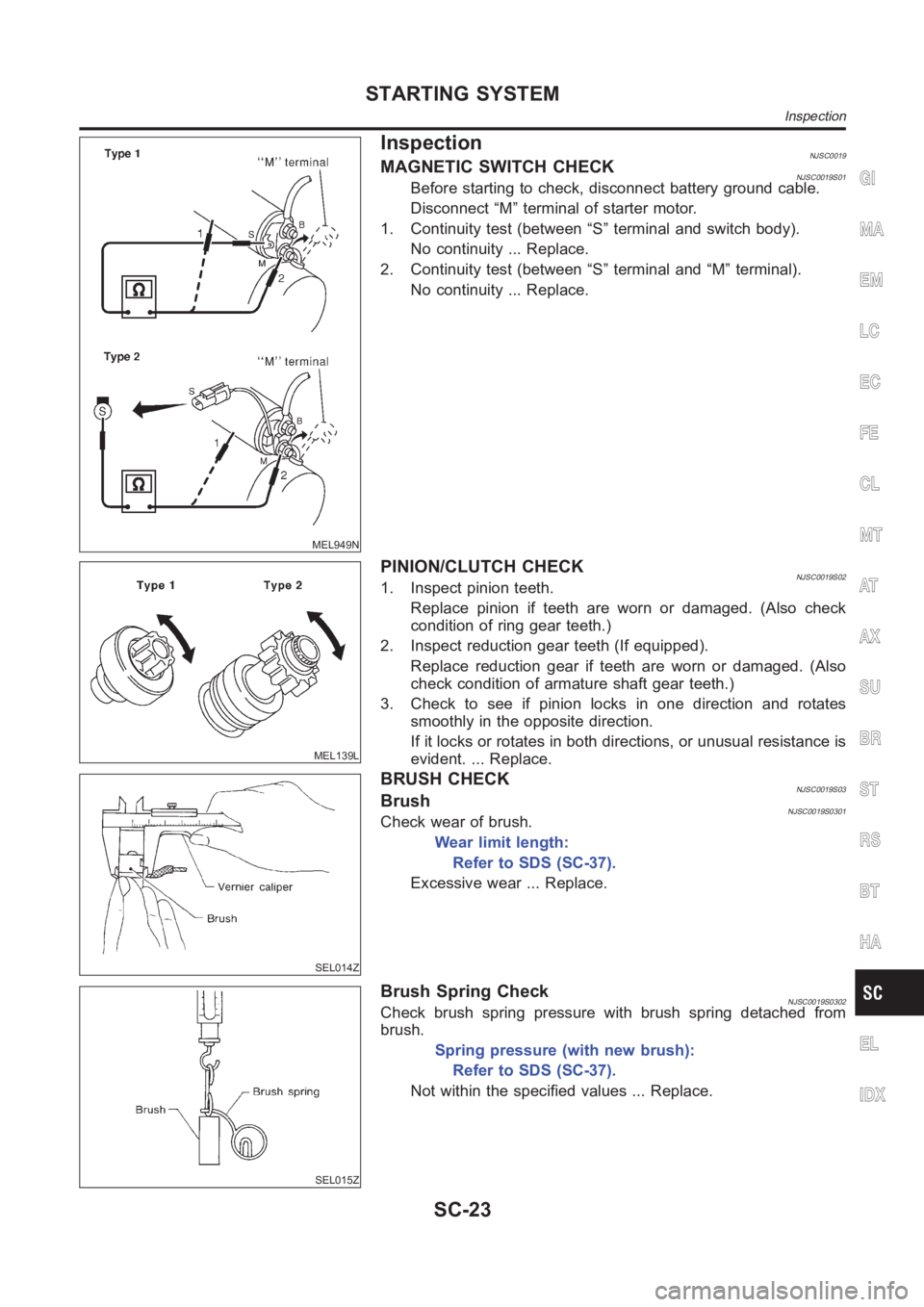

InspectionNJSC0019MAGNETIC SWITCH CHECKNJSC0019S01Before starting to check, disconnect battery ground cable.
Disconnect “M” terminal of starter motor.
1. Continuity test (between “S” terminal and switch body).
No continuity ... Replace.
2. Continuity test (between “S” terminal and “M” terminal).
No continuity ... Replace.
MEL139L
PINION/CLUTCH CHECKNJSC0019S021. Inspect pinion teeth.
Replace pinion if teeth are worn or damaged. (Also check
condition of ring gear teeth.)
2. Inspect reduction gear teeth (If equipped).
Replace reduction gear if teeth are worn or damaged. (Also
check condition of armature shaft gear teeth.)
3. Check to see if pinion locks in one direction and rotates
smoothly in the opposite direction.
If it locks or rotates in both directions, or unusual resistance is
evident. ... Replace.
SEL014Z
BRUSH CHECKNJSC0019S03BrushNJSC0019S0301Check wear of brush.
Wear limit length:
Refer to SDS (SC-37).
Excessive wear ... Replace.
SEL015Z
Brush Spring CheckNJSC0019S0302Check brush spring pressure with brush spring detached from
brush.
Spring pressure (with new brush):
Refer to SDS (SC-37).
Not within the specified values ... Replace.
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
EL
IDX
STARTING SYSTEM
Inspection
SC-23
Page 3130 of 3189
SEL016Z

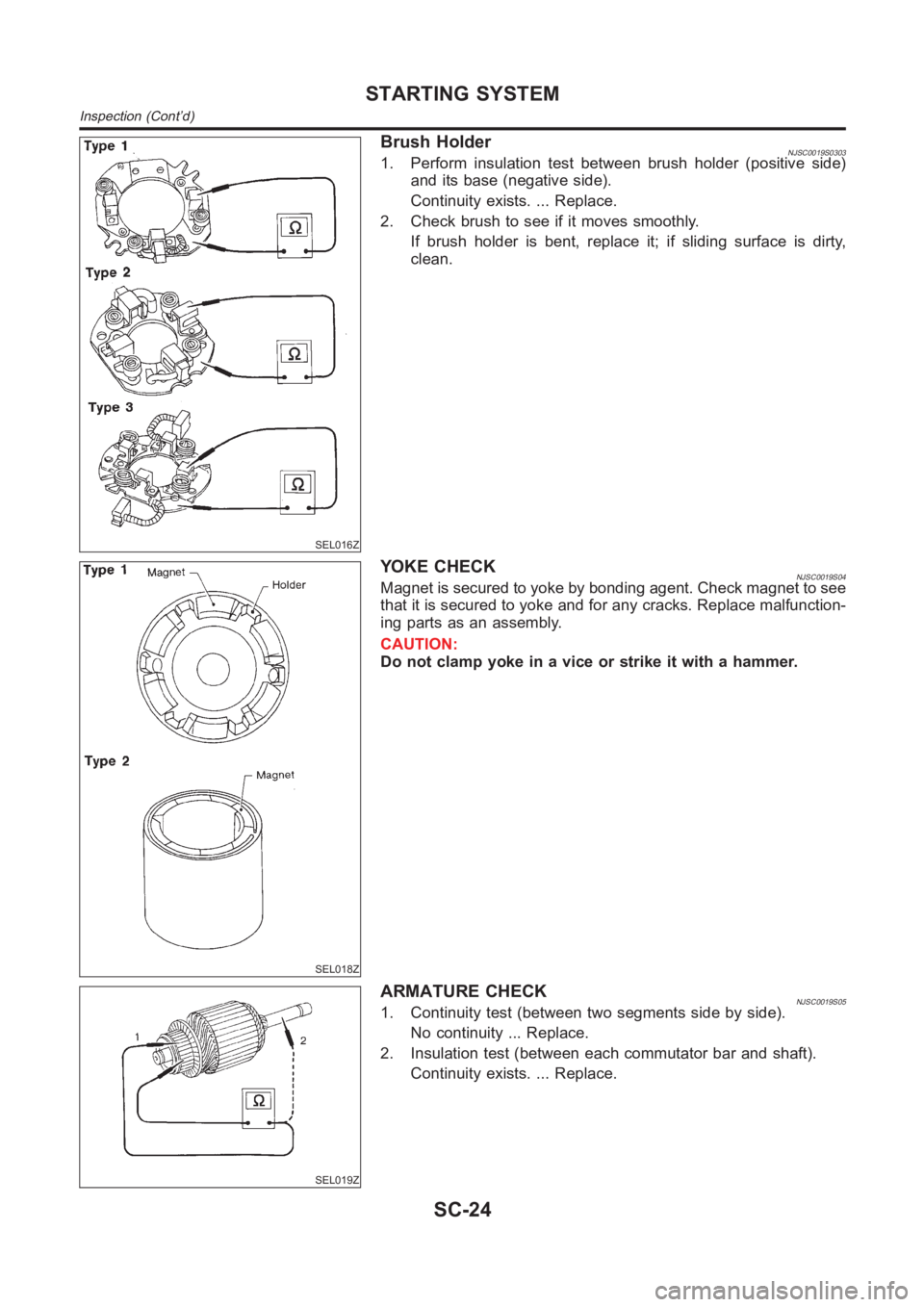

Brush HolderNJSC0019S03031. Perform insulation test between brush holder (positive side)
and its base (negative side).
Continuity exists. ... Replace.
2. Check brush to see if it moves smoothly.
If brush holder is bent, replace it; if sliding surface is dirty,
clean.
SEL018Z
YOKE CHECKNJSC0019S04Magnet is secured to yoke by bonding agent. Check magnet to see
that it is secured to yoke and for any cracks. Replace malfunction-
ing parts as an assembly.
CAUTION:
Do not clamp yoke in a vice or strike it with a hammer.
SEL019Z
ARMATURE CHECKNJSC0019S051. Continuity test (between two segments side by side).
No continuity ... Replace.
2. Insulation test (between each commutator bar and shaft).
Continuity exists. ... Replace.
STARTING SYSTEM
Inspection (Cont’d)
SC-24
Page 3131 of 3189
SEL020Z
3. Check commutator surface.
Rough ... Sand lightly with No. 500 - 600 emery paper.
SEL021Z
4. Check diameter of commutator.
Commutator minimum diameter:
Refer to SDS (SC-37).
Less than specified value ... Replace.
SEL022Z
5. Check depth of insulating mold from commutator surface.
Less than 0.2 mm (0.008 in) ... Undercut to 0.5 to 0.8 mm
(0.020 to 0.031 in)
AssemblyNJSC0020Apply high-temperature grease to lubricate the bearing, gears and
frictional surface when assembling the starter.
Carefully observe the following instructions.
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
EL
IDX
STARTING SYSTEM
Inspection (Cont’d)
SC-25
Page 3132 of 3189
SEL026Z

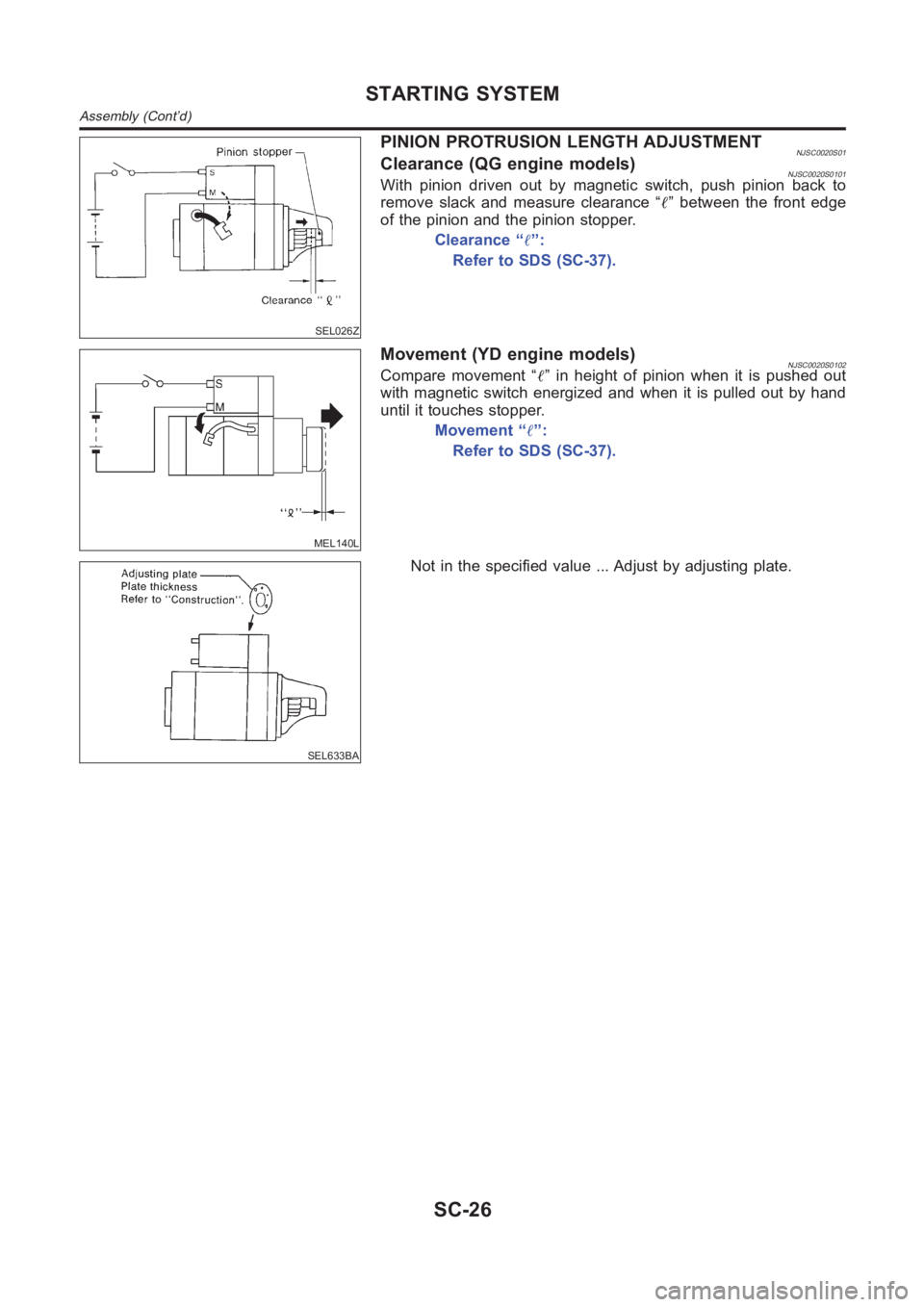

PINION PROTRUSION LENGTH ADJUSTMENTNJSC0020S01Clearance (QG engine models)NJSC0020S0101With pinion driven out by magnetic switch, push pinion back to
remove slack and measure clearance “” between the front edge
of the pinion and the pinion stopper.
Clearance “”:
Refer to SDS (SC-37).
MEL140L
Movement (YD engine models)NJSC0020S0102Compare movement “” in height of pinion when it is pushed out
with magnetic switch energized and when it is pulled out by hand
until it touches stopper.
Movement “”:
Refer to SDS (SC-37).
SEL633BA
Not in the specified value ... Adjust by adjusting plate.
STARTING SYSTEM
Assembly (Cont’d)
SC-26
Page 3133 of 3189

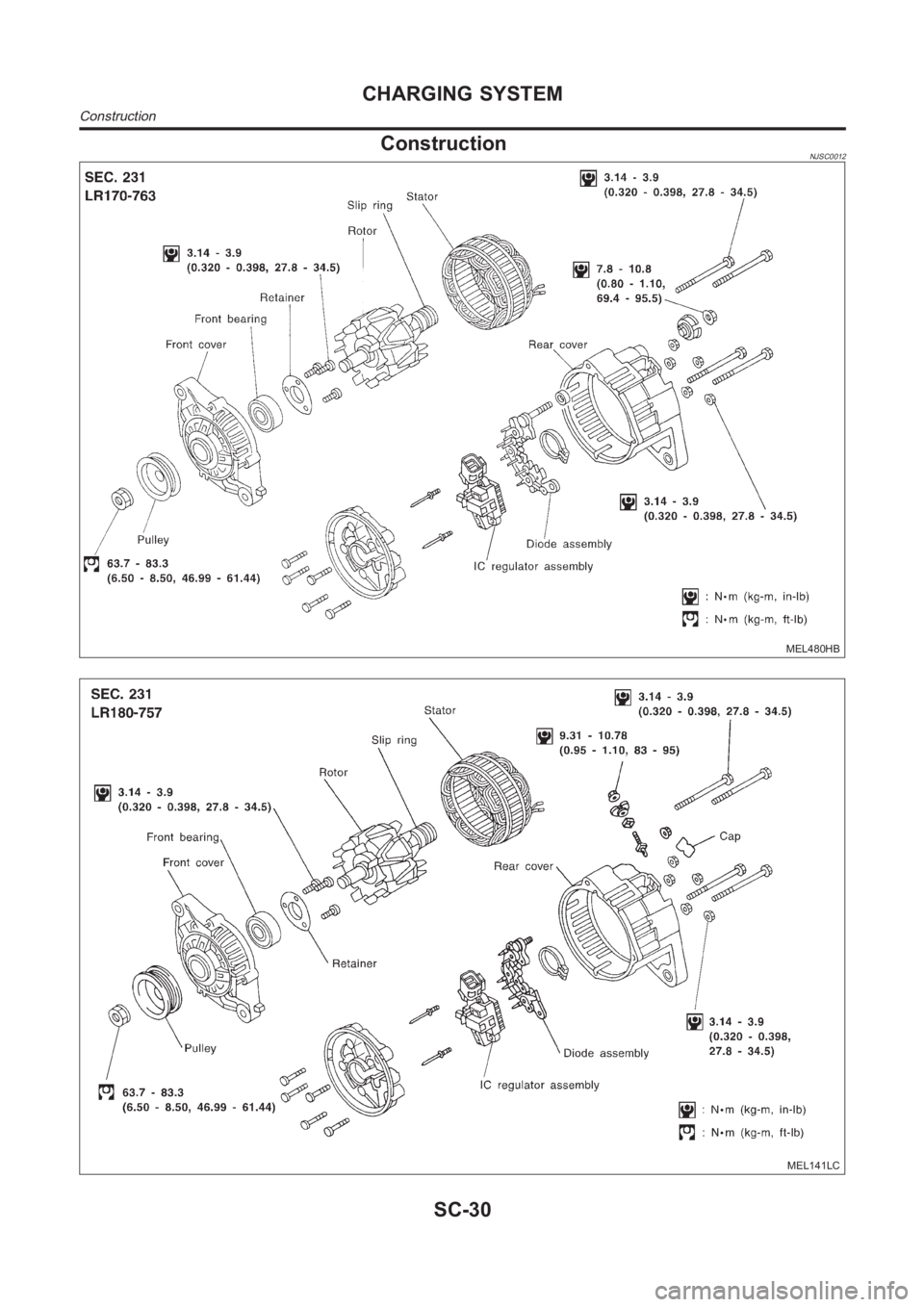

System DescriptionNJSC0009The alternator provides DC voltage to operate the vehicle’s electrical system and to keep the battery charged.
