DRIVE BELTS
EM-11
[QG]
C
D
E
F
G
H
I
J
K
L
MA
EM
DRIVE BELTSPFP:02117
Checking Drive BeltsEBS00LPY
●Before inspecting the engine, make sure the engine has cooled down; wait approximately 30 minutes
after the engine has been stopped.
●Visually inspect all belts for wear, damage, or cracks on contacting surfaces and edge areas.
●When measuring deflection, apply 98 N (10 kg, 22 lb) at the ▼ marked point.
CAUTION:
When measuring belt tension immediately after belt is installed, first set the tension to the standard.
Then, rotate crankshaft for more than two turns in order to eliminate variance in belt deflection
between the pulleys. Re-measure and adjust the tension to the standard.
PBIC0764E
Deflection adjustment Unit: mm (in)
Used belt
New belt
Limit After adjustment
AlternatorWithout air conditioner compressor 10.2 (0.402)6.5 - 7.0
(0.256 - 0.276)5.5 - 6.1
(0.217 - 0.240)
With air conditioner compressor 8.1 (0.319)5.3 - 5.7
(0.209 - 0.224)4.5 - 5.0
(0.177 - 0.197)
Power steering oil pump 7.1 (0.280)4.4 - 4.9
(0.173 - 0.193)3.9 - 4.4
(0.154 - 0.173)
Applied pushing force 98 N (10 kg, 22 lb)
Page 90 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual EM-12
[QG]
DRIVE BELTS
Tension Adjustment
EBS00LPZ
CAUTION:
●When belt is replaced with a new one, tighten it a little
stronger than current one to accommodate for insufficient
ada NISSAN ALMERA N16 2003 Electronic Repair Manual EM-12
[QG]
DRIVE BELTS
Tension Adjustment
EBS00LPZ
CAUTION:
●When belt is replaced with a new one, tighten it a little
stronger than current one to accommodate for insufficient
ada](/manual-img/5/57350/w960_57350-89.png)
EM-12
[QG]
DRIVE BELTS
Tension Adjustment
EBS00LPZ
CAUTION:
●When belt is replaced with a new one, tighten it a little
stronger than current one to accommodate for insufficient
adaptability with pulley grooves.
●When tension of belt being used exceeds “Retightening
limit”, adjust it to value for “Used belt”.
●When installing belt, make sure that it is correctly engaged with pulley groove.
●Keep oil and water away from belt.
●Do not twist or bend belt excessively.
●When adjusting belt, remove snap retainer from adjusting bolt thread (to prevent the retainer from
becoming pinched or missing).
●After adjustment, be sure to install snap retainer to adjusting bolt thread.
NOTE:
Snap retainer can prevent adjusting bolt from dropping due to vibration during driving.
POWER STEERING PUMP AND WATER PUMP BELT
1. Loosen lock nut (A) and power steering pump mounting nut (B).
2. Turn adjusting bolt (C) to adjust. Refer to EM-11, "
Checking
Drive Belts" .
3. Tighten lock nut (A) and power steering pump mounting nut (B)
in this order.
ALTERNATOR AND AIR CONDITIONER COMPRESSOR BELT
1. Remove RH splash cover (with undercover attached).
2. Loosen lock nut (G).
3. Turn adjusting bolt (H) to adjust.
Refer to EM-11, "
Checking Drive Belts" .
4. Tighten lock nut (G).
Portion Belt tightening method for adjustment
Power steering pump and water pump
beltAdjusting bolt on power steering pump
Alternator and air conditioner compres-
sor beltAdjusting bolt on idler pulley
PBIC0531E
Nut A :
: 16.7 - 23.5 N·m (1.7 - 2.4 kg-m, 13 - 17 ft-lb)
Nut B :
: 26.5 - 36.3 N·m (2.7 - 3.7 kg-m, 20 - 26 ft-lb)
PBIC0532E
Nut G :
: 24.5 - 31.4 N·m (2.5 - 3.2 kg-m, 18 - 23 ft-lb)
Page 91 of 3189
DRIVE BELTS
EM-13
[QG]
C
D
E
F
G
H
I
J
K
L
MA
EM
Removal and InstallationEBS00LQ0
REMOVAL
●Loosen each belt while referring to “Tension Adjustment”, and remove them one by one starting from the
one in front.
INSTALLATION
1. Install belts to pulley in reverse order of removal.
2. Adjust belt tension.
CAUTION:
●When checking belt tension immediately after installation, first, adjust to specified value. Then,
after turning crankshaft more than two turns, re-adjust to specified value to avoid variation in
deflection between pulleys.
●Tighten idler pulley lock nut by hand and measure tension without looseness.
3. Tighten each adjusting bolt and nut to the specified torque.
4. Make sure that tension of each belt is within the standard.
Page 92 of 3189
EM-14
[QG]
AIR CLEANER AND AIR DUCT
AIR CLEANER AND AIR DUCT
PFP:16500
Removal and InstallationEBS00LQ1
REMOVAL
1. Remove air cleaner case assembly, air duct and resonator.
●Add marks as necessary for easier installation.
2. Remove harness connector from mass air flow sensor.
3. Remove mass air flow sensor.
CAUTION:
Handle mass air flow sensor with following cares.
●Do not shock it.
●Do not disassembly it.
●Do not touch its sensor.
●Do not deform mass air flow sensor's wire mesh.
4. Remove left fender protector and resonator.
INSTALLATION
1. Attach each joint aligning marks put at removal. Screw clamps firmly.
2. Install in the reverse order of removal.
PBIC0533E
1. Air cleaner case (upper) 2. Resonator 3. Air duct
4. Mass air flow sensor 5. O-ring 6. Air cleaner case (lower)
7. Grommet 8. Air cleaner element 9. Bracket
Page 93 of 3189
AIR CLEANER AND AIR DUCT
EM-15
[QG]
C
D
E
F
G
H
I
J
K
L
MA
EM
Changing Air Cleaner ElementEBS00LQ2
The viscous paper type filter does not need cleaning between
renewals.
SMA373C
Page 94 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual EM-16
[QG]
INTAKE MANIFOLD
INTAKE MANIFOLD
PFP:14003
Removal and InstallationEBS00LQ3
REMOVAL
WARNING:
To avoid the danger of being scalded, never drain the coolant when the engine is hot.
1. Release NISSAN ALMERA N16 2003 Electronic Repair Manual EM-16
[QG]
INTAKE MANIFOLD
INTAKE MANIFOLD
PFP:14003
Removal and InstallationEBS00LQ3
REMOVAL
WARNING:
To avoid the danger of being scalded, never drain the coolant when the engine is hot.
1. Release](/manual-img/5/57350/w960_57350-93.png)

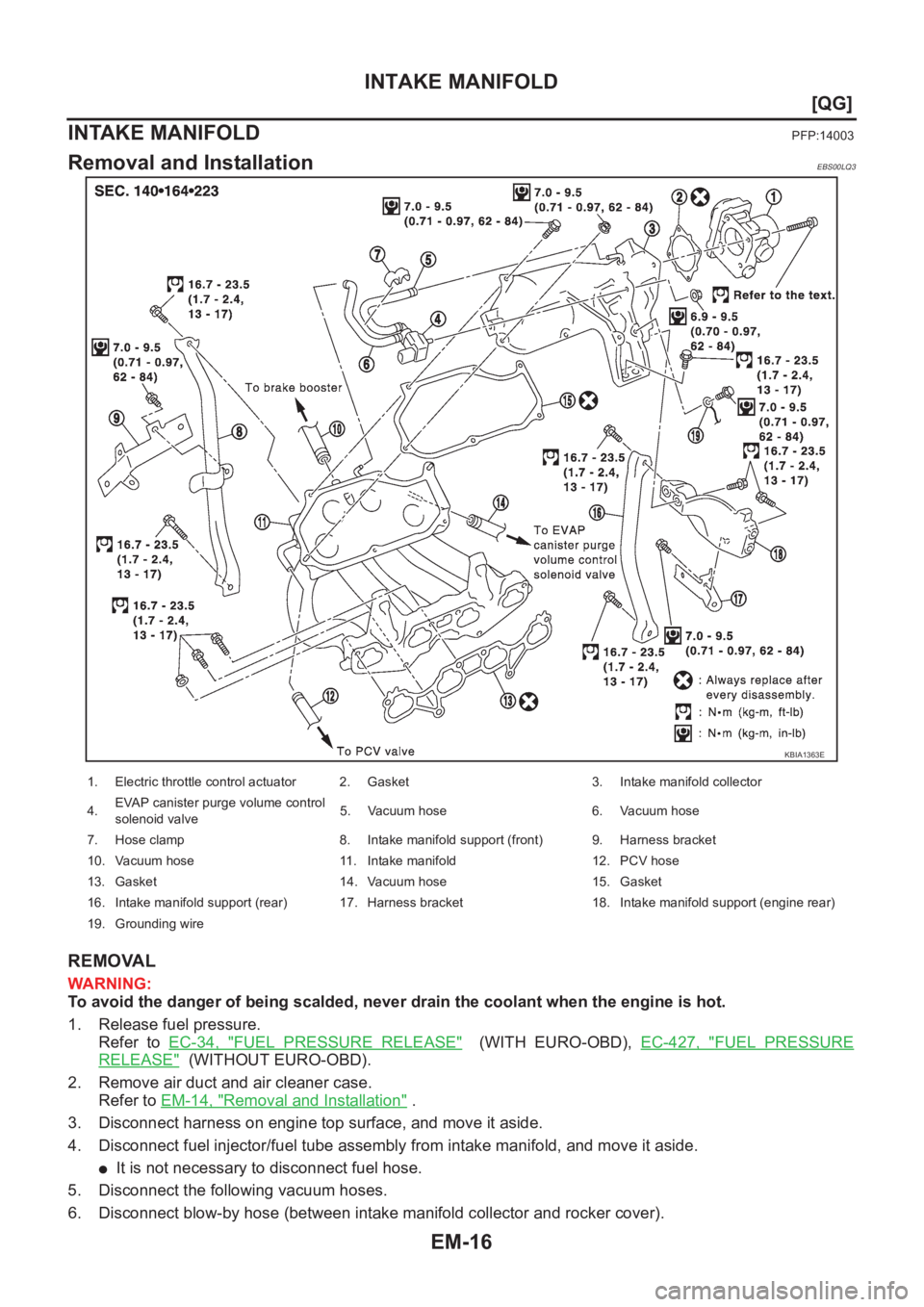

EM-16
[QG]
INTAKE MANIFOLD
INTAKE MANIFOLD
PFP:14003
Removal and InstallationEBS00LQ3
REMOVAL
WARNING:
To avoid the danger of being scalded, never drain the coolant when the engine is hot.
1. Release fuel pressure.
Refer to EC-34, "
FUEL PRESSURE RELEASE" (WITH EURO-OBD), EC-427, "FUEL PRESSURE
RELEASE" (WITHOUT EURO-OBD).
2. Remove air duct and air cleaner case.
Refer to EM-14, "
Removal and Installation" .
3. Disconnect harness on engine top surface, and move it aside.
4. Disconnect fuel injector/fuel tube assembly from intake manifold, and move it aside.
●It is not necessary to disconnect fuel hose.
5. Disconnect the following vacuum hoses.
6. Disconnect blow-by hose (between intake manifold collector and rocker cover).
KBIA1363E
1. Electric throttle control actuator 2. Gasket 3. Intake manifold collector
4.EVAP canister purge volume control
solenoid valve5. Vacuum hose 6. Vacuum hose
7. Hose clamp 8. Intake manifold support (front) 9. Harness bracket
10. Vacuum hose 11. Intake manifold 12. PCV hose
13. Gasket 14. Vacuum hose 15. Gasket
16. Intake manifold support (rear) 17. Harness bracket 18. Intake manifold support (engine rear)
19. Grounding wire
Page 95 of 3189
INTAKE MANIFOLD
EM-17
[QG]
C
D
E
F
G
H
I
J
K
L
MA
EM

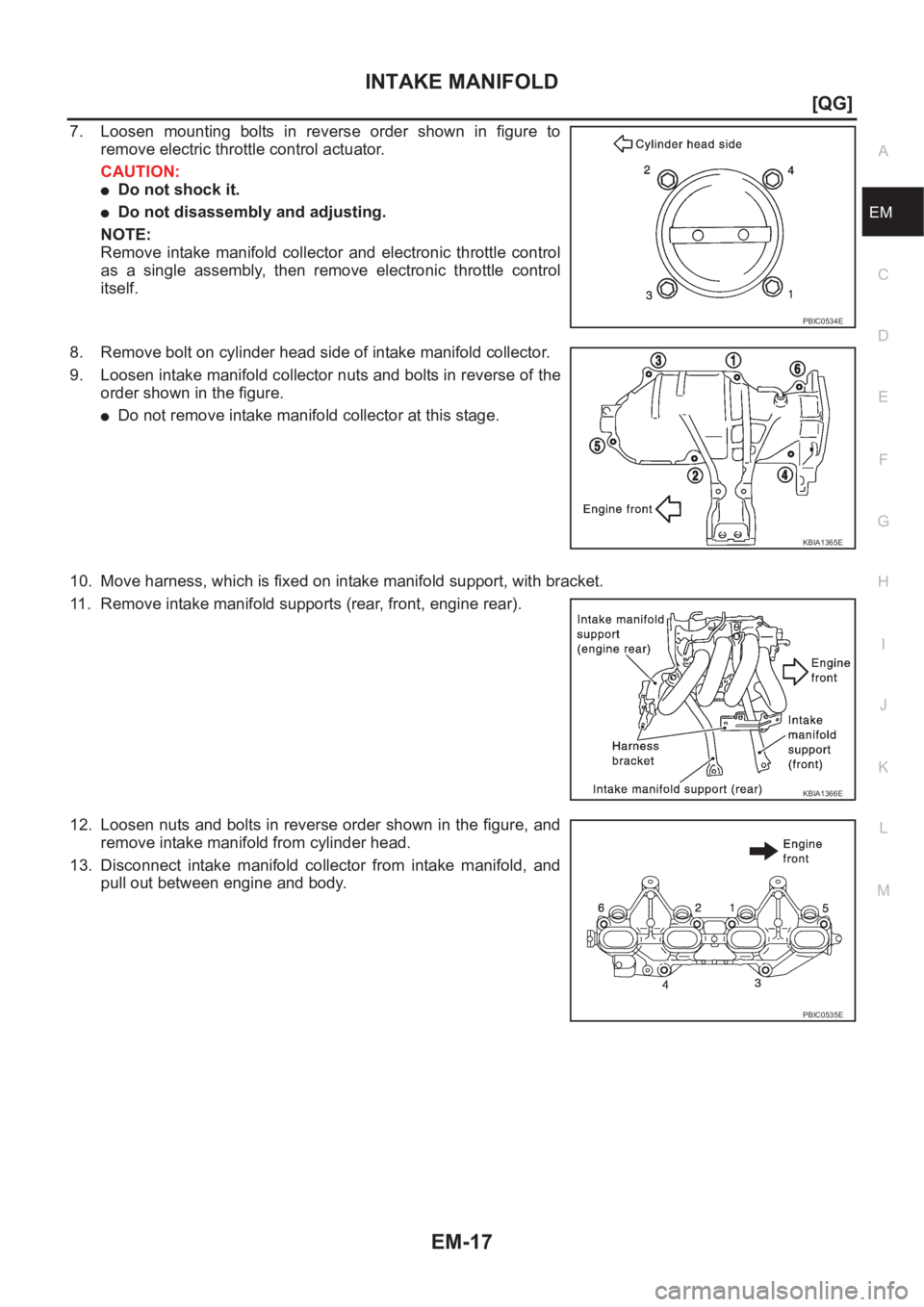

7. Loosen mounting bolts in reverse order shown in figure to
remove electric throttle control actuator.
CAUTION:
●Do not shock it.
●Do not disassembly and adjusting.
NOTE:
Remove intake manifold collector and electronic throttle control
as a single assembly, then remove electronic throttle control
itself.
8. Remove bolt on cylinder head side of intake manifold collector.
9. Loosen intake manifold collector nuts and bolts in reverse of the
order shown in the figure.
●Do not remove intake manifold collector at this stage.
10. Move harness, which is fixed on intake manifold support, with bracket.
11. Remove intake manifold supports (rear, front, engine rear).
12. Loosen nuts and bolts in reverse order shown in the figure, and
remove intake manifold from cylinder head.
13. Disconnect intake manifold collector from intake manifold, and
pull out between engine and body.
PBIC0534E
KBIA1365E
KBIA1366E
PBIC0535E
Page 96 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual EM-18
[QG]
INTAKE MANIFOLD
INSPECTION AFTER REMOVAL
Surface Distortion
●Using straightedge and feeler gauge, inspect surface distortion
of intake manifold collector and intake manifold surfac NISSAN ALMERA N16 2003 Electronic Repair Manual EM-18
[QG]
INTAKE MANIFOLD
INSPECTION AFTER REMOVAL
Surface Distortion
●Using straightedge and feeler gauge, inspect surface distortion
of intake manifold collector and intake manifold surfac](/manual-img/5/57350/w960_57350-95.png)

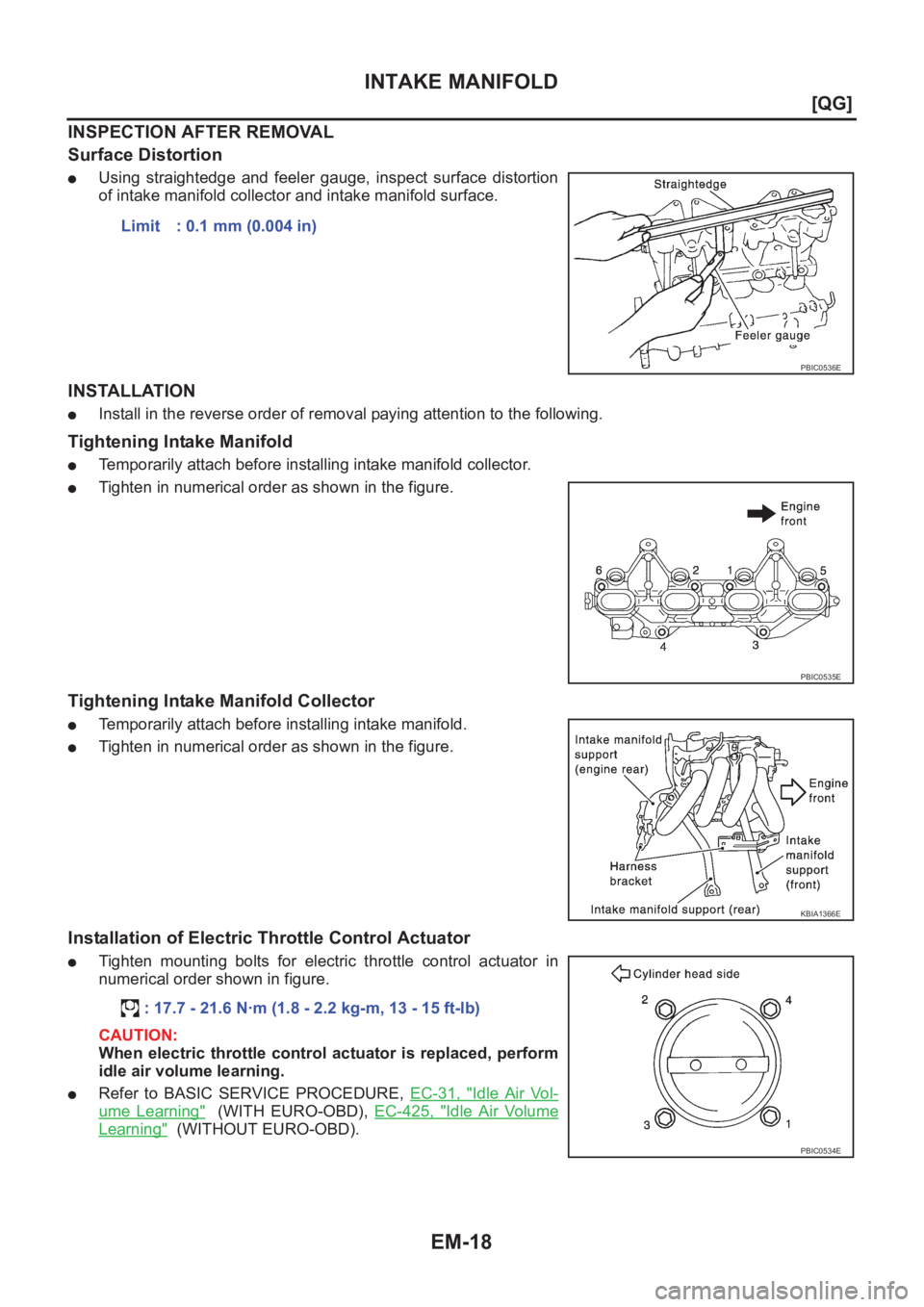

EM-18
[QG]
INTAKE MANIFOLD
INSPECTION AFTER REMOVAL
Surface Distortion
●Using straightedge and feeler gauge, inspect surface distortion
of intake manifold collector and intake manifold surface.
INSTALLATION
●Install in the reverse order of removal paying attention to the following.
Tightening Intake Manifold
●Temporarily attach before installing intake manifold collector.
●Tighten in numerical order as shown in the figure.
Tightening Intake Manifold Collector
●Temporarily attach before installing intake manifold.
●Tighten in numerical order as shown in the figure.
Installation of Electric Throttle Control Actuator
●Tighten mounting bolts for electric throttle control actuator in
numerical order shown in figure.
CAUTION:
When electric throttle control actuator is replaced, perform
idle air volume learning.
●Refer to BASIC SERVICE PROCEDURE, EC-31, "Idle Air Vol-
ume Learning" (WITH EURO-OBD), EC-425, "Idle Air Volume
Learning" (WITHOUT EURO-OBD). Limit : 0.1 mm (0.004 in)
PBIC0536E
PBIC0535E
KBIA1366E
: 17.7 - 21.6 N·m (1.8 - 2.2 kg-m, 13 - 15 ft-lb)
PBIC0534E
