Page 545 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual DTC P0226 APP SENSOR
EC-215
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
2.CHECK APP SENSOR POWER SUPPLY CIRCUIT
1. Disconnect accelerator pedal position (APP) sensor harness
connector.
2. Tur

Page 546 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual EC-216
[QG (WITH EURO-OBD)]
DTC P0226 APP SENSOR
6. CHECK APP SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 106 and APP sensor terminal 3, EC

Page 547 of 3189

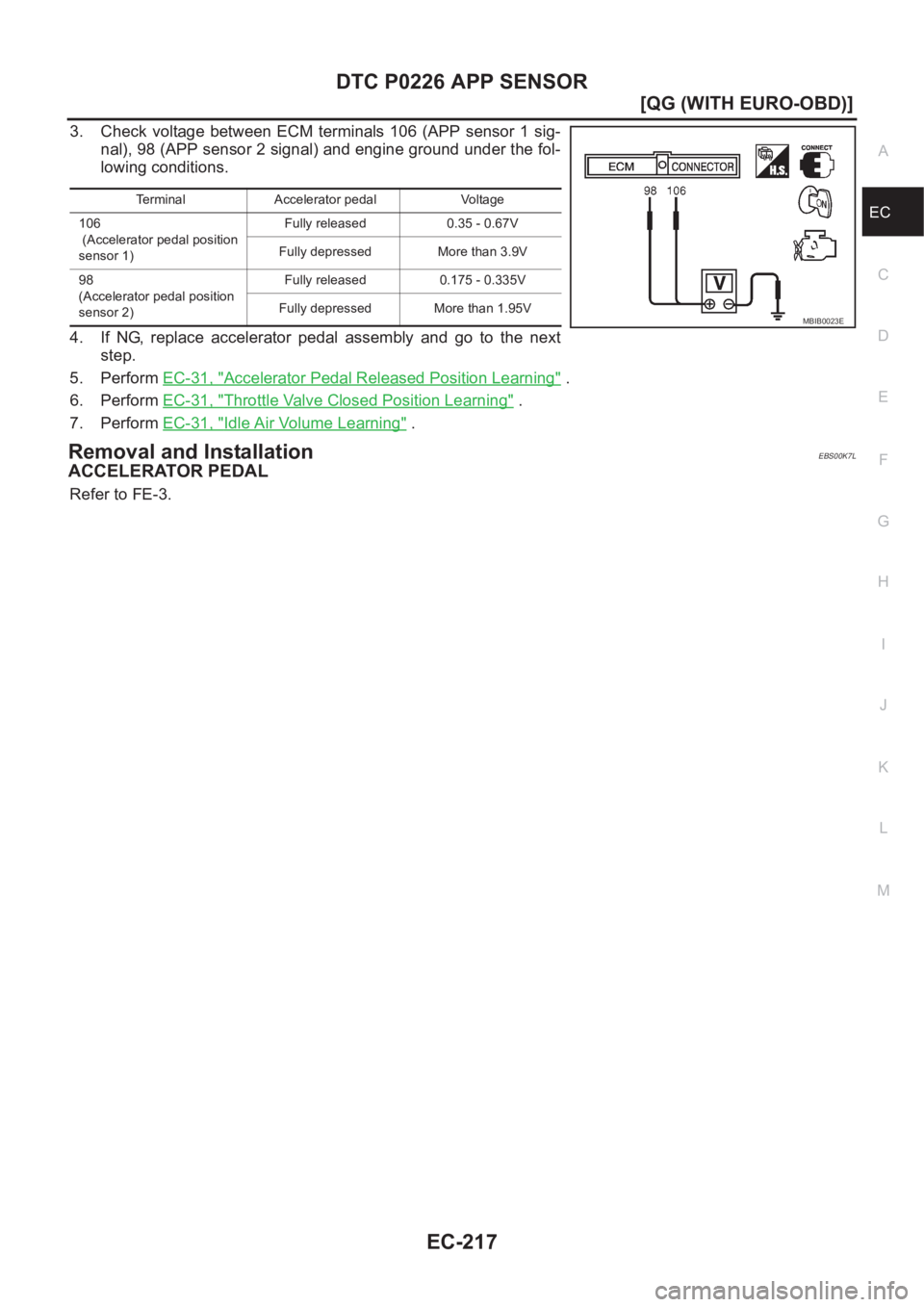

NISSAN ALMERA N16 2003 Electronic Repair Manual DTC P0226 APP SENSOR
EC-217
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
3. Check voltage between ECM terminals 106 (APP sensor 1 sig-
nal), 98 (APP sensor 2 signal) and engine ground under the fo

Page 548 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual EC-218
[QG (WITH EURO-OBD)]
DTC P0227, P0228 APP SENSOR
DTC P0227, P0228 APP SENSOR
PFP:18002
Component DescriptionEBS00K7M
The accelerator pedal position sensor is installed on the upper end

EC-218
[QG (WITH EURO-OBD)]
DTC P0227, P0228 APP SENSOR
DTC P0227, P0228 APP SENSOR
PFP:18002
Component DescriptionEBS00K7M
The accelerator pedal position sensor is installed on the upper end
of the accelerator pedal assembly. The sensor detects the accelera-
tor position and sends a signal to the ECM.
Accelerator pedal position sensor has two sensors. These sensors
are a kind of potentiometers which transform the accelerator pedal
position into output voltage, and emit the voltage signal to the ECM.
In addition, these sensors detect the opening and closing speed of
the accelerator pedal and feed the voltage signals to the ECM. The
ECM judges the current opening angle of the accelerator pedal from
these signals and controls the throttle control motor based on these
signals.
Idle position of the accelerator pedal is determined by the ECM
receiving the signal from the accelerator pedal position sensor. The ECM uses this signal for the engine oper-
ation such as fuel cut.
CONSULT-II Reference Value in Data Monitor ModeEBS00K7N
Specification data are reference values.
*: Accelerator pedal position sensor 2 signal is converted by ECM internally. Thus, it differs from ECM terminal voltage signal.
On Board Diagnosis LogicEBS00K7O
These self-diagnoses have the one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, the ECM enters fail-safe mode and the MI lights up.
DTC Confirmation ProcedureEBS00K7P
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.
PBIB0146E
MONITOR ITEM CONDITION SPECIFICATION
ACCEL SEN1
ACCEL SEN2*
●Ignition switch: ON
(engine stopped)Accelerator pedal: Fully released 0.35 - 0.67V
Accelerator pedal: Fully depressed More than 3.9V
CLSD THL POS
●Ignition switch: ONAccelerator pedal: Fully released ON
Accelerator pedal: Slightly depressed OFF
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0227
0227Accelerator pedal position
sensor 1 circuit low inputAn excessively low voltage from the APP sensor 1
is sent to ECM.
●Harness or connectors
(The APP sensor 1 circuit is open or
shorted.)
●Accelerator pedal position sensor
(Accelerator pedal position sensor 1) P0228
0228Accelerator pedal position
sensor 1 circuit high inputAn excessively high voltage from the APP sensor 1
is sent to ECM.
Engine operating condition in fail-safe mode
The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10
degrees.
The ECM regulates the opening speed of throttle valve to be slower than the normal condition.
So, the acceleration will be poor.

Page 549 of 3189

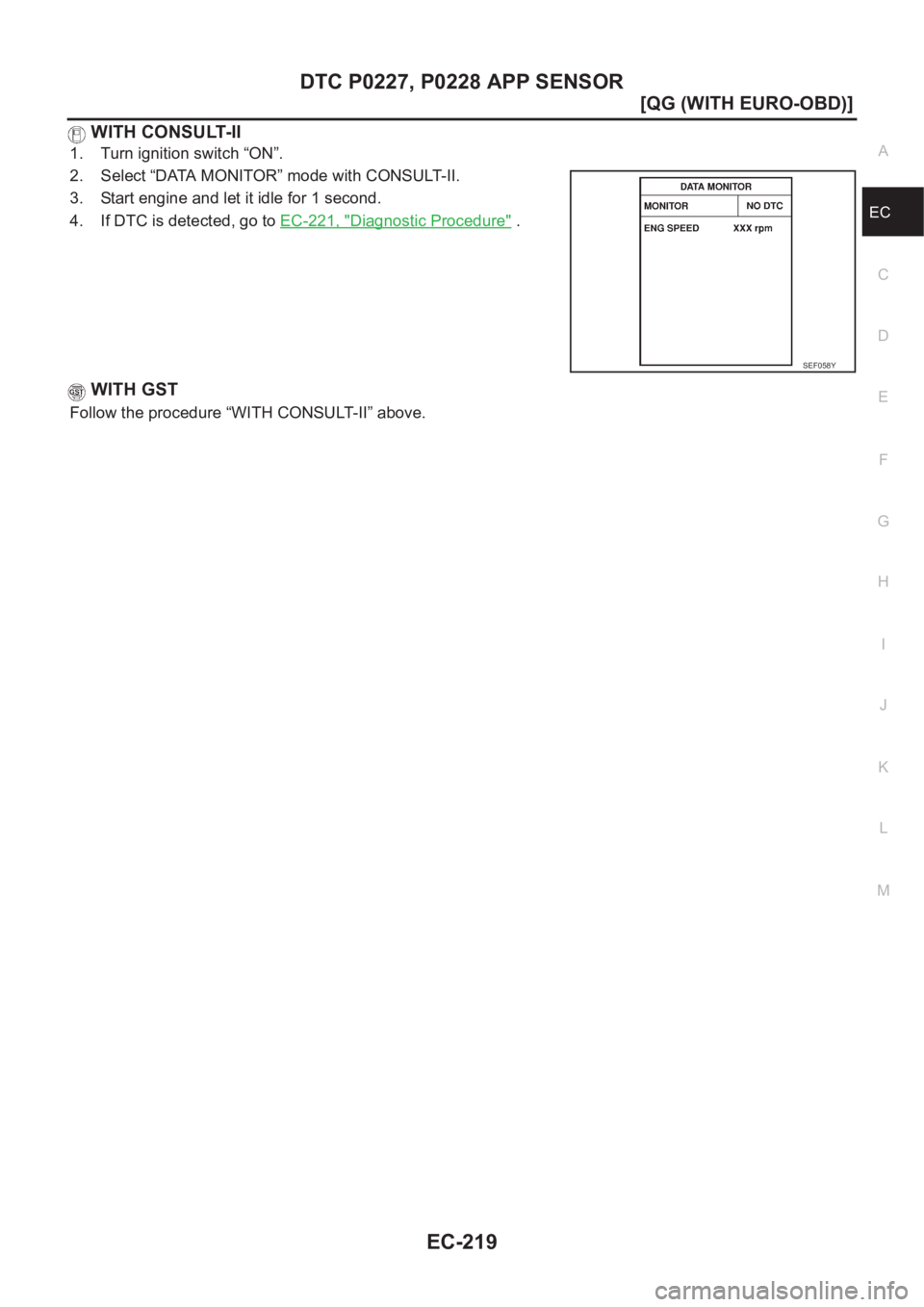

NISSAN ALMERA N16 2003 Electronic Repair Manual DTC P0227, P0228 APP SENSOR
EC-219
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
WITH CONSULT-II
1. Turn ignition switch “ON”.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine

Page 550 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual EC-220
[QG (WITH EURO-OBD)]
DTC P0227, P0228 APP SENSOR
Wiring Diagram
EBS00K7Q
YEC289A

Page 551 of 3189

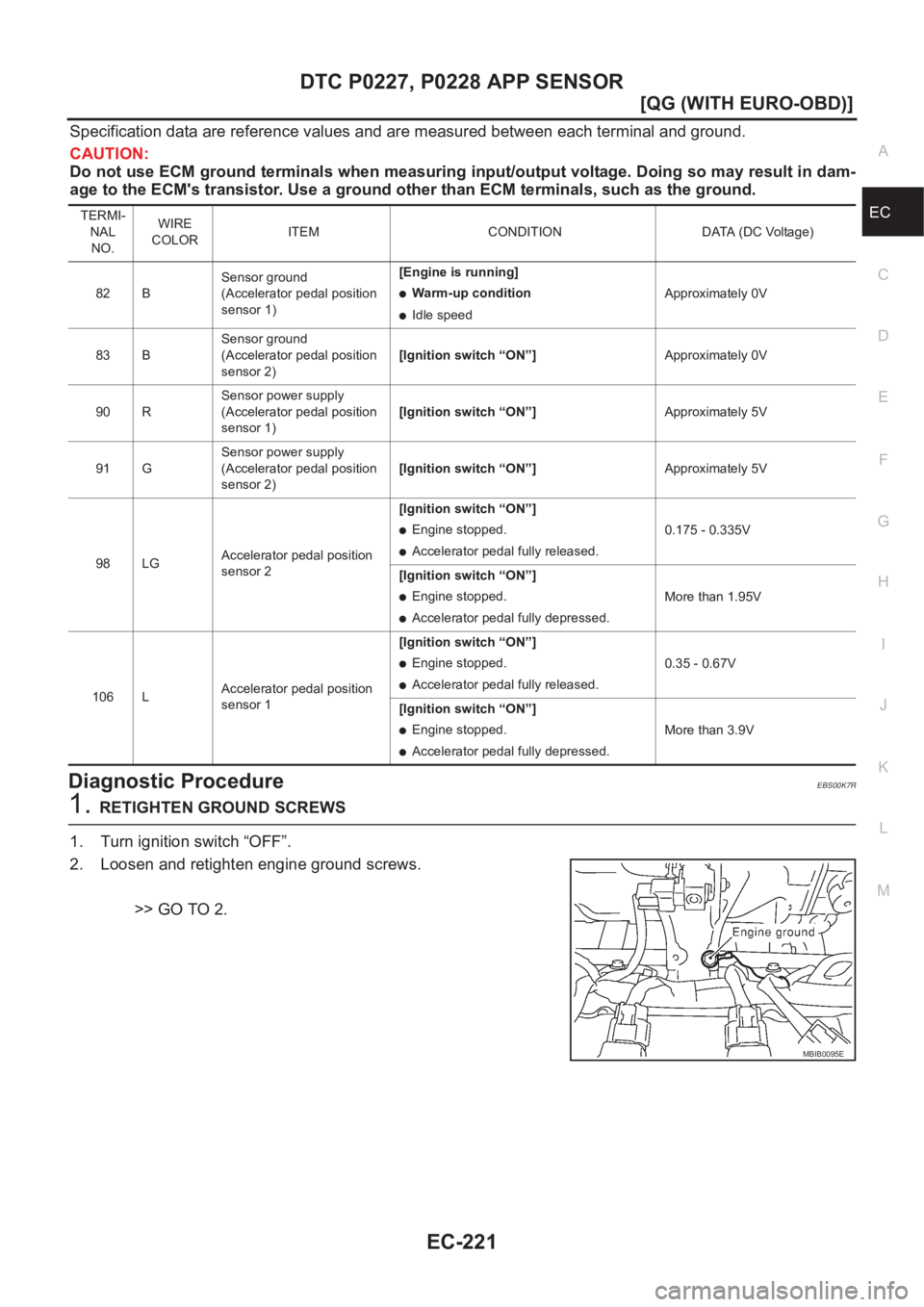

NISSAN ALMERA N16 2003 Electronic Repair Manual DTC P0227, P0228 APP SENSOR
EC-221
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM gro

Page 552 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual EC-222
[QG (WITH EURO-OBD)]
DTC P0227, P0228 APP SENSOR
2. CHECK APP SENSOR 1 POWER SUPPLY CIRCUIT
1. Disconnect accelerator pedal position (APP) sensor harness
connector.
2. Turn ignition switc
