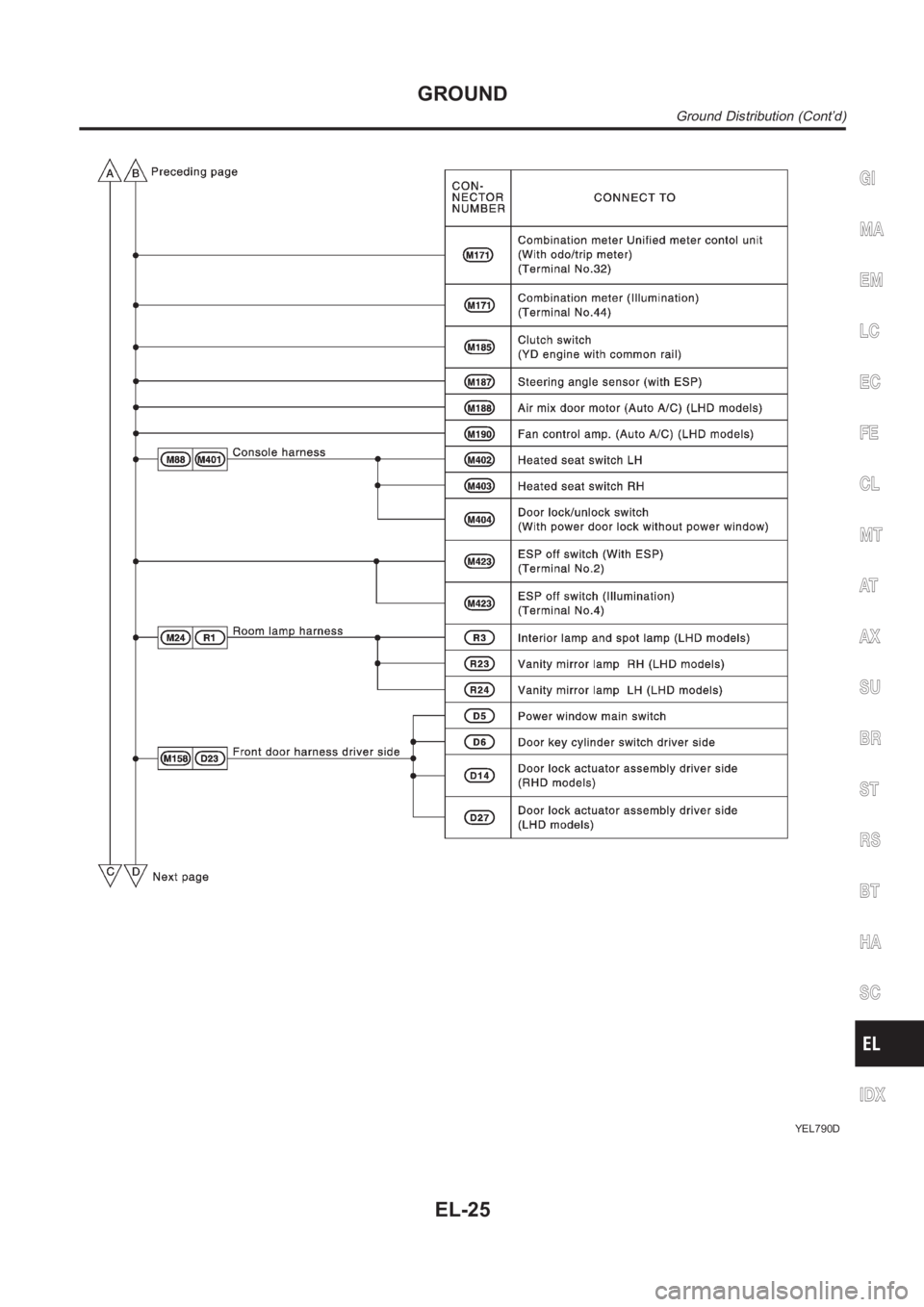

NISSAN ALMERA N16 2003 Electronic Repair Manual YEL790D GI MA EM LC EC FE CL MT AT AX SU BR ST RS BT HA SC IDX GROUND Ground Distribution (Cont’d) EL-25

Page 2362 of 3189

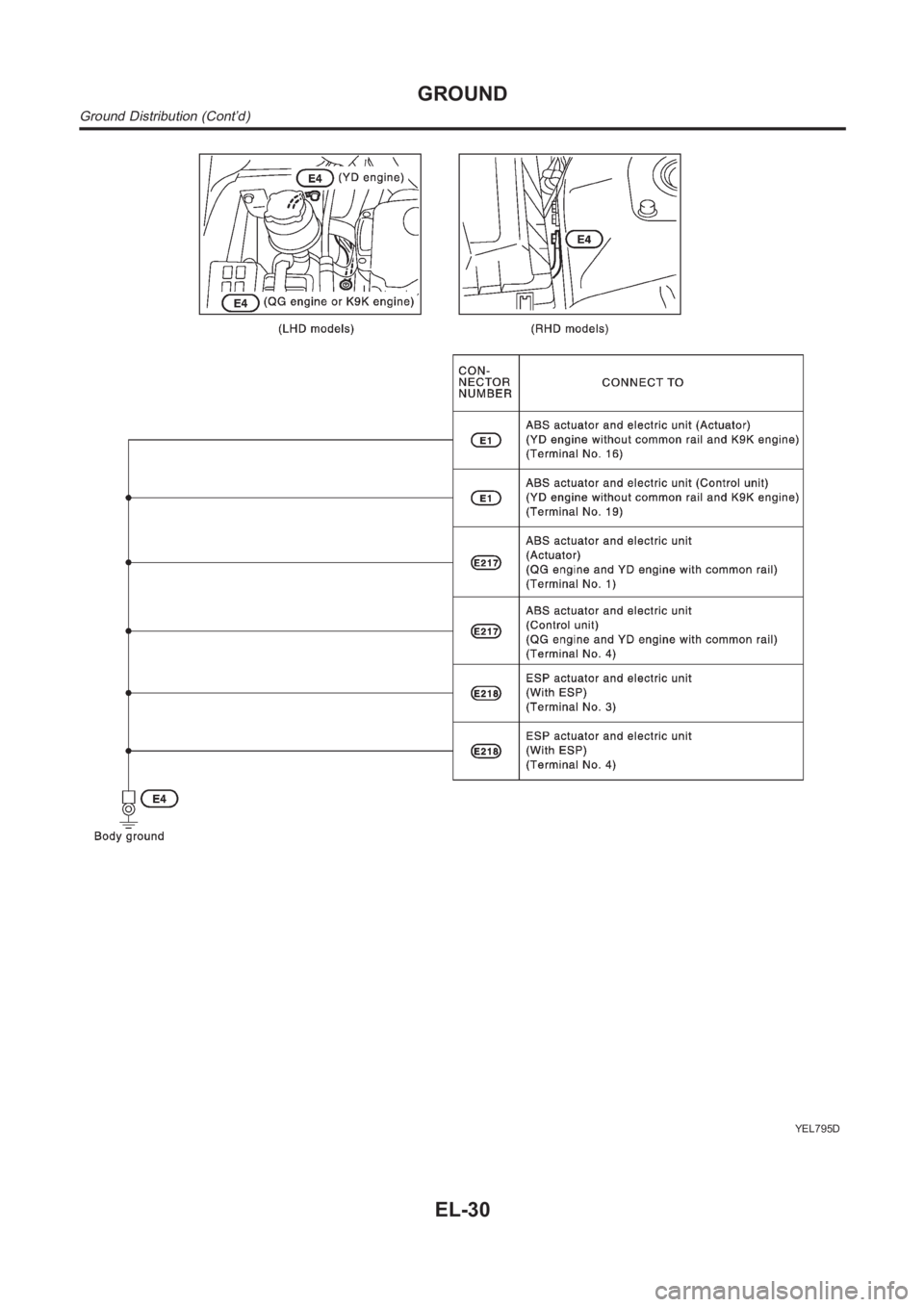

NISSAN ALMERA N16 2003 Electronic Repair Manual YEL791D GROUND Ground Distribution (Cont’d) EL-26

Page 2363 of 3189

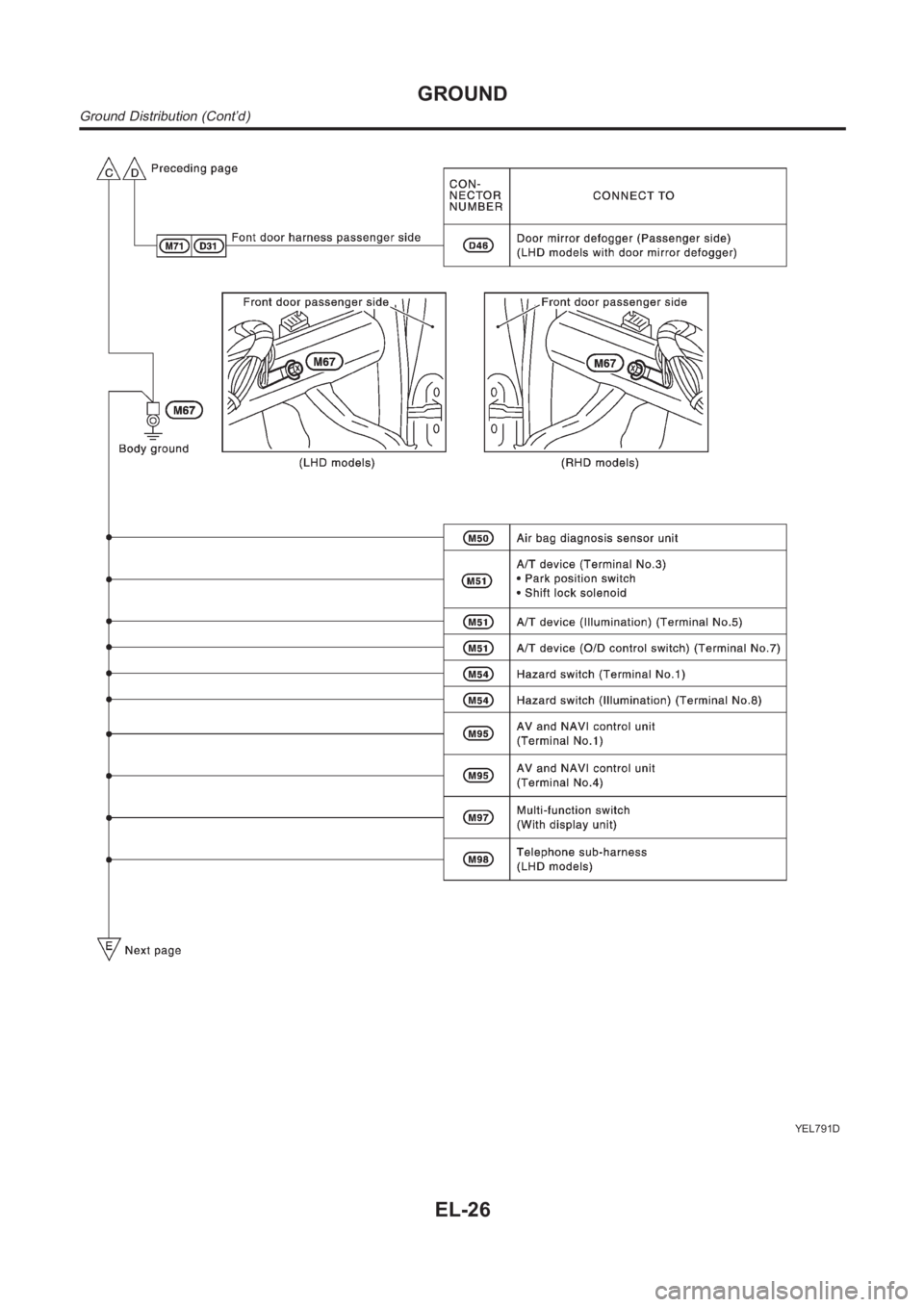

NISSAN ALMERA N16 2003 Electronic Repair Manual YEL792D GI MA EM LC EC FE CL MT AT AX SU BR ST RS BT HA SC IDX GROUND Ground Distribution (Cont’d) EL-27

Page 2364 of 3189

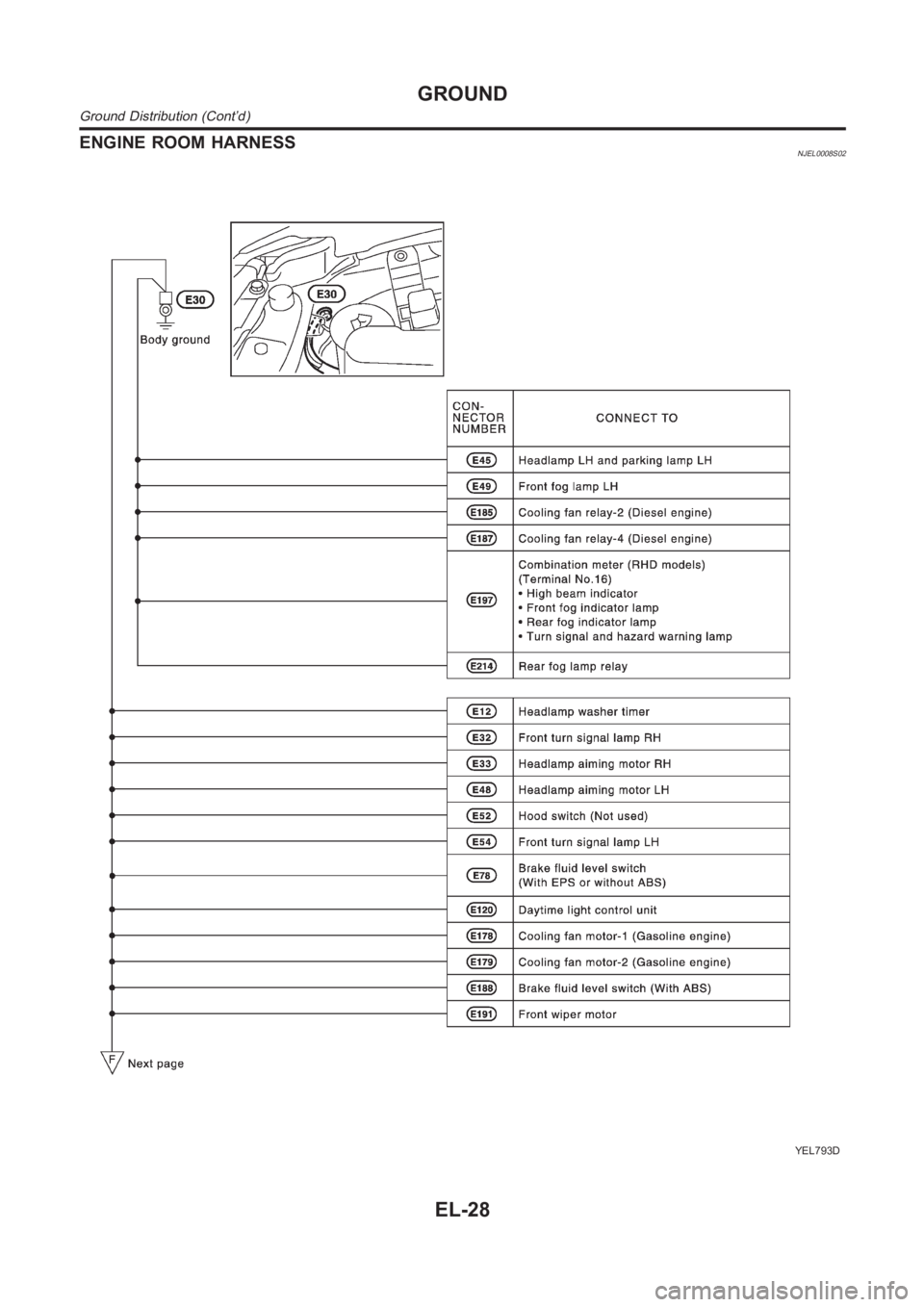

NISSAN ALMERA N16 2003 Electronic Repair Manual ENGINE ROOM HARNESSNJEL0008S02 YEL793D GROUND Ground Distribution (Cont’d) EL-28

Page 2365 of 3189

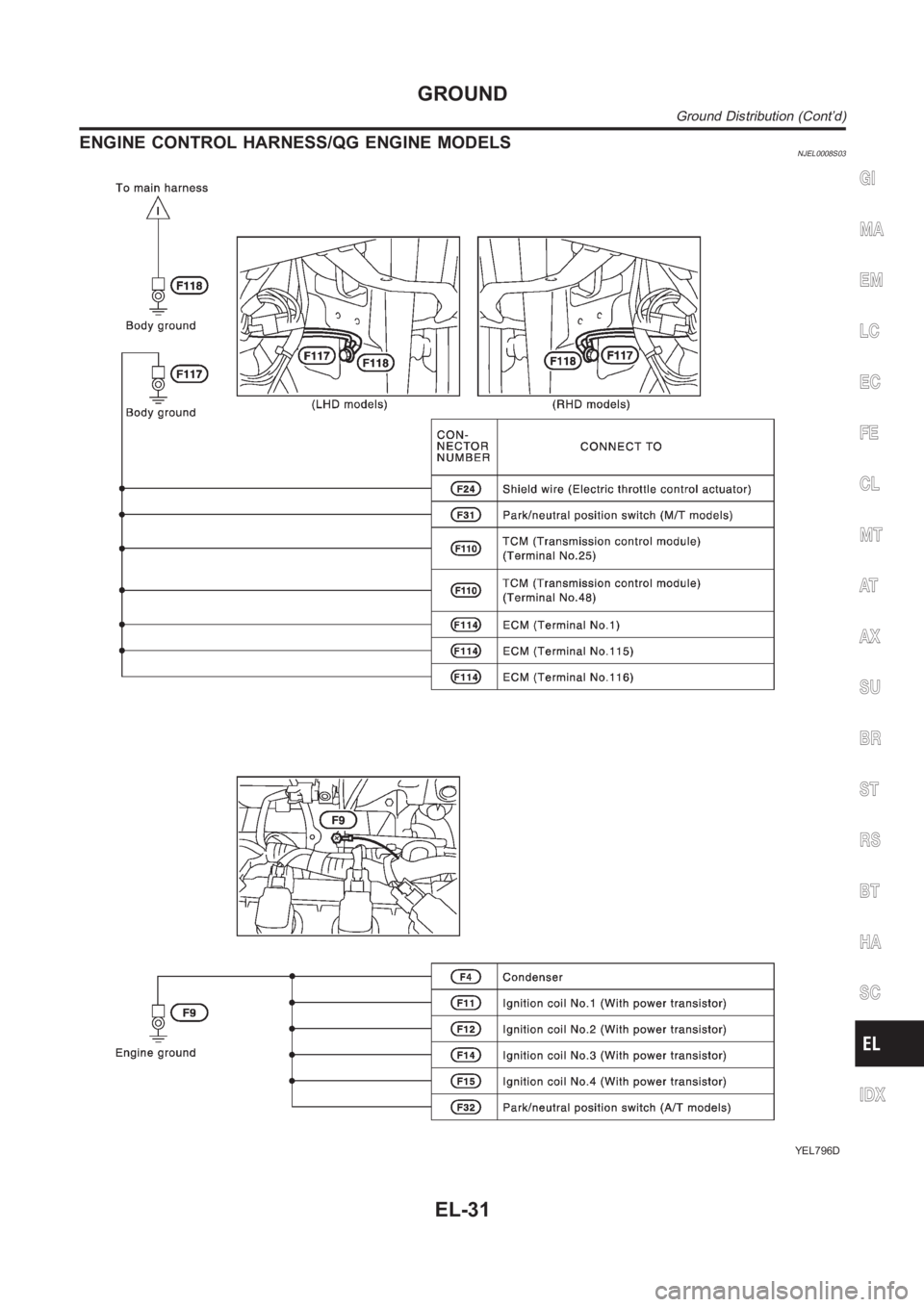

NISSAN ALMERA N16 2003 Electronic Repair Manual YEL794D GI MA EM LC EC FE CL MT AT AX SU BR ST RS BT HA SC IDX GROUND Ground Distribution (Cont’d) EL-29

Page 2366 of 3189

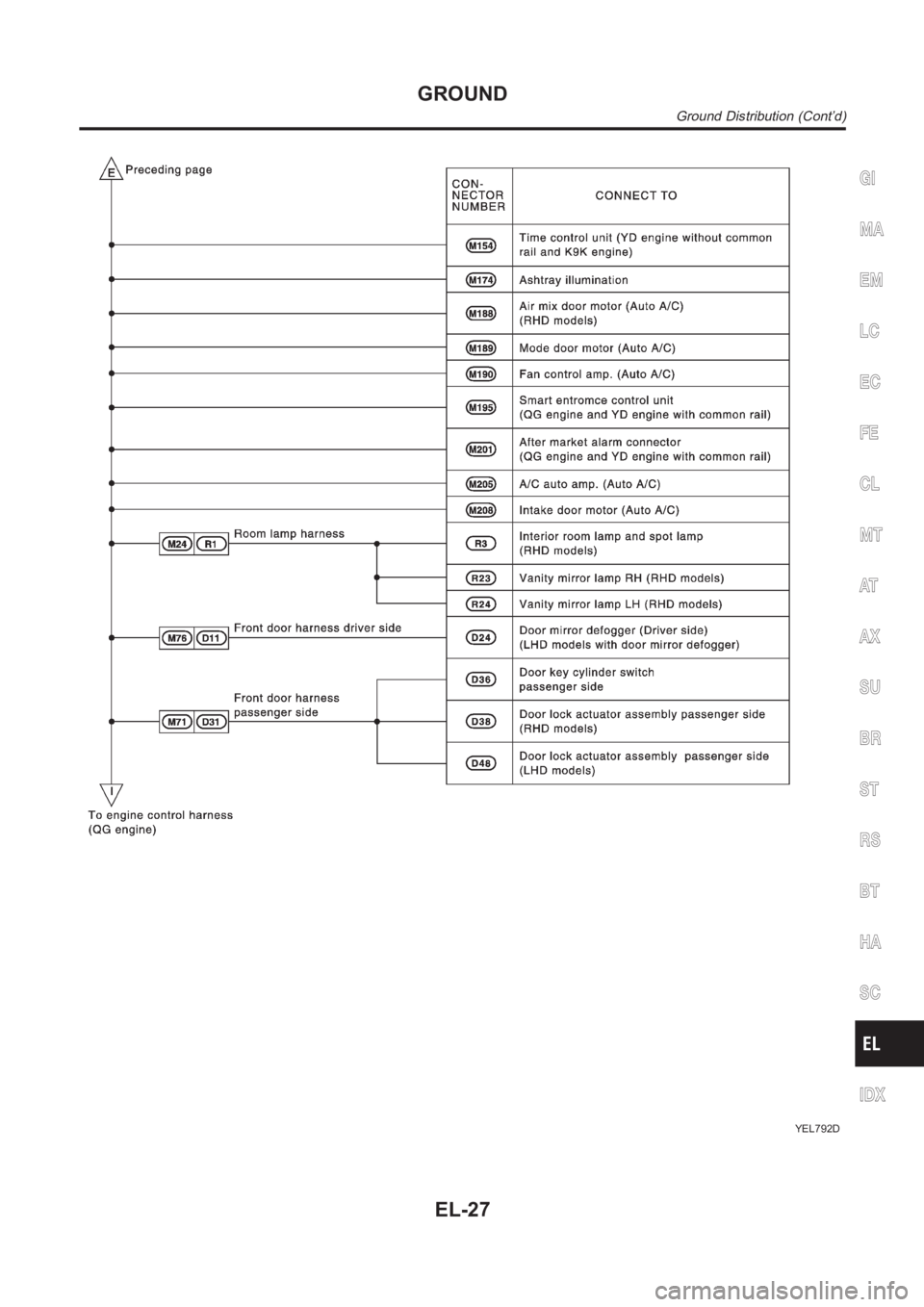

NISSAN ALMERA N16 2003 Electronic Repair Manual YEL795D GROUND Ground Distribution (Cont’d) EL-30

Page 2367 of 3189

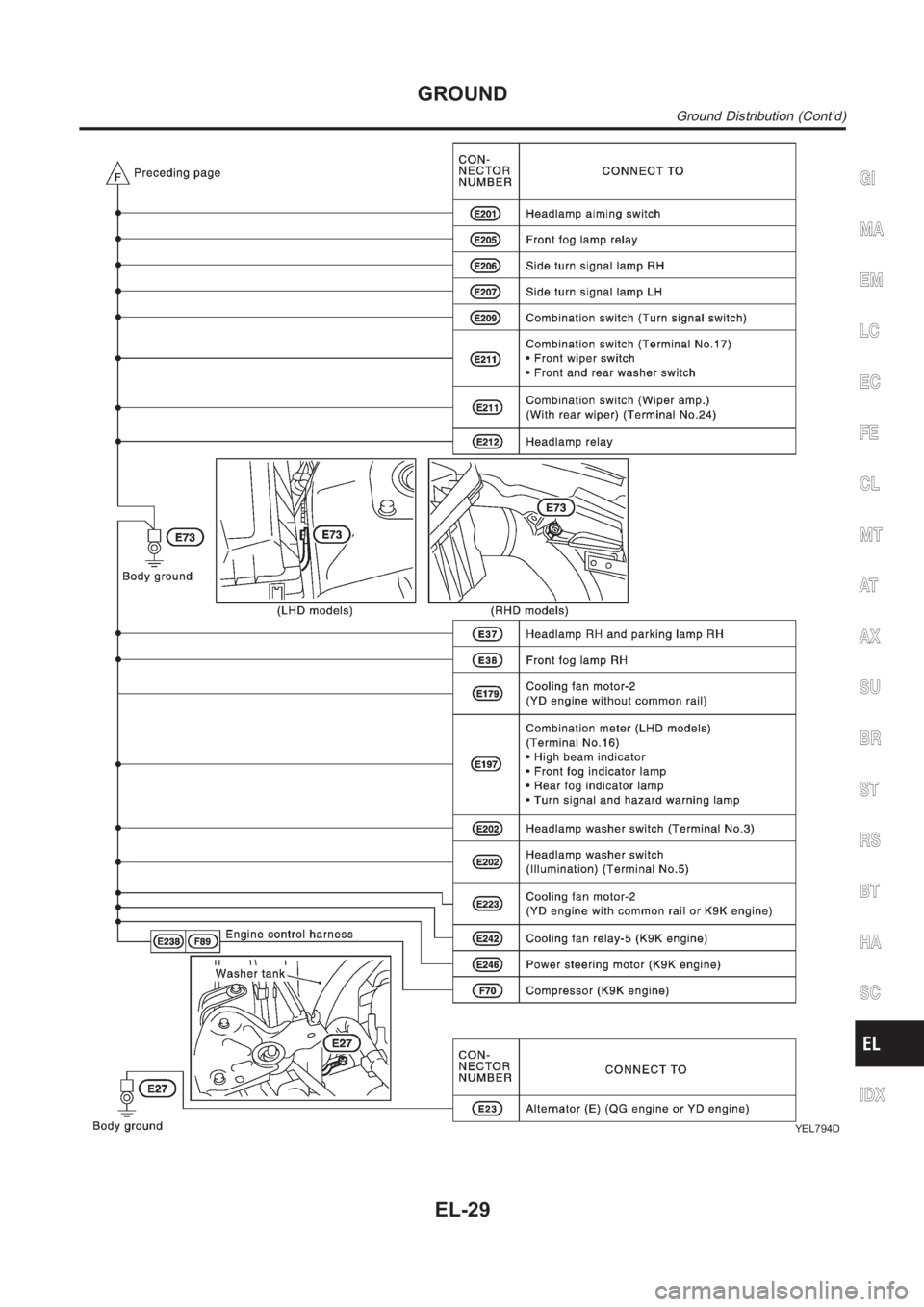

NISSAN ALMERA N16 2003 Electronic Repair Manual ENGINE CONTROL HARNESS/QG ENGINE MODELSNJEL0008S03 YEL796D GI MA EM LC EC FE CL MT AT AX SU BR ST RS BT HA SC IDX GROUND Ground Distribution (Cont’d) EL-31

Page 2368 of 3189

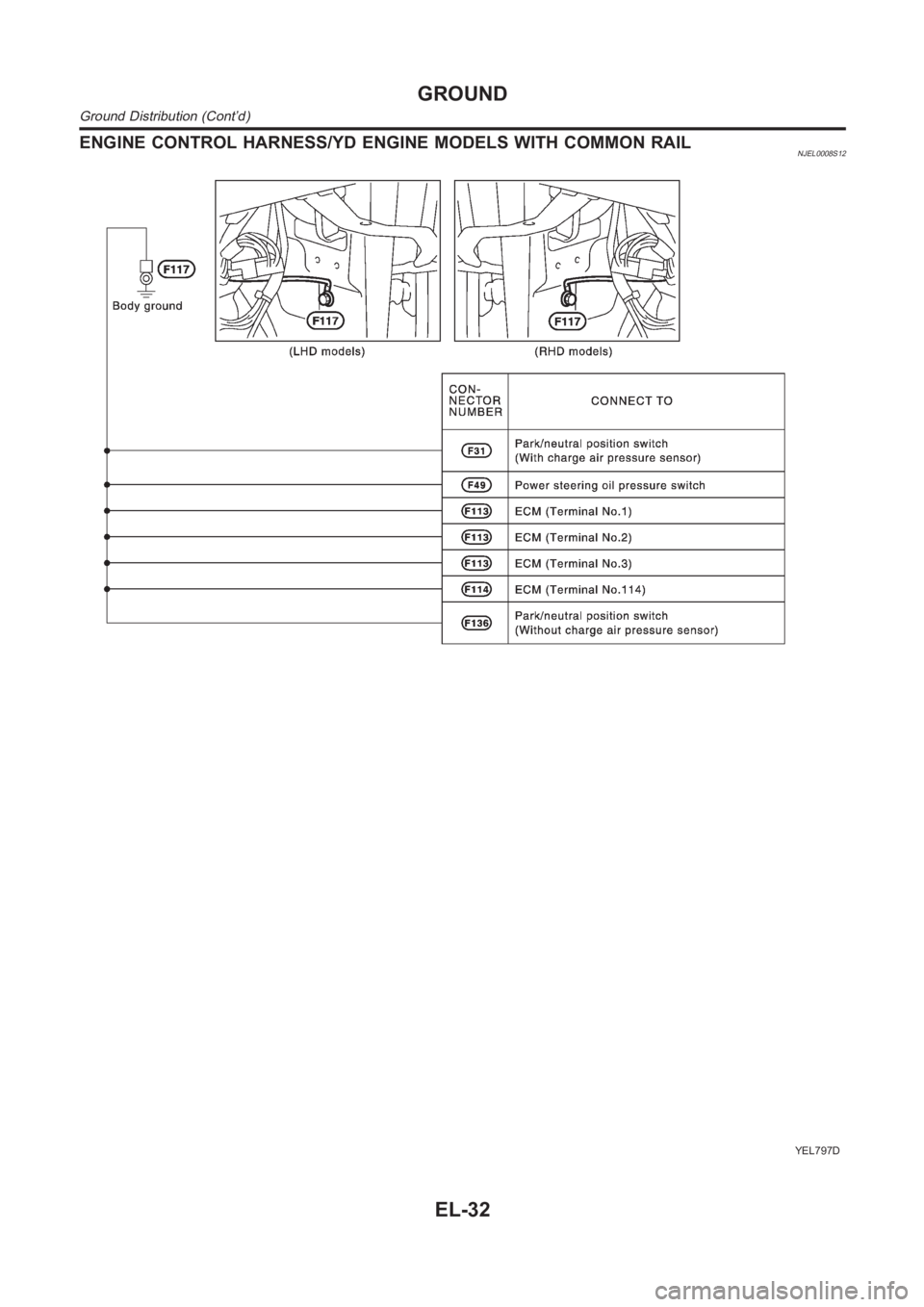

NISSAN ALMERA N16 2003 Electronic Repair Manual ENGINE CONTROL HARNESS/YD ENGINE MODELS WITH COMMON RAILNJEL0008S12 YEL797D GROUND Ground Distribution (Cont’d) EL-32
