2003 NISSAN ALMERA N16 Electronic Repair Manual

key battery bolt pattern reset infotainment system garage door opener ECO mode maintenance reset

Load previous 8 pages

Page 2585 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual Wiring Diagram — SROOF —NJEL0089
YEL787D
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
POWER SUNROOF
Wiring Diagram — SROOF —
EL-249

Page 2586 of 3189

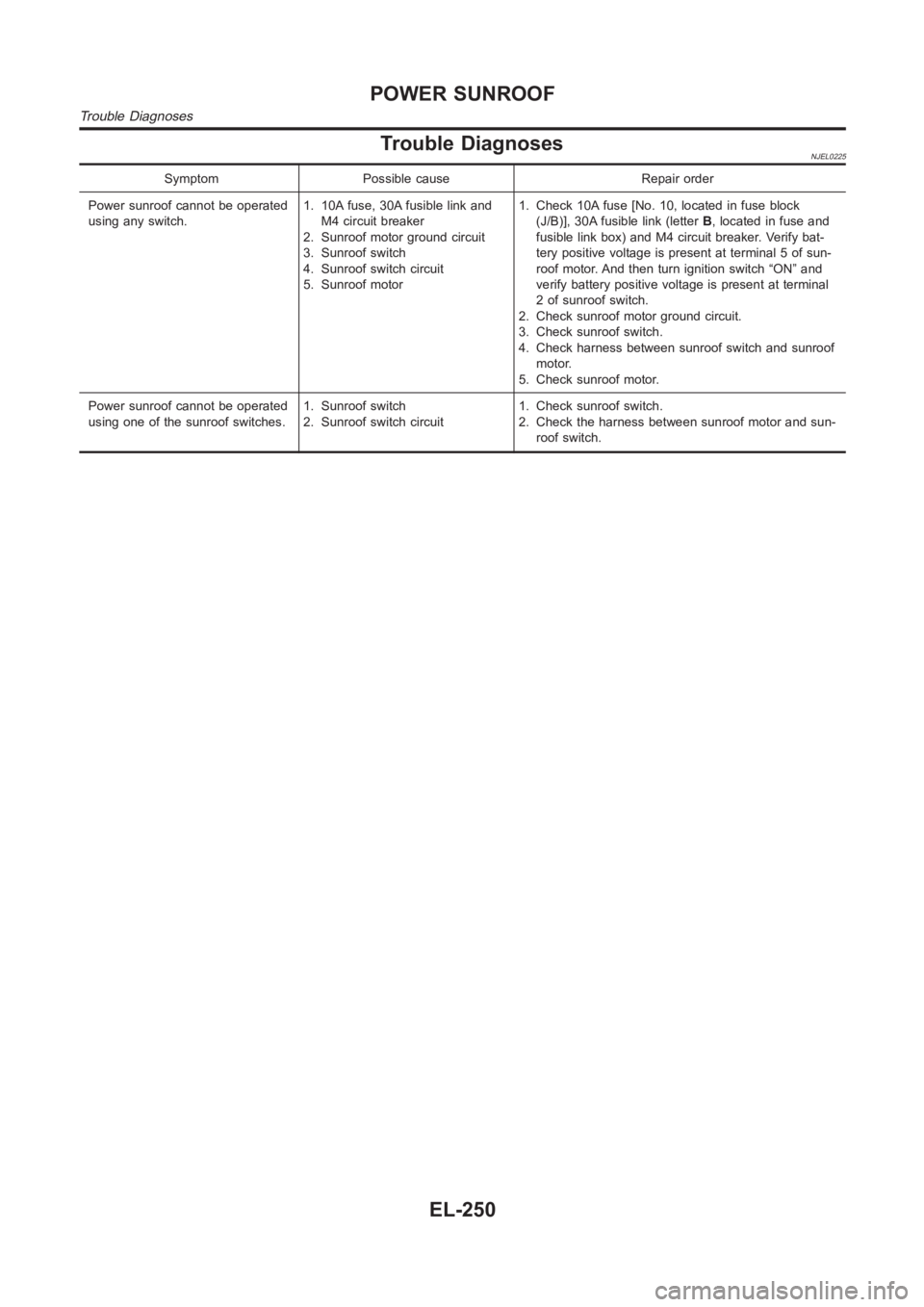

NISSAN ALMERA N16 2003 Electronic Repair Manual Trouble DiagnosesNJEL0225
Symptom Possible cause Repair order
Power sunroof cannot be operated
using any switch.1. 10A fuse, 30A fusible link and
M4 circuit breaker
2. Sunroof motor ground circuit
3.

Page 2587 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual Wiring Diagram — MIRROR —NJEL0472
YEL788D
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
DOOR MIRROR
Wiring Diagram — MIRROR —
EL-251

Page 2588 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual YEL743D
DOOR MIRROR
Wiring Diagram — MIRROR — (Cont’d)
EL-252

Page 2589 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual System Description=NJEL0498Power is supplied at all times
from 30A fusible link (letterB, located in the fuse and fusible link box)
to circuit breaker terminal 1
through circuit breaker terminal 2
to

System Description=NJEL0498Power is supplied at all times
from 30A fusible link (letterB, located in the fuse and fusible link box)
to circuit breaker terminal 1
through circuit breaker terminal 2
to power window relay terminal 5
With ignition switch in ON or START position, power is supplied
through 10A fuse [No. 10, located in the fuse block (J/B)]
to power window relay terminal 1
Ground is supplied to power window relay terminal 2
through body grounds F118 (QG engine models), M28 and M67.
The power window relay is energized and power is supplied
through power window relay terminal 3
to power window main switch terminal 1,
to front power window sub-switch terminal 5,
to rear power window sub-switch LH and RH terminals 5 (models with rear power window).
MANUAL OPERATIONNJEL0498S01Front Door (Driver Side)NJEL0498S0101Ground is supplied
to power window main switch terminal 3
through body grounds F118 (QG engine models), M28 and M67.
WINDOW UP
When the driver’s window switch in the power window main switch is pressed in the up position, power is
supplied
through power window main switch terminal 9
to driver side power window regulator terminal 2.
Ground is supplied
through power window main switch terminal 1
to driver side power window regulator terminal 8.
Then, the motor raises the window until the switch is released.
WINDOW DOWN
When the driver’s window switch in the power window main switch is pressed in the down position, power is
supplied
through power window main switch terminal 8
to driver side power window regulator terminal 1.
Ground is supplied
to driver side power window regulator terminal 2
through power window main switch terminal 9.
Then, the motor lowers the window until the switch is released.
Front Door (Passenger Side)NJEL0498S0102Ground is supplied
to power window main switch terminal 3
through body grounds F118 (QG engine models), M28 and M67.
NOTE:
Numbers in parentheses are terminal numbers, when power window switch is pressed in the UP and DOWN
positions respectively.
POWER WINDOW MAIN SWITCH OPERATION
Power is supplied
through power window main switch (5, 6)
to front power window sub-switch (3, 4).
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
POWER WINDOW
System Description
EL-253

Page 2590 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual The subsequent operation is the same as the front power window sub-switch operation.
FRONT POWER WINDOW SUB-SWITCH OPERATION
Power is supplied
through front power window sub-switch (1, 2)
to front pas

Page 2591 of 3189

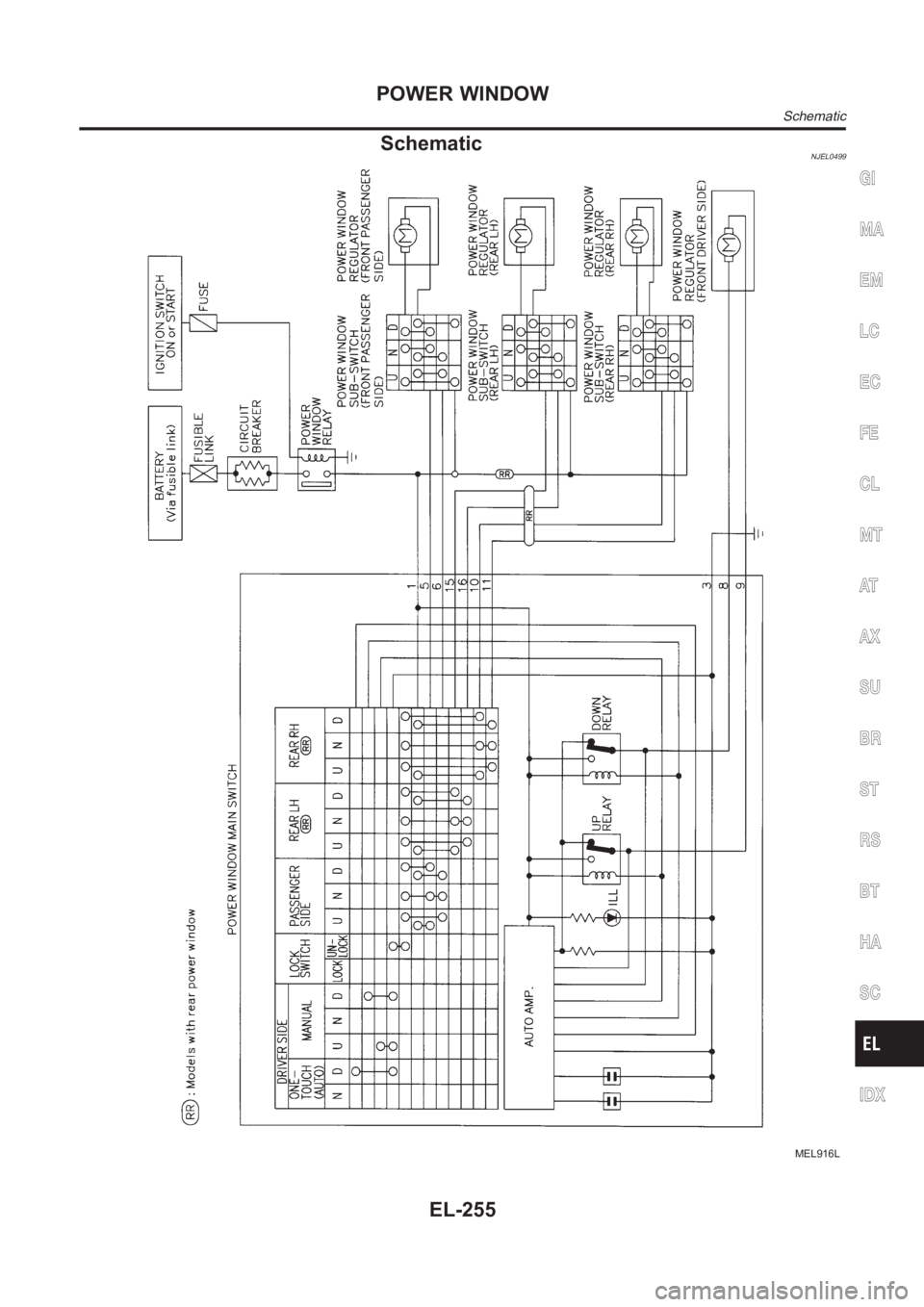

NISSAN ALMERA N16 2003 Electronic Repair Manual SchematicNJEL0499
MEL916L
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
POWER WINDOW
Schematic
EL-255

Page 2592 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual Wiring Diagram — WINDOW —NJEL0500
YEL744D
POWER WINDOW
Wiring Diagram — WINDOW —
EL-256
