Page 2217 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual SBR307E 8. As shown in the figure, align the piston’s concave to the pad’s convex, then install the cylinder body to the torque member. 9. Install brake cable, brake cable mounting bolt, lock spri

Page 2218 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual SBR088B 3. Disassemble cylinder body. a. Pry off ring B with suitable pliers, then remove spring cover, spring and seat. b. Remove washer, key plate, push rod, O-ring and strut. SBR656 c. Remove pisto

Page 2219 of 3189

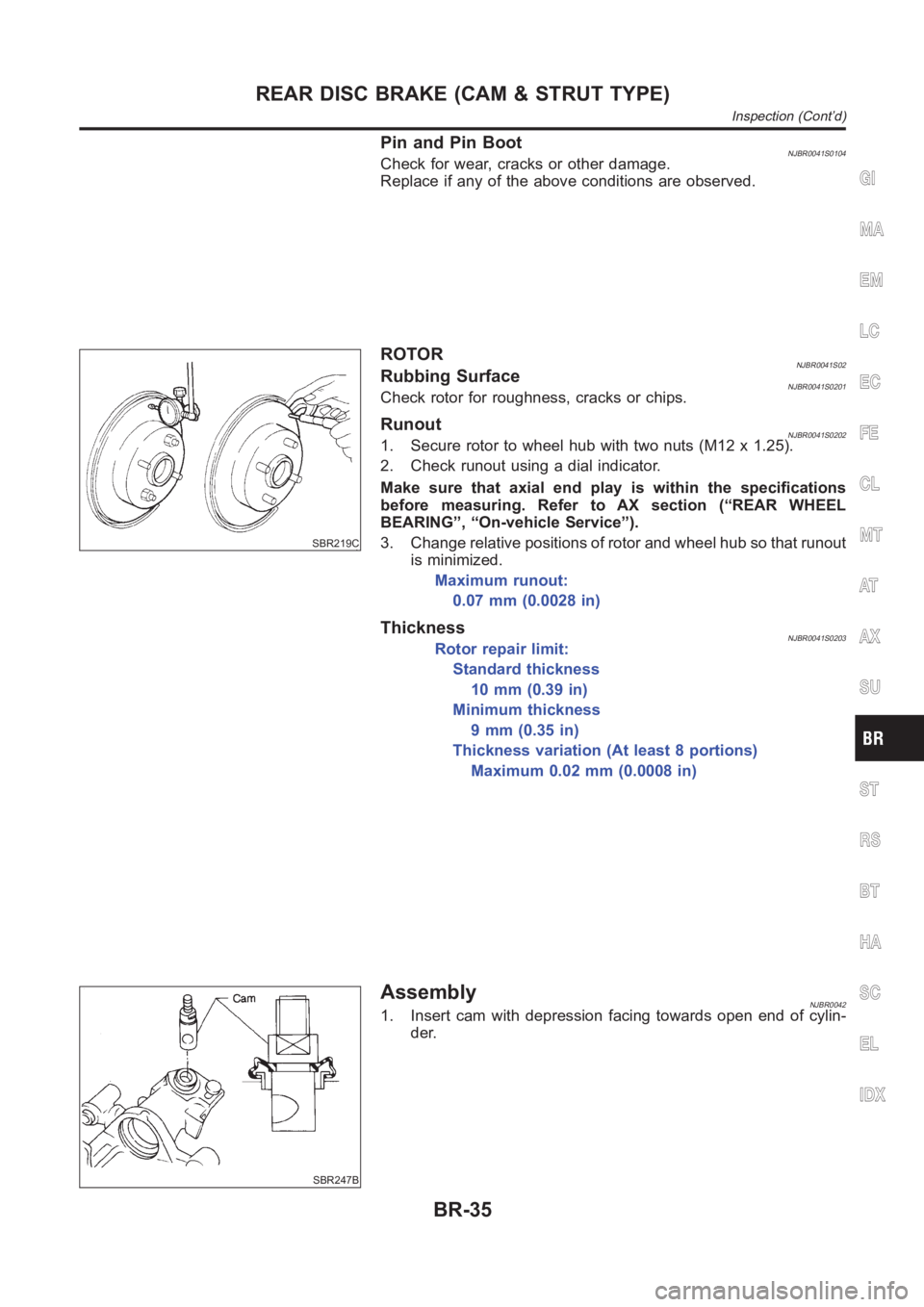

NISSAN ALMERA N16 2003 Electronic Repair Manual Pin and Pin BootNJBR0041S0104Check for wear, cracks or other damage. Replace if any of the above conditions are observed. SBR219C ROTORNJBR0041S02Rubbing SurfaceNJBR0041S0201Check rotor for roughness,

Page 2220 of 3189

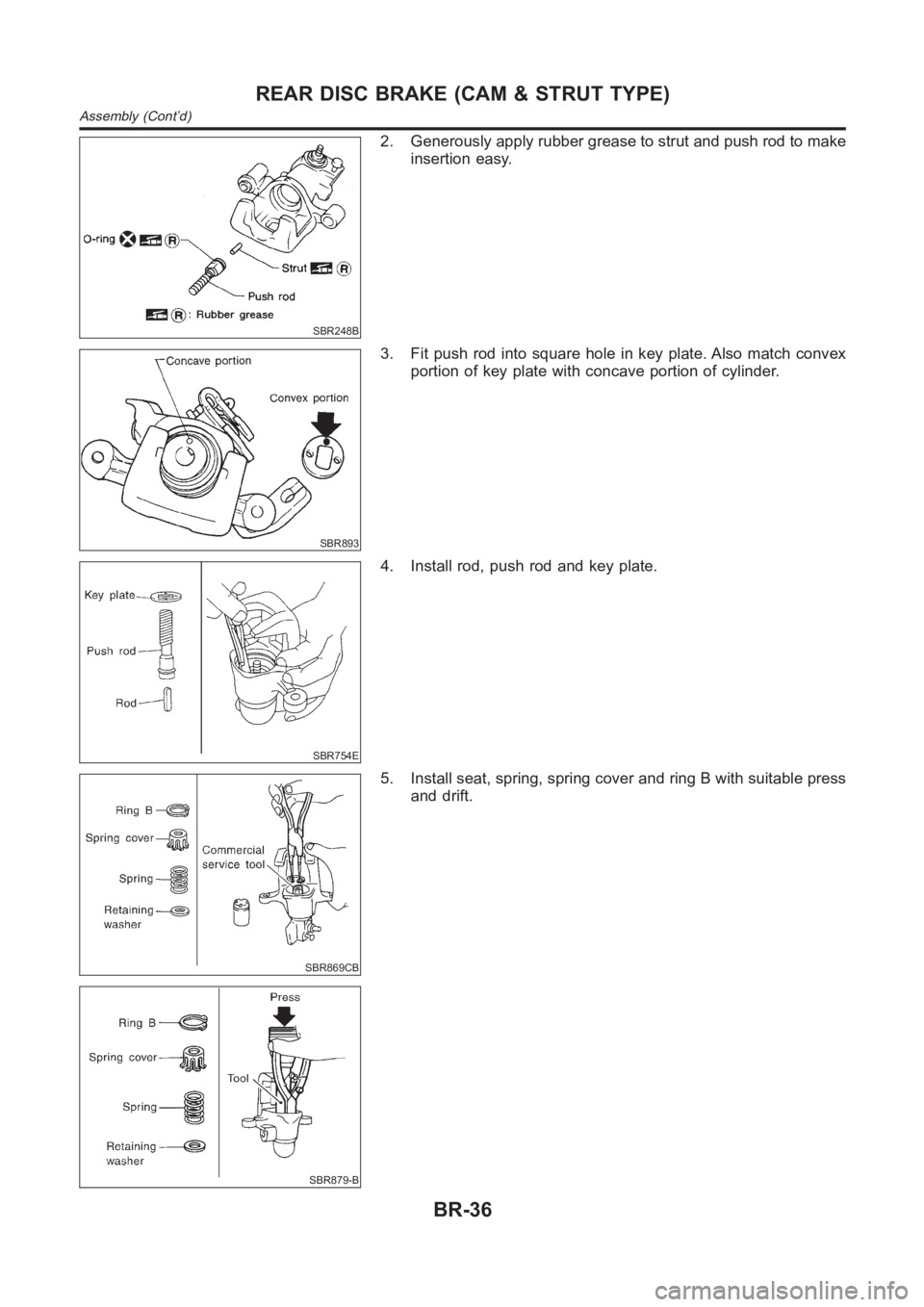

NISSAN ALMERA N16 2003 Electronic Repair Manual SBR248B 2. Generously apply rubber grease to strut and push rod to make insertion easy. SBR893 3. Fit push rod into square hole in key plate. Also match convex portion of key plate with concave portio

Page 2221 of 3189

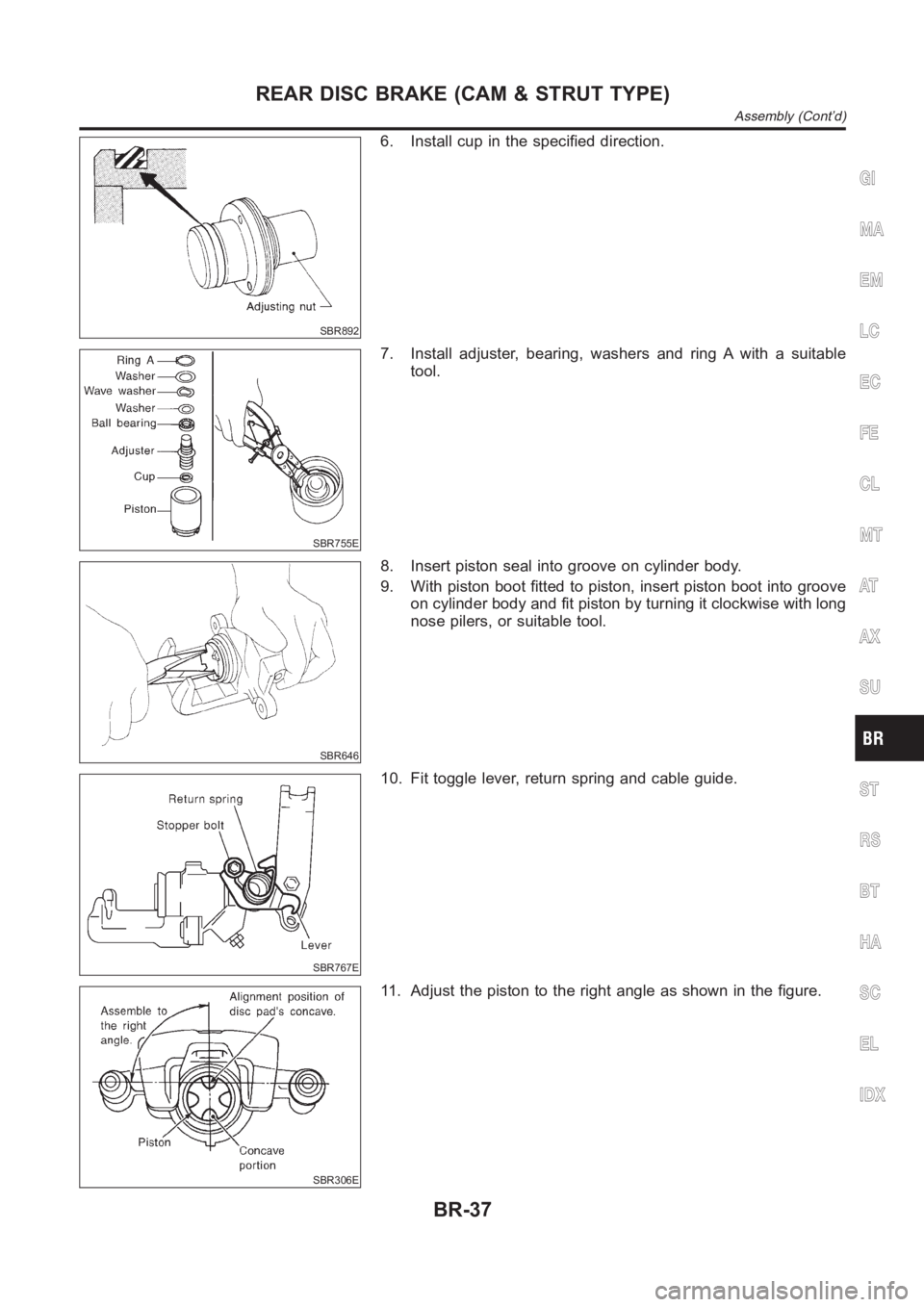

NISSAN ALMERA N16 2003 Electronic Repair Manual SBR892 6. Install cup in the specified direction. SBR755E 7. Install adjuster, bearing, washers and ring A with a suitable tool. SBR646 8. Insert piston seal into groove on cylinder body. 9. With pist

Page 2222 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual SBR307E InstallationNJBR0043CAUTION: Refill with new brake fluid “DOT 4”. Never reuse drained brake fluid. 1. Install caliper assembly. As shown in the figure, align the piston’s concave to the

Page 2223 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual ComponentNJBR0141 NBR422 1. Cylinder body 2. Pin 3. Pin boot4. Torque member 5. Inner shim 6. Inner pad7. Outer pad 8. Outer shim NOTE: The cylinder body cannot be disassembled. Pad ReplacementNJBR014

Page 2224 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual NBR423 1. Remove master cylinder reservoir cap. 2. Remove brake cable lock spring. 3. Release parking brake control lever, then disconnect cable from the caliper. 4. Remove upper pin bolt. NBR426 5. O
