Page 1889 of 3189
REPAIR FOR COMPONENT PARTS
AT-433
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

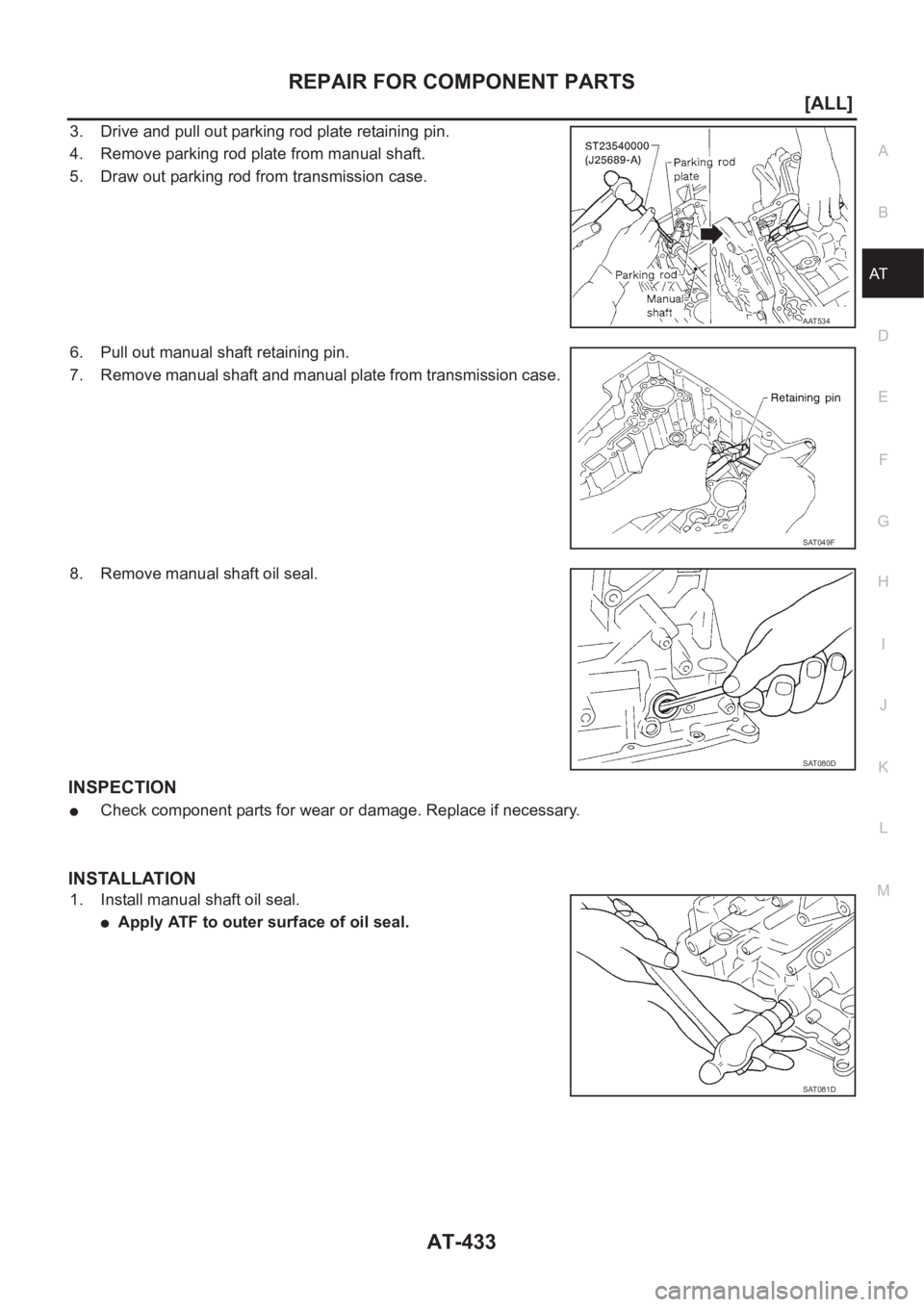

3. Drive and pull out parking rod plate retaining pin.
4. Remove parking rod plate from manual shaft.
5. Draw out parking rod from transmission case.
6. Pull out manual shaft retaining pin.
7. Remove manual shaft and manual plate from transmission case.
8. Remove manual shaft oil seal.
INSPECTION
●Check component parts for wear or damage. Replace if necessary.
INSTALLATION
1. Install manual shaft oil seal.
●Apply ATF to outer surface of oil seal.
AAT534
SAT049F
SAT080D
SAT081D
Page 1890 of 3189
AT-434
[ALL]
REPAIR FOR COMPONENT PARTS
2. Install manual shaft and manual plate.
3. Align groove of manual shaft and hole of transmission case.
4. Install manual shaft retaining pin.
5. Install parking rod to parking rod plate.
6. Set parking rod assembly onto manual shaft.
7. Drive manual plate retaining pin and parking rod plate retaining
pin.
●Both ends of pin should protrude.
8. Install detent spring.
SAT610H
AAT487
SAT078D
AAT485
SAT313G
Page 1891 of 3189
REPAIR FOR COMPONENT PARTS
AT-435
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

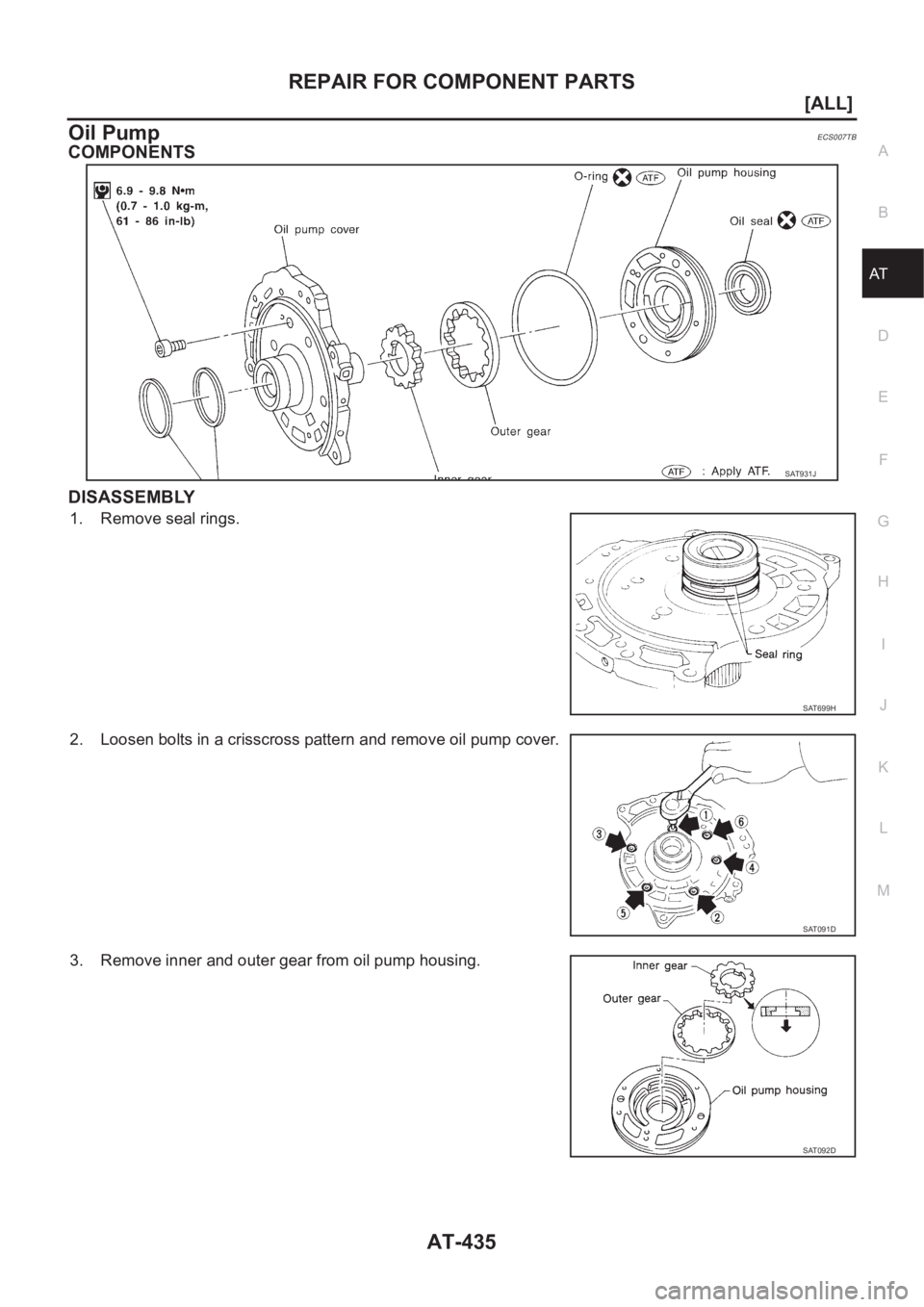

Oil PumpECS007TB
COMPONENTS
DISASSEMBLY
1. Remove seal rings.
2. Loosen bolts in a crisscross pattern and remove oil pump cover.
3. Remove inner and outer gear from oil pump housing.
SAT931J
SAT699H
SAT091D
SAT092D
Page 1892 of 3189
AT-436
[ALL]
REPAIR FOR COMPONENT PARTS

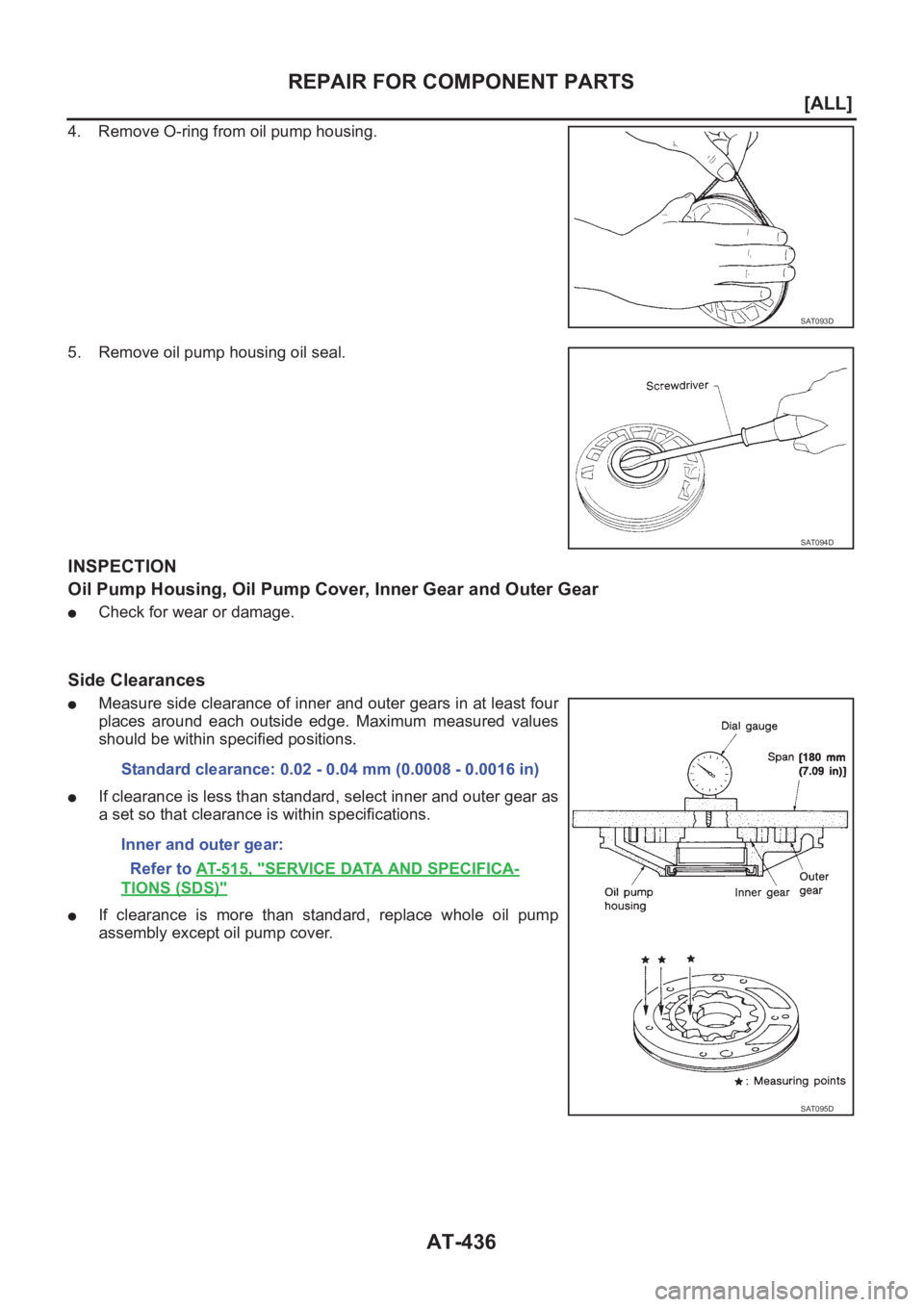

4. Remove O-ring from oil pump housing.
5. Remove oil pump housing oil seal.
INSPECTION
Oil Pump Housing, Oil Pump Cover, Inner Gear and Outer Gear
●Check for wear or damage.
Side Clearances
●Measure side clearance of inner and outer gears in at least four
places around each outside edge. Maximum measured values
should be within specified positions.
●If clearance is less than standard, select inner and outer gear as
a set so that clearance is within specifications.
●If clearance is more than standard, replace whole oil pump
assembly except oil pump cover.
SAT093D
SAT094D
Standard clearance: 0.02 - 0.04 mm (0.0008 - 0.0016 in)
Inner and outer gear:
Refer to AT-515, "
SERVICE DATA AND SPECIFICA-
TIONS (SDS)"
SAT095D
Page 1893 of 3189
REPAIR FOR COMPONENT PARTS
AT-437
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
●Measure clearance between outer gear and oil pump housing.
●If not within allowable limit, replace whole oil pump assembly
except oil pump cover.
Seal Ring Clearance
●Install new seal rings onto oil pump cover.
●Measure clearance between seal ring and ring groove.
●If not within allowable limit, replace oil pump cover assembly.
ASSEMBLY
1. Install oil seal on oil pump housing.
●Apply ATF to oil seal.
2. Install O-ring on oil pump housing.
●Apply ATF to O-ring.Standard clearance: 0.08 - 0.15 mm (0.0031 - 0.0059 in)
Allowable limit: 0.15 mm (0.0059 in)
SAT096D
Standard clearance: 0.1 - 0.25 mm (0.0039 - 0.0098 in)
Allowable limit: 0.25 mm (0.0098 in)
SAT097D
SAT922D
SAT093D
Page 1894 of 3189
AT-438
[ALL]
REPAIR FOR COMPONENT PARTS
3. Install inner and outer gears on oil pump housing.
●Take care with the direction of inner gear.
4. Install oil pump cover on oil pump housing.
a. Wrap masking tape around splines of oil pump cover assembly
to protect seal. Position oil pump cover assembly on oil pump
housing assembly, then remove masking tape.
b. Tighten bolts in a crisscross pattern. Tighten oil pump cover
bolts to the specified torque. Refer to AT- 4 3 5 , "
COMPONENTS"
.
5. Install new seal rings carefully after packing ring groove with
petroleum jelly.
●Do not spread gap of seal ring excessively while install-
ing. The ring may be deformed.
SAT092D
SAT101D
SAT699H
Page 1895 of 3189
REPAIR FOR COMPONENT PARTS
AT-439
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
Control Valve AssemblyECS007TC
COMPONENTS
1. Solenoid valve assembly 2. O-ring 3. Clip
4. Terminal body 5. Control valve lower body 6. Oil strainer
7. Support plate 8. Lower inter separating gasket 9. Separating plate
10. Lower separating gasket 11. Steel ball 12. Control valve inter body
13. Pilot filter 14. Upper inter separating gasket 15. Separating plate
16. Upper separating gasket 17 Steel ball 18. Control valve upper body
19. Check ball 20. Fluid cooler relief valve spring 21. O-ring
22. T/C pressure holding spring 23. Check ball
SAT868J
Page 1896 of 3189
AT-440
[ALL]
REPAIR FOR COMPONENT PARTS
DISASSEMBLY
●Disassemble upper, inter and lower bodies.
Bolt length, number and location:
F: Reamer bolt and nut
1. Remove bolts A, D and F, and remove oil strainer from control
valve assembly.
2. Remove solenoid valve assembly and line pressure solenoid
valve from control valve assembly.
●Be careful not to lose the line pressure solenoid valve
spring.
Bolt symbolABC D E F G
Bolt length “ ”
13.5 mm
(0.531 in)58.0 mm
(2.283 in)40.0 mm
(1.575 in)66.0 mm
(2.598 in)33.0 mm
(1.299 in)78.0 mm
(3.071 in)18.0 mm
(0.709 in)
Number of bolts 6 3 6 11 2 2 1
SAT869J
SAT083F
SAT316GA
