Page 2225 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual NBR427
RemovalNJBR0143WARNING:
Clean brake pads with a vacuum dust collector to minimize the
hazard of airborne particles or other materials.
1. Remove brake cable lock spring.
2. Release parking brak

Page 2226 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual SBR219C
ROTORNJBR0145S02Rubbing SurfaceNJBR0145S0201Check rotor for roughness, cracks or chips.
RunoutNJBR0145S02021. Secure rotor to wheel hub with two nuts (M12 x 1.25).
2. Check runout using a dial

Page 2227 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual ComponentsNJBR0044
YBR318
SBR897D
Removal and InstallationNJBR00451. To remove parking brake cable, first remove center console.
2. Disconnect warning lamp switch connector.
3. Remove adjusting nut.
4

Page 2228 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual SBR768E

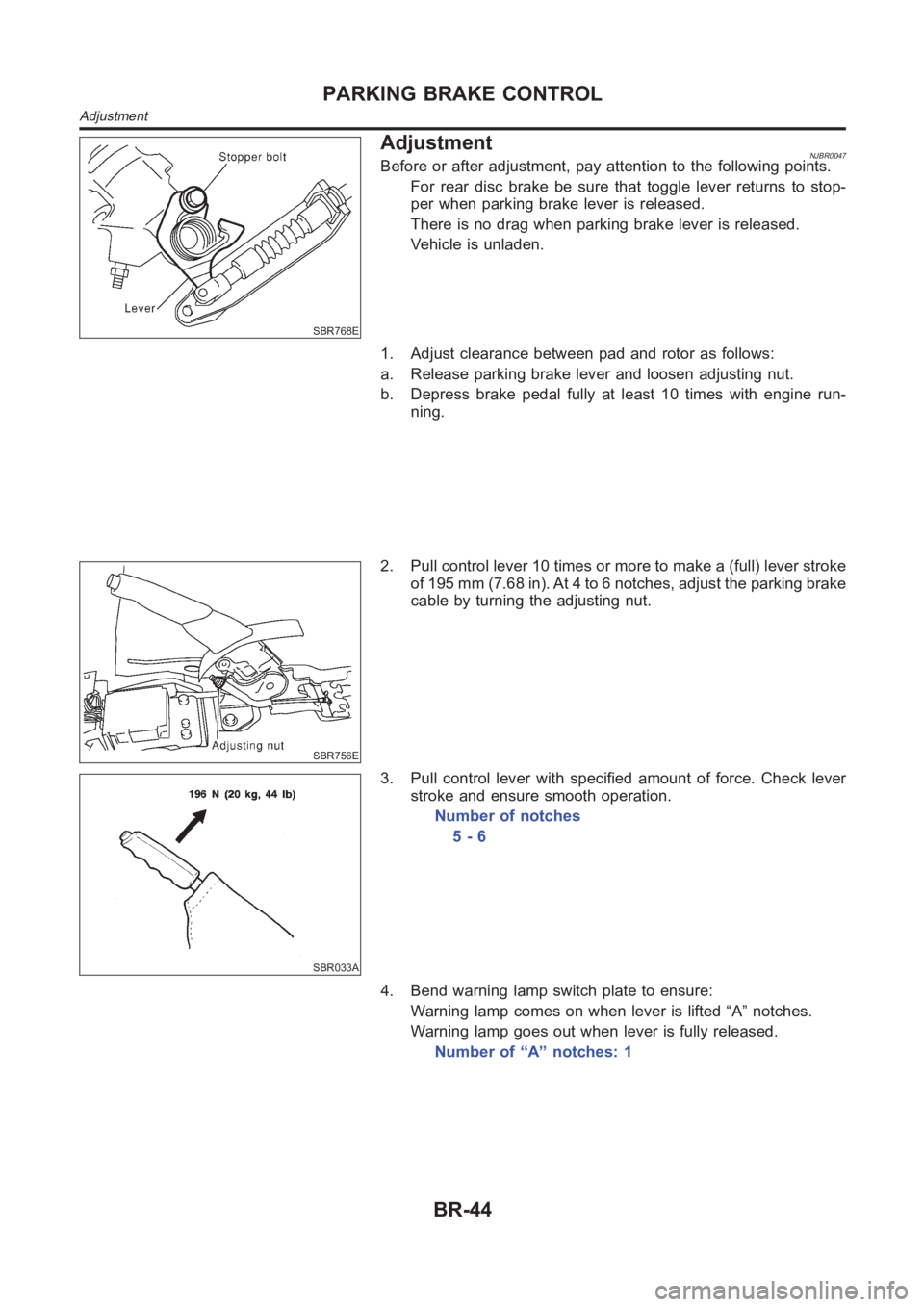

AdjustmentNJBR0047Before or after adjustment, pay attention to the following points.
For rear disc brake be sure that toggle lever returns to stop-
per when parking brake lever is released.
Th

Page 2229 of 3189

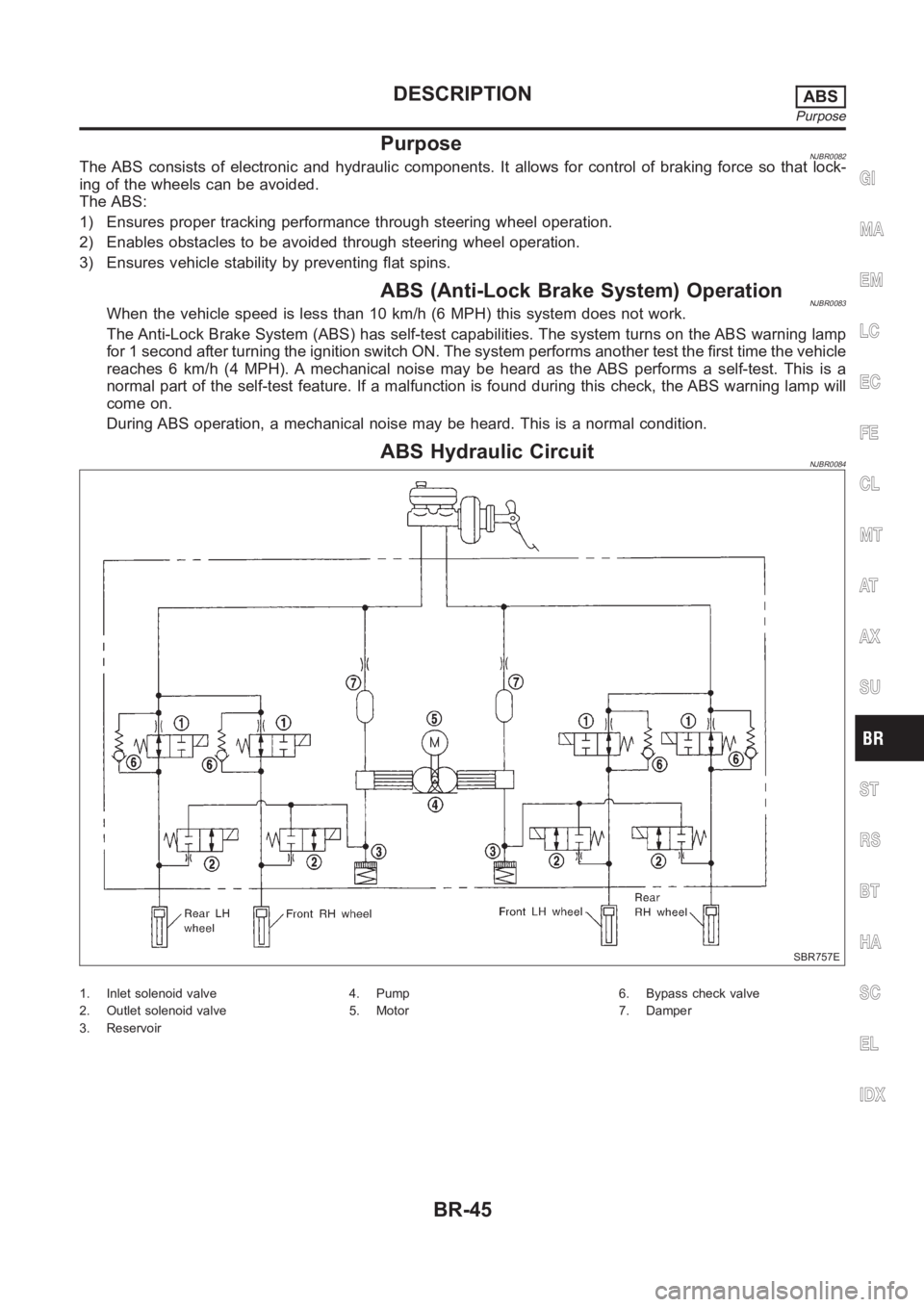

NISSAN ALMERA N16 2003 Electronic Repair Manual PurposeNJBR0082The ABS consists of electronic and hydraulic components. It allows for control of braking force so that lock-
ing of the wheels can be avoided.
The ABS:
1) Ensures proper tracking perfo

Page 2230 of 3189

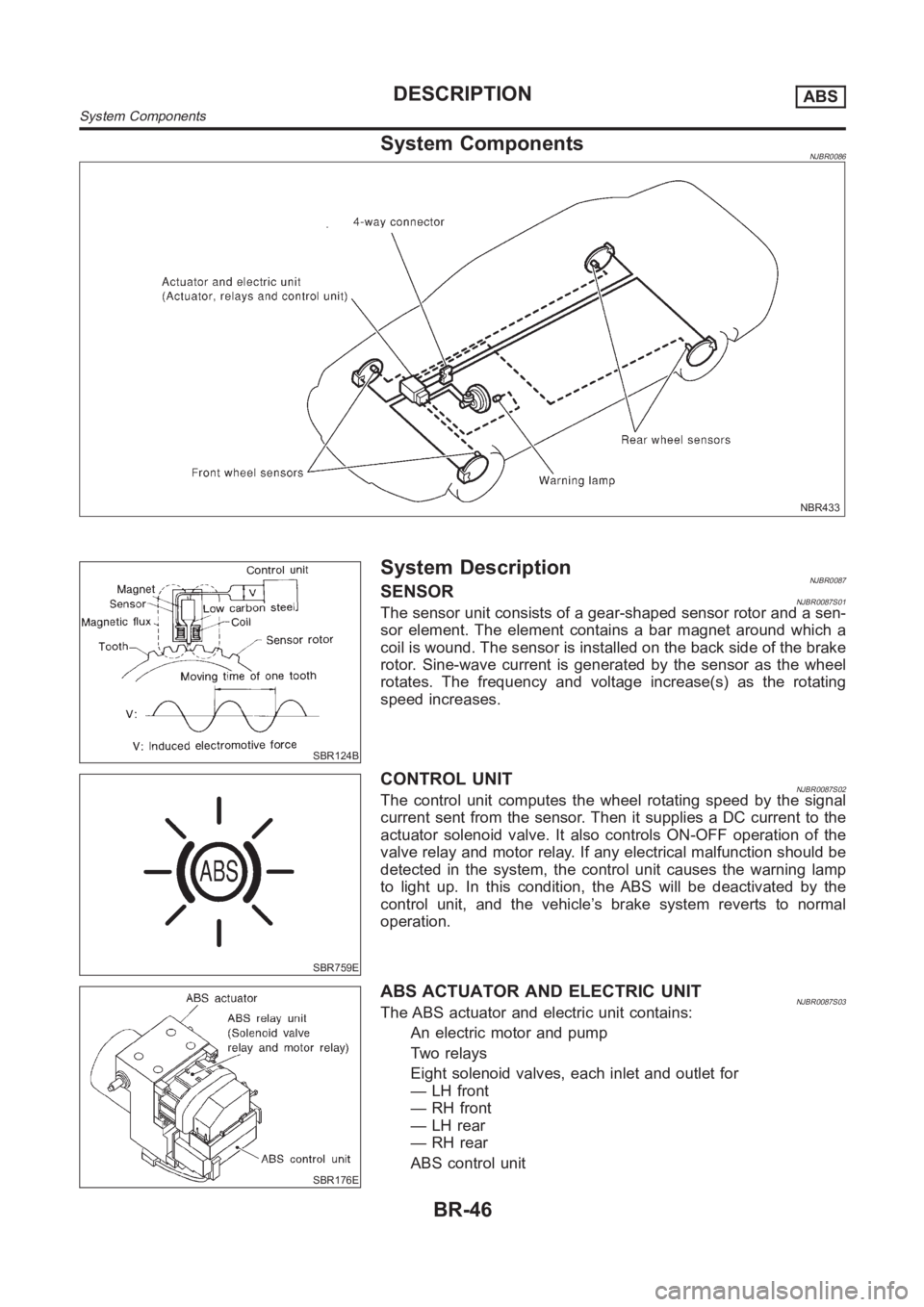

NISSAN ALMERA N16 2003 Electronic Repair Manual System ComponentsNJBR0086
NBR433
SBR124B
System DescriptionNJBR0087SENSORNJBR0087S01The sensor unit consists of a gear-shaped sensor rotor and a sen-
sor element. The element contains a bar magnet aro

Page 2231 of 3189

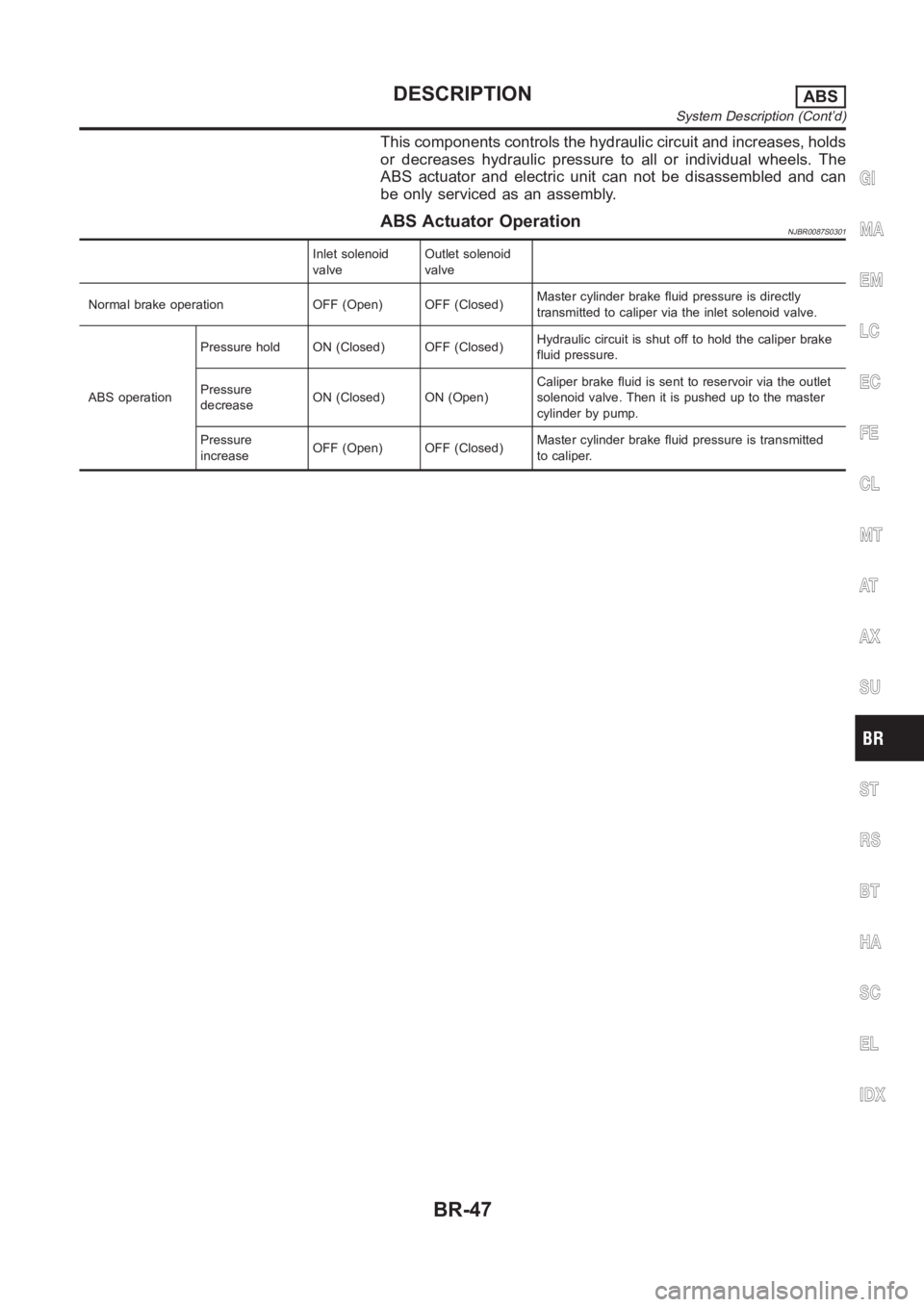

NISSAN ALMERA N16 2003 Electronic Repair Manual This components controls the hydraulic circuit and increases, holds
or decreases hydraulic pressure to all or individual wheels. The
ABS actuator and electric unit can not be disassembled and can
be o

Page 2232 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual Component Parts and Harness Connector
Location
NJBR0088
NBR432
DESCRIPTIONABS
Component Parts and Harness Connector Location
BR-48
