Page 1505 of 3189
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
AT-49
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

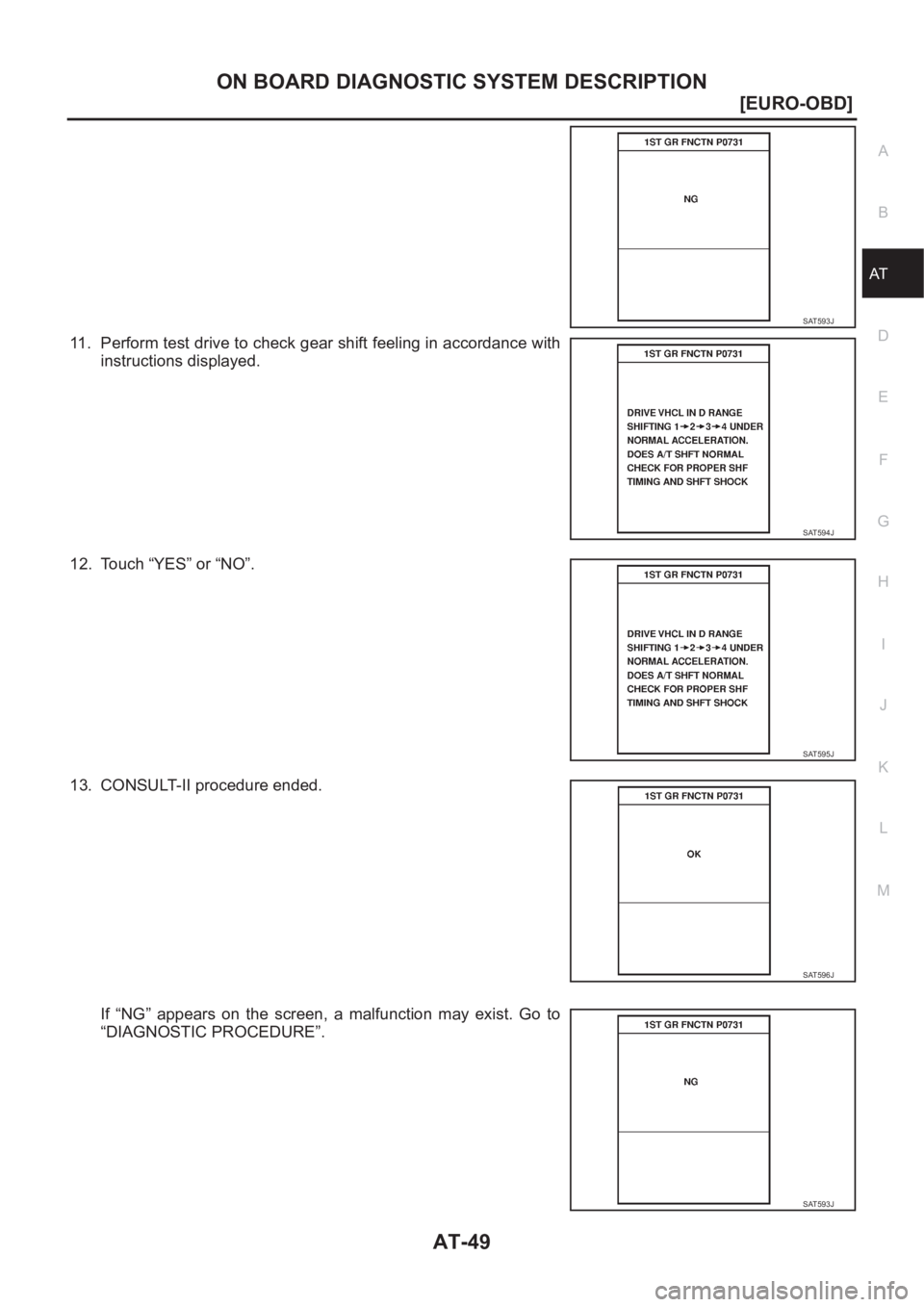

11. Perform test drive to check gear shift feeling in accordance with
instructions displayed.
12. Touch “YES” or “NO”.
13. CONSULT-II procedure ended.
If “NG” appears on the screen, a malfunction may exist. Go to
“DIAGNOSTIC PROCEDURE”.
SAT593J
SAT594J
SAT595J
SAT596J
SAT593J
Page 1506 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual AT-50
[EURO-OBD]
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
DTC WORK SUPPORT MODE
Diagnostic Procedure Without CONSULT-IIECS007NT
EURO-OBD SELF-DIAGNOSTIC PROCEDURE (WITH GST)
Refer to EC-97, "Generic NISSAN ALMERA N16 2003 Electronic Repair Manual AT-50
[EURO-OBD]
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
DTC WORK SUPPORT MODE
Diagnostic Procedure Without CONSULT-IIECS007NT
EURO-OBD SELF-DIAGNOSTIC PROCEDURE (WITH GST)
Refer to EC-97, "Generic](/manual-img/5/57350/w960_57350-1505.png)

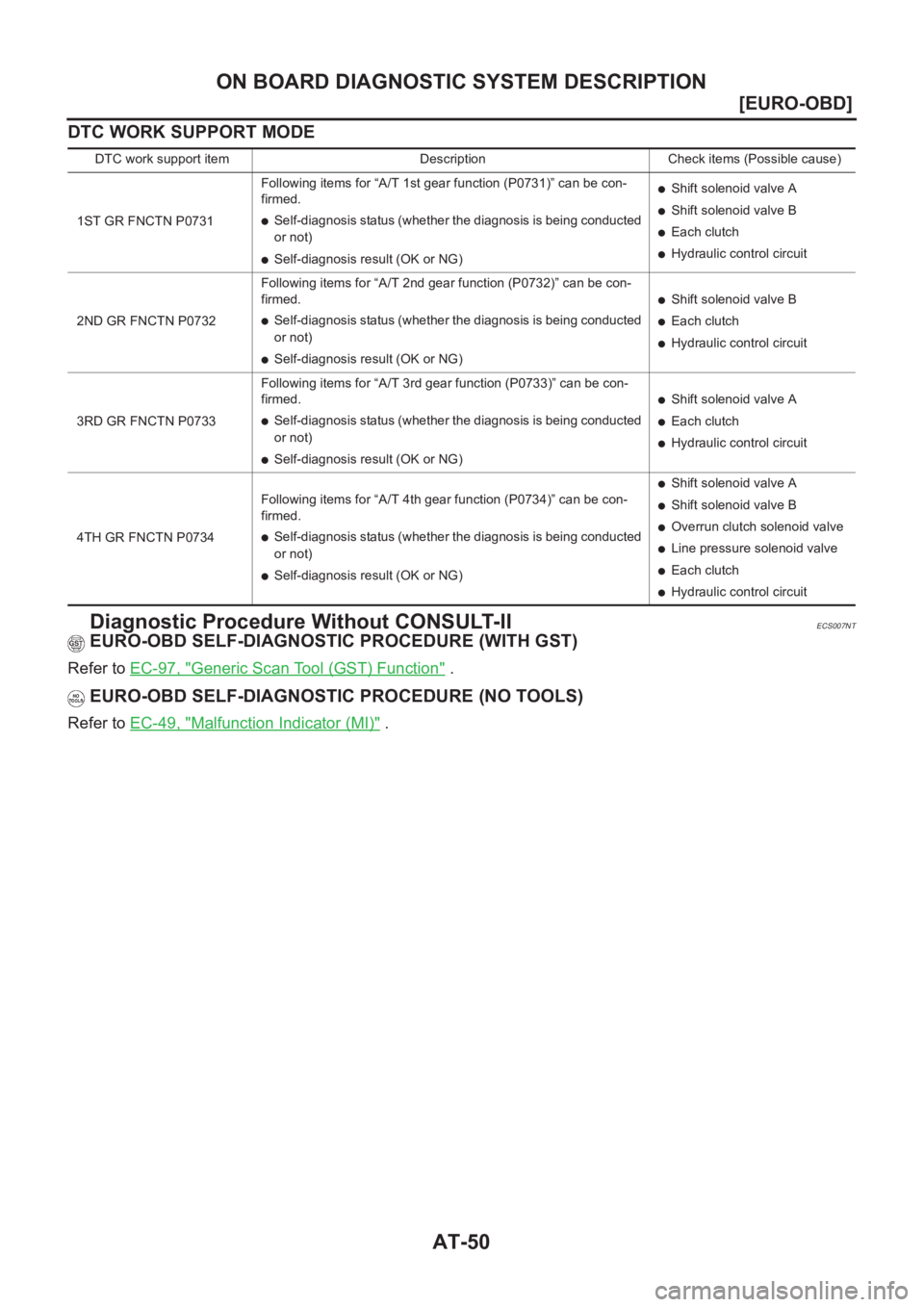

AT-50
[EURO-OBD]
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
DTC WORK SUPPORT MODE
Diagnostic Procedure Without CONSULT-IIECS007NT
EURO-OBD SELF-DIAGNOSTIC PROCEDURE (WITH GST)
Refer to EC-97, "Generic Scan Tool (GST) Function" .
EURO-OBD SELF-DIAGNOSTIC PROCEDURE (NO TOOLS)
Refer to EC-49, "Malfunction Indicator (MI)" .
DTC work support item Description Check items (Possible cause)
1ST GR FNCTN P0731Following items for “A/T 1st gear function (P0731)” can be con-
firmed.
●Self-diagnosis status (whether the diagnosis is being conducted
or not)
●Self-diagnosis result (OK or NG)
●Shift solenoid valve A
●Shift solenoid valve B
●Each clutch
●Hydraulic control circuit
2ND GR FNCTN P0732Following items for “A/T 2nd gear function (P0732)” can be con-
firmed.
●Self-diagnosis status (whether the diagnosis is being conducted
or not)
●Self-diagnosis result (OK or NG)
●Shift solenoid valve B
●Each clutch
●Hydraulic control circuit
3RD GR FNCTN P0733Following items for “A/T 3rd gear function (P0733)” can be con-
firmed.
●Self-diagnosis status (whether the diagnosis is being conducted
or not)
●Self-diagnosis result (OK or NG)
●Shift solenoid valve A
●Each clutch
●Hydraulic control circuit
4TH GR FNCTN P0734Following items for “A/T 4th gear function (P0734)” can be con-
firmed.
●Self-diagnosis status (whether the diagnosis is being conducted
or not)
●Self-diagnosis result (OK or NG)
●Shift solenoid valve A
●Shift solenoid valve B
●Overrun clutch solenoid valve
●Line pressure solenoid valve
●Each clutch
●Hydraulic control circuit
Page 1507 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
AT-51
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS)
1.CHECK O/D OFF INDICATOR LAMP
1. Start engine and warm it up to normal ope NISSAN ALMERA N16 2003 Electronic Repair Manual ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
AT-51
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS)
1.CHECK O/D OFF INDICATOR LAMP
1. Start engine and warm it up to normal ope](/manual-img/5/57350/w960_57350-1506.png)
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

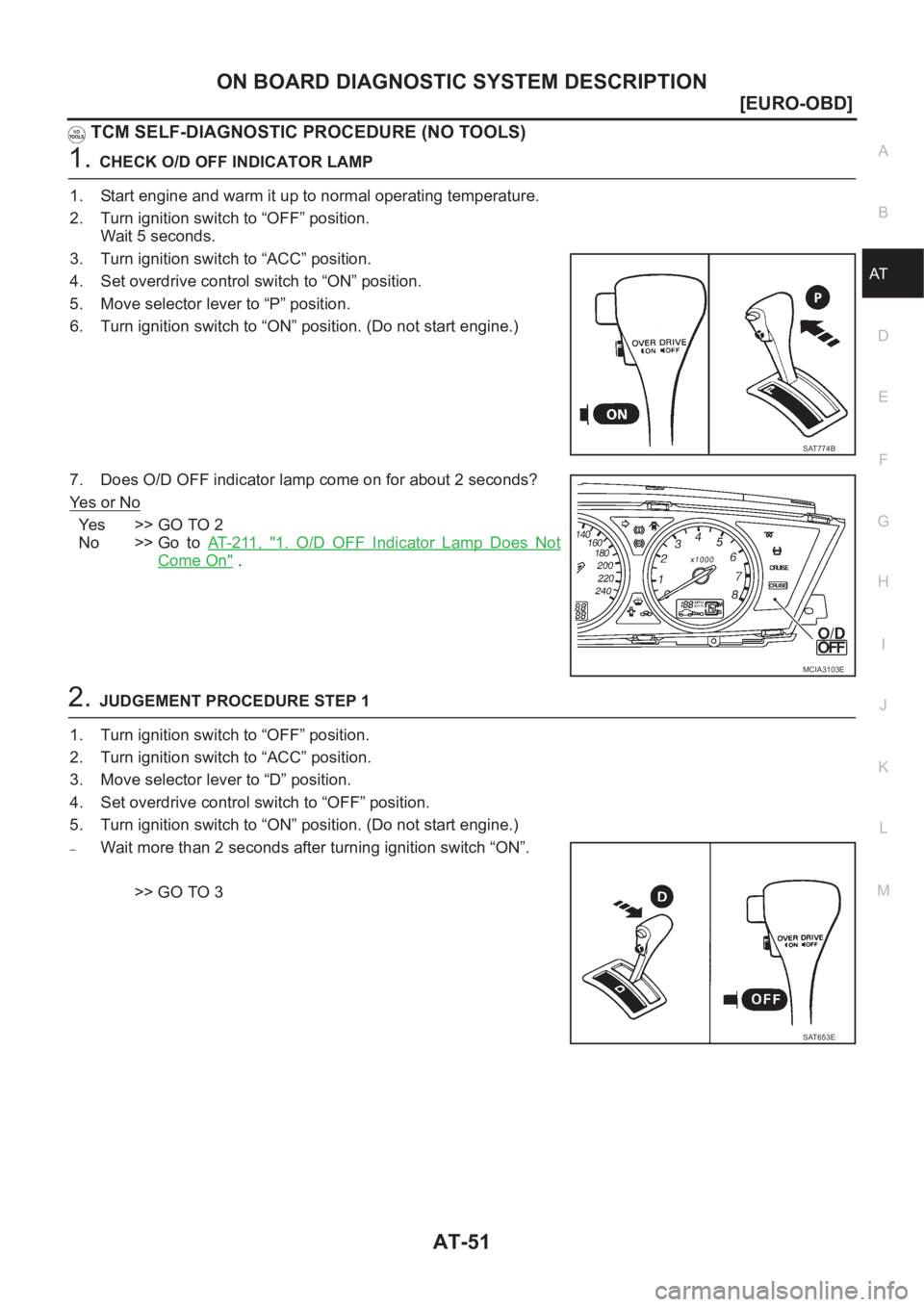

AT-51
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS)
1.CHECK O/D OFF INDICATOR LAMP
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch to “OFF” position.
Wait 5 seconds.
3. Turn ignition switch to “ACC” position.
4. Set overdrive control switch to “ON” position.
5. Move selector lever to “P” position.
6. Turn ignition switch to “ON” position. (Do not start engine.)
7. Does O/D OFF indicator lamp come on for about 2 seconds?
Ye s o r N o
Ye s > > G O T O 2
No >> Go to AT- 2 11 , "
1. O/D OFF Indicator Lamp Does Not
Come On" .
2.JUDGEMENT PROCEDURE STEP 1
1. Turn ignition switch to “OFF” position.
2. Turn ignition switch to “ACC” position.
3. Move selector lever to “D” position.
4. Set overdrive control switch to “OFF” position.
5. Turn ignition switch to “ON” position. (Do not start engine.)
–Wait more than 2 seconds after turning ignition switch “ON”.
>> GO TO 3
SAT774B
MCIA3103E
SAT653E
Page 1508 of 3189

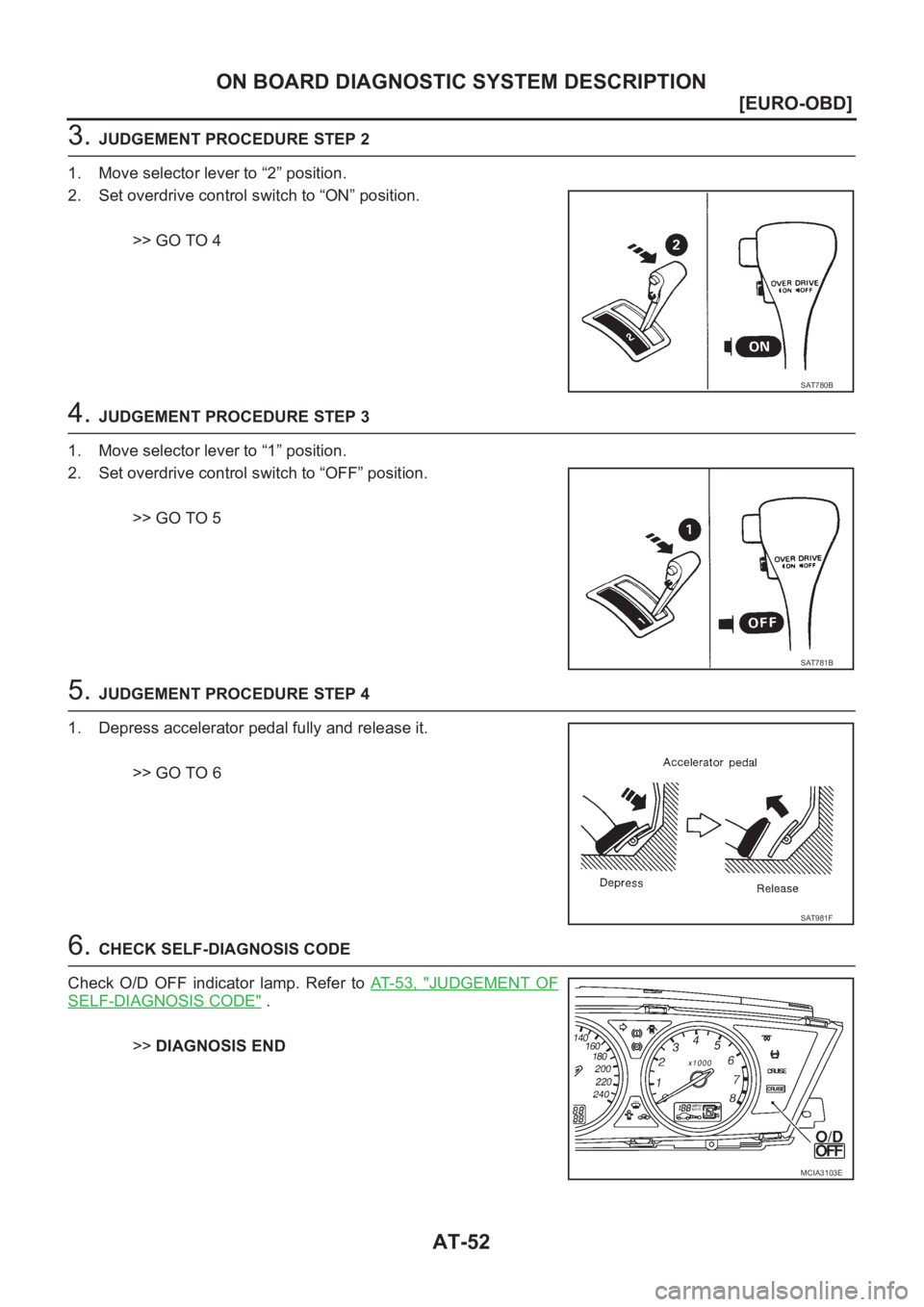

AT-52
[EURO-OBD]
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
3. JUDGEMENT PROCEDURE STEP 2
1. Move selector lever to “2” position.
2. Set overdrive control switch to “ON” position.
>> GO TO 4
4. JUDGEMENT PROCEDURE STEP 3
1. Move selector lever to “1” position.
2. Set overdrive control switch to “OFF” position.
>> GO TO 5
5. JUDGEMENT PROCEDURE STEP 4
1. Depress accelerator pedal fully and release it.
>> GO TO 6
6. CHECK SELF-DIAGNOSIS CODE
Check O/D OFF indicator lamp. Refer to AT- 5 3 , "
JUDGEMENT OF
SELF-DIAGNOSIS CODE" .
>>DIAGNOSIS END
SAT780B
SAT781B
SAT981F
MCIA3103E
Page 1509 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
AT-53
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
JUDGEMENT OF SELF-DIAGNOSIS CODE
O/D OFF indicator lamp:
All judgement flickers are the same.
All circuits that can be NISSAN ALMERA N16 2003 Electronic Repair Manual ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
AT-53
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
JUDGEMENT OF SELF-DIAGNOSIS CODE
O/D OFF indicator lamp:
All judgement flickers are the same.
All circuits that can be](/manual-img/5/57350/w960_57350-1508.png)
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

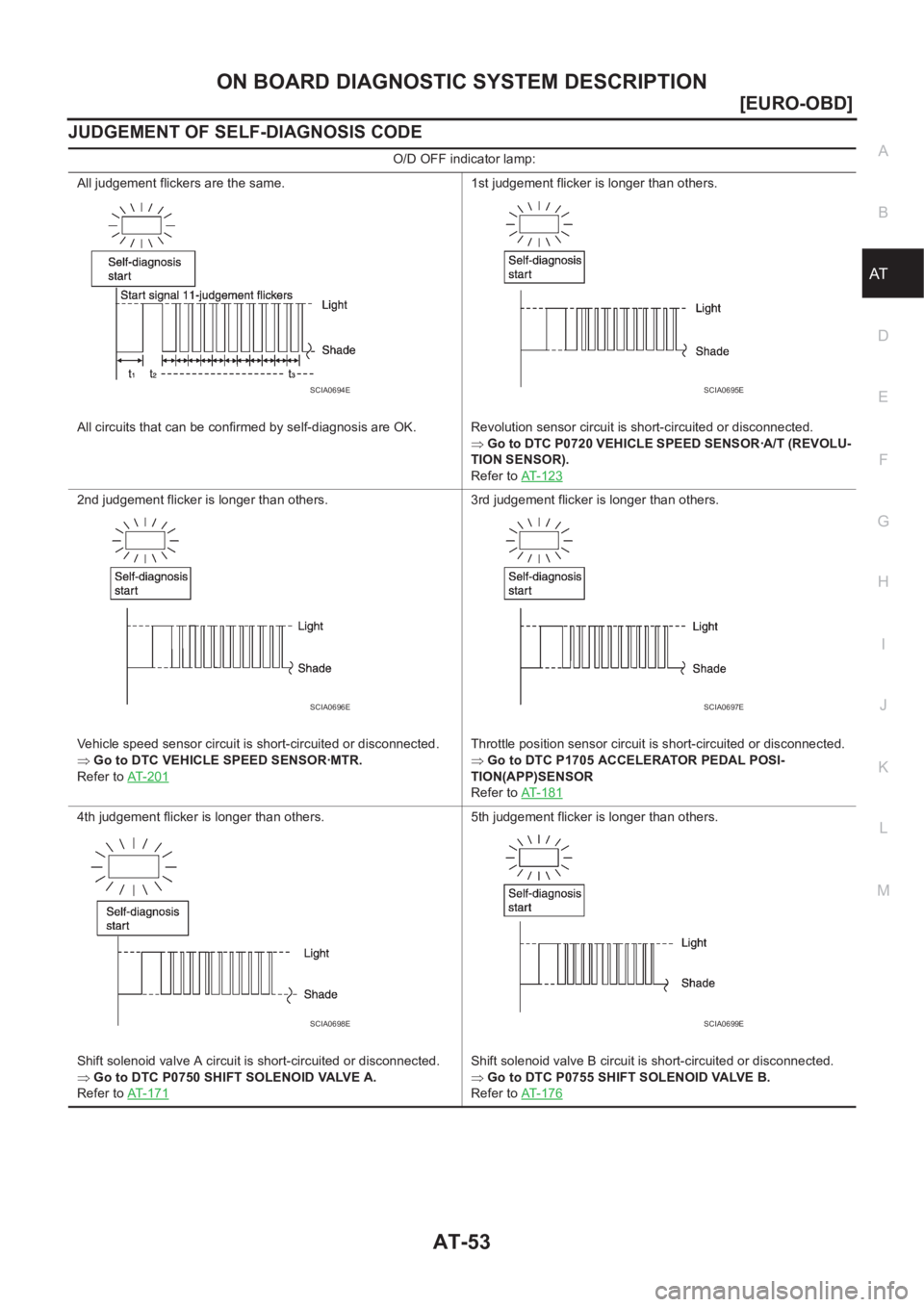

AT-53
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
JUDGEMENT OF SELF-DIAGNOSIS CODE
O/D OFF indicator lamp:
All judgement flickers are the same.
All circuits that can be confirmed by self-diagnosis are OK.1st judgement flicker is longer than others.
Revolution sensor circuit is short-circuited or disconnected.
Go to DTC P0720 VEHICLE SPEED SENSOR·A/T (REVOLU-
TION SENSOR).
Refer to AT-123
2nd judgement flicker is longer than others.
Vehicle speed sensor circuit is short-circuited or disconnected.
Go to DTC VEHICLE SPEED SENSOR·MTR.
Refer to AT- 2 0 13rd judgement flicker is longer than others.
Throttle position sensor circuit is short-circuited or disconnected.
Go to DTC P1705 ACCELERATOR PEDAL POSI-
TION(APP)SENSOR
Refer to AT-181
4th judgement flicker is longer than others.
Shift solenoid valve A circuit is short-circuited or disconnected.
Go to DTC P0750 SHIFT SOLENOID VALVE A.
Refer to AT- 1 7 15th judgement flicker is longer than others.
Shift solenoid valve B circuit is short-circuited or disconnected.
Go to DTC P0755 SHIFT SOLENOID VALVE B.
Refer to AT-176
SCIA0694ESCIA0695E
SCIA0696ESCIA0697E
SCIA0698ESCIA0699E
Page 1510 of 3189

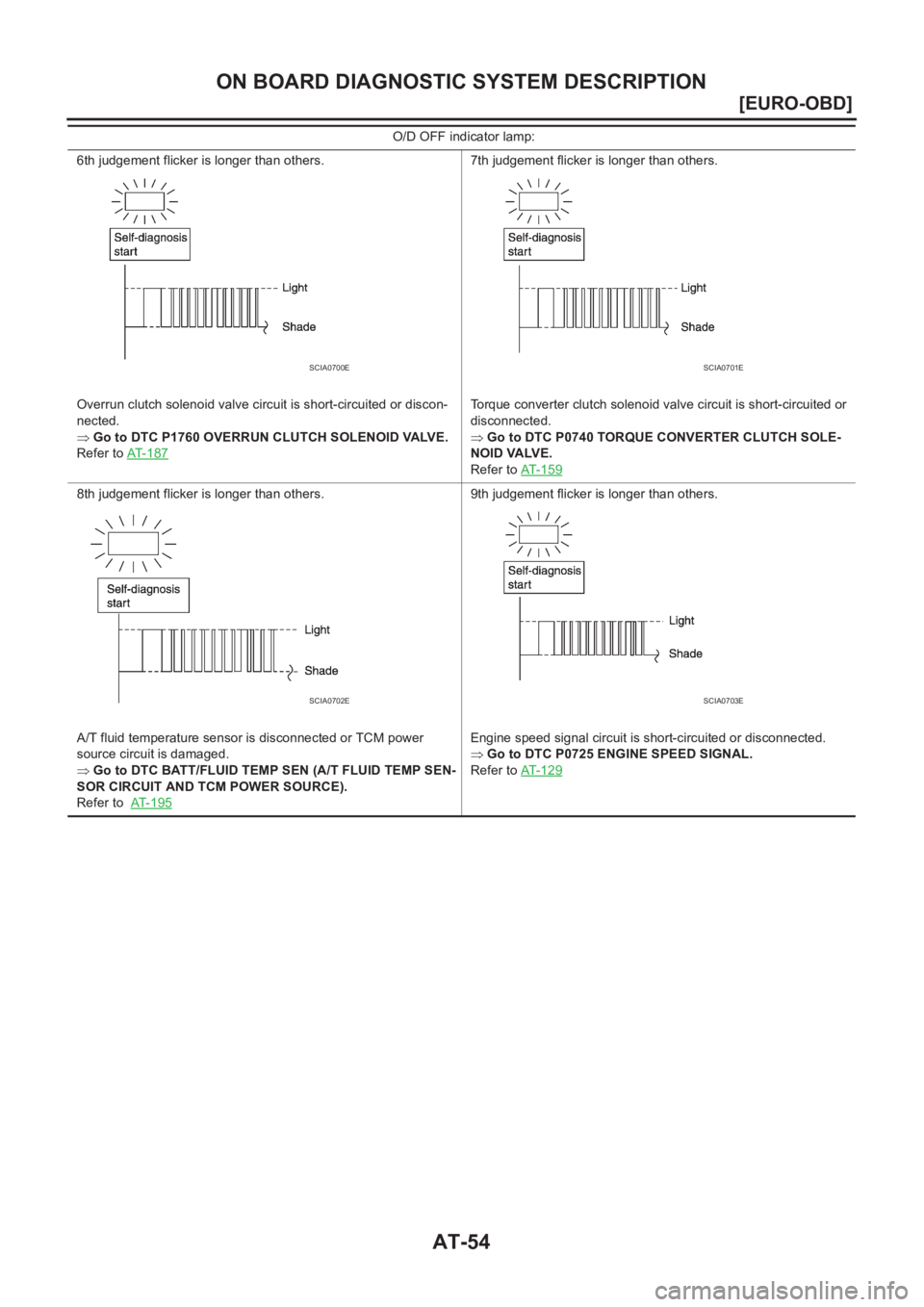

AT-54
[EURO-OBD]
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
6th judgement flicker is longer than others.
Overrun clutch solenoid valve circuit is short-circuited or discon-
nected.
Go to DTC P1760 OVERRUN CLUTCH SOLENOID VALVE.
Refer to AT-1877th judgement flicker is longer than others.
Torque converter clutch solenoid valve circuit is short-circuited or
disconnected.
Go to DTC P0740 TORQUE CONVERTER CLUTCH SOLE-
NOID VALVE.
Refer to AT- 1 5 9
8th judgement flicker is longer than others.
A/T fluid temperature sensor is disconnected or TCM power
source circuit is damaged.
Go to DTC BATT/FLUID TEMP SEN (A/T FLUID TEMP SEN-
SOR CIRCUIT AND TCM POWER SOURCE).
Refer to AT- 1 9 59th judgement flicker is longer than others.
Engine speed signal circuit is short-circuited or disconnected.
Go to DTC P0725 ENGINE SPEED SIGNAL.
Refer to AT- 1 2 9
O/D OFF indicator lamp:
SCIA0700ESCIA0701E
SCIA0702ESCIA0703E
Page 1511 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
AT-55
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
t1 = 2.5 seconds t2 = 2.0 seconds t3 = 1.0 second t4 = 1.0 second 10th judgement flicker is longer than others.
Li NISSAN ALMERA N16 2003 Electronic Repair Manual ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
AT-55
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
t1 = 2.5 seconds t2 = 2.0 seconds t3 = 1.0 second t4 = 1.0 second 10th judgement flicker is longer than others.
Li](/manual-img/5/57350/w960_57350-1510.png)
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
AT-55
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
t1 = 2.5 seconds t2 = 2.0 seconds t3 = 1.0 second t4 = 1.0 second 10th judgement flicker is longer than others.
Line pressure solenoid valve circuit is short-circuited or discon-
nected.
Go to DTC P0745 LINE PRESSURE SOLENOID VALVE.
Refer to AT- 1 6 4
11th judgement flicker is longer than others.
The ECM-AT communication line is open or shorted.
Go to DTC U1000 CAN COMMNICATION LINE.
Refer to AT-192
Lamp comes off.
PNP switch, overdrive control switch or throttle position switch cir-
cuit is disconnected or TCM is damaged.
Go to 21. TCM Self-diagnosis Does Not Activate (PNP &
Overdrive Control Switches, and Throttle Position Sensor
Circuit Checks).
Refer to AT- 2 3 7Flickers as shown below.
Battery power is low.
Battery has been disconnected for a long time.
Battery is connected conversely.
(When reconnecting TCM connectors.—This is not a problem). O/D OFF indicator lamp:
SCIA0704ESCIA0705E
SCIA0706ESAT804H
Page 1512 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual AT-56
[EURO-OBD]
TROUBLE DIAGNOSIS — INTRODUCTION
TROUBLE DIAGNOSIS — INTRODUCTION
PFP:00000
IntroductionECS007NU
The TCM receives a signal from the vehicle speed sensor, throttle
position sensor NISSAN ALMERA N16 2003 Electronic Repair Manual AT-56
[EURO-OBD]
TROUBLE DIAGNOSIS — INTRODUCTION
TROUBLE DIAGNOSIS — INTRODUCTION
PFP:00000
IntroductionECS007NU
The TCM receives a signal from the vehicle speed sensor, throttle
position sensor](/manual-img/5/57350/w960_57350-1511.png)
AT-56
[EURO-OBD]
TROUBLE DIAGNOSIS — INTRODUCTION
TROUBLE DIAGNOSIS — INTRODUCTION
PFP:00000
IntroductionECS007NU
The TCM receives a signal from the vehicle speed sensor, throttle
position sensor or PNP switch and provides shift control or lock-up
control via A/T solenoid valves.
The TCM also communicates with the ECM by means of a signal
sent from sensing elements used with the EURO-OBD related parts
of the A/T system for malfunction-diagnostic purposes. The TCM is
capable of diagnosing malfunctioning parts while the ECM can store
malfunctions in its memory.
Input and output signals must always be correct and stable in the
operation of the A/T system. The A/T system must be in good oper-
ating condition and be free of valve seizure, solenoid valve malfunc-
tion, etc.
It is much more difficult to diagnose a problem that occurs intermit-
tently rather than continuously. Most intermittent problems are
caused by poor electric connections or improper wiring. In this case,
careful checking of suspected circuits may help prevent the replace-
ment of good parts.
A visual check only, may not find the cause of the problems. A road
test with CONSULT-II (or GST) or a circuit tester connected should
be performed. Follow the “Work Flow”. Refer to AT- 6 0 , "
Work Flow" .
Before undertaking actual checks, take a few minutes to talk with a
customer who approaches with a drive ability complaint. The cus-
tomer can supply good information about such problems, especially
intermittent ones. Find out what symptoms are present and under
what conditions they occur. A “Diagnostic Worksheet” like the exam-
ple (AT- 5 7 , "
DIAGNOSTIC WORKSHEET" ) should be used.
Start your diagnosis by looking for “conventional” problems first. This
will help troubleshoot drive ability problems on an electronically con-
trolled engine vehicle.
Also check related Service bulletins for information.
SAT631IA
SAT632I
SEF234G
