Page 2497 of 3189
YEL452D
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
FRONT WIPER AND WASHER
Wiring Diagram — WIPER — (Cont’d)
EL-161
Page 2498 of 3189
SEL543TA
Removal and InstallationNJEL0060WIPER ARMSNJEL0060S011. Prior to wiper arm installation, turn on wiper switch to operate
wiper motor and then turn it “OFF” (Auto Stop).
2. Lift the blade up and then set it down onto glass surface to set
the blade center to clearance “L
1”&“L2” immediately before
tightening nut.
3. Eject washer fluid. Turn on wiper switch to operate wiper motor
and then turn it “OFF”.
4. Ensure that wiper blades stop within clearance “L
1”&“L2”.
Clearance “L1”:23-37mm(0.91-1.46in)
Clearance “L
2”:24-38mm(0.94-1.50in)
Tighten wiper arm nuts to specified torque.
Front wiper: 21 - 26 N·m (2.1 - 2.7 kg-m, 16 - 19 ft-lb)
SEL024J
Before reinstalling wiper arm, clean up the pivot area as
illustrated. This will reduce possibility of wiper arm loose-
ness.
WIPER LINKAGENJEL0060S02
NEL801
FRONT WIPER AND WASHER
Removal and Installation
EL-162
Page 2499 of 3189

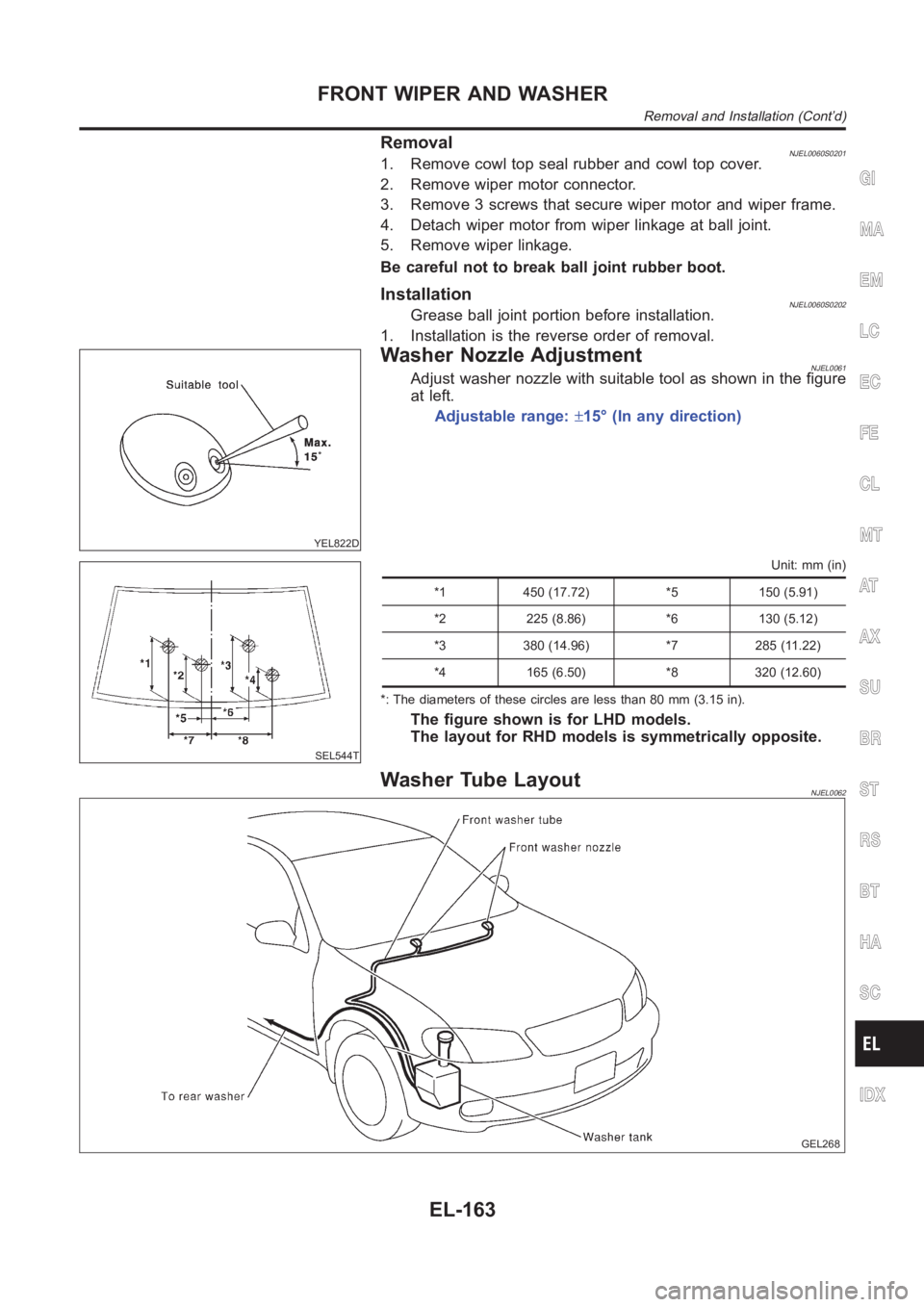

RemovalNJEL0060S02011. Remove cowl top seal rubber and cowl top cover.
2. Remove wiper motor connector.
3. Remove 3 screws that secure wiper motor and wiper frame.
4. Detach wiper motor from wiper linkage at ball joint.
5. Remove wiper linkage.
Be careful not to break ball joint rubber boot.
InstallationNJEL0060S0202Grease ball joint portion before installation.
1. Installation is the reverse order of removal.
YEL822D
Washer Nozzle AdjustmentNJEL0061Adjust washer nozzle with suitable tool as shown in the figure
at left.
Adjustable range:±15° (In any direction)
SEL544T
Unit: mm (in)
*1 450 (17.72) *5 150 (5.91)
*2 225 (8.86) *6 130 (5.12)
*3 380 (14.96) *7 285 (11.22)
*4 165 (6.50) *8 320 (12.60)
*: The diameters of these circles are less than 80 mm (3.15 in).
The figure shown is for LHD models.
The layout for RHD models is symmetrically opposite.
Washer Tube LayoutNJEL0062
GEL268
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
FRONT WIPER AND WASHER
Removal and Installation (Cont’d)
EL-163
Page 2500 of 3189
Wiring Diagram — WIP/R —NJEL0458
YEL710D
REAR WIPER AND WASHER
Wiring Diagram — WIP/R —
EL-164
Page 2501 of 3189
YEL454D
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
REAR WIPER AND WASHER
Wiring Diagram — WIP/R — (Cont’d)
EL-165
Page 2502 of 3189

SEL451XA
Removal and InstallationNJEL0301WIPER ARMSNJEL0301S011. Prior to wiper arm installation, turn on wiper switch to operate
wiper motor and then turn it “OFF” (Auto Stop).
2. Lift the blade up and then set it down onto glass surface. Set
the black center to clearance “E” immediately before tighten-
ing the nut.
3. Eject washer fluid. Turn on wiper switch to operate wiper motor
and then turn it “OFF”.
4. Ensure that wiper blades stop on the lowest heat wire.
Tighten windshield wiper arm nuts to specified torque.
: 13 - 18 N·m (1.3 - 1.8 kg-m, 10 - 13 ft-lb)
Rear wiper motor assembly mounting bolts
: 4 - 5 N·m (0.4 - 0.5 kg-m, 36 - 44 in-lb)
SEL024J
Before reinstalling wiper arm, clean up the pivot area as
illustrated. This will reduce possibility of wiper arm loose-
ness.
YEL823D
Washer Nozzle AdjustmentNJEL0302Adjust washer nozzle with suitable tool as shown in the figure
at left.
Adjustable range:±15° (In any direction)
SEL452XA
The diameter of the washer spit circle is less than 30 mm (1.18 in).
REAR WIPER AND WASHER
Removal and Installation
EL-166
Page 2503 of 3189

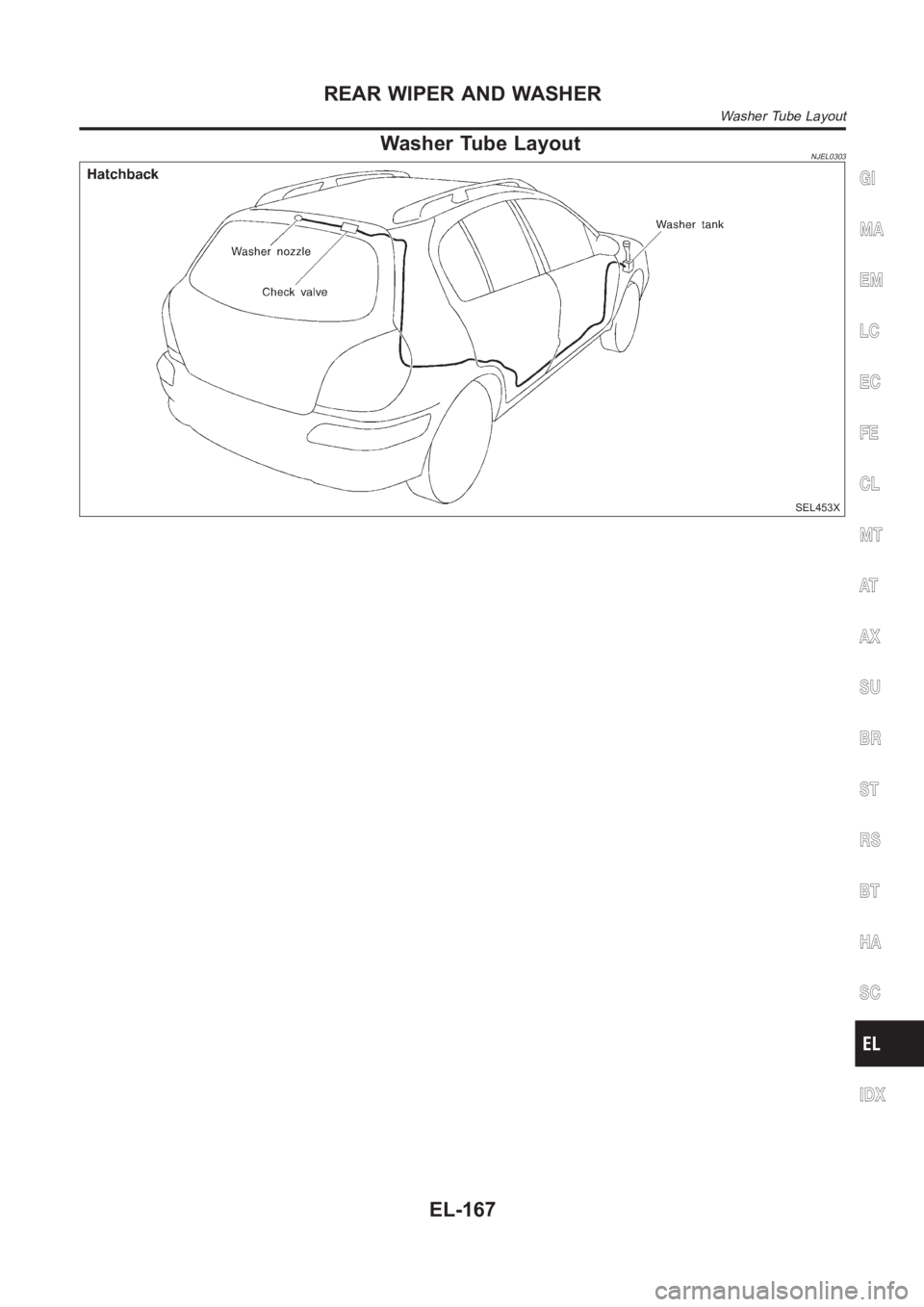

Washer Tube LayoutNJEL0303
SEL453X
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
REAR WIPER AND WASHER
Washer Tube Layout
EL-167
Page 2504 of 3189
Wiring Diagram — HLC —NJEL0459
YEL455D
HEADLAMP WASHER
Wiring Diagram — HLC —
EL-168
