Page 1289 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual JFE613A SFE639A SFE640A For HatchbackNJFE0016S01021. Disconnect battery ground cable. 2. Open fuel filler lid and filler cap. 3. Drain fuel from fuel tank. 4. Remove rear seat cushion. Refer to BT-59,

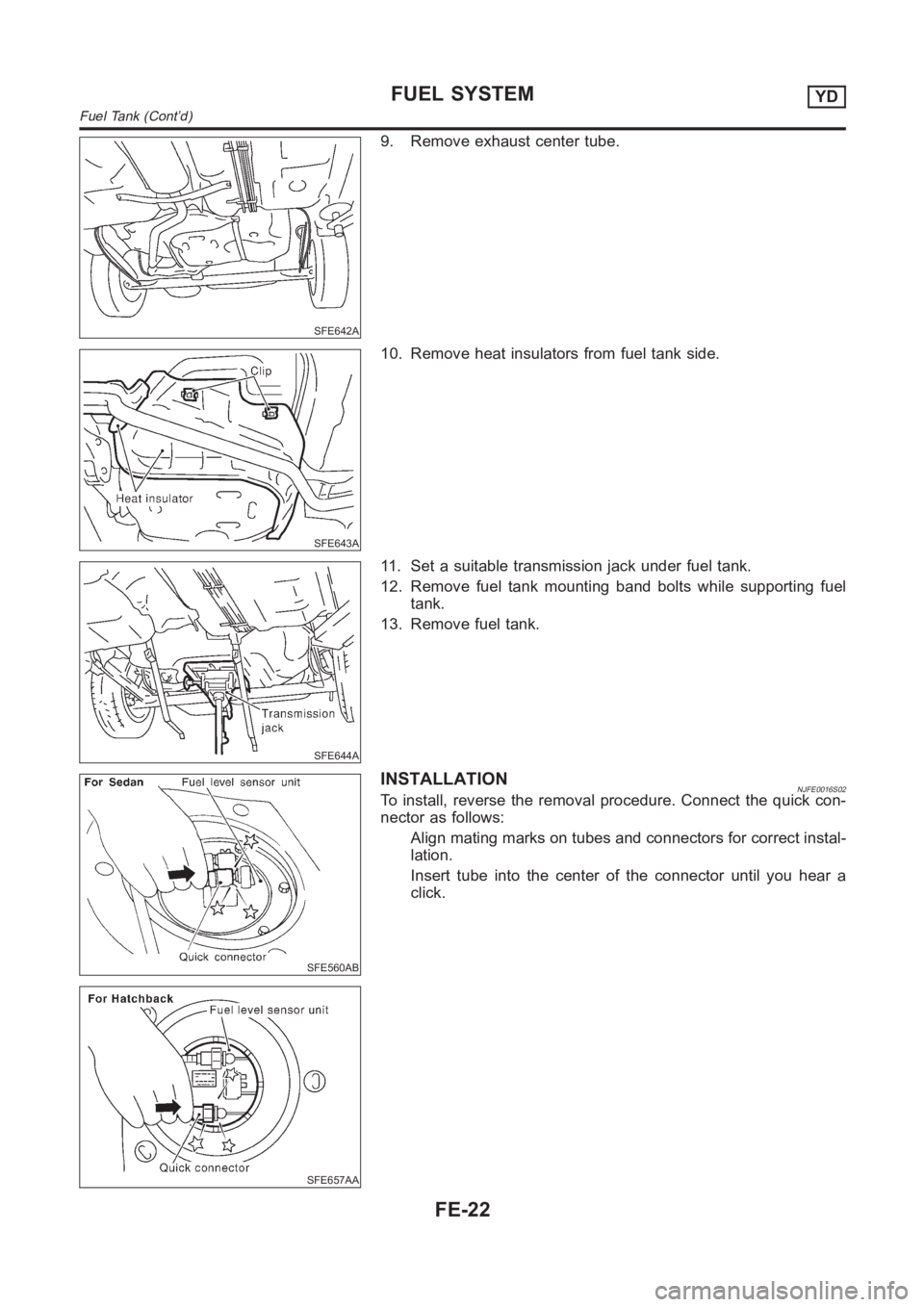

Page 1290 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual SFE642A 9. Remove exhaust center tube. SFE643A 10. Remove heat insulators from fuel tank side. SFE644A 11. Set a suitable transmission jack under fuel tank. 12. Remove fuel tank mounting band bolts wh

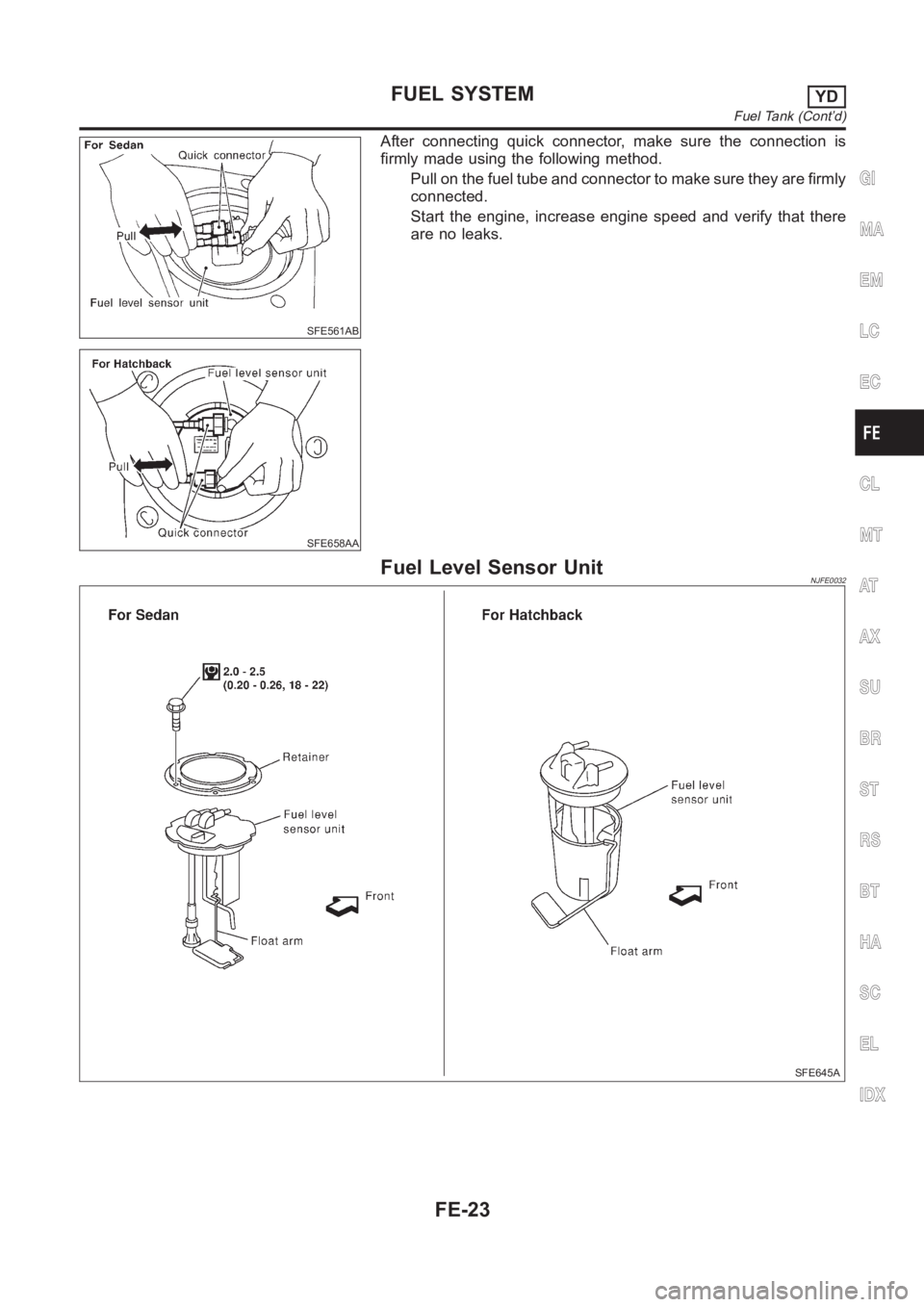

Page 1291 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual SFE561AB SFE658AA After connecting quick connector, make sure the connection is firmly made using the following method. Pull on the fuel tube and connector to make sure they are firmly connected. Star

Page 1292 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual JFE613A REMOVALNJFE0032S01For SedanNJFE0032S01011. Disconnect battery ground cable. 2. Open fuel filler lid and filler cap. 3. Remove rear seat cushion. Refer to BT-59, “Removal and Installation”.

Page 1293 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual SFE376A 7. Remove lock ring using a lock ring socket (SST). SFE648AA 8. Pull out the fuel level sensor unit and fuel pump. Do not damage the arm of the fuel level sensor unit. INSTALLATIONNJFE0032S02I

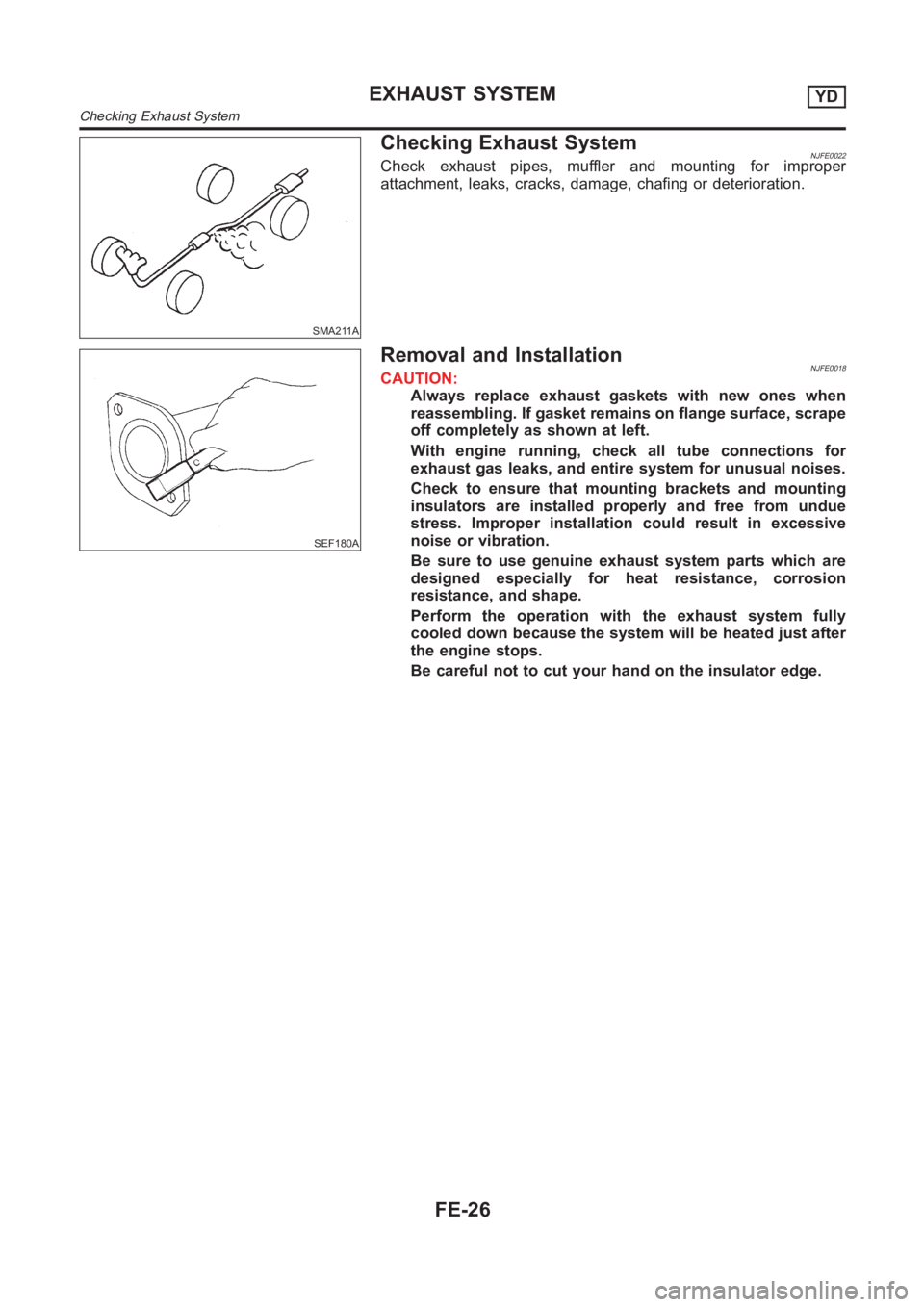

Page 1294 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual SMA211A Checking Exhaust SystemNJFE0022Check exhaust pipes, muffler and mounting for improper attachment, leaks, cracks, damage, chafing or deterioration. SEF180A Removal and InstallationNJFE0018CAUTI

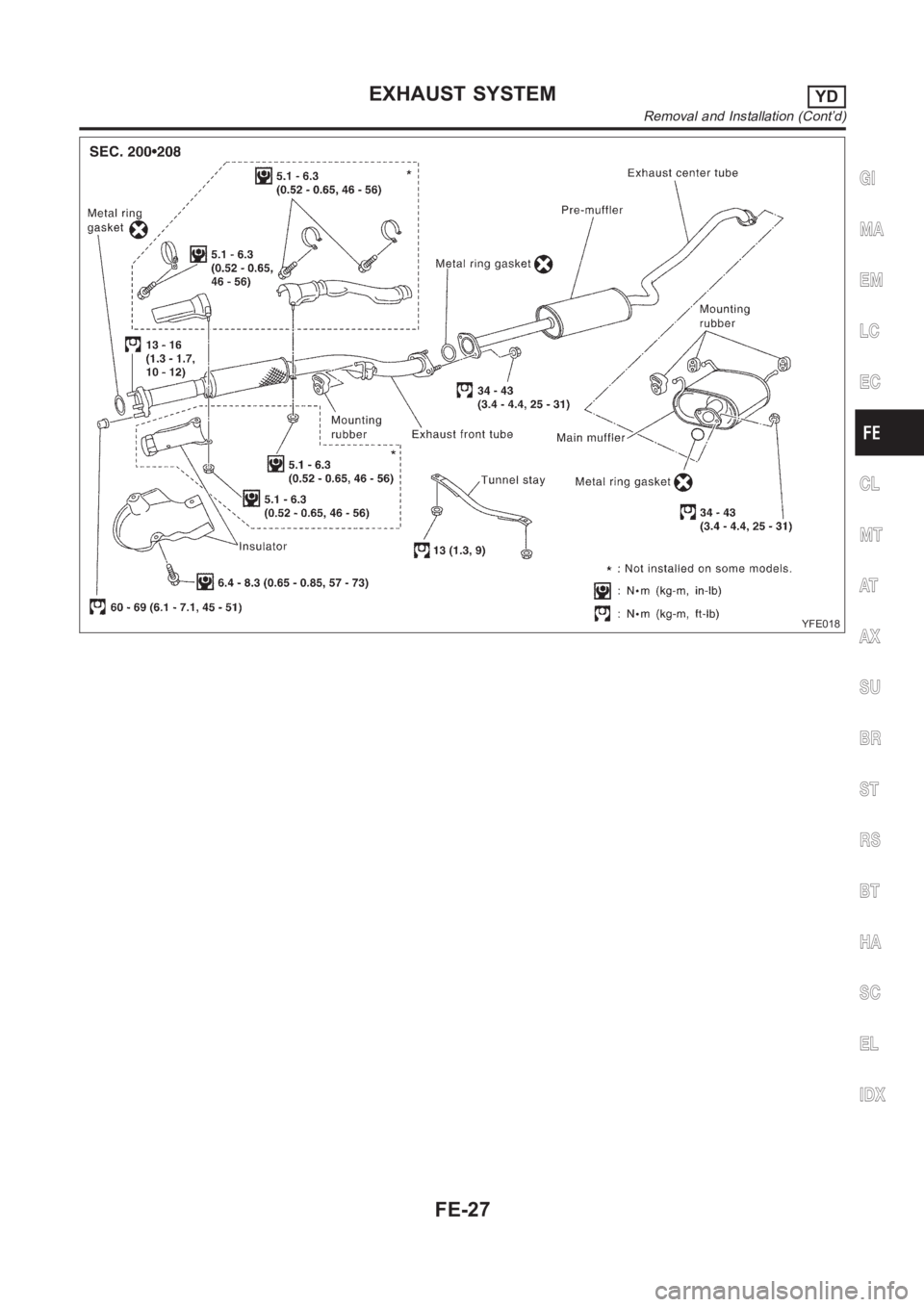

Page 1295 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual YFE018 GI MA EM LC EC CL MT AT AX SU BR ST RS BT HA SC EL IDX EXHAUST SYSTEMYD Removal and Installation (Cont’d) FE-27

Page 1296 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual NOTES
