TROUBLE DIAGNOSIS — INTRODUCTION
AT-57
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

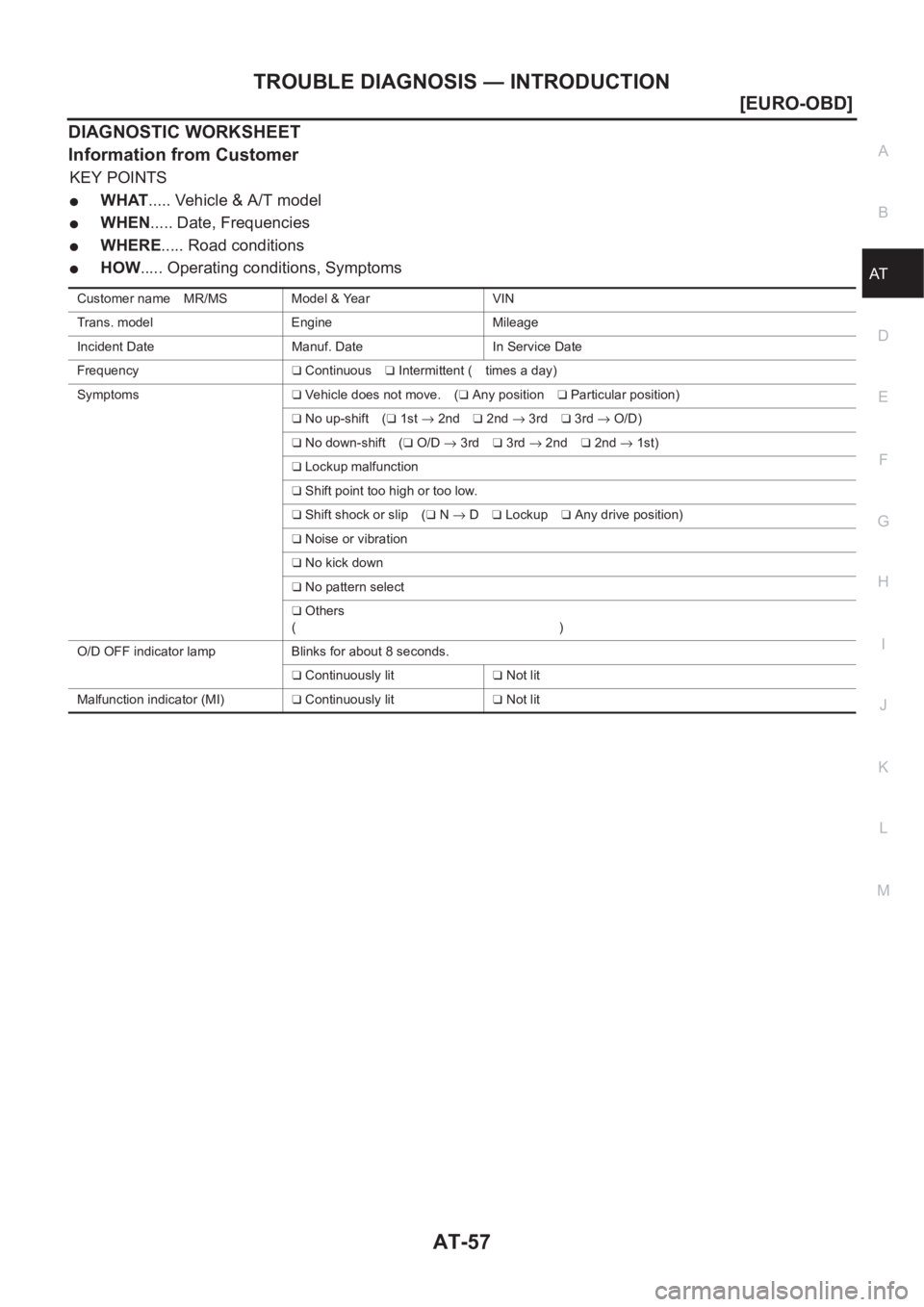

DIAGNOSTIC WORKSHEET
Information from Customer
KEY POINTS
●WHAT..... Vehicle & A/T model
●WHEN..... Date, Frequencies
●WHERE..... Road conditions
●HOW..... Operating conditions, Symptoms
Customer name MR/MS Model & Year VIN
Trans. model Engine Mileage
Incident Date Manuf. Date In Service Date
Frequency❏ Continuous❏ Intermittent ( times a day)
Symptoms❏ Vehicle does not move. (❏ Any position❏ Particular position)
❏ No up-shift (❏ 1st → 2nd❏ 2nd → 3rd❏ 3rd → O/D)
❏ No down-shift (❏ O/D → 3rd❏ 3rd → 2nd❏ 2nd → 1st)
❏ Lockup malfunction
❏ Shift point too high or too low.
❏ Shift shock or slip (❏ N → D❏ Lockup❏ Any drive position)
❏ Noise or vibration
❏ No kick down
❏ No pattern select
❏ Others
()
O/D OFF indicator lamp Blinks for about 8 seconds.
❏ Continuously lit❏ Not lit
Malfunction indicator (MI)❏ Continuously lit❏ Not lit
Page 1514 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual AT-58
[EURO-OBD]
TROUBLE DIAGNOSIS — INTRODUCTION
Diagnostic Worksheet
1.❏ Read the Fail-safe and listen to customer complaints.AT-57, "Infor-
mation from
Customer"
2.❏ CHECK A/T FLUIDA NISSAN ALMERA N16 2003 Electronic Repair Manual AT-58
[EURO-OBD]
TROUBLE DIAGNOSIS — INTRODUCTION
Diagnostic Worksheet
1.❏ Read the Fail-safe and listen to customer complaints.AT-57, "Infor-
mation from
Customer"
2.❏ CHECK A/T FLUIDA](/manual-img/5/57350/w960_57350-1513.png)
AT-58
[EURO-OBD]
TROUBLE DIAGNOSIS — INTRODUCTION
Diagnostic Worksheet
1.❏ Read the Fail-safe and listen to customer complaints.AT-57, "Infor-
mation from
Customer"
2.❏ CHECK A/T FLUIDAT-63, "A/T
Fluid Check"❏ Leakage (Follow specified procedure)
❏ Fluid condition
❏ Fluid level
3.❏ Perform STALL TEST and LINE PRESSURE TEST.AT-64, "
Stall
Te s t",AT- 6 7 ,
"Line Pres-
sure Test"
❏ Stall test — Mark possible damaged components/others.
❏ Torque converter one-way clutch
❏ Reverse clutch
❏ Forward clutch
❏ Overrun clutch
❏ Forward one-way clutch❏ Low & reverse brake
❏ Low one-way clutch
❏ Engine
❏ Line pressure is low
❏ Clutches and brakes except high clutch and
brake band are OK
❏ Line Pressure test — Suspected parts:
4.❏ Perform all ROAD TEST and mark required procedures.AT-68, "
Road
Te s t"
4-
1.Check before engine is started.AT-70, "1.
CHECK
BEFORE
ENGINE IS
STARTED"
❏ SELF-DIAGNOSTIC PROCEDURE/DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCE-
DURE. — Mark detected items.
❏ PNP switch, AT- 111
.
❏ A/T fluid temperature sensor, AT- 11 7
.
❏ Vehicle speed sensor·A/T (Revolution sensor), AT-123
.
❏ Engine speed signal, AT-129
.
❏ Torque converter clutch solenoid valve, AT- 1 5 9
.
❏ Line pressure solenoid valve, AT-164
.
❏ Shift solenoid valve A, AT-171
.
❏ Shift solenoid valve B, AT-176
.
❏ Accelerator pedal position (APP) sensor, AT-181
.
❏ Overrun clutch solenoid valve, AT-187
.
❏ PNP & overdrive control switches, and throttle position sensor, AT- 2 3 7
.
❏ Batt/fluid temp sen (A/T fluid temperature sensor and TCM power source), AT-195
.
❏ Vehicle speed sensor·MTR, AT- 2 0 1
.
❏ CAN communication line, AT-192
.
❏ Control unit (RAM), control unit (ROM), AT- 2 0 5
.
❏ Control unit (EEP ROM), AT- 2 0 7
.
❏ Battery
❏ Others
4-
2.Check at idleAT-71, "
2.
CHECK AT
IDLE"❏ 1. O/D OFF Indicator Lamp Does Not Come On, AT- 2 11 .
❏ 2. Engine Cannot Be Started In “P” And “N” Position, AT- 2 1 2
.
❏ 3. In “P” Position, Vehicle Moves Forward Or Backward When Pushed, AT- 2 1 3
.
❏ 4. In “N” Position, Vehicle Moves, AT- 2 1 4
.
❏ 5. Large Shock. “N” → “R” Position, AT-215
.
❏ 6. Vehicle Does Not Creep Backward In “R” Position, AT- 2 1 6
.
❏ 7. Vehicle Does Not Creep Forward In “D”, “2” Or “1” Position, AT-219
.
Page 1515 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual TROUBLE DIAGNOSIS — INTRODUCTION
AT-59
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
4. 4-
3.Cruise testAT- 7 4 , "3.
CRUISE
TEST"
AT- 7 8 ,
"Cruise Test
— Part 1"
Part-1
❏ 8. Vehi NISSAN ALMERA N16 2003 Electronic Repair Manual TROUBLE DIAGNOSIS — INTRODUCTION
AT-59
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
4. 4-
3.Cruise testAT- 7 4 , "3.
CRUISE
TEST"
AT- 7 8 ,
"Cruise Test
— Part 1"
Part-1
❏ 8. Vehi](/manual-img/5/57350/w960_57350-1514.png)
TROUBLE DIAGNOSIS — INTRODUCTION
AT-59
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
4. 4-
3.Cruise testAT- 7 4 , "3.
CRUISE
TEST"
AT- 7 8 ,
"Cruise Test
— Part 1"
Part-1
❏ 8. Vehicle Cannot Be Started From D
1 , AT- 2 2 1 .
❏ 9. A/T Does Not Shift: D
1→ D2 Or Does Not Kickdown: D4→ D2 , AT- 2 2 3 .
❏ 10. A/T Does Not Shift: D
2→ D3 , AT- 2 2 5 .
❏ 11. A/T Does Not Shift: D
3→ D4 , AT-227 .
❏ 12. A/T Does Not Perform Lock-up, AT- 2 3 0
.
❏ 13. A/T Does Not Hold Lock-up Condition, AT- 2 3 1
.
❏ 14. Lock-up Is Not Released, AT- 2 3 2
.
❏ 15. Engine Speed Does Not Return To Idle (Light Braking D
4→ D3 ), AT-233 .
Part-2AT- 8 1 ,
"Cruise Test
— Part 2"❏ 16. Vehicle Does Not Start From D1 , AT- 2 3 4 .
❏ 9. A/T Does Not Shift: D
1→ D2 Or Does Not Kickdown: D4→ D2 , AT- 2 2 3 .
❏ 10. A/T Does Not Shift: D
2→ D3 , AT- 2 2 5 .
❏ 11. A/T Does Not Shift: D
3→ D4 , AT-227 .
Part-3AT- 8 3 ,
"Cruise Test
— Part 3"❏ 17. A/T Does Not Shift: D4→ D3 When Overdrive Control Switch “ON” → “OFF”, AT- 2 3 5 .
❏ 15. Engine Speed Does Not Return To Idle (Light Braking D
4→ D3 ), AT-233 .
❏ 18. A/T Does Not Shift: D
3→ 22 , When Selector Lever “D” → “2” Position, AT-235 .
❏ 15. Engine Speed Does Not Return To Idle (Light Braking D
4→ D3 ), AT-233 .
❏ 19. A/T Does Not Shift: 2
2→ 11 , When Selector Lever “2” → “1” Position, AT-236 .
❏ 20. Vehicle Does Not Decelerate By Engine Brake, AT- 2 3 7
.
❏ 21. TCM Self-diagnosis Does Not Activate (PNP & Overdrive Control Switches, and Throttle Position
Sensor Circuit Checks), AT- 2 3 7
.
❏ SELF-DIAGNOSTIC PROCEDURE/DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCE-
DURE — Mark detected items.
❏ PNP switch, AT- 111
.
❏ A/T fluid temperature sensor, AT- 11 7
.
❏ Vehicle speed sensor·A/T (Revolution sensor), AT- 1 2 3
.
❏ Engine speed signal, AT- 1 2 9
.
❏ Torque converter clutch solenoid valve, AT-159
.
❏ Line pressure solenoid valve, AT-164
.
❏ Shift solenoid valve A, AT- 1 7 1
.
❏ Shift solenoid valve B, AT- 1 7 6
.
❏ Accelerator pedal position (APP) sensor, AT-181
.
❏ Overrun clutch solenoid valve, AT- 1 8 7
.
❏ PNP & overdrive control switches, and throttle position sensor, AT- 2 3 7
.
❏ A/T fluid temperature sensor and TCM power source, AT-195
.
❏ Vehicle speed sensor·MTR, AT-201
.
❏ CAN communication line, AT- 1 9 2
❏ Control unit (RAM), control unit (ROM), AT-205 .
❏ Control unit (EEP ROM), AT-207
.
❏ Battery
❏ Others
5.❏ For self-diagnosis NG items, inspect each component. Repair or replace the damaged parts.AT- 5 0 , "
Diag-
nostic Proce-
dure Without
CONSULT-II"
6.❏ Perform all ROAD TEST and re-mark required procedures.AT- 6 8 , "Road
Te s t"
7.❏ Perform DTC CONFIRMATION PROCEDURE for following MI indicating items and check out NG items.
Refer toEC-37, "
Emission-related Diagnostic Information" .EC section
❏ DTC (P0731) A/T 1st gear function, AT- 1 3 3
.
❏ DTC (P0732) A/T 2nd gear function, AT-139
.
❏ DTC (P0733) A/T 3rd gear function, AT- 1 4 5
.
❏ DTC (P0734) A/T 4th gear function, AT- 1 5 1
.
Page 1516 of 3189
AT-60
[EURO-OBD]
TROUBLE DIAGNOSIS — INTRODUCTION
Work Flow
ECS007NV
HOW TO PERFORM TROUBLE DIAGNOSES FOR QUICK AND ACCURATE REPAIR
A good understanding of the malfunction conditions can make troubleshooting faster and more accurate. In
general, each customer feels differently about a problem. It is important to fully understand the symptoms or
conditions for a customer complaint.
Make good use of the two sheets provided, “Information From Customer” (AT- 5 7
) and “Diagnostic Worksheet”
(AT- 5 8
), to perform the best troubleshooting possible.
8.❏ Perform the Diagnostic Procedures for all remaining items marked NG. Repair or replace the damaged parts.
Refer to the Symptom Chart when you perform the procedures. (The chart also shows some other possible
symptoms and the component inspection orders.)AT- 7 , "Ser-
vice Notice or
Precautions"
9.❏ Erase DTC from TCM and ECM memories.AT-39, "HOW
TO ERASE
DTC"
Page 1517 of 3189
TROUBLE DIAGNOSIS — INTRODUCTION
AT-61
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
WORK FLOW CHART
SAT183K
Page 1518 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual AT-62
[EURO-OBD]
TROUBLE DIAGNOSIS — INTRODUCTION
*1:AT-57, "Information from Customer"*2:AT-58, "Diagnostic Worksheet"*3:AT-7, "Service Notice or Precau-
tions"
*4:AT-63, NISSAN ALMERA N16 2003 Electronic Repair Manual AT-62
[EURO-OBD]
TROUBLE DIAGNOSIS — INTRODUCTION
*1:AT-57, "Information from Customer"*2:AT-58, "Diagnostic Worksheet"*3:AT-7, "Service Notice or Precau-
tions"
*4:AT-63,](/manual-img/5/57350/w960_57350-1517.png)
AT-62
[EURO-OBD]
TROUBLE DIAGNOSIS — INTRODUCTION

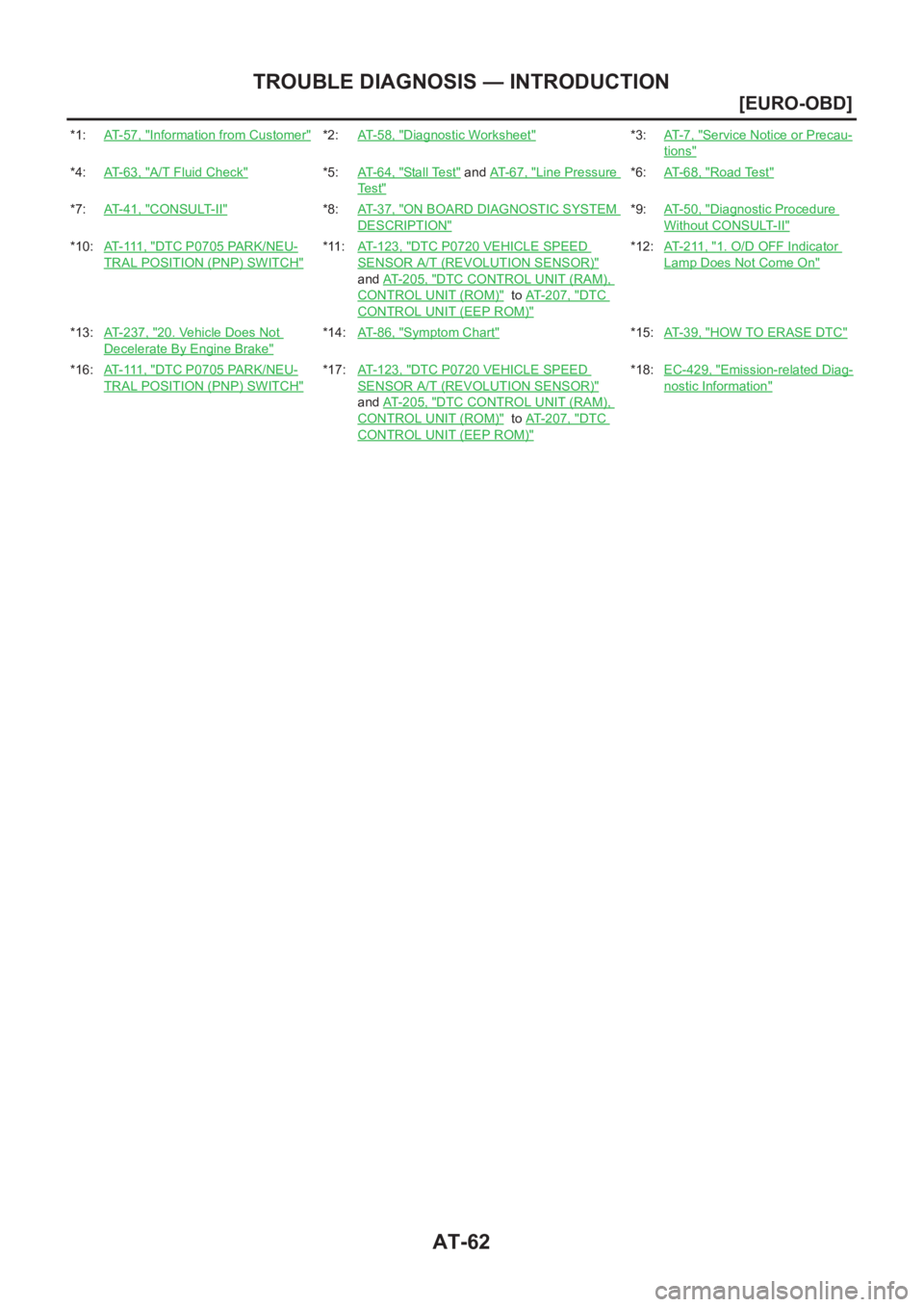

*1:AT-57, "Information from Customer"*2:AT-58, "Diagnostic Worksheet"*3:AT-7, "Service Notice or Precau-
tions"
*4:AT-63, "A/T Fluid Check"*5:AT-64, "Stall Test" and AT- 6 7 , "Line Pressure
Te s t"
*6:AT- 6 8 , "Road Test"
*7:AT-41, "CONSULT-II"*8:AT-37, "ON BOARD DIAGNOSTIC SYSTEM
DESCRIPTION"
*9:AT- 5 0 , "Diagnostic Procedure
Without CONSULT-II"
*10:AT- 111 , "DTC P0705 PARK/NEU-
TRAL POSITION (PNP) SWITCH"
*11:AT-123, "DTC P0720 VEHICLE SPEED
SENSOR A/T (REVOLUTION SENSOR)"
and AT- 2 0 5 , "DTC CONTROL UNIT (RAM),
CONTROL UNIT (ROM)" to AT-207, "DTC
CONTROL UNIT (EEP ROM)"
*12:AT- 2 11 , "1. O/D OFF Indicator
Lamp Does Not Come On"
*13:AT-237, "20. Vehicle Does Not
Decelerate By Engine Brake"
*14:AT-86, "Symptom Chart"*15:AT- 3 9 , "HOW TO ERASE DTC"
*16:AT- 111 , "DTC P0705 PARK/NEU-
TRAL POSITION (PNP) SWITCH"
*17:AT-123, "DTC P0720 VEHICLE SPEED
SENSOR A/T (REVOLUTION SENSOR)"
and AT- 2 0 5 , "DTC CONTROL UNIT (RAM),
CONTROL UNIT (ROM)" to AT-207, "DTC
CONTROL UNIT (EEP ROM)"
*18:EC-429, "Emission-related Diag-
nostic Information"
Page 1519 of 3189
TROUBLE DIAGNOSIS — BASIC INSPECTION
AT-63
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
TROUBLE DIAGNOSIS — BASIC INSPECTIONPFP:00000
A/T Fluid CheckECS007NW

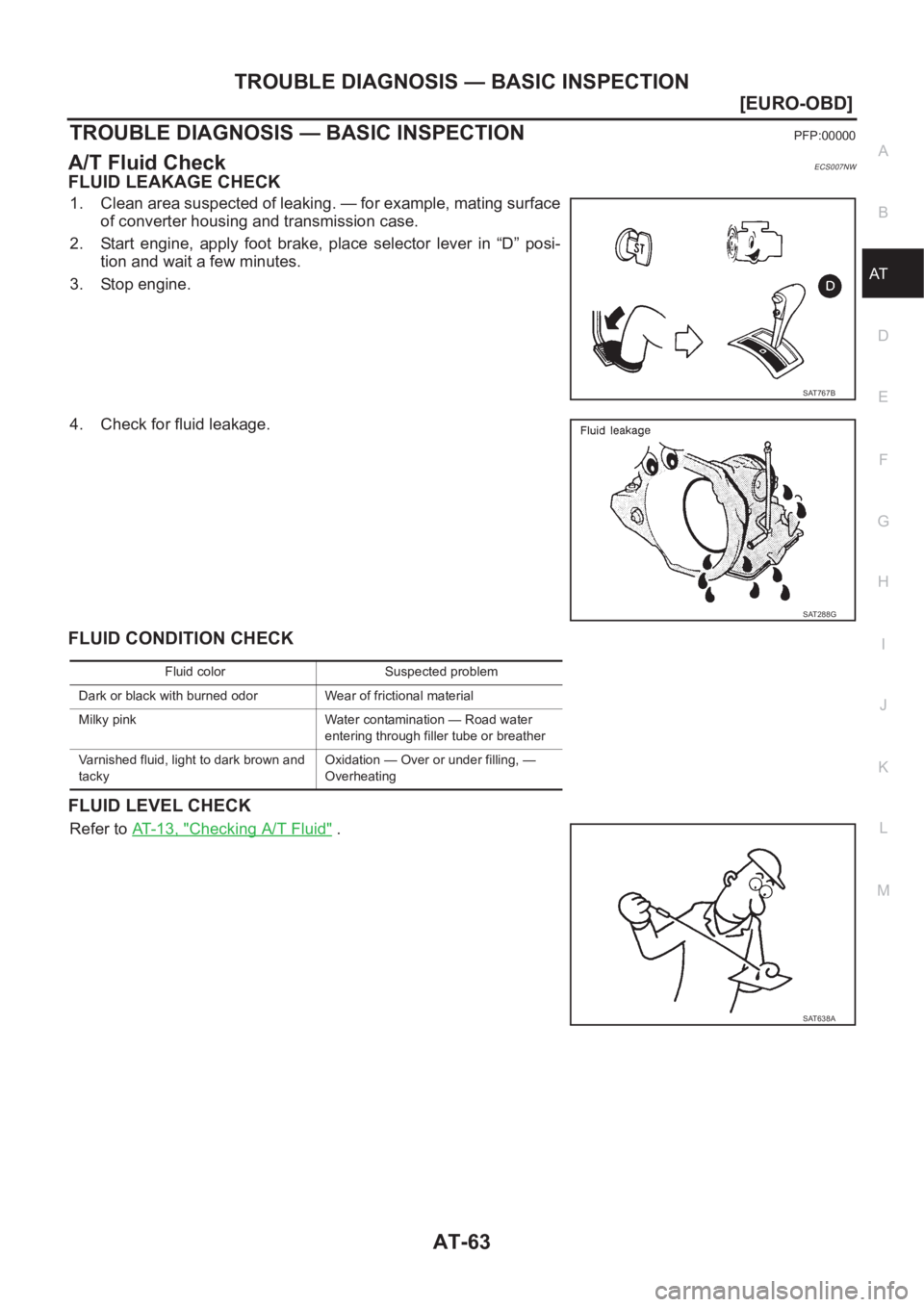

FLUID LEAKAGE CHECK
1. Clean area suspected of leaking. — for example, mating surface
of converter housing and transmission case.
2. Start engine, apply foot brake, place selector lever in “D” posi-
tion and wait a few minutes.
3. Stop engine.
4. Check for fluid leakage.
FLUID CONDITION CHECK
FLUID LEVEL CHECK
Refer to AT-13, "Checking A/T Fluid" .
SAT767B
SAT288G
Fluid color Suspected problem
Dark or black with burned odor Wear of frictional material
Milky pink Water contamination — Road water
entering through filler tube or breather
Varnished fluid, light to dark brown and
tackyOxidation — Over or under filling, —
Overheating
SAT638A
Page 1520 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual AT-64
[EURO-OBD]
TROUBLE DIAGNOSIS — BASIC INSPECTION
Stall Test
ECS007NX
STALL TEST PROCEDURE
1. Check A/T fluid and engine oil levels. If necessary, add.
2. Drive vehicle for approx. 10 minut NISSAN ALMERA N16 2003 Electronic Repair Manual AT-64
[EURO-OBD]
TROUBLE DIAGNOSIS — BASIC INSPECTION
Stall Test
ECS007NX
STALL TEST PROCEDURE
1. Check A/T fluid and engine oil levels. If necessary, add.
2. Drive vehicle for approx. 10 minut](/manual-img/5/57350/w960_57350-1519.png)
AT-64
[EURO-OBD]
TROUBLE DIAGNOSIS — BASIC INSPECTION
Stall Test
ECS007NX
STALL TEST PROCEDURE
1. Check A/T fluid and engine oil levels. If necessary, add.
2. Drive vehicle for approx. 10 minutes or until fluid and oil reach
operating temperature.
3. Set parking brake and block wheels.
4. Install a tachometer where it can be seen by driver during test.
●It is good practice to mark the point of specified engine
rpm on indicator.
5. Start engine, apply foot brake, and place selector lever in D
position.
6. Accelerate to wide open throttle gradually while applying foot
brake.
7. Quickly note the engine stall revolution and immediately release
throttle.
●During test, never hold throttle wide open for more than 5
seconds.
Stall revolution:
8. Move selector lever to “N” position.
9. Cool off ATF.
●Run engine at idle for at least one minute.
10. Repeat steps 5 through 9 with selector lever in “2”, “1” and “R”
positions.ATF operating temperature:
50 - 80°C (122 - 176°F)
SAT647B
SAT513G
SAT514G
QG18DE 2,300 - 2,750 rpm
SAT771B
