2003 NISSAN ALMERA N16 locking door

SIIA1645E
Trouble Diagnosis/QG and YD Engine Models
with Common Rail

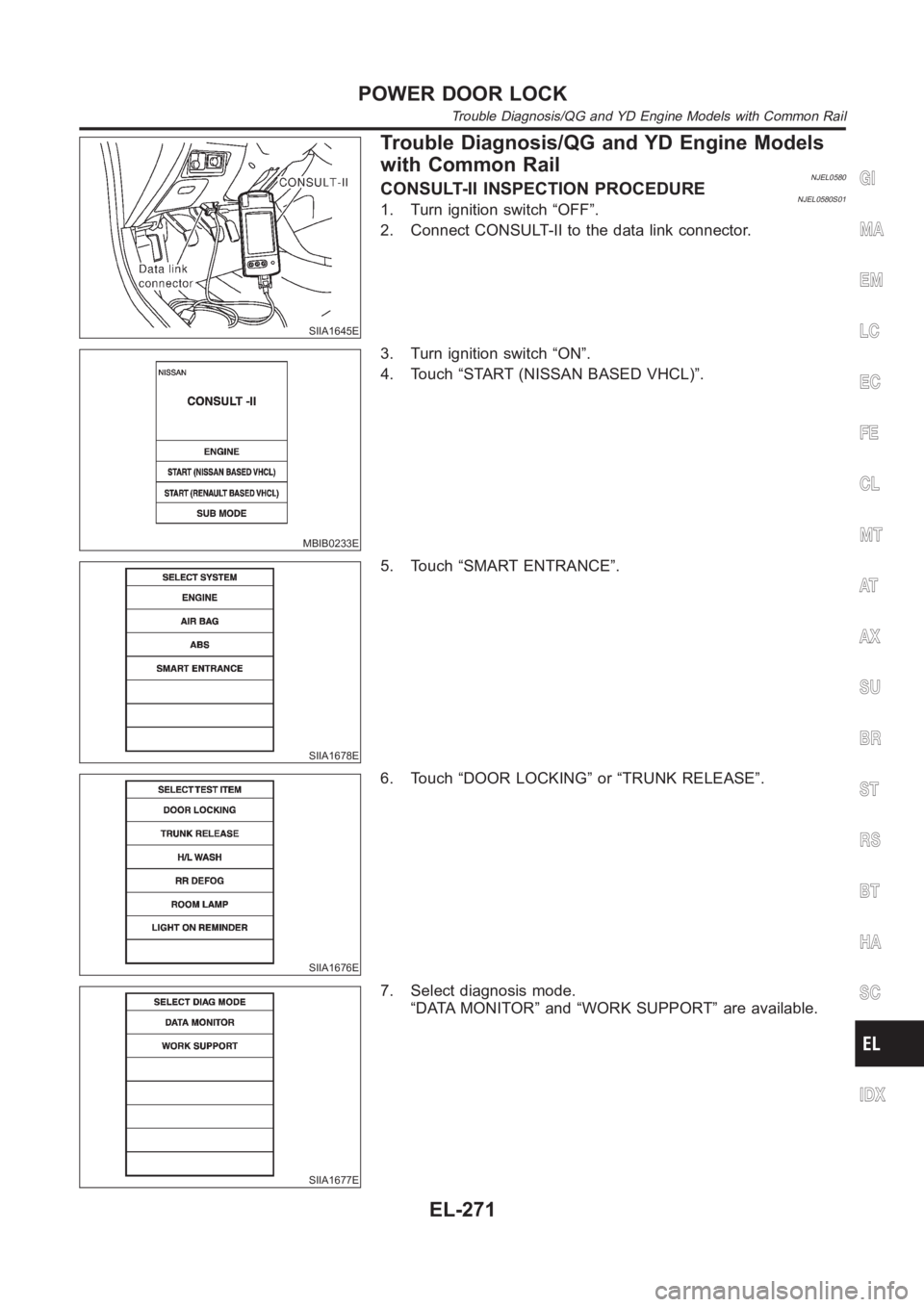

NJEL0580CONSULT-II INSPECTION PROCEDURENJEL0580S011. Turn ignition switch “OFF”.
2. Connect CONSULT-II to the data link connector.
MBIB0233E
3. Turn ignition switch “ON”.
4. Touch “START (NISSAN BASED VHCL)”.
SIIA1678E
5. Touch “SMART ENTRANCE”.
SIIA1676E
6. Touch “DOOR LOCKING” or “TRUNK RELEASE”.
SIIA1677E
7. Select diagnosis mode.
“DATA MONITOR” and “WORK SUPPORT” are available.
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
POWER DOOR LOCK
Trouble Diagnosis/QG and YD Engine Models with Common Rail
EL-271

CONSULT-II APPLICATION ITEMSNJEL0580S02Door LockingNJEL0580S0201DATA MONITOR
Monitored Item Description
IGNITION SW Indicates [ON/OFF] condition of ignition switch.
KEY IN DETECT Indicates [ON/OFF] condition of key switch.
DOOR SW DR RR Indicates [ON/OFF] condition of rear door switch (driver side).
DOOR SW AS RR Indicates [ON/OFF] condition of rear door switch (passenger side).
AS DOOR SW Indicates [ON/OFF] condition of front door switch (passenger side).
DR DOOR SW Indicates [ON\OFF] condition of front door switch (driver side).
CDL LOCK SW Indicates [ON/OFF] condition of lock signal from door lock/ unlock switch.
CDL UNLOCK SW Indicates [ON/OFF] condition of unlock signal from door lock/ unlock switch.
RKE LOCK Indicates [ON/OFF] condition of lock signal from remote controller.
RKE UNLOCK Indicates [ON/OFF] condition of unlock signal from remote controller.
RKE SEL UNLOCK Indicates [ON/OFF] condition of select unlock signal from remote controller.
WORK SUPPORT
Monitored Item Description
AUTO RE-LOCKAuto re-lock function can be changed in this mode. The re-lock mode will be changed when
“CHANGE MODE” on CONSULT-II screen is touched.
SELECTIVE UNLOCKSelective unlock function can be changed in this mode. The unlock mode willbe changed when
“CHANGE SET” on CONSULT-II screen is touched.
Trunk ReleaseNJEL0580S0202DATA MONITOR
Monitored Item Description
IGNITION SW Indicates [ON/OFF] condition of ignition switch.
TRUNK OPEN SW Indicates [ON/OFF] condition of trunk room lamp switch (sedan) or back door switch (wagon).
INT TRUNK RELIndicates [ON/OFF] condition of internal trunk release switch (sedan) orinternal back door
release switch (wagon).
EXT TRUNK RELIndicates [ON/OFF] condition of external trunk release switch (sedan) orexternal back door
release switch (wagon).
RKE TRUNK RELIndicates [ON/OFF] condition of trunk (sedan) or back door (back door) open signal from trunk
or back door release switch.
WORK SUPPORT
Monitored Item Description
TRUNK OPEN DELAYThis mode can be changed trunk release switch (sedan) or back door (wagon) release switch
operation time.
POWER DOOR LOCK
Trouble Diagnosis/QG and YD Engine Models with Common Rail (Cont’d)
EL-272

CONSULT-II APPLICATION ITEMSNJEL0581S02Door LockingNJEL0581S0201DATA MONITOR
Monitored Item Description
IGNITION SW Indicates [ON/OFF] condition of ignition switch.
KEY IN DETECT Indicates [ON/OFF] condition of key switch.
DOOR SW DR RR Indicates [ON/OFF] condition of rear door switch (driver side).
DOOR SW AS RR Indicates [ON/OFF] condition of rear door switch (passenger side).
AS DOOR SW Indicates [ON/OFF] condition of front door switch (passenger side).
DR DOOR SW Indicates [ON\OFF] condition of front door switch (driver side).
CDL LOCK SW Indicates [ON/OFF] condition of lock signal from door lock/ unlock switch.
CDL UNLOCK SW Indicates [ON/OFF] condition of unlock signal from door lock/ unlock switch.
RKE LOCK Indicates [ON/OFF] condition of lock signal from remote controller.
RKE UNLOCK Indicates [ON/OFF] condition of unlock signal from remote controller.
RKE SEL UNLOCK Indicates [ON/OFF] condition of select unlock signal from remote controller.
WORK SUPPORT
Monitored Item Description
AUTO RE-LOCKAuto re-lock function can be changed in this mode. The re-lock mode will be changed when
“CHANGE MODE” on CONSULT-II screen is touched.
SELECTIVE UNLOCKSelective unlock function can be changed in this mode. The unlock mode willbe changed when
“CHANGE SET” on CONSULT-II screen is touched.
Trunk ReleaseNJEL0581S0202DATA MONITOR
Monitored Item Description
IGNITION SW Indicates [ON/OFF] condition of ignition switch.
TRUNK OPEN SW Indicates [ON/OFF] condition of trunk room lamp switch (sedan) or back door switch (wagon).
INT TRUNK RELIndicates [ON/OFF] condition of internal trunk release switch (sedan) orinternal back door
release switch (wagon).
EXT TRUNK RELIndicates [ON/OFF] condition of external trunk release switch (sedan) orexternal back door
release switch (wagon).
RKE TRUNK RELIndicates [ON/OFF] condition of trunk (sedan) or back door (back door) open signal from trunk
or back door release switch.
WORK SUPPORT
Monitored Item Description
TRUNK OPEN DELAYThis mode can be changed trunk release switch (sedan) or back door (wagon) release switch
operation time.
POWER DOOR LOCK — SUPER LOCK —
Trouble Diagnosis/QG and YD Engine Models with Common Rail (Cont’d)
EL-314

INPUT/OUTPUTNJEL0583S05
System Input Output
Power door lockDoor lock/unlock switch
Key switch (Insert)
Door switches
Trunk or back door release switch
External trunk or back door release switchDoor lock actuators
Trunk or back door release actuator
Multi-remote controlKey switch (Insert)
Ignition switch (ON)
Door switches
Key fob signal
Door lock/unlock switchHazard warning lamp
Door lock actuator
Warning chimeKey switch (Insert)
Ignition switch (ON)
Lighting switch (1st)
Seat belt switch
Front door switch LHWarning chime (located in smart entrance
control unit)
Rear window defogger and door mirror
defoggerIgnition switch (ON)
Rear window defogger switchRear window defogger relay
Theft warningIgnition switch (ON)
Door switches
Hood switch
Trunk room lamp switch (sedan models)
Back door switch (hatchback or wagon
models)
Door lock/unlock switches
Smash sensorVehicle security horn relay
Siren control unit
Security indicator (located in combination
meter)
Hazard warning lamp
Interior room lampDoor switches
Remote controller signal (lock/unlock)
Door lock/unlock switches (lock/unlock)
Trunk room lamp switch (sedan models)
Back door switch (hatchback or wagon
models)
Ignition switch (ON)
Key switch (Insert)Interior lamp
Key hole illumination
Step lamp
Spot lamp
Vanity mirror
CONSULT-IINJEL0584DIAGNOSTIC ITEMS APPLICATIONNJEL0584S01
Item (CONSULT-II screen
terms)Diagnosed system DATA MONITOR WORK SUPPORT
DOOR LOCKING Power door lock X X
DEFOG Rear window defogger X
KEY REMINDER Warning chime X
LIGHT ON REMINDER Warning chime X
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
SMART ENTRANCE CONTROL SYSTEM
Description (Cont’d)
EL-369

Item (CONSULT-II screen terms) Diagnosed system
