2003 NISSAN ALMERA N16 Multi function display

ATC-44
TROUBLE DIAGNOSIS

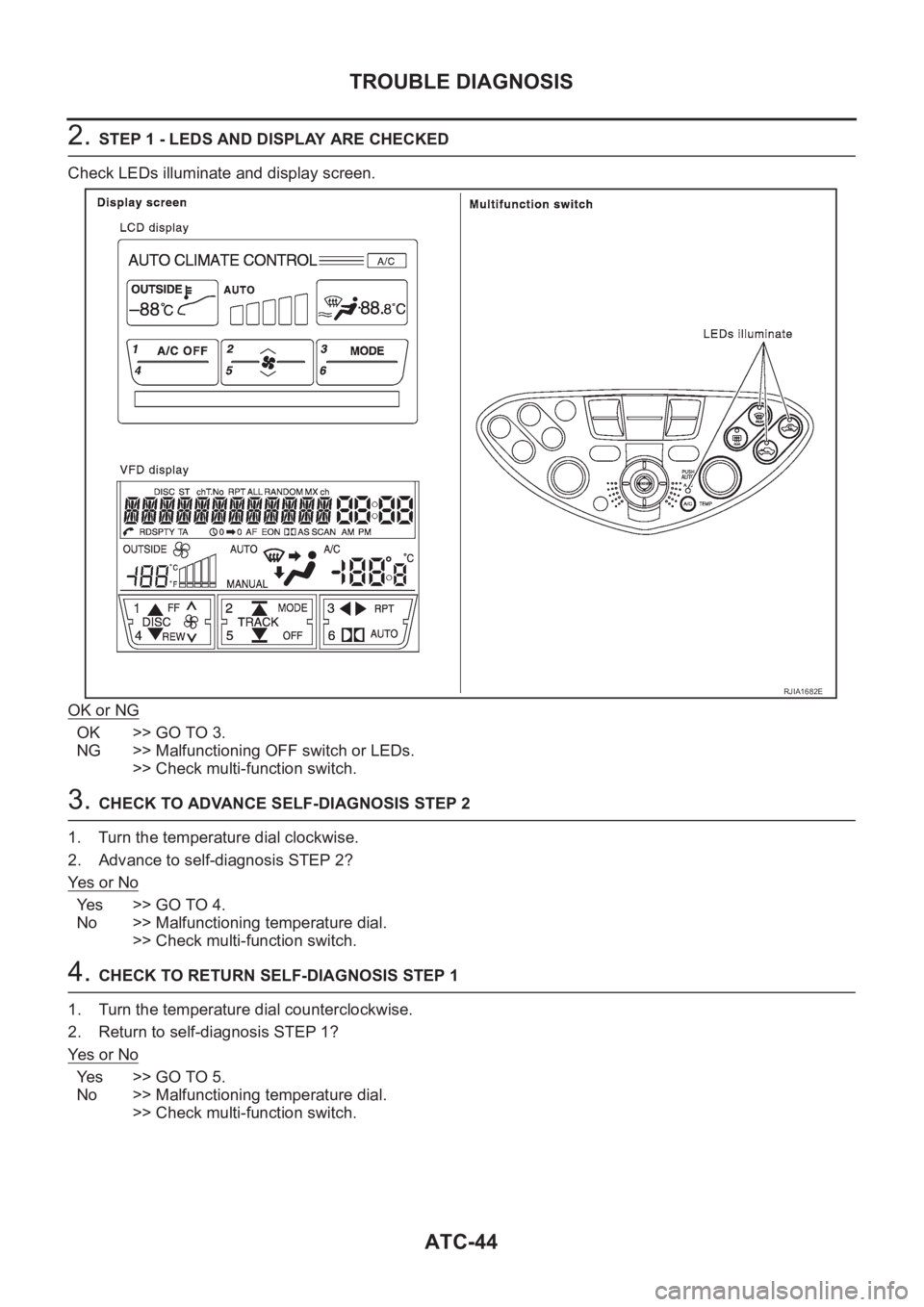

2. STEP 1 - LEDS AND DISPLAY ARE CHECKED
Check LEDs illuminate and display screen.
OK or NG
OK >> GO TO 3.
NG >> Malfunctioning OFF switch or LEDs.
>> Check multi-function switch.
3. CHECK TO ADVANCE SELF-DIAGNOSIS STEP 2
1. Turn the temperature dial clockwise.
2. Advance to self-diagnosis STEP 2?
Ye s o r N o
Yes >> GO TO 4.
No >> Malfunctioning temperature dial.
>> Check multi-function switch.
4. CHECK TO RETURN SELF-DIAGNOSIS STEP 1
1. Turn the temperature dial counterclockwise.
2. Return to self-diagnosis STEP 1?
Ye s o r N o
Yes >> GO TO 5.
No >> Malfunctioning temperature dial.
>> Check multi-function switch.
RJIA1682E

TROUBLE DIAGNOSIS
ATC-55
C
D
E
F
G
H
I
K
L
MA
B
AT C

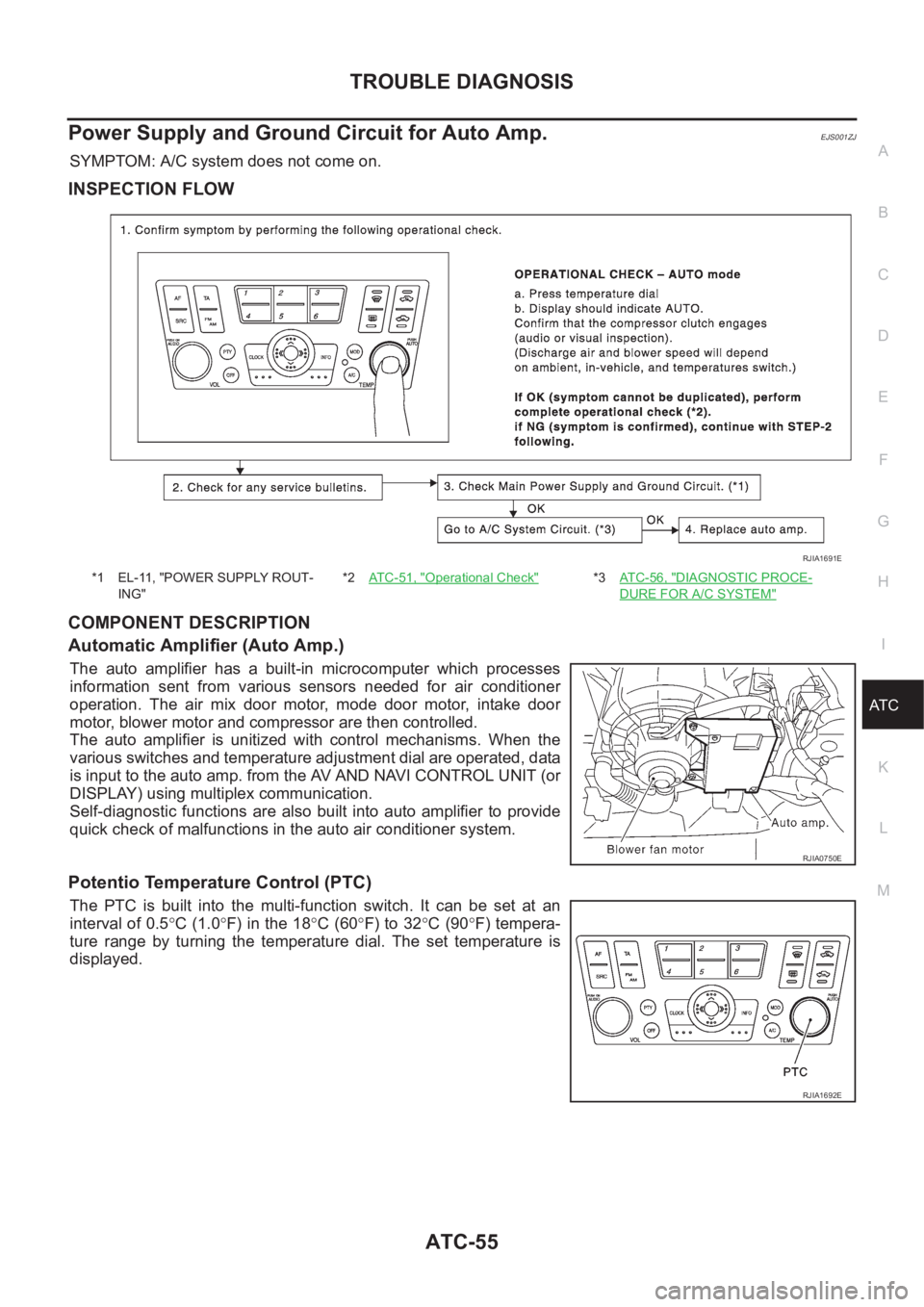

Power Supply and Ground Circuit for Auto Amp.EJS001ZJ
SYMPTOM: A/C system does not come on.
INSPECTION FLOW
COMPONENT DESCRIPTION
Automatic Amplifier (Auto Amp.)
The auto amplifier has a built-in microcomputer which processes
information sent from various sensors needed for air conditioner
operation. The air mix door motor, mode door motor, intake door
motor, blower motor and compressor are then controlled.
The auto amplifier is unitized with control mechanisms. When the
various switches and temperature adjustment dial are operated, data
is input to the auto amp. from the AV AND NAVI CONTROL UNIT (or
DISPLAY) using multiplex communication.
Self-diagnostic functions are also built into auto amplifier to provide
quick check of malfunctions in the auto air conditioner system.
Potentio Temperature Control (PTC)
The PTC is built into the multi-function switch. It can be set at an
interval of 0.5°C (1.0°F) in the 18°C (60°F) to 32°C (90°F) tempera-
ture range by turning the temperature dial. The set temperature is
displayed.
*1 EL-11, "POWER SUPPLY ROUT-
ING"*2AT C - 5 1 , "Operational Check"*3AT C - 5 6 , "DIAGNOSTIC PROCE-
DURE FOR A/C SYSTEM"
RJIA1691E
RJIA0750E
RJIA1692E

TROUBLE DIAGNOSIS
ATC-109
C
D
E
F
G
H
I
K
L
MA
B
AT C

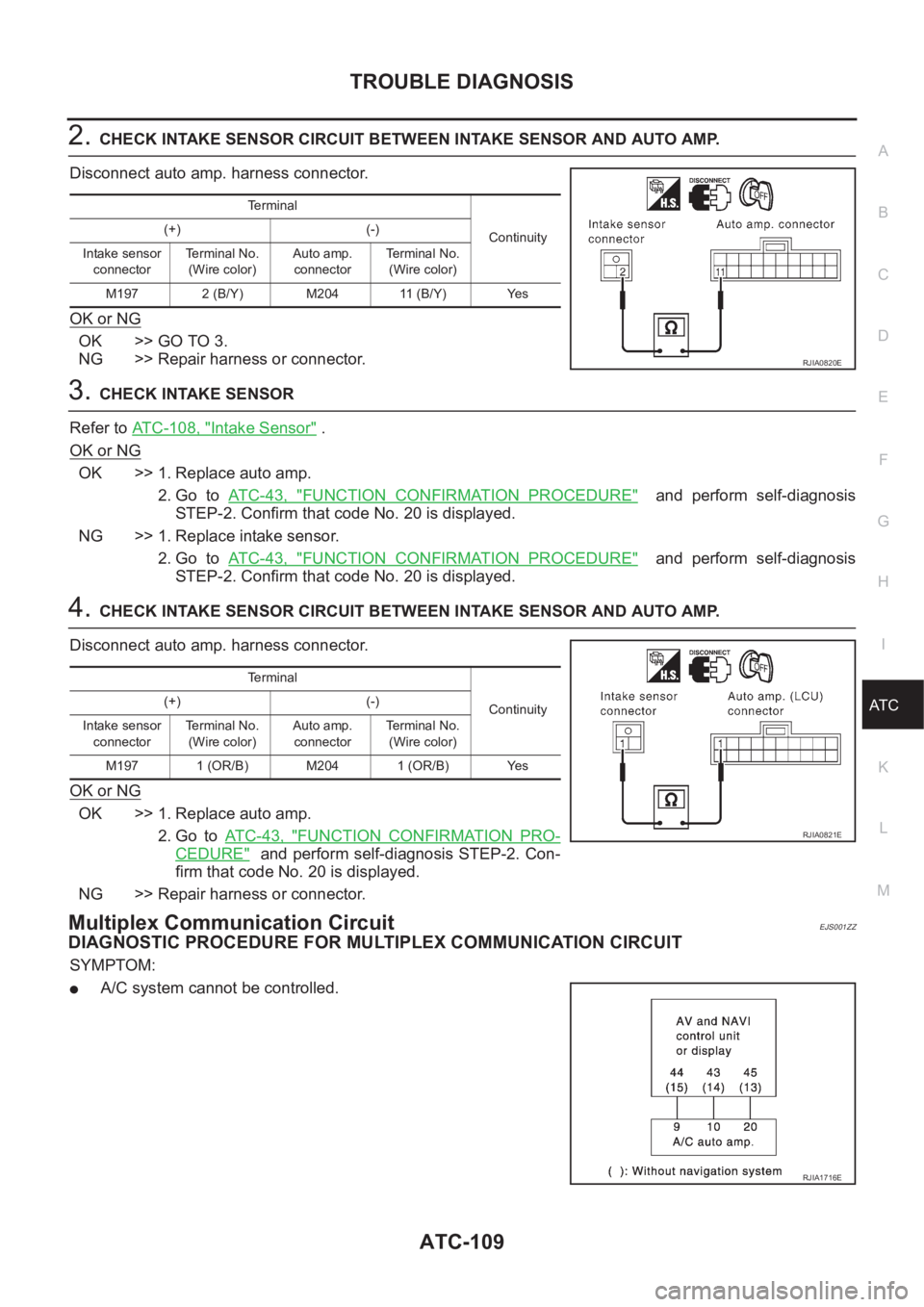

2.CHECK INTAKE SENSOR CIRCUIT BETWEEN INTAKE SENSOR AND AUTO AMP.
Disconnect auto amp. harness connector.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
3.CHECK INTAKE SENSOR
Refer to ATC-108, "
Intake Sensor" .
OK or NG
OK >> 1. Replace auto amp.
2. Go to AT C - 4 3 , "
FUNCTION CONFIRMATION PROCEDURE" and perform self-diagnosis
STEP-2. Confirm that code No. 20 is displayed.
NG >> 1. Replace intake sensor.
2. Go to AT C - 4 3 , "
FUNCTION CONFIRMATION PROCEDURE" and perform self-diagnosis
STEP-2. Confirm that code No. 20 is displayed.
4.CHECK INTAKE SENSOR CIRCUIT BETWEEN INTAKE SENSOR AND AUTO AMP.
Disconnect auto amp. harness connector.
OK or NG
OK >> 1. Replace auto amp.
2. Go to AT C - 4 3 , "
FUNCTION CONFIRMATION PRO-
CEDURE" and perform self-diagnosis STEP-2. Con-
firm that code No. 20 is displayed.
NG >> Repair harness or connector.
Multiplex Communication CircuitEJS001ZZ
DIAGNOSTIC PROCEDURE FOR MULTIPLEX COMMUNICATION CIRCUIT
SYMPTOM:
●A/C system cannot be controlled.
Terminal
Continuity (+) (-)
Intake sensor
connectorTerminal No.
(Wire color)Auto amp.
connectorTe r m i n a l N o .
(Wire color)
M197 2 (B/Y) M204 11 (B/Y) Yes
RJIA0820E
Terminal
Continuity (+) (-)
Intake sensor
connector Terminal No.
(Wire color)Auto amp.
connectorTe r m i n a l N o .
(Wire color)
M197 1 (OR/B) M204 1 (OR/B) Yes
RJIA0821E
RJIA1716E

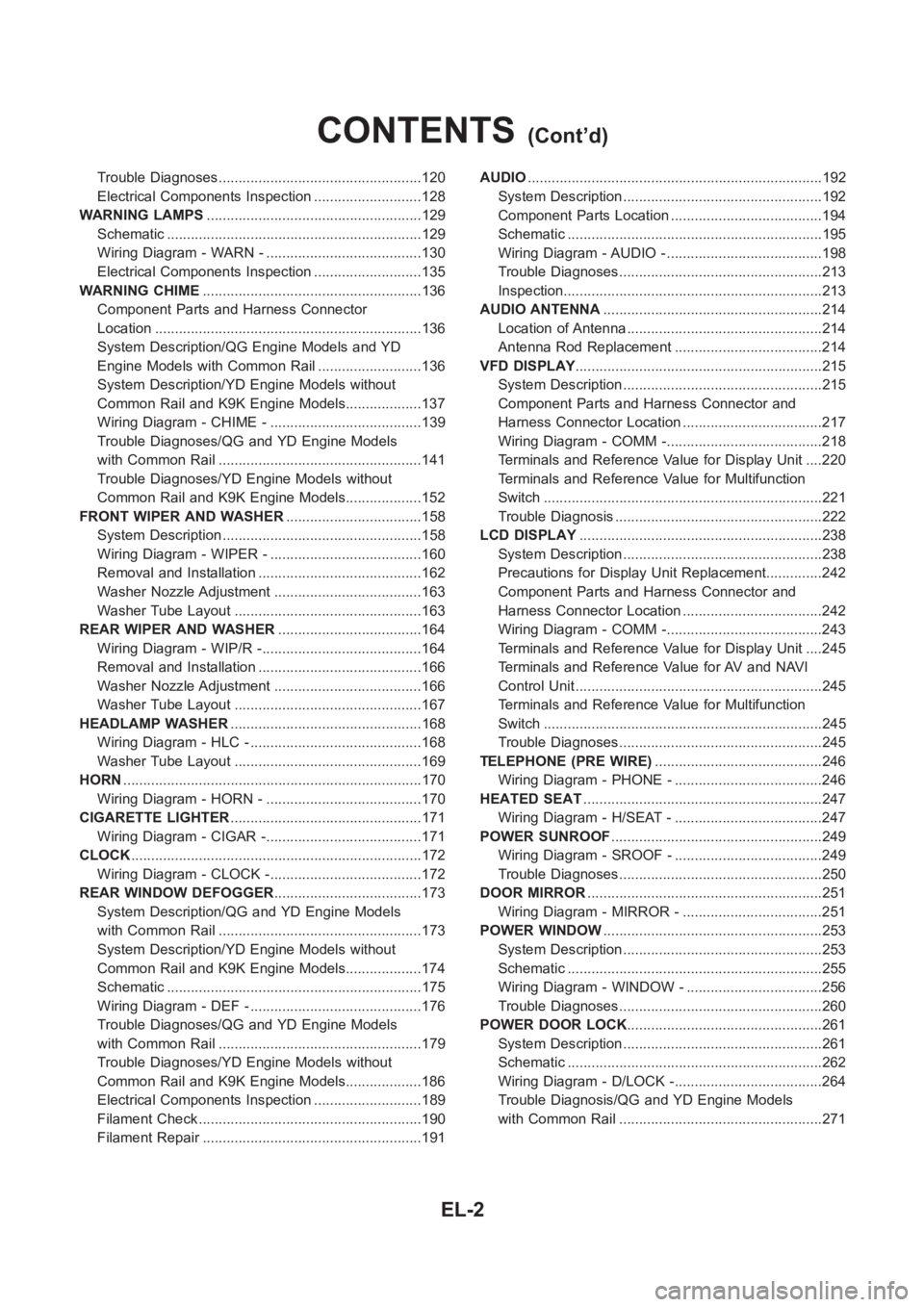

Trouble Diagnoses...................................................120
Electrical Components Inspection ...........................128
WARNING LAMPS<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011>9
Schematic <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011[..........129
Wiring Diagram - WARN - .......................................130
Electrical Components Inspection ...........................135
WARNING CHIME<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
110011001100110011>6
Component Parts and Harness Connector
Location <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
110011001100110011[............136
System Description/QG Engine Models and YD
Engine Models with Common Rail ..........................136
System Description/YD Engine Models without
Common Rail and K9K Engine Models...................137
Wiring Diagram - CHIME - ......................................139
Trouble Diagnoses/QG and YD Engine Models
with Common Rail ...................................................141
Trouble Diagnoses/YD Engine Models without
Common Rail and K9K Engine Models...................152
FRONT WIPER AND WASHER..................................158
System Description ..................................................158
Wiring Diagram - WIPER - ......................................160
Removal and Installation .........................................162
Washer Nozzle Adjustment .....................................163
Washer Tube Layout ...............................................163
REAR WIPER AND WASHER....................................164
Wiring Diagram - WIP/R -........................................164
Removal and Installation .........................................166
Washer Nozzle Adjustment .....................................166
Washer Tube Layout ...............................................167
HEADLAMP WASHER................................................168
Wiring Diagram - HLC - ...........................................168
Washer Tube Layout ...............................................169
HORN<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011001100110011001100110011001100110011[............170
Wiring Diagram - HORN - .......................................170
CIGARETTE LIGHTER................................................171
Wiring Diagram - CIGAR -.......................................171
CLOCK<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011001100110011001100110011001100110011[..........172
Wiring Diagram - CLOCK -......................................172
REAR WINDOW DEFOGGER.....................................173
System Description/QG and YD Engine Models
with Common Rail ...................................................173
System Description/YD Engine Models without
Common Rail and K9K Engine Models...................174
Schematic <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011[..........175
Wiring Diagram - DEF - ...........................................176
Trouble Diagnoses/QG and YD Engine Models
with Common Rail ...................................................179
Trouble Diagnoses/YD Engine Models without
Common Rail and K9K Engine Models...................186
Electrical Components Inspection ...........................189
Filament Check ........................................................190
Filament Repair .......................................................191AUDIO<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011001100110011001100110011001100110011[...........192

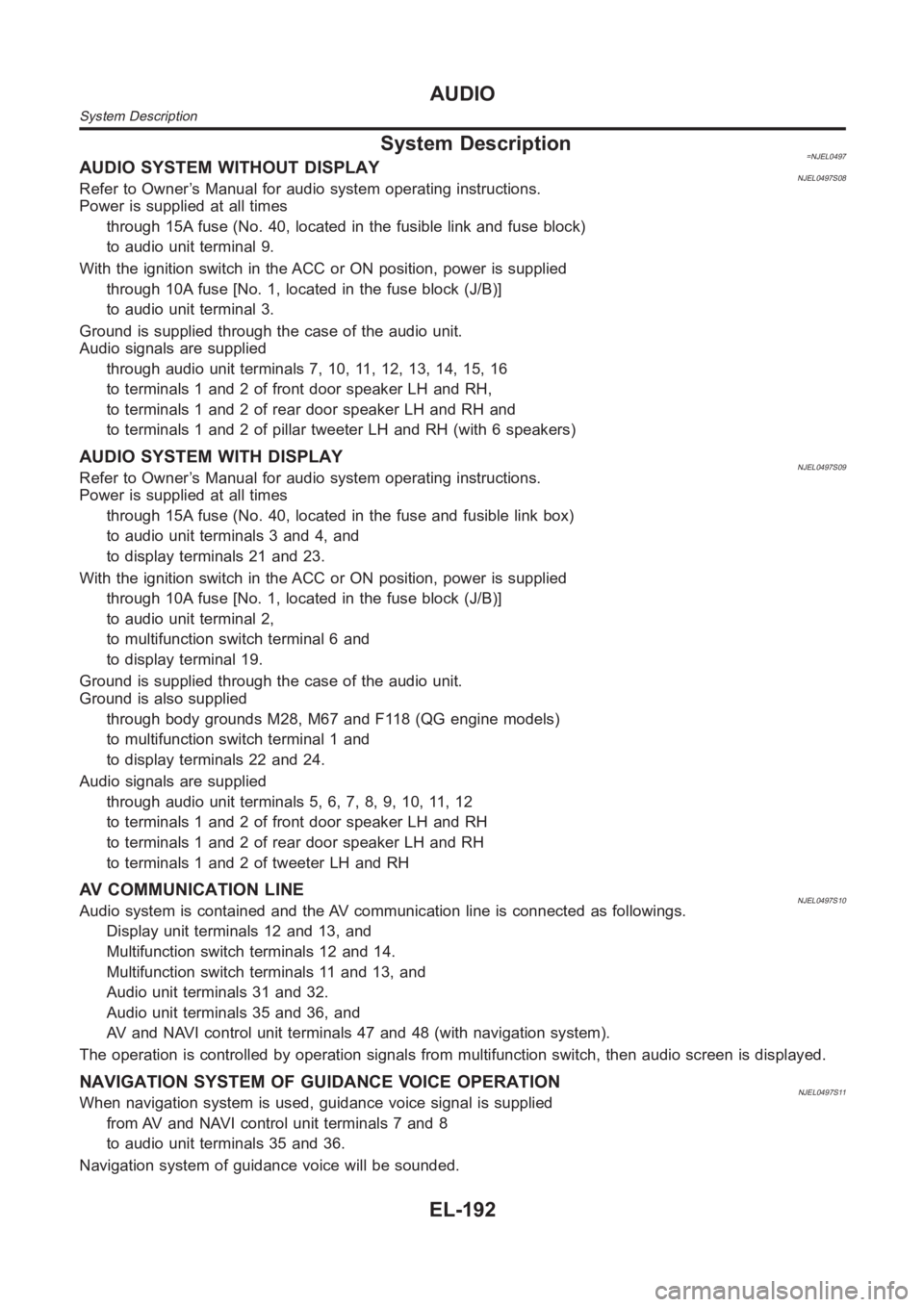

System Description ..................................................192
Component Parts Location ......................................194
Schematic <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011[..........195
Wiring Diagram - AUDIO - .......................................198
Trouble Diagnoses...................................................213
Inspection<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
1100110011[............213
AUDIO ANTENNA<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
110011001100110011>4
Location of Antenna .................................................214
Antenna Rod Replacement .....................................214

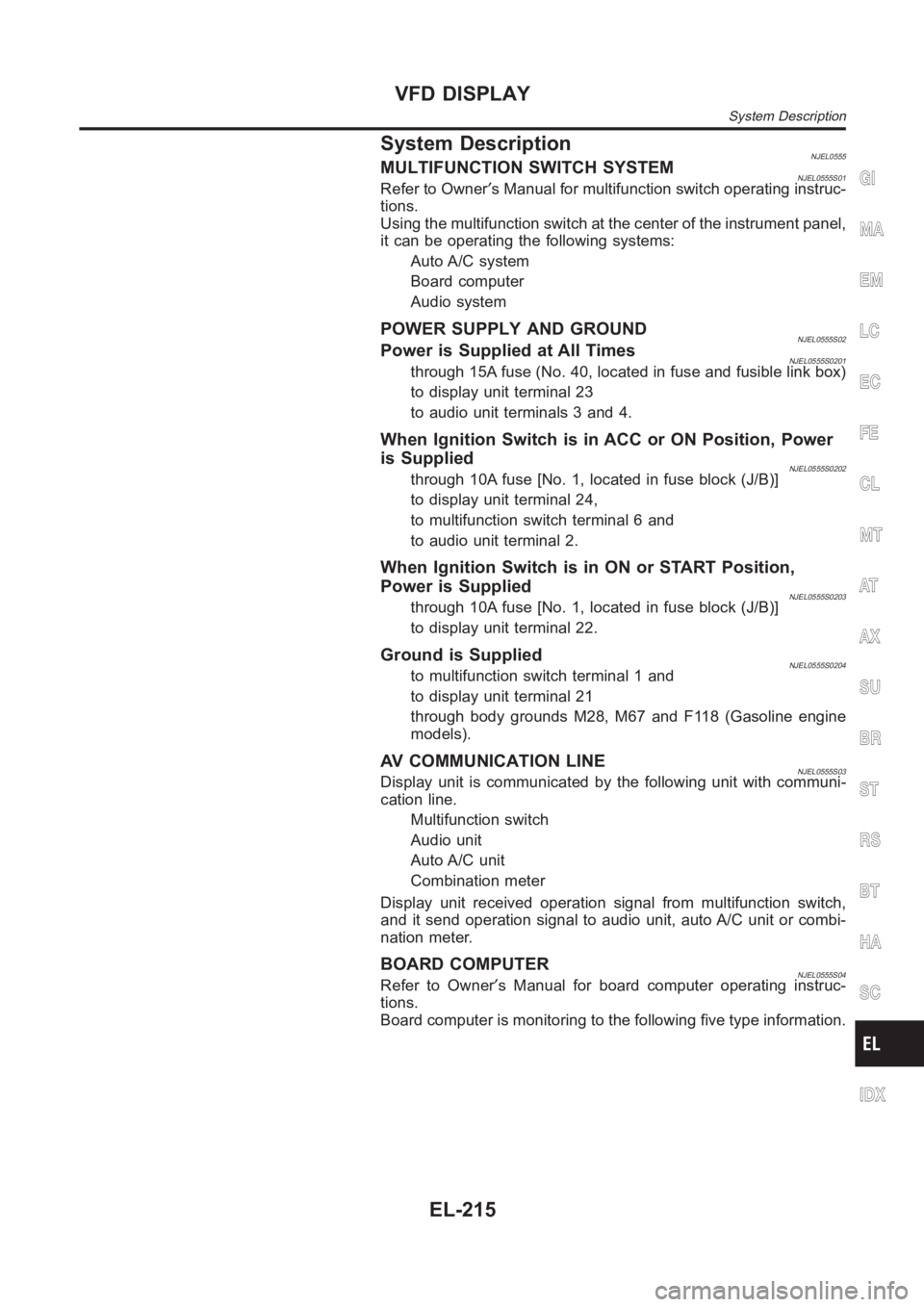

VFD DISPLAY<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
1100110011001100110011001100110011001100110011>215
System Description ..................................................215
Component Parts and Harness Connector and
Harness Connector Location ...................................217
Wiring Diagram - COMM -.......................................218
Terminals and Reference Value for Display Unit ....220
Terminals and Reference Value for Multifunction
Switch <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011001100110011[.............221
Trouble Diagnosis ....................................................222
LCD DISPLAY<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
110011001100110011001100110011001100110011>38
System Description ..................................................238
Precautions for Display Unit Replacement..............242
Component Parts and Harness Connector and
Harness Connector Location ...................................242
Wiring Diagram - COMM -.......................................243
Terminals and Reference Value for Display Unit ....245
Terminals and Reference Value for AV and NAVI
Control Unit <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
110011[..........245
Terminals and Reference Value for Multifunction
Switch <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011001100110011[.............245
Trouble Diagnoses...................................................245
TELEPHONE (PRE WIRE)..........................................246
Wiring Diagram - PHONE - .....................................246
HEATED SEAT<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011001100110011001100110011>7
Wiring Diagram - H/SEAT - .....................................247
POWER SUNROOF<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
1100110011>9
Wiring Diagram - SROOF - .....................................249
Trouble Diagnoses...................................................250
DOOR MIRROR<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
1100110011001100110011001100110011>1
Wiring Diagram - MIRROR - ...................................251
POWER WINDOW<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
110011001100110011>3
System Description ..................................................253
Schematic <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011[..........255
Wiring Diagram - WINDOW - ..................................256
Trouble Diagnoses...................................................260
POWER DOOR LOCK.................................................261
System Description ..................................................261
Schematic <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011[..........262
Wiring Diagram - D/LOCK -.....................................264
Trouble Diagnosis/QG and YD Engine Models
with Common Rail ...................................................271
CONTENTS(Cont’d)
EL-2

Trouble Diagnoses/YD Engine Models with
Common Rail and K9K Engine Models...................292
POWER DOOR LOCK - SUPER LOCK -...................301
System Description ..................................................301
Schematic <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011[..........304
Wiring Diagram - S/LOCK - .....................................306
Trouble Diagnosis/QG and YD Engine Models
with Common Rail ...................................................313
Trouble Diagnoses/YD Engine Models without
Common Rail and K9K Engine Models...................339
MULTI-REMOTE CONTROL SYSTEM.......................352
System Description ..................................................352
Wiring Diagram - MULTI - .......................................353
Trouble Diagnoses/QG and YD Engine Models
with Common Rail ...................................................355
Trouble Diagnoses/YD Engine Models without
Common Rail and K9K Engine Models...................360
ID Code Entry Procedure ........................................364
Remote Controller Battery Replacement.................365
THEFT WARNING SYSTEM.......................................366
Wiring Diagram - PRWIRE -....................................366
SMART ENTRANCE CONTROL SYSTEM.................368
Description <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
110011[...........368
CONSULT-II <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
1100110011[........369
Schematic <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011[..........374
Smart Entrance Control Unit Inspection Table ........376
Trouble Diagnoses...................................................378
Power Supply and Ground Circuit Check ...............379
CAN Communication Line Check ............................380
TIME CONTROL UNIT................................................381
Description <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
110011[...........381
Trouble Diagnoses...................................................382
Schematic <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011[..........384
NATS (NISSAN ANTI-THEFT SYSTEM).....................386
Component Parts and Harness Connetor
Location <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
110011001100110011[............386
System Description ..................................................386
System Composition ................................................387
Wiring Diagram - NATS -.........................................388
CONSULT-II <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
1100110011[........390
Trouble Diagnoses/QG and YD Engine Models
with Common Rail ...................................................393
How to Replace NATS Antenna Amp ...................... 411
Trouble Diagnoses/YD Engine Models without
Common Rail and K9K Engine Models...................412
How to Replace NATS IMMU ..................................429
NAVIGATION SYSTEM...............................................430
System Description ..................................................430
Precautions for AV and NAVI Control Unit
Replacement <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
110011[........440
Component Parts Location ......................................441
Location of Antenna .................................................441Schematic <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011[..........442
Wiring Diagram - NAVI - ..........................................443
Wiring Diagram - COMM -.......................................448
Terminals and Reference Value for AV and NAVI
Control Unit <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
110011[..........450
Terminals and Reference Value for Display Unit ....454
Terminals and Reference Value for Multifunction
Switch <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
11001100110011001100110011[.............456
Self-Diagnosis Function ...........................................457
Self-Diagnosis Mode................................................458
Confirmation/Adjustment Mode ...............................461
Power Supply and Ground Circuit Check ...............467
Check Display Unit, Multifunction Switch Power,
and Ground Circuit ..................................................469
Vehicle Speed Signal Check ...................................471
Illumination Control Signal Check ...........................472
Ignition Signal Check ...............................................473
Reverse Signal Check .............................................474
RGB Screen Is Not Shown......................................475
No Screens Appear .................................................477
Color of RGB Image Is Not Proper .........................477
RGB Screen Is Rolling ............................................482
Guide Sound Is Not Heard ......................................484
Multifunction Switch Controls Are Ineffective
(Rear Defogger Control Excluded) ..........................485
Air Conditioning Controls (Only) Are Ineffective
(Rear Defogger Control Excluded) ..........................489
Rear Defogger Does Not Operate...........................491
Rear Defogger Indicator Lamp Does Not
Illuminate<0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
1100110011[.............492
No Fuel Information Is Displayed/No Warning
Message Is Displayed .............................................493
Previous Conditions Are Not Stored........................495
The Position of The Current-Location Mark Is
Not Correct <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
1100110011[.........495
Radio Wave From The GPS Satellite Is Not
Received <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
110011001100110011[...........495
Display Does Not Change When Screen
Adjustment Is Performed .........................................496
Day/Night Display Switching Is Not Done. Night
Illumination for AV and NAVI Control Unit Does
Not Illuminate ...........................................................496
On Multifunction Switch, a Specific Switch Does
Not Operate in All Conditions ..................................496
Driving Information Is Inaccurate. Maintenance
Information Is Inaccurate .........................................496
System Does Not Start ............................................497
The Current Position Mark Is in the Wrong Place ..497
The Current-Location Mark Will Not Move
Forward/Backward ...................................................498
The Position of the Current-Location Mark Is Not
Correct <0011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100110011001100
1100110011001100110011[.............498
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
CONTENTS(Cont’d)
EL-3

System Description=NJEL0497AUDIO SYSTEM WITHOUT DISPLAYNJEL0497S08Refer to Owner’s Manual for audio system operating instructions.
Power is supplied at all times
through 15A fuse (No. 40, located in the fusible link and fuse block)
to audio unit terminal 9.
With the ignition switch in the ACC or ON position, power is supplied
through 10A fuse [No. 1, located in the fuse block (J/B)]
to audio unit terminal 3.
Ground is supplied through the case of the audio unit.
Audio signals are supplied
through audio unit terminals 7, 10, 11, 12, 13, 14, 15, 16
to terminals 1 and 2 of front door speaker LH and RH,
to terminals 1 and 2 of rear door speaker LH and RH and
to terminals 1 and 2 of pillar tweeter LH and RH (with 6 speakers)
AUDIO SYSTEM WITH DISPLAYNJEL0497S09Refer to Owner’s Manual for audio system operating instructions.
Power is supplied at all times
through 15A fuse (No. 40, located in the fuse and fusible link box)
to audio unit terminals 3 and 4, and
to display terminals 21 and 23.
With the ignition switch in the ACC or ON position, power is supplied
through 10A fuse [No. 1, located in the fuse block (J/B)]
to audio unit terminal 2,
to multifunction switch terminal 6 and
to display terminal 19.
Ground is supplied through the case of the audio unit.
Ground is also supplied
through body grounds M28, M67 and F118 (QG engine models)
to multifunction switch terminal 1 and
to display terminals 22 and 24.
Audio signals are supplied
through audio unit terminals 5, 6, 7, 8, 9, 10, 11, 12
to terminals 1 and 2 of front door speaker LH and RH
to terminals 1 and 2 of rear door speaker LH and RH
to terminals 1 and 2 of tweeter LH and RH
AV COMMUNICATION LINENJEL0497S10Audio system is contained and the AV communication line is connected as followings.
Display unit terminals 12 and 13, and
Multifunction switch terminals 12 and 14.
Multifunction switch terminals 11 and 13, and
Audio unit terminals 31 and 32.
Audio unit terminals 35 and 36, and
AV and NAVI control unit terminals 47 and 48 (with navigation system).
The operation is controlled by operation signals from multifunction switch, then audio screen is displayed.
NAVIGATION SYSTEM OF GUIDANCE VOICE OPERATIONNJEL0497S11When navigation system is used, guidance voice signal is supplied
from AV and NAVI control unit terminals 7 and 8
to audio unit terminals 35 and 36.
Navigation system of guidance voice will be sounded.
AUDIO
System Description
EL-192

System DescriptionNJEL0555MULTIFUNCTION SWITCH SYSTEMNJEL0555S01Refer to Owner′s Manual for multifunction switch operating instruc-
tions.
Using the multifunction switch at the center of the instrument panel,
it can be operating the following systems:
Auto A/C system
Board computer
Audio system
POWER SUPPLY AND GROUNDNJEL0555S02Power is Supplied at All TimesNJEL0555S0201through 15A fuse (No. 40, located in fuse and fusible link box)
to display unit terminal 23
to audio unit terminals 3 and 4.
When Ignition Switch is in ACC or ON Position, Power
is Supplied
NJEL0555S0202through 10A fuse [No. 1, located in fuse block (J/B)]
to display unit terminal 24,
to multifunction switch terminal 6 and
to audio unit terminal 2.
When Ignition Switch is in ON or START Position,
Power is Supplied
NJEL0555S0203through 10A fuse [No. 1, located in fuse block (J/B)]
to display unit terminal 22.
Ground is SuppliedNJEL0555S0204to multifunction switch terminal 1 and
to display unit terminal 21
through body grounds M28, M67 and F118 (Gasoline engine
models).
AV COMMUNICATION LINENJEL0555S03Display unit is communicated by the following unit with communi-
cation line.
Multifunction switch
Audio unit
Auto A/C unit
Combination meter
Display unit received operation signal from multifunction switch,
and it send operation signal to audio unit, auto A/C unit or combi-
nation meter.
BOARD COMPUTERNJEL0555S04Refer to Owner′s Manual for board computer operating instruc-
tions.
Board computer is monitoring to the following five type information.
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX

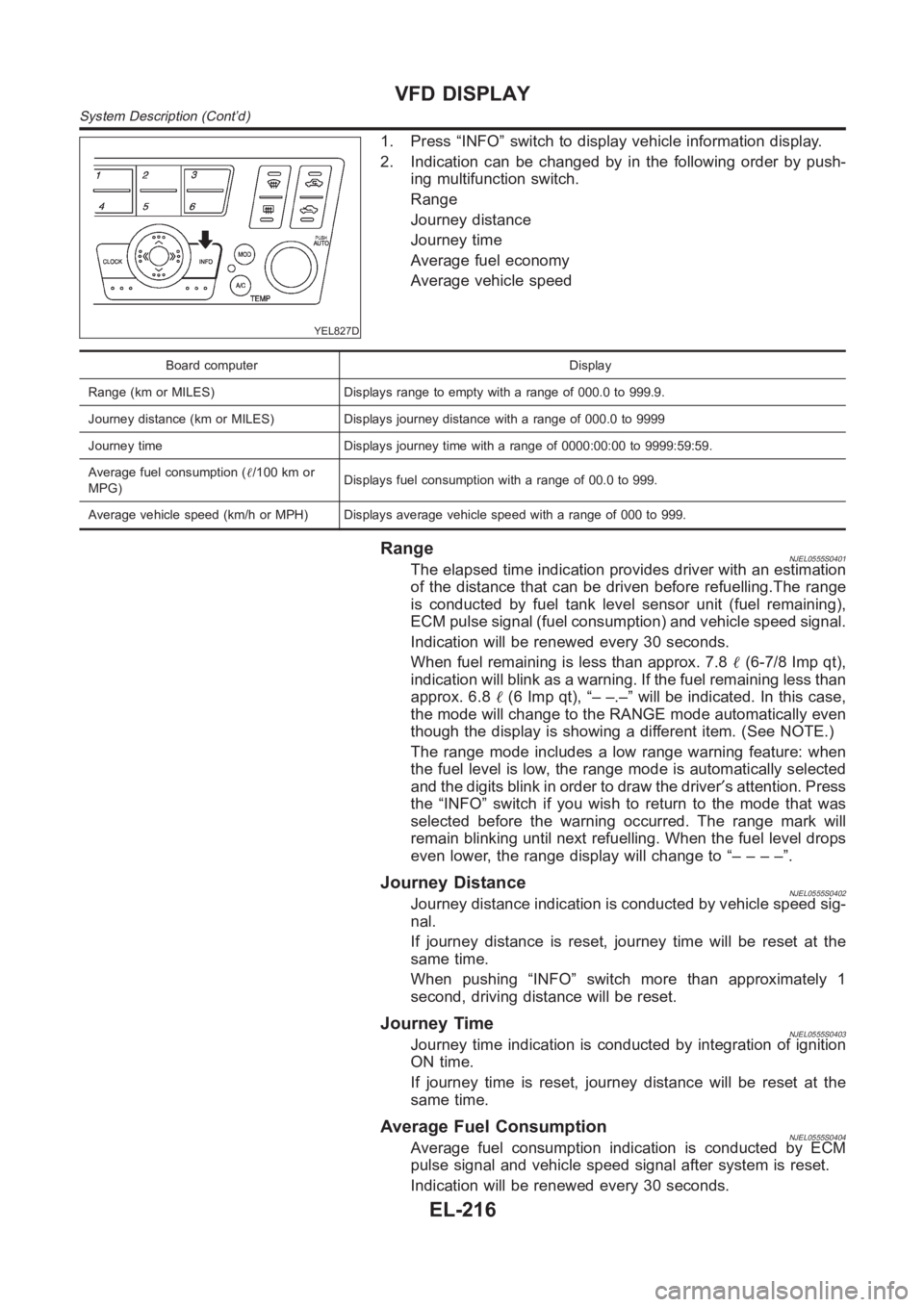

VFD DISPLAY
System Description
EL-215

YEL827D
1. Press “INFO” switch to display vehicle information display.
2. Indication can be changed by in the following order by push-
ing multifunction switch.
Range
Journey distance
Journey time
Average fuel economy
Average vehicle speed
Board computer Display
Range (km or MILES) Displays range to empty with a range of 000.0 to 999.9.
Journey distance (km or MILES) Displays journey distance with a range of 000.0 to 9999
Journey time Displays journey time with a range of 0000:00:00 to 9999:59:59.
Average fuel consumption (/100 km or
MPG)Displays fuel consumption with a range of 00.0 to 999.
Average vehicle speed (km/h or MPH) Displays average vehicle speed with a range of 000 to 999.
RangeNJEL0555S0401The elapsed time indication provides driver with an estimation
of the distance that can be driven before refuelling.The range
is conducted by fuel tank level sensor unit (fuel remaining),
ECM pulse signal (fuel consumption) and vehicle speed signal.
Indication will be renewed every 30 seconds.
When fuel remaining is less than approx. 7.8(6-7/8 Imp qt),
indication will blink as a warning. If the fuel remaining less than
approx. 6.8(6 Imp qt), “– –.–” will be indicated. In this case,
the mode will change to the RANGE mode automatically even
though the display is showing a different item. (See NOTE.)
The range mode includes a low range warning feature: when
the fuel level is low, the range mode is automatically selected
and the digits blink in order to draw the driver′s attention. Press
the “INFO” switch if you wish to return to the mode that was
selected before the warning occurred. The range mark will
remain blinking until next refuelling. When the fuel level drops
even lower, the range display will change to “– – – –”.
Journey DistanceNJEL0555S0402Journey distance indication is conducted by vehicle speed sig-
nal.
If journey distance is reset, journey time will be reset at the
same time.
When pushing “INFO” switch more than approximately 1
second, driving distance will be reset.
Journey TimeNJEL0555S0403Journey time indication is conducted by integration of ignition
ON time.
If journey time is reset, journey distance will be reset at the
same time.
Average Fuel ConsumptionNJEL0555S0404Average fuel consumption indication is conducted by ECM
pulse signal and vehicle speed signal after system is reset.
Indication will be renewed every 30 seconds.
VFD DISPLAY
System Description (Cont’d)
EL-216
