2003 NISSAN ALMERA N16 Timing

NJGI0011
ISO 15031-2NJGI0011S01All emission related terms used in this publication in accordance with ISO15031-2 are listed. Accordingly, new
terms, new acronyms/abbreviations and old terms are listed in the following chart.
***: Not applicable
NEW TERMNEW ACRONYM /
ABBREVIATIONOLD TERM
Air cleaner ACL Air cleaner
Barometric pressure sensor BARO sensor ***
Barometric pressure sensor-BCDD BAROS-BCDD BCDD
Camshaft position CMP ***
Camshaft position sensor CMPS Crank angle sensor
Canister *** Canister
Carburetor CARB Carburetor
Charge air cooler CAC Intercooler
Closed loop CL Closed loop
Closed throttle position switch CTP switch Idle switch
Clutch pedal position switch CPP switch Clutch switch
Continuous fuel injection system CFI system ***
Continuous trap oxidizer system CTOX system ***
Crankshaft position CKP ***
Crankshaft position sensor CKPS ***
Data link connector DLC Diagnostic connector for CONSULT
Diagnostic test mode DTM Diagnostic mode
Diagnostic test mode selector DTM selector Diagnostic mode selector
Diagnostic test mode I DTM I Mode I
Diagnostic test mode II DTM II Mode II
Diagnostic trouble code DTC Malfunction code
Direct fuel injection system DFI system ***
Distributor ignition system DI system Ignition timing control
Early fuel evaporation-mixture heater EFE-mixture heater Mixture heater
Early fuel evaporation system EFE system Mixture heater control
Electrically erasable programmable read
only memoryEEPROM ***
Electronic ignition system EI system Ignition timing control
Engine control EC ***
Engine control module ECM ECCS control unit
Engine coolant temperature ECT Engine temperature
Engine coolant temperature sensor ECTS Engine temperature sensor
Engine modification EM ***
Engine speed RPM Engine speedMA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
ISO 15031-2 TERMINOLOGY LIST
ISO 15031-2
GI-51

NJMA0036
Shown below are Pre-delivery Inspection Items required for the new vehicle. It is recommended that
necessary items other than those listed here be added, paying due regard tothe conditions in each
country.
Perform applicable items on each model. Consult text of this section for specifications.
UNDER HOOD — engine off
Radiator coolant level and coolant hose connections for leaks
Battery fluid level, specific gravity and conditions of battery terminals
Drive belts tension
Fuel filter for water or dusts (Diesel only), and fuel lines and connections for leaks
Engine oil level and oil leaks
Clutch and brake reservoir fluid level and fluid lines for leaks
Windshield and rear window washer and headlamp cleaner reservoir fluid level
Power steering reservoir fluid level and hose connections for leaks
ON INSIDE AND OUTSIDE
Remove front spring/strut spacer (If applicable)
Operation of all instruments, gauges, lights and accessories
Operation of horn(s), wiper and washer
Steering lock for operation
Check air conditioner for gas leaks
Front and rear seats, and seat belts for operation
All moldings, trims and fittings for fit and alignment
All windows for operation and alignment
Hood, trunk lid, door panels for fit and alignment
Latches, keys and locks for operation
Weatherstrips for adhesion and fit
Headlamp aiming
Tighten wheel nuts (Inc. inner nuts if applicable)
Tire pressure (Inc. spare tire)
Check front wheels for toe-in
Install clock/voltmeter/room lamp fuse (If applicable)
Install deodorizing filter to air conditioner (If applicable)
Remove wiper blade protectors (If applicable)
UNDER BODY
Manual transmission/transaxle, transfer and differential gear oil level
Brake and fuel lines and oil/fluid reservoirs for leaks
Tighten bolts and nuts of steering linkage and gear box, suspension, propeller shafts and drive shafts
Tighten rear body bolts and nuts (Models with wooden bed only)
ROAD TEST
Clutch operation
Parking brake operation
Service brake operation
Automatic transmission/transaxle shift timing and kickdown
Steering control and returnability
Engine performance
Squeaks and rattles
ENGINE OPERATING AND HOT
Adjust idle speed
Automatic transmission/transaxle fluid level
Engine idling and stop knob operation (Diesel only)
FINAL INSPECTION
Install necessary parts (outside mirror, wheel covers, seat belts, mat, carpet or mud flaps)
Inspect for interior and exterior metal and paint damage
Check for spare tire, jack, tools (wheel chock), and literature
Wash, clean interior and exterior
: Not applicable to this model
PRE-DELIVERY INSPECTION ITEMS
MA-2

EM-10
[QG]
NOISE, VIBRATION, AND HARSHNESS (NVH) TROUBLESHOOTING
Use the Chart Below to Help You Find the Cause of the Symptom.
EBS00LPX
1. Locate the area where noise occurs.
2. Confirm the type of noise.
3. Specify the operating condition of engine.
4. Check specified noise source.
If necessary, repair or replace these parts.
A: Closely related B: Related C: Sometimes related —: Not relatedLocation
of noiseTy p e o f
noiseOperating condition of engine
Source of
noiseCheck itemRefer-
ence page Before
warm-
upAfter
warm-
upWhen
start-
ingWhen
idlingWhen
racingWhile
driving
Top of
engine
Rocker
cover
Cylinder
headTick in g o r
clickingCA—AB—Tappet
noise
●Valve clearanceEM-42
Rattle C A — A B CCamshaft
bearing
noise
●Camshaft journal
clearance
●Camshaft runoutEM-39EM-39
Crank-
shaft pul-
ley
Cylinder
block
(Side of
engine)
Oil panSlap or
knock—A—B B—Piston pin
noise
●Piston and piston pin
clearance
●Connecting rod
bushing clearanceEM-84EM-87
Slap or
rapA——B B APiston
slap noise
●Piston-to-bore clear-
ance
●Piston ring side
clearance
●Piston ring end gap
●Connecting rod bend
and torsionEM-88
EM-85
EM-86
EM-86
Knock A B C B B BConnect-
ing rod
bearing
noise
●Connecting rod
bushing clearance
(Small end)
●Connecting rod bear-
ing clearance (Big
end)EM-87EM-87
Knock A B — A B CMain
bearing
noise
●Main bearing oil
clearance
●Crankshaft runoutEM-91EM-90
Front of
engine
Timing
chain
coverTapping or
tickingAA—BBBTiming
chain and
chain ten-
sioner
noise●Timing chain cracks
and wear
●Timing chain ten-
sioner operationEM-51EM-47
Front of
engineSqueak-
ing or fizz-
ingAB—B—CDrive belts
(Sticking
or slip-
ping)
●Drive belts deflection
EM-11
CreakingABABABDrive belts
(Slipping)●Idler pulley bearing
operation
Squall
CreakAB—BABWater
pump
noise
●Water pump opera-
tionLC-14

ROCKER COVER
EM-29
[QG]
C
D
E
F
G
H
I
J
K
L
MA
EM

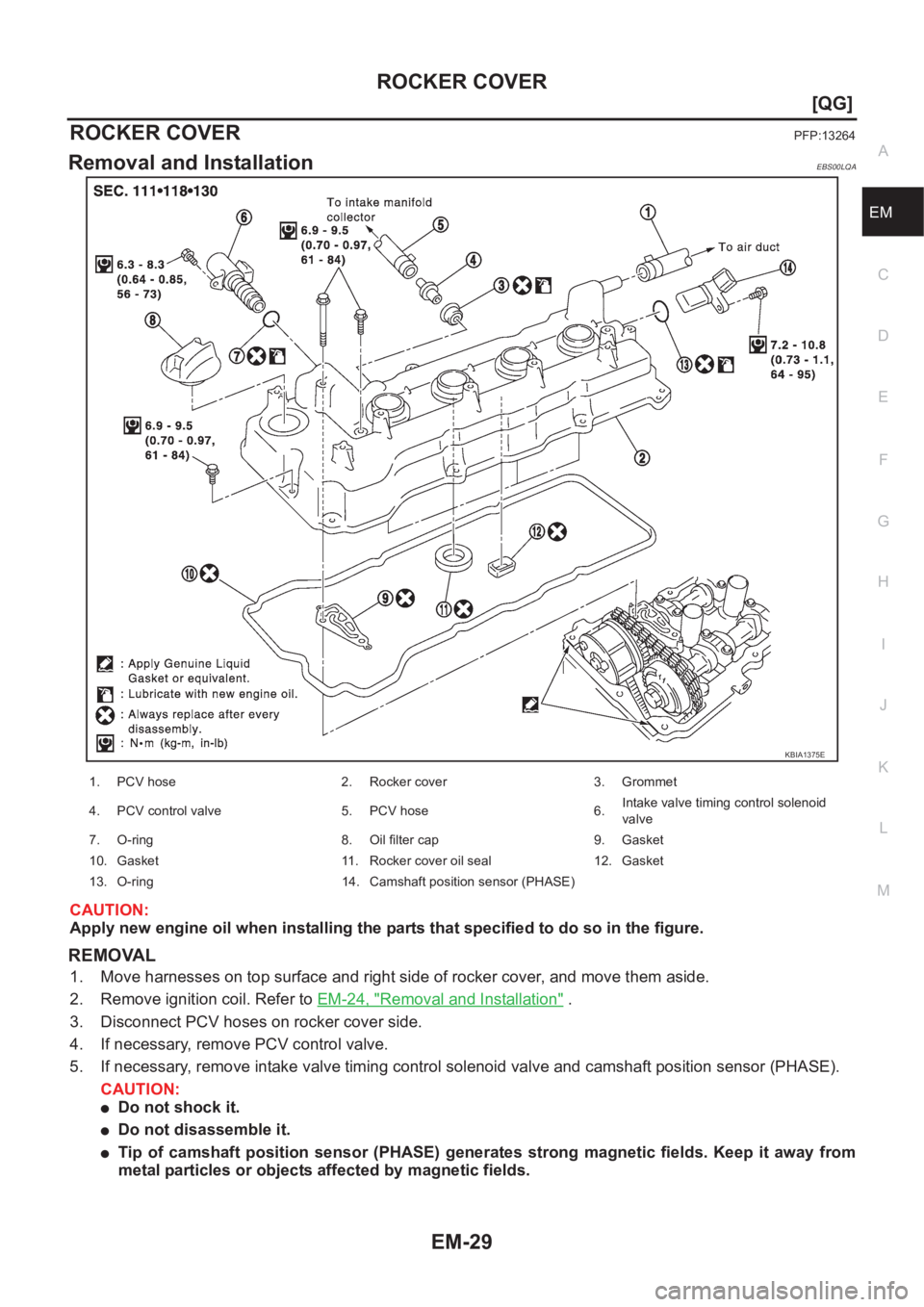

ROCKER COVERPFP:13264
Removal and InstallationEBS00LQA
CAUTION:
Apply new engine oil when installing the parts that specified to do so in the figure.
REMOVAL
1. Move harnesses on top surface and right side of rocker cover, and move them aside.
2. Remove ignition coil. Refer to EM-24, "
Removal and Installation" .
3. Disconnect PCV hoses on rocker cover side.
4. If necessary, remove PCV control valve.
5. If necessary, remove intake valve timing control solenoid valve and camshaft position sensor (PHASE).
CAUTION:
●Do not shock it.
●Do not disassemble it.
●Tip of camshaft position sensor (PHASE) generates strong magnetic fields. Keep it away from
metal particles or objects affected by magnetic fields.
KBIA1375E
1. PCV hose 2. Rocker cover 3. Grommet
4. PCV control valve 5. PCV hose 6.Intake valve timing control solenoid
valve
7. O-ring 8. Oil filter cap 9. Gasket
10. Gasket 11. Rocker cover oil seal 12. Gasket
13. O-ring 14. Camshaft position sensor (PHASE)

ROCKER COVER
EM-31
[QG]
C
D
E
F
G
H
I
J
K
L
MA
EM
d. Tighten mounting screws to specified torque in 2 or more steps
in numerical order shown in figure.
3. Install intake valve timing control solenoid valve and camshaft position sensor (PHASE).
●Tighten bolt after fully inserting it into rocker cover.
4. Install PCV valve.
●Insert until flange contacts grommet tightly.
5. Install remaining parts in the reverse order of removal.Bolt length: Bolt position
25 mm (0.98 in) : 1
65 mm (2.56 in) : 2
20 mm (0.79 in) : Except the above (all circumference)
KBIA1376E

EM-32
[QG]
CAMSHAFT
CAMSHAFT
PFP:13001
Removal and InstallationEBS00LQB
CAUTION:
Prior to installation, apply engine oil to the parts marked in the figure.
REMOVAL
1. Remove rocker cover. Refer to EM-29, "ROCKER COVER" .
2. Remove cylinder head front cover.
●Move harness secured to front surface beforehand.
3. Set No. 1 cylinder at TDC of its compression stroke.
a. Remove RH splash cover (integrated with undercover).
b. Rotate crankshaft pulley clockwise and align yellow paint mark
with timing indicator.
PBIC0965E
1. Camshaft bracket 2. Camshaft sprocket (INT) 3. Camshaft sprocket (EXH)
4. Washer 5. Cylinder head front cover 6. Chain tensioner
7. Valve lifter 8. Adjusting shim (If so equipped) 9. Camshaft (EXH)
10. Camshaft (INT)
MBIB0193E

CAMSHAFT
EM-33
[QG]
C
D
E
F
G
H
I
J
K
L
MA
EM
c. Confirm mating marks stamped on intake and exhaust sprockets
are located as shown.
●If not, rotate crankshaft pulley as shown and align them.
d. Referring to mating marks on intake and exhaust camshaft
sprockets, put paint mating marks on timing chain links.
4. Set intake camshaft sprocket to most advanced position.
CAUTION:
Removal/installation of intake camshaft sprocket is required to maintain most advanced position
because of following reasons. Therefore, follow procedure exactly.
●Sprocket and vane (camshaft in front) rotate and become
offset within specific angle range.
●When engine is stationary, vane is located at most
retarded position. Vane is fixed to sprocket by internal
lock pin. Therefore, it does not rotate.
●If camshaft sprocket mounting bolts are turned under
above circumstance, lock pin will be damaged by lateral
load (shear stress). It may cause non-standard operation.
●Set intake camshaft sprocket to most advanced position as
follows.
NOTE:
“Rotating direction” means direction viewed from engine front side.
CAUTION:
Do not remove chain tensioner before performing this step.
a. Using a wrench, hold hexagonal part so that intake camshaft
does not move.
b. Using an air gun, apply air pressure to intake valve timing con-
trol solenoid valve advanced side oil passage on top surface of
No. 1 camshaft bracket.
●Keep applying air pressure until step “d” is completed.
CAUTION:
●Be careful not to damage oil passage from interference of
air gun tip.
●Thoroughly wipe off oil before applying air pressure.
When applying air pressure, cover around air gun using a rag. Wear protective glasses if neces-
sary.
MBIB0194E
MBIB0195E
MBIB0196E
Compression pressure
: 300 kPa (3.00 bar, 3.06 kg/cm
2 , 43.5 psi) or more
MBIB0197E

CAMSHAFT
EM-35
[QG]
C
D
E
F
G
H
I
J
K
L
MA
EM
6. While holding hexagonal part of camshaft with a spanner, loosen
mounting bolts and remove intake and exhaust camshaft
sprockets.
CAUTION:
●Be careful that tool does not interfere with A/C piping.
●Avoid securing camshaft at other than hexagonal part
and loosening mounting bolts by utilizing tension of tim-
ing chain.
●Handle intake camshaft sprocket, taking care of following.
CAUTION:
●Secure stopper pin with vinyl tape to prevent detach-
ment.
●Avoid dropping it or subjecting it to impact.
●Do not disassemble. (Do not loosen 3 bolts on front sur-
face.)
NOTE:
If stopper pin is detached and lock pin is engaged at most retarded position during removal, recover as
follows.
a. Reinstall stopper pin to intake camshaft, and tighten intake camshaft sprocket mounting bolts so that air
does not leak.
CAUTION:
Tightening torque for mounting bolts must be minimum so that air does not leak, preventing dam-
age on internal lock pin.
b. Apply air pressure to disengage lock pin, and turn vane to most advanced position. (This step can be per-
formed with timing chain removed.)
c. Reinstall stopper pin.
d. Remove intakecamshaft sprocket from camshaft.
7. Remove camshaft brackets.
●Loosen mounting bolts in several steps in reverse order
shown in figure.
8. Remove camshaft.
CAUTION:
Be careful not to damage signal plate on rear end of intake
camshaft and crankshaft.
9. Remove adjusting shims and valve lifters.
●Identify installation position of each valve. Arrange removed
valves so they cannot be mixed up.
INSTALLATION
1. Install valve lifters and adjusting shims.
●Install them in their original positions.
●Install adjusting shim with its stamped mark facing downward (valve lifter side).
EMD0826D
MBIB0202E
PBIC0969E
