TOYOTA SIENNA 2007 Service Repair Manual ES–3482GR-FE ENGINE CONTROL SYSTEM – SFI SYSTEM
ES
DESCRIPTION
The Electronic Throttle Control System (ETCS) is composed of the throttle actuator, Throttle Position (TP)
sensor, Accelerator Ped

ES–3482GR-FE ENGINE CONTROL SYSTEM – SFI SYSTEM
ES
DESCRIPTION
The Electronic Throttle Control System (ETCS) is composed of the throttle actuator, Throttle Position (TP)
sensor, Accelerator Pedal Position (APP) sensor, and ECM. The ECM operates the throttle actuator to
regulate the throttle valve in response to driver inputs. The TP sensor detects the opening angle of the
throttle valve, and provides the ECM with feedback so that the throttle valve can be appropriately
controlled by the ECM.
MONITOR DESCRIPTION
The ECM determines the actual opening angle of the throttle valve from the TP sensor signal. The actual
opening angle is compared to the target opening angle commanded by the ECM. If the difference
between these two values is outside the standard range, the ECM interprets this as a malfunction in the
ETCS. The ECM then illuminates the MIL and sets the DTC.
If the malfunction is not repaired successfully, the DTC is set when the accelerator pedal is quickly
released (to close the throttle valve) after the engine speed reaches 5000 rpm by the accelerator pedal
being fully depressed (fully open the throttle valve).
MONITOR STRATEGY
TYPICAL ENABLING CONDITIONS
TYPICAL MALFUNCTION THRESHOLDS
DTC P2119Throttle Actuator Control Throttle Body Range /
Performance
DTC No. DTC Detection Condition Trouble Area
P2119Throttle valve opening angle continues to vary greatly
from target opening angle (1 trip detection logic)•ETCS
•ECM
Related DTCs P2119: ETCS malfunction
Required Sensors / Components (Main) Throttle actuator
Required Sensors / Components (Related) -
Frequency of Operation Continuous
Duration 1 second
MIL Operation Immediate
Sequence of Operation None
The monitor will run whenever these DTCs are not
presentNone
System guard* ON
*System guard set when the following conditions are
met-
Throttle actuator ON
Throttle actuator duty calculation Executing
TP sensor Fail determined
Throttle actuator current-cut Not executing
Throttle actuator power supply 4 V or more
Throttle actuator Fail determined
Either of following conditions is met Condition A or B
A. Commanded closed TP - current closed TP 0.3 V or more
B. Commanded open TP - current open TP 0.3 V or more

Page 642 of 3000

TOYOTA SIENNA 2007 Service Repair Manual 2GR-FE ENGINE CONTROL SYSTEM – SFI SYSTEMES–349
ES
FAIL-SAFE
When this DTC, as well as other DTCs relating to ETCS (Electronic Throttle Control System)
malfunctions, is set, the ECM enters fail

2GR-FE ENGINE CONTROL SYSTEM – SFI SYSTEMES–349
ES
FAIL-SAFE
When this DTC, as well as other DTCs relating to ETCS (Electronic Throttle Control System)
malfunctions, is set, the ECM enters fail-safe mode. During fail-safe mode, the ECM cuts the current to
the throttle actuator off, and the throttle valve is returned to a 6
throttle angle by the return spring. The
ECM then adjusts the engine output by controlling the fuel injection (intermittent fuel-cut) and ignition
timing, in accordance with the accelerator pedal opening angle, to allow the vehicle to continue at a
minimal speed. If the accelerator pedal is depressed slowly, the vehicle can be driven slowly.
Fail-safe mode continues until a pass condition is detected, and the ignition switch is then turned off.
WIRING DIAGRAM
Refer to DTC P2102 (See page ES-331).
INSPECTION PROCEDURE
HINT:
Read freeze frame data using the intelligent tester. The ECM records vehicle and driving condition
information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data
can be helpful in determining whether the vehicle was running or stopped, whether the engine was
warmed up or not, whether the air-fuel ratio was lean or rich, as well as other data recorded at the time of
a malfunction.
(a) Connect the intelligent tester to the DLC3.
(b) Turn the ignition switch to the ON position.
(c) Turn the tester on.
(d) Select the following menu items: DIAGNOSIS /
ENHANCED OBD II / DTC INFO / CURRENT CODES.
(e) Read the DTCs.
Result
HINT:
If any DTCs other than P2119 are output, troubleshoot
those DTCs first.
B
A
(a) Connect the intelligent tester to the DLC3.
(b) Turn the ignition switch to the ON position.
(c) Turn the tester on.
(d) Clear the DTCs (See page ES-39).
(e) Allow the engine to idle for 15 seconds.
CAUTION:
Perform the procedures "A" and "B" below with
great care. Failure to do so may result in the vehicle
unexpectedly rolling away.
1CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P2119)
Display (DTC Output) Proceed to
P2119 A
P2119 and other DTCs B
GO TO DTC CHART (See page ES-56)
2CHECK WHETHER DTC OUTPUT RECURS (DTC P2119)

Page 643 of 3000

TOYOTA SIENNA 2007 Service Repair Manual ES–3502GR-FE ENGINE CONTROL SYSTEM – SFI SYSTEM
ES
(f) Securely apply the parking brake and move the gear
selector lever to the D position (Procedure "A").
(g) While depressing the brak

Page 644 of 3000

TOYOTA SIENNA 2007 Service Repair Manual 2GR-FE ENGINE CONTROL SYSTEM – SFI SYSTEMES–351
ES
HINT:
These DTCs relate to the Accelerator Pedal Position (APP) sensor.
DESCRIPTION
HINT:
This ETCS (Electronic Throttle Control System) does n

Page 645 of 3000

TOYOTA SIENNA 2007 Service Repair Manual ES–3522GR-FE ENGINE CONTROL SYSTEM – SFI SYSTEM
ES
DTC No. DTC Detection Condition Trouble Area
P2120VPA fluctuates rapidly beyond upper and lower
malfunction thresholds for 0.5 seconds or more

Page 646 of 3000

TOYOTA SIENNA 2007 Service Repair Manual 2GR-FE ENGINE CONTROL SYSTEM – SFI SYSTEMES–353
ES
HINT:
When any of these DTCs are set, check the APP sensor voltage by selecting the following menu items on
the intelligent tester: DIAGNOSIS

2GR-FE ENGINE CONTROL SYSTEM – SFI SYSTEMES–353
ES
HINT:
When any of these DTCs are set, check the APP sensor voltage by selecting the following menu items on
the intelligent tester: DIAGNOSIS / ENHANCED OBD II / DATA LIST / PRIMARY / ACCEL POS #1 and
ACCEL POS #2.
HINT:
• Accelerator pedal positions are expressed as voltages.
• AP denotes Accelerator Pedal.
MONITOR DESCRIPTION
When either of the voltage outputs of VPA or VPA2 deviates from the standard range, or the difference
between the voltage outputs of the 2 sensor circuits is less than the threshold, the ECM determines that
there is a malfunction in the APP sensor. The ECM then illuminates the MIL and sets a DTC.
Example:
When the voltage output of VPA drops below 0.4 V for more than 0.5 seconds when the accelerator pedal
is fully depressed, DTC P2122 is set.
If the malfunction is not repaired successfully, a DTC is set 2 seconds after the engine is next started.
MONITOR STRATEGY
TYPICAL ENABLING CONDITIONS
P2138Condition (a) or (b) continues for 2.0 seconds or more
(1 trip detection logic):
(a) Difference between VPA and VPA2 is 0.02 V or less
(b) VPA is 0.4 V or less and VPA2 is 1.2 V or less• Short between VPA and VPA2 circuits
• APP sensor
•ECM
Trouble AreasACCEL POS #1 When
AP ReleasedACCEL POS #2 When
AP ReleasedACCEL POS #1 When
AP DepressedACCEL POS #2 When
AP Depressed
VCP circuit open 0 to 0.2 V 0 to 0.2 V 0 to 0.2 V 0 to 0.2 V
Open or ground short in VPA circuit 0 to 0.2 V 1.2 to 2.0 V 0 to 0.2 V 3.4 to 5.0 V
Open or ground short in VPA2 circuit 0.5 to 1.1 V 0 to 0.2 V 2.6 to 4.5 V 0 to 0.2 V
EPA circuit open 4.5 to 5.0 V 4.5 to 5.0 V 4.5 to 5.0 V 4.5 to 5.0 V
Normal condition 0.5 to 1.1 V 1.2 to 2.0 V 2.6 to 4.5 V 3.4 to 5.0 V
Related DTCsP2120: Accelerator Pedal Position (APP) sensor 1 range check (fluctuating)
P2122: APP sensor 1 range check (low voltage)
P2123: APP sensor 1 range check (high voltage)
P2125: APP sensor 2 range check (fluctuating)
P2127: APP sensor 2 range check (low voltage)
P2128: APP sensor 2 range check (high voltage)
P2138: APP sensor range check (correlation)
Required Sensors / Components (Main) APP sensor
Required Sensors / Components (Related) -
Frequency of Operation Continuous
Duration0.5 seconds: P2120, P2122, P2125 and P2127
2.0 seconds: P2123, P2128 and P2138
MIL Operation Immediate
Sequence of Operation None
The monitor will run whenever these DTCs are not
presentNone
Throttle actuator power ONDTC No. DTC Detection Condition Trouble Area

Page 647 of 3000

TOYOTA SIENNA 2007 Service Repair Manual ES–3542GR-FE ENGINE CONTROL SYSTEM – SFI SYSTEM
ES
TYPICAL MALFUNCTION THRESHOLDS
P2120:
P2122:
P2123:
P2125:
P2127:
P2128:
P2138:
COMPONENT OPERATING RANGE
FA I L - S A F E
When any of DTCs P21

Page 648 of 3000

TOYOTA SIENNA 2007 Service Repair Manual 2GR-FE ENGINE CONTROL SYSTEM – SFI SYSTEMES–355
ES

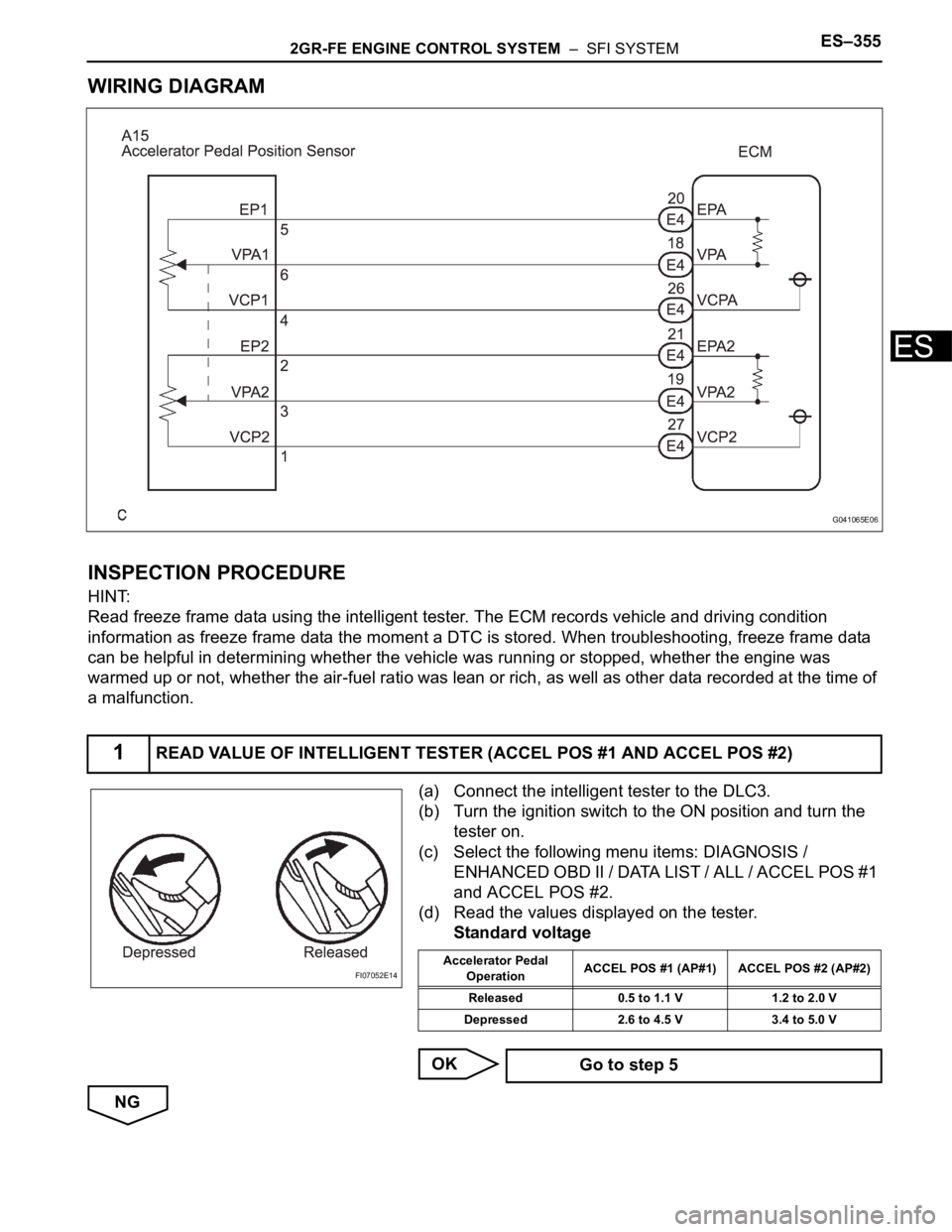

WIRING DIAGRAM
INSPECTION PROCEDURE
HINT:
Read freeze frame data using the intelligent tester. The ECM records vehicle and driving condition
i
