Page 2865 of 3000
AC–122AIR CONDITIONING – AIR CONDITIONING SYSTEM (for Automatic Air Conditioning Sys-
tem)
AC
(a) Remove the rear air outlet control servo motor.
(b) Disconnect the connector from the rear air outlet control
servo motor.
(c) Connect the positive (+) lead from the battery to terminal
4 and the negative (-) lead to terminal 5, then check that
the lever turns to the "FOOT" position smoothly.
OK:
Lever turns to "FOOT" position smoothly.
(d) Connect the positive (+) lead from the battery to terminal
5 and the negative (-) lead to terminal 4, then check that
the lever turn to the "FACE" position smoothly.
OK:
Lever turns to "FACE" position smoothly.
NG
OK
(a) Disconnect the connector from the A/C amplifier.
4INSPECT REAR AIR OUTLET CONTROL SERVO MOTOR
E145190E02
REPLACE REAR AIR OUTLET CONTROL
SERVO MOTOR
5CHECK HARNESS AND CONNECTOR (REAR AIR OUTLET CONTROL SERVO MOTOR -
A/C AMPLIFIER)
E145121E14
Page 2866 of 3000
AIR CONDITIONING – AIR CONDITIONING SYSTEM (for Automatic Air Conditioning Sys-
tem)AC–123
AC
(b) Measure the resistance according to the value(s) in the
table below.
Standard resistance
NG
OK
E141047E12
Tester Connection Condition Specified Condition
A10-2 (FACE) - A30-5 Always Below 1
A10-1 (FOOT) - A30-4 Always Below 1
A10-2 (FACE) - Body
groundAlways 10 k or higher
A10-1 (FOOT) - Body
groundAlways 10 k
or higher
REPAIR OR REPLACE HARNESS OR
CONNECTOR
REPLACE A/C AMPLIFIER
Page 2867 of 3000
AC–124AIR CONDITIONING – AIR CONDITIONING SYSTEM (for Automatic Air Conditioning Sys-
tem)
AC
DESCRIPTION
In this circuit, the compressor receives a refrigerant compression demand signal from the A/C amplifier.
Based on this signal, the compressor changes the amount of compressor output.
WIRING DIAGRAM
DTC B1451/51 Compressor Solenoid Circuit
DTC No. DTC Detection Condition Trouble Area
B1451/51Open or short in solenoid of externally changeable
compressor circuit• A/C compressor
• Harness or connector between A/C amplifier and
solenoid of externally changeable compressor
• A/C amplifier
E116880E08
Page 2868 of 3000
AIR CONDITIONING – AIR CONDITIONING SYSTEM (for Automatic Air Conditioning Sys-
tem)AC–125
AC
INSPECTION PROCEDURE
(a) Disconnect the A/C compressor connector.
(b) Measure the resistance according to the value(s) in the
table below.
Standard resistance
NG
OK
(a) Disconnect the A/C compressor connector.
(b) Measure the resistance according to the value(s) in the
table below.
Standard resistance
NG
OK
1INSPECT A/C COMPRESSOR
E116970E11
Tester Connection Condition Specified Condition
A32-2 (SOL+) - A32-1
(SOL-)20
C (68F) 10 to 11
REPLACE A/C COMPRESSOR
2CHECK HARNESS AND CONNECTOR (A/C COMPRESSOR - BODY GROUND)
E116971E16
Tester Connection Condition Specified Condition
A32-1 (SOL-) - Body
groundAlways Below 1
REPAIR OR REPLACE HARNESS OR
CONNECTOR
Page 2869 of 3000
AC–126AIR CONDITIONING – AIR CONDITIONING SYSTEM (for Automatic Air Conditioning Sys-
tem)
AC
(a) Disconnect the A/C compressor connector.
(b) Disconnect the A/C amplifier connector.
(c) Measure the resistance according to the value(s) in the
table below.
Standard resistance
Result
B
C
A
3CHECK HARNESS AND CONNECTOR (A/C COMPRESSOR - A/C AMPLIFIER)
E116971E17
E143742E43
Tester Connection Condition Specified Condition
A9-4 (SOL+) - A32-2
(SOL+)Always Below 1
A9-4 (SOL+) - Body
groundAlways 10 k or higher
Result Proceed to
NG A
OK (When troubleshooting according to the
PROBLEM SYMPTOMS TABLE)B
OK (When troubleshooting according to the DTC) C
PROCEED TO NEXT CIRCUIT INSPECTION
SHOWN IN PROBLEM SYMPTOMS TABLE
REPLACE A/C AMPLIFIER
REPAIR OR REPLACE HARNESS OR CONNECTOR
Page 2870 of 3000
AIR CONDITIONING – AIR CONDITIONING SYSTEM (for Automatic Air Conditioning Sys-
tem)AC–127
AC
DESCRIPTION
INSPECTION PROCEDURE
(a) Refer to the CAN communication system (See page CA-
7).
(b) If the CAN communication system is operating normally,
proceed to the next step.
NEXT
(a) Refer to the multiplex communication system (See page
MP-4).
NEXT
DTC B1499/99 Multiplex Communication Circuit
DTC No. DTC Detection Condition Trouble Area
B1499/99• Open in CAN communication circuit
• Open in multiplex communication system• CAN communication system
• Multiplex communication system
1GO TO CAN COMMUNICATION SYSTEM
2GO TO MULTIPLEX COMMUNICATION SYSTEM (BEAN)
END
Page 2871 of 3000
AC–128AIR CONDITIONING – AIR CONDITIONING SYSTEM (for Automatic Air Conditioning Sys-
tem)
AC
DESCRIPTION
The blower motor is operated by signals from the A/C amplifier. Blower motor speed signals are
transmitted by changes in the Duty Ratio.

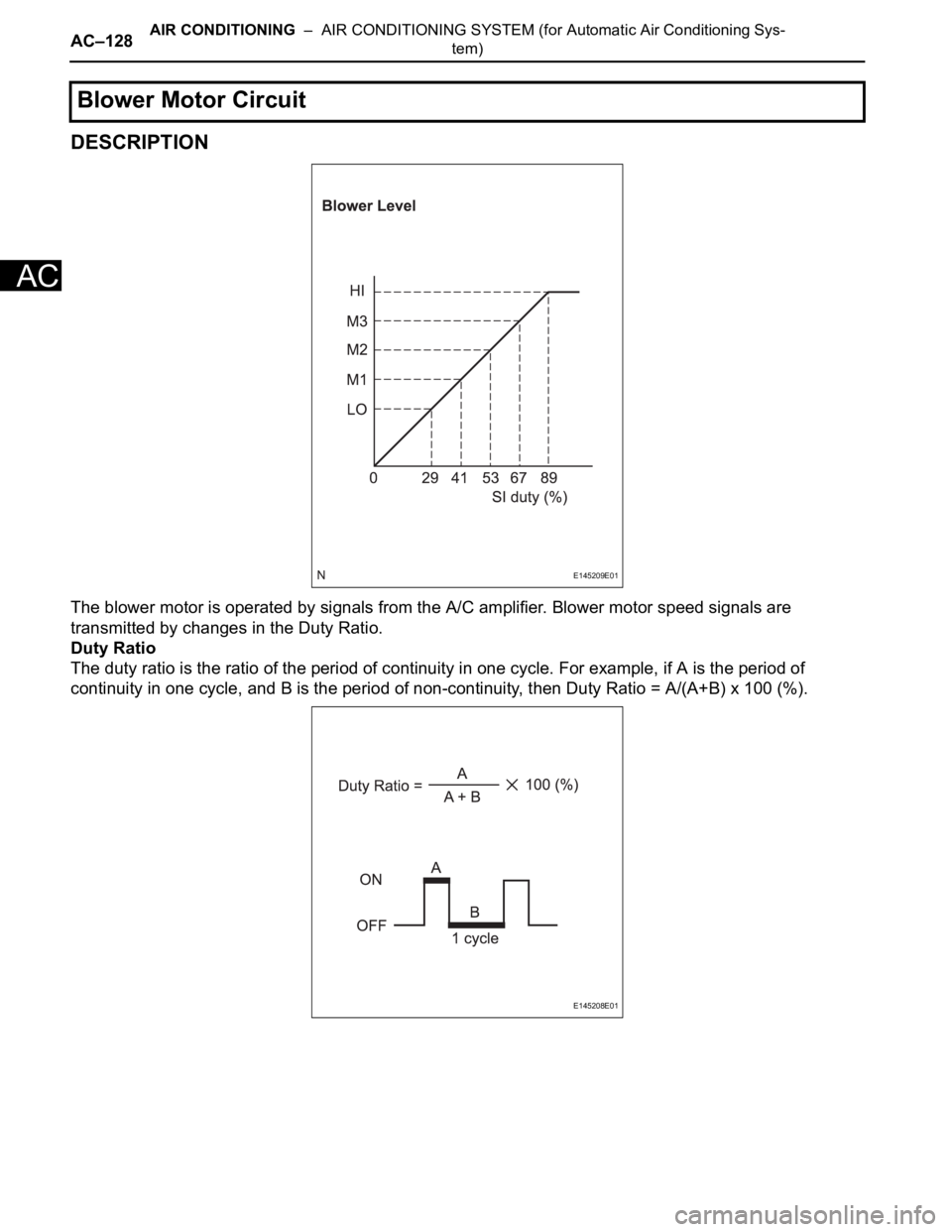

Duty Ratio
The duty ratio is the ratio of the period of continuity in one cycle. For example, if A is the period of
continuity in one cycle, and B is the period of non-continuity, then Duty Ratio = A/(A+B) x 100 (%).
Blower Motor Circuit
E145209E01
E145208E01
Page 2872 of 3000
AIR CONDITIONING – AIR CONDITIONING SYSTEM (for Automatic Air Conditioning Sys-
tem)AC–129
AC

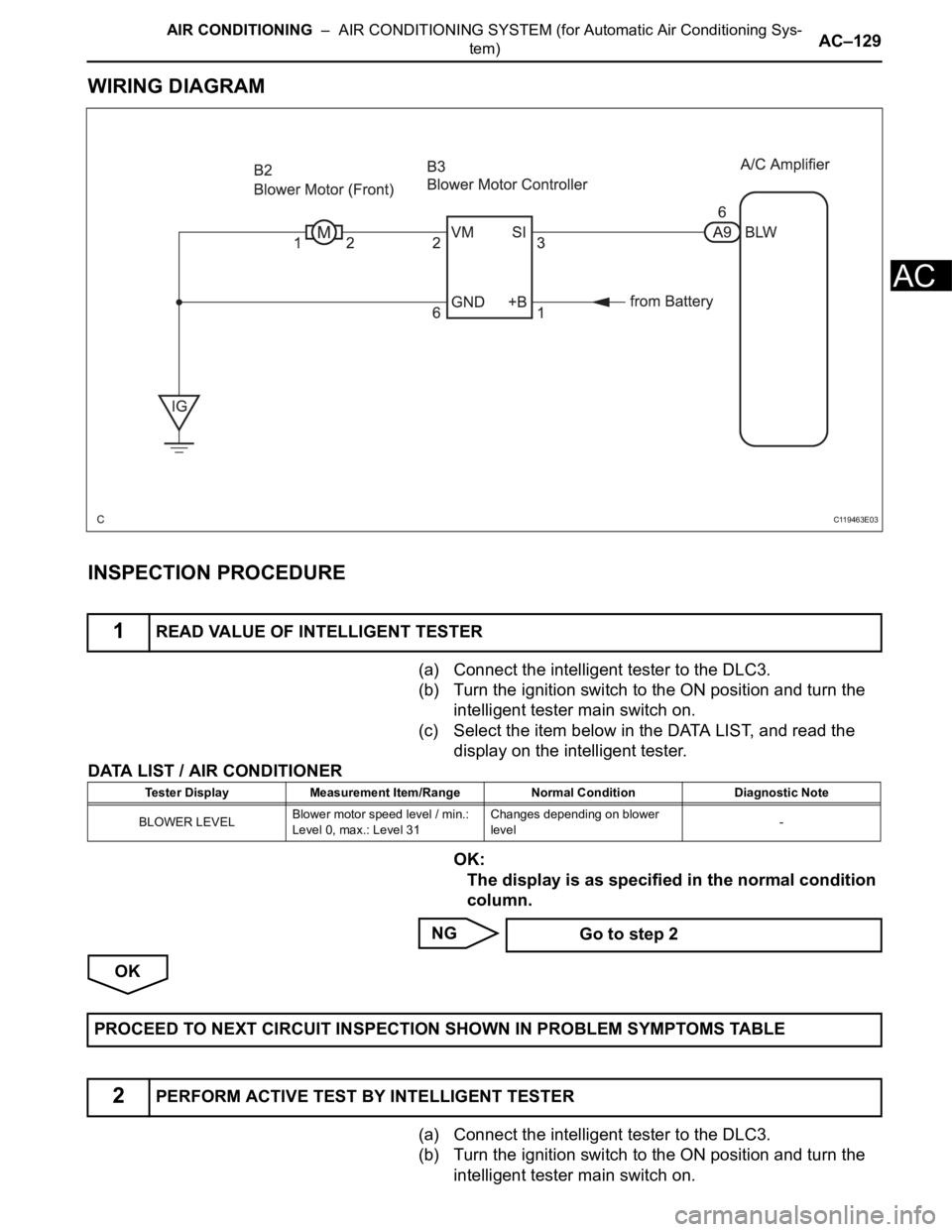

WIRING DIAGRAM
INSPECTION PROCEDURE
(a) Connect the intelligent tester to the DLC3.
(b) Turn the ignition switch to the ON position and turn the
intelligent tester main switch on.
(c) Select the item below in the DATA LIST, and read the
display on the intelligent tester.
DATA LIST / AIR CONDITIONER
OK:
The display is as specified in the normal condition
column.
NG
OK
(a) Connect the intelligent tester to the DLC3.
(b) Turn the ignition switch to the ON position and turn the
intelligent tester main switch on.
1READ VALUE OF INTELLIGENT TESTER
C119463E03
Tester Display Measurement Item/Range Normal Condition Diagnostic Note
BLOWER LEVELBlower motor speed level / min.:
Level 0, max.: Level 31Changes depending on blower
level-
Go to step 2
PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
2PERFORM ACTIVE TEST BY INTELLIGENT TESTER
