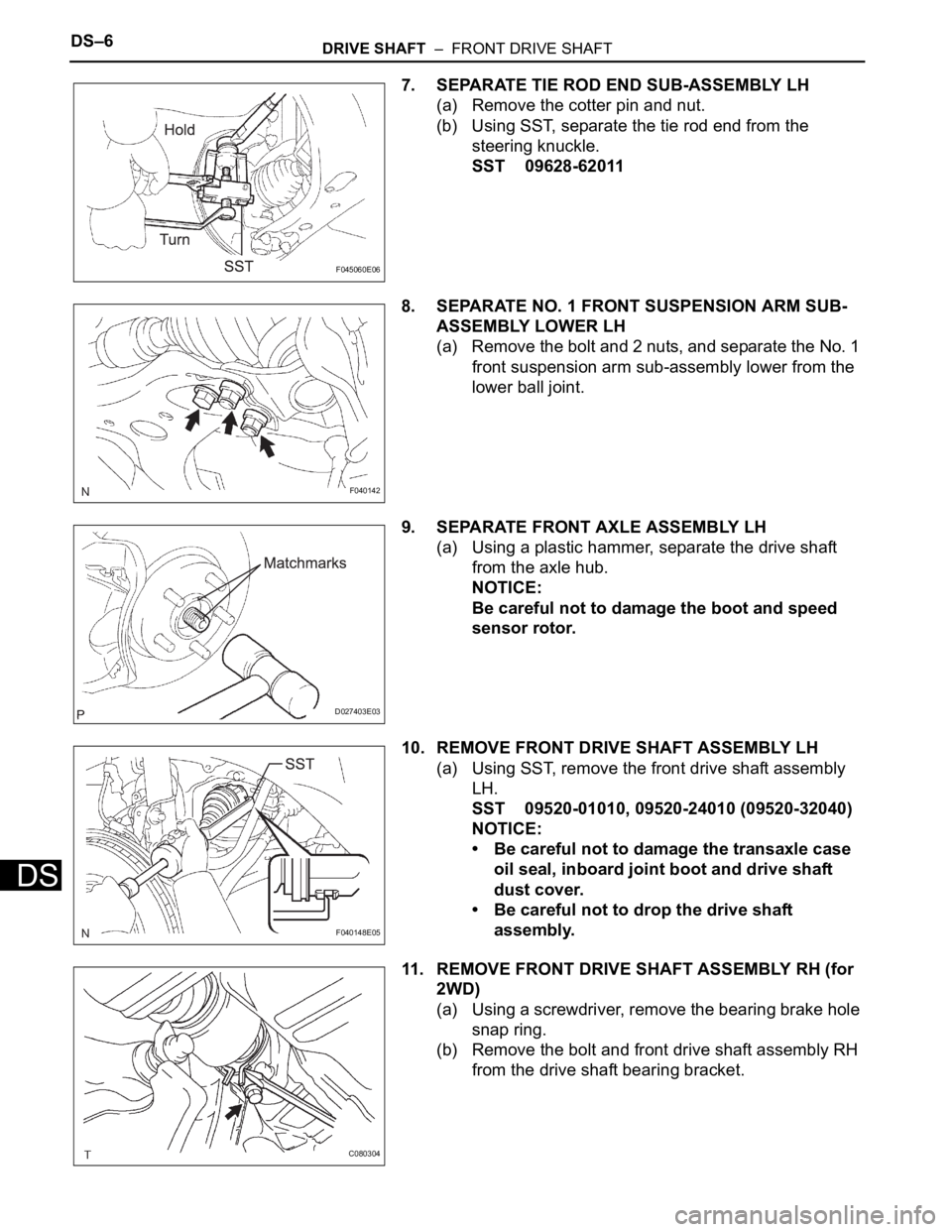

TOYOTA SIENNA 2007 Service Repair Manual DS–6DRIVE SHAFT – FRONT DRIVE SHAFT
DS
7. SEPARATE TIE ROD END SUB-ASSEMBLY LH
(a) Remove the cotter pin and nut.
(b) Using SST, separate the tie rod end from the
steering knuckle.
SST 09628-62

Page 2082 of 3000

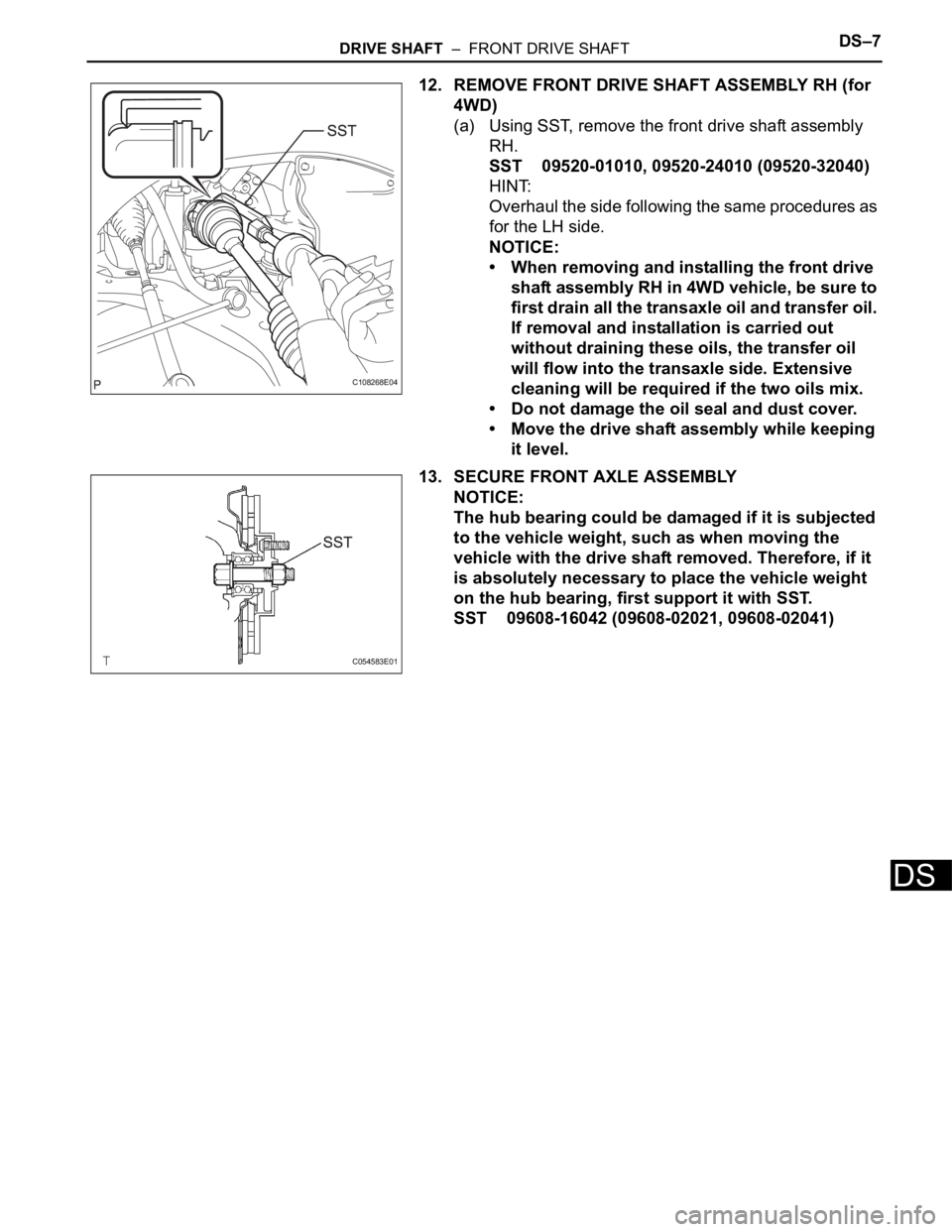

TOYOTA SIENNA 2007 Service Repair Manual DRIVE SHAFT – FRONT DRIVE SHAFTDS–7
DS
12. REMOVE FRONT DRIVE SHAFT ASSEMBLY RH (for
4WD)
(a) Using SST, remove the front drive shaft assembly
RH.
SST 09520-01010, 09520-24010 (09520-32040)
HI

Page 2083 of 3000

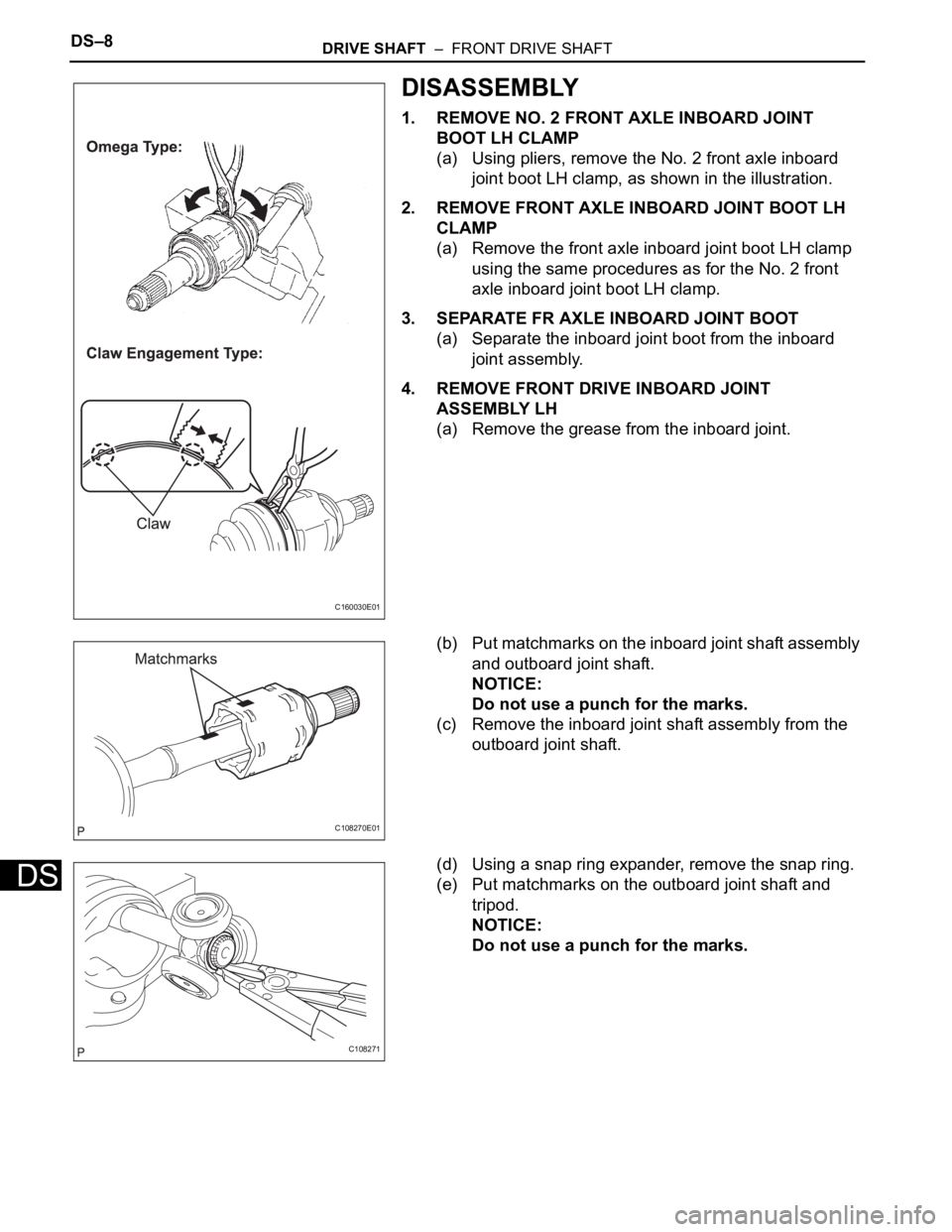

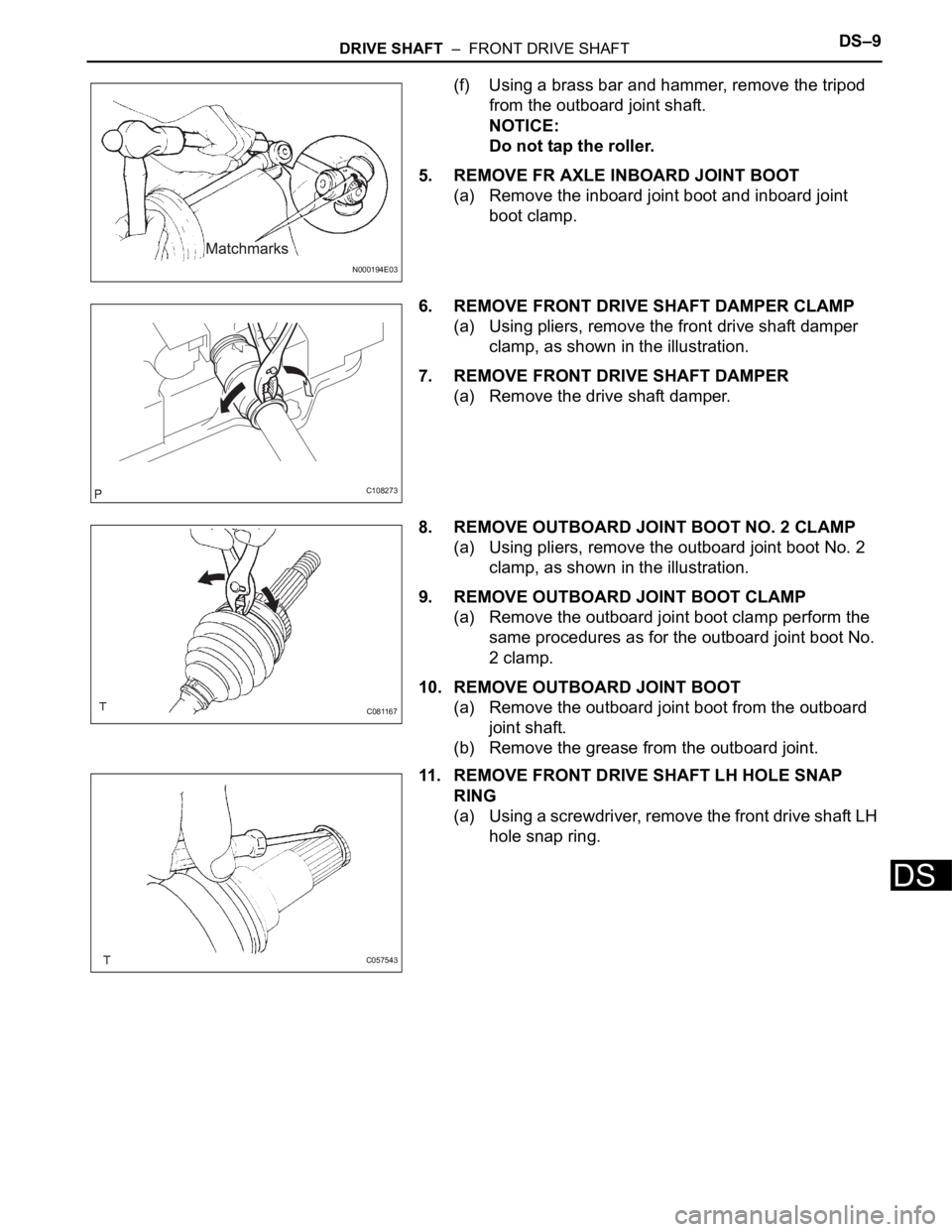

TOYOTA SIENNA 2007 Service Repair Manual DS–8DRIVE SHAFT – FRONT DRIVE SHAFT
DS
DISASSEMBLY
1. REMOVE NO. 2 FRONT AXLE INBOARD JOINT
BOOT LH CLAMP
(a) Using pliers, remove the No. 2 front axle inboard
joint boot LH clamp, as shown in

Page 2084 of 3000

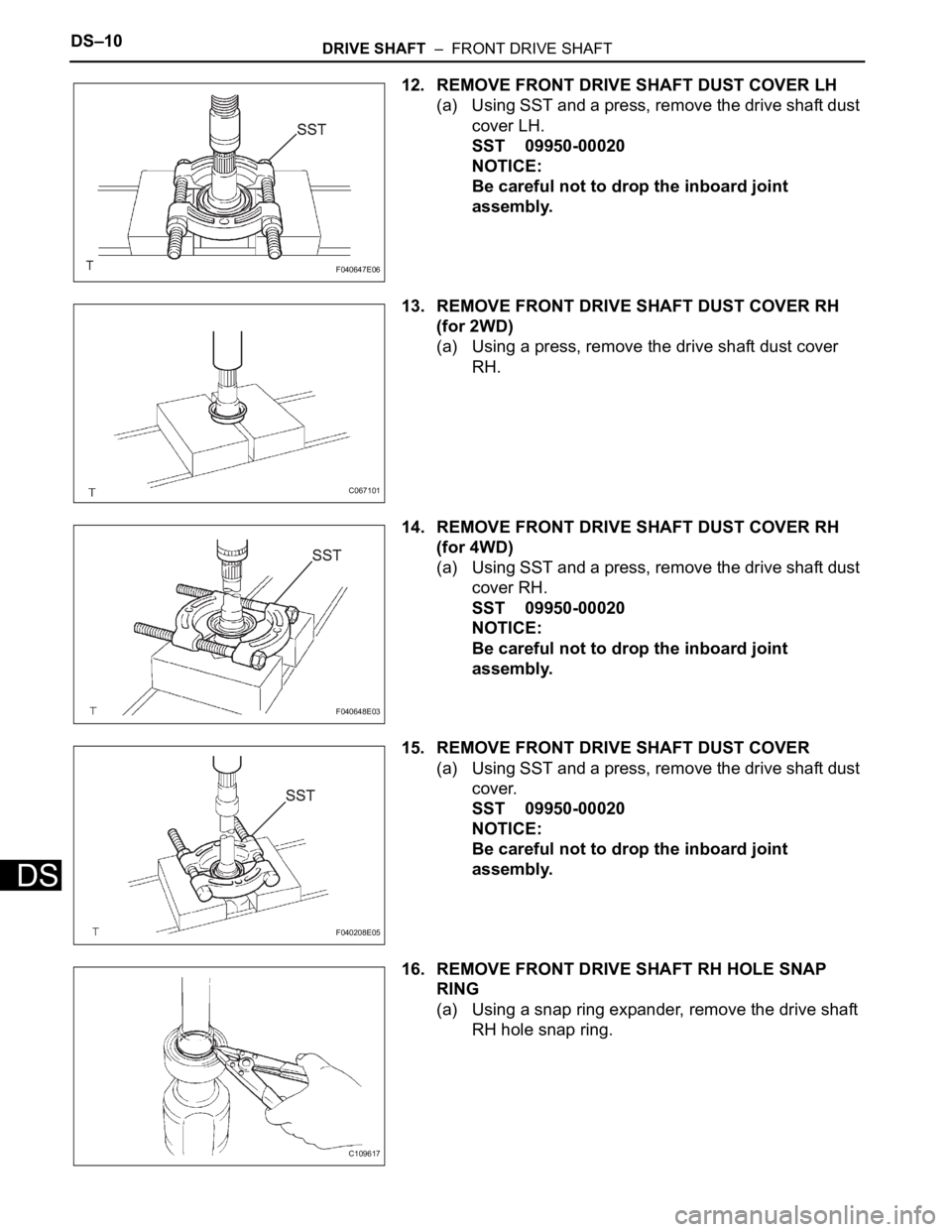

TOYOTA SIENNA 2007 Service Repair Manual DRIVE SHAFT – FRONT DRIVE SHAFTDS–9
DS
(f) Using a brass bar and hammer, remove the tripod
from the outboard joint shaft.
NOTICE:
Do not tap the roller.
5. REMOVE FR AXLE INBOARD JOINT BOOT
(a)

Page 2085 of 3000

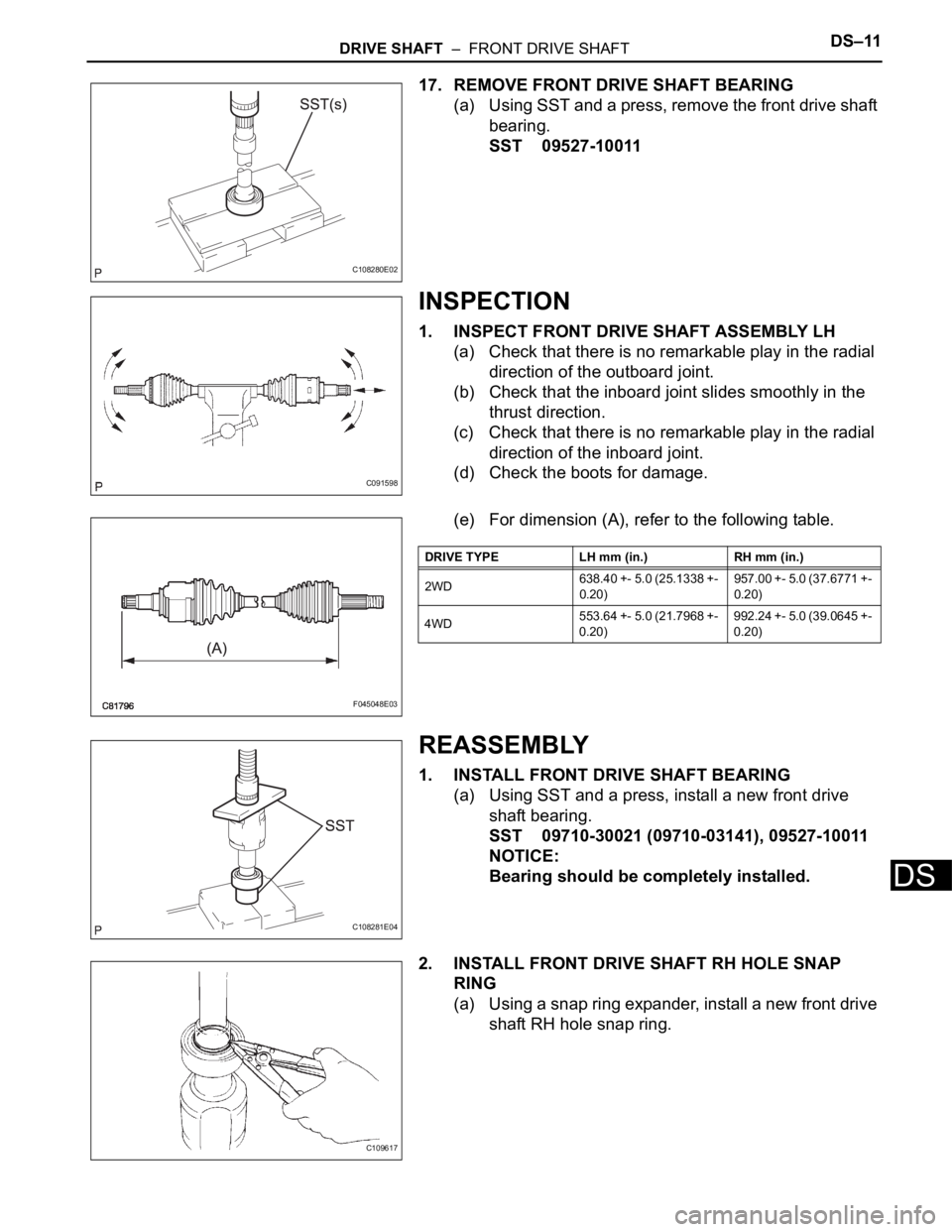

TOYOTA SIENNA 2007 Service Repair Manual DS–10DRIVE SHAFT – FRONT DRIVE SHAFT
DS
12. REMOVE FRONT DRIVE SHAFT DUST COVER LH
(a) Using SST and a press, remove the drive shaft dust
cover LH.
SST 09950-00020
NOTICE:
Be careful not to dro

Page 2086 of 3000

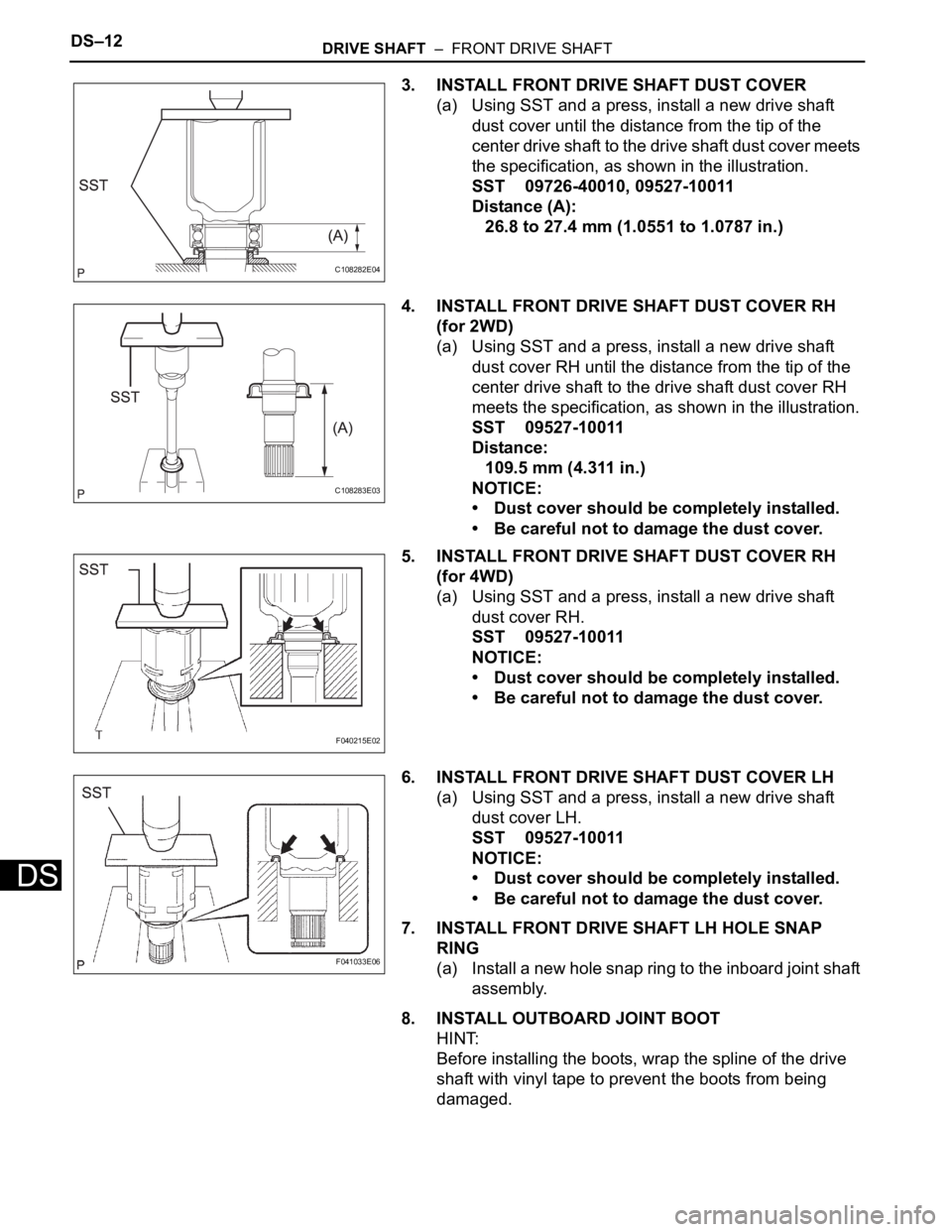

TOYOTA SIENNA 2007 Service Repair Manual DRIVE SHAFT – FRONT DRIVE SHAFTDS–11
DS
17. REMOVE FRONT DRIVE SHAFT BEARING
(a) Using SST and a press, remove the front drive shaft
bearing.
SST 09527-10011
INSPECTION
1. INSPECT FRONT DRIVE S

Page 2087 of 3000

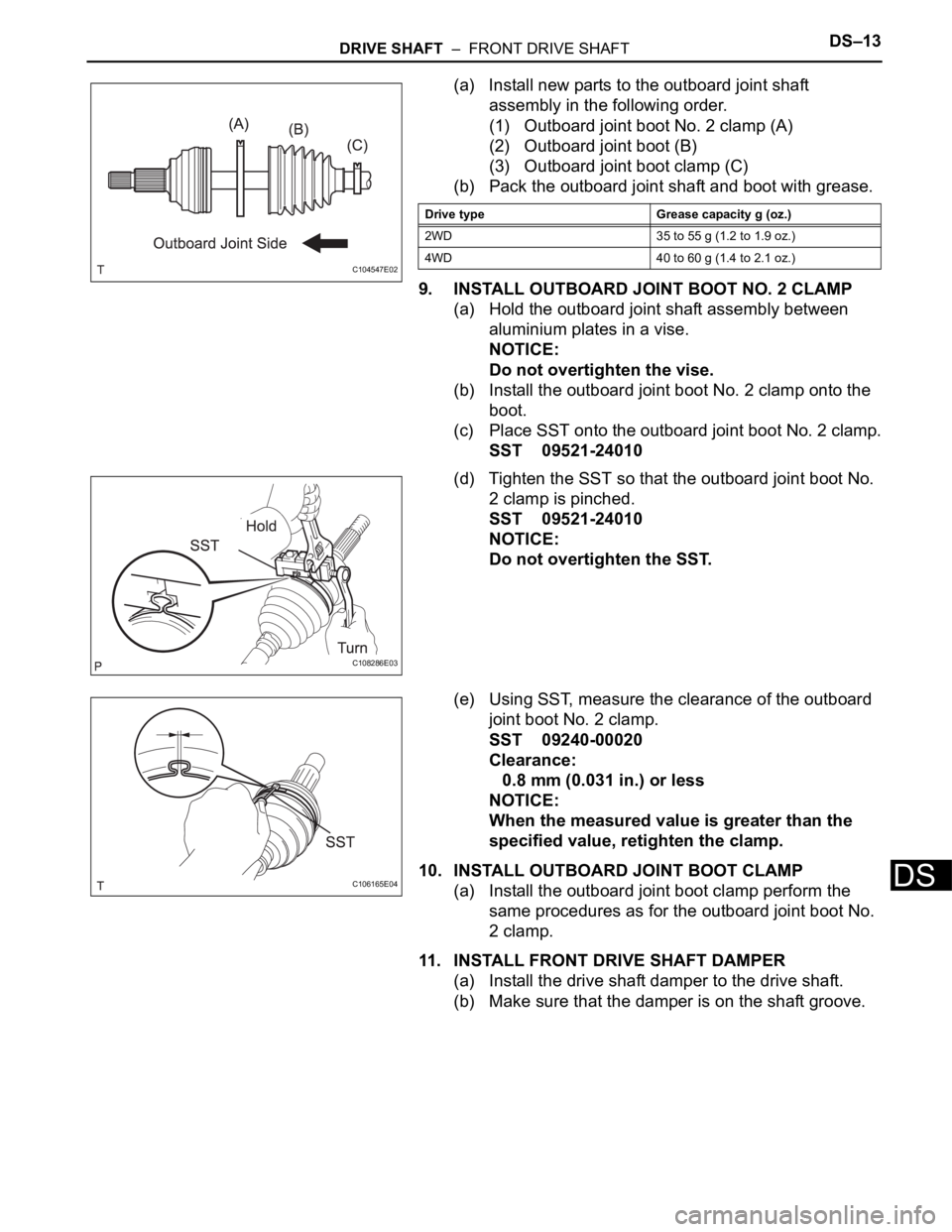

TOYOTA SIENNA 2007 Service Repair Manual DS–12DRIVE SHAFT – FRONT DRIVE SHAFT
DS
3. INSTALL FRONT DRIVE SHAFT DUST COVER
(a) Using SST and a press, install a new drive shaft
dust cover until the distance from the tip of the
center dr

Page 2088 of 3000

TOYOTA SIENNA 2007 Service Repair Manual DRIVE SHAFT – FRONT DRIVE SHAFTDS–13
DS
(a) Install new parts to the outboard joint shaft
assembly in the following order.
(1) Outboard joint boot No. 2 clamp (A)
(2) Outboard joint boot (B)
(3
