BRAKE CONTROL – VEHICLE STABILITY CONTROL SYSTEMBC–175
BC
(a) Turn the ignition switch off.
(b) Disconnect the ECM connector.
(c) Measure the resistance according to the value(s) in the
table below.
Standard resistance
NG
OK
(a) Measure the resistance according to the value(s) in the
table below.
Standard resistance
NG
OK
3CHECK HARNESS AND CONNECTOR (TC of DLC3 - ECM)
C146756E03
Tester Connection Condition Specified Condition
D1-13 (TC) - E4-23 (TC) Always Below 1
D1-13 (TC) - Body
groundAlways 10 k or higher
REPAIR OR REPLACE HARNESS OR
CONNECTOR
4CHECK HARNESS AND CONNECTOR (CG of DLC3 - BODY GROUND)
G022986E30
Tester Connection Condition Specified Condition
D1-4 (CG) - Body
groundAlways Below 1
REPAIR OR REPLACE HARNESS OR
CONNECTOR
Page 2538 of 3000
BC–176BRAKE CONTROL – VEHICLE STABILITY CONTROL SYSTEM
BC
(a) Reconnect the ECM connector.
(b) Using SST, connect terminals TC and CG of the DLC3.
SST 09843-18040
(c) Turn the ignition switch to the ON position.
(d) Check that the check engine warning light is blinking.
Result
HINT:
If troubleshooting has been carried out according to the
Problem Symptoms Table, refer back to the table and
proceed to the next step before replacing the part (See
page BC-79).
B
A
5CHECK ECM (TC of DLC3 INPUT)
G022986E29
Result Proceed to
Check engine warning light is blinkingA
Check engine warning light is not blinking B
REPAIR OR REPLACE WIRE HARNESS OR
ECM (TC of ECM CIRCUIT)
REPLACE BRAKE ACTUATOR ASSEMBLY
Page 2539 of 3000
BRAKE CONTROL – VEHICLE STABILITY CONTROL SYSTEMBC–177
BC
DESCRIPTION
In the sensor check mode, a malfunction of the speed sensor that cannot be detected when the vehicle is
stopped is detected while driving.
Transition to the sensor check mode can be performed by connecting terminals TS and CG of the DLC3
and turning the ignition switch from off to the ON position.
WIRING DIAGRAM
INSPECTION PROCEDURE
(a) Turn the ignition switch to the ON position.
(b) Measure the voltage according to the value(s) in the
table below.
Standard voltage
NG
OK
(a) Disconnect the skid control ECU connector.
TS and CG Terminal Circuit
1INSPECT DLC3
F045121E03
E106867E20
Tester Connection Specified Condition
D1-12 (TS) - D1-4 (CG) 10 to 14 V
REPAIR OR REPLACE HARNESS OR
CONNECTOR
2CHECK HARNESS AND CONNECTOR (TS of DLC3 - SKID CONTROL ECU)
Page 2540 of 3000
BC–178BRAKE CONTROL – VEHICLE STABILITY CONTROL SYSTEM
BC
(b) Measure the resistance according to the value(s) in the
table below.
Standard resistance
(c) Measure the resistance according to the value(s) in the
table below.
Standard resistance
NOTICE:
When replacing the brake actuator assembly,
perform zero point calibration (See page BC-70).
NG
OK
C127570E01
Tester Connection Specified Condition
S3-24 (TS) - D1-12 (TS) Below 1
Tester Connection Specified Condition
S3-24 (TS) - Body ground 10 k
or higher
REPAIR OR REPLACE HARNESS OR
CONNECTOR
REPLACE BRAKE ACTUATOR ASSEMBLY
Page 2541 of 3000

BRAKE CONTROL – ANTI-LOCK BRAKE SYSTEMBC–17
BC
DIAGNOSTIC TROUBLE CODE CHART
HINT:
• If a trouble code is displayed during the DTC check, check
the circuit indicated by the DTC. For details of each code,
turn to the page for the respective DTC Code. in the DTC
chart.
• Inspect the fuse and relay before investigating the trouble
areas as shown in the table below.
DTC chart of ABS:
DTC Code Detection Item Trouble Area See page
C0200/31 Front Speed Sensor RH Circuit1. Front speed sensor RH
2. Front speed sensor RH circuit
3. Speed sensor rotor
4. Sensor installation
5. Brake actuator assemblyBC-17
C0205/32 Front Speed Sensor LH Circuit1. Front speed sensor LH
2. Front speed sensor LH circuit
3. Speed sensor rotor
4. Sensor installation
5. Brake actuator assemblyBC-17
C0210/33 Rear Speed Sensor RH Circuit1. Rear speed sensor RH
2. Rear speed sensor RH circuit
3. Speed sensor rotor
4. Sensor installation
5. Brake actuator assemblyBC-23
C0215/34 Rear Speed Sensor LH Circuit1. Rear speed sensor LH
2. Rear speed sensor LH circuit
3. Speed sensor rotor
4. Sensor installation
5. Brake actuator assemblyBC-23
C0226/21 SFR Solenoid Circuit1. SFRH or SFRR circuit
2. Brake actuator assemblyBC-29
C0236/22 SFL Solenoid Circuit1. SFLH or SFLR circuit
2. Brake actuator assemblyBC-29
C0246/23 SRR Solenoid Circuit1. SRRH or SRRR circuit
2. Brake actuator assemblyBC-29
C0256/24 SRL Solenoid Circuit1. SRLH or SRLR circuit
2. Brake actuator assemblyBC-29
C0273/13 Open in ABS Motor Relay Circuit1. ABS 1 fuse
2. ABS motor relay
3. ABS motor relay circuit
4. Brake actuator assemblyBC-31
C0274/14Short to B+ in ABS Motor Relay
Circuit1. ABS 1 fuse
2. ABS motor relay
3. ABS motor relay circuit
4. Brake actuator assemblyBC-31
C0278/11Open in ABS Solenoid Relay
Circuit1. ABS 2 fuse
2. ABS solenoid relay
3. ABS solenoid relay circuit
4. Brake actuator assemblyBC-34
C0279/12Short to B+ in ABS Solenoid
Relay Circuit1. ABS 2 fuse
2. ABS solenoid relay
3. ABS solenoid relay circuit
4. Brake actuator assemblyBC-34
C1235/35Foreign Object is Attached on Tip
of Front Speed Sensor RH1. Front speed sensor RH
2. Speed sensor rotor
3. Sensor installation
4. Brake actuator assemblyBC-17
Page 2542 of 3000

BC–18BRAKE CONTROL – ANTI-LOCK BRAKE SYSTEM
BC
Test Mode DTC of ABS:
C1236/36Foreign Object is Attached on Tip
of Front Speed Sensor LH1. Front speed sensor LH
2. Speed sensor rotor
3. Sensor installation
4. Brake actuator assemblyBC-17
C1238/38Foreign Object is Attached on Tip
of Rear Speed Sensor RH1. Rear speed sensor RH
2. Speed sensor rotor
3. Sensor installation
4. Brake actuator assemblyBC-23
C1239/39Foreign Object is Attached on Tip
of Rear Speed Sensor LH1. Rear speed sensor LH
2. Speed sensor rotor
3. Sensor installation
4. Brake actuator assemblyBC-23
C1241/41 Low Battery Positive Voltage1. Battery
2. ECU-IG fuse
3. Charging system
4. Power source circuitBC-37
C1249/49 Open in Stop Light Switch Circuit1. Stop light switch
2. Stop light switch circuitBC-41
C1251/51 Open in Pump Motor Circuit1. ABS pump motor circuit
2. Brake actuator assemblyBC-45
DTC Code Detection Item Trouble Area See page
C1271/71Low Output Signal of Front Speed
Sensor RH (Test Mode DTC)1. Front speed sensor RH
2. Sensor installation
3. Speed sensor rotorBC-17
C1272/72Low Output Signal of Front Speed
Sensor LH (Test Mode DTC)1. Front speed sensor LH
2. Sensor installation
3. Speed sensor rotorBC-17
C1273/73Low Output Signal of Rear Speed
Sensor RH (Test Mode DTC)1. Rear speed sensor RH
2. Sensor installation
3. Speed sensor rotorBC-23
C1274/74Low Output Signal of Rear Speed
Sensor LH (Test Mode DTC)1. Rear speed sensor LH
2. Sensor installation
3. Speed sensor rotorBC-23
C1275/75Abnormal Change in Output
Signal of Front Speed Sensor RH
(Test Mode DTC)Speed sensor rotorBC-17
C1276/76Abnormal Change in Output
Signal of Front Speed Sensor LH
(Test Mode DTC)Speed sensor rotorBC-17
C1277/77Abnormal Change in Output
Signal of Rear Speed Sensor RH
(Test Mode DTC)Speed sensor rotorBC-23
C1278/78Abnormal Change in Output
Signal of Rear Speed Sensor LH
(Test Mode DTC)Speed sensor rotorBC-23 DTC Code Detection Item Trouble Area See page
Page 2543 of 3000
BRAKE CONTROL – BRAKE ACTUATOR (w/ VSC)BC–177
BC
BRAKE
BRAKE CONTROL
BRAKE ACTUATOR (w/ VSC)
COMPONENTS

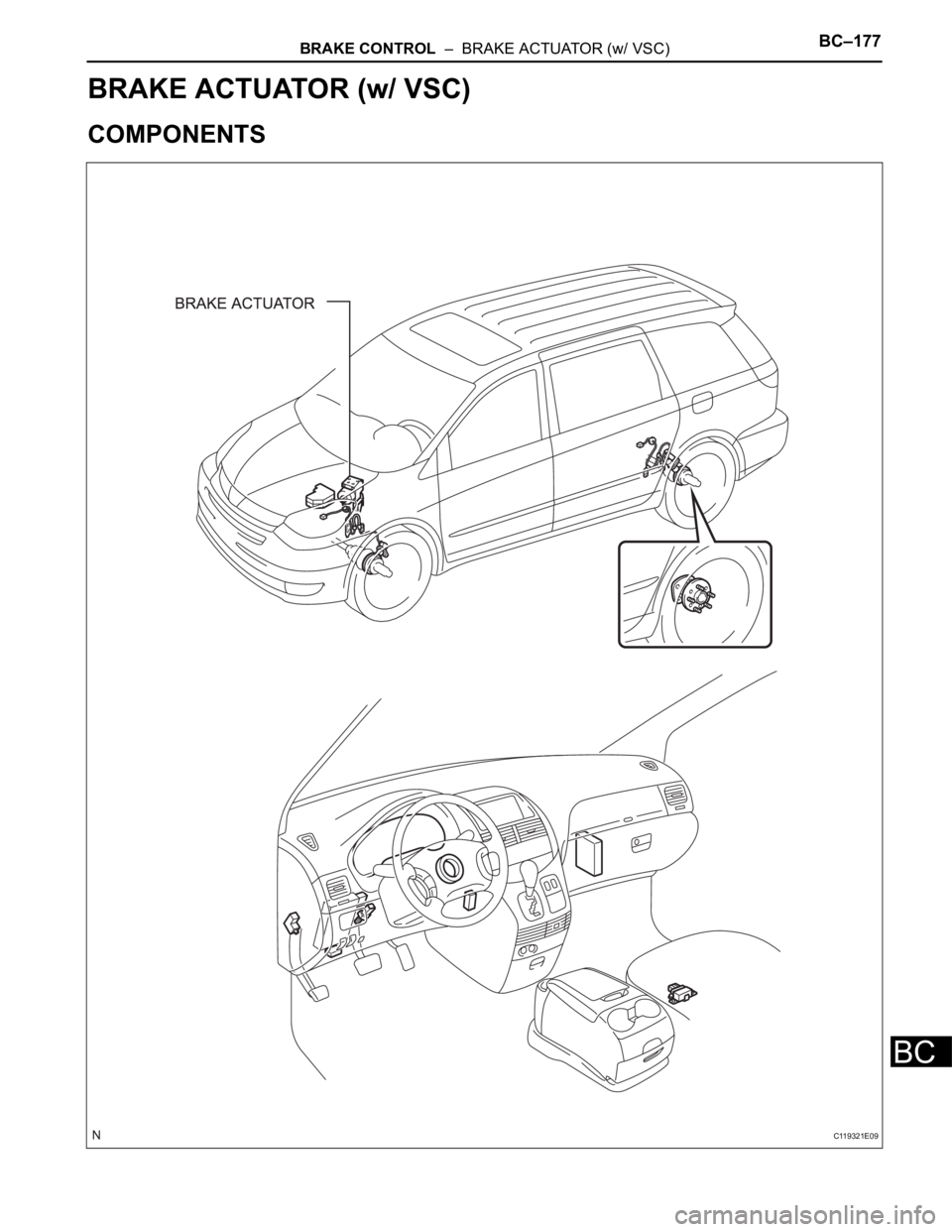

C119321E09
Page 2544 of 3000

BC–178BRAKE CONTROL – BRAKE ACTUATOR (w/ VSC)
BC
ON-VEHICLE INSPECTION
1. CONNECT INTELLIGENT TESTER
(a) Connect the intelligent tester to the DLC3.
(b) Start the engine and run at idle.
(c) Select the ACTIVE TEST mode on the intelligent
tester.
HINT:
Please refer to the intelligent tester operator's
manual for further details.
2. INSPECT ACTUATOR MOTOR OPERATION
(a) With the motor relay on, check the actuator motor
operation noise.
(b) Turn the motor relay off.
(c) Depress the brake pedal and hold it for
approximately 15 seconds. Check that the brake
pedal cannot be depressed.
(d) With the motor relay on, check that the pedal does
not pulsate.
NOTICE:
Do not keep the motor relay turned on for more
than 5 seconds continuously. When operating it
continuously, set an interval of more than 20
seconds.
(e) Turn the motor relay off and release the brake
pedal.
3. INSPECT RIGHT FRONT WHEEL OPERATION
NOTICE:
Never turn on the solenoids in a manner different to
those described below.
(a) With the brake pedal depressed, perform the
following operations.
(b) Turn the SFRH and SFRR solenoids on
simultaneously, and check that the pedal cannot be
depressed.
NOTICE:
Do not keep the solenoid turned on for more
than 10 seconds continuously. When operating
it continuously, set an interval of more than 20
seconds.
(c) Turn the SFRH and SFRR solenoids off
simultaneously, and check that the pedal can be
depressed.
(d) Turn the motor relay on, and check that the pedal
returns.
NOTICE:
Do not keep the motor relay turned on for more
than 5 seconds continuously. When operating it
continuously, set an interval of more than 20
seconds.
(e) Turn the motor relay off and release the brake
pedal.
A080036E03
