TOYOTA SIENNA 2007 Service Repair Manual EM–1522GR-FE ENGINE MECHANICAL – ENGINE UNIT
EM
(f) Turn the crankshaft clockwise to set it to the RH
block bore center line (TDC / compression).
43. INSTALL CHAIN TENSIONER SLIPPER
(a) Install

Page 962 of 3000

TOYOTA SIENNA 2007 Service Repair Manual 2GR-FE ENGINE MECHANICAL – ENGINE UNITEM–153
EM
(d) Remove the hexagon wrench of the chain tensioner.
Check that each timing mark is aligned with the
crankshaft at the TDC / compression.
(e) R

Page 963 of 3000

TOYOTA SIENNA 2007 Service Repair Manual EM–1542GR-FE ENGINE MECHANICAL – ENGINE UNIT
EM
46. INSTALL WATER PUMP ASSEMBLY
(a) Install a new gasket and the water pump assembly
with the 8 bolts.
Torque: 9.1 N*m (93 kgf*cm, 81 in.*lbf)
NO

Page 964 of 3000

TOYOTA SIENNA 2007 Service Repair Manual 2GR-FE ENGINE MECHANICAL – ENGINE UNITEM–155
EM

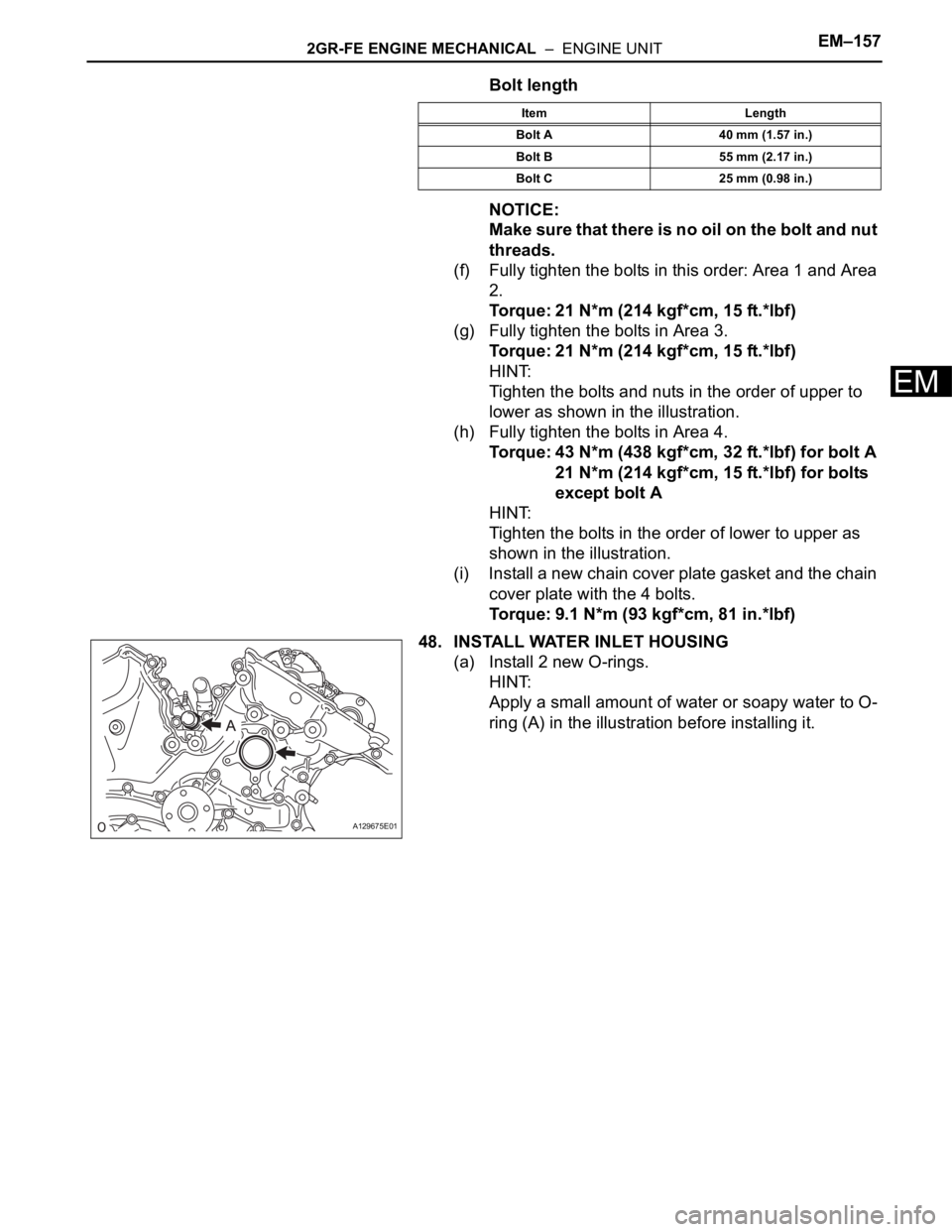

(b) Apply seal packing in a continuous line to the timing
chain cover as shown in the following illustration.
Seal packing:
Toyota Genuine Seal P

Page 965 of 3000

TOYOTA SIENNA 2007 Service Repair Manual EM–1562GR-FE ENGINE MECHANICAL – ENGINE UNIT
EM
NOTICE:
• When the contact surfaces are wet, wipe them
with an oil-free cloth before applying seal
packing.
• Install the chain cover within

Page 966 of 3000

TOYOTA SIENNA 2007 Service Repair Manual 2GR-FE ENGINE MECHANICAL – ENGINE UNITEM–157
EM
Bolt length
NOTICE:
Make sure that there is no oil on the bolt and nut
threads.
(f) Fully tighten the bolts in this order: Area 1 and Area
2.
To

Page 967 of 3000

TOYOTA SIENNA 2007 Service Repair Manual EM–1582GR-FE ENGINE MECHANICAL – ENGINE UNIT
EM
(b) Install the stud bolts.
Torque: 4.0 N*m (41 kgf*cm, 35 in.*lbf)
(c) Install the water inlet housing with the 2 bolts and
nut.
Torque: 10 N*m

Page 968 of 3000

TOYOTA SIENNA 2007 Service Repair Manual 2GR-FE ENGINE MECHANICAL – ENGINE UNITEM–159
EM
(j) Install the water inlet with the 2 nuts.
Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
49. INSTALL NO. 1 FRONT ENGINE MOUNTING
BRACKET LH
(a) Instal
