Page 249 of 3000
LI–104LIGHTING – HEADLIGHT DIMMER SWITCH
LI
INSTALLATION
1. INSTALL HEADLIGHT DIMMER SWITCH ASSEMBLY
2. INSTALL STEERING COLUMN UPPER COVER
3. INSTALL STEERING COLUMN LOWER COVER
Page 250 of 3000
WW–6WIPER AND WASHER – FRONT WIPER MOTOR
WW
INSTALLATION
1. INSTALL WINDSHIELD WIPER MOTOR ASSEMBLY
(a) Apply MP grease to the crank arm pivot of the
windshield wiper motor assembly.
(b) Install the windshield wiper motor assembly with the
3 bolts to the windshield wiper link assembly.
Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)
2. INSTALL WINDSHIELD WIPER MOTOR AND LINK
ASSEMBLY
(a) Install the wiper motor & link assembly with the 4
bolts.
Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)
(b) Connect the connector.
3. INSTALL COWL TOP VENTILATOR LOUVER SUB-
ASSEMBLY
(a) Install the 6 claws and the cowl top ventilator louver
sub-assembly.
4. INSTALL FR WIPER ARM LH
(a) Operate the wiper, and stop the windshield wiper
motor assembly to the automatic stop position.
I035804E01
I035791E01
I035790E01
Page 251 of 3000

WIPER AND WASHER – FRONT WIPER MOTORWW–7
WW

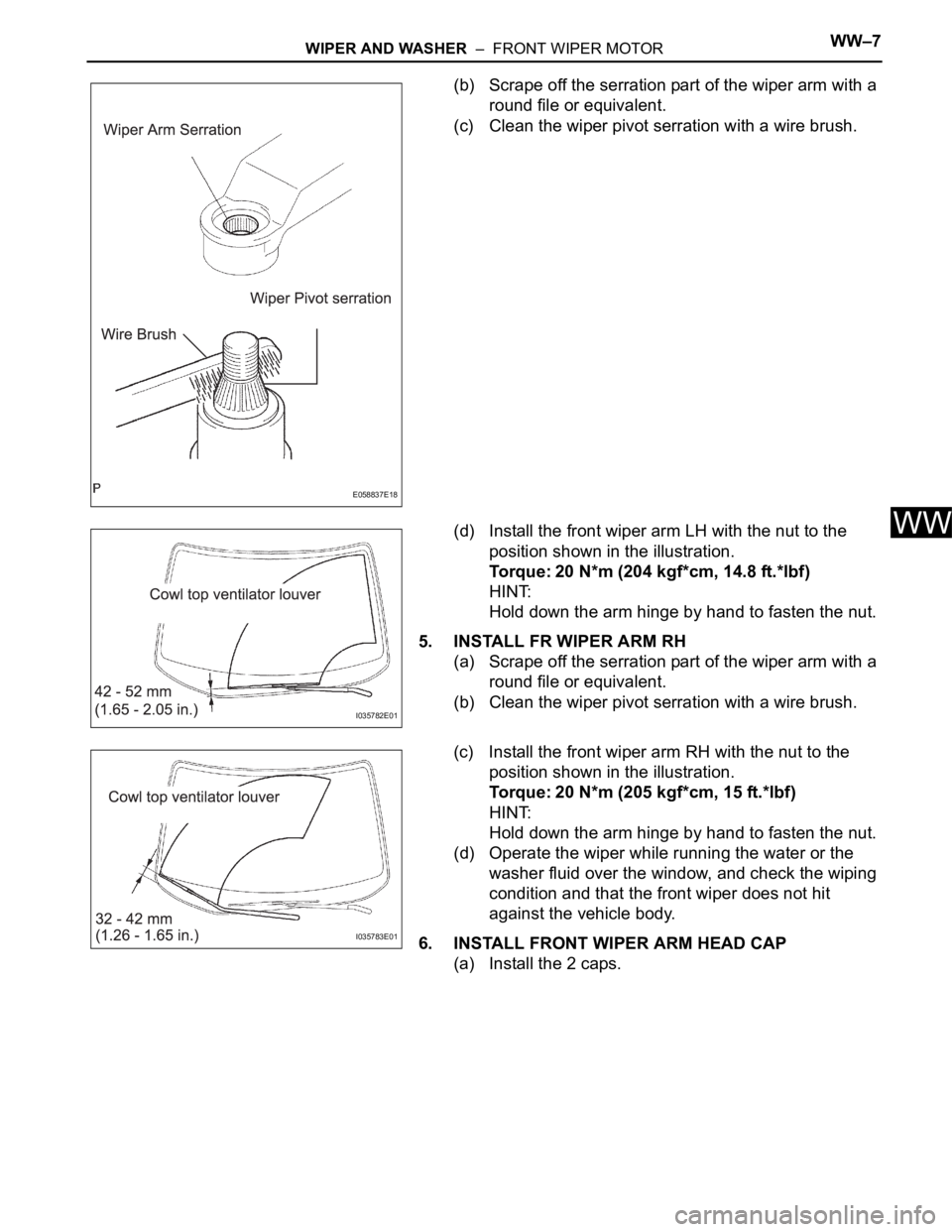

(b) Scrape off the serration part of the wiper arm with a
round file or equivalent.
(c) Clean the wiper pivot serration with a wire brush.
(d) Install the front wiper arm LH with the nut to the
position shown in the illustration.
Torque: 20 N*m (204 kgf*cm, 14.8 ft.*lbf)
HINT:
Hold down the arm hinge by hand to fasten the nut.
5. INSTALL FR WIPER ARM RH
(a) Scrape off the serration part of the wiper arm with a
round file or equivalent.
(b) Clean the wiper pivot serration with a wire brush.
(c) Install the front wiper arm RH with the nut to the
position shown in the illustration.
Torque: 20 N*m (205 kgf*cm, 15 ft.*lbf)
HINT:
Hold down the arm hinge by hand to fasten the nut.
(d) Operate the wiper while running the water or the
washer fluid over the window, and check the wiping
condition and that the front wiper does not hit
against the vehicle body.
6. INSTALL FRONT WIPER ARM HEAD CAP
(a) Install the 2 caps.
E058837E18
I035782E01
I035783E01
Page 252 of 3000
DOOR LOCK – POWER DOOR LOCK CONTROL SYSTEMDL–3
DL
HOW TO PROCEED WITH
TROUBLESHOOTING
HINT:
• Use these procedures to troubleshoot the power door lock
control system.
• The intelligent tester should be used in steps 3 and 5.
NEXT
(a) Interview the customer to confirm the trouble (See page
IN-35).
NEXT
(a) Use the intelligent tester to check if the Multiplex
Communication System (MPX) is functioning normally.
Result
B
A
Result
B
A
(a) Terminals of ECU
(See page DL-8)
1VEHICLE BROUGHT TO WORKSHOP
2CUSTOMER PROBLEM ANALYSIS
3INSPECT COMMUNICATION FUNCTION OF MULTIPLEX COMMUNICATION SYSTEM
(BEAN)
Result Proceed to
MPX DTC is not output A
MPX DTC is output B
GO TO MULTIPLEX COMMUNICATION
SYSTEM
4PROBLEM SYMPTOMS TABLE
Result Proceed to
Fault is not listed on problem symptoms
tableA
Fault is listed on problem symptoms
tableB
Go to step 6
5OVERALL ANALYSIS AND TROUBLESHOOTING
Page 253 of 3000
DL–4DOOR LOCK – POWER DOOR LOCK CONTROL SYSTEM
DL
(b) DATA LIST/ACTIVE TEST
(See page DL-14)
NEXT
NEXT
NEXT
6REPAIR OR REPLACE
7CONFIRMATION TEST
END
Page 254 of 3000
ME–4METER – METER / GAUGE SYSTEM
ME
HOW TO PROCEED WITH
TROUBLESHOOTING
NEXT
NEXT
(a) Check for DTC output.
HINT:
(See page MP-14).
NEXT
HINT:
(See page ME-6).
NEXT
NEXT
NEXT
1VEHICLE BROUGHT TO WORKSHOP
2CUSTOMER PROBLEM ANALYSIS
3CHECK BODY MULTIPLEX COMMUNICATION SYSTEM
MULTIPLEX DTC OUTPUTS (PROCEED TO
"BODY MULTIPLEX COMMUNICATION
SYSTEM")
NO MULTIPLEX DTC (GO TO STEP 4)
4PROBLEM SYMPTOM CONFIRMATION
5PROBLEM SYMPTOMS TABLE
6CIRCUIT INSPECTION
7REPAIR OR REPLACE
Page 255 of 3000
METER – METER / GAUGE SYSTEMME–5
ME
NEXT
8CONFIRMATION TEST
END
Page 256 of 3000

AV – 4AUDIO / VISUAL – AUDIO AND VISUAL SYSTEM
AV
SYSTEM DESCRIPTION
1. DISC PLAYER OUTLINE
(a) A CD player uses a laser pickup to read digital
signals recorded on CDs. By converting the digital
signals to analog, music and other content can be
played.
CAUTION:
Do not look directly at the laser pickup because
the CD player uses an invisible laser beam. Be
sure to operate the player only as instructed.
NOTICE:
• Do not disassemble any part of the CD player.
• Do not apply oil to the CD player.
• Do not insert anything but a CD into the CD
player.

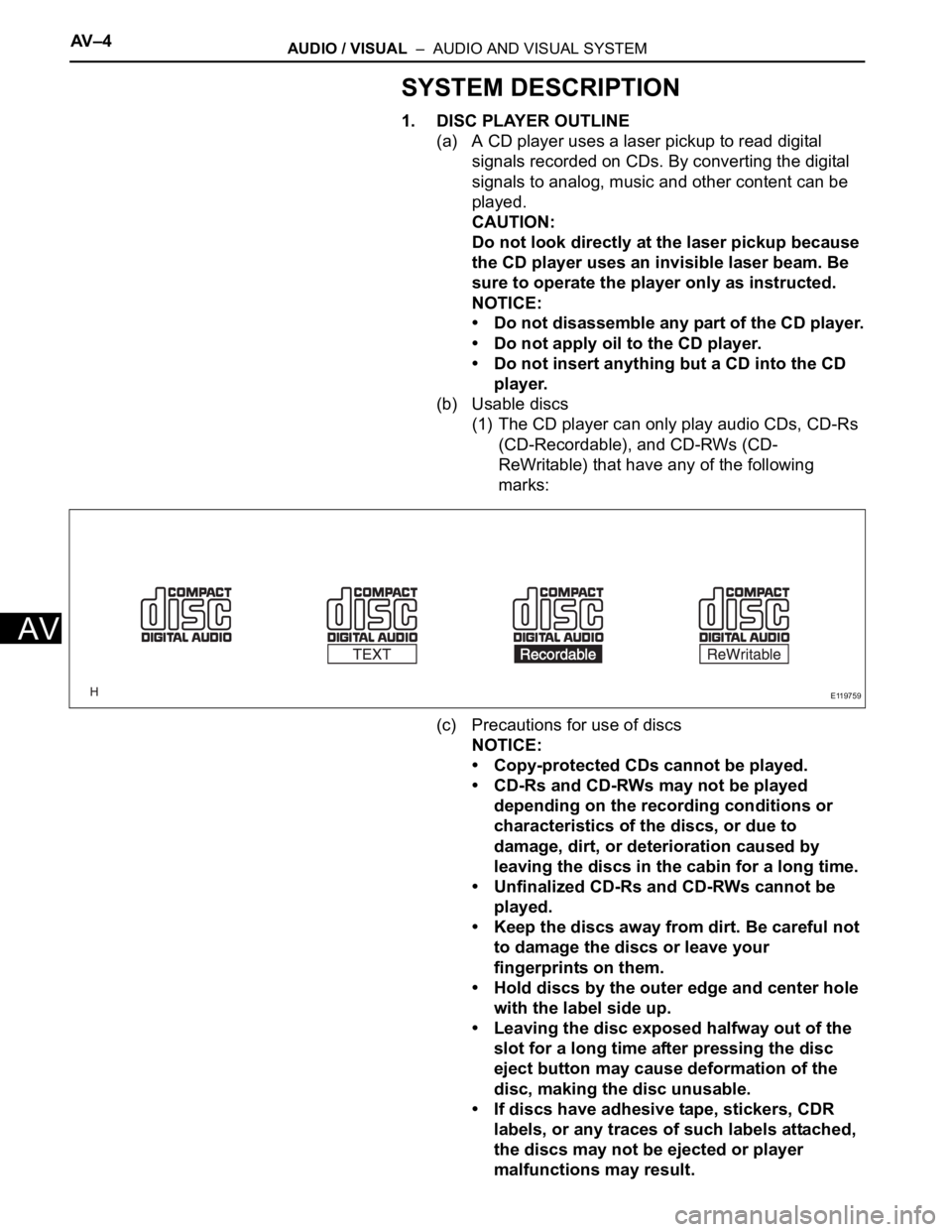

(b) Usable discs
(1) The CD player can only play audio CDs, CD-Rs
(CD-Recordable), and CD-RWs (CD-
ReWritable) that have any of the following
marks:
(c) Precautions for use of discs
NOTICE:
• Copy-protected CDs cannot be played.
• CD-Rs and CD-RWs may not be played
depending on the recording conditions or
characteristics of the discs, or due to
damage, dirt, or deterioration caused by
leaving the discs in the cabin for a long time.
• Unfinalized CD-Rs and CD-RWs cannot be
played.
• Keep the discs away from dirt. Be careful not
to damage the discs or leave your
fingerprints on them.
• Hold discs by the outer edge and center hole
with the label side up.
• Leaving the disc exposed halfway out of the
slot for a long time after pressing the disc
eject button may cause deformation of the
disc, making the disc unusable.
• If discs have adhesive tape, stickers, CDR
labels, or any traces of such labels attached,
the discs may not be ejected or player
malfunctions may result.
E119759
