(d) With SST and the transfer RH bearing sub-
assembly in close contact, install the transfer RH
bearing retainer sub-assembly together with SST
into the transfer case.
NOTICE:
Avoid interference between the case and the
retainer, and between the SST and the transfer
ring gear mounting case.
HINT:
If the engagement is tight, tap SST with a hammer
placing a brass bar on the center of SST.
(e) Make sure that the transfer RH bearing retainer sub-
assembly and transfer case contact closely.
(f) Tighten the 7 bolts evenly in order shown in the
illustration.
Torque: 28 N*m (286 kgf*cm, 21 ft.*lbf)
(g) Remove the SST.
15. INSPECT DIFFERENTIAL RING GEAR BACKLASH
(a) Set the dial gauge perpendicular to the ring gear
face, fix the driven pinion, and check backlash by
moving the ring gear.
Backlash:
0.10 to 0.15 mm (0.0039 to 0.0059 in.)
NOTICE:
Measure it at 3 points or more on the ring gear
periphery.
C149594E01
C149596E01
C149597E01
C050309
Page 2050 of 3000

TRANSFER – TRANSFER UNITTF–27
TF
(b) If the measured value is out of standard, select a
proper washer for the center differential case
tapered roller bearing on the LH side from the table
below and install it to obtain the standard value.
HINT:
When the backlash is larger or smaller than the
standard, select a thinner or thicker washer
respectively.
(c) Ring gear mounting case plate washer location is
shown in the illustration.
16. INSPECT TOOTH CONTACT BETWEEN RING GEAR
AND DRIVE PINION
(a) Apply red lead primer thinly and uniformly to both
faces of the ring gear and rotate it several times.
NOTICE:
Check the tooth contact on the ring gear at 4
places or more.
MarkWasher Thickness
mm (in.)MarkWasher Thickness
mm (in.)MarkWasher Thickness
mm (in.)
AA 2.07 (0.0814) AB 2.10 (0.0826) AC 2.13 (0.0838)
BA 2.16 (0.0850) BB 2.19 (0.0862) BC 2.22 (0.0874)
CA 2.25 (0.0885) CB 2.28 (0.0897) CC 2.31 (0.0909)
DA 2.34 (0.0921) DB 2.37 (0.0933) DC 2.40 (0.0944)
EA 2.43 (0.0956) EB 2.46 (0.0968) EC 2.49 (0.0980)
FA 2.52 (0.0992) FB 2.55 (0.1003) FC 2.58 (0.1015)
GA 2.61 (0.1027) GB 2.64 (0.1039) GC 2.67 (0.1051)
HA 2.70 (0.1062) HB 2.73 (0.1074) HC 2.76 (0.1086)
JA 2.79 (0.1098) JB 2.82 (0.1110) JC 2.85 (0.1122)
KA 2.88 (0.1133) KB 2.91 (0.1145) KC 2.94 (0.1157)
LA 2.97 (0.1169) LB 3.00 (0.1181)
C083655E01
C050346
Page 2051 of 3000
TF–28TRANSFER – TRANSFER UNIT
TF
(b) Observe the pattern shown by red lead primer.
(c) In case of poor tooth contact, select a washer for the
driven pinion bearing front side from the following
table and replace it.
NOTICE:
If the washer thickness is changed, the backlash
will be also changed.
(d) The location of the transfer output washer for tooth
contact adjustment is shown in the illustration.
C083636E02
MarkWasher Thickness
mm (in.)MarkWasher Thickness
mm (in.)MarkWasher Thickness
mm (in.)
AA 1.20 (0.0472) AC 1.22 (0.0480) BB 1.24 (0.0488)
CA 1.26 (0.0496) CC 1.28 (0.0503) DB 1.30 (0.0511)
EA 1.32 (0.0519) EC 1.34 (0.0527) FB 1.36 (0.0535)
GA 1.38 (0.0543) GC 1.40 (0.0551) HB 1.42 (0.0559)
JA 1.44 (0.0566) JC 1.46 (0.0574) KB 1.48 (0.0582)
LA 1.50 (0.0590) LC 1.52 (0.0598) MB 1.54 (0.0606)
NA 1.56 (0.0614) NC 1.58 (0.0622) PB 1.60 (0.0629)
QA 1.62 (0.0637) QC 1.64 (0.0645)
C083656E01
Page 2052 of 3000

TRANSFER – TRANSFER UNITTF–29
TF
17. ADJUST TOTAL PRELOAD
(a) Using SST(s) and a torque wrench, measure the
initial torque with the driven pinion bearing contact
with the ring gear face.
SST 09326-20011
Torque: New bearing
+0.2 to 0.4 N*m (+2.3 to 3.9 kgf*cm, 1.8
to 3.5 in.*lbf)
Used bearing
+0.15 to 0.30 N*m (+1.6 to 3.1 kgf*cm,
1.3 to 2.7 in.*lbf)
NOTICE:
Before measurement, rotate the bearing in both
directions several times to make it fit.
HINT:
Use a torque wrench with a fulcrum length of 160
mm (6.30 in.)
(b) If the value is out of standard range, select the
washer for the center differential case tapered roller
bearing RH side from the following table and
replace it.
(c) The location of the transfer ring gear mounting case
washer No. 2 for preload adjustment is show in the
illustration.
C083635E07
MarkWasher Thickness mm
(in.)MarkWasher Thickness mm
(in.)MarkWasher Thickness mm
(in.)
AA 1.47 (0.0578) AB 1.50 (0.0590) AC 1.53 (0.0602)
BA 1.56 (0.0614) BB 1.59 (0.0625) BC 1.62 (0.0637)
CA 1.65 (0.0649) CB 1.68 (0.0661) CC 1.71 (0.0673)
DA 1.74 (0.0685) DB 1.77 (0.0696) DC 1.80 (0.0708)
EA 1.83 (0.0720) EB 1.86 (0.0732) EC 1.89 (0.0744)
FA 1.92 (0.0755) FB 1.95 (0.0767) FC 1.98 (0.0779)
GA 2.01 (0.0790) GB 2.04 (0.0803) GC 2.07 (0.0814)
HA 2.10 (0.0826) HB 2.13 (0.0838) HC 2.16 (0.0850)
JA 2.19 (0.0862) JB 2.22 (0.0874) JC 2.25 (0.0885)
KA 2.28 (0.0897) KB 2.31 (0.0909) KC 2.34 (0.0921)
LA 2.37 (0.0933) LB 2.40 (0.0944) LC 2.43 (0.0956)
MA 2.46 (0.0968) MB 2.49 (0.0980) MC 2.52 (0.0992)
NA 2.55 (0.1003) NB 2.58 (0.1015)
C083657E01
Page 2053 of 3000
TF–30TRANSFER – TRANSFER UNIT
TF
(d) Using a chisel, stake the transfer gear nut.
18. REMOVE TRANSFER RH BEARING RETAINER SUB-
ASSEMBLY
(a) Remove the 7 bolts from the transfer RH bearing
retainer sub-assembly.
(b) Using SST, make a clearance between the transfer
RH bearing retainer sub-assembly and the transfer
case.
SST 09950-00020
(c) Remove the SST.
(d) Using SST, remove the transfer RH bearing retainer
sub-assembly from the transfer case.
SST 09520-10021
C070532
C083509
C149592E01
C082981E06
Page 2054 of 3000

TRANSFER – TRANSFER UNITTF–31
TF

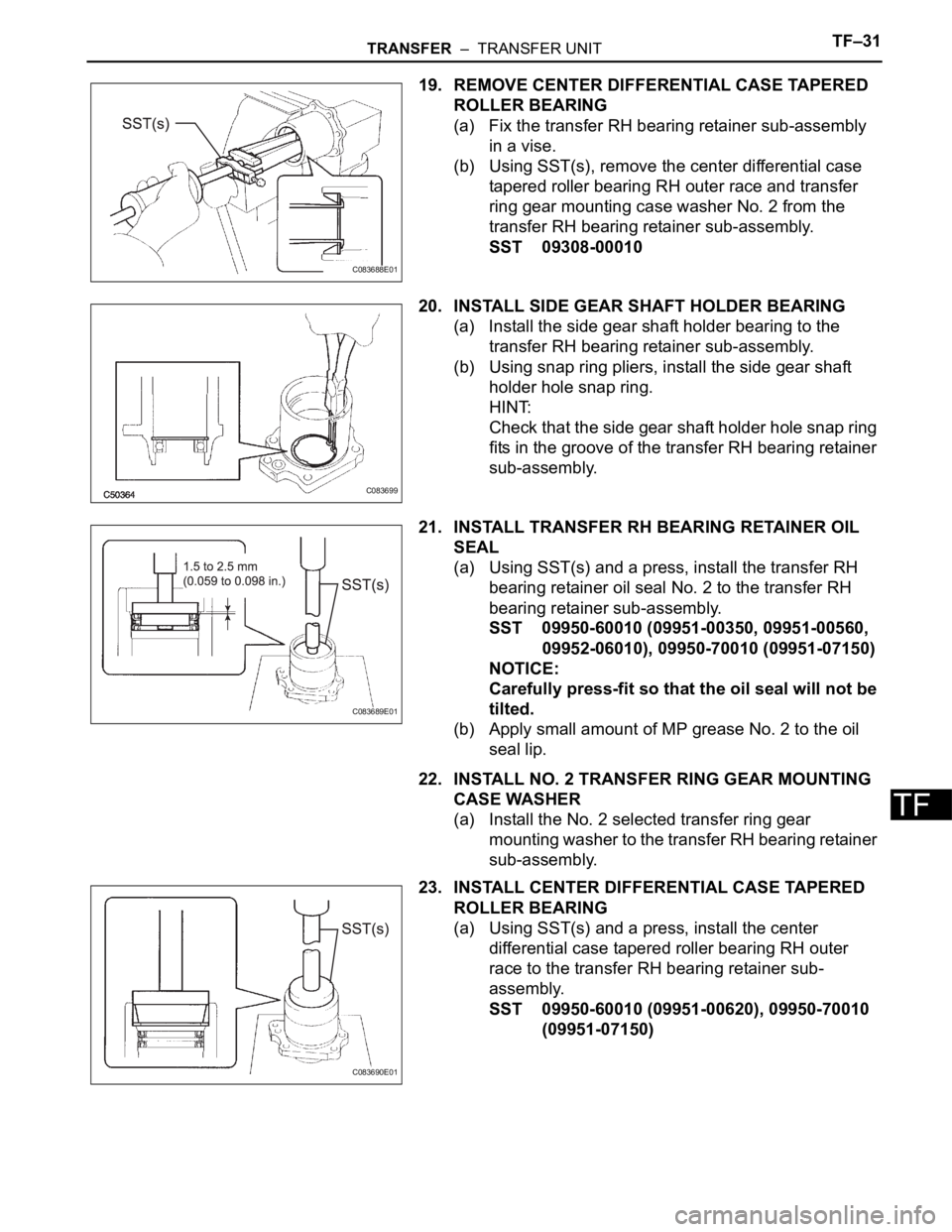

19. REMOVE CENTER DIFFERENTIAL CASE TAPERED
ROLLER BEARING
(a) Fix the transfer RH bearing retainer sub-assembly
in a vise.
(b) Using SST(s), remove the center differential case
tapered roller bearing RH outer race and transfer
ring gear mounting case washer No. 2 from the
transfer RH bearing retainer sub-assembly.
SST 09308-00010
20. INSTALL SIDE GEAR SHAFT HOLDER BEARING
(a) Install the side gear shaft holder bearing to the
transfer RH bearing retainer sub-assembly.
(b) Using snap ring pliers, install the side gear shaft
holder hole snap ring.
HINT:
Check that the side gear shaft holder hole snap ring
fits in the groove of the transfer RH bearing retainer
sub-assembly.
21. INSTALL TRANSFER RH BEARING RETAINER OIL
SEAL
(a) Using SST(s) and a press, install the transfer RH
bearing retainer oil seal No. 2 to the transfer RH
bearing retainer sub-assembly.
SST 09950-60010 (09951-00350, 09951-00560,
09952-06010), 09950-70010 (09951-07150)
NOTICE:
Carefully press-fit so that the oil seal will not be
tilted.
(b) Apply small amount of MP grease No. 2 to the oil
seal lip.
22. INSTALL NO. 2 TRANSFER RING GEAR MOUNTING
CASE WASHER
(a) Install the No. 2 selected transfer ring gear
mounting washer to the transfer RH bearing retainer
sub-assembly.
23. INSTALL CENTER DIFFERENTIAL CASE TAPERED
ROLLER BEARING
(a) Using SST(s) and a press, install the center
differential case tapered roller bearing RH outer
race to the transfer RH bearing retainer sub-
assembly.
SST 09950-60010 (09951-00620), 09950-70010
(09951-07150)
C083688E01
C083699
C083689E01
C083690E01
Page 2055 of 3000
TF–32TRANSFER – TRANSFER UNIT
TF

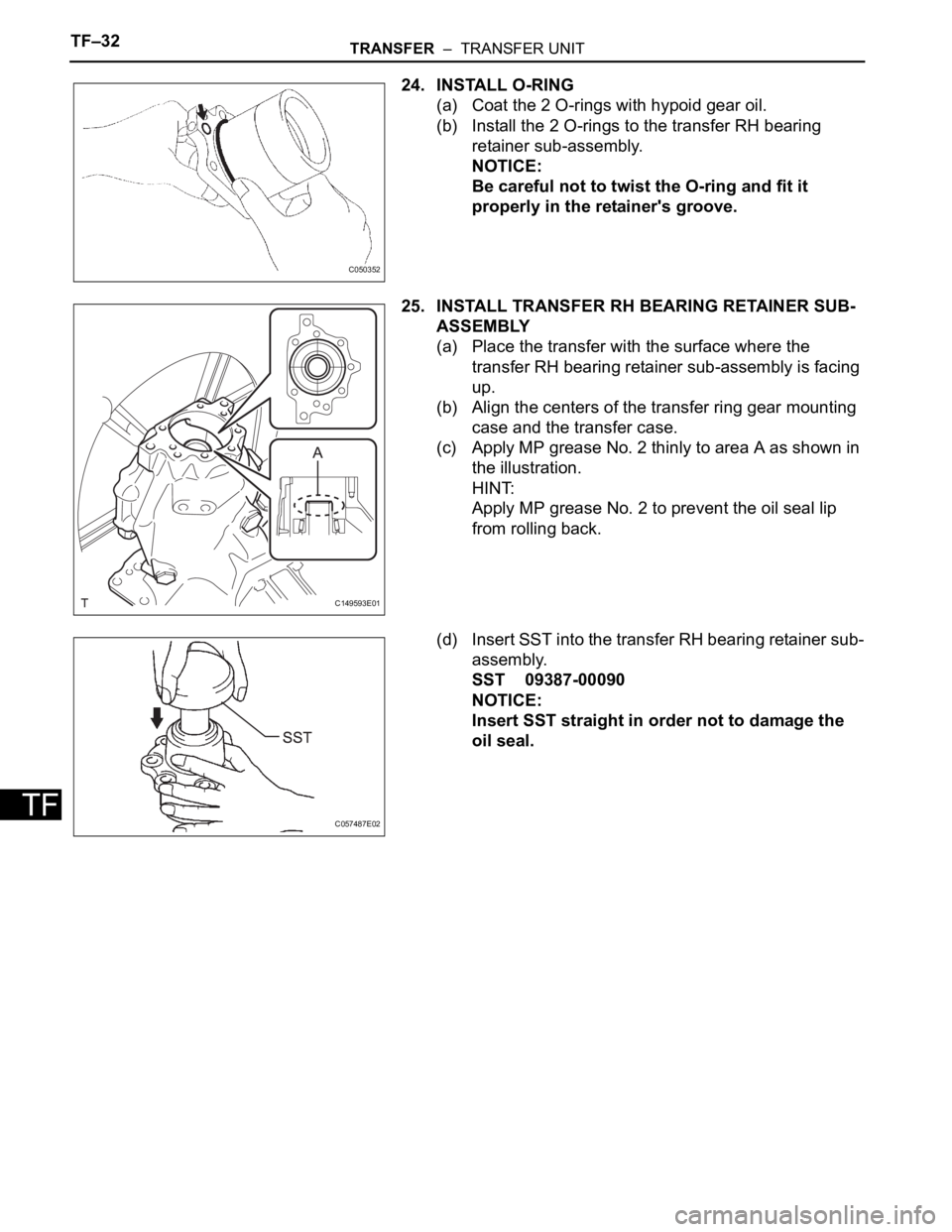

24. INSTALL O-RING
(a) Coat the 2 O-rings with hypoid gear oil.
(b) Install the 2 O-rings to the transfer RH bearing
retainer sub-assembly.
NOTICE:
Be careful not to twist the O-ring and fit it
properly in the retainer's groove.
25. INSTALL TRANSFER RH BEARING RETAINER SUB-
ASSEMBLY
(a) Place the transfer with the surface where the
transfer RH bearing retainer sub-assembly is facing
up.
(b) Align the centers of the transfer ring gear mounting
case and the transfer case.
(c) Apply MP grease No. 2 thinly to area A as shown in
the illustration.
HINT:
Apply MP grease No. 2 to prevent the oil seal lip
from rolling back.
(d) Insert SST into the transfer RH bearing retainer sub-
assembly.
SST 09387-00090
NOTICE:
Insert SST straight in order not to damage the
oil seal.
C050352
C149593E01
C057487E02
Page 2056 of 3000

TRANSFER – TRANSFER UNITTF–33
TF

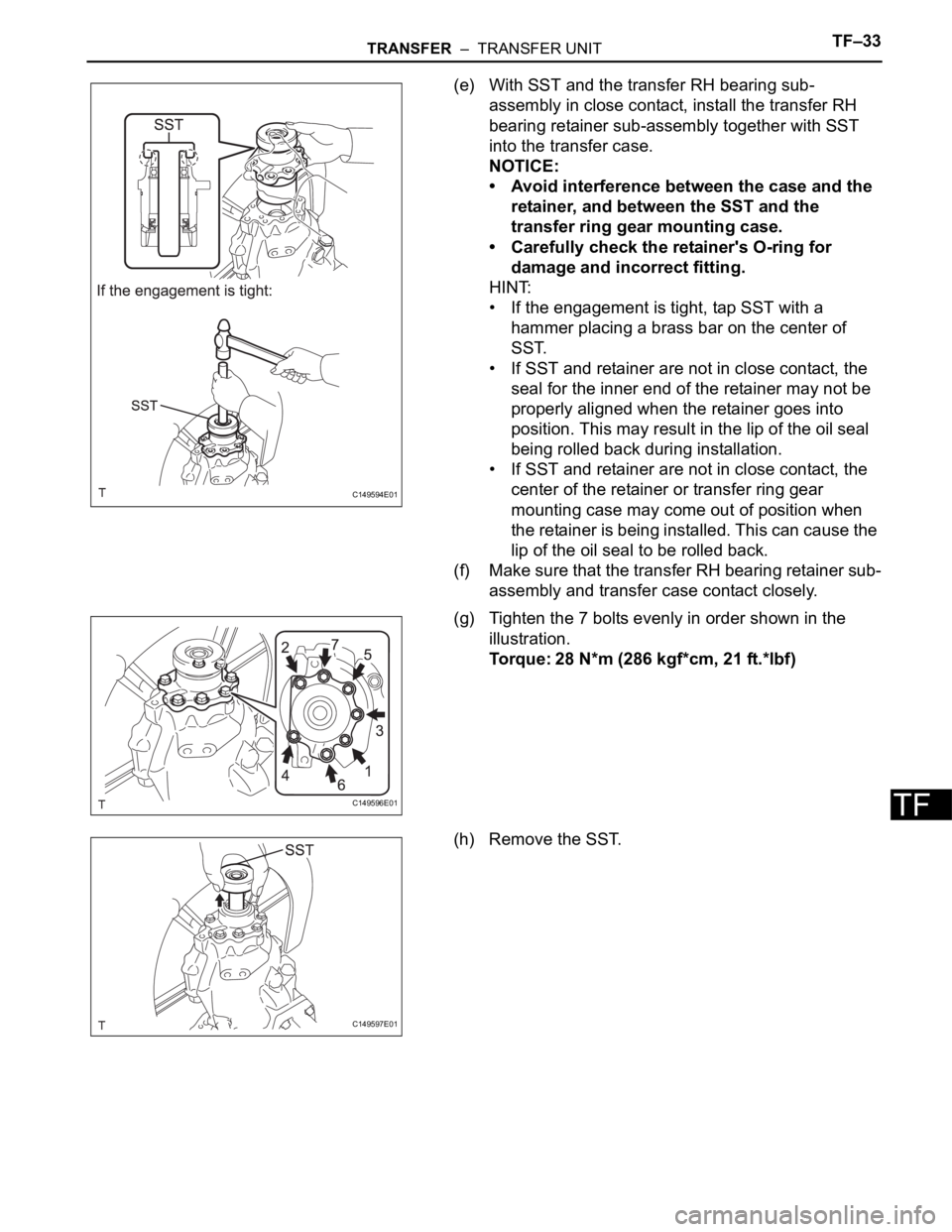

(e) With SST and the transfer RH bearing sub-
assembly in close contact, install the transfer RH
bearing retainer sub-assembly together with SST
into the transfer case.
NOTICE:
• Avoid interference between the case and the
retainer, and between the SST and the
transfer ring gear mounting case.
• Carefully check the retainer's O-ring for
damage and incorrect fitting.
HINT:
• If the engagement is tight, tap SST with a
hammer placing a brass bar on the center of
SST.
• If SST and retainer are not in close contact, the
seal for the inner end of the retainer may not be
properly aligned when the retainer goes into
position. This may result in the lip of the oil seal
being rolled back during installation.
• If SST and retainer are not in close contact, the
center of the retainer or transfer ring gear
mounting case may come out of position when
the retainer is being installed. This can cause the
lip of the oil seal to be rolled back.
(f) Make sure that the transfer RH bearing retainer sub-
assembly and transfer case contact closely.
(g) Tighten the 7 bolts evenly in order shown in the
illustration.
Torque: 28 N*m (286 kgf*cm, 21 ft.*lbf)
(h) Remove the SST.
C149594E01
C149596E01
C149597E01
