76. CONNECT UNION TO CHECK VALVE HOSE
(a) Using pliers, grip the claws of the clip and slide the
clip to connect the union to check valve hose to the
intake air surge tank assembly.
77. CONNECT NO. 1 FUEL VAPOR FEED HOSE
(a) Install the clamp and connect the No. 1 fuel vapor
feed hose.
78. INSTALL ENGINE MOVING CONTROL ROD
(a) Temporarily install the engine moving control rod
with the 3 bolts.
(b) First install the bolts A, and then the remaining bolt
B.
Torque: 38 N*m (388 kgf*cm, 28 ft.*lbf)
79. INSTALL NO. 2 ENGINE MOUNTING STAY RH
(a) Temporarily install the No. 2 engine mounting stay
RH with the bolt.
Torque: 38 N*m (388 kgf*cm, 28 ft.*lbf)
(b) Tighten the 2 nuts.
Torque: 23 N*m (235 kgf*cm, 17 ft.*lbf)
80. INSTALL INTAKE AIR RESONATOR SUB-ASSEMBLY
(a) Install the intake air resonator with the bolt and clip.
Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)
A162374
A155036
A162369
A139217
A155042
Page 1018 of 3000

2GR-FE ENGINE MECHANICAL – ENGINE ASSEMBLYEM–59
EM
81. INSTALL AIR CLEANER BRACKET
(a) Remove the 2 bolts and air cleaner bracket.
Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)
82. INSTALL BATTERY
(a) Install the battery and battery tray.
(b) Install the battery clamp with the bolt and nut.
Torque: Bolt
9.0 N*m (92 kgf*cm, 80 in.*lbf)
Nut
3.5 N*m (36 kgf*cm, 31 in.*lbf)
(c) Connect the positive battery terminal.
(d) Connect the negative battery terminal.
83. INSTALL AIR CLEANER CASE SUB-ASSEMBLY
(a) Install the air cleaner case with the 3 bolts.
Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)
(b) Connect the vacuum hose.
(c) Connect the vacuum switching valve connector.
84. INSTALL AIR CLEANER FILTER ELEMENT SUB-
ASSEMBLY
(a) Install the air cleaner filter element sub-assembly.
85. INSTALL AIR CLEANER CAP SUB-ASSEMBLY (See
page IT-5)
86. INSTALL NO. 1 AIR CLEANER INLET
(a) Install the No. 1 air cleaner inlet with the bolt.
Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)
A155041
A155033
A155039
A155040
Page 1019 of 3000
EM–602GR-FE ENGINE MECHANICAL – ENGINE ASSEMBLY
EM

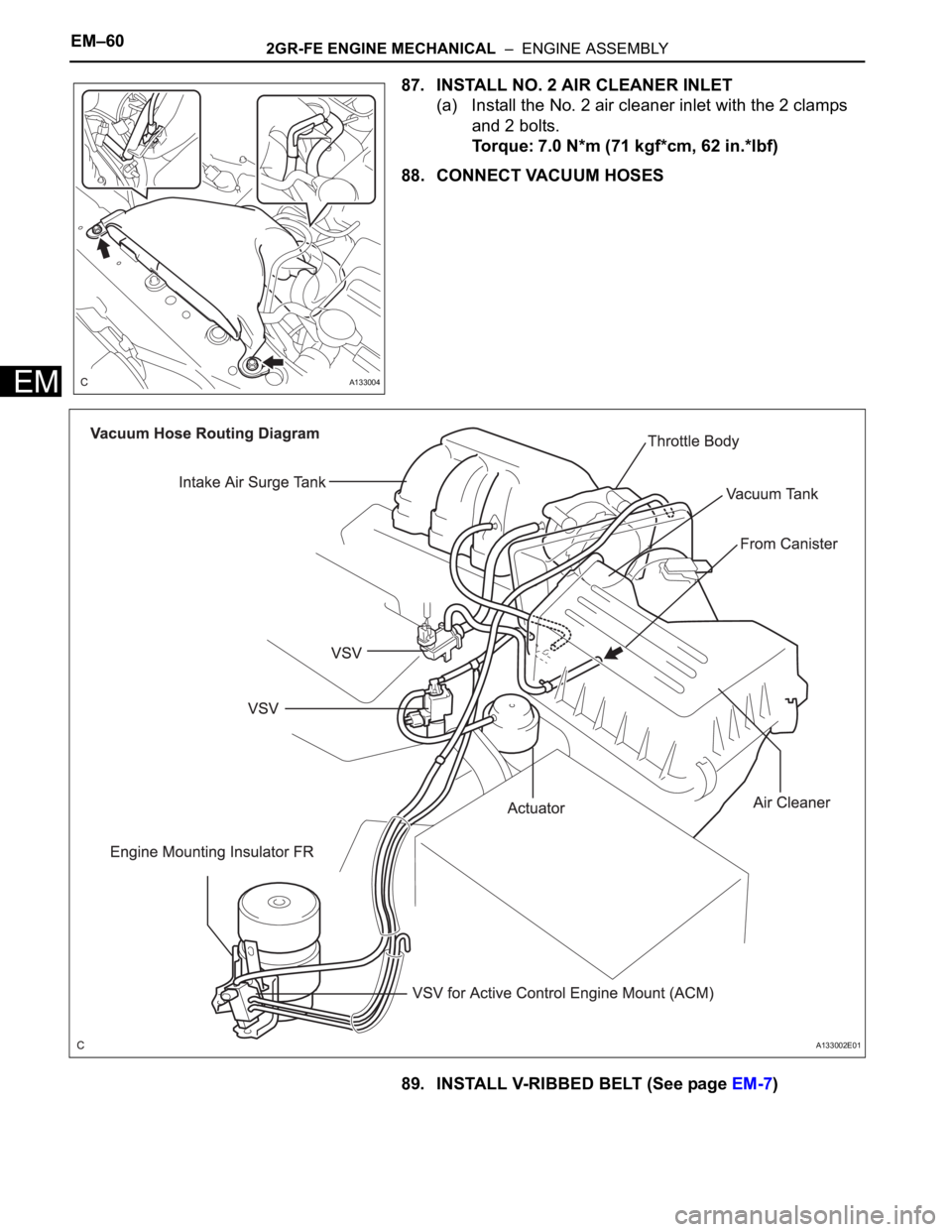

87. INSTALL NO. 2 AIR CLEANER INLET
(a) Install the No. 2 air cleaner inlet with the 2 clamps
and 2 bolts.
Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)
88. CONNECT VACUUM HOSES
89. INSTALL V-RIBBED BELT (See page EM-7)
A133004
A133002E01
Page 1020 of 3000
2GR-FE ENGINE MECHANICAL – ENGINE ASSEMBLYEM–61
EM

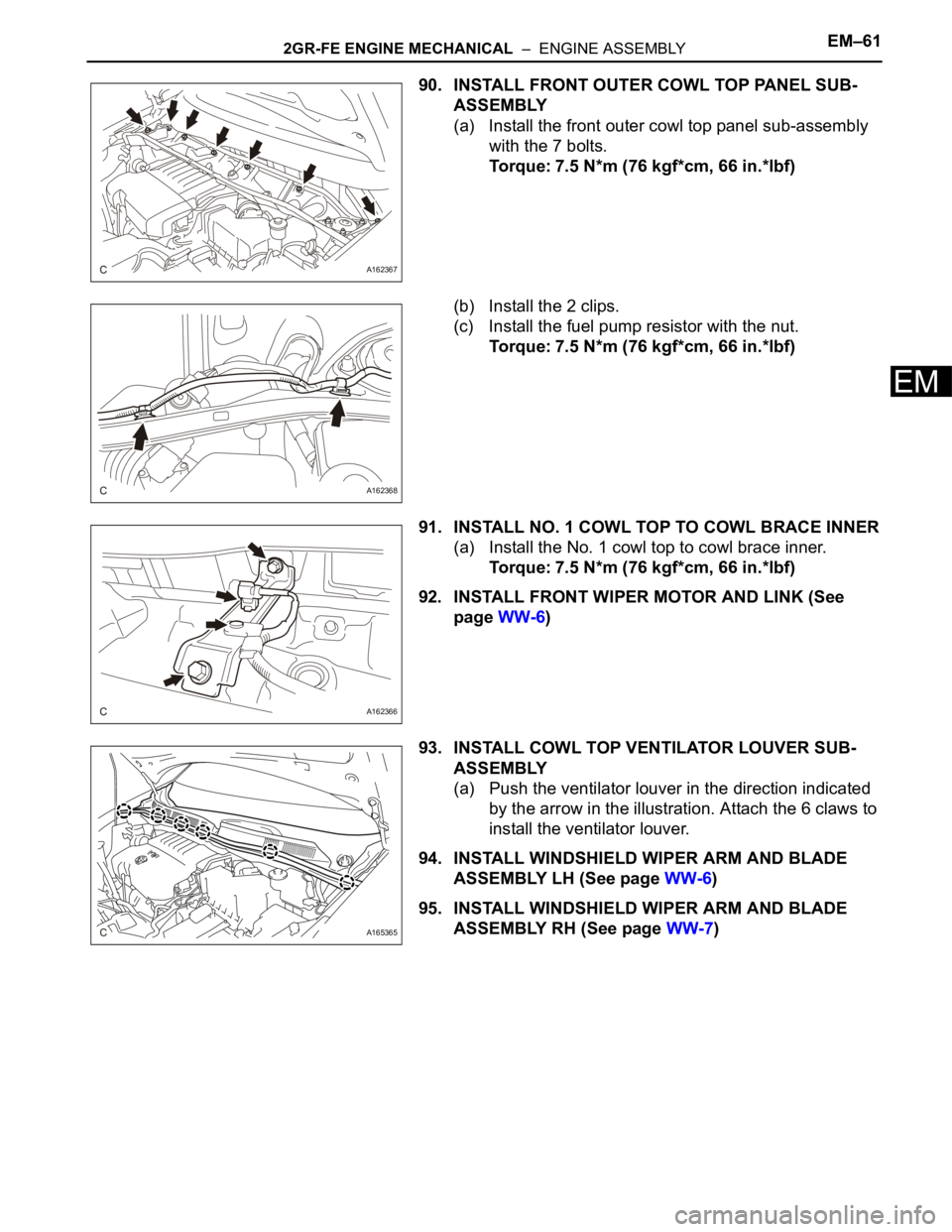

90. INSTALL FRONT OUTER COWL TOP PANEL SUB-
ASSEMBLY
(a) Install the front outer cowl top panel sub-assembly
with the 7 bolts.
Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)
(b) Install the 2 clips.
(c) Install the fuel pump resistor with the nut.
Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)
91. INSTALL NO. 1 COWL TOP TO COWL BRACE INNER
(a) Install the No. 1 cowl top to cowl brace inner.
Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)
92. INSTALL FRONT WIPER MOTOR AND LINK (See
page WW-6)
93. INSTALL COWL TOP VENTILATOR LOUVER SUB-
ASSEMBLY
(a) Push the ventilator louver in the direction indicated
by the arrow in the illustration. Attach the 6 claws to
install the ventilator louver.
94. INSTALL WINDSHIELD WIPER ARM AND BLADE
ASSEMBLY LH (See page WW-6)
95. INSTALL WINDSHIELD WIPER ARM AND BLADE
ASSEMBLY RH (See page WW-7)
A162367
A162368
A162366
A165365
Page 1021 of 3000

EM–622GR-FE ENGINE MECHANICAL – ENGINE ASSEMBLY
EM
96. INSTALL FRONT WIPER ARM HEAD CAP
(a) Install the front wiper arm head caps.
97. INSTALL FRONT WHEELS
Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)
98. ADD ENGINE OIL (See page LU-6)
99. ADD ENGINE COOLANT (See page CO-7)
100. ADD AUTOMATIC TRANSAXLE FLUID
101. CHECK AUTOMATIC TRANSAXLE FLUID (See page
AX-123)
102. ADD POWER STEERING FLUID
103. BLEED POWER STEERING FLUID (See page PS-6)
104. INSPECT FOR FUEL LEAK (See page FU-7)
105. INSPECT FOR ENGINE OIL LEAK
106. INSPECT FOR ENGINE COOLANT LEAK (See page
CO-1)
107. INSPECT FOR EXHAUST GAS LEAK
108. CHECK SHIFT LEVER POSITION (See page AX-127)
109. CHECK AND ADJUST FRONT WHEEL ALIGNMENT
HINT:
(See page SP-4).
110. CHECK IGNITION TIMING (See page EM-1)
111. CHECK ENGINE IDLE SPEED (See page EM-2)
112. CHECK CO/HC (See page EM-4)
113. CHECK FUNCTION OF THROTTLE BODY
ASSEMBLY (See page ES-493)

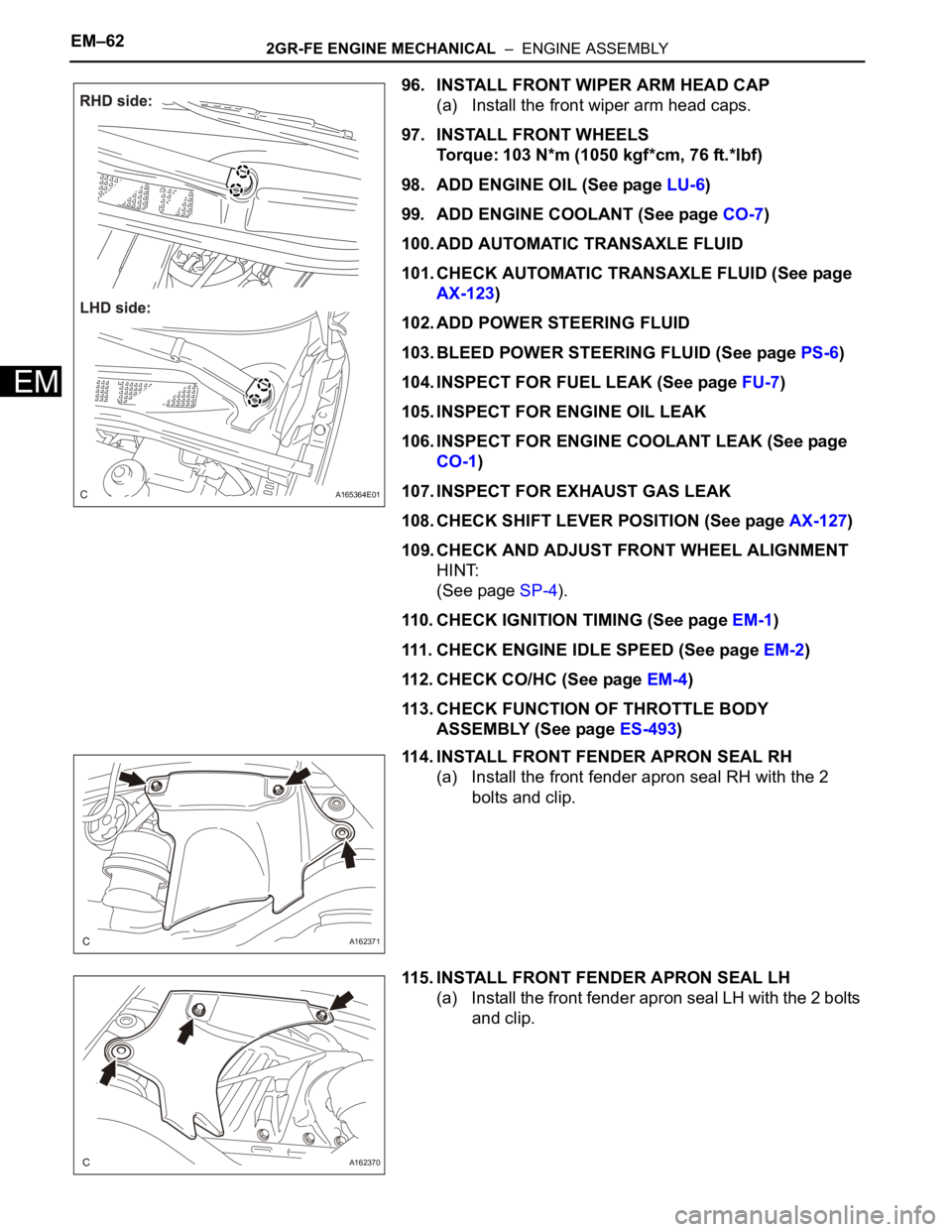

114. INSTALL FRONT FENDER APRON SEAL RH
(a) Install the front fender apron seal RH with the 2
bolts and clip.
115. INSTALL FRONT FENDER APRON SEAL LH
(a) Install the front fender apron seal LH with the 2 bolts
and clip.
A165364E01
A162371
A162370
Page 1022 of 3000
2GR-FE ENGINE MECHANICAL – ENGINE ASSEMBLYEM–63
EM

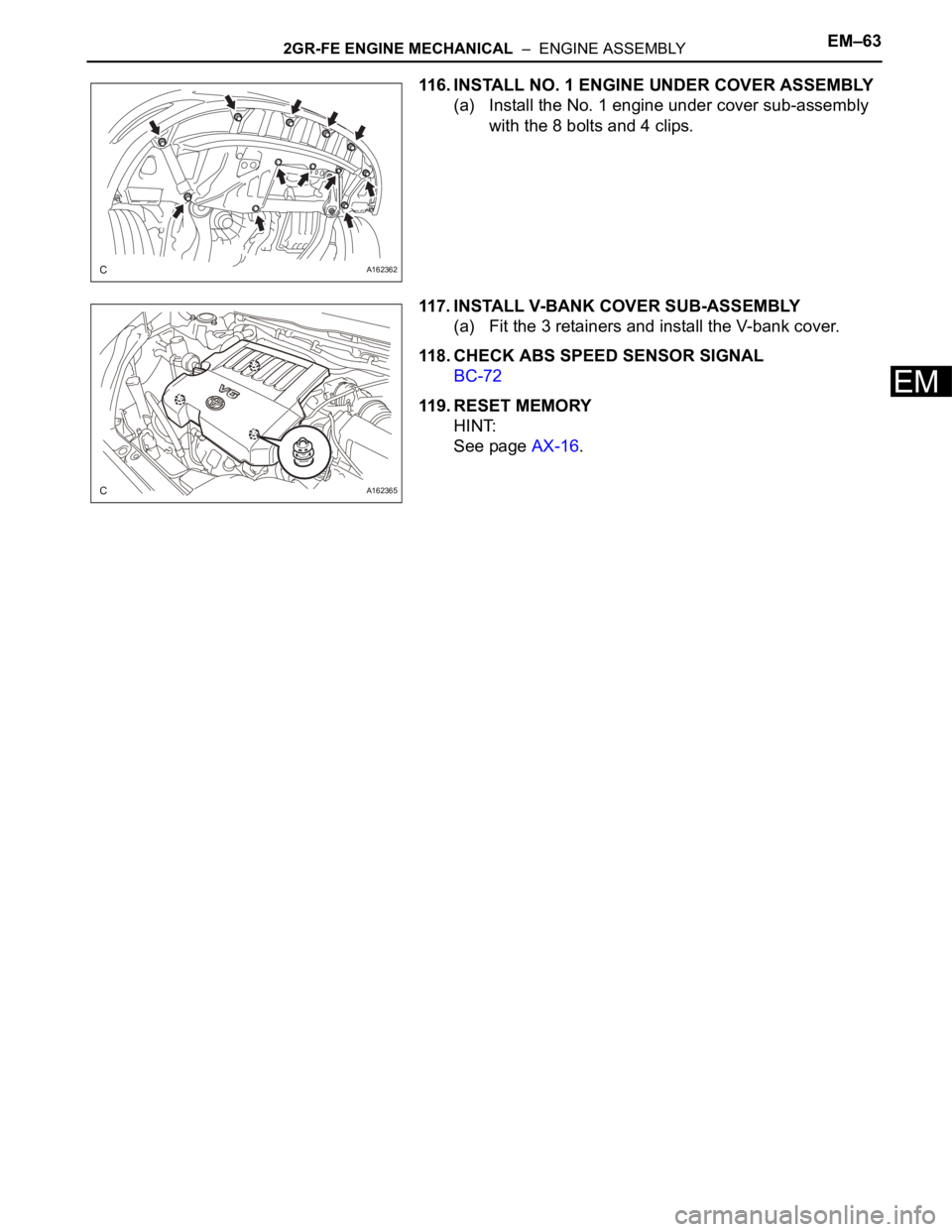

116. INSTALL NO. 1 ENGINE UNDER COVER ASSEMBLY
(a) Install the No. 1 engine under cover sub-assembly
with the 8 bolts and 4 clips.
117. INSTALL V-BANK COVER SUB-ASSEMBLY
(a) Fit the 3 retainers and install the V-bank cover.
118. CHECK ABS SPEED SENSOR SIGNAL
BC-72
119. RESET MEMORY
HINT:
See page AX-16.
A162362
A162365
Page 1023 of 3000
EM–762GR-FE ENGINE MECHANICAL – ENGINE UNIT
EM
DISASSEMBLY

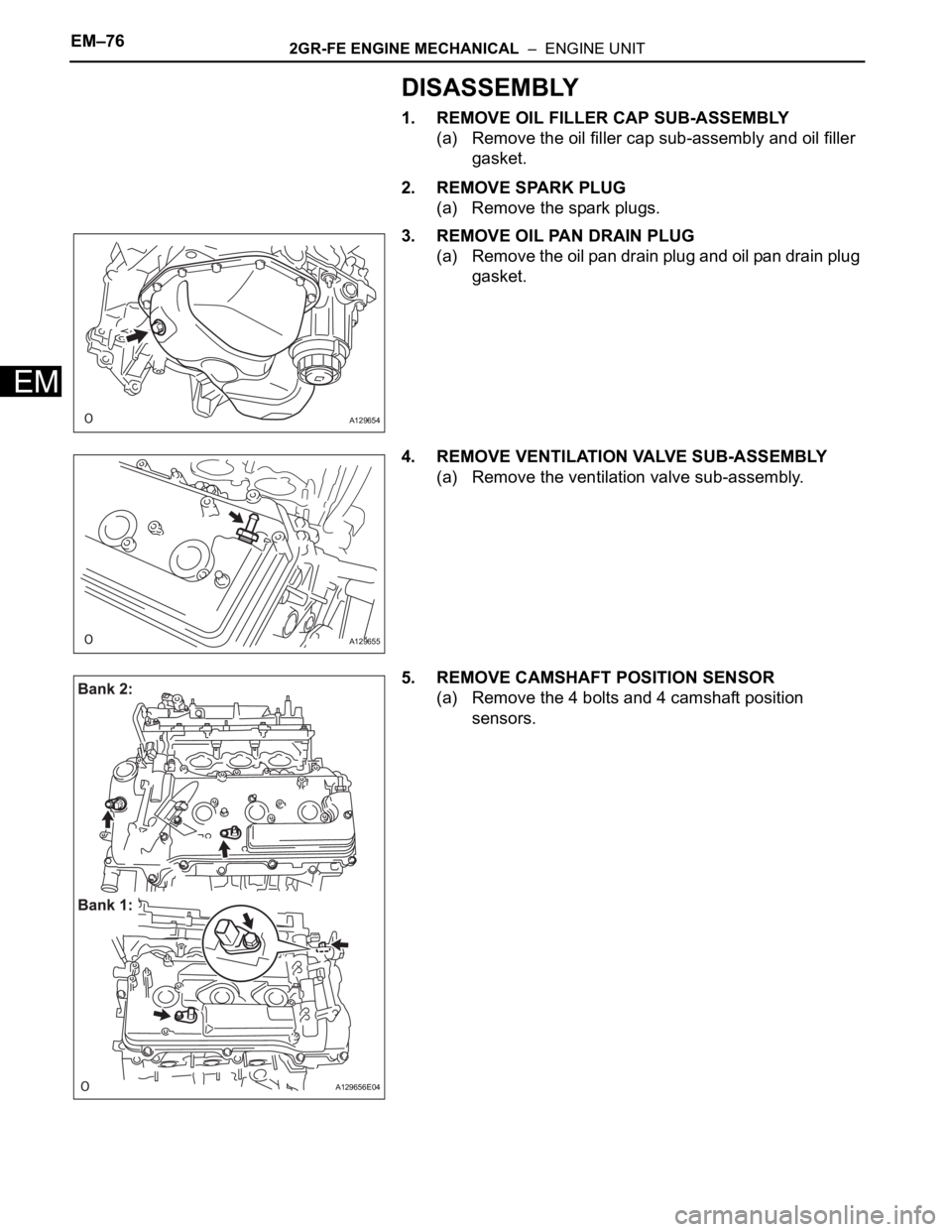

1. REMOVE OIL FILLER CAP SUB-ASSEMBLY
(a) Remove the oil filler cap sub-assembly and oil filler
gasket.
2. REMOVE SPARK PLUG
(a) Remove the spark plugs.
3. REMOVE OIL PAN DRAIN PLUG
(a) Remove the oil pan drain plug and oil pan drain plug
gasket.
4. REMOVE VENTILATION VALVE SUB-ASSEMBLY
(a) Remove the ventilation valve sub-assembly.
5. REMOVE CAMSHAFT POSITION SENSOR
(a) Remove the 4 bolts and 4 camshaft position
sensors.
A129654
A129655
A129656E04
Page 1024 of 3000
2GR-FE ENGINE MECHANICAL – ENGINE UNITEM–77
EM

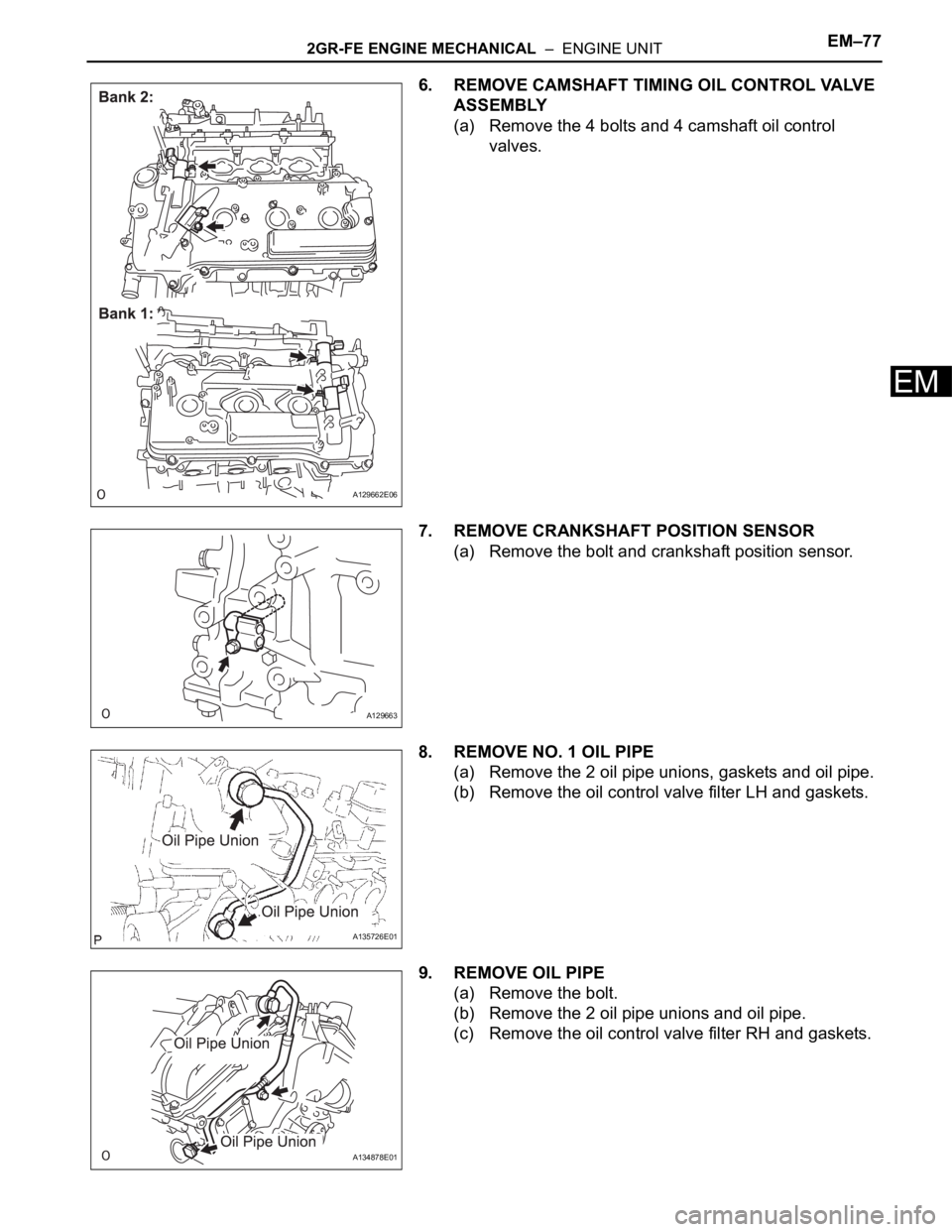

6. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE
ASSEMBLY
(a) Remove the 4 bolts and 4 camshaft oil control
valves.
7. REMOVE CRANKSHAFT POSITION SENSOR
(a) Remove the bolt and crankshaft position sensor.
8. REMOVE NO. 1 OIL PIPE
(a) Remove the 2 oil pipe unions, gaskets and oil pipe.
(b) Remove the oil control valve filter LH and gaskets.
9. REMOVE OIL PIPE
(a) Remove the bolt.
(b) Remove the 2 oil pipe unions and oil pipe.
(c) Remove the oil control valve filter RH and gaskets.
A129662E06
A129663
A135726E01
