Page 241 of 3000

TOYOTA SIENNA 2007 Service Repair Manual TD–8THEFT DETERRENT – THEFT DETERRENT SYSTEM TD 5. ALARM MEMORY FUNCTION (a) If the alarm is set off (tampering is detected) while the theft deterrent system is armed, it will be recorded by t

Page 242 of 3000

TOYOTA SIENNA 2007 Service Repair Manual THEFT DETERRENT – THEFT DETERRENT SYSTEMTD–9 TD • The theft deterrent system switches to the alarm sounding state. Under this condition, the theft deterrent system is controlling the alarm

Page 243 of 3000

TOYOTA SIENNA 2007 Service Repair Manual ENGINE IMMOBILISER – ENGINE IMMOBILISER SYSTEMEI–3 EI HOW TO PROCEED WITH TROUBLESHOOTING HINT: • Use this procedure to troubleshoot the engine immobiliser system. • The intelligent tester

Page 244 of 3000

TOYOTA SIENNA 2007 Service Repair Manual EI–4ENGINE IMMOBILISER – ENGINE IMMOBILISER SYSTEM EI Transponder key ECU NG OK (a) If the fault is not listed on the problem symptoms table, proceed to A. (b) If the fault is listed on the pro

Page 245 of 3000

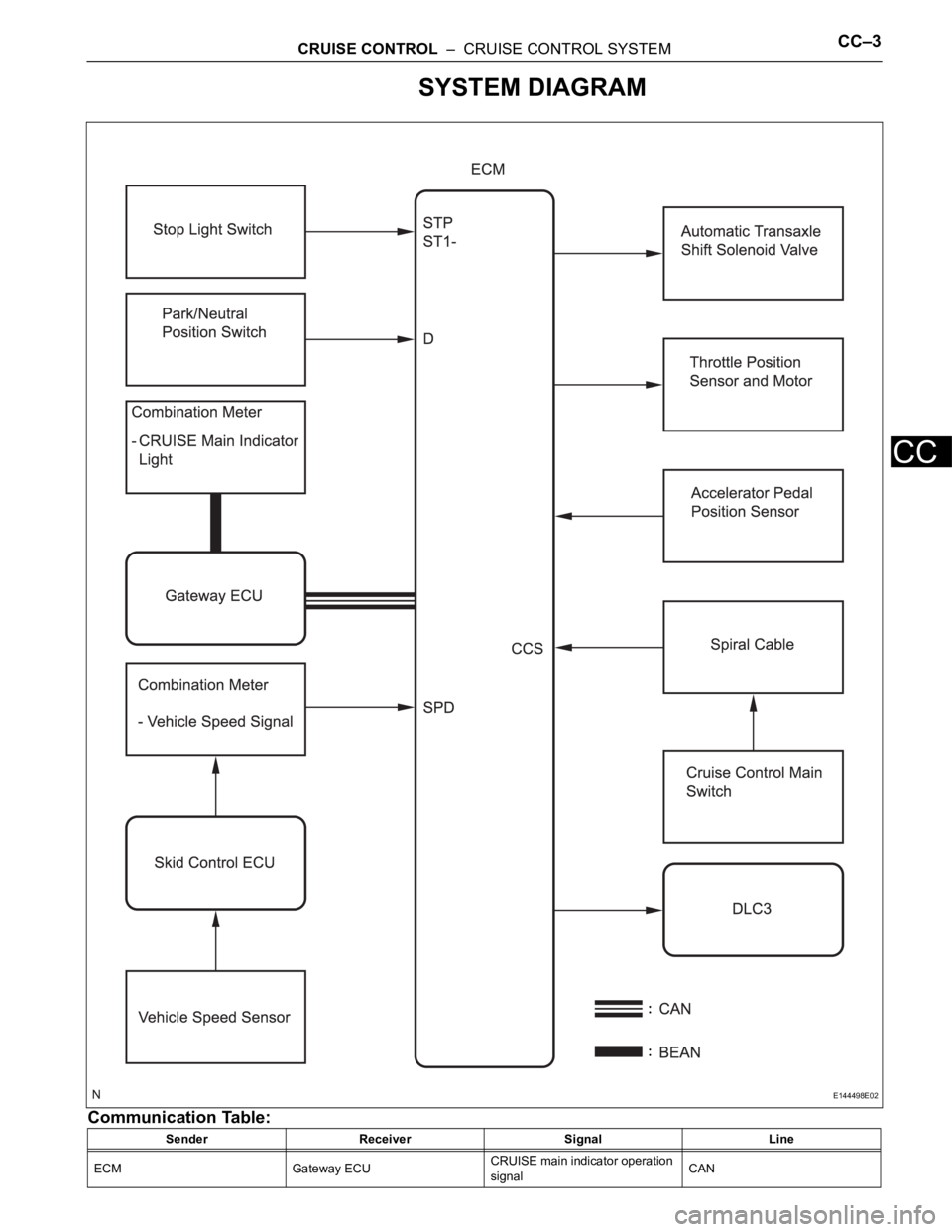

TOYOTA SIENNA 2007 Service Repair Manual CRUISE CONTROL – CRUISE CONTROL SYSTEMCC–3 CC SYSTEM DIAGRAM Communication Table: Sender Receiver Signal Line ECM Gateway ECUCRUISE main indicator operation signalCAN E144498E02

Page 246 of 3000

TOYOTA SIENNA 2007 Service Repair Manual CC–4CRUISE CONTROL – CRUISE CONTROL SYSTEM CC Gateway ECU Combination meterCRUISE main indicator operation signalBEAN Sender Receiver Signal Line

Page 247 of 3000

TOYOTA SIENNA 2007 Service Repair Manual LIGHTING – LIGHTING SYSTEMLI–5 LI HOW TO PROCEED WITH TROUBLESHOOTING NEXT NEXT (a) Check for the DTC outputs. NEXT NEXT NEXT 1VEHICLE BROUGHT TO WORK SHOP 2CUSTOMER PROBLEM ANALYSIS 3CHECK BOD

Page 248 of 3000

TOYOTA SIENNA 2007 Service Repair Manual LI–6LIGHTING – LIGHTING SYSTEM LI NEXT NEXT NEXT 9IDENTIFICATION OF PROBLEM 10REPAIR OR REPLACE 11CONFIRMATION TEST END
