TW–6TIRE AND WHEEL – TIRE AND WHEEL SYSTEM
TW

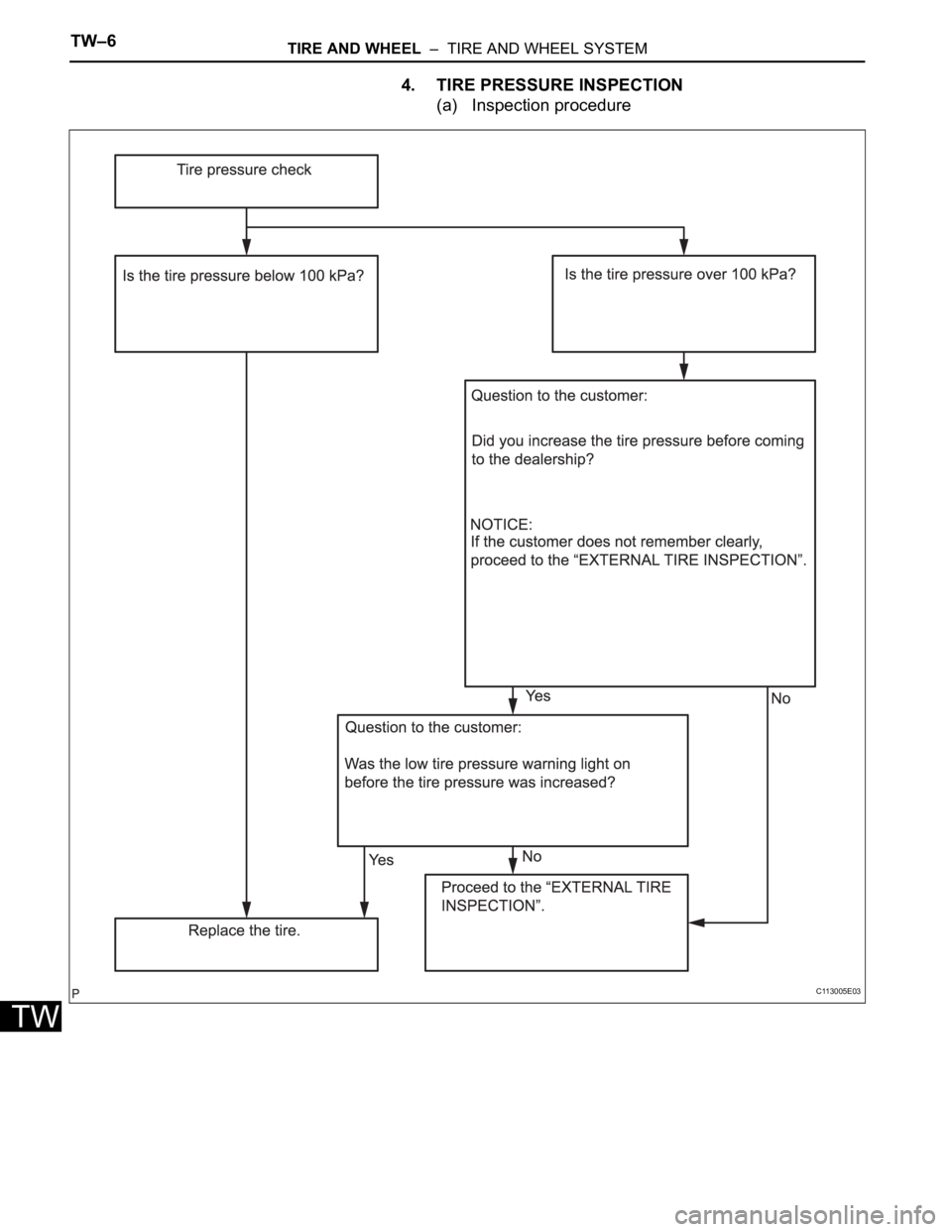

4. TIRE PRESSURE INSPECTION
(a) Inspection procedure
C113005E03
Page 2258 of 3000
TIRE AND WHEEL – TIRE AND WHEEL SYSTEMTW–7
TW
5. EXTERNAL TIRE INSPECTION
(a) Inspection procedure
C113006E01
Page 2259 of 3000
TW–8TIRE AND WHEEL – TIRE AND WHEEL SYSTEM
TW
6. INTERNAL TIRE INSPECTION
(a) Inspection procedure
C113007E01
Page 2260 of 3000
TIRE AND WHEEL – TIRE AND WHEEL SYSTEMTW–9
TW
7. RUN-FLAT TIRE REPAIR LIMIT CHART

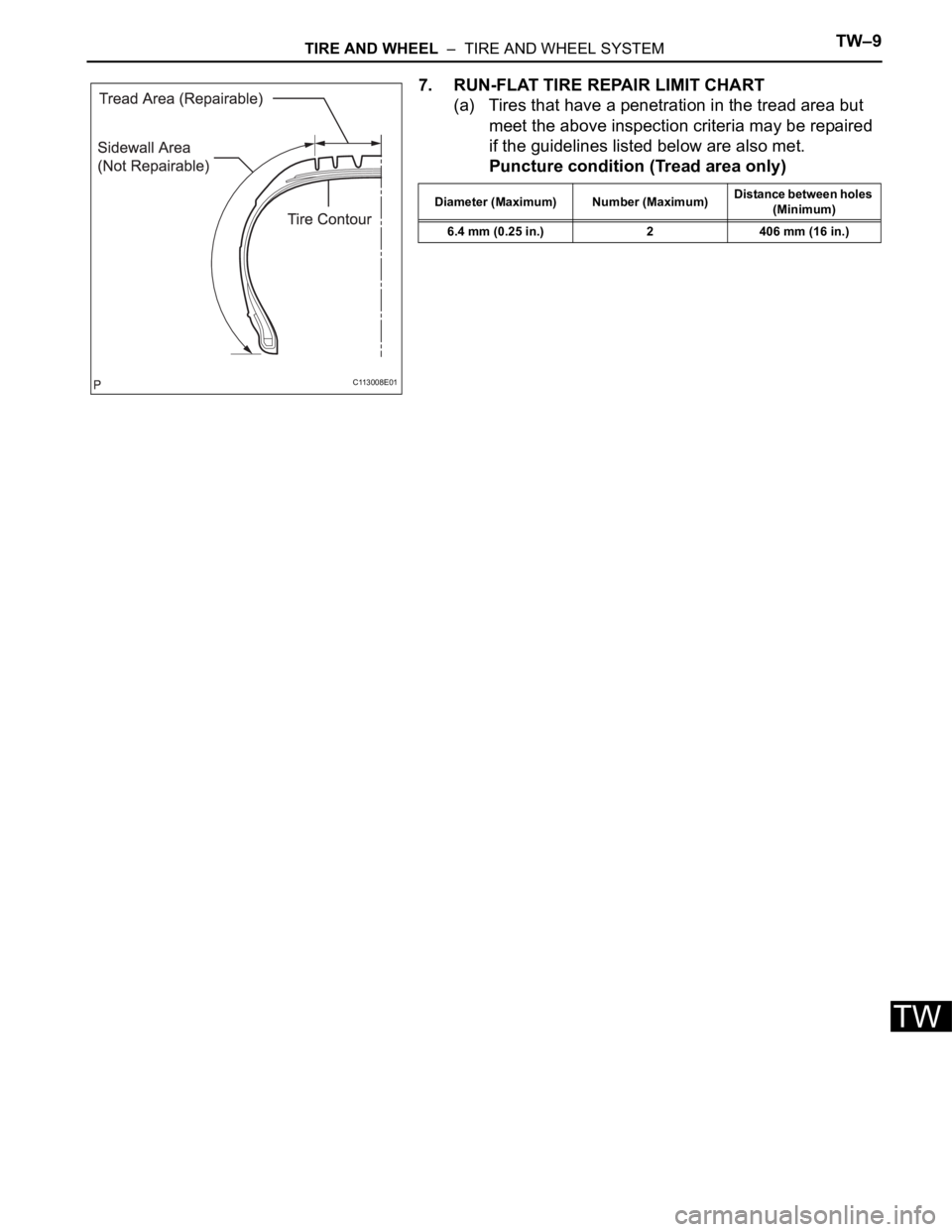

(a) Tires that have a penetration in the tread area but
meet the above inspection criteria may be repaired
if the guidelines listed below are also met.
Puncture condition (Tread area only)
C113008E01
Diameter (Maximum) Number (Maximum)Distance between holes
(Minimum)
6.4 mm (0.25 in.) 2 406 mm (16 in.)
Page 2261 of 3000
TIRE AND WHEEL – TIRE PRESSURE WARNING SYSTEMTW–19
TW
HOW TO PROCEED WITH
TROUBLESHOOTING
HINT:
• Use the following procedures to troubleshoot the tire
pressure warning system.
• *: Use the intelligent tester.
NEXT
(a) Interview the customer to confirm the trouble.
HINT:
It is important to collect as much specific information as
possible from the customer to allow for a quick repair.
NEXT
(a) Adjust all tire pressures to the standard values.
Result
A
B
(a) Check for DTCs (See page TW-34).
Result
B
A
(a) Refer to DIAGNOSTIC TROUBLE CODE CHART (See
page TW-37).
1VEHICLE BROUGHT TO WORKSHOP
2CUSTOMER PROBLEM ANALYSIS
3ADJUST TIRE PRESSURE
Condition Proceed to
Tire pressure warning light goes off A
Tire pressure warning light remains on B
Go to step 9
4CHECK FOR DTC*
Result Proceed to
DTC is output A
DTC is not output B
Go to step 6
5DTC CHART
Page 2262 of 3000
TW–20TIRE AND WHEEL – TIRE PRESSURE WARNING SYSTEM
TW
NEXT
(a) Refer to PROBLEM SYMPTOMS TABLE (See page TW-
28).
NEXT
(a) Refer to ELECTRONIC CIRCUIT INSPECTION
PROCEDURE (See page IN-30).
NEXT
(a) Repair or replace parts based on the diagnosis result.
NEXT
(a) Check the DATA LIST to confirm that the tire inflation
pressure has been received (See page TW-35).
(b) Perform initialization (See page TW-23).
(c) Confirm that the initialization has been completed.
NEXT Go to step 7
6PROBLEM SYMPTOMS TABLE
7CIRCUIT INSPECTION*
8REPAIR OR REPLACE
9CONFIRMATION TEST
END
Page 2263 of 3000
TIRE AND WHEEL – TIRE PRESSURE WARNING SYSTEMTW–25
TW
INITIALIZATION
1. DESCRIPTION OF INITIALIZATION
(a) Perform initialization in the following cases:
• Before delivery of a new vehicle.
• After replacement of the tire pressure warning
ECU*.
• After replacement of the tire pressure warning
valve and transmitter.
• Specified tire pressure changes depending on
the size or type of the tire.
*: Perform initialization after the transmitter ID
registration is completed (See page TW-20).
(b) Before initialization
(1) Set the air pressure of all tires to the specified
value.
Cold tire inflation pressure
NOTICE:
Perform the tire pressure adjustment after
the vehicle has sufficiently cooled down. If
the vehicle is not sufficiently cooled down,
increase the air pressure by 20 to 30 kPa (0.2
to 0.3 kgf/cm
2, 2.9 to 4.3 psi) above the
specified value.
Tire Size
kPa (kgf/cm2, psi)
P215/65R16
240 (2.4, 35)
P225/60R17
Page 2264 of 3000

TW–26TIRE AND WHEEL – TIRE PRESSURE WARNING SYSTEM
TW
2. INITIALIZATION PROCEDURE
(a) Make sure that the ignition switch is off.
(b) Connect the intelligent tester to the DLC3.
(c) Turn the ignition switch to the ON position.
(d) Select "TIREPRESS" by following the prompts
displayed on the intelligent tester.
(e) Press the tire pressure warning reset switch within
30 seconds after turning the ignition switch ON.
Keep the tire pressure warning reset switch pressed
for 3 seconds or more with the ignition switch ON.

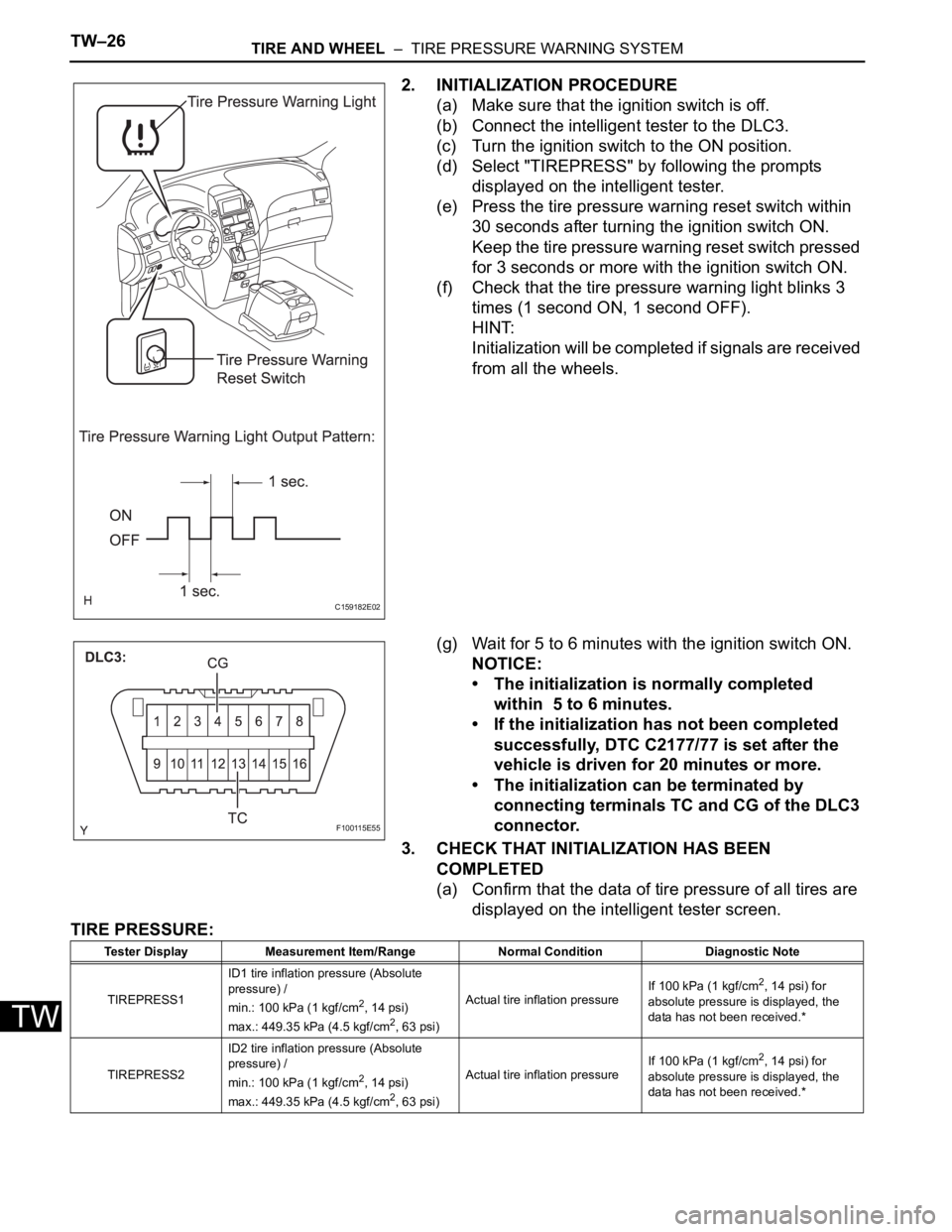

(f) Check that the tire pressure warning light blinks 3
times (1 second ON, 1 second OFF).
HINT:
Initialization will be completed if signals are received
from all the wheels.
(g) Wait for 5 to 6 minutes with the ignition switch ON.
NOTICE:
• The initialization is normally completed
within 5 to 6 minutes.
• If the initialization has not been completed
successfully, DTC C2177/77 is set after the
vehicle is driven for 20 minutes or more.
• The initialization can be terminated by
connecting terminals TC and CG of the DLC3
connector.
3. CHECK THAT INITIALIZATION HAS BEEN
COMPLETED
(a) Confirm that the data of tire pressure of all tires are
displayed on the intelligent tester screen.
TIRE PRESSURE:
C159182E02
F100115E55
Tester Display Measurement Item/Range Normal Condition Diagnostic Note
TIREPRESS1ID1 tire inflation pressure (Absolute
pressure) /
min.: 100 kPa (1 kgf/cm
2, 14 psi)
max.: 449.35 kPa (4.5 kgf/cm2, 63 psi)Actual tire inflation pressureIf 100 kPa (1 kgf/cm
2, 14 psi) for
absolute pressure is displayed, the
data has not been received.*
TIREPRESS2ID2 tire inflation pressure (Absolute
pressure) /
min.: 100 kPa (1 kgf/cm
2, 14 psi)
max.: 449.35 kPa (4.5 kgf/cm2, 63 psi)Actual tire inflation pressureIf 100 kPa (1 kgf/cm
2, 14 psi) for
absolute pressure is displayed, the
data has not been received.*
