Page 2273 of 3000
TIRE AND WHEEL – TIRE PRESSURE WARNING SYSTEMTW–23
TW
3. CONFIRMATION OF TRANSMITTER ID
REGISTRATION
(a) Make sure that the ignition switch is off.
(b) Connect the intelligent tester to DLC3.
(c) Turn the ignition switch to the ON position.
(d) Select "TIREPRESS" by following the prompts
displayed on the intelligent tester.
(e) Confirm that the data of tire pressure of all tires are
displayed on the intelligent tester screen.
NOTICE:
• It may take about 5 to 6 minutes to update the
tire pressure data.
• If the IDs have not been registered, DTC
C2171/71 is set in the tire pressure warning
ECU after 3 minutes or more.
F101083E01
Page 2274 of 3000
TW–24TIRE AND WHEEL – TIRE PRESSURE WARNING SYSTEM
TW
• If normal pressure values are displayed, the
IDs have been registered correctly.
• If the tire pressure values are not displayed
after several minutes, the IDs may be
incorrect or the system may have a
malfunction.
Page 2275 of 3000

TW–28TIRE AND WHEEL – TIRE PRESSURE WARNING SYSTEM
TW
TEST MODE PROCEDURE
1. ENTER TEST MODE
HINT:
• Operation of the tire pressure warning reset switch
can be checked in TEST MODE.
• During TEST MODE, the system is not initialized by
pushing the tire pressure warning reset switch. The
circuit of the tire pressure warning reset switch can be
inspected during this mode.
(a) Make sure that the ignition switch is off.
(b) Connect the intelligent tester to DLC3.
(c) Turn the ignition switch to the ON position.
(d) Check that the tire pressure warning light comes on
for 3 seconds and then goes off.

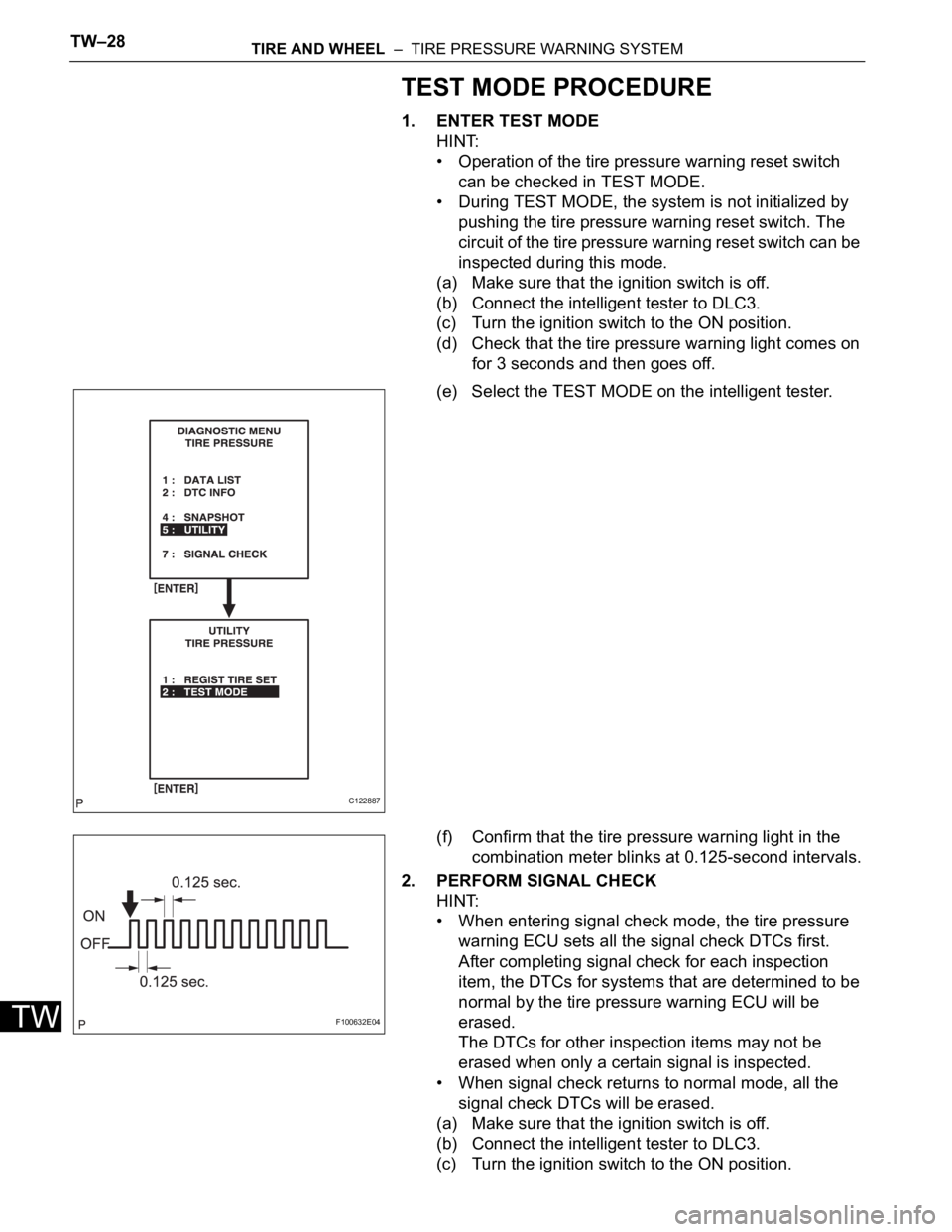

(e) Select the TEST MODE on the intelligent tester.
(f) Confirm that the tire pressure warning light in the
combination meter blinks at 0.125-second intervals.
2. PERFORM SIGNAL CHECK
HINT:
• When entering signal check mode, the tire pressure
warning ECU sets all the signal check DTCs first.
After completing signal check for each inspection
item, the DTCs for systems that are determined to be
normal by the tire pressure warning ECU will be
erased.
The DTCs for other inspection items may not be
erased when only a certain signal is inspected.
• When signal check returns to normal mode, all the
signal check DTCs will be erased.
(a) Make sure that the ignition switch is off.
(b) Connect the intelligent tester to DLC3.
(c) Turn the ignition switch to the ON position.
C122887
F100632E04
Page 2276 of 3000

TIRE AND WHEEL – TIRE PRESSURE WARNING SYSTEMTW–29
TW

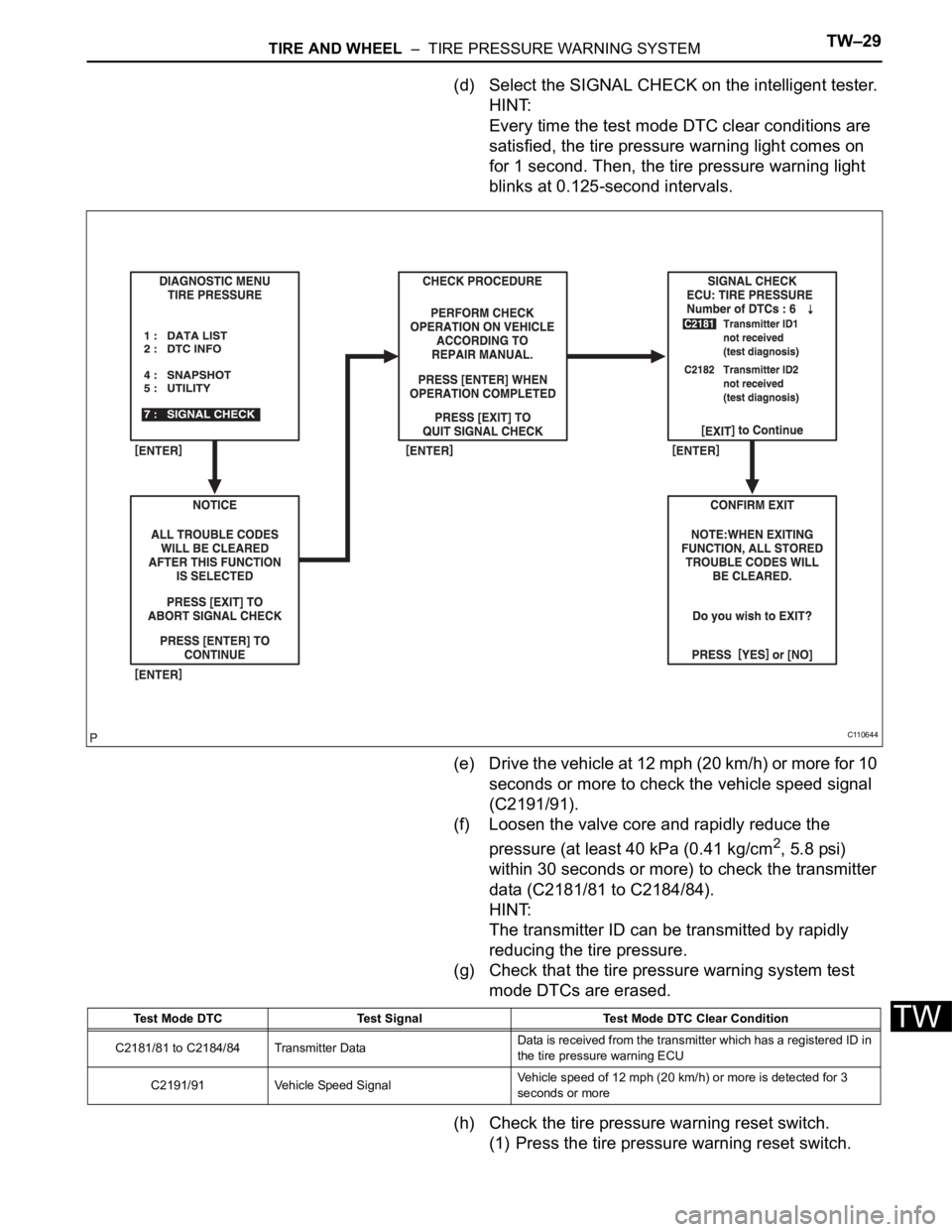

(d) Select the SIGNAL CHECK on the intelligent tester.
HINT:
Every time the test mode DTC clear conditions are
satisfied, the tire pressure warning light comes on
for 1 second. Then, the tire pressure warning light
blinks at 0.125-second intervals.
(e) Drive the vehicle at 12 mph (20 km/h) or more for 10
seconds or more to check the vehicle speed signal
(C2191/91).
(f) Loosen the valve core and rapidly reduce the
pressure (at least 40 kPa (0.41 kg/cm
2, 5.8 psi)
within 30 seconds or more) to check the transmitter
data (C2181/81 to C2184/84).
HINT:
The transmitter ID can be transmitted by rapidly
reducing the tire pressure.
(g) Check that the tire pressure warning system test
mode DTCs are erased.
(h) Check the tire pressure warning reset switch.
(1) Press the tire pressure warning reset switch.
C110644
Test Mode DTC Test Signal Test Mode DTC Clear Condition
C2181/81 to C2184/84 Transmitter DataData is received from the transmitter which has a registered ID in
the tire pressure warning ECU
C2191/91 Vehicle Speed SignalVehicle speed of 12 mph (20 km/h) or more is detected for 3
seconds or more
Page 2277 of 3000

TW–30TIRE AND WHEEL – TIRE PRESSURE WARNING SYSTEM
TW
(2) Check the tire pressure warning indicator light.
(i) Result
HINT:
After the signal check is completed, check for a
signal check DTC to confirm the system status.
(j) End of SIGNAL CHECK
After completing the test mode (SIGNAL CHECK),
turn the ignition switch off and disconnect the tester.
DTC of SIGNAL CHECK (TEST DIAGNOSIS)
function:
If a trouble code is displayed during the test mode
DTC check, check the circuit listed for that code. For
details of each code, refer to the relevant page listed
under respective "DTC No." in the chart.
Test Signal Normal Condition
Tire Pressure Warning Reset Switch• Switch ON: TPWS indicator comes on
• Switch OFF: TPWS indicator blinks at 0.125
Condition Procedure
SIGNAL CHECK DTC is output Repair the faulty part and enter SIGNAL CHECK again
SIGNAL CHECK DTCs are cleared No problem
DTC No. Detection Item Trouble Area See procedure
C2181/81 Transmitter ID1 not received• Tire pressure warning valve and transmitter
• Tire pressure warning antenna and receiver
• Wire harness or connector
• Tire pressure warning ECUTW-42
C2182/82 Transmitter ID2 not received• Tire pressure warning valve and transmitter
• Tire pressure warning antenna and receiver
• Wire harness or connector
• Tire pressure warning ECUTW-42
C2183/83 Transmitter ID3 not received• Tire pressure warning valve and transmitter
• Tire pressure warning antenna and receiver
• Wire harness or connector
• Tire pressure warning ECUTW-42
C2184/84 Transmitter ID4 not received• Tire pressure warning valve and transmitter
• Tire pressure warning antenna and receiver
• Wire harness or connector
• Tire pressure warning ECUTW-42
C2191/91 Vehicle speed signal error• Vehicle speed sensor
• Combination meter assembly
• Wire harness or connector
• Tire pressure warning ECUTW-70
Page 2278 of 3000

TIRE AND WHEEL – TIRE PRESSURE WARNING SYSTEMTW–31
TW
PROBLEM SYMPTOMS TABLE
HINT:
• Use the table below to help determine the cause of the
problem symptom. The potential causes of the symptoms
are listed in order of probability in the "Suspected Area"
column of the table. Check each symptom by checking the
suspected areas in the order they are listed. Replace parts
as necessary.
• Inspect the fuses and relays related to this system before
inspecting the suspected areas below.
TIRE PRESSURE WARNING SYSTEM:
Symptom Suspected Area See page
Tire pressure warning light does not illuminate, despite
tire pressure decreasingInitializationTW-23
Check DATA LIST (Tire inflation pressure)TW-35
ID code check (Registration)TW-20
Tire pressure warning light illuminated (Goes off during
initial check)ECU power source circuitTW-77
Tire pressure warning light circuitTW-74
Tire pressure warning light illuminated (Comes on
during initial check)Check DATA LIST (Tire inflation pressure)TW-35
Tire pressure warning light circuitTW-74
ID code check (Registration)TW-20
Initialization cannot be done Tire pressure reset switch circuitTW-72
DTC check cannot be doneECU power source circuitTW-77
TC and CG terminal circuitTW-79
Page 2279 of 3000

TW–32TIRE AND WHEEL – TIRE PRESSURE WARNING SYSTEM
TW

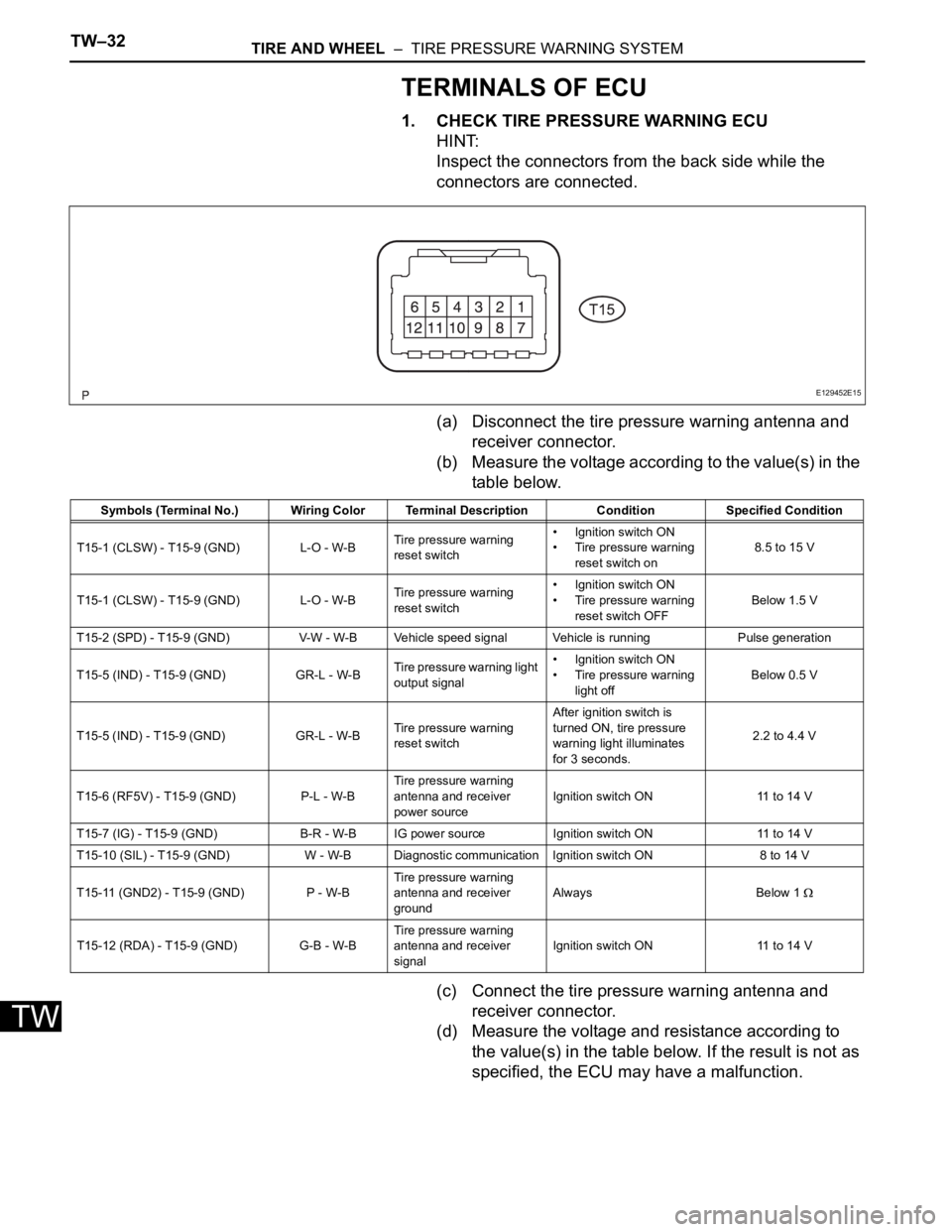

TERMINALS OF ECU
1. CHECK TIRE PRESSURE WARNING ECU
HINT:
Inspect the connectors from the back side while the
connectors are connected.
(a) Disconnect the tire pressure warning antenna and
receiver connector.
(b) Measure the voltage according to the value(s) in the
table below.
(c) Connect the tire pressure warning antenna and
receiver connector.
(d) Measure the voltage and resistance according to
the value(s) in the table below. If the result is not as
specified, the ECU may have a malfunction.
E129452E15
Symbols (Terminal No.) Wiring Color Terminal Description ConditionSpecified Condition
T15-1 (CLSW) - T15-9 (GND) L-O - W-BTire pressure warning
reset switch• Ignition switch ON
• Tire pressure warning
reset switch on8.5 to 15 V
T15-1 (CLSW) - T15-9 (GND) L-O - W-BTire pressure warning
reset switch• Ignition switch ON
• Tire pressure warning
reset switch OFFBelow 1.5 V
T15-2 (SPD) - T15-9 (GND) V-W - W-B Vehicle speed signal Vehicle is running Pulse generation
T15-5 (IND) - T15-9 (GND) GR-L - W-BTire pressure warning light
output signal• Ignition switch ON
• Tire pressure warning
light offBelow 0.5 V
T15-5 (IND) - T15-9 (GND) GR-L - W-BTire pressure warning
reset switchAfter ignition switch is
turned ON, tire pressure
warning light illuminates
for 3 seconds.2.2 to 4.4 V
T15-6 (RF5V) - T15-9 (GND) P-L - W-BTire pressure warning
antenna and receiver
power sourceIgnition switch ON 11 to 14 V
T15-7 (IG) - T15-9 (GND) B-R - W-B IG power source Ignition switch ON 11 to 14 V
T15-10 (SIL) - T15-9 (GND) W - W-B Diagnostic communication Ignition switch ON 8 to 14 V
T15-11 (GND2) - T15-9 (GND) P - W-BTire pressure warning
antenna and receiver
groundAlways Below 1
T15-12 (RDA) - T15-9 (GND) G-B - W-BTire pressure warning
antenna and receiver
signalIgnition switch ON 11 to 14 V
Page 2280 of 3000
TIRE AND WHEEL – TIRE PRESSURE WARNING SYSTEMTW–33
TW

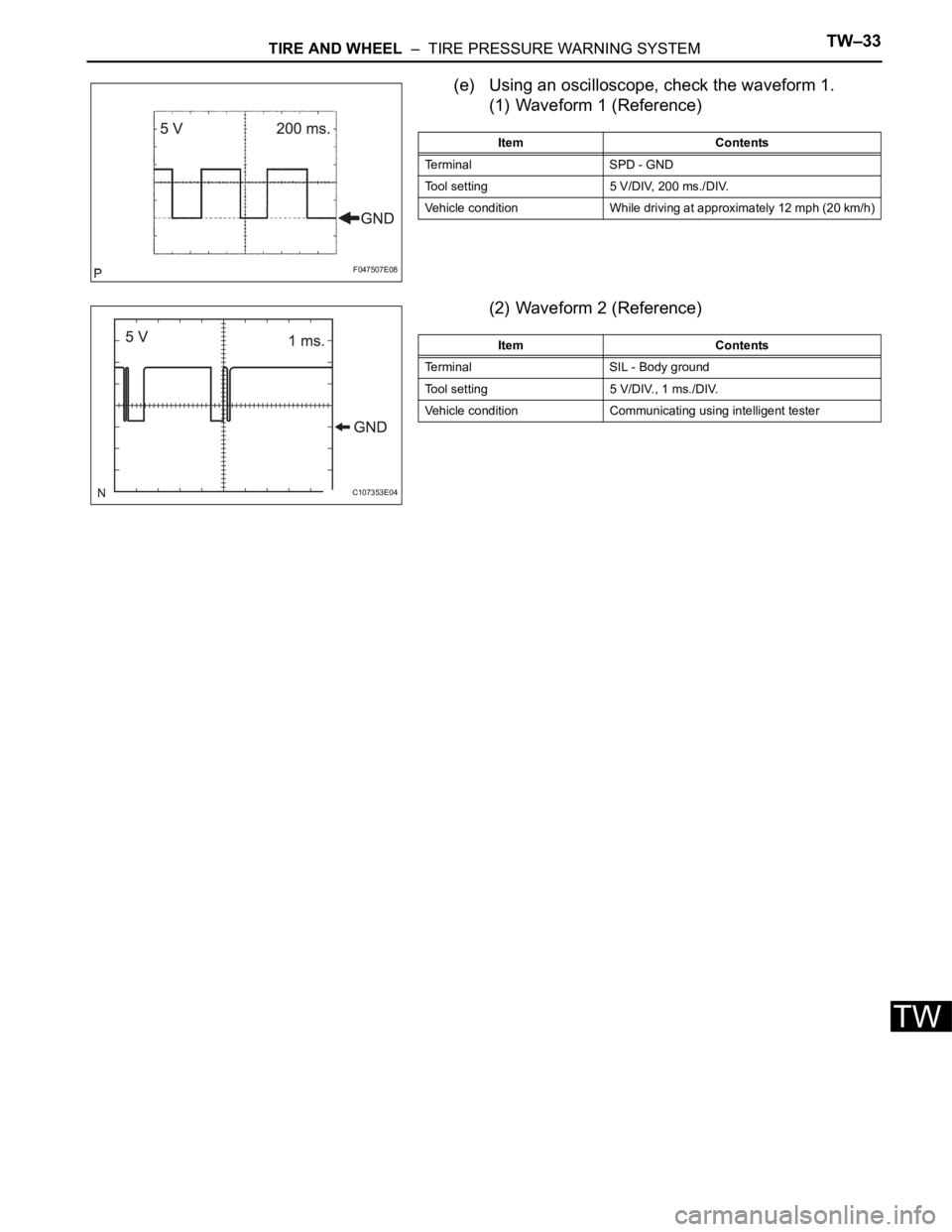

(e) Using an oscilloscope, check the waveform 1.
(1) Waveform 1 (Reference)
(2) Waveform 2 (Reference)
F047507E08
Item Contents
Terminal SPD - GND
Tool setting 5 V/DIV, 200 ms./DIV.
Vehicle condition While driving at approximately 12 mph (20 km/h)
C107353E04
Item Contents
Terminal SIL - Body ground
Tool setting 5 V/DIV., 1 ms./DIV.
Vehicle condition Communicating using intelligent tester
