Page 1273 of 3000
2GR-FE COOLING – COOLING FAN MOTORCO–19
CO
COOLING FAN MOTOR
ON-VEHICLE INSPECTION
1. NO. 1 COOLING FAN MOTOR
(a) Check that the motor turns smoothly when the
battery is connected to the fan motor connector.
(b) Measure the current while the motor is turning.
Standard current:
11.8 to 14.8 A at 20
C (68F)
If the result is not as specified, replace the No. 1
cooling fan motor.
2. NO. 2 COOLING FAN MOTOR
(a) Check that the motor turns smoothly when the
battery is connected to the fan motor connector.
(b) Measure the current while the motor is turning.
Standard current:
9 to 11 A at 20
C (68F)
If the result is not as specified, replace the No. 2
cooling fan motor.
A110242E05
A110241E05
Page 1274 of 3000
2GR-FE COOLING – RADIATORCO–29
CO
REMOVAL
1. REMOVE V-BANK COVER SUB-ASSEMBLY (See
page EM-28)
2. REMOVE NO. 1 ENGINE UNDER COVER (See page
EM-26)
3. DRAIN ENGINE COOLANT (See page CO-6)
4. REMOVE NO. 2 AIR CLEANER INLET (See page EM-
28)
5. REMOVE BATTERY (See page EM-26)
6. REMOVE FRONT BUMPER ASSEMBLY (See page
ET-3)
7. REMOVE FRONT BUMPER ENERGY ABSORBER
8. REMOVE NO. 1 AIR CLEANER INLET (See page EM-
28)

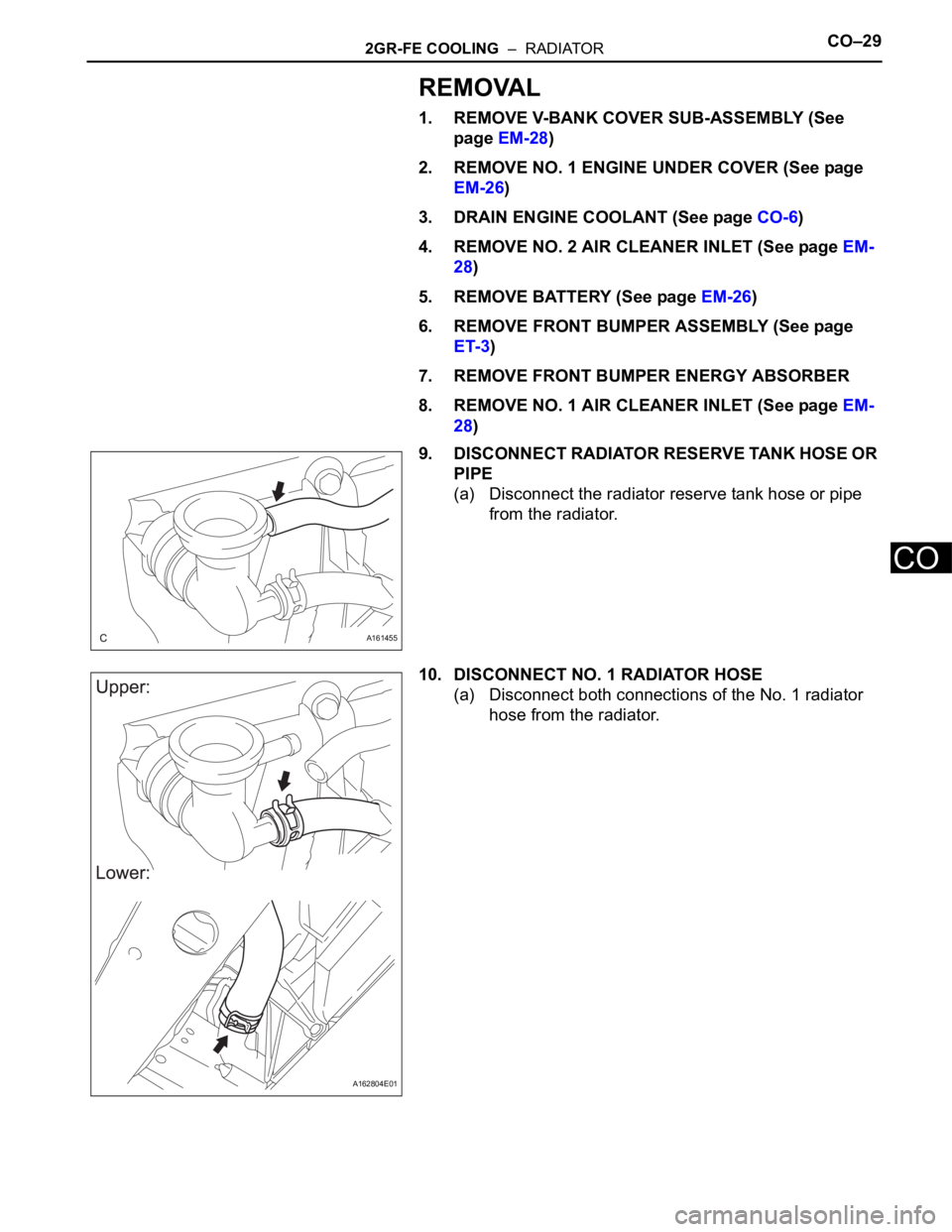

9. DISCONNECT RADIATOR RESERVE TANK HOSE OR
PIPE
(a) Disconnect the radiator reserve tank hose or pipe
from the radiator.
10. DISCONNECT NO. 1 RADIATOR HOSE
(a) Disconnect both connections of the No. 1 radiator
hose from the radiator.
A161455
A162804E01
Page 1275 of 3000
CO–302GR-FE COOLING – RADIATOR
CO

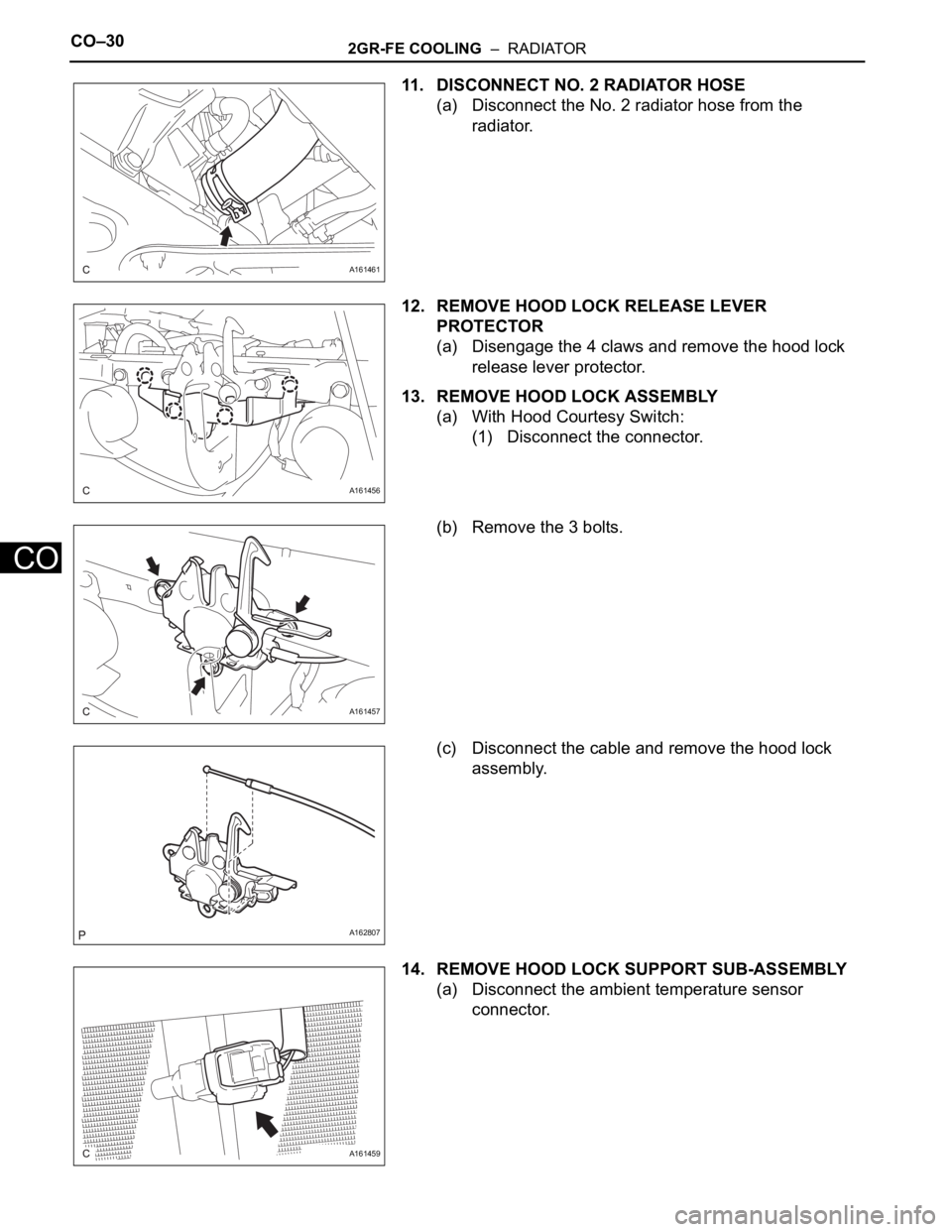

11. DISCONNECT NO. 2 RADIATOR HOSE
(a) Disconnect the No. 2 radiator hose from the
radiator.
12. REMOVE HOOD LOCK RELEASE LEVER
PROTECTOR
(a) Disengage the 4 claws and remove the hood lock
release lever protector.
13. REMOVE HOOD LOCK ASSEMBLY
(a) With Hood Courtesy Switch:
(1) Disconnect the connector.
(b) Remove the 3 bolts.
(c) Disconnect the cable and remove the hood lock
assembly.
14. REMOVE HOOD LOCK SUPPORT SUB-ASSEMBLY
(a) Disconnect the ambient temperature sensor
connector.
A161461
A161456
A161457
A162807
A161459
Page 1276 of 3000
2GR-FE COOLING – RADIATORCO–31
CO

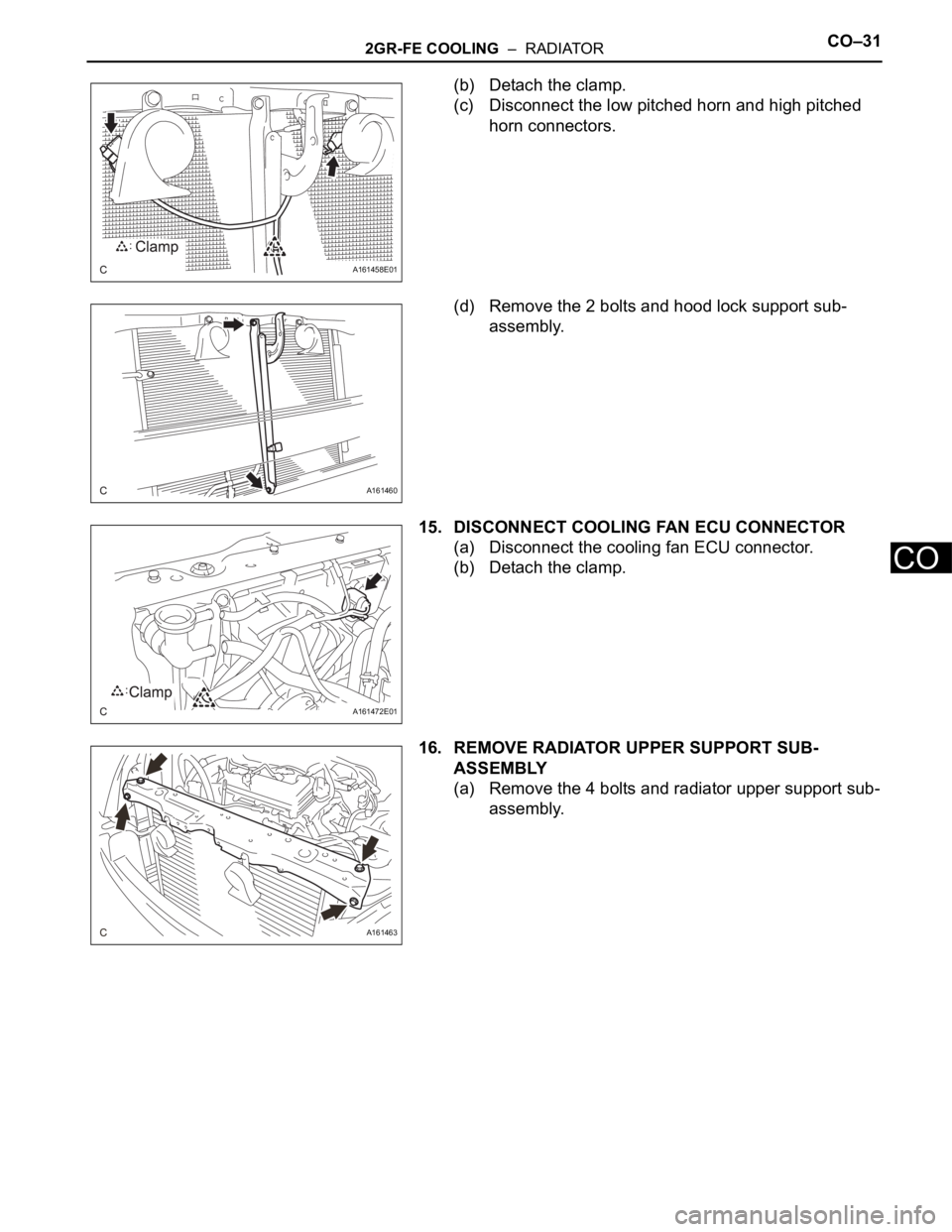

(b) Detach the clamp.
(c) Disconnect the low pitched horn and high pitched
horn connectors.
(d) Remove the 2 bolts and hood lock support sub-
assembly.
15. DISCONNECT COOLING FAN ECU CONNECTOR
(a) Disconnect the cooling fan ECU connector.
(b) Detach the clamp.
16. REMOVE RADIATOR UPPER SUPPORT SUB-
ASSEMBLY
(a) Remove the 4 bolts and radiator upper support sub-
assembly.
A161458E01
A161460
A161472E01
A161463
Page 1277 of 3000
CO–322GR-FE COOLING – RADIATOR
CO

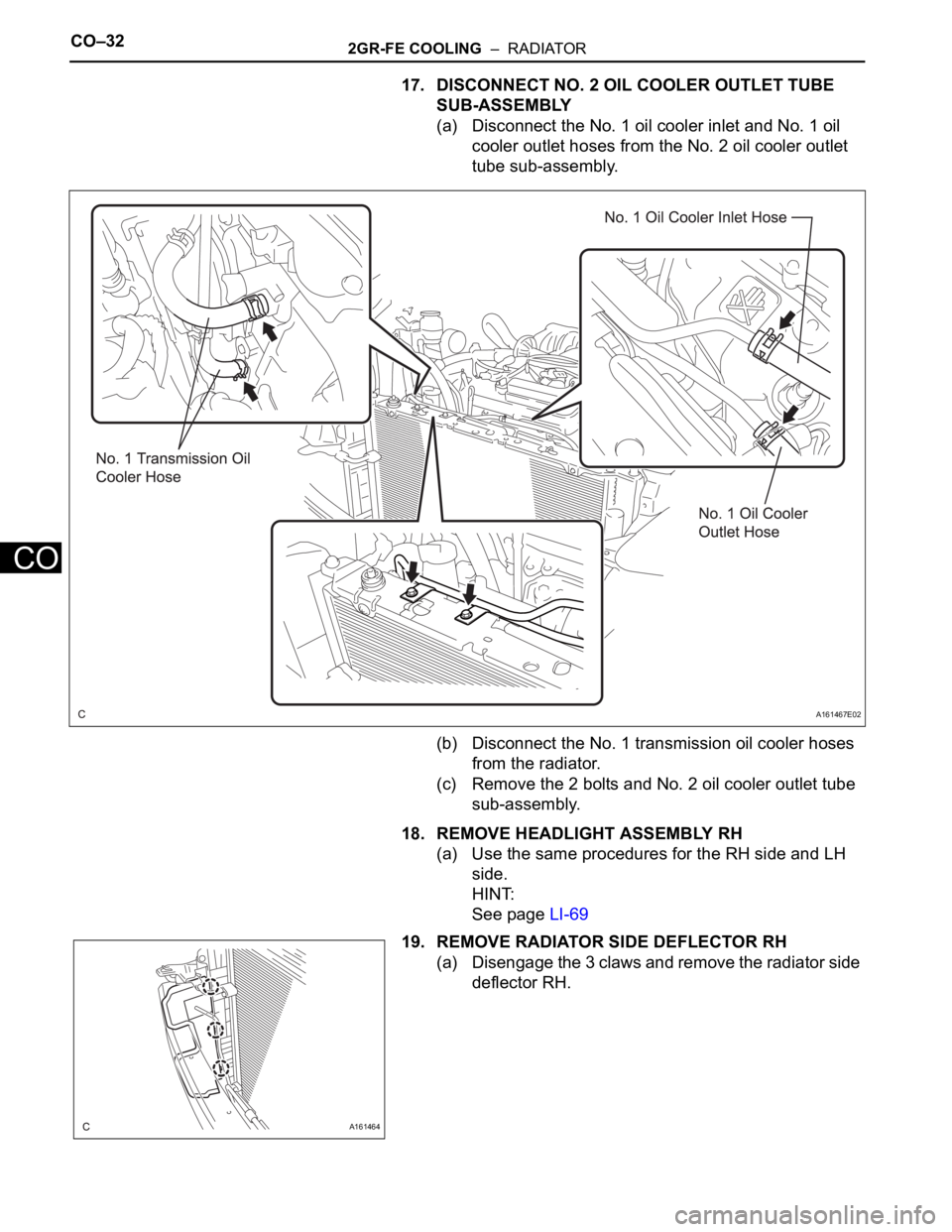

17. DISCONNECT NO. 2 OIL COOLER OUTLET TUBE
SUB-ASSEMBLY
(a) Disconnect the No. 1 oil cooler inlet and No. 1 oil
cooler outlet hoses from the No. 2 oil cooler outlet
tube sub-assembly.
(b) Disconnect the No. 1 transmission oil cooler hoses
from the radiator.
(c) Remove the 2 bolts and No. 2 oil cooler outlet tube
sub-assembly.
18. REMOVE HEADLIGHT ASSEMBLY RH
(a) Use the same procedures for the RH side and LH
side.
HINT:
See page LI-69
19. REMOVE RADIATOR SIDE DEFLECTOR RH
(a) Disengage the 3 claws and remove the radiator side
deflector RH.
A161467E02
A161464
Page 1278 of 3000
2GR-FE COOLING – RADIATORCO–33
CO

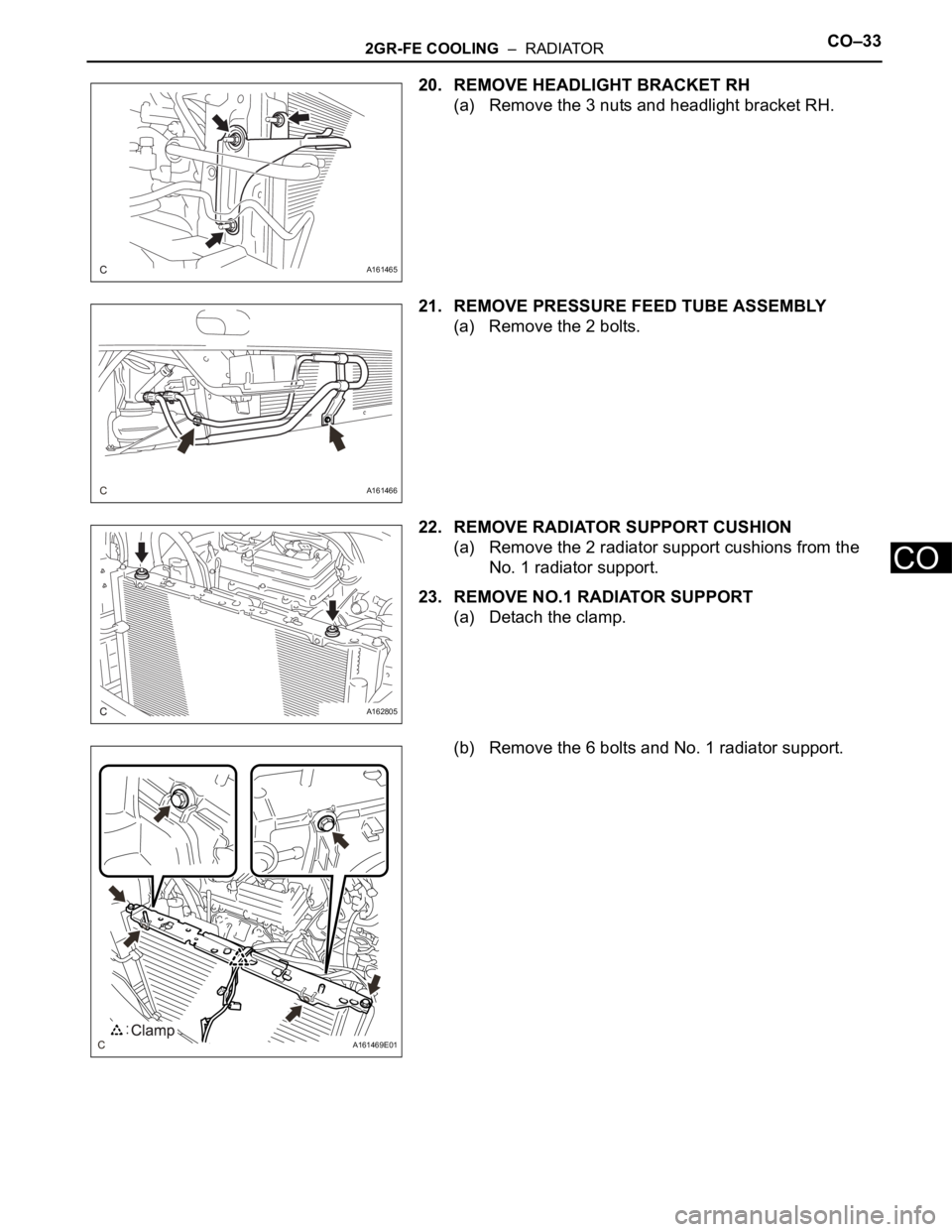

20. REMOVE HEADLIGHT BRACKET RH
(a) Remove the 3 nuts and headlight bracket RH.
21. REMOVE PRESSURE FEED TUBE ASSEMBLY
(a) Remove the 2 bolts.
22. REMOVE RADIATOR SUPPORT CUSHION
(a) Remove the 2 radiator support cushions from the
No. 1 radiator support.
23. REMOVE NO.1 RADIATOR SUPPORT
(a) Detach the clamp.
(b) Remove the 6 bolts and No. 1 radiator support.
A161465
A161466
A162805
A161469E01
Page 1279 of 3000
CO–342GR-FE COOLING – RADIATOR
CO

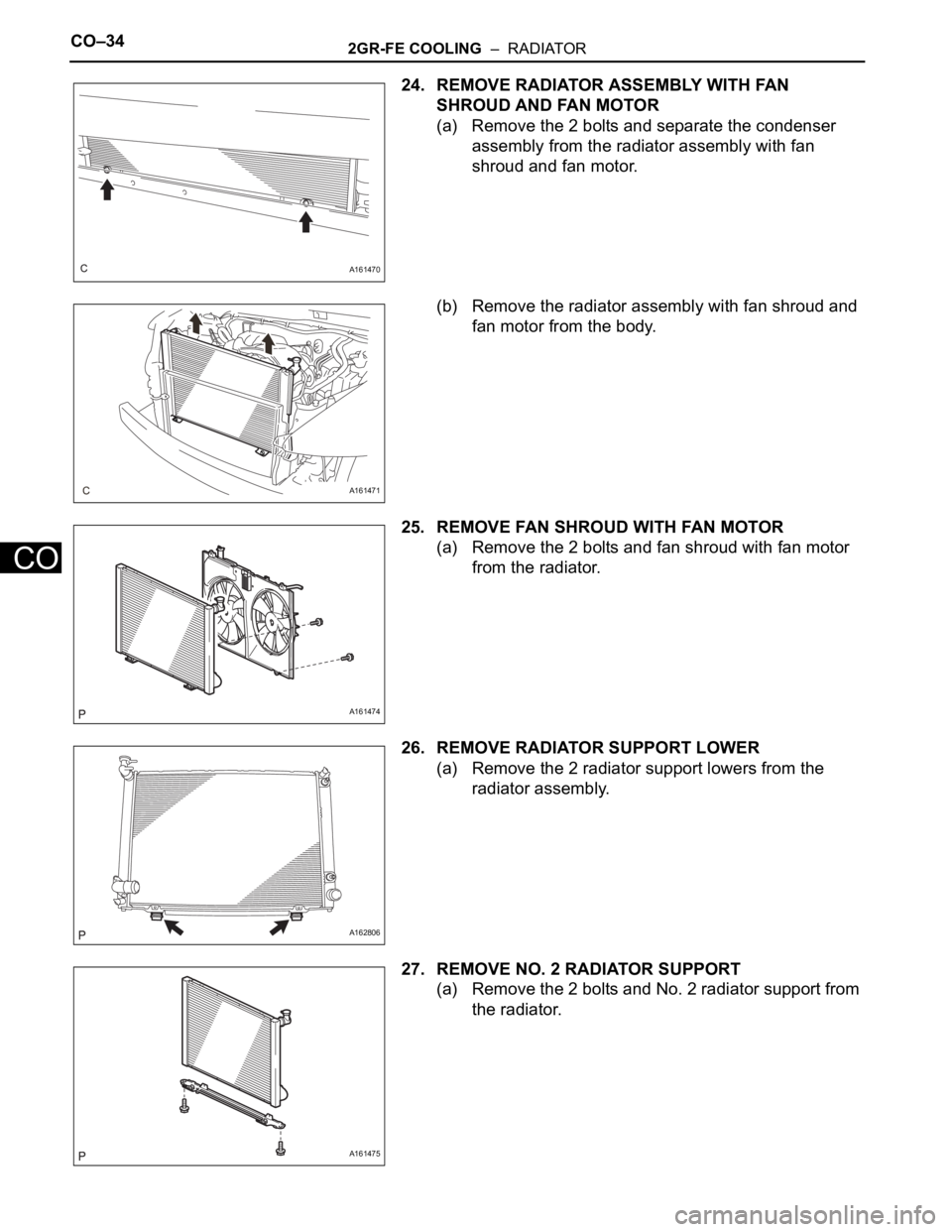

24. REMOVE RADIATOR ASSEMBLY WITH FAN
SHROUD AND FAN MOTOR
(a) Remove the 2 bolts and separate the condenser
assembly from the radiator assembly with fan
shroud and fan motor.
(b) Remove the radiator assembly with fan shroud and
fan motor from the body.
25. REMOVE FAN SHROUD WITH FAN MOTOR
(a) Remove the 2 bolts and fan shroud with fan motor
from the radiator.
26. REMOVE RADIATOR SUPPORT LOWER
(a) Remove the 2 radiator support lowers from the
radiator assembly.
27. REMOVE NO. 2 RADIATOR SUPPORT
(a) Remove the 2 bolts and No. 2 radiator support from
the radiator.
A161470
A161471
A161474
A162806
A161475
Page 1280 of 3000
2GR-FE COOLING – RADIATORCO–35
CO

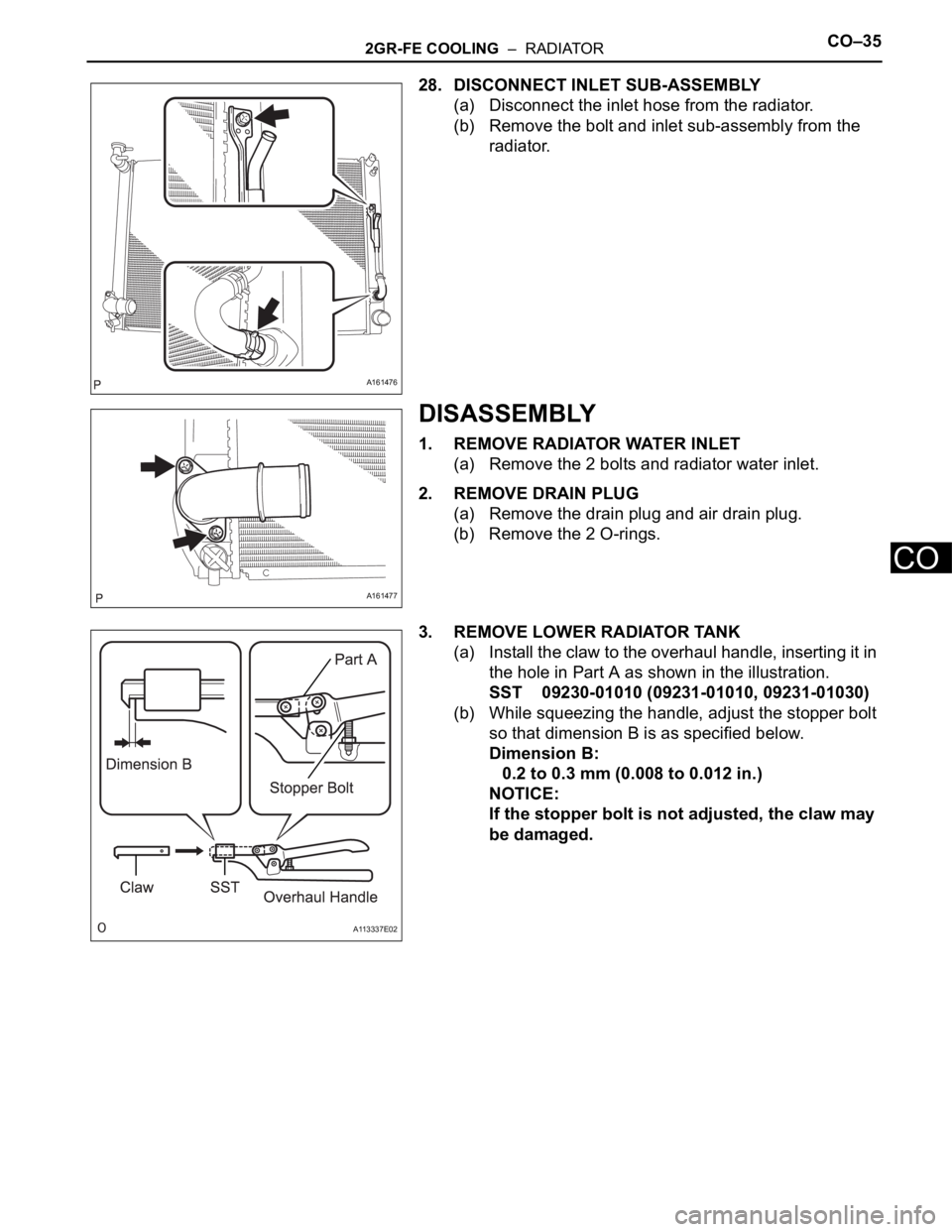

28. DISCONNECT INLET SUB-ASSEMBLY
(a) Disconnect the inlet hose from the radiator.
(b) Remove the bolt and inlet sub-assembly from the
radiator.
DISASSEMBLY
1. REMOVE RADIATOR WATER INLET
(a) Remove the 2 bolts and radiator water inlet.
2. REMOVE DRAIN PLUG
(a) Remove the drain plug and air drain plug.
(b) Remove the 2 O-rings.
3. REMOVE LOWER RADIATOR TANK
(a) Install the claw to the overhaul handle, inserting it in
the hole in Part A as shown in the illustration.
SST 09230-01010 (09231-01010, 09231-01030)
(b) While squeezing the handle, adjust the stopper bolt
so that dimension B is as specified below.
Dimension B:
0.2 to 0.3 mm (0.008 to 0.012 in.)
NOTICE:
If the stopper bolt is not adjusted, the claw may
be damaged.
A161476
A161477
A113337E02
